G01 Compression platens

Back



Description: TH4220-D150-Af159-T280°C  compression platen heated Teflonprotection TH23  Druckplatte mit Heizung

TH4220-D150-Af159-T280



Heatable compression platen



Beheitzbare Druckplatte

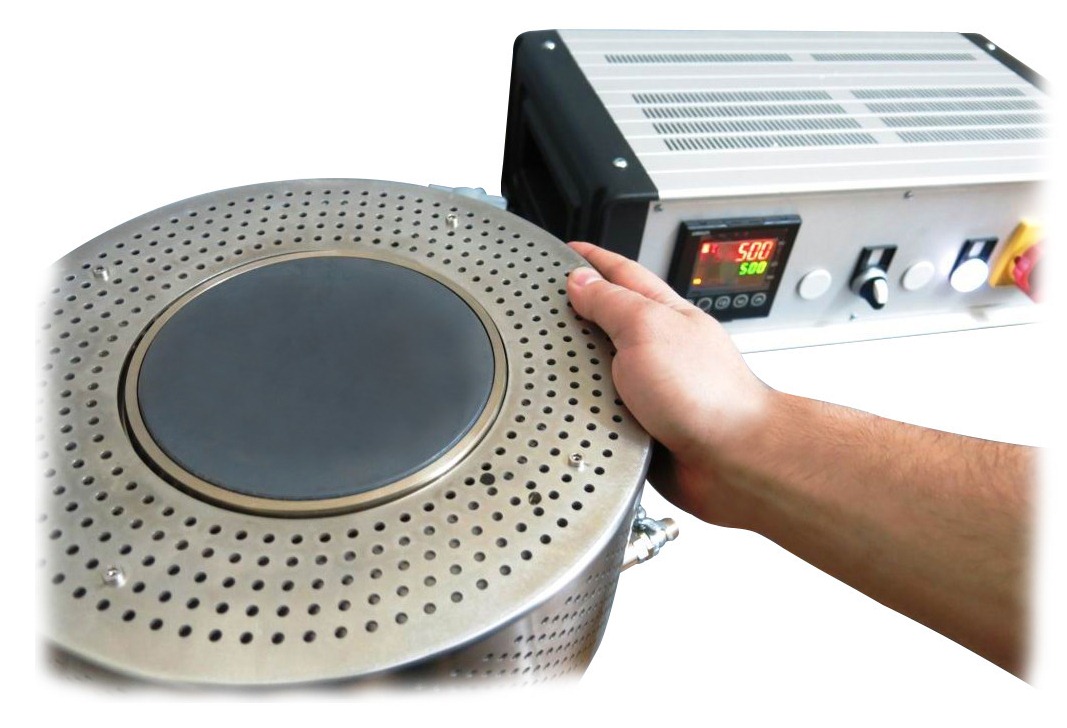

Description: tn_TH4220-T500 20.3.2018 IMG_0055 water cooling active-

TH4220-T500



Heated compression platen diameter 150 mm.   up to 500°C

Temperature Regulator Box 19" Rack

Omron  0.1° RS-485 incl Software to regulate in steps up and down see pdf  http://www.grip.de/G21/software/



Inside ceramic isolation

outside stainless steel cup with 10 mm free distance

water cooling connection

Description: TH4220-D150-2.5kN-500°C-28-05-2018 edied

TH4220-D150-2.5-T500

TH4220-D150-5-T650



Heated compression platen

Diameter 150 mm, max. load 5 kN

Max. temperature +650°C

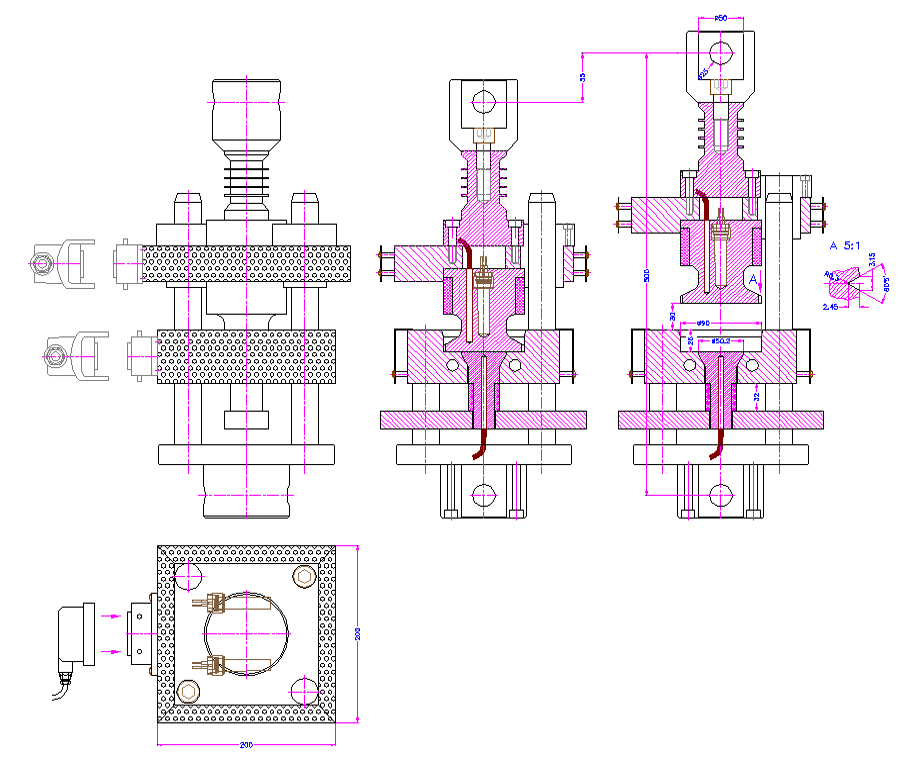

Description: TH4220-D90+gde ISO7808 Thermoset plastics Duroplaste #A9 1

TH4220-D90+gde-ISO7808

Heated compression platens with guides to determine transfer flow of
thermosetting moulding plastics according to DIN EN ISO7808.
Platen diameter 90 mm

Beheizbare Druckplatten mit Führung zur Bestimmung des Transferflusses von
Duraplasten gemäß DIN EN ISO7808.
Plattendurchmesser 90 mm
