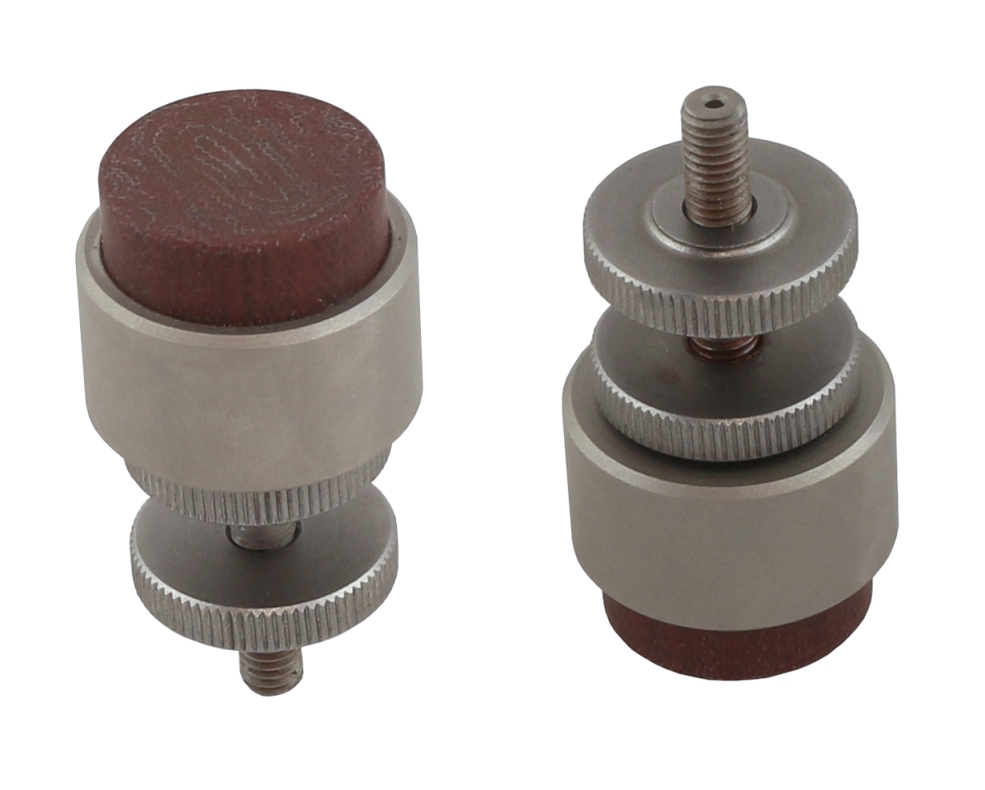

TH23-25x8-AmM6-Phl

Compression platens without centric rings

Special size 25x8 mm Ø
Max. load 100 N

Phenol

Coupling external thread M6

For bottom adapter, see THS814

Beschreibung: Description: Description: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: tn_TH23-028-Af83 36g-

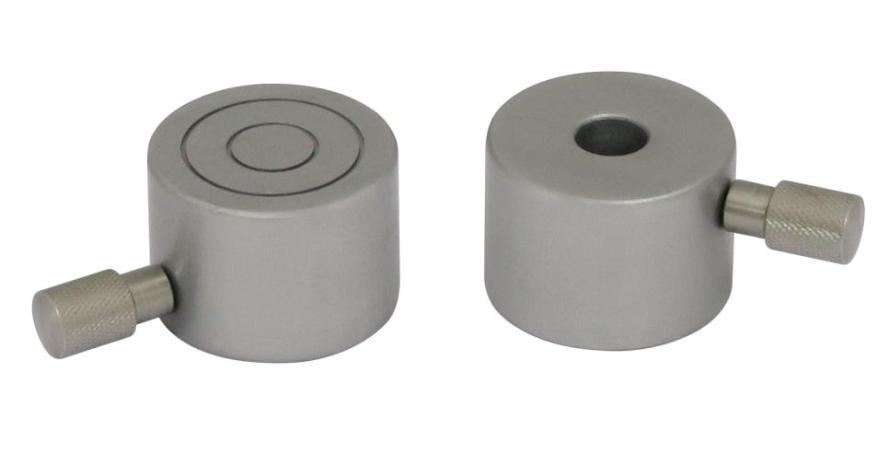

TH23-28-Af8-AL



Small compression platens

Diameter 28 mm
Coupling Af8

Beschreibung: Description: Description: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: tn_TH23-096-Af318-1.2343 008-009

TH23-96-Af318-TiNi



Diameter 96 mm, hardened steel 1.2343

Titanium nitride coating – extremely hard surface, wear-resistant, temperature resistant up to 550°C
Coupling Af318

Beschreibung: Description: Description: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: tn_TH23-116-159-RiN-V2a ring to catch gel Redoks-TK-

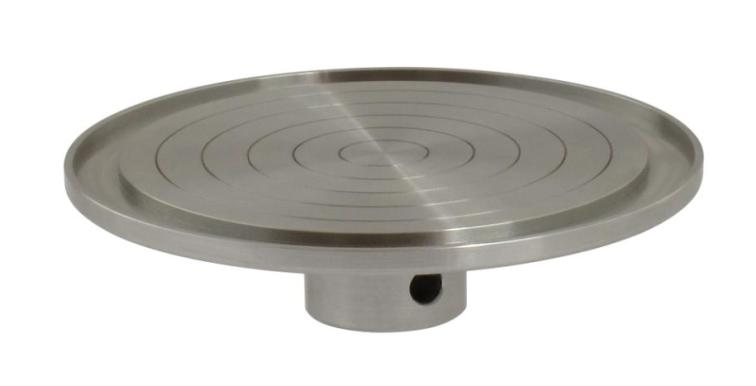

TH23-116-Af159-V2a



With ring to catch gel or water during Compression  for fruit testing

Stainless steel, nickel-Plated
Coupling Af159

Beschreibung: Description: Description: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: tn_TH23-196-Af159-Al-SV 1.2 kg-

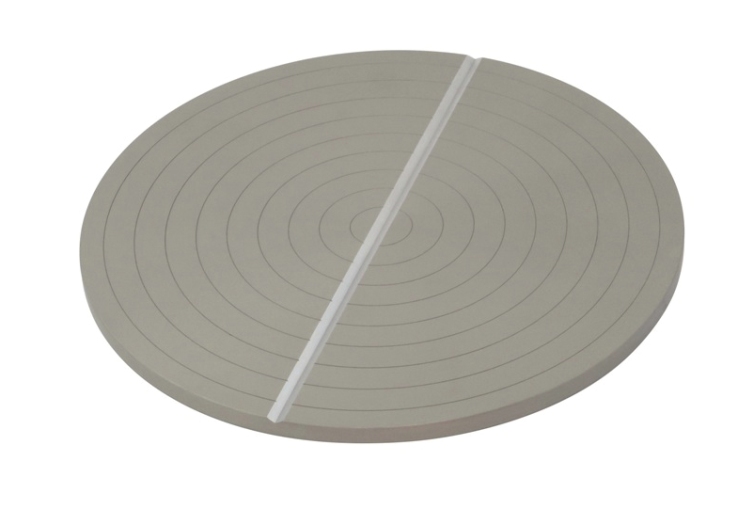

TH23-196-Af159-AL-SV



Aluminium compression Platen

Diameter 196 mm

With V-groove 1.5 mm deep x 120°
Coupling Af159

Beschreibung: Description: Description: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: tn_THS223k-096-Af20-M5 +TH23-96-Af20-ST-M5-

THS223k-096-Af20-M5
+

TH23-96-Af20-ST-M5

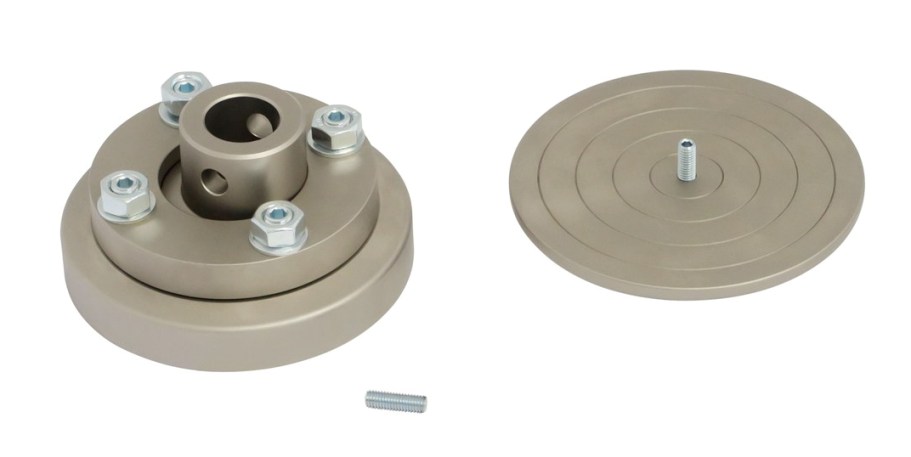

Special compression Platens with additional thread M5 to mount grips

THS223k+TH23-156-Am16-St+THS223k+TH23-56-Am16-St+THS223b+TH23-30-Am16_ASTM-D1621_Rigid_Cellular_Plastics_compression

THS223k+TH23-156-ST
+
THS223k+TH23-56-ST
+
THS223b+TH23-30-Am16



3 pair compression platens, 30 mm,
56 mm, 156 mm Ø

Rigid + self-aligning platens

Suitable for testing compressive properties of rigid cellular plastics according to ASTM-D1621

Coupling Am16

Steel, nickel-plated

Beschreibung: Description: Description: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: tn_TH23-96-Am35-H120-itH6 13h   THS223g-156-Am35

TH23-96-Am35-L120
+
THS223g-156-Am35

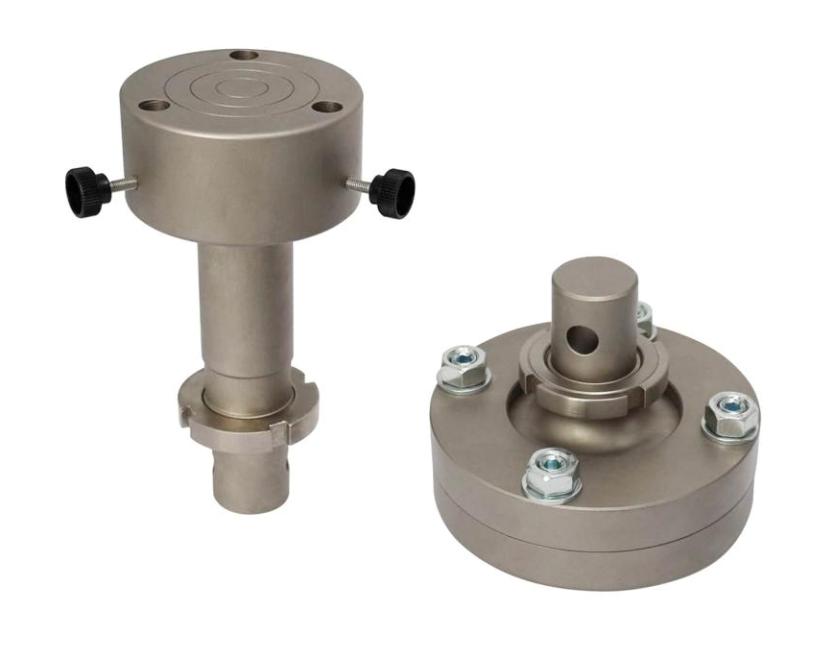

Left:  compression Platen with possibility for 3 LVDT gauging sensor with extra long adapter

Right: moveable compression Platen, ball rotation

Links : Druckplatte mit einer Einbaumöglichkeit für 3 induktive
Taster mit Federrückstellung
Rechts: bewegliche Druckplatte, Kugelpfanne

Beschreibung: Description: Description: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: tn_TH23-156-Am35-H230+ITH6  10kg  08-06-2018  01-

TH23-156-Am50-ith6

Compression Platen

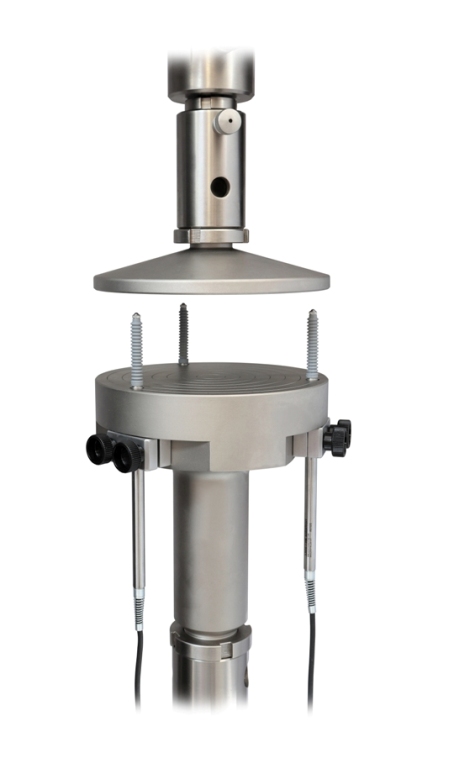

With 3 analogue Contact Gauging Sensors  0..20 mm

more

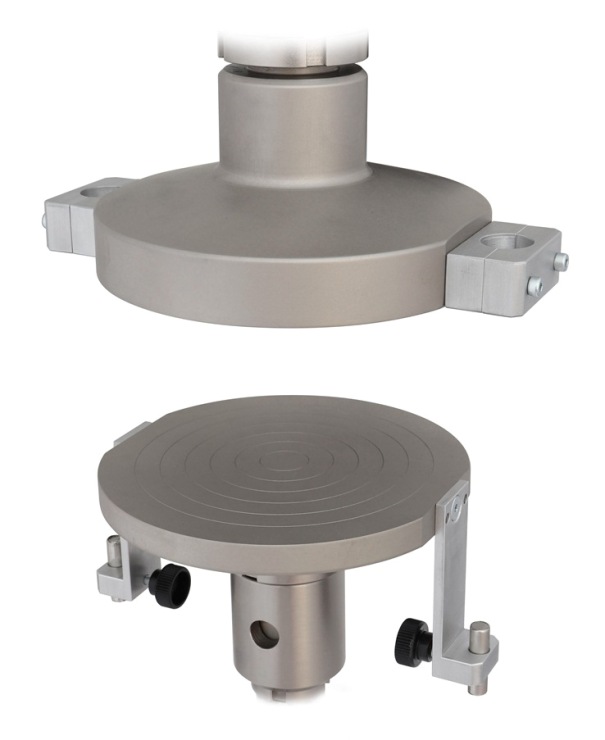

TH23-150-Am3014-ITH6-D21-133

Compression fixture, 150 mm diameter,
With extensometer holder on top Platen
Coupling Am3014



Beschreibung: Description: Description: TH23-Q50-R1-Af20-ST EN61386-1 Conduit systems Compression  920g  2019-03-29  IMG_4947-

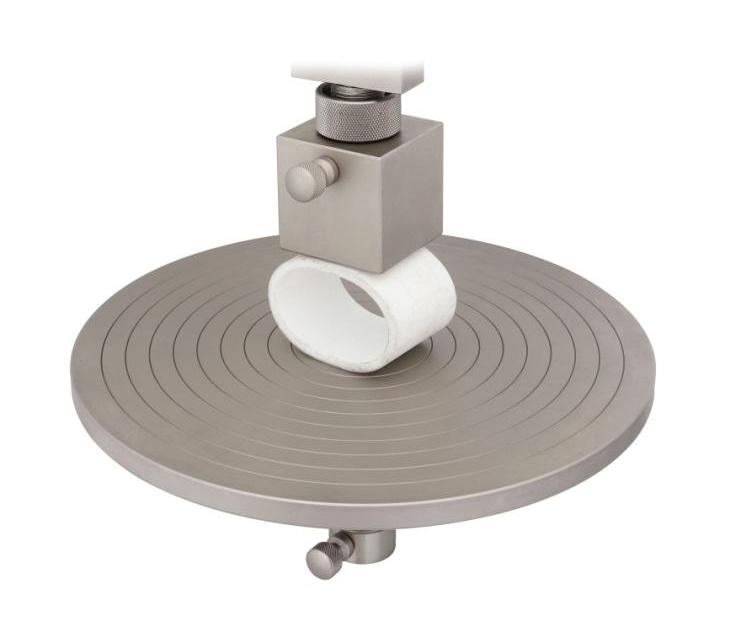

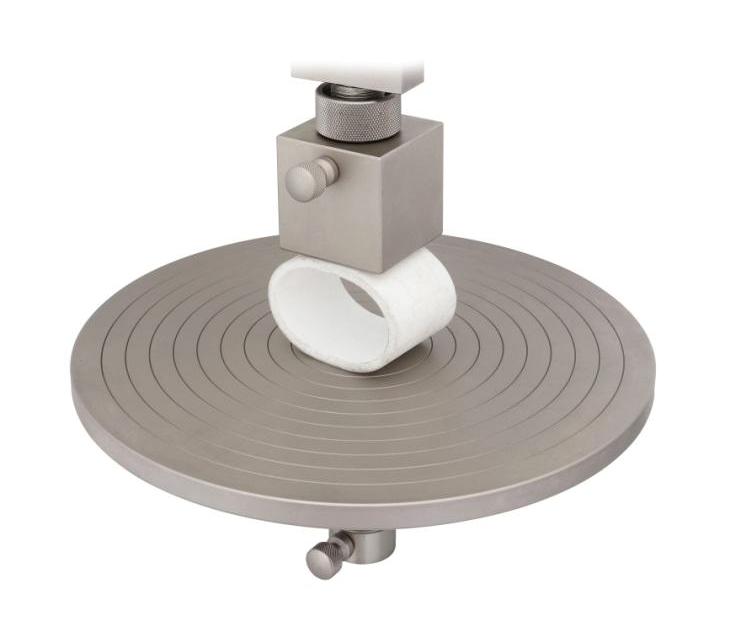

TH23-Q50-R1-Af20-ST



Fixture to test compression properties of

conduit systems for cable management according to DIN EN61386-1, Fig. 1



more

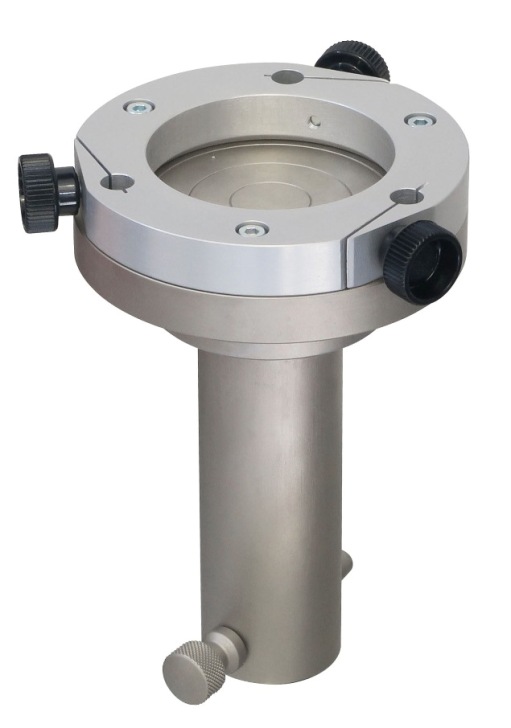

TH23-096-H120-ITH6

Compression Platen, 96 mm Dia
120 mm Height
With holder for extensometer



tn_TH23-220-hdl 24.25kg 7 lower compression pleaten

TH23-220-AZ25M8-hdl

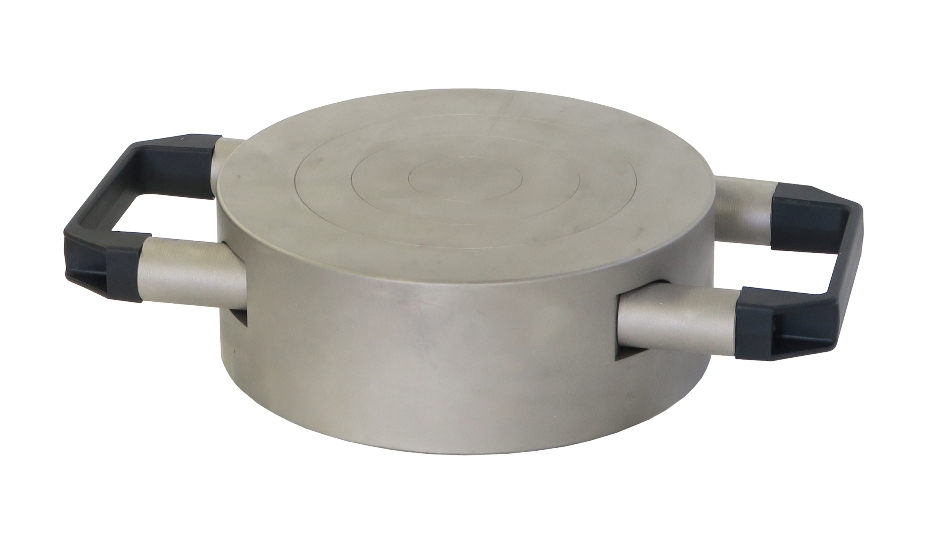

Compression Platen with 2 Handles

Beschreibung: Description: Description: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: tn_TH4220_platen_heated

TH4220-150-T280

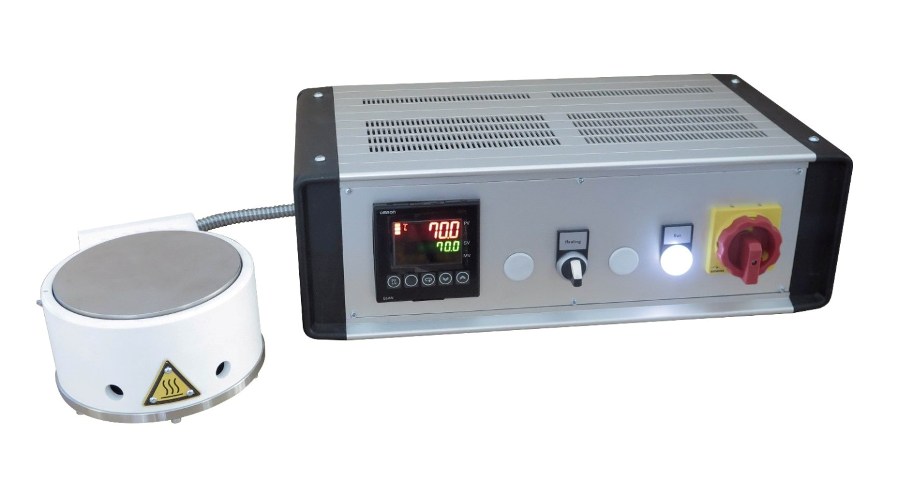

Heated Compression Platen

Max. load 20 kN

Diameter 150 mm
Temperature range up to +280°C



tn_TH4220-D150-2.5kN-500°C-28-05-2018 edied

TH4220-150-T500



Heated compression platen

Max. load 20 kN

Diameter 150 mm

Water cooling
Temperature rang up to 500°C

TH23-212.5-Af603035-St

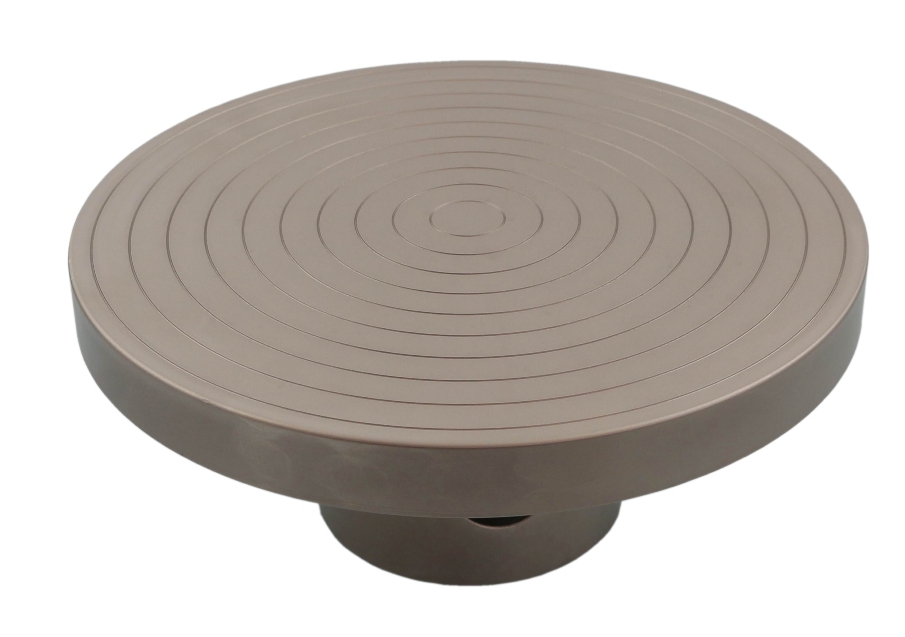

TH23-212.5-Af603035-ST



Steel compression platen

Diameter 212.5 mm

Coupling Af60

TH23-344-Af318-St_2022-07-15

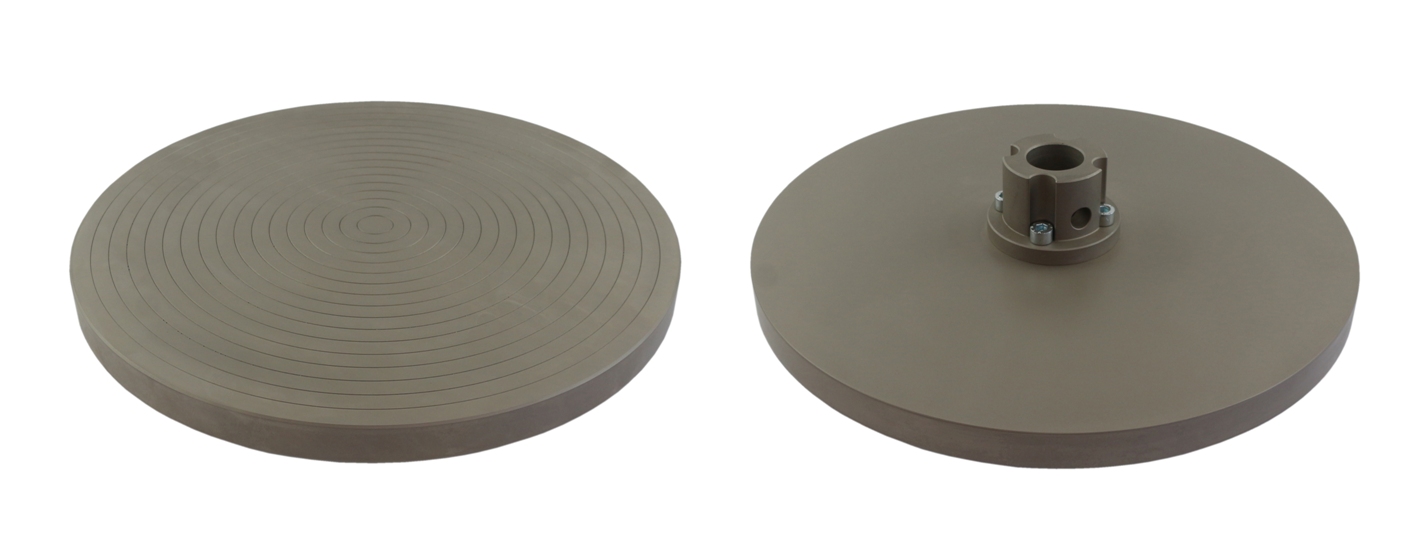

TH23-344-Af318-ST

Special round compressions platens
With centering rings
Diameter 344 mm
Steel, hardened, nickel coated
Coupling Af318

THS223g+TH23-246-Af40-St_2020-08-03k

TH23-246-Af40-St + THS223g

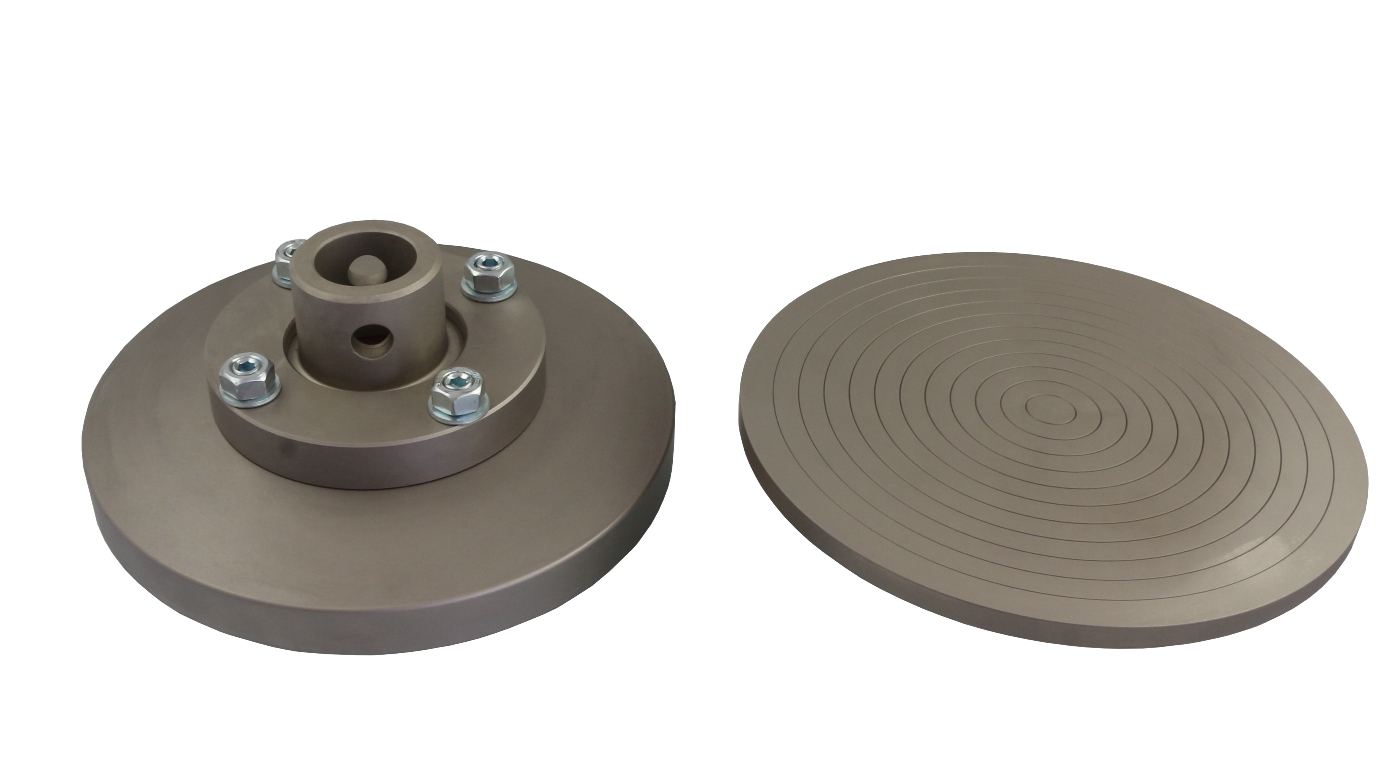

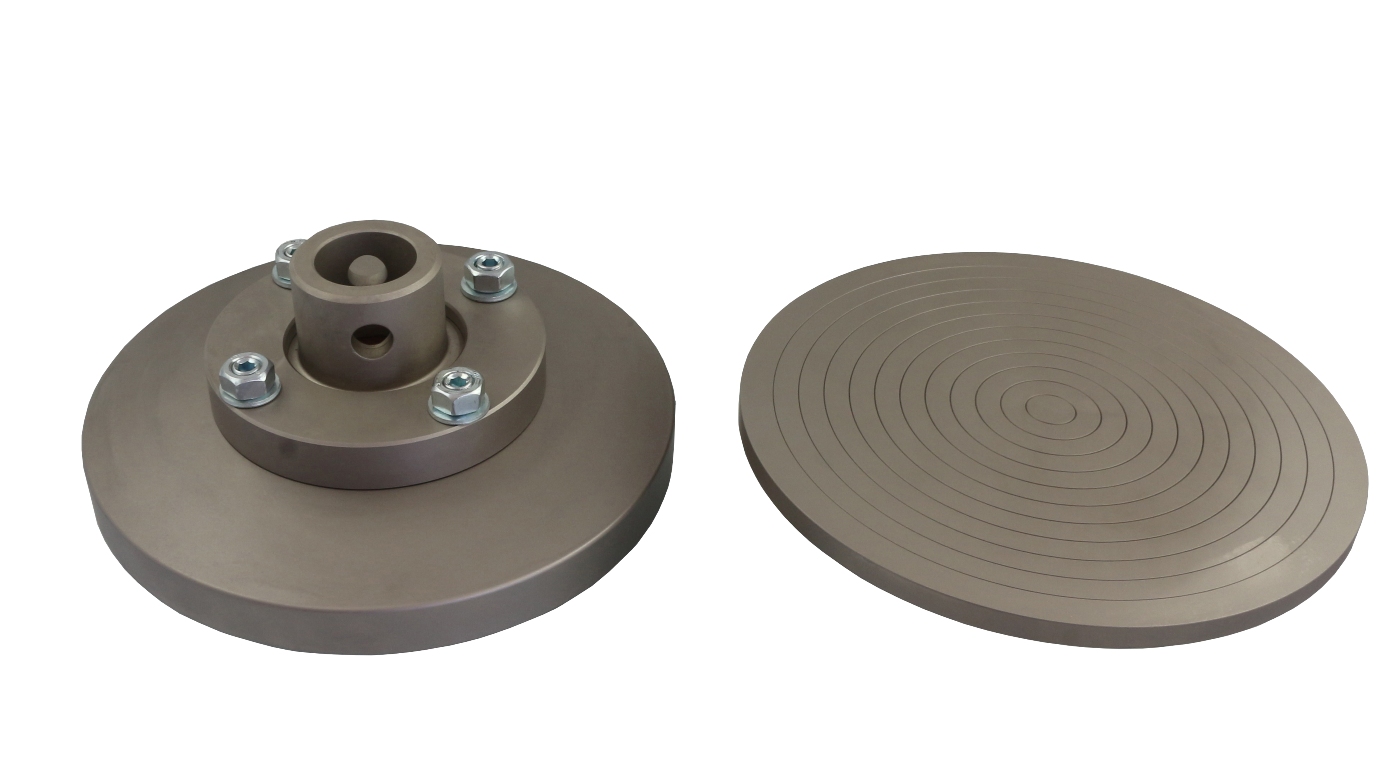

Lower Round compression platens
With centering rings
Special size 246 mm Ø
Steel, hardened, nickel coated
Coupling Af40/16 mm

For the upper platen, see TH23
