F: flat top / flache Spitze
	THS42-F2.5x13-50-Af159 Special compression probe Flat probe tip 2.5 mm Ø, 13 mm 50 mm probe length without adapter part Coupling Af159 THS42 Datasheet.pdf THS42 Datenblatt.pdf

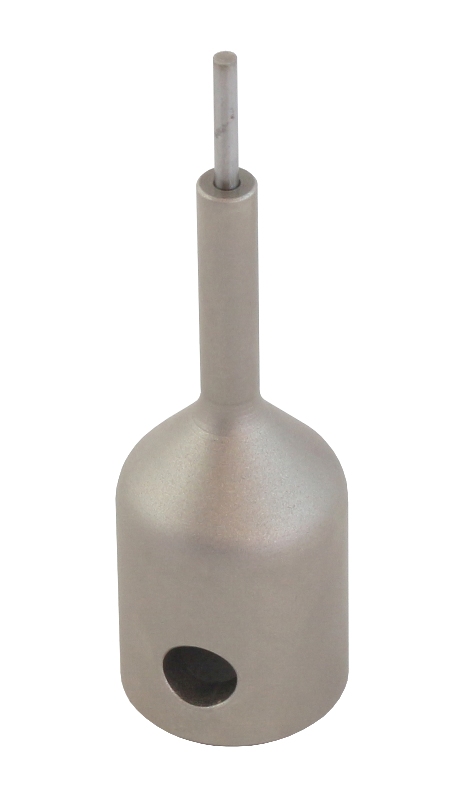

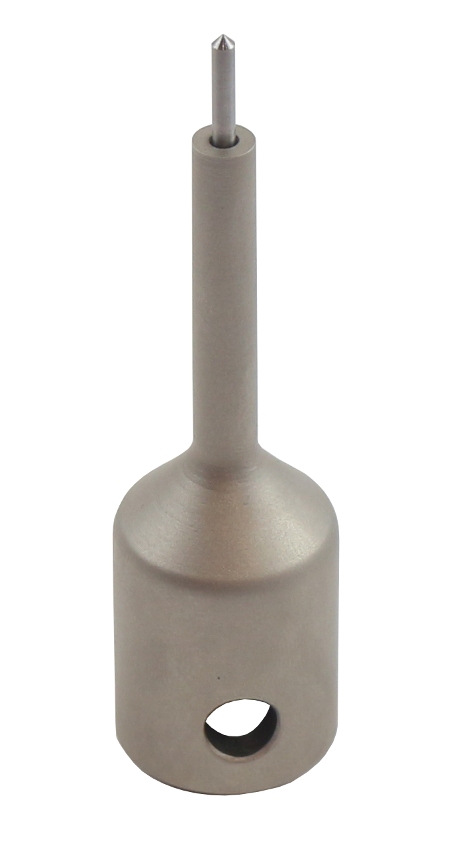

	THS42-F2.5x13-Af159 Compression probe for physical testing of gypsum panel products according to ASTM-C473 Flat probe tip 2.5 mm Ø, 13 mm Coupling Af159 Full fixture, see THS325-160-D76-Af159-ASTM-C473

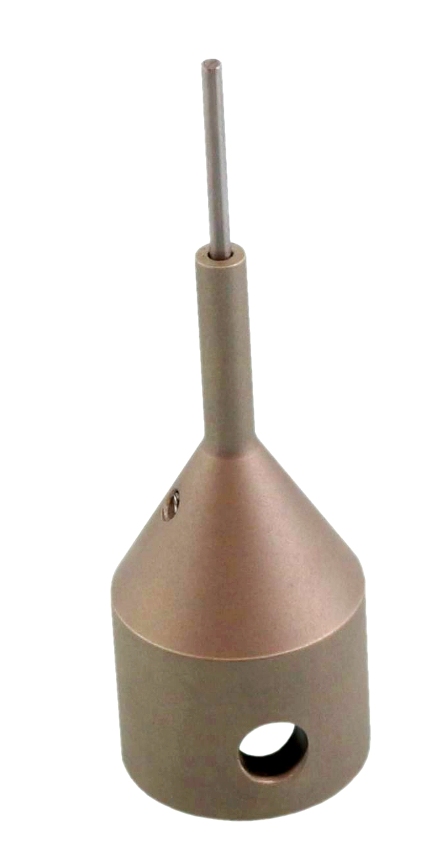

	THS42-F2.5x25-50-Af20 Special compression probe Flat probe tip 2.5 mm Ø, 25 mm 50 mm probe length without adapter part Coupling Af20

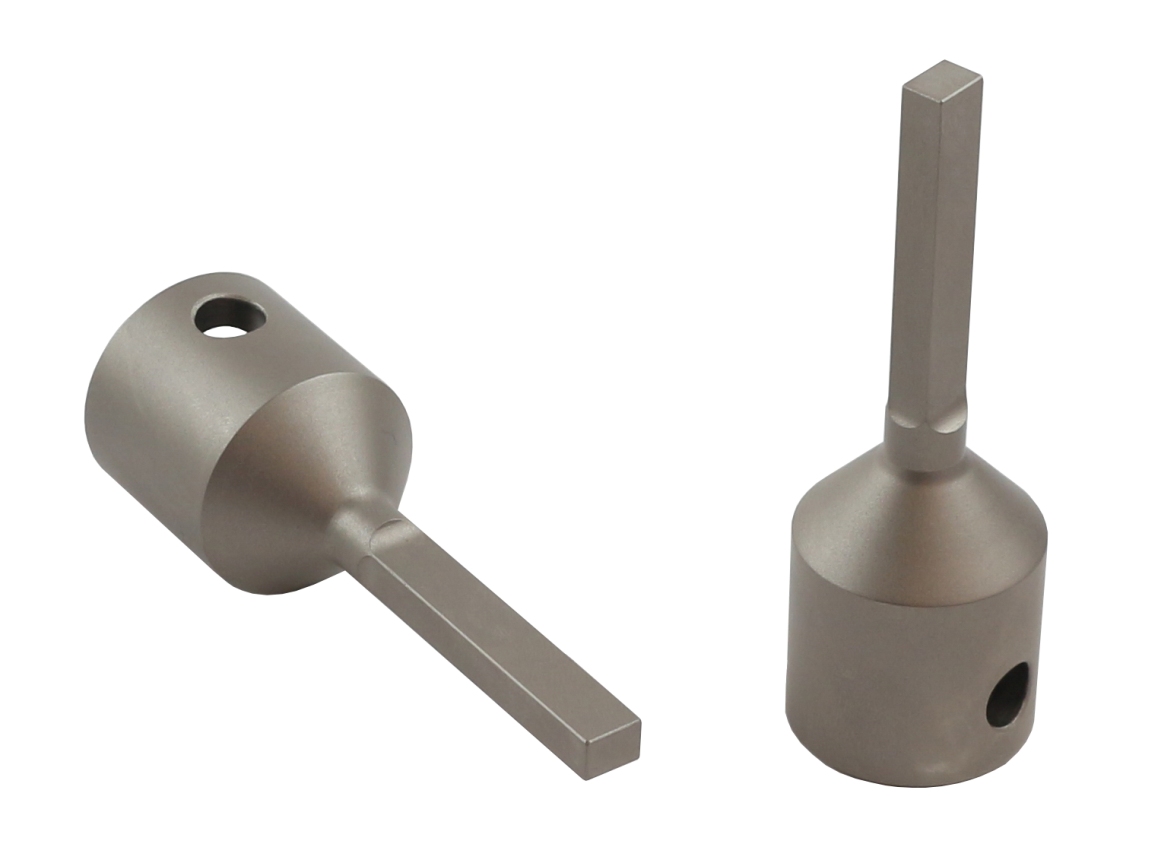

	THS42-F7.5x5.5-0.5-40-Af20 Compression probe for testing knobbed mats for underfloor heating Flat tip 7.5 x 5.5 mm, chamfer 0.5 mm Pin length 40 mm Coupling Af20 Steel, hardened, nickel-plated

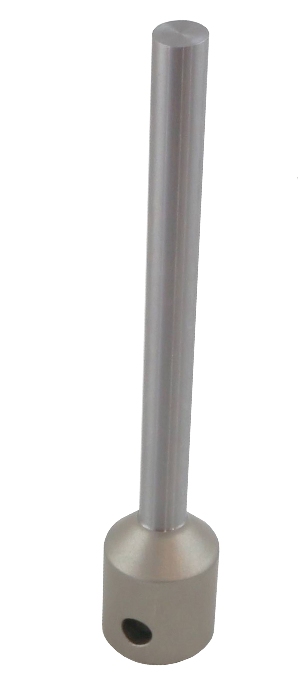

	THS42-F11.3-125-Af159-EN24343-1 Compression probe to determine indentation and residual indentation of laminate floor coverings, according to EN24343-1 Flat end (R0) 11.3 mm Ø (100 qmm) Length 125 mm Steel hardened, nickel-plated Coupling Af159

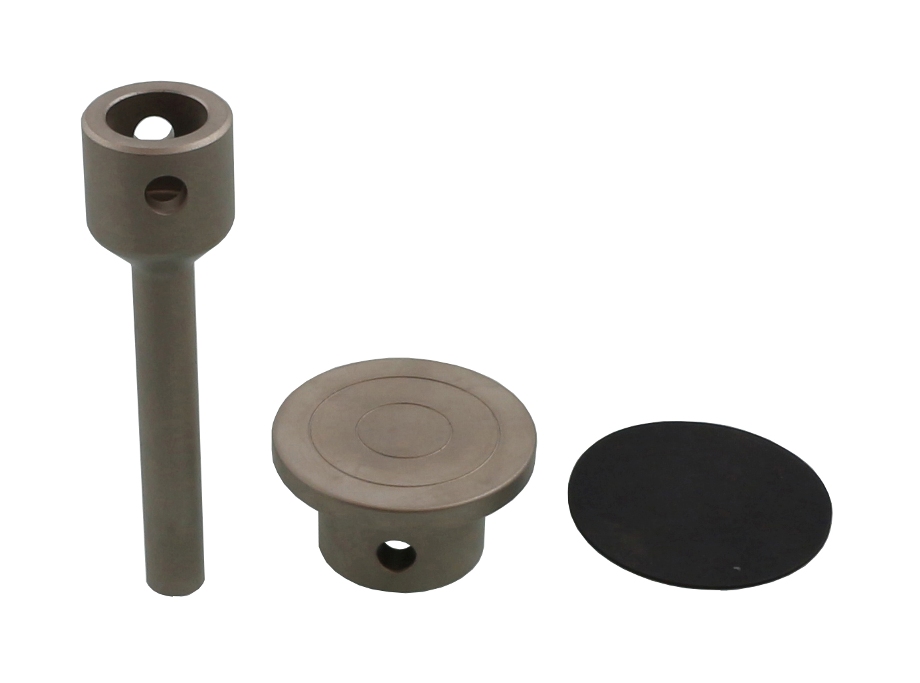

	THS42-F12.7-R0.39-80-Af20 +  TH23-56-Af20-ST DIN EN ISO9665-Fig.1 Gel strength test fixture for testing adhesives made of animal glues according to DIN EN ISO9665-Fig.1 Consists of - plunger THS42-F12.7-R0.39-80-Af20 - lower steel compression platen TH23-56-Af20-ST, 56 mm diameter, see TH23 - rubber disk, 1 mm thick - glass container for sample (not in the picture)

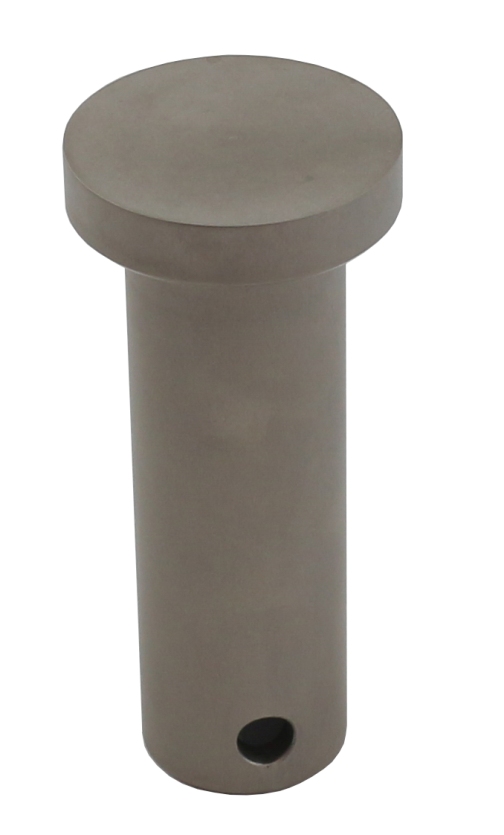

	THS42-F45-L100-Af20-ST Special probe Flat end 45 mm Ø, 100 mm long Steel, hardened, nickel coated Coupling Af20

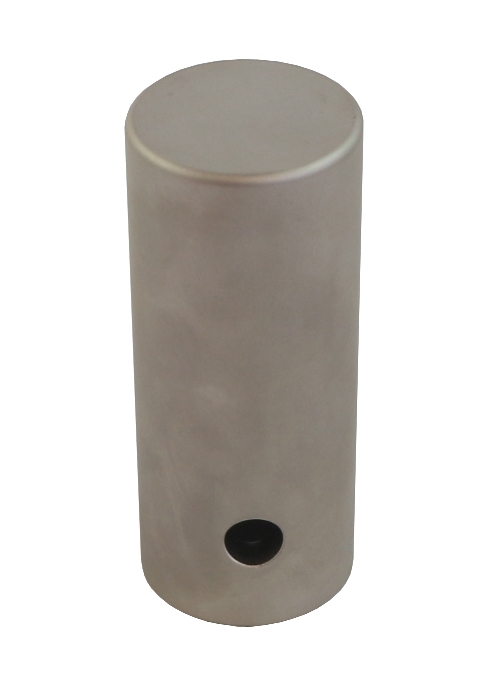

	THS42-F50-R2.5-L120-Af318 Special probe Flat end 50 mm Ø, 2.5 mm radius 120 mm long Steel, hardened, nickel coated Coupling Af318
