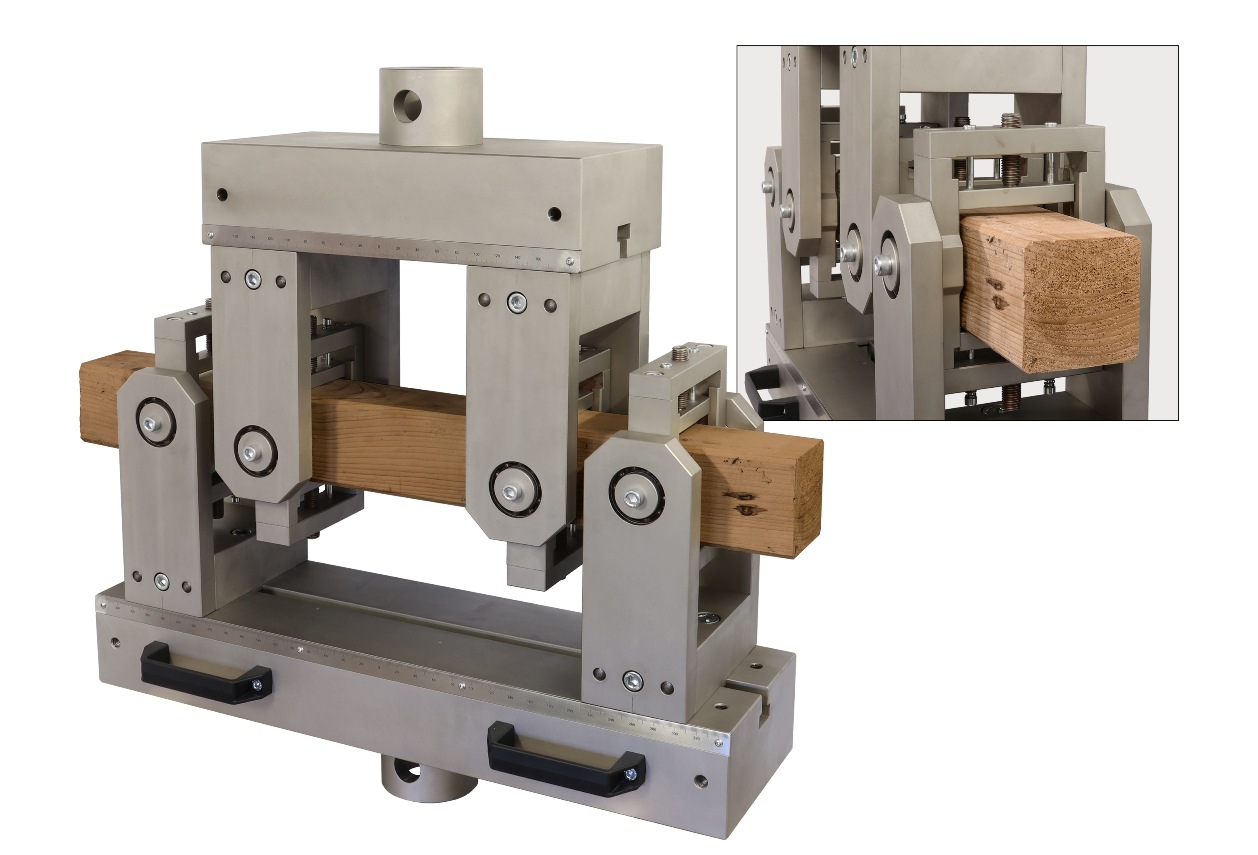

THS771-V23-700-4P_bending_fixture_2023-08-15 01

THS771-V23-4P-700-Af603035+THS988

Special 4-point bend text fixture
Max. load 50 kN
Lower bending beam 700 mm
Upper bending beam 400 mm
Aluminum + Steel
Coupling Af60/30-35

For the top adapter, See THS988

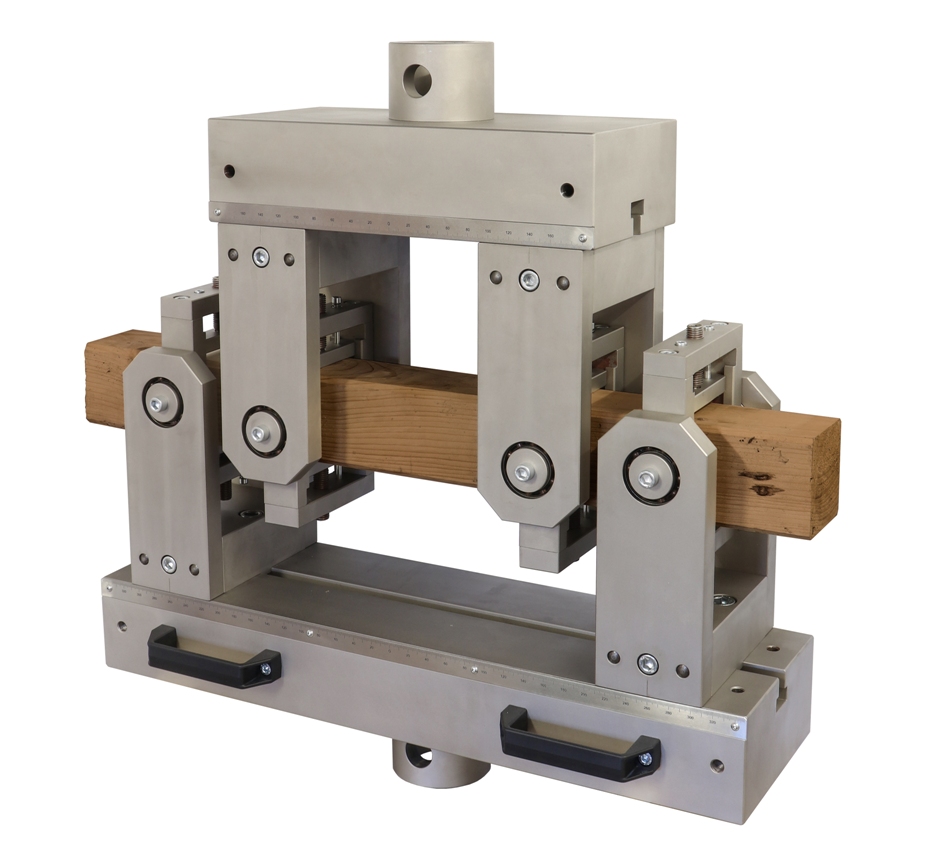

THS771-V23-700-4P_bending_fixture_2023-08-15 02

THS771-V23-4P-700-Af603035+THS988

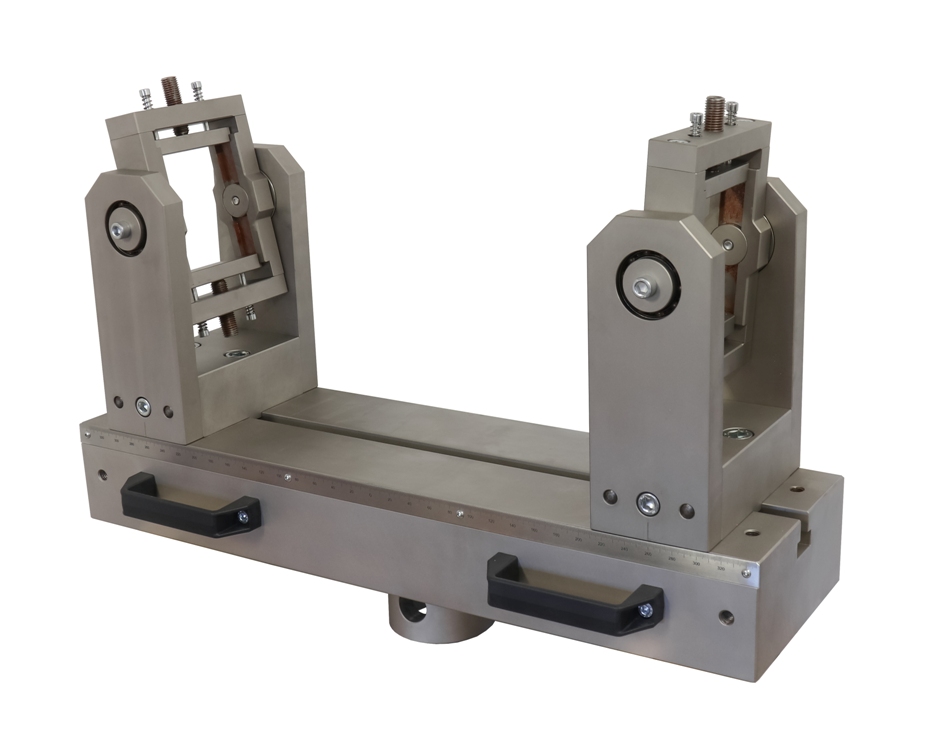

THS771-V23-700-4P_bending_fixture_2023-08-15 04

THS771-V23-4P-700-Af603035+THS988

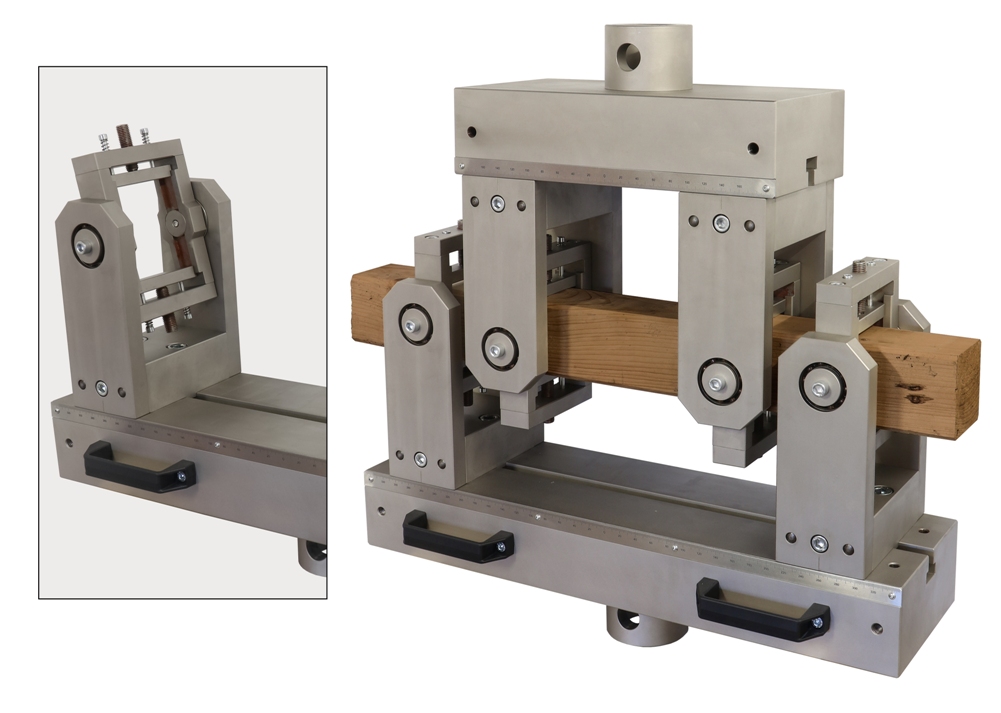

THS771-V23-700-4P_bending_fixture_2023-08-15 03

THS771-V23-4P-700-Af603035+THS988
