G02 Bending fixtures



Back

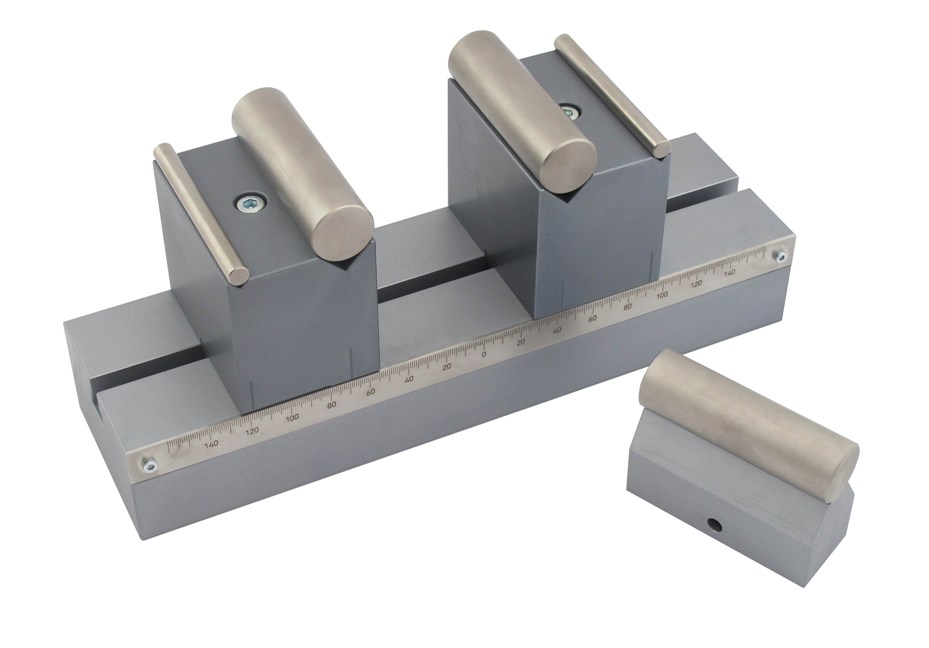

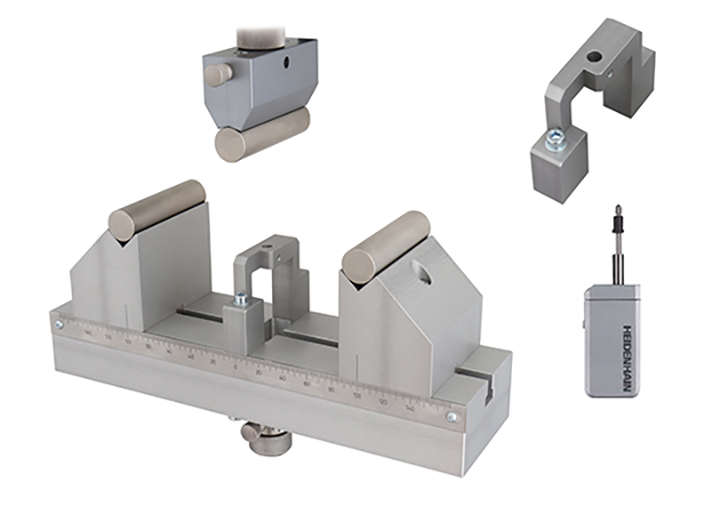

Description: TH22-360-

TH22-360



50 kN 360 mm



Universal 3-point bending fixture

Interchangeable rollers



3-Punkt Biegevorrichtung

Walzen austauschbar


TH22_Datasheet.pdf
TH22_Datenblatt.pdf

Description: TH22-360

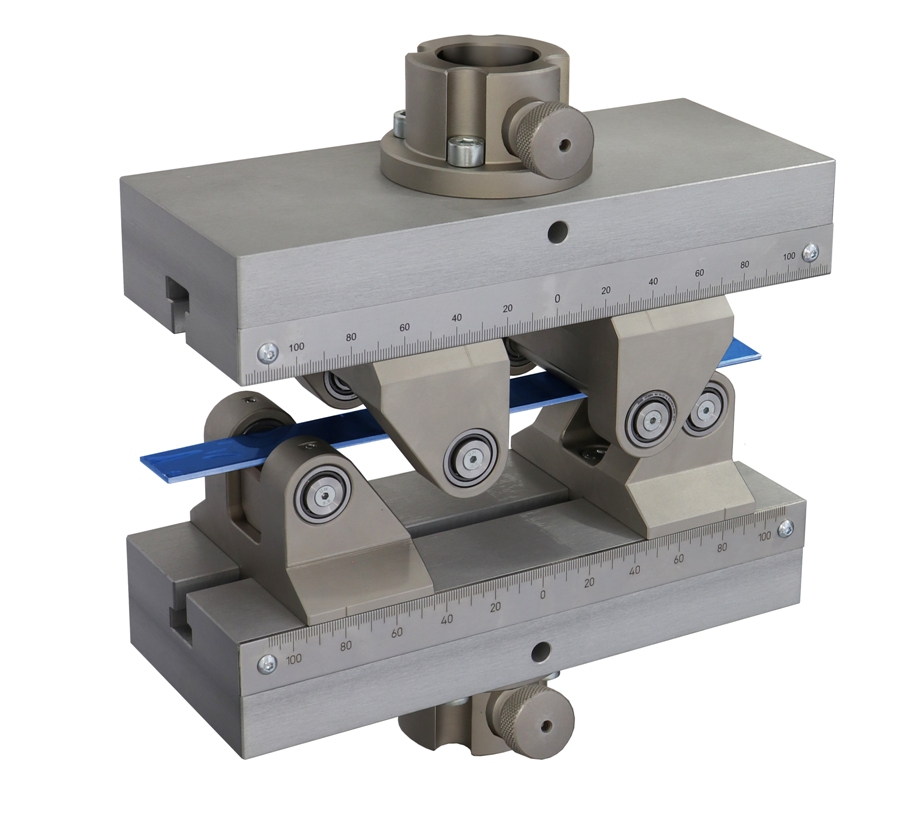

TH22-240-oWJ30xR3-Am317



ASTM-C393-DF upper for 4p

TH22-400-cWJ30xR3-Am317



ASTM-C393 50kN lover rubber on moveble support

Description: TH22-600Al+SF30x160kl

TH22-600+D30x160



50 kN aluminium 600 mm



3-point bending fixture

Rollers 160 mm, Ø 10, 20, 30 mm



3-Punkt Biegevorrichtung

Walzen 160 mm, Ø 10, 20, 30 mm





Description: TH22-900-XSA30-

TH22-900-CN30-OWR20XSA30



50 kN aluminium 900 mm



3-point bending fixture

Free moving rollers on one support with adjustable stop

Upper part with articulating bearing

Rollers Ø 10, 20, 30 mm



3-Punkt Biegevorrichtung

Frei bewegliche Rollen auf einem Bock mit Anschlag

Oberteil mit Wippe

Walzen Ø 10, 20, 30 mm

Description: TH22-1000-AH250 + TH22-DF500-

TH22-1000-4P-CXH200



50 kN aluminum 1000 mm



4-point bending fixture

Rollers Ø 10, 20, 30 mm



4-Punkt Biegevorrichtung

Walzen Ø 10, 20, 30 mm

Description: TH22-1200-500-Am3016-5P_

TH22-1200-4P-Am30



50 kN aluminum 1200 mm



4-point bending fixture

Rollers Ø 10, 20, 30 mm



4-Punkt Biegevorrichtung

Walzen Ø 10, 20, 30 mm

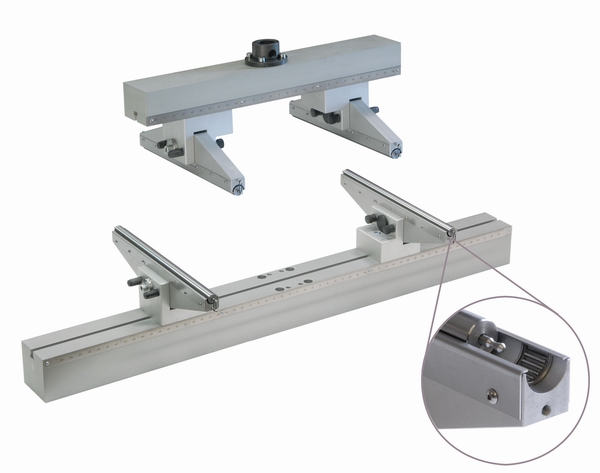

Description: TH22-1200-600-W400D20

TH22-1200-CWL20x400-Af36



50 kN aluminium 1200 mm



4-point bending fixture

Rollers Ø 10, 20, 30 mm

Fixable articulating bearing



4-Punkt Biegevorrichtung

Walzen, Ø 10, 20, 30 mm

Nadellagerhalbschalen gelagerte Walzen 20 mm Durchmesser 400 m breit

Wippe fixierbar

Description: TH22-1310-Af20-4Gr-Fu850_HP-Wende-BE27201-1--12-7-2011-

TH22-1310



50 kN aluminium 1310 mm



Large bending fixture with handles

Rollers, Ø 10, 20, 30 mm



Große Biegevorrichtung mit Griffen

Walzen, Ø 10, 20, 30 mm

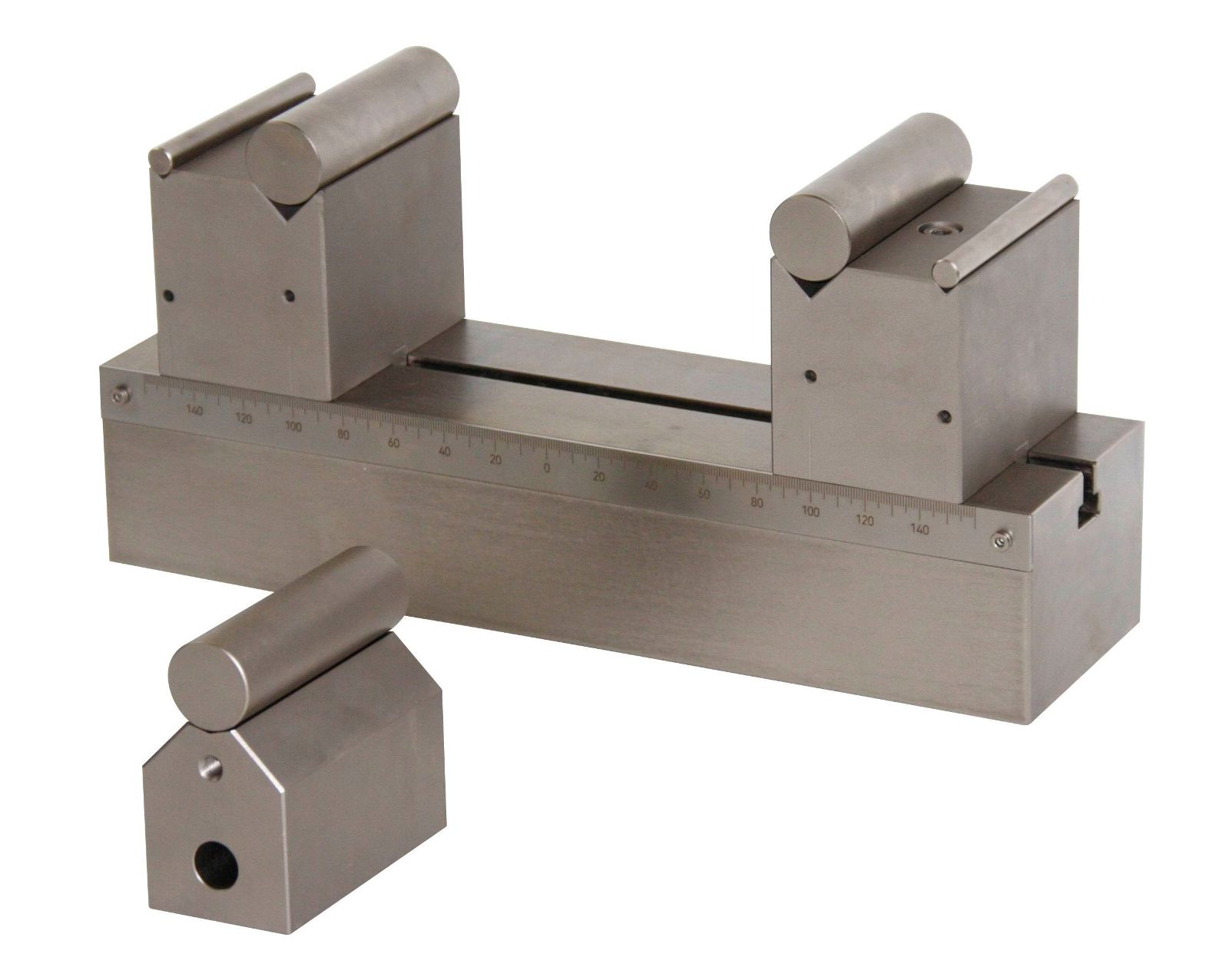

Description: TH22St-500

TH22St-500-Af31.8



100 kN steel 500 mm



3-point bending fixture

Rollers Ø 10, 20, 30 mm

Coupling 31.8/12.7 mm (10“/8“)



3-Punkt Biegevorrichtung

Walzen Ø 10, 20, 30 mm

Anschluss 31.8/12.7 mm (10“/8“)

Description: TH22St-600-F30x160

TH22St-600+FXx160



100 kN steel 600 mm



3-point bending fixture

Rollers 160 mm, Ø 10, 20, 30 mm



3-Punkt Biegevorrichtung

Walzen 160 mm, Ø 10, 20, 30 mm

Description: TH22-700-St

TH22St-700



100 kN steel 700 mm



3-point bending fixture

Rollers 160 mm, Ø 10, 20, 30 mm



3-Punkt Biegevorrichtung

Walzen 160 mm, Ø 10, 20, 30 mm

Description: TH22-800St-Af60-A30F30+S

TH22St-800-SH230



100 kN steel 800 mm



3-point bending fixture

Rollers Ø 10, 20, 30 mm

2 protective caps



3-Punkt Biegevorrichtung

Walzen Ø 10, 20, 30 mm

2 Schutzhauben

Description: TH22-800-D15o30x350-EN310-Am22-Am25_I-

TH22-800-XO15x350-CXU15x350



100 kN steel 800 mm



3-point bending fixture

Upper roller Ø 30 mm, 350 mm



3-Punkt Biegebalken

Lower roller Ø 15 mm, 350 mm

Description: TH22-1310St-Af60

TH22St-1310



100 kN steel 1310 mm



3-point bending fixture,

Rollers Ø 10, 20, 30 mm



3-Punkt Biegevorrichtung

Walzen Ø 10, 20, 30 mm

Description: TH22St-275-CR2-OR5-Af159-AMDAE

TH22ST-275-CR2-OR5-5P-Ni



200 kN steel 275 mm



5-point bending fixture

Nickel-plated, milled radii

To use in temperature chamber



5-Punkt Biegevorrichtung

Vernickelt, gefräste Radien

Temperaturkammereinsatz

Description: TH22-360-St-AF60---873

TH22-360-St-Af60



250 kN steel 360 mm



Universal 3-point bending device

Span 30-250 mm

Rollers Ø 10, 20, 30 mm

Coupling 60/30



Universelle 3-Punkt Biegevorrichtung

Auflagerabstand 30-250 mm

Walzen Ø 10, 20, 30 mm

Anschluss 60/30

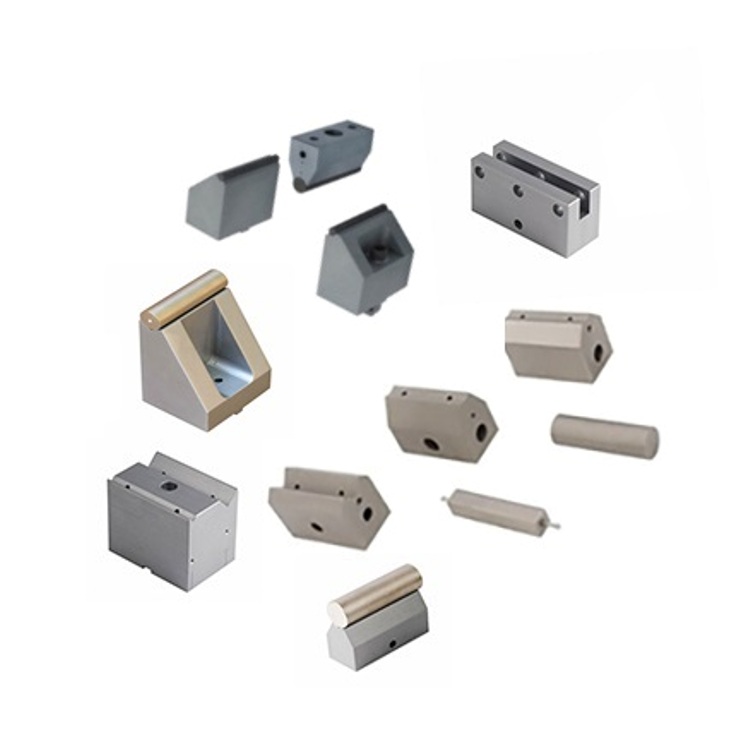

Accessories for TH22



Supports

Description: TH22St-CR2-Ni

TH22St-CR2-Ni



Support milled radius R2

Hardened steel, nickel-plated



Einfaches Auflager Radius R2

Gefräst, gehärtet, vernickelt

Description: TH22-OR5--





TH22St-OCR5-Ni



Support for 4-point milled radius R5

Steel hardened, nickel-plated



Einfaches Auflager für 4-Punkt Radius R5

Gefräst, gehärtet, vernickelt

Description: TH22-AX-

TH22-AX10,20,30



Support for exchangeable rollers

for lower bending bar



Rollers Ø 10, 20, 30 mm

Aluminum, standard



Auflager für tauschbare Rollen

für unteren Biegebalken

Description: TH22-AX-

TH22-AX



Support, A-form

for lower bending bar, aluminum



Auflager, A-Form

für unteren Biegebalken, Aluminium

Description: TH22-AX-ST

TH22St-AX



Support, A-form

Steel



Auflager A-Form

Stahl

Description: tn_TH22-F 30X100_jpg

TH22-F30



30x100 mm, 1 set = 3 rollers

Ø 8, 9, 11, 12, 13 ... 50 mm



Roller for X-type supports

Hardened, nickel-plated



Finne für Auflager vom Typ X

Gehärtet, vernickelt

Description: TH22-CX10-H150

TH22-CX10-H150



Ø 10 mm



Support C

Special height 150 mm



Auflager C

Sonderhöhe 150 mm

Description: TH22-CX50 support 50x100mm

TH22-CX50



Ø 50 mm



Support with roller



Auflagerbock mit Rolle

Description: TH22-CX30-H200

TH22-CX30-H200



Auflager

Sonderhöhe 200 mm

mit Walze 30 mm



Support

Height 200 mm

With roller 30 mm

Description: Wiederbelichtung von TH22-CWGT-movable-support

TH22-CW



Max 50 kN



Support, articulating



Auflager für Wippen

Description: u5 006

TH22-OW+WFR5



Anvil carrier with articulation function

Coupling 15.9 mm with fin R5



Finnenträger mit Wippfunktion

Anschluss 15.9 mm mit Finne R5

Description: TH22-OW

TH22-OW-Af159



Anvil carrier with articulation function

Coupling 15.9 mm



Finnenträger mit Wippfunktion

Anschluss 15.9 mm

Description: TH22-WFR5

TH22-WFR5



Radius R5, 100 mm wide

Radii 2, 5,10,15, 20 mm



Radius R5, 100 mm breit

Radien 2, 5,10,15, 20 mm

Description: TH22St-CWX-2011-06-08

TH22St-CWX



Heavy movable support, steel

For exchangeable rollers



Schwerer Auflagerbock, kippbar, Stahl

Für tauschbare Rollen

Description: TH22-CND30-St-.

TH22-CN30



Support with roller, loose stop



Auflager mit Rolle, Anschlag frei

tn_TH22-CN30x150  13-.jpg

TH22-CM30x150+DP



Upper anvils

Description: TH22-OR5-Af159-Ni

TH22-OR5-Af159-Ni



Upper fin, radius R5

Coupling female15.9 mm, hardened, 58 HRC Nickel



Obere Finne, Radius R5

Anschluss 15.9 mm, gefräst, 58 HRC Nickel

Description: TH22-O50-Af3618

TH22-0R25-Af36



Upper fin, hardened, Radius 25

Coupling female 36 mm, 58 HRC



Obere Finne, gehärtet, Radius R25

Anschluss weiblich 36 mm, gefräst, 58 HRC

Description: TH22-OX159+F30

TH22-OX-Af159



Exchangeable carrier with coupling 15.9/8



Aluminum coupling sizes: 20/8

Steel coupling sizes: 30/12, 31.8/12.8, 32/16, 36/18, 40/16, 50, 60.



Finnenträger oben mit Adapter 15.9/8



http://www.grip.de/g02/TH22/TH22-OT/

Description: TH22-OX-Af32

TH22-OX-Af32



Upper anvil with female coupling 31.8, 32, 36, 40, 50, 60 mm



Finnenträger oben mit Anschluss weiblich 31.8, 32, 36, 40, 50, 60 mm

Description: TH22-DF+OX

TH22-DF



Extra upper part to change 3-point bending fixture to 4-point



Oberteil, macht aus einer 3-Punkebiegevrrichtung eine 4-Punktbiegevorrichtung



http://www.grip.de/G02/TH22/TH22-DF



http://www.grip.de/G02/TH22/TH22-OT



http://www.grip.de/G02/TH22/TH22-Fi/

Description: TH22-oAx Auflager oben

TH22-OAX



Upper carrier for exchangeable rollers for 4-point bending fixture



Oberer Träger für tauschbare Rollen für 4-Punkt Biegevorrichtung

Description: TH22-OCXM-D30 free beam on hard platen 30x100 top

TH22-OM30



Double fin carrier with hard platen and roller

30x100 mm for glass testing



Doppelfinnenträger mit harter Platte und Walze 30x100 mm für Glassprüfung

Description: TH22-OCW-.

TH22-OCW



Upper carrier for roller



Oberer Träger für Wippe





Description: u4 010

TH22-F10+FB



Anvil with fixing bolt

For upper parts with large adapters



Finne mit Fixierbolzen

Für Oberteile mit sehr großen Adaptern

Description: u5 012

TH22-FRX



For especially small or large radii in X supports,

E.g. 0.5, 1, 2, 3, 4, 5, 6, 7 … 50 … 100 mm

Angles 90° und 120°



Sonderauflager, eckig (90° und 120°)

für extreme Radien z.B. 0.5, 1, 2, 3, 4, 5, 6, 7 … 50 … 100 mm

http://www.grip.de/g02/TH22/TH22-Fi/

Description: u4 009

TH22-CX-V1



Insert for small diameters in V



Segmentreduktion für kleine Walzen

Description: u4 016

TH22-TNS10



T-groove stone, 10 mm wide, 40 mm long

TH22 - aluminium version or TH36T



T-Nutenstein, 10 mm breit, 40 mm lang

TH22 Alu Version oder TH36T

Description: TH22-AXD8

TH22-AX-D8

Description: TH22-CXH150----THS651-30

TH22-CXH150-D10-D20





Faltvorrichtung see also  THS260

Description: Description: THS260.jpg
