G02 Bending fixtures



Back



tn_THS826-F5-ASTM-C1684 cradle bending device for Flexural Strength of Advanced Ceramics Cylindrical Rod Strength.png

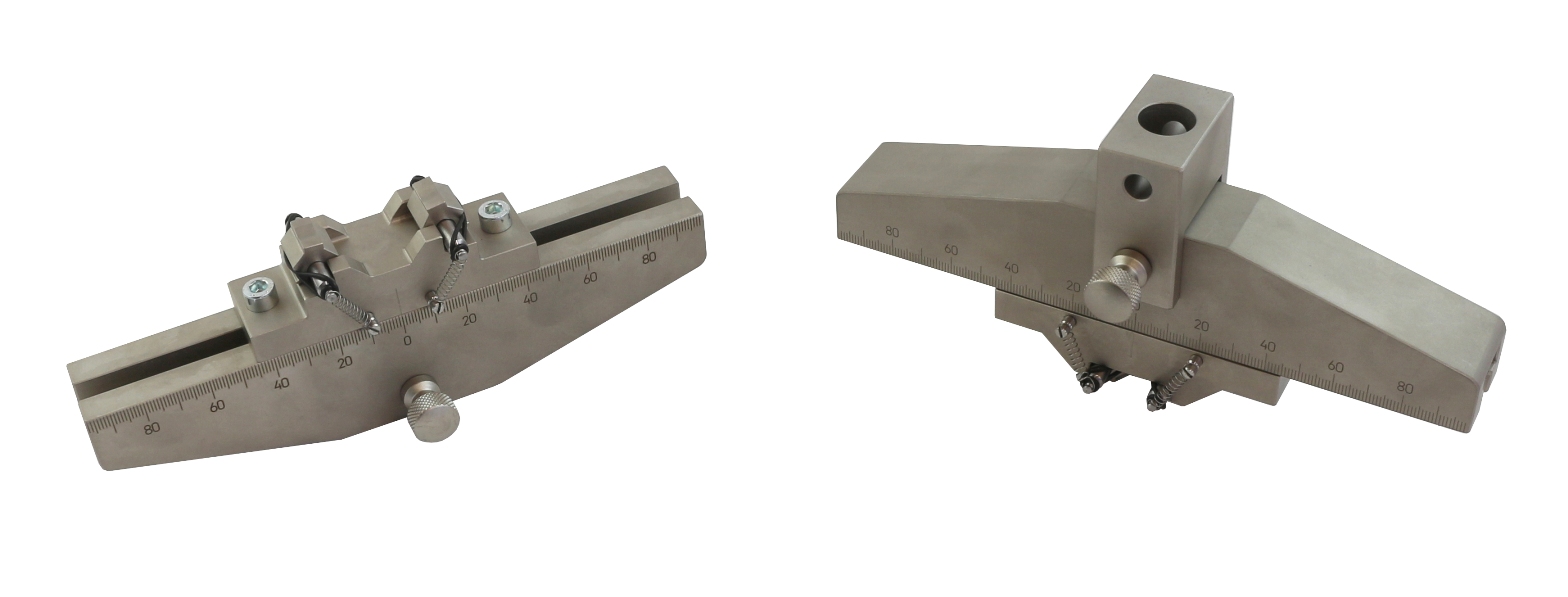

THS826-F5-ASTM-C1684



Cradle bending device
According to ASTM-C1684
Max. load 5 kN

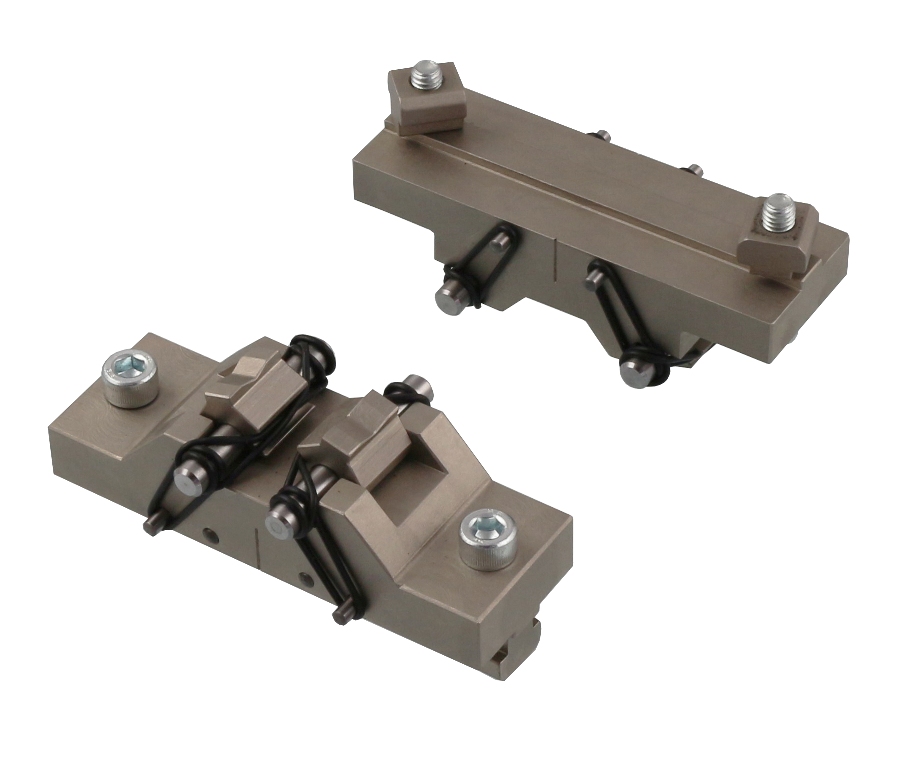

THS826-5-ASTM-C1684-Config-B



Lower and upper anvils with rollers for the flexure fixture for advanced ceramics according to ASTM-C1684-Config-B

tn_THS826-F250-ASTM-C168 bend fixture with cradles oA

THS826-F250



Bend fixture with cradles
According to ASTM-C1684
Max. load  250 kN

Flexural Strength of Advanced Ceramics

at Ambient Temperature
Cylindrical Rod Strength

Roller and cradles hardened
Coupling Af60mm

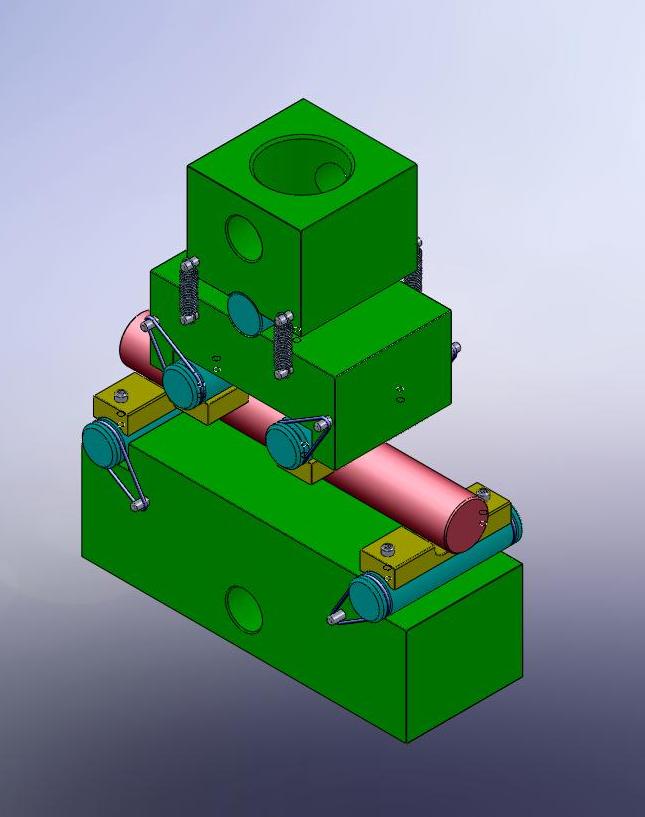

ths826-F250 ASTM C1684 bendfixture with cradles

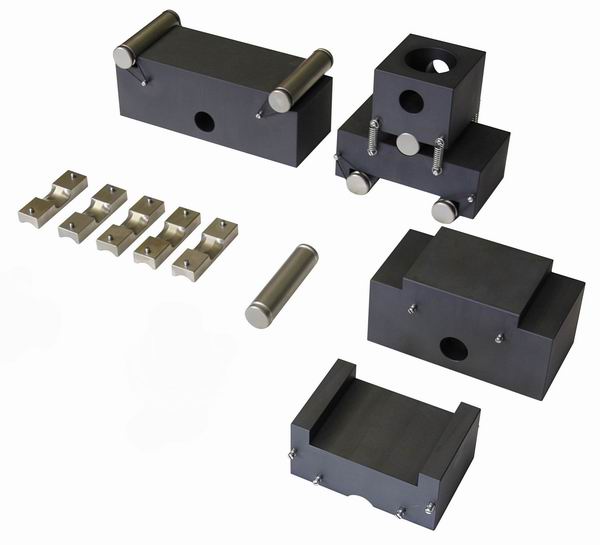

THS826-F250



Bend test fixture with cradles to test flexural strength of advanced ceramics at ambient temperature-cylindrical rod strength according to ASTM-C1684

more
