G03 Shear Grips

Back

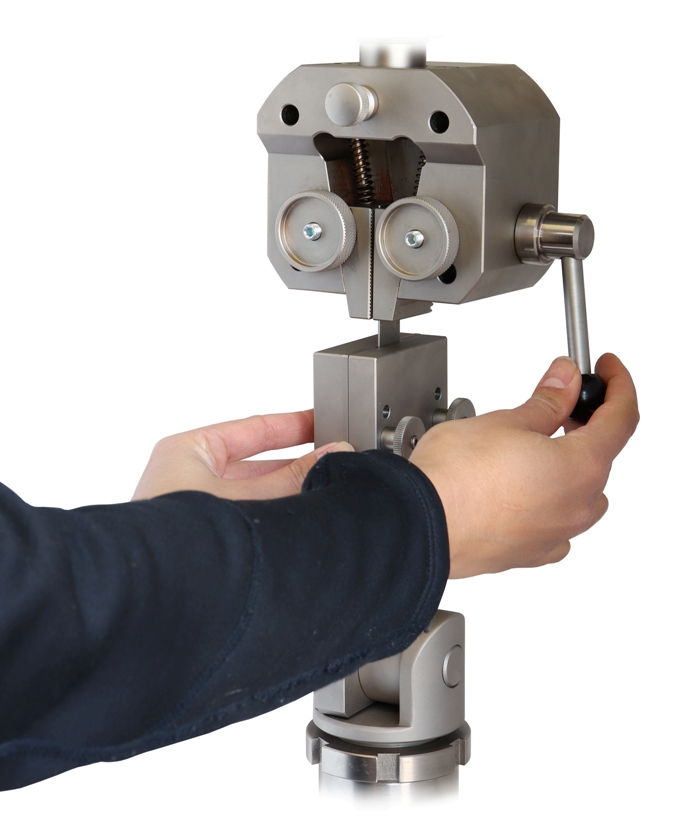

Description: tn_THS1582-V2-H100-Am50 ISO19095-3150kN 0-180c 5,2kg 08

THS1582-V2-H100-Am50
+TH243-50


Tensile test fixture to test adhesion properties of plastic-metal assemblies
according to ISO19095-3 Fig. 1
Coupling Am50, max. load 150 kN
Steel, nickel-plated
Upper grip is not included in the scope of delivery

Zugvorrichtung zum Testen der Abzugskraft von Kunststoff-Metal-Verbindungen
gemäß ISO19095-3 Bild 1
Anschluss Am50, max. Kraft 150 kN
Stahl, vernickelt
Oberes Spannzeug ist nicht im Lieferumfang enthalten

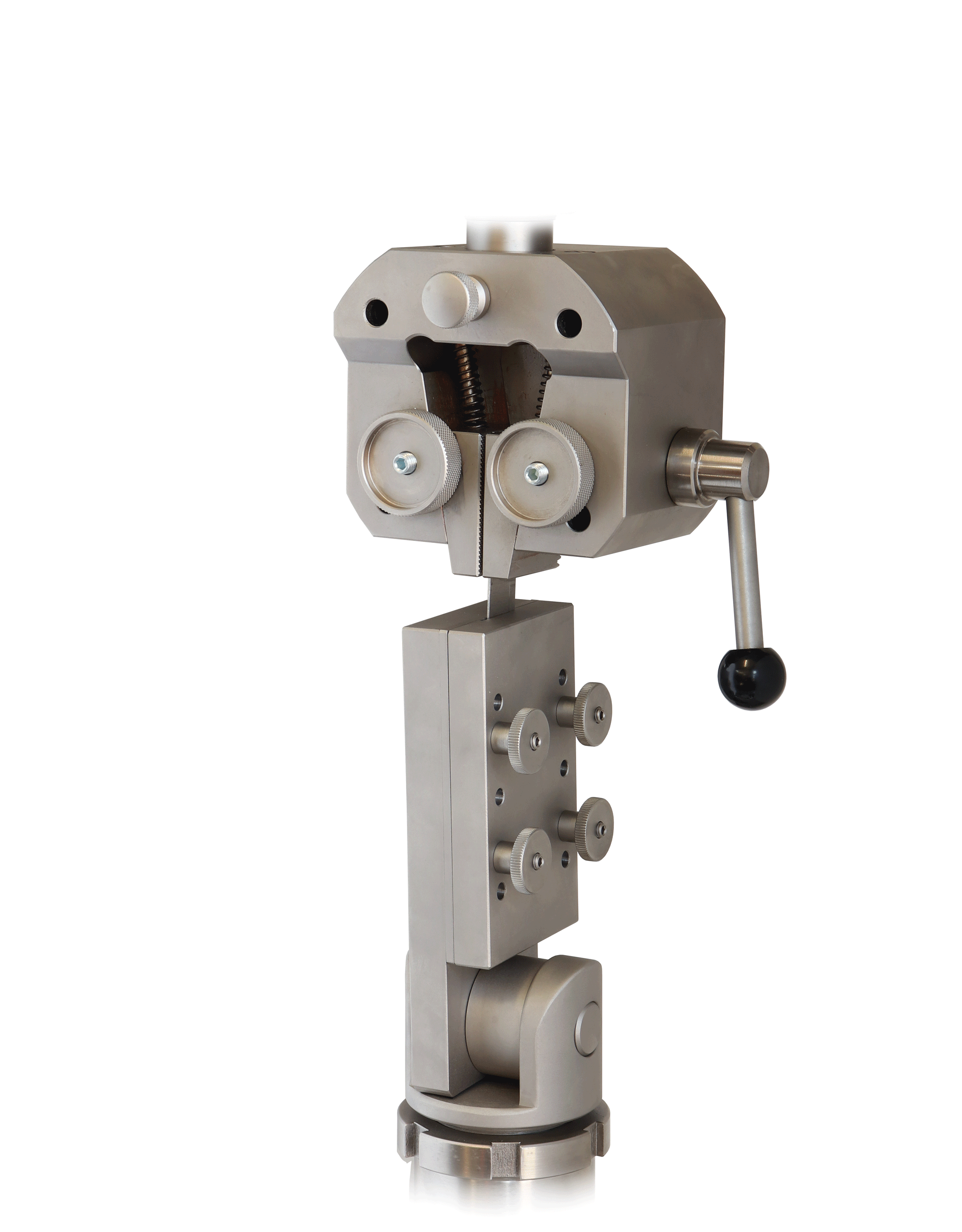

Animation

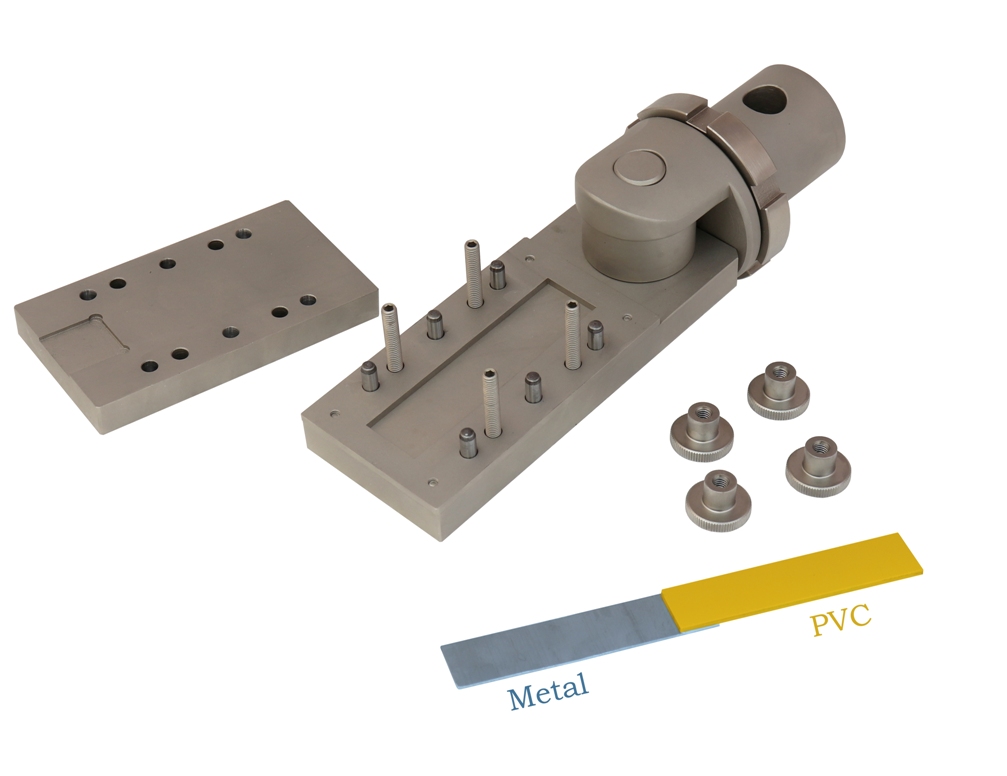

Description: tn_THS1582-V2-H100-Am50 ISO19095-3 150kN 0-180c 5,2kg 02

THS1582-V2-H100-Am50

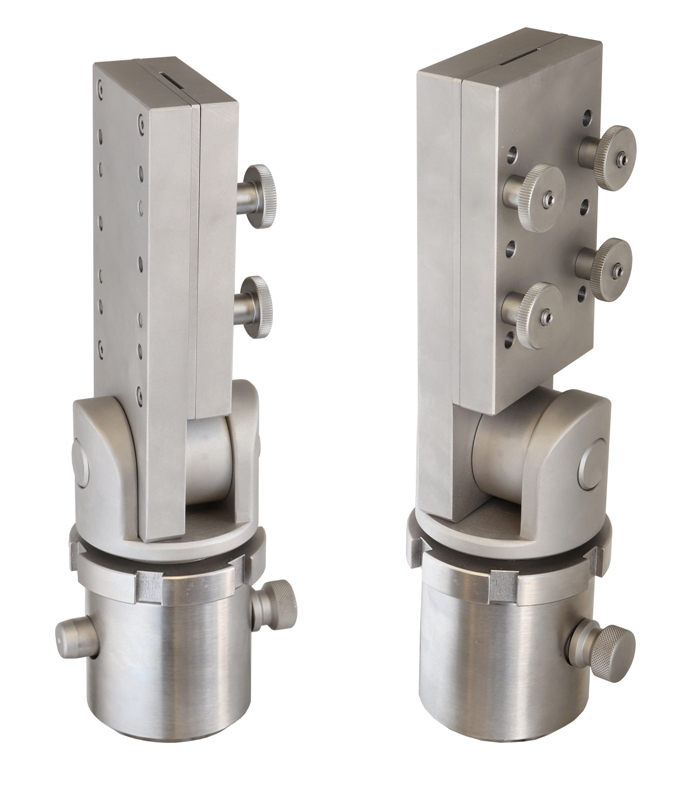

Description: tn_THS1582-V2-H100-Am50 ISO19095-3 150kN 0-180c plastic-metal adhesion 5,2kg G03 01

THS1582-V2-H100-Am50

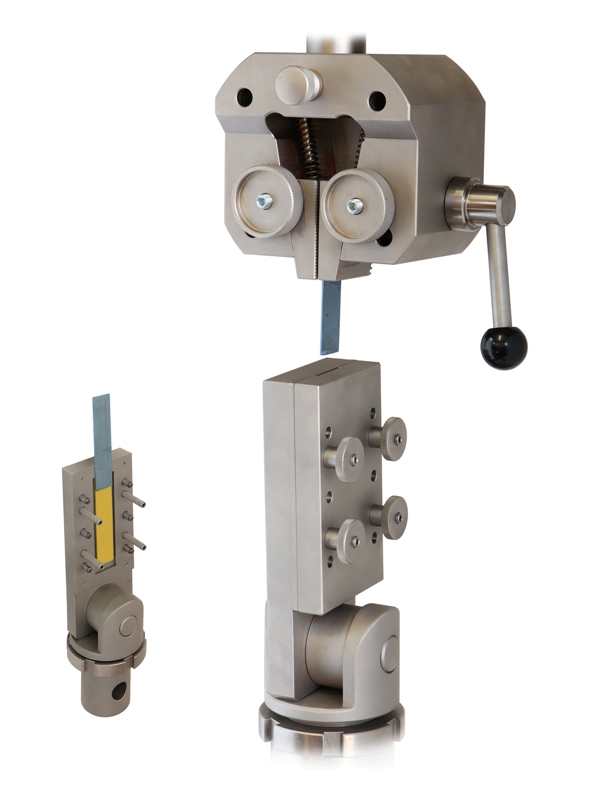

Description: tn_THS1582-V2-H100-Am50 ISO19095-3 fig. 1 plastic-metal adhesion150kN 0-180c 5,2kg 08

THS1582-V2-H100-Am50
+TH243-50
