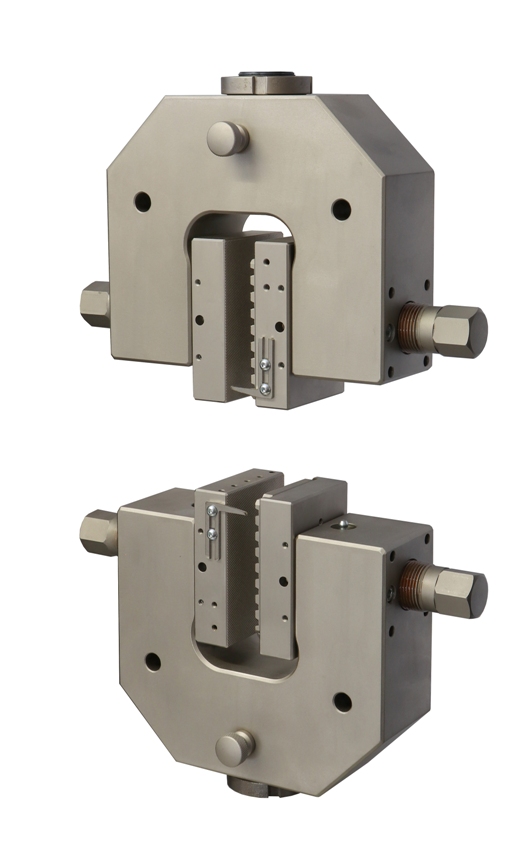

THS90+B70x100+GT60x90+EB-AT10_Test_Timing_Belts_28,2kg 01

THS90+B70x100+GT60x90+EB-AT10

Vise grip with special jaws to testing timing belts

Schraubspannkopf mit Sonderbacken zum Testen von Zahnriemen

more

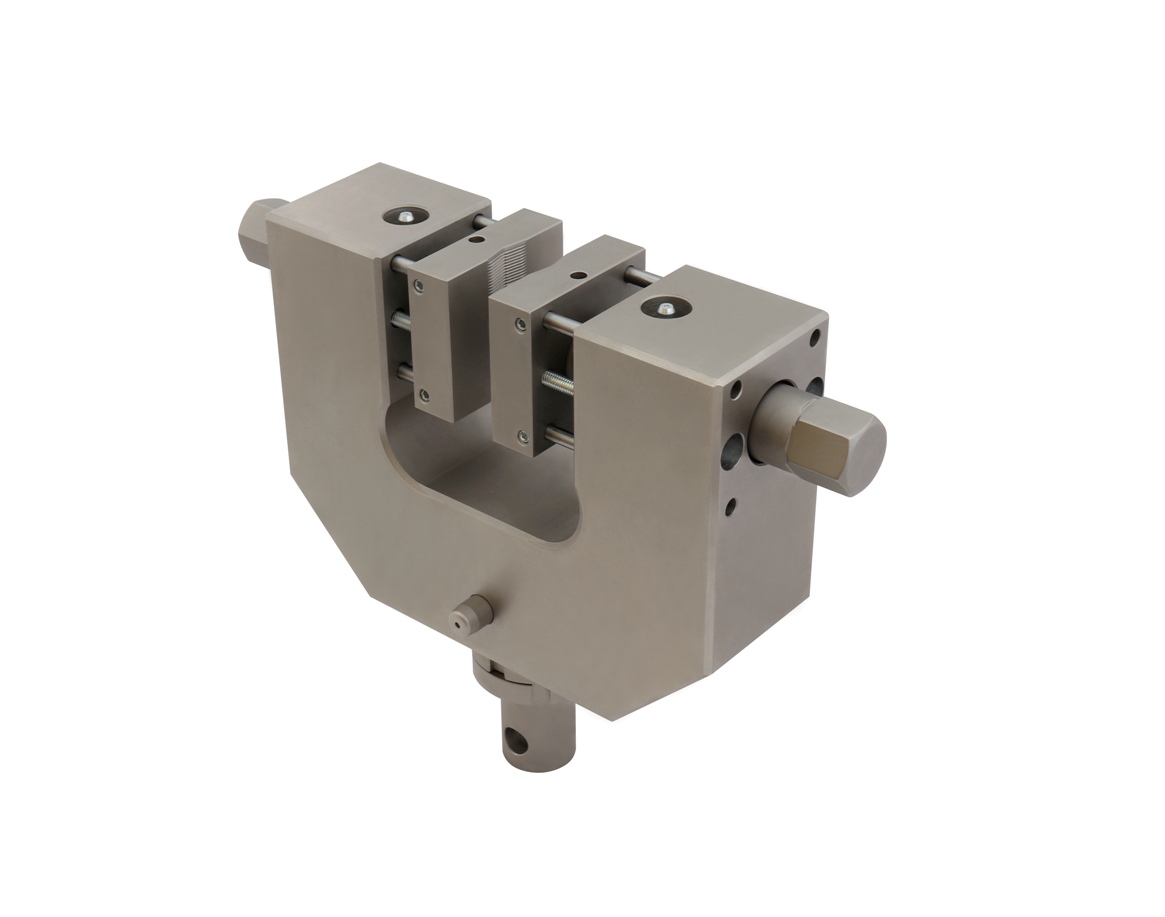

tn_THS90-S52 03-

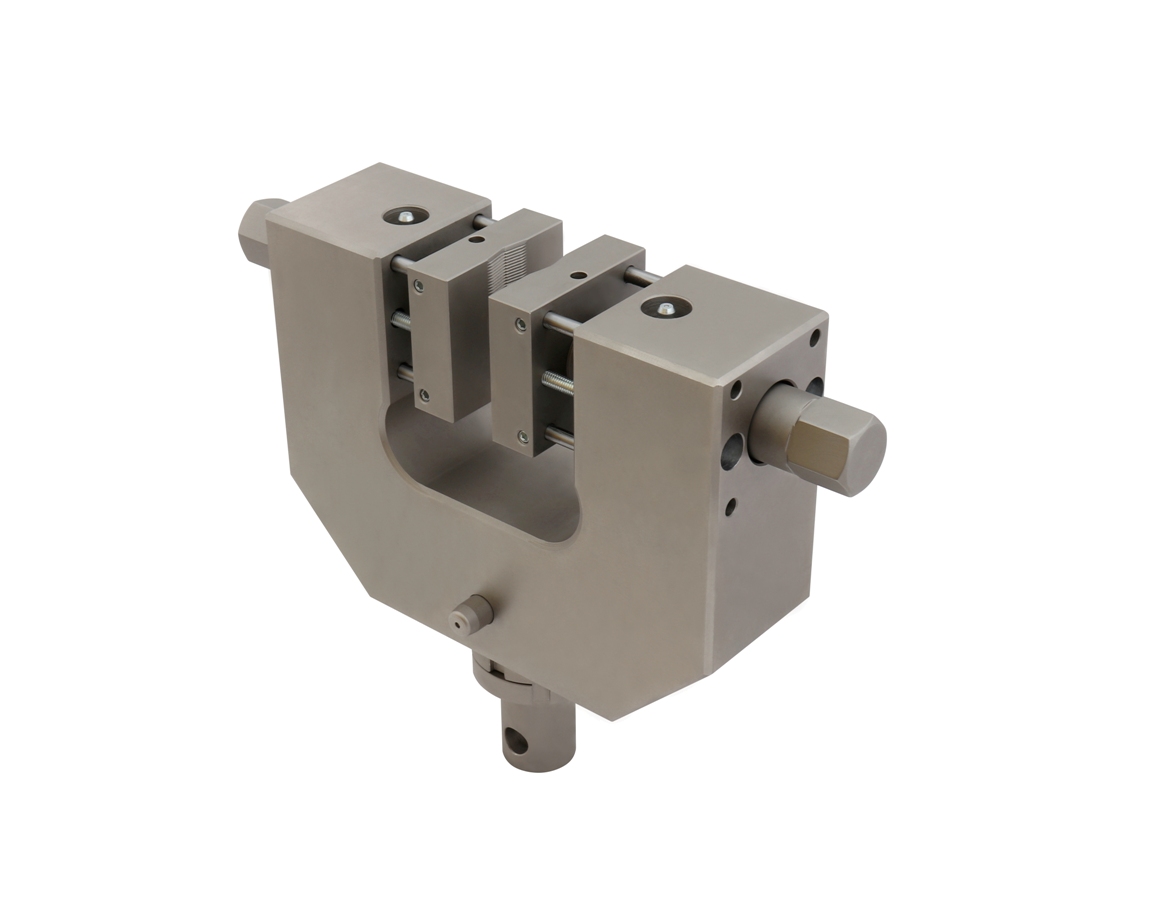

THS90-S52



Special version
Opening 0-52 mm
V-notched jaws

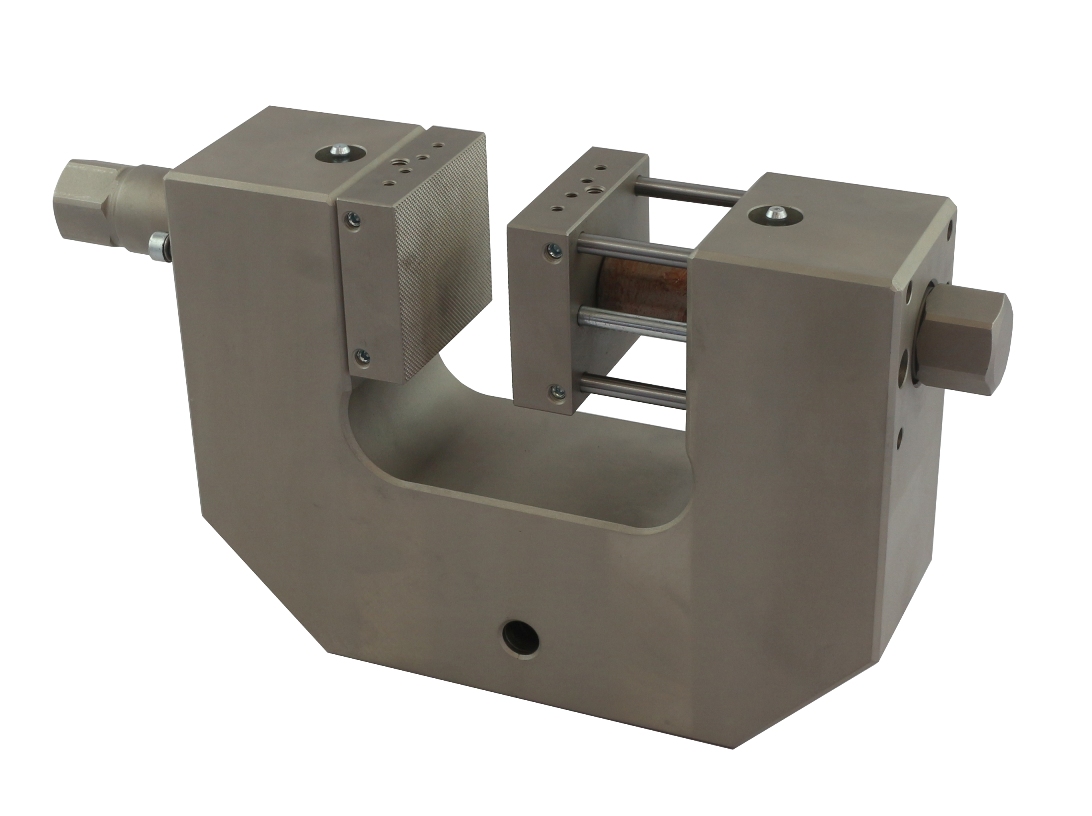

THS90-S70-Af318+BP-15.5kg_2023-04-28

THS90-S70-Af318+BP

Special vise grip

Symmetric type of construction


more

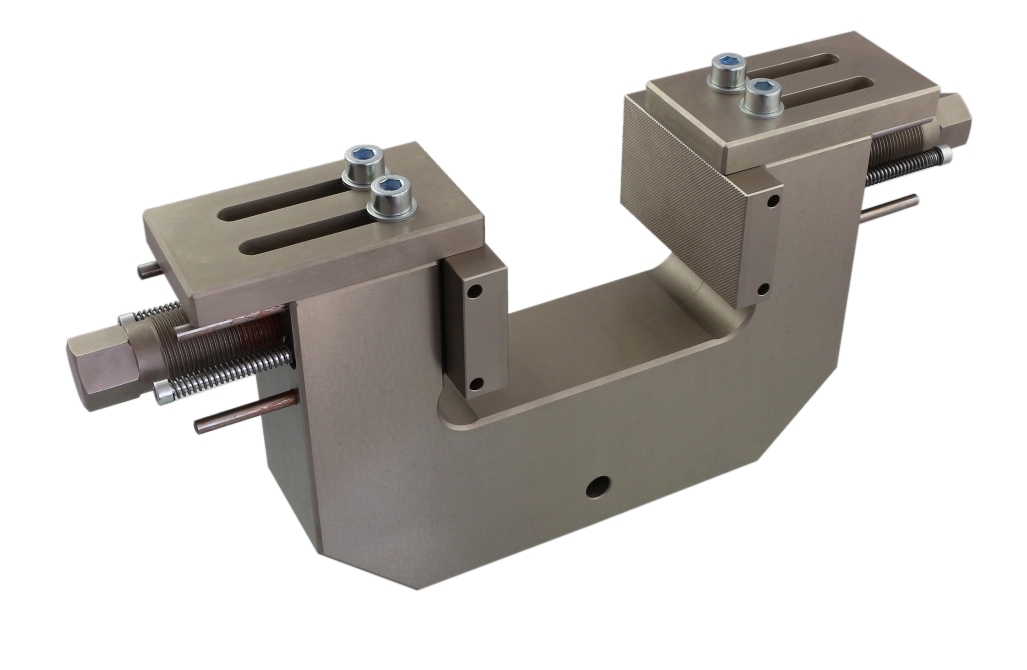

THS90-S110-Af318+BP60x100 2019-03-23



THS90-S110+BP60x100-Af318



Special version

For samples 0 - 100 mm thick

Pyramid (serrated) jaws 60x100 mm (WxL)

With plates to stabilize the jaws

Max. clamping force 150 kN at 500 Nm torque

Steel, nickel-plated

Max. temperature +180°C

Coupling Af318

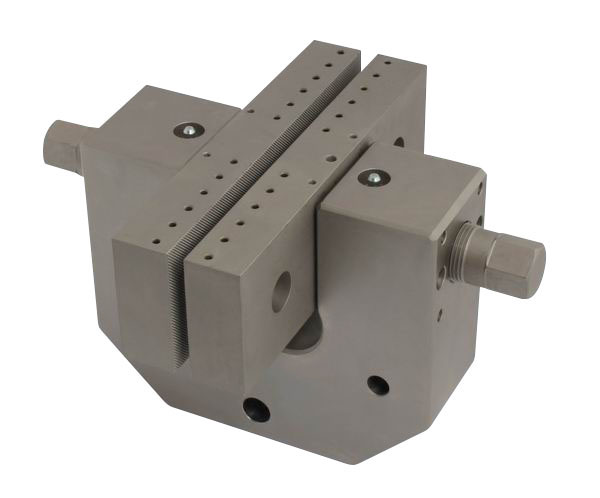

THS90+BP210-Ni



Big jaws 70x210 mm
Full nickel coating

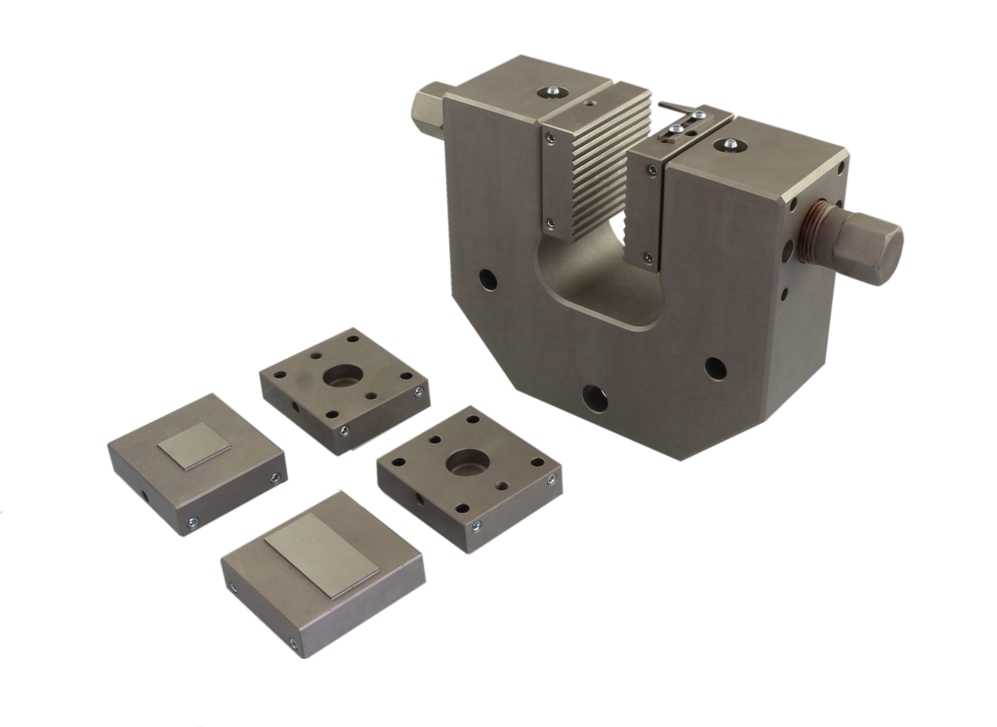

THS90+BW+B25.4x25.4+B50.8x25.4-Af3816_ASTM-D4632_geotextile_grab_test

THS90+BW+B25.4x25.4+B50.8x25.4-Af3816



Screw action grip

With blank jaws 25.4x25.4 mm

and 50.8x25.4 mm (ASTM-D4632 geotextile grab test)

Coupling Af38/16

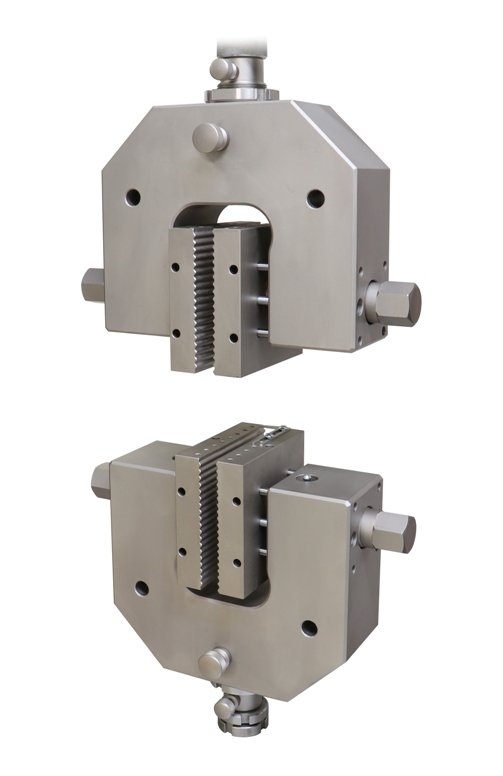

THS90+BW100x100 1,5kg 2022-07-25 01

THS90+BW100x100-Af20

Screw action grip
Wave jaws 100x100 mm

more

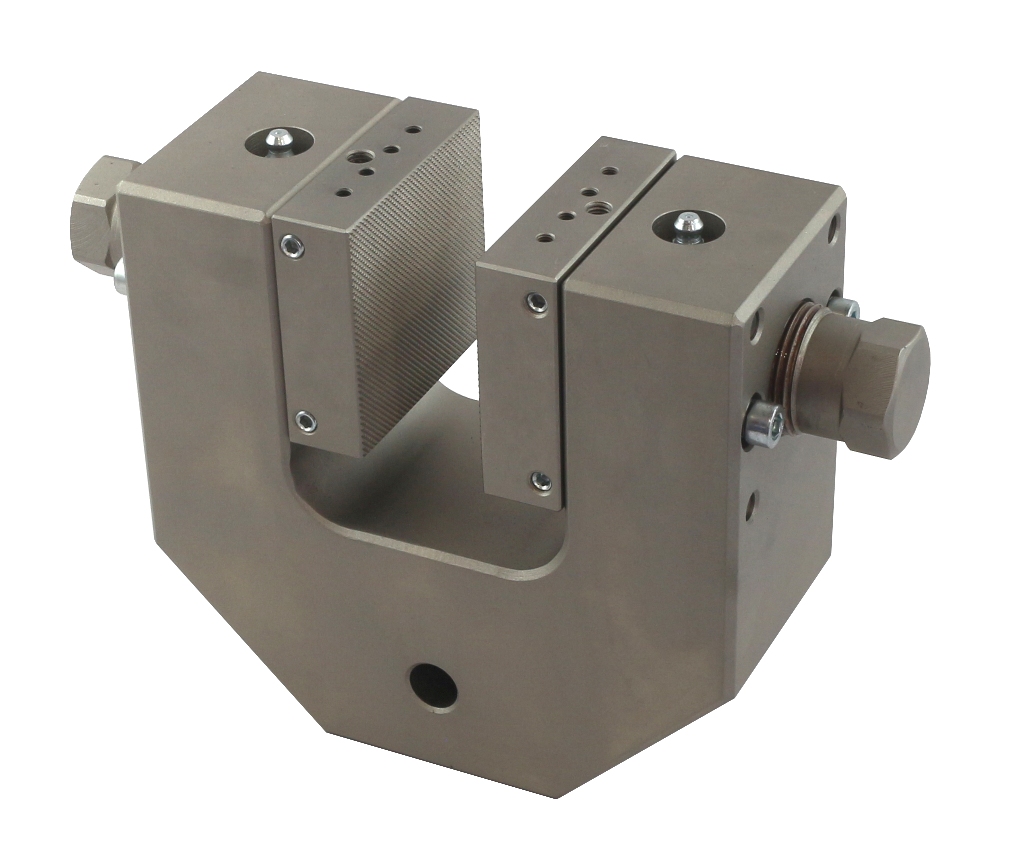

THS90-W154-Af318_2023-04-25

THS90-W154-Af318



Vise grip for chamber usage
Max. load 50 kN

Width 154 mm

Coupling Af318 mm
