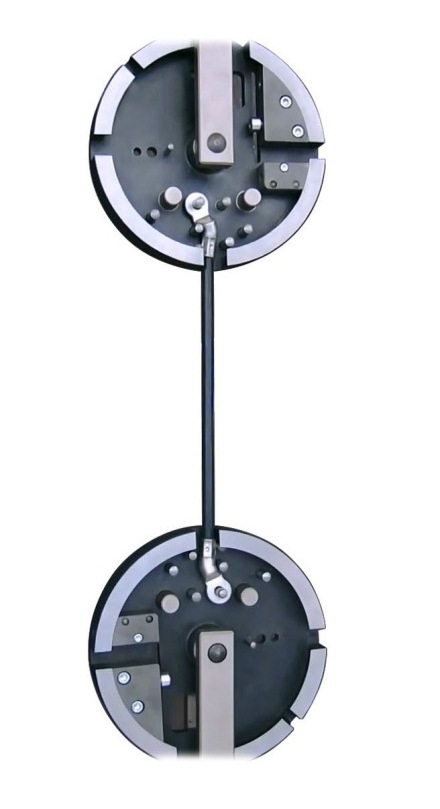

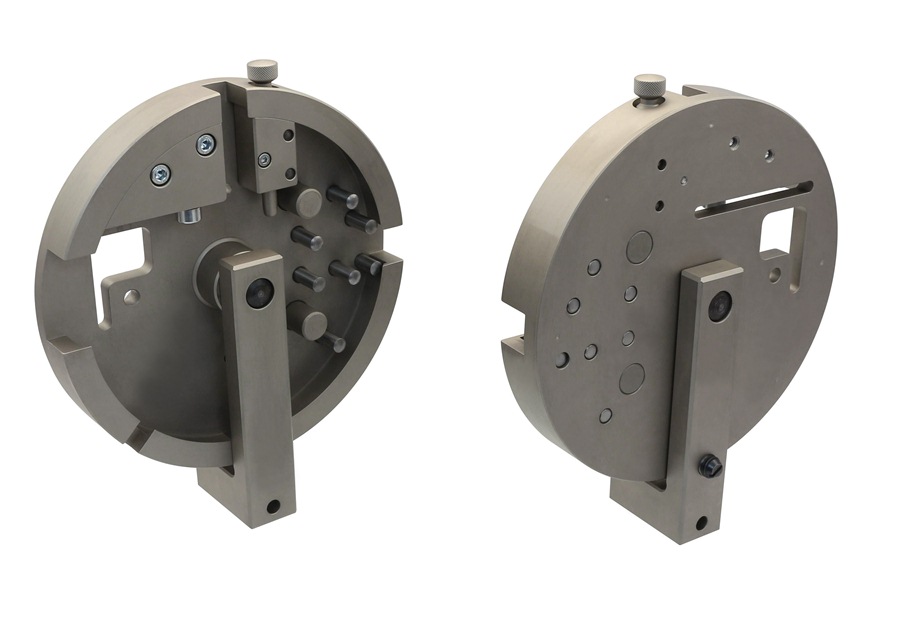

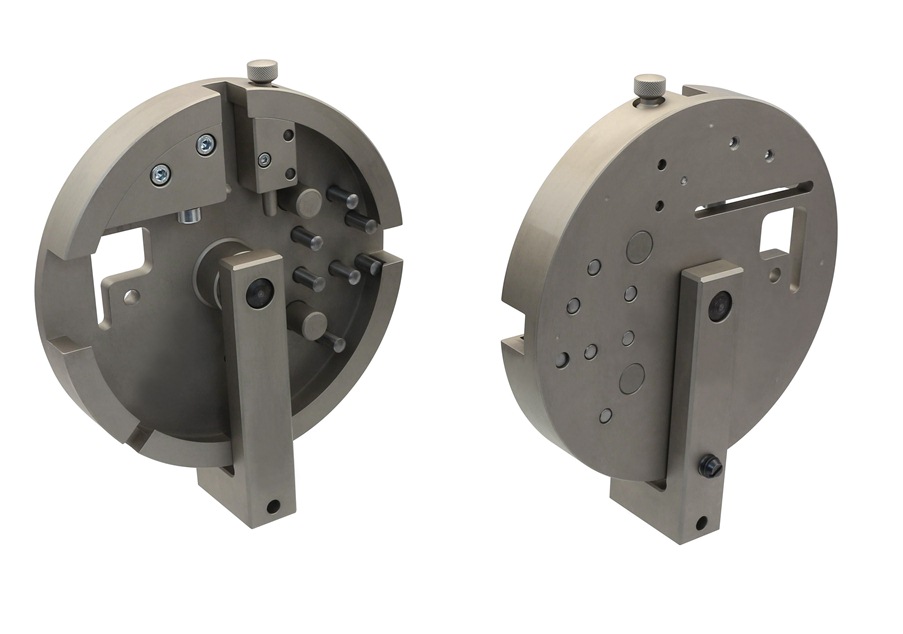

	THS314-200-SM1 Special wire terminal grip to test samples 1-18, 20-36, 38 mm Ø
	THS314-200-SM1 Special wire terminal grip to test samples 1-18, 20-36, 38 mm Ø

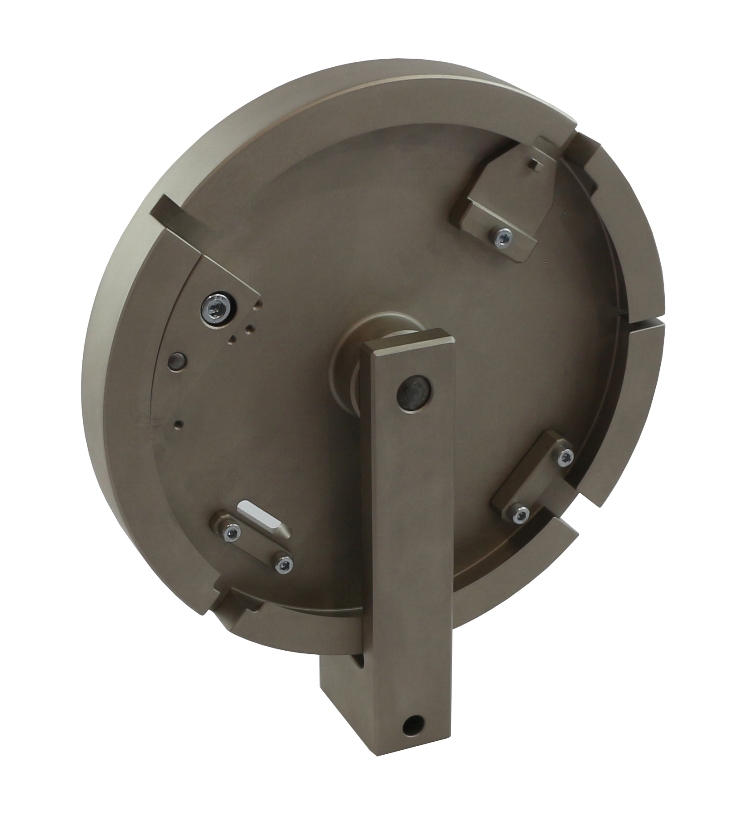

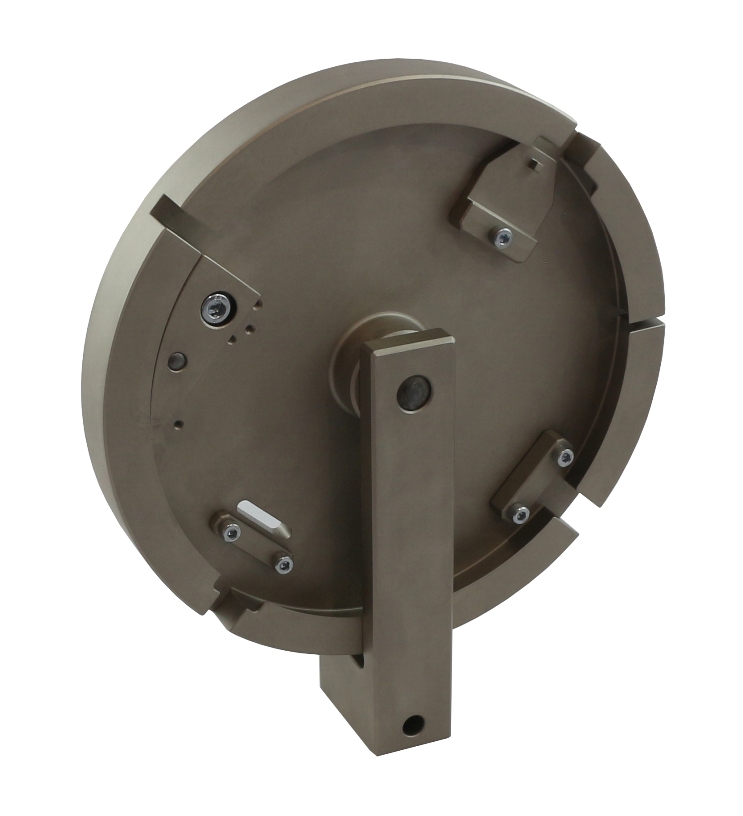

	THS314-200-V10-S4-Af20 Wire terminal grip for testing the pull strength of crimp connections, cable lugs, cable shoes Rotating ring 200 mm Ø with 3 slots 11.5 mm wide each and 1 slot 7 mm wide Max. load 8 kN Steel, hardened, nickel-plated Coupling Af20

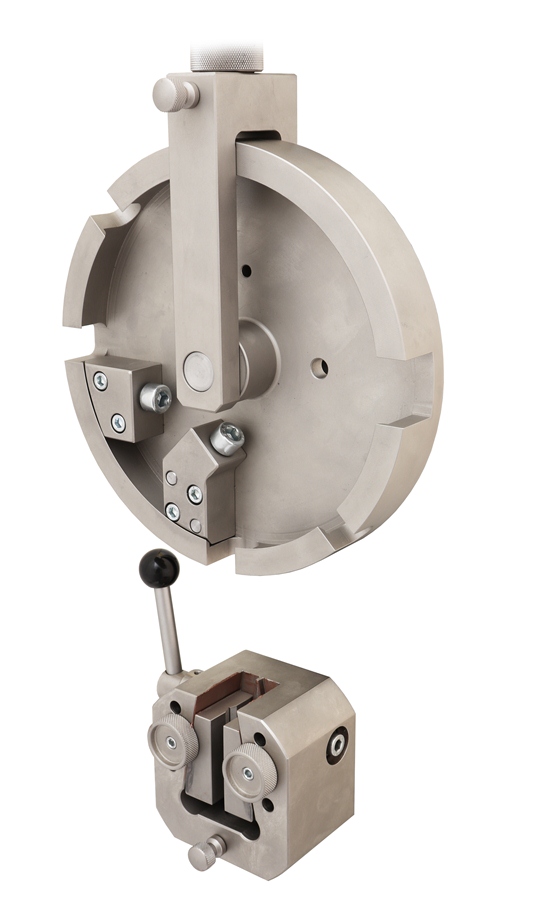

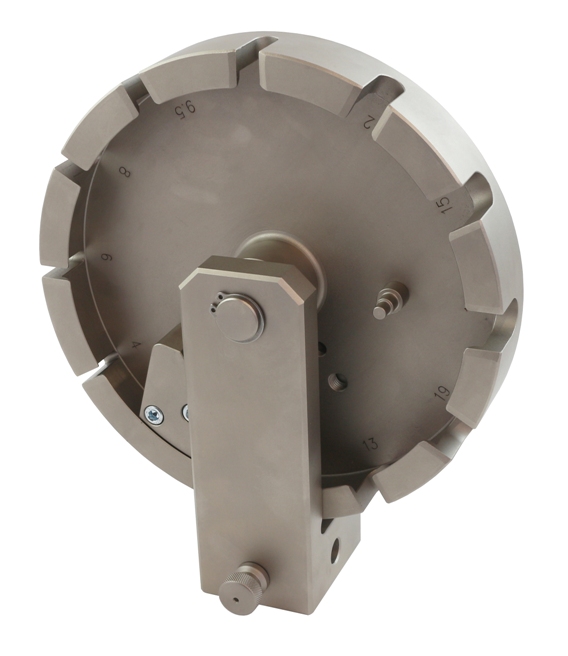

	THS314-220 + TH243-20 Testing of cables Max. long 500 mm and 3-13 mm diameter For lower grip, See TH243

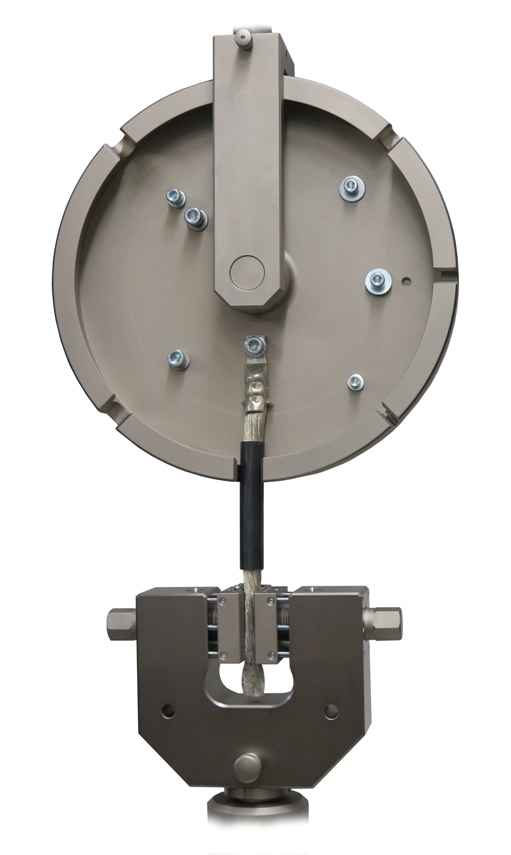

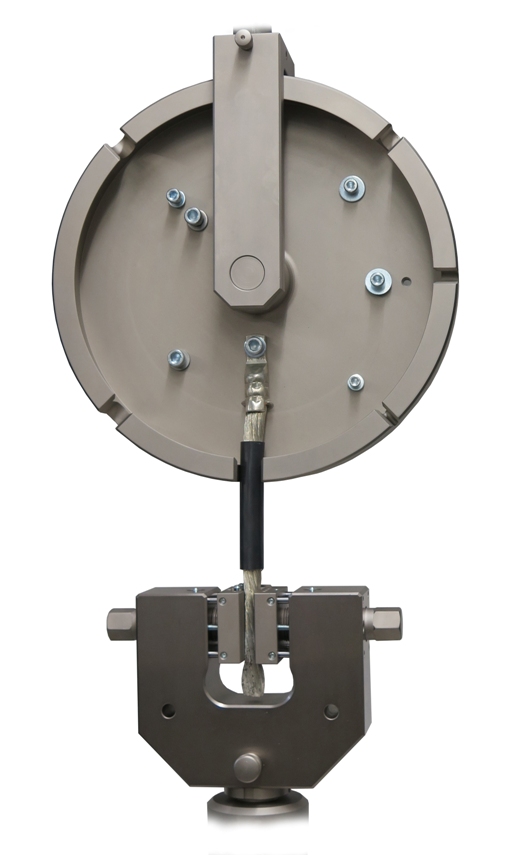

	THS314-360-Af20 + THS90+BP-Af36 Upper grip: Special wire terminal grip to test crimp connections on cables Max. load 20 kN Diameter 360 mm For samples 5, 9, 13.5, 17, 19, 21 mm Ø Coupling Af20 Lower grip: THS90 Max. load 50 kN Pyramid (serrated) jaws

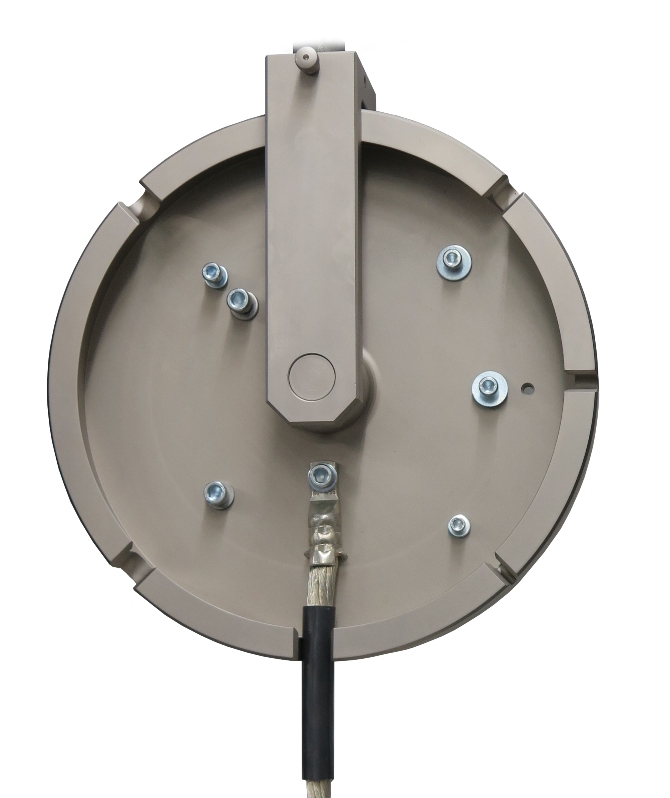

	THS314-360-Af20 Special wire terminal grip to test crimp connections on cables Max. load 20 kN Diameter 360 mm For samples 5, 9, 13.5, 17, 19, 21 mm Ø Coupling Af20 Steel, nickel-plated

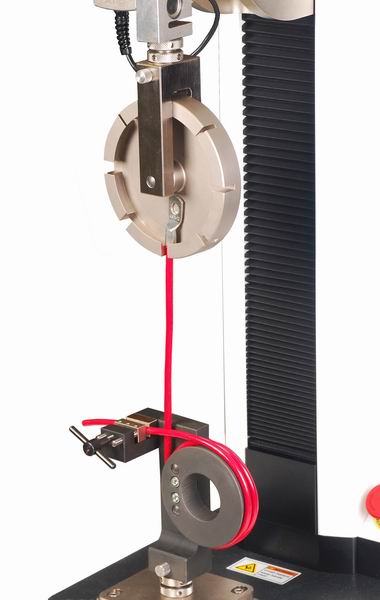

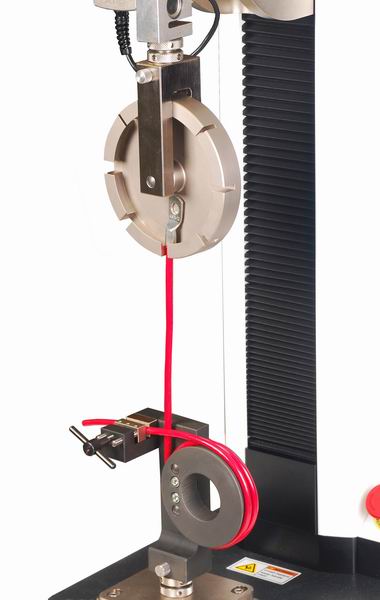

	TH76-20 + THS314-150

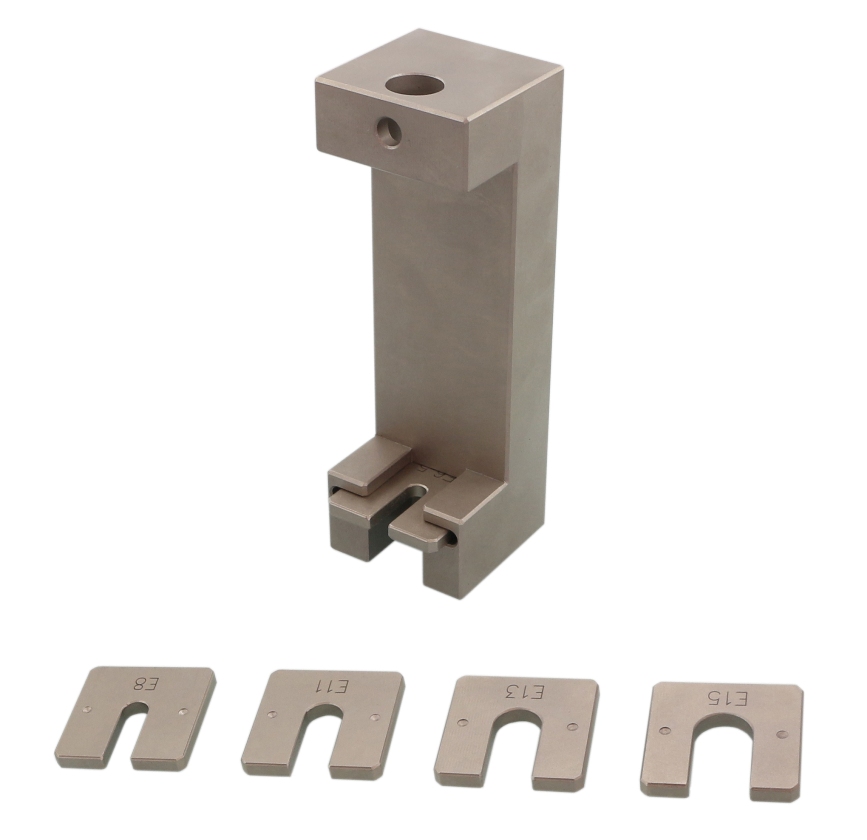

	THS314-S21-Af159+E6.5-8-11-13-15 Special grip to measure pull strength of wire connectors Incl. inserts with slot widths 6.5 mm, 8 mm, 11 mm, 13 mm, 15 mm Steel, nickel-plated Coupling Af159 Lower grip is required for the test
