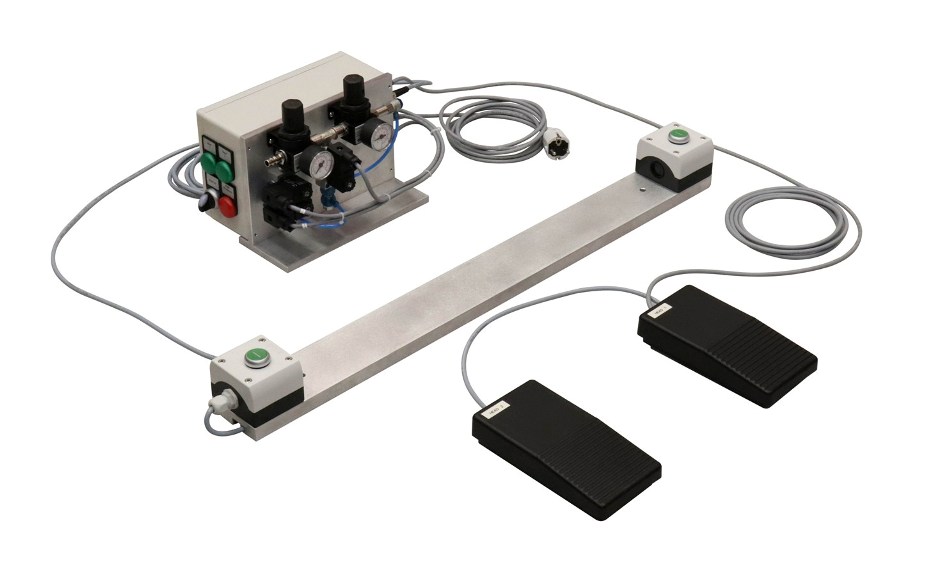

tn_TH205-6 -7 el safety system-

TH205-6-2H

Safety system for pneumatic grips
Incl. 2 foot pedals, 2 hand buttons, and electric box. 220 volt, 10 bar

Step 1 Single closing of grips by low pressure (0.5 bar) by foot pedals

Step 2 By two hand buttons (which must be pressed simultaneously within 0.5 sec) pressure will be increased from 0.5 to 7 bar. Tensile test can be started now. If any button is touched now load will drop to 0.5 bar

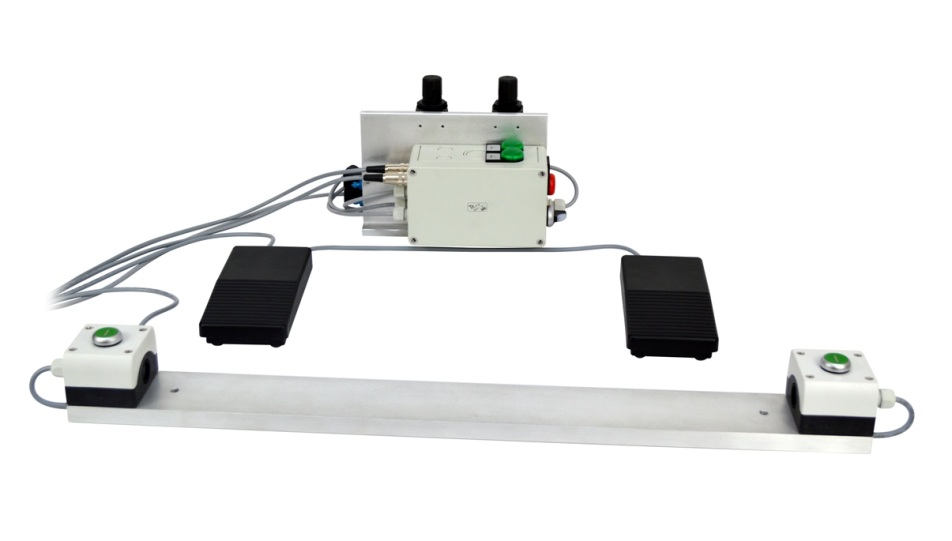

tn_TH205-6-2H front side-

TH205-6-2H

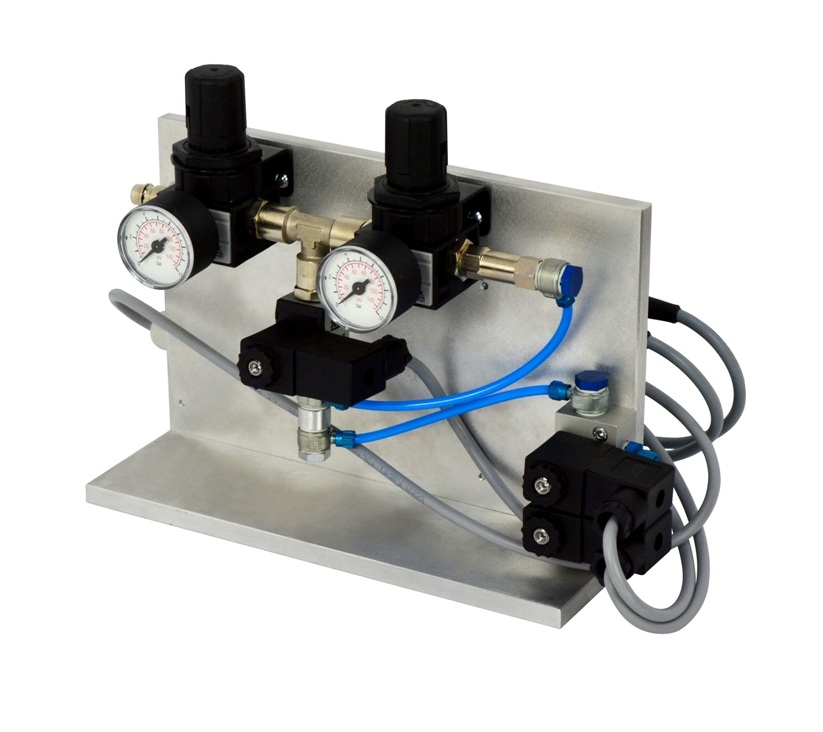

tn_TH205-6-2H manometers-

TH205-6-2H



High and low pressure manometers

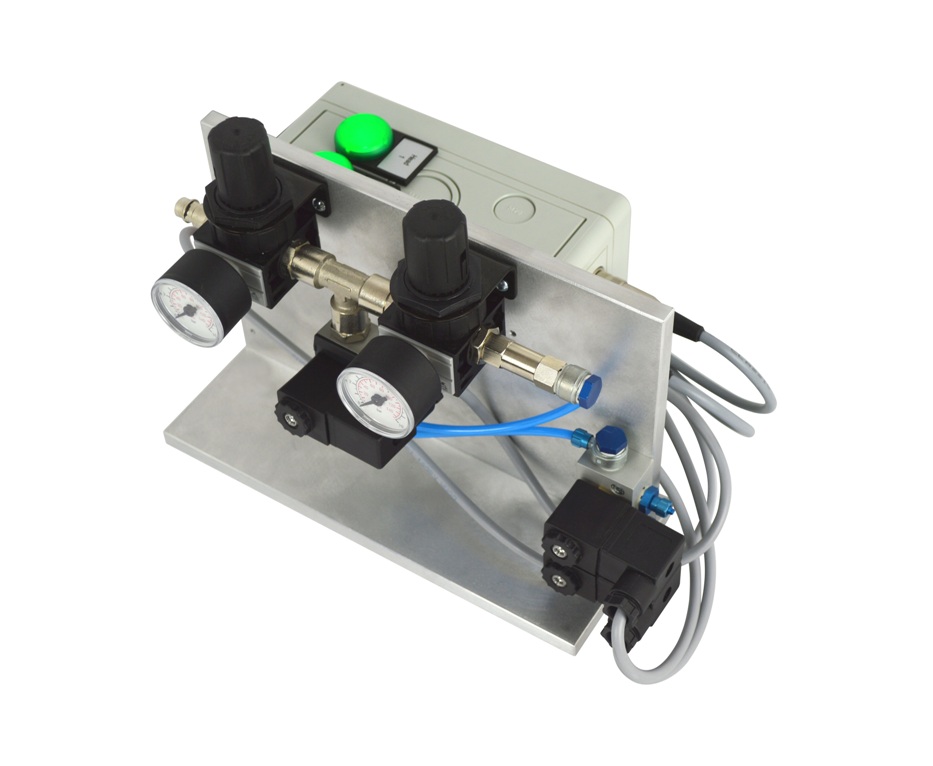

tn_TH205-6-2H manometers top view-

TH205-6-2H
