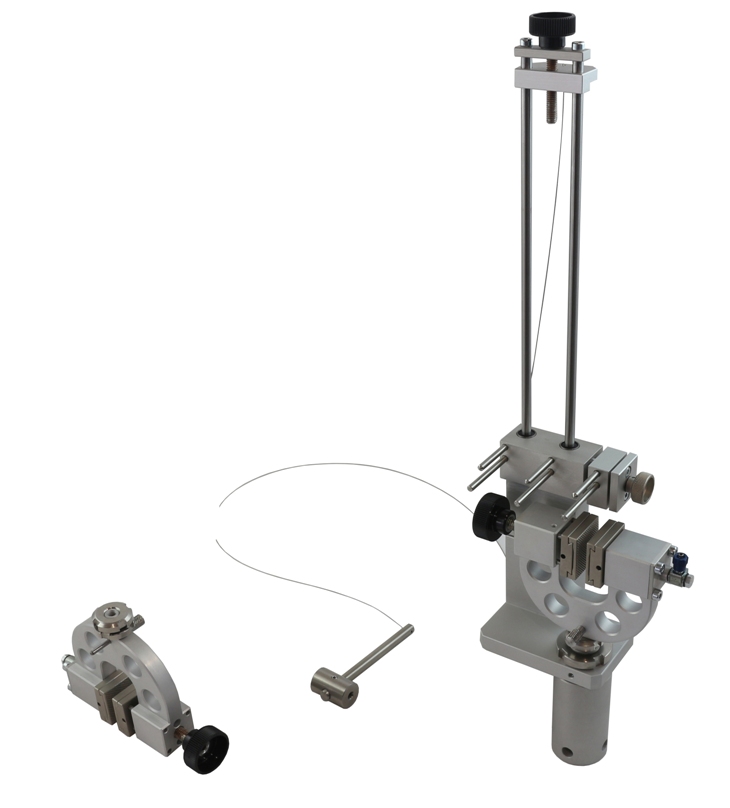

tn_THS1217-V40 + TH240k-Ko+BP30 3,5kg

THS1217-V40 + TH240k-Ko+BP30

90° peel T-peel test fixture

to test seal strength of medical packaging,

to ASTM-F88,ASTM-F904 and
DIN-EN868-5

Max. load 100 N

The unseparated length of the specimen is fixed

more

THS1217-V41-ASTM-F88_DIN-EN-868-5_ASTM-F904_verstelbar+TH240k+KO+BP_ 4kg

THS1217-V41 + TH240k-Ko+BP30

90° peel T-peel test fixture

to test seal strength of medical packaging,

to ASTM-F88,ASTM-F904 and
DIN-EN868-5

Max. load 100 N

The unseparated length of the specimen can be adjusted

more

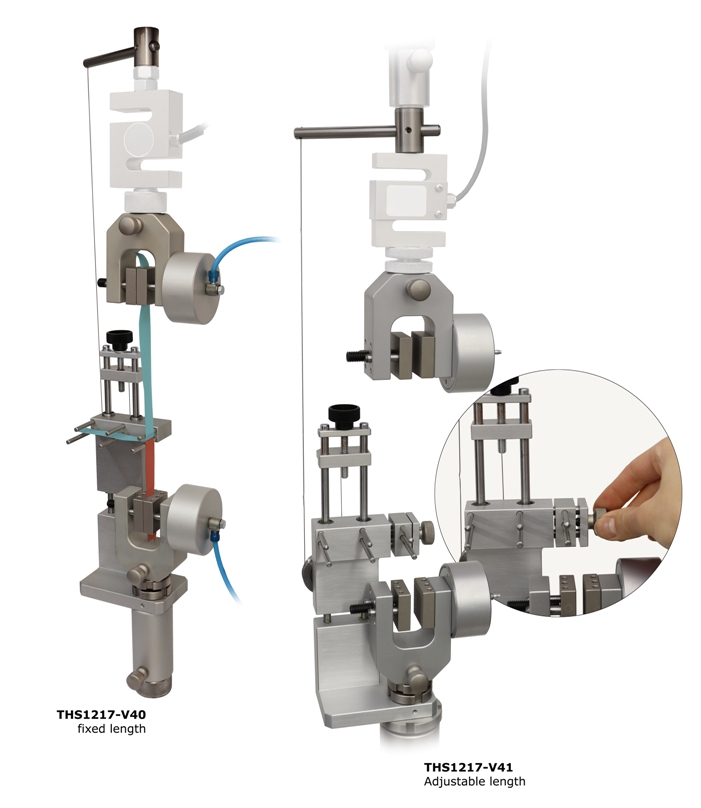

THS1217-V41+THS1217-V40-ASTM-F88_DIN-EN-868-5_ASTM-F904_verstelbar+TH240k+KO+BP_ 4kg

THS1217-V40 and THS1217-V41



THS1217-V40 - the unseparated length of the specimen can be adjusted



THS1217-V41 - the unseparated length of the specimen is fixed

THS1217-ASTM-F88-90° supported by hand Kelbeband Abzug 90° Führung horizontal mittig zwischen den Spannköpfen_-

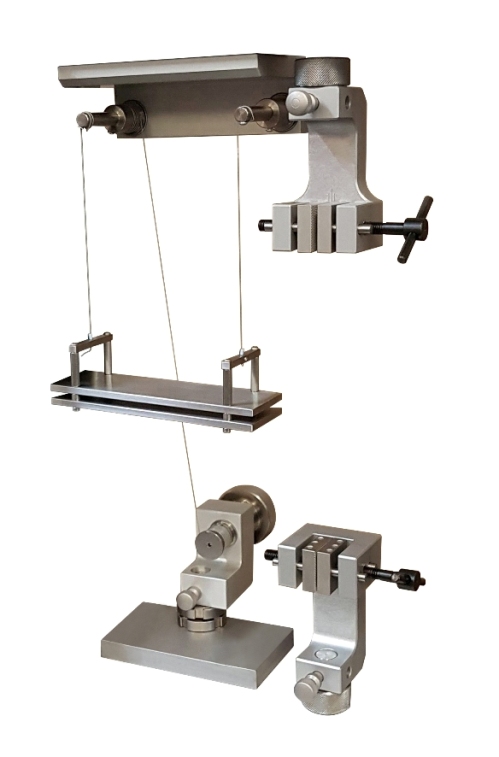

THS1217-ASTM-D2724

T-peel bond strength test fixture according to ASTM-D2724

more
