G14 Peel Grips



Back

tn_TH192-20--

TH192-20-26-W60

according to DIN EN 1372



TH192-25-26-W60


pdf_icon.gifTH192 Datasheet.pdf

pdf_icon.gifTH192 Datenblatt.pdf



Peel test fixtures

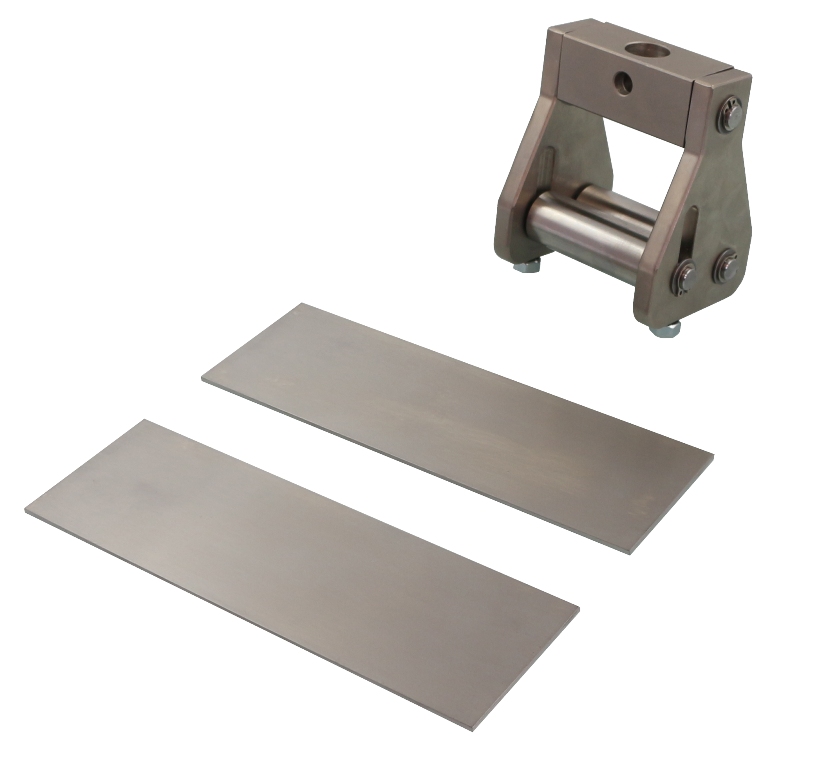

Floating roller peel method

Adjustable second roller from 0 to 45

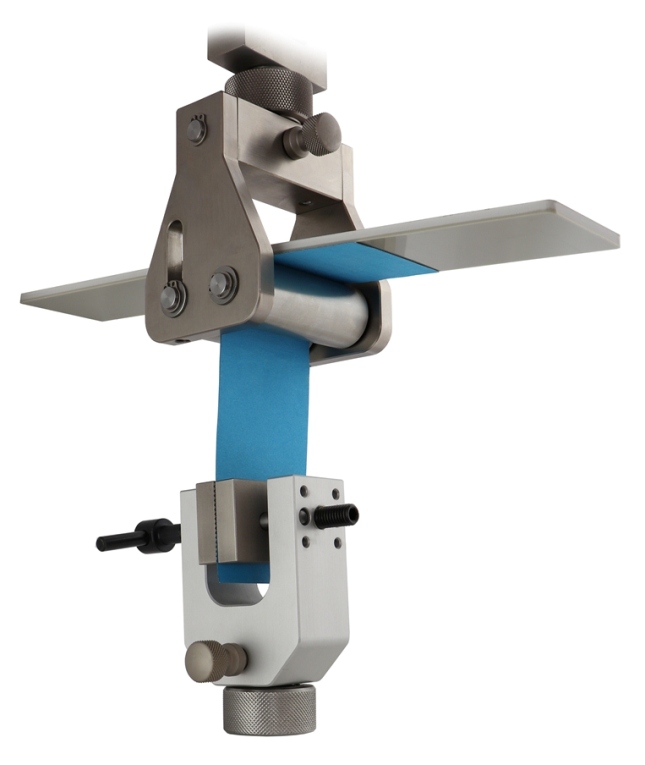

TH192+TH240k+BP80

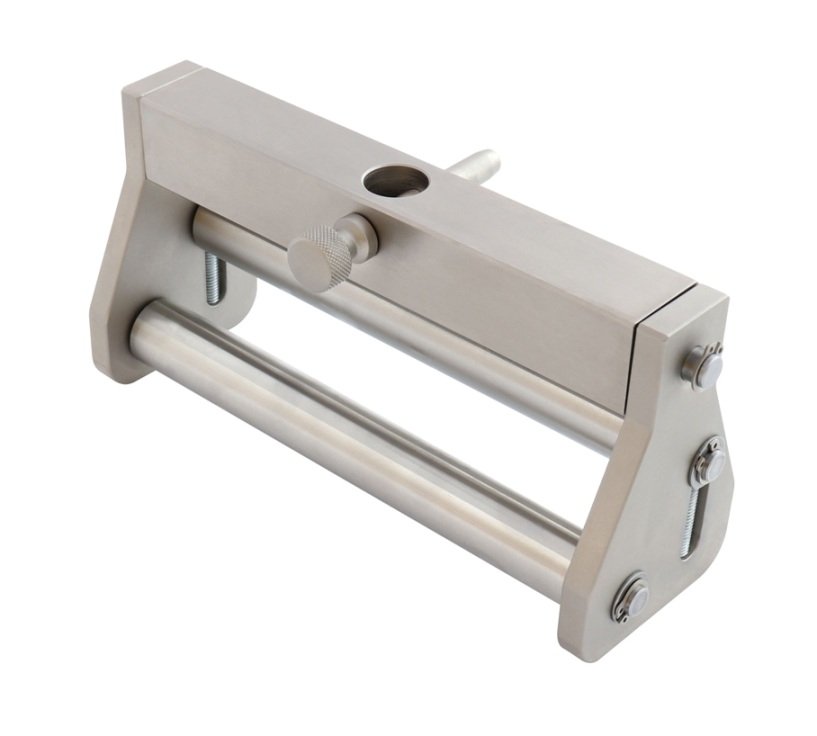

tn_TH192-20-26-W160  1,84kg-

TH192-20-26-W160



TH192-25-26-W160



Rollers 20 or 25 mm ,

width 160 mm

tn_TH192-

TH192-20-26-W60



TH192-25-26-W60



TH192-20-26-W160

TH192-25-2VS-adjustable distance-.jpg

TH192-22-2V



TH192-25-2V

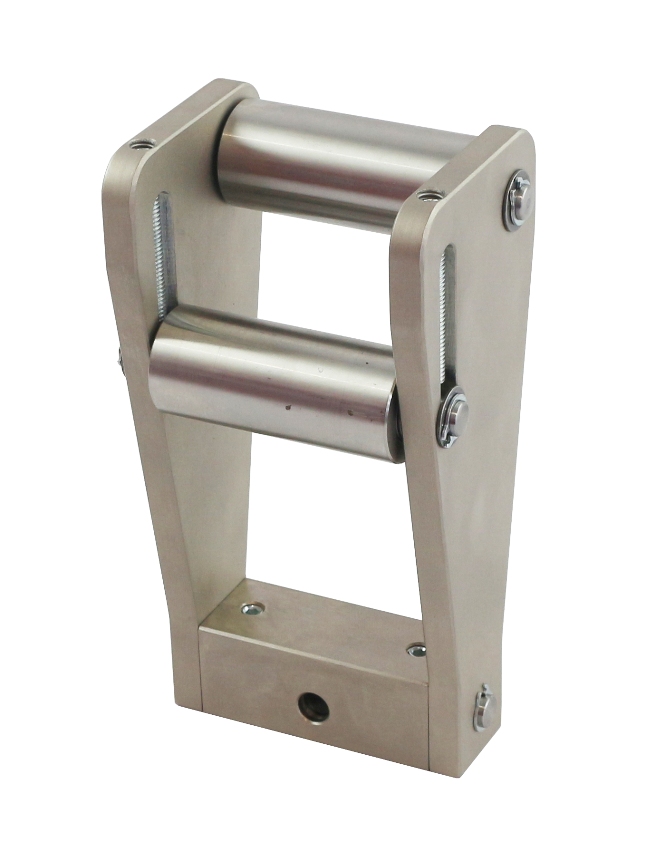

Peel test fixture with adjustable distance

between rollers



Rollers 22 or 25 mm

Adjustable distance 0-50 mm or 0-46 mm

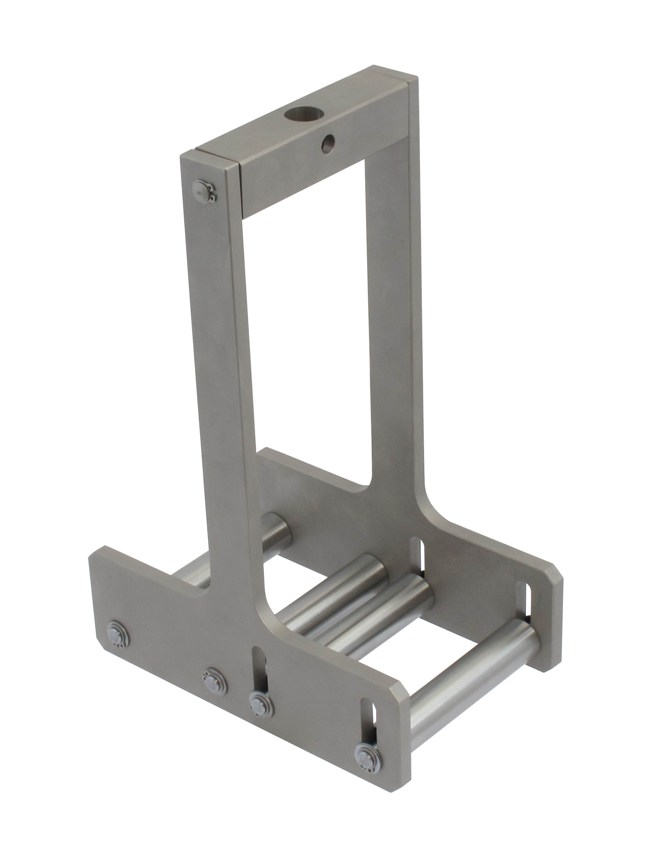

TH192-25-2-200-100-4R



Peel fixture for samples 120x180 mm, like e.g. foam

4 rollers 25 mm

2 rollers with adjustable height


TH192-D25-A35-H100



Peel fixture with an adjustable peel angle

(from 90 to 110) and height 100 mm

for thicker samples.

Rollers 25 mm

Distance between roller centers 35 mm

Max. sample carrier thickness 30 mm

Max. sample peel-off thickness 10 mm
