G01 Compression platens

Back







Description: tn_THS162-1390  280g  2019-01-11  06-

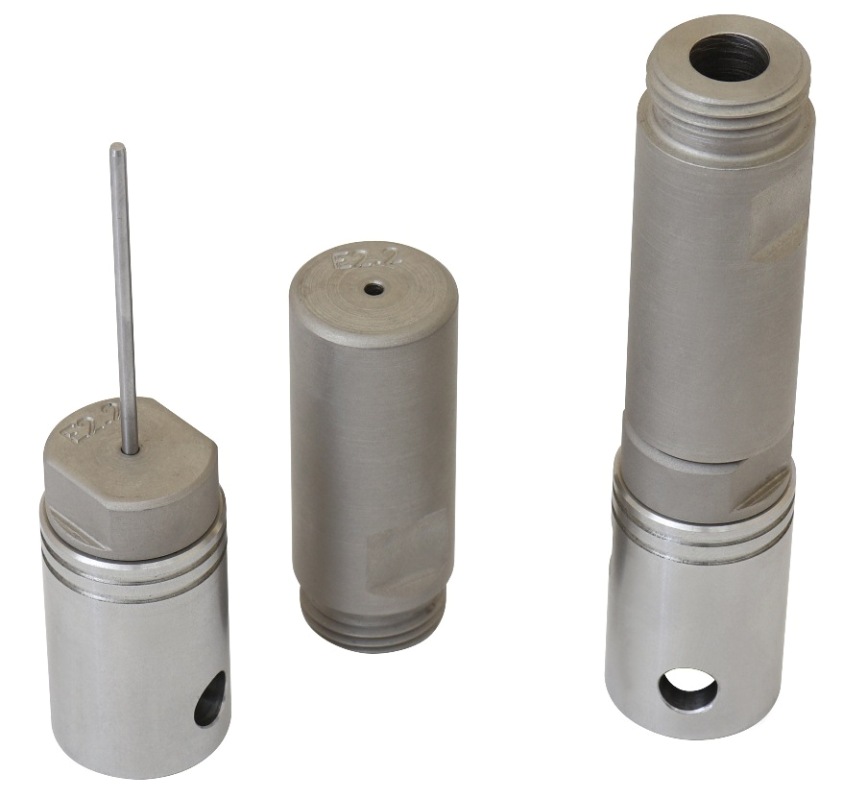

THS162-1390

Special Fixture to test compression properties of springs.

Consists of stainless steel spring holder with upper and lower connection Af159 (upper connection is not shown on the photo) and pin insert for springs 50 mm long and 2.2 mm inner diameter

Description: Description: Description: THS402-OT30-E3+E30-P2.4x45

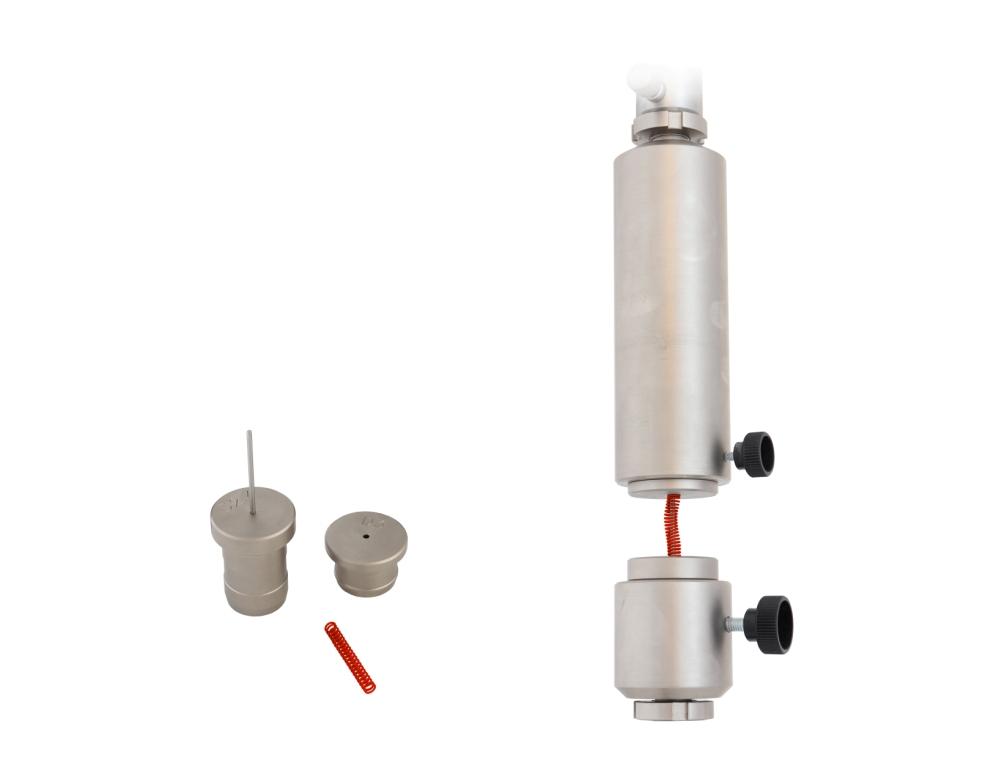

THS402-OT30-E3+E30-P2.4x45



Spring test fixtures with inserts

Description: Description: Description: THS402  2019-08-22  02-1

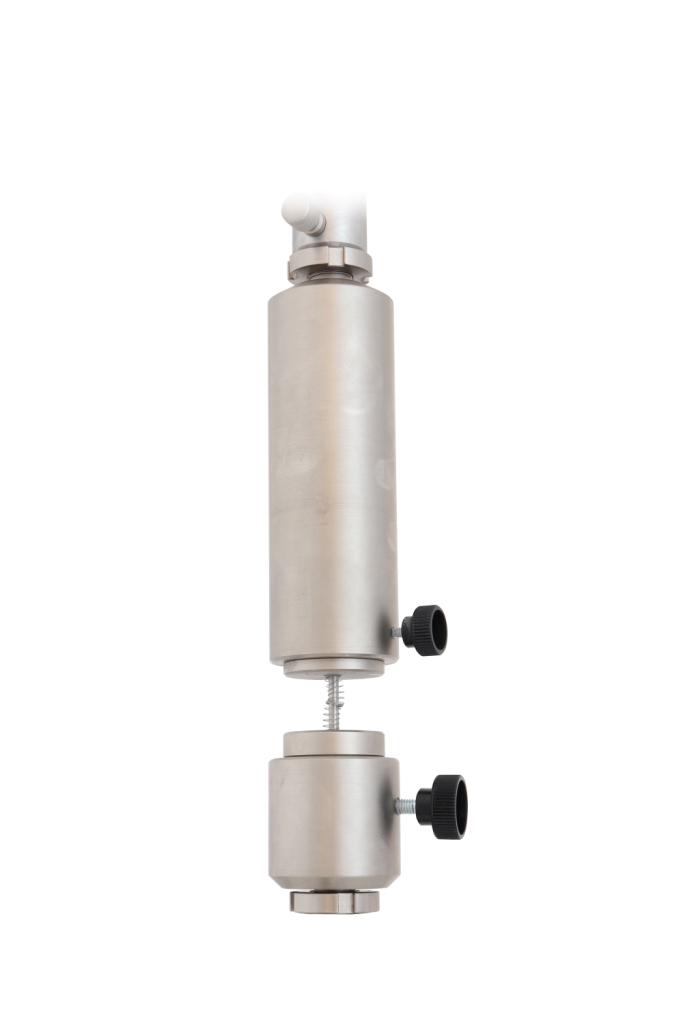

THS402-OT30-E3+E30-P2.4x45

Description: Description: Description: THS402-OT30-E45+UT30x40-P79x125  2019-08-21  02

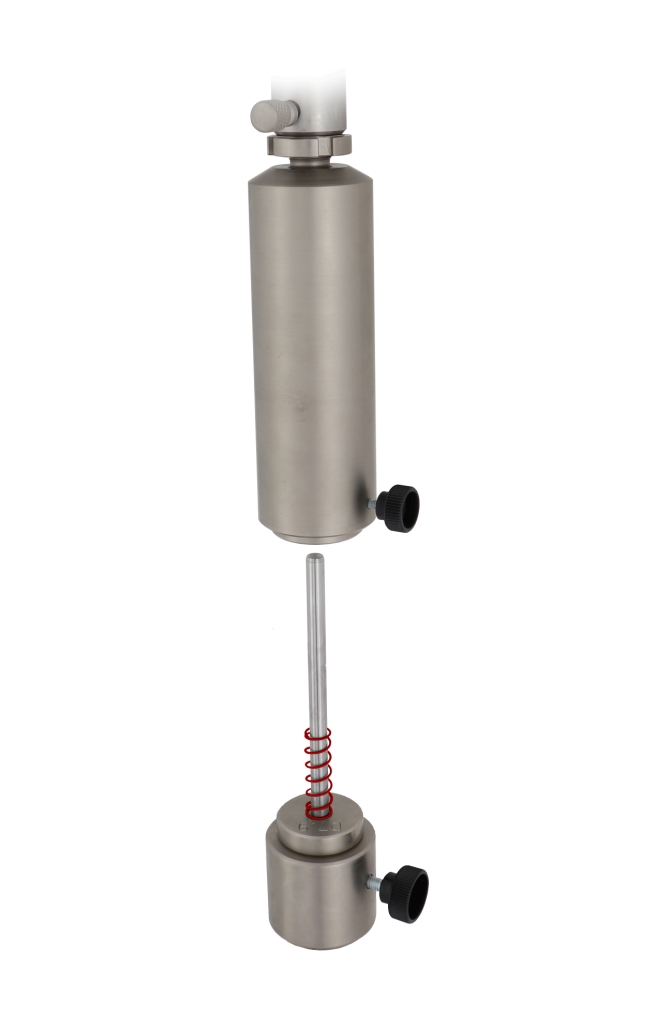

THS402-OT30-E45+UT30x40-P7.9x125



Special version with an insert to accommodate pins of different diameters





With pin 7.9 mm diameter and 125 mm long



Description: Description: Description: THS402-OT44x70+E30-P43x65 2019-08-22  03-1

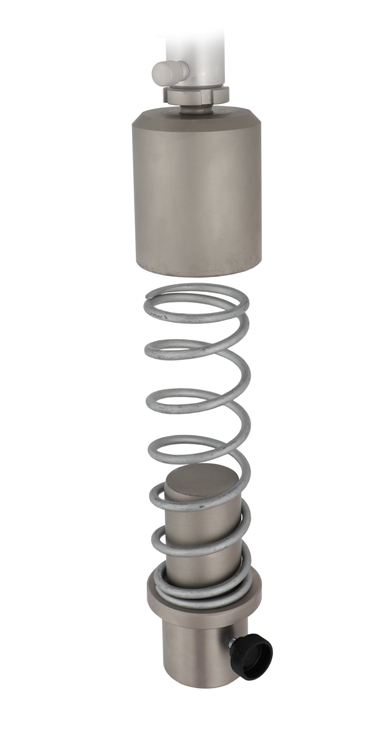

THS402-OT44x70+E30-P43x65



Special version with an insert to accommodate pins of different diameters



here pin 43 mm diameter and 65 mm long



More
