G01  Compression Fixtures

Back

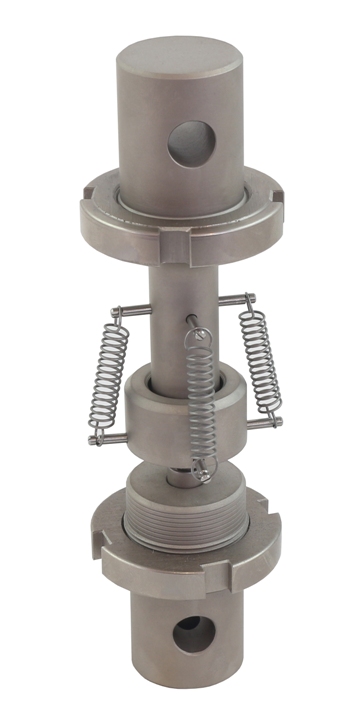

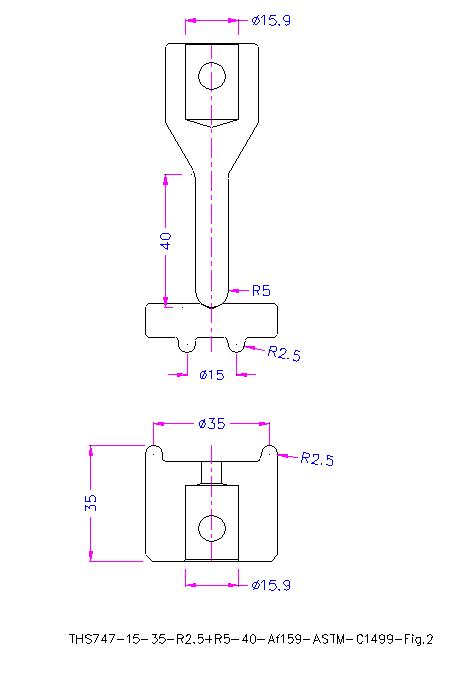

Description: THS747-15-35-R2.5+R5-40-Af159-ASTM-C1499-Fig.2 Compression Ceramics



THS747-15-35-R2.5+R5-40-Af159

Compression test fixture to test advanced ceramics to ASTM-C1499 Fig.2

Druckvorrichtung zum Testen von Hochleistungskeramik gemäß ASTM-C1499 Fig.2

Description: tn_THS747-tp-15-1.5-14 THS747-bm-30-1.5-14 ring crush test  Monotonic Equibiaxial Flexural Strength of Advanced Ceramics Doppelring

THS747-tp-15-1.5

THS747-bm-30-1.5



Double ring compression Platen to test monotonic equibiaxial flexural strength of advanced ceramics at ambient temperature according to ASTM-C1499



Doppelring Druckplatten zum Testen von Hochleistungskeramik gemäß ASTM-C1499

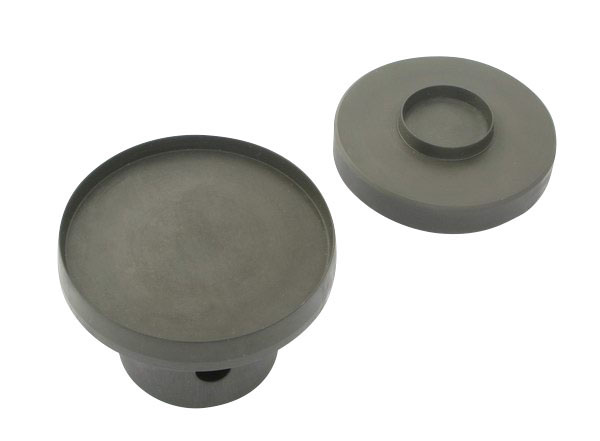

Description: tn_THS747-27 + THS747-25-(right)-ring compression-ASTM-C1499 Doppelringdruckversuch

THS747-27
THS747-25



Ring compression Platens

Upper plate -  spherically seated, self-aligning and fixable, with ring

Lower plate - Special compression plate, with ring

Steel, hardened

Similar to the ASTM-C1499

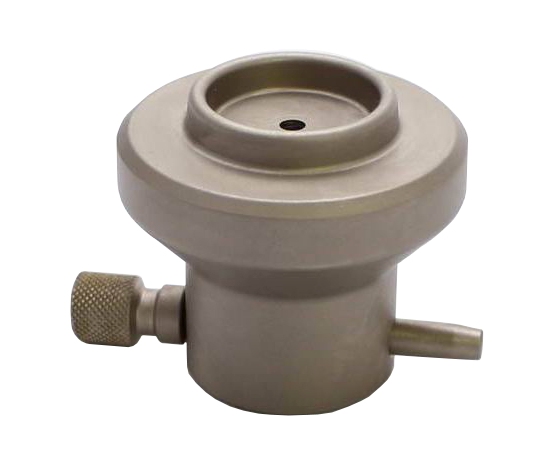

Description: tn_THS747-lo-30-1.5-Af14637   lower ring compression platen diameter 30 Raidus 1.5 with a hole to let air out

THS747-Lo-30-1.5



Compression Platen

Contact diameter Ø 30mm, radius 1.5mm

With a hole for air outlet

Conform to ASTM-C1499

tn_THS747-15-35-R2.5 + THS42-R5-40  ASTM C1499-Fig2  4,5kg  2020-11-26  01

THS747-15-35-R2.5+THS42-R5-40 ASTM-C1499

Special fixture to test monotonic equibiaxial flexural strength of advanced ceramics at ambient temperature according to ASTM-C1499

THS747-15-35-R2.5+THS42-R5-40 ASTM-C1499

Description: tn_THS747-75-R2.5-Am317-Sta   17.02.2020

THS747-75-R2.5-Am317



Special compression Platen with ring, ASTM-C1499

Ring Ø 75mm, radius 2.5mm

Steel, hardened, nickel coated

Coupling: Am317mm



Description: tn_THS747-75-R2.5-Am317-St   17.02.2020

THS747-75-R2.5-Am317
