G01  Compression Fixtures

Back

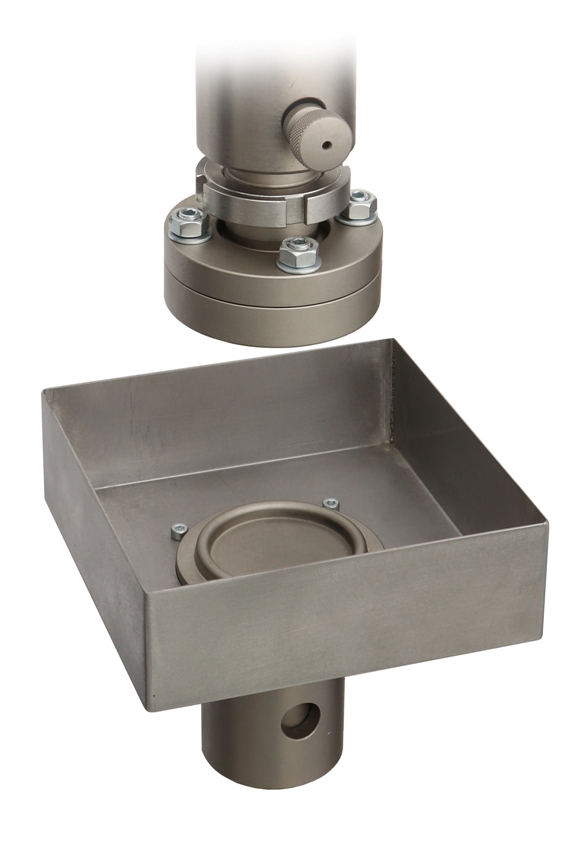

Description: tn_THS747-tp-18-R2.5-Af159+THS747-bm-90-R2.5-Af159-EN1288-5-x 17.02.2020 (1)

THS747-tp-18-R2.5-Af159

THS747-bm-90-R2.5-Af159



Double ring compression platen to test bending strength of glass according to ISO1288-5

Doppelring Druckplatten zum Testen von Biegefestigkeit von Glas gemäß ISO1288-5

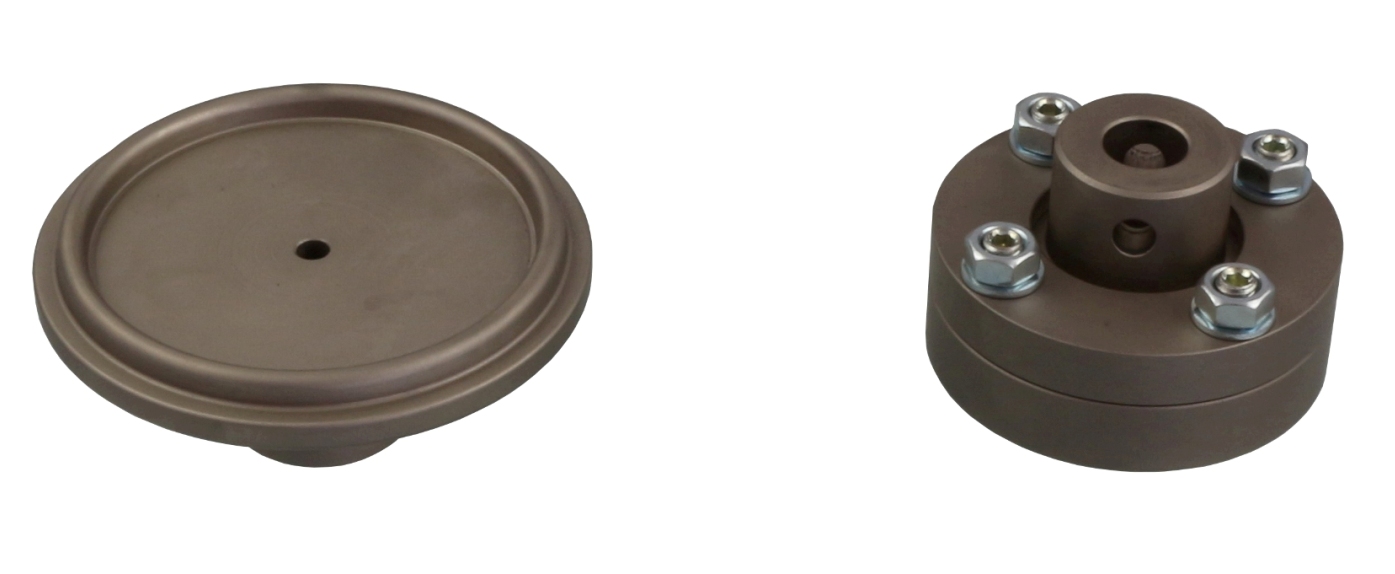

Description: tn_THS747-tp-18-R2.5-Af159+THS747-bm-90-R2.5-Af159-EN1288-5-x 20.02.2020

THS747-tp-18-R2.5-Af159

THS747-bm-90-R2.5-Af159

Special compression platen

Spherically seated, self-aligning and fixable

Ø 18mm,Radius 2.5mm
Ø 90mm,Radius 2.5mm
Steel, hardened, nickel coated
Coupling  Af159mm

Description: tn_THS747-bm-90-R2.5-Af159-EN1288-5  lower part 17.02.2020

THS747-bm-90-R2.5-Af159



Special compression platen with ring, EN1288-5

Ring Ø 90mm, radius 2.5mm

Steel, hardened, nickel coated

Coupling: Af159mm
