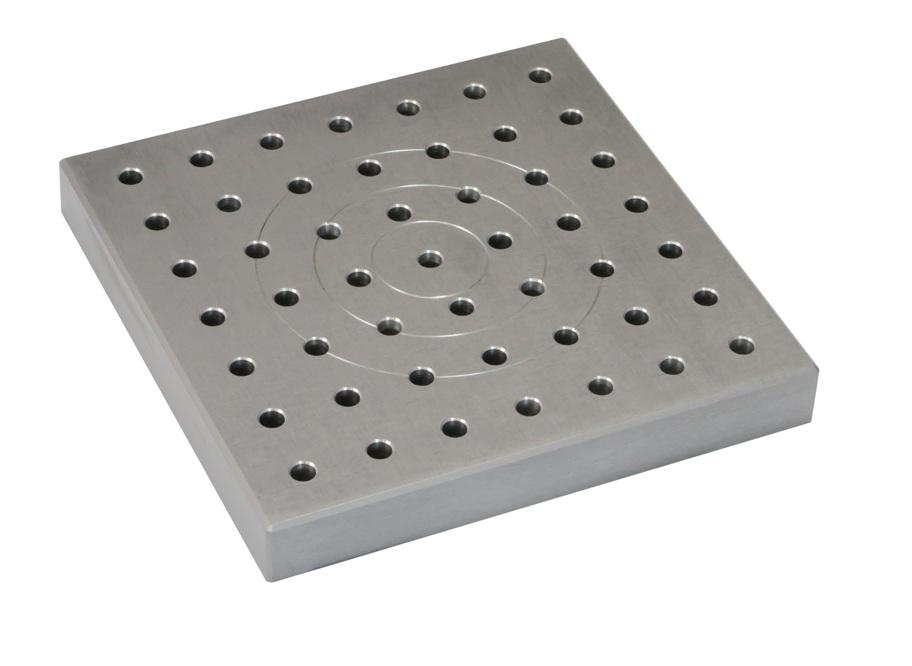

tn_TH36L-150-L6x20-

TH36L-150-L6x20-AL


150x150 mm platen

6 mm Ø holes spaced at 20 mm

With concentric grooves

Aluminum, anodized

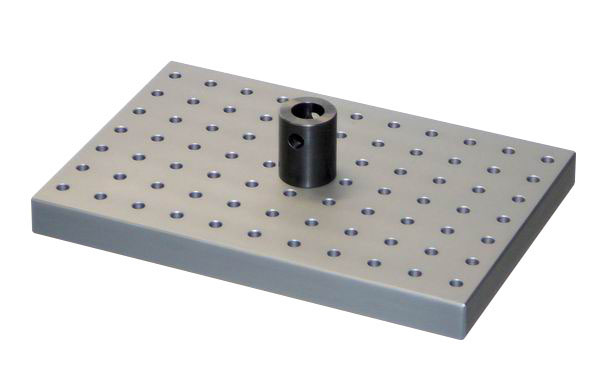

TH36L-150x220-L6x20-

TH36L-150x220-L6x20-AL

150x220 mm platen with mounted adapter

6 mm Ø holes spaced at 20 mm

Aluminum, anodized

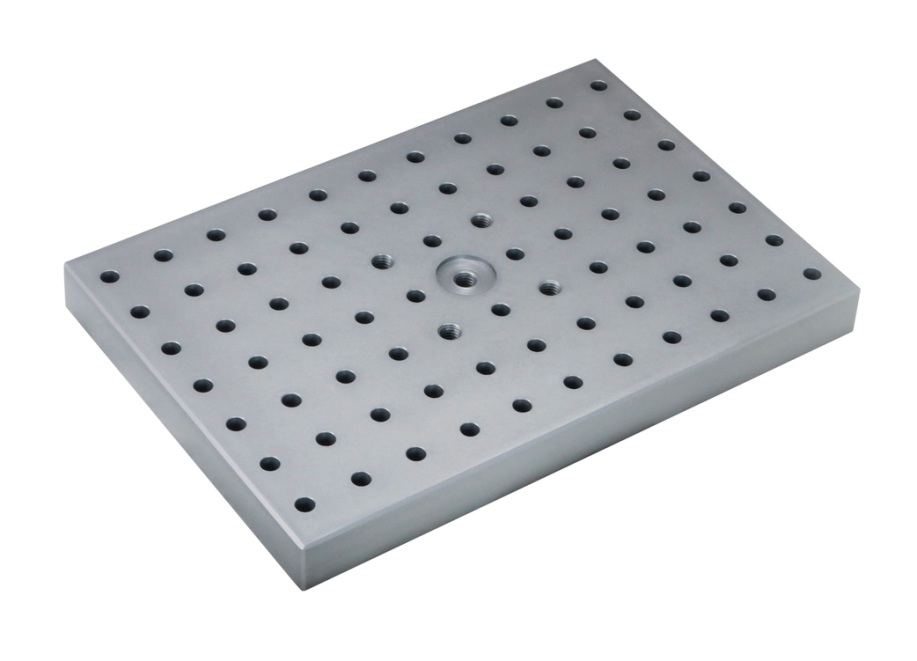

tn_TH36L-220x150-L66--

TH36L-150x220-L6x20-AL

220x150 mm platen
6 mm Ø holes spaced at 20 mm
Aluminum

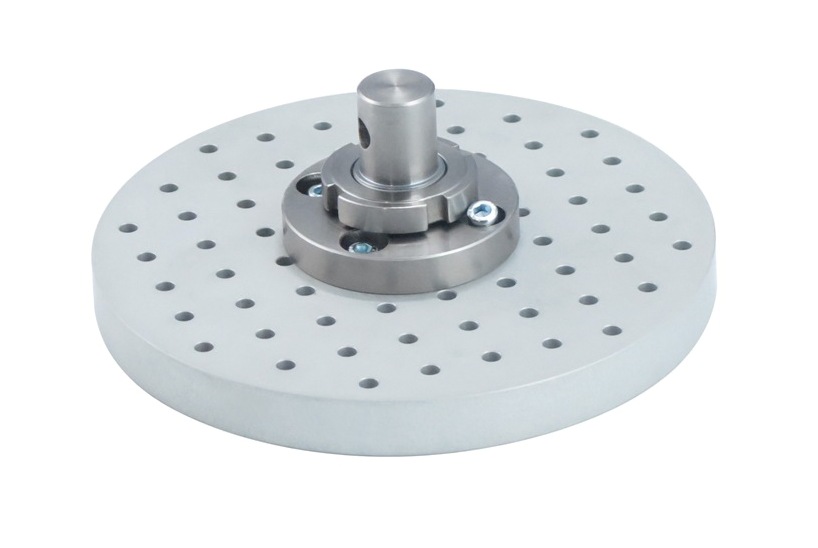

tn_TH36-D200-L6x20-R1 + THS628 -

TH36-D200-L6x20-R1 + THS628



200 mm Ø platen with adapter THS628

6 mm Ø holes spaced at 20 mm

With radius 1 mm

Aluminum, anodized

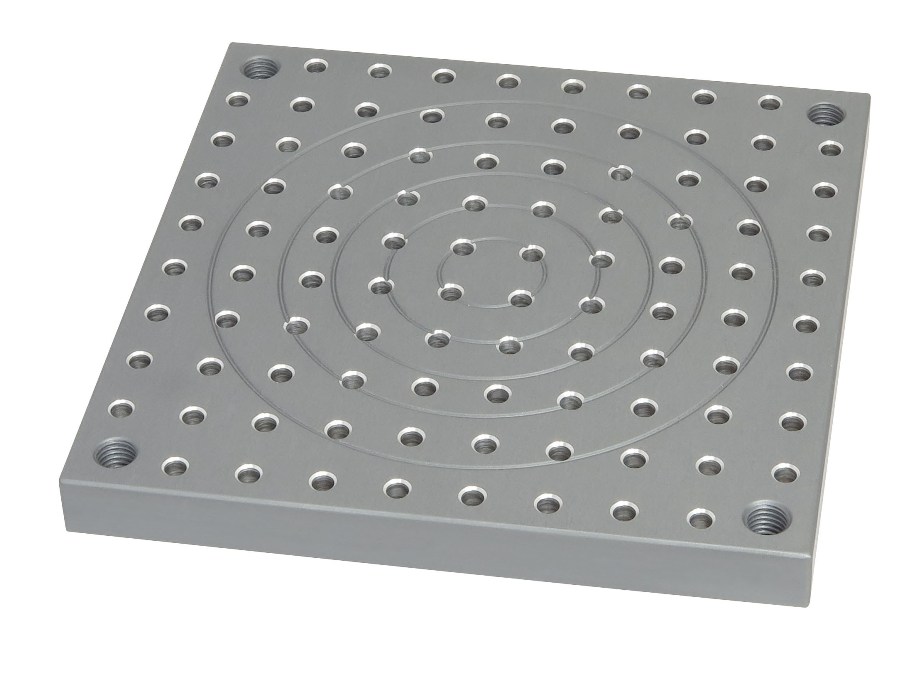

TH36L-200-L6x20 to test foam.

TH36L-200-L6x20-AL

200x200 mm platen

6 mm Ø holes spaced at 20 mm
With concentric grooves

Aluminum, anodized

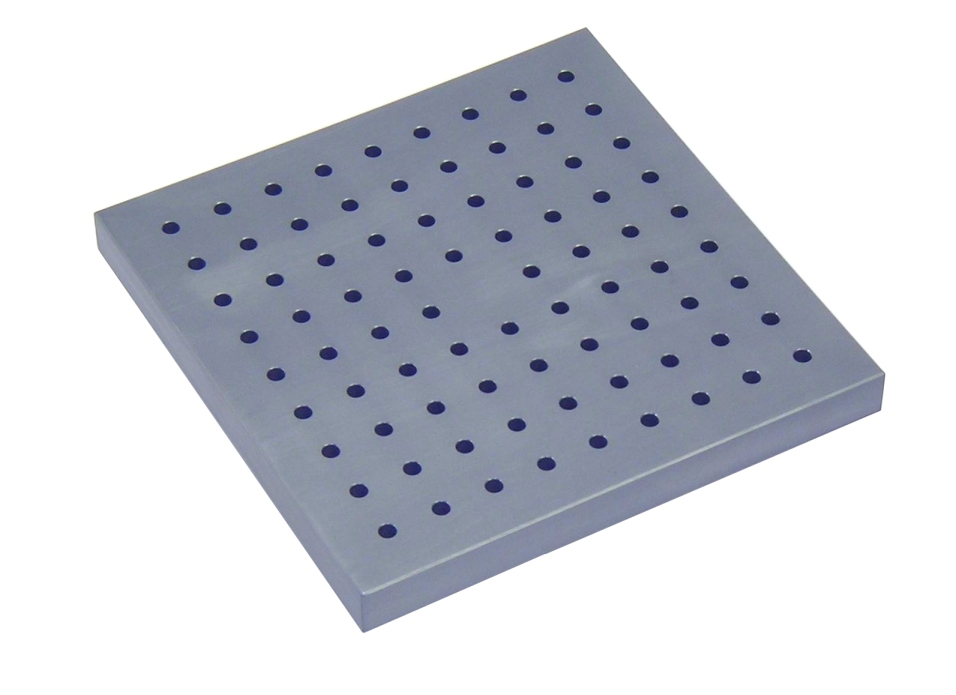

TH36L-200-L6-20

TH36-200-L6x20-AL

200x200 mm platen

6 mm Ø holes spaced at 20 mm

Aluminum, anodized

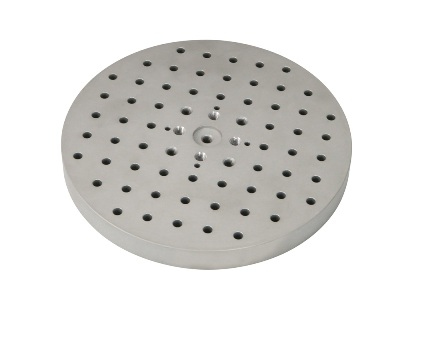

TH36L-200-L6x20 to test foam

TH36L-200-L6x20-AL

200 mm diameter Plate with 6 mm holes spaced 20 mm, Aluminum

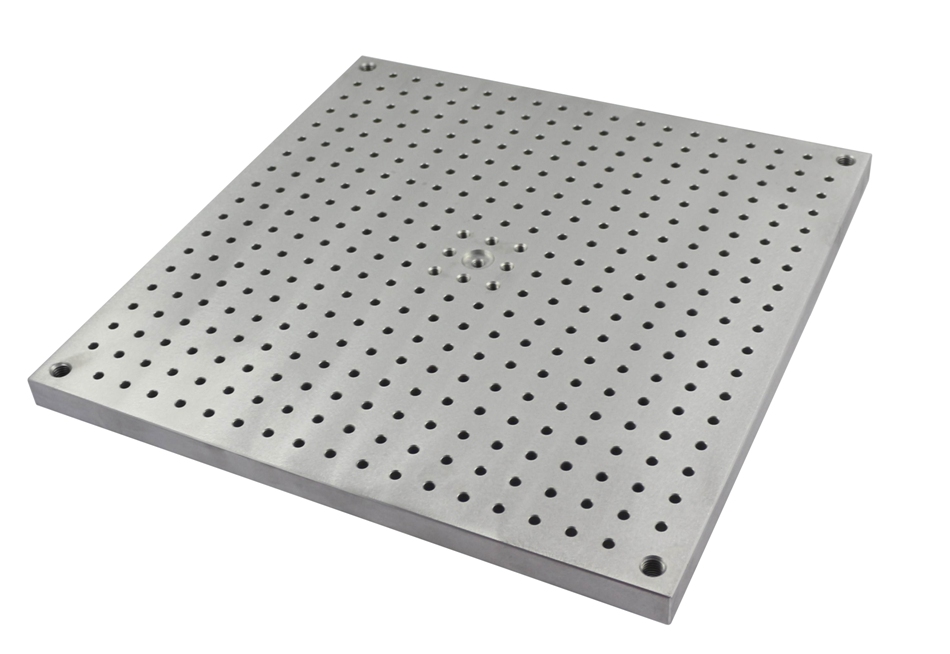

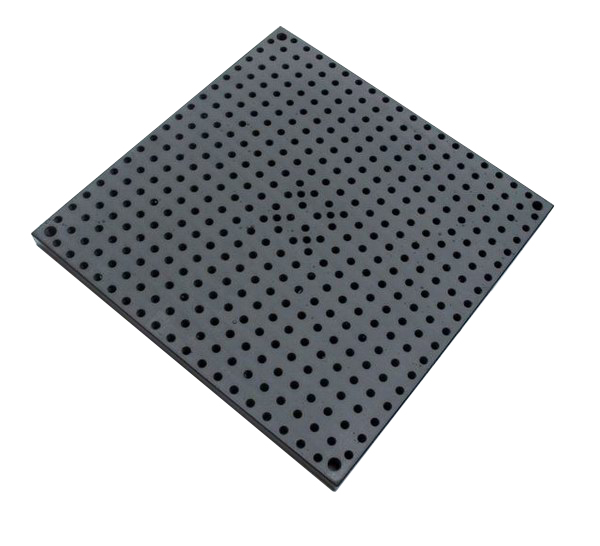

TH36L-400x400-st-LM8x20

TH36L-400-L6x20-ST



400x400 mm platen, steel

6 mm Ø holes spaced at 20 mm

With concentric grooves

Suitable for testing flexible cellular materials according to DIN53579, indentor, see THS42-D75

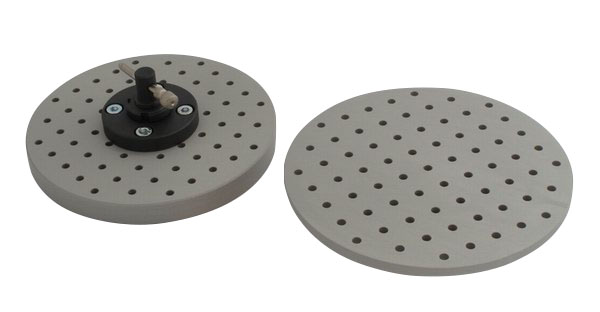

TH36L-D156-L6x20

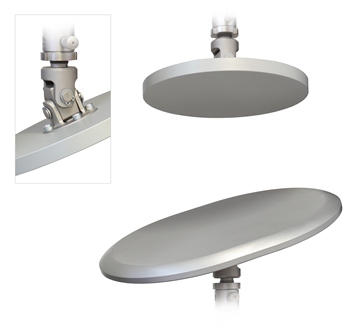

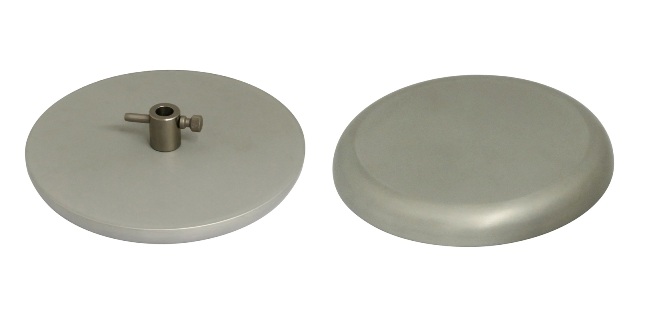

Special versions
