Compression Platen with Integral Spherical Seat big angle version

Back

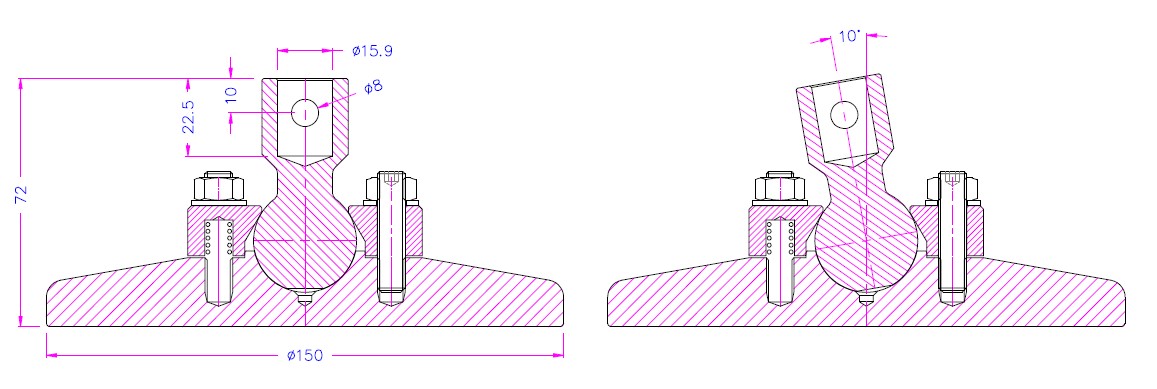

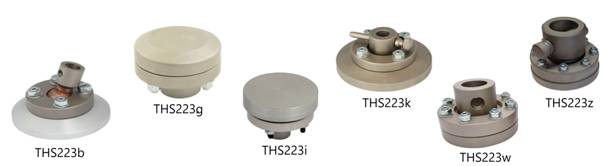

THS223b-150-Af159-Al

THS223b-A-B

A-Diameter
B-Adapter size
Angle
10
Steel, hardened, nickel-Plated
Max. load 20 kN
Coupling Af159

Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif THS223 Datasheet.pdf
Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif THS223 Datenblatt.pdf

tn_THS223b-56-Af159  2020-09-04  02

TH223b-56-Af159

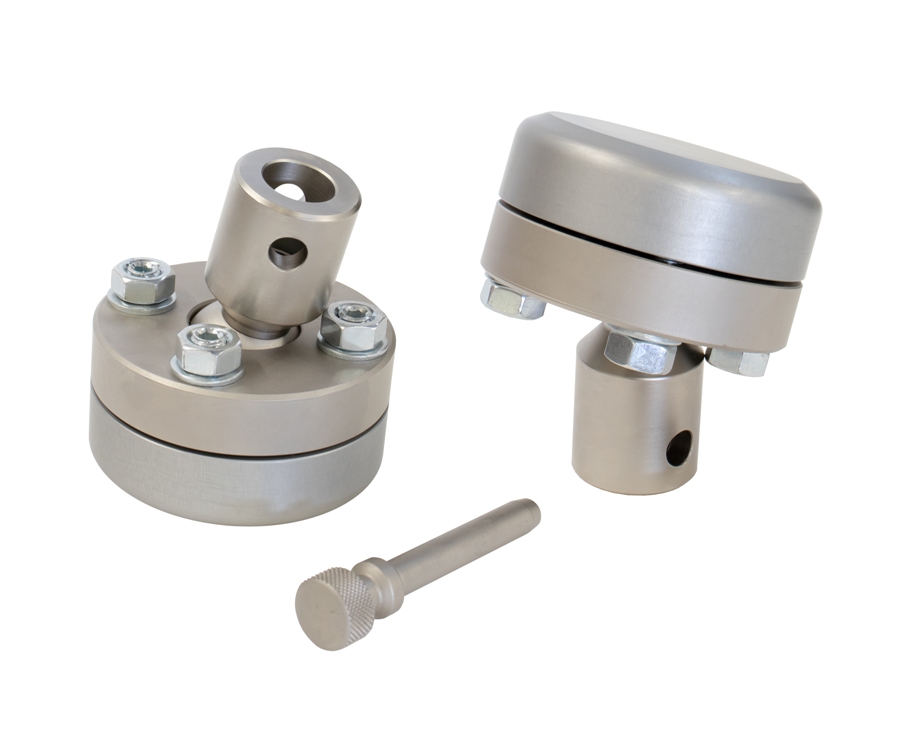

Compression Platen 56 mm diameter

Max dimensions 68x75 mm

Spherical seated  fixable

Big angle 20
Coupling Af159

THS223b-K30-P56-Af159-Alu-x hqp 2020-07-21

THS223b-K30-P56-Af159-AL

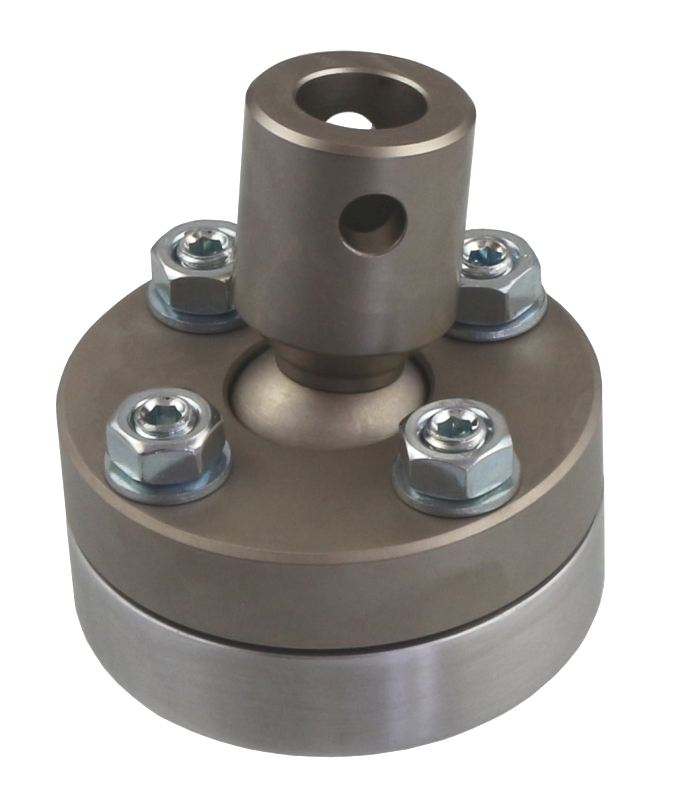

Compression Platen 56 mm diameter
Angle
10
Aluminum,
anodized
Temperature range: 0...+70C
Coupling Af159

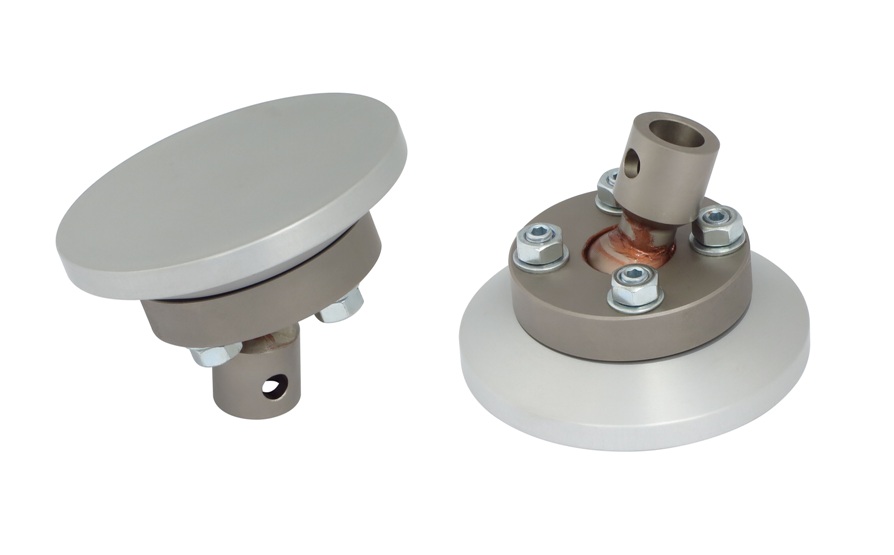

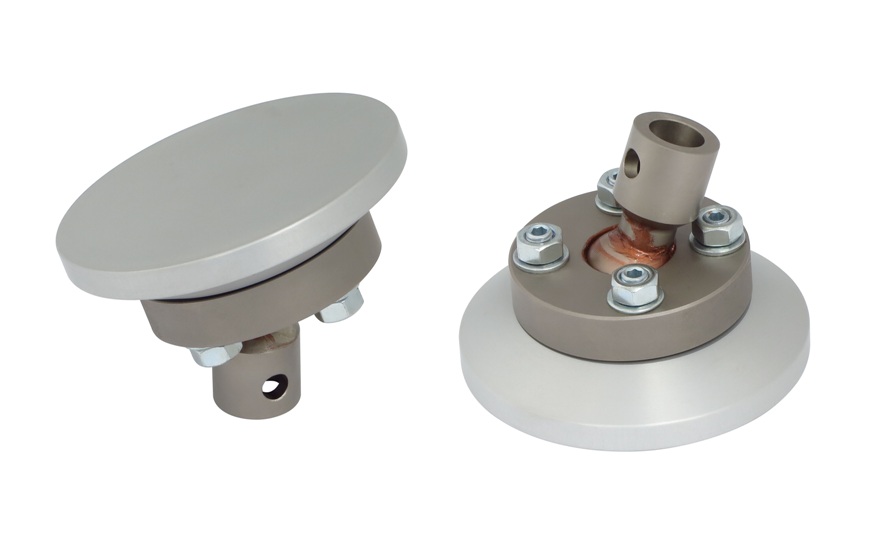

Description: Description: Description: Description: THS223b-100-Af159-Al-

THS223b-k30-P100-Af159-AL

Compression Platen 100 mm diameter

Angle +-20
Alu eloxated
Temperature range: 0...+70C
Max. load 10 kN, Coupling Af159

In stock

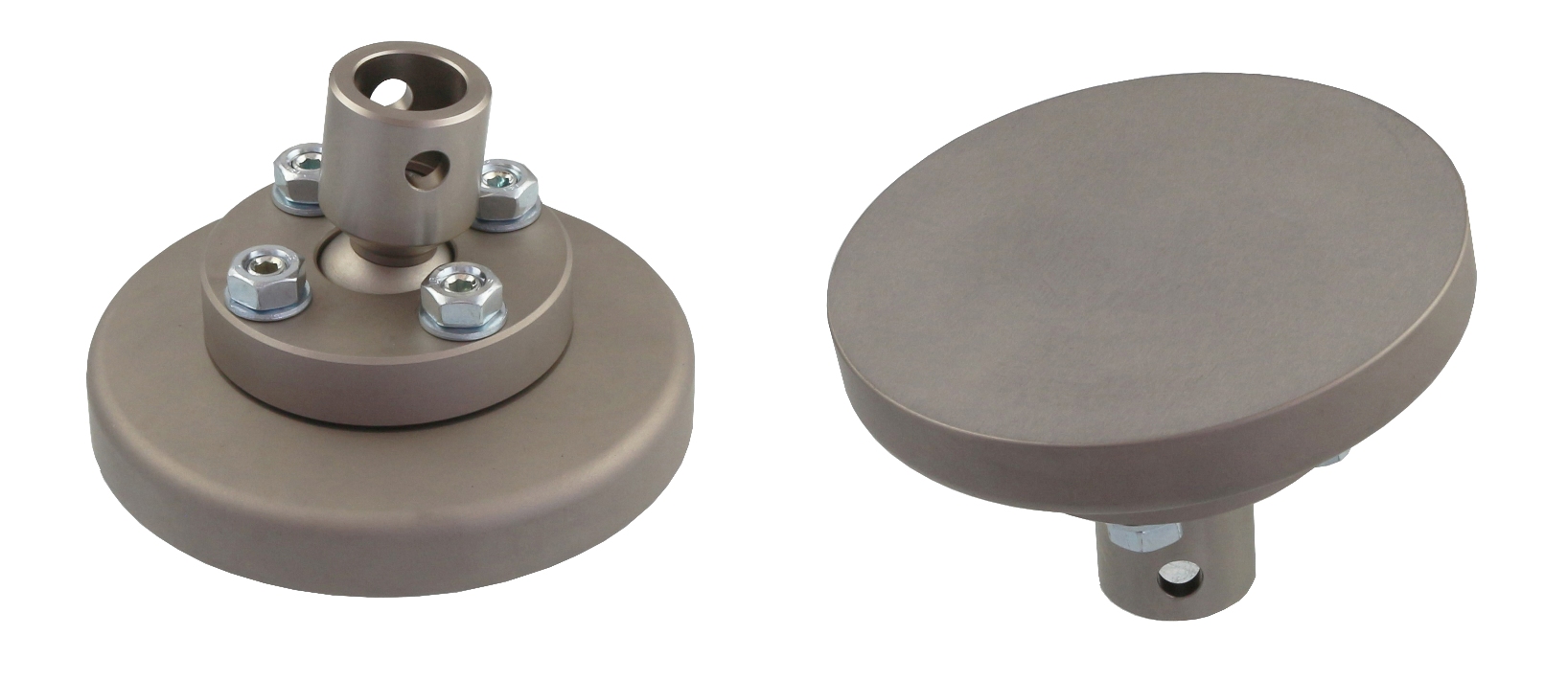

tn_THS223b-k30-P112.8-Af159-DIN53579-2-2013-06-25-A-

THS223b-k30-P112.8-Af159

Compression Platen 112.8 mm diameter
According to DIN53579
Angle 20
Aluminum, anodized
Max. load 20 kN, Coupling Af159

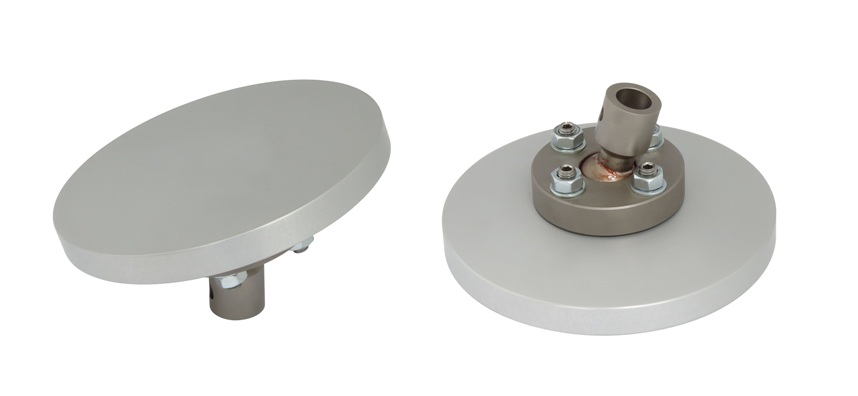

tn_THS223b-k30-P150-Af159-Al-

THS223b-k30-P150-Af159-AL

Compression Platen 150 mm diameter

Angle +-15
Alu eloxated
Temperature range: 0...+70C
Max.load 10 kN, Coupling Af159

In stock

Description: Description: Description: Description: THS223b-200-Af159-St-

THS223b-k30-P200-Af159-St

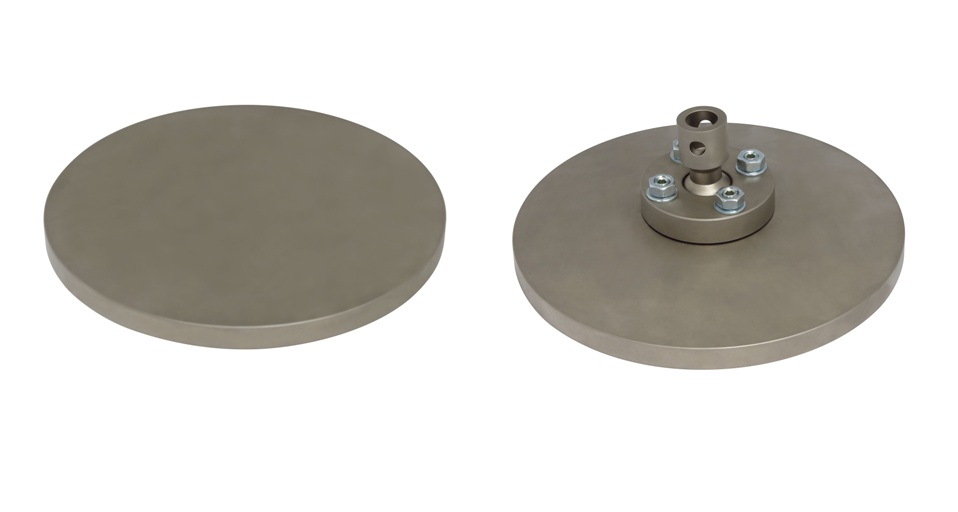

Compression Platen 200 mm diameter
Angle +-15
Steel, hardened, nickel-plated
Temperature range: -70C +280C
Max. load 20 kN, Coupling Af159

In stock

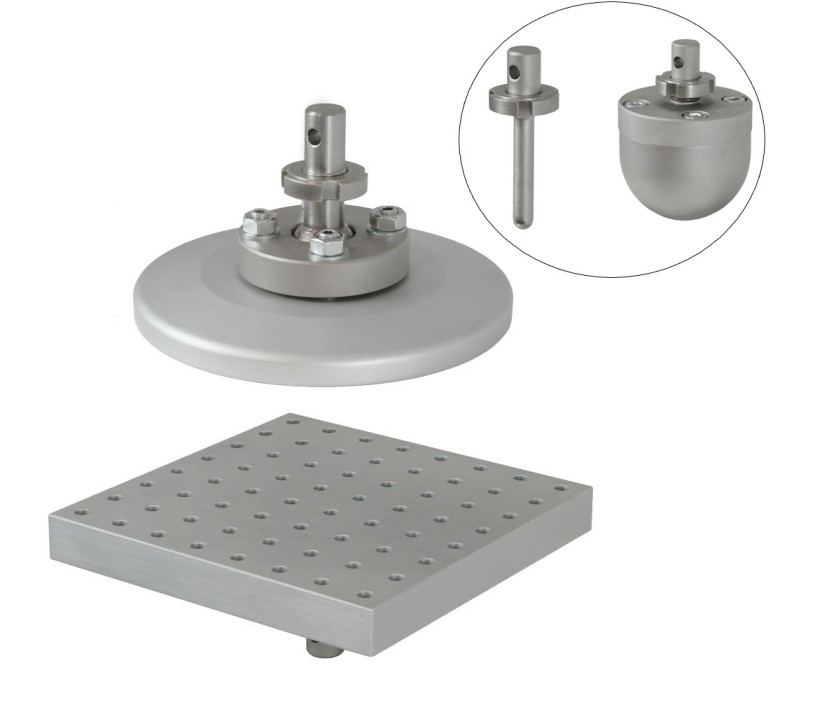

THS223b-A20-Af159+TH36-200-oZR-AL

THS223b-A20-Af159+TH36-200-oZR-AL



Square aluminium compression platen TH36-200-oZR-AL

with mounted self-aligning adapter THS223b-A20-Af159

Swivel angle 20, coupling Af159

THS223x-K60-156-Af3816-ST_2023-09-09

THS223b-K60-156-Af3816-ST

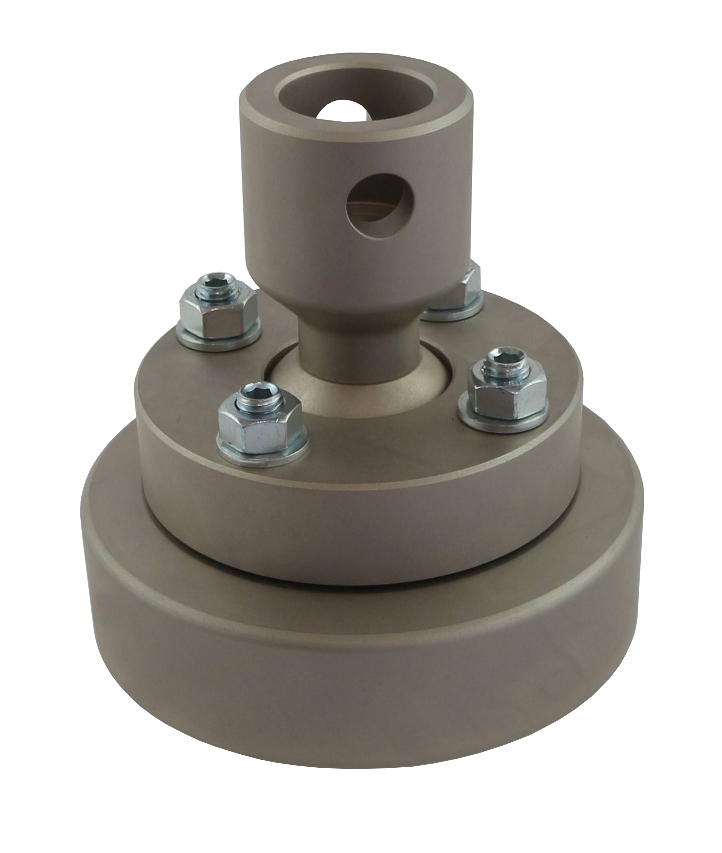

Special platen, 156 mm
Self-aligning, angle 20

Max. load 100 kN
Steel, hardened, nickel-plated
Coupling Af38/16
