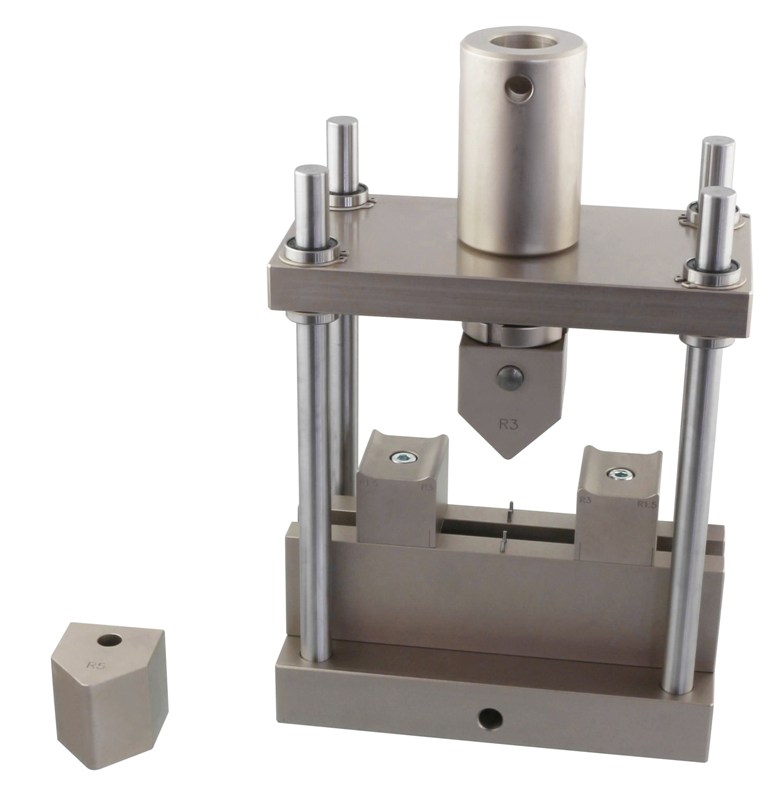

TH103-B220-GDE-Af30-AR1.5-3-oFR3-oFR5 2018-12-15

TH103-B220-AR1.5-3-oFR3-oFR5-GDE



3-point bending grip with guide system
Max. load 50 kN
Lower bar 220 mm, lower anvils 1.5-3 mm, upper anvil 3 mm and 5 mm

Steel, nickel coated

tn_TH103-GDE-Af31.8-x 2018-12-15-

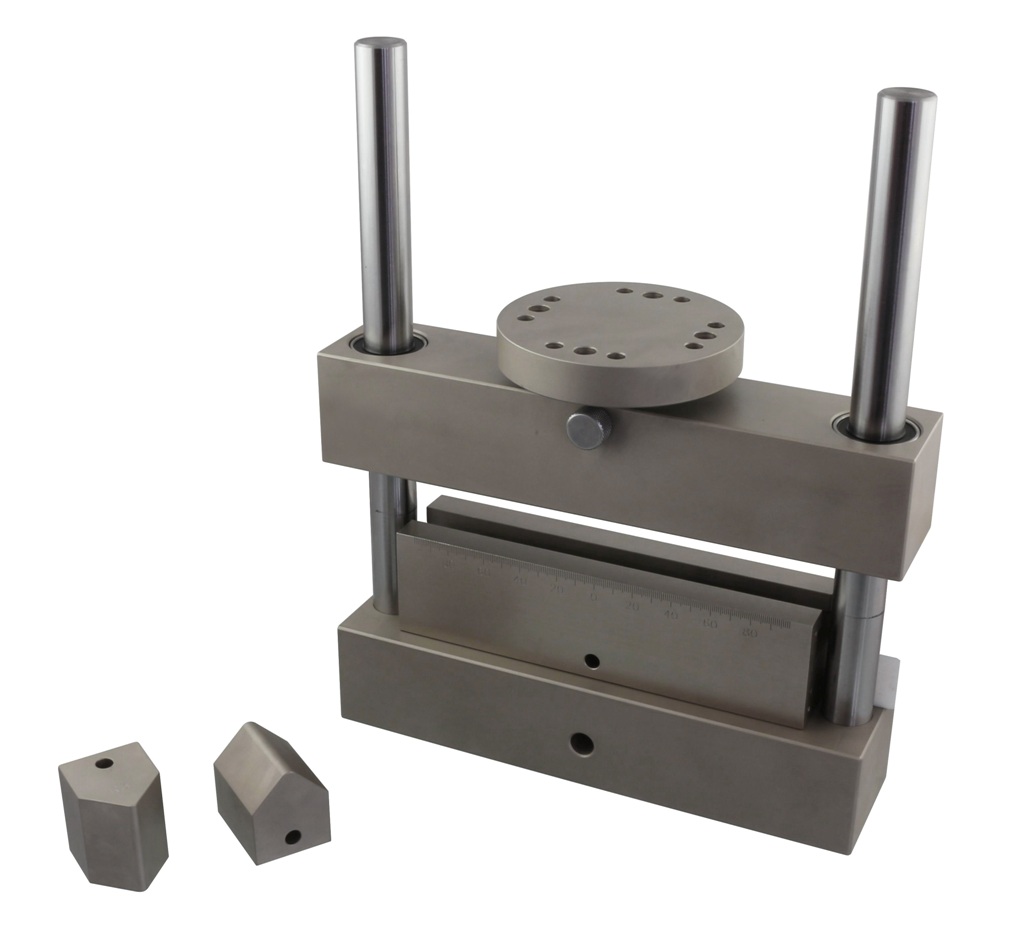

TH103-B300-oFR3-oFR5-GDE



3-point bending grip with guide system
Max. load 50 kN

Lower bar 300 mm long,  upper anvils 3 mm  and 5 mm

Steel, nickel coated

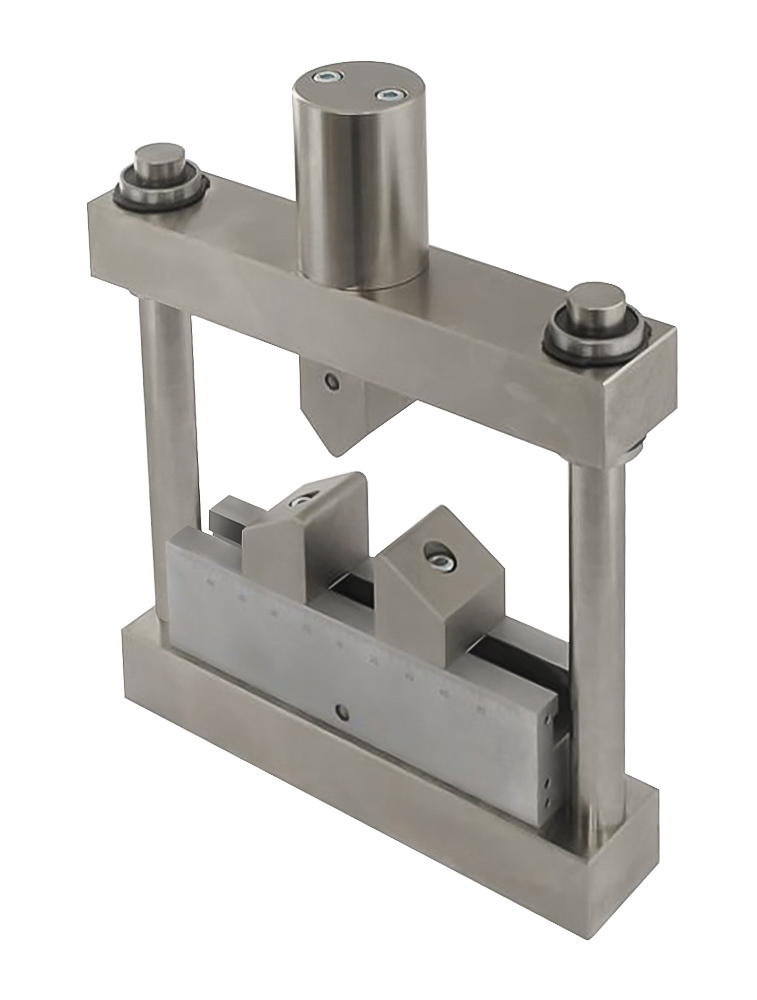

tn_TH103-CR3-FoR3-GDE ball bushing guide EN 2563









TH103-CR3-oFR3-GDE

3-point bending grip with guide system
According to ASTM-D6641
Max. load 50 kN
Lower anvils 3 mm, upper anvil 3 mm

Steel, nickel coated

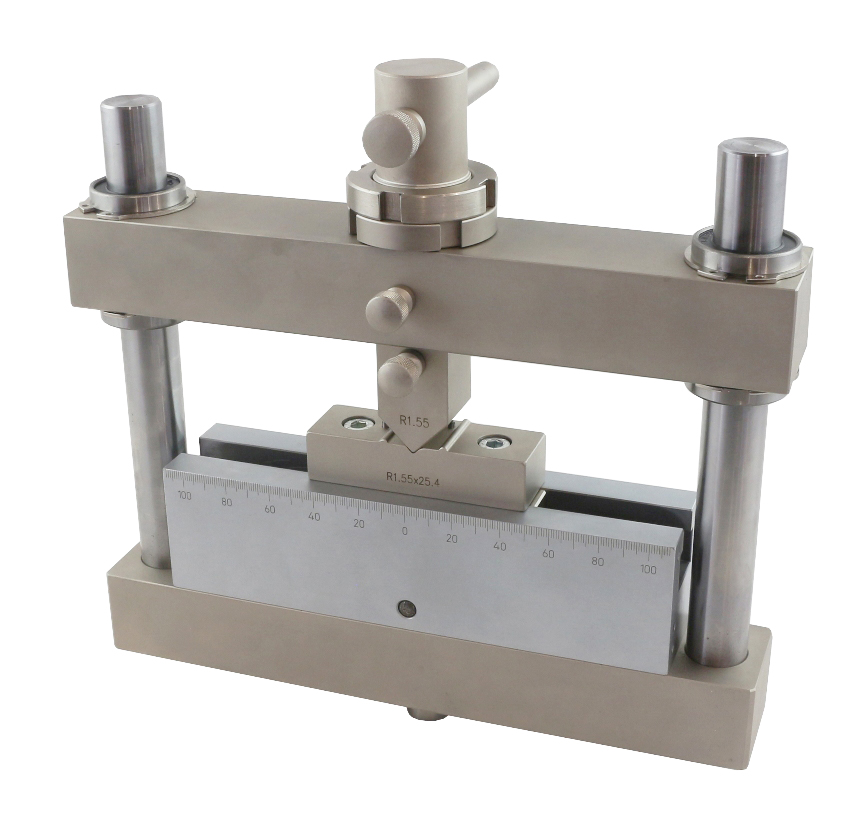

TH103-220-CR1.5-oR1.5+gde-ASTM-B528_Transverse_Rupture_Strength_of_Metal_Powder_Specimens_16.1kg







TH103-220-CR1.5-oR1.5+GDE-ASTM-B528



3-point bend test fixture for testing transverse rupture strength of metal powder specimens according to ASTM-B528

with guide

Max. load 50 kN

Coupling Am35

Steel, nickel-plated

Anvils with radius 1.5 mm



tn_TH103-3P-220-cR3-cR5-oR3-oR12.5-ok+GDE-EN2563-EN2562-xe 2019-01-10.jpg1

TH103-B220-CR3-5-oFR3-oFR12.5-ok
+GDE-
EN2563-EN2562



3-point bending grip with guide system

According to EN2563, EN2562
Max. load  50 kN
Lower bar 220 mm long, lower anvil 5 mm, upper anvils 3 mm  and 12.5 mm

Steel, nickel coated

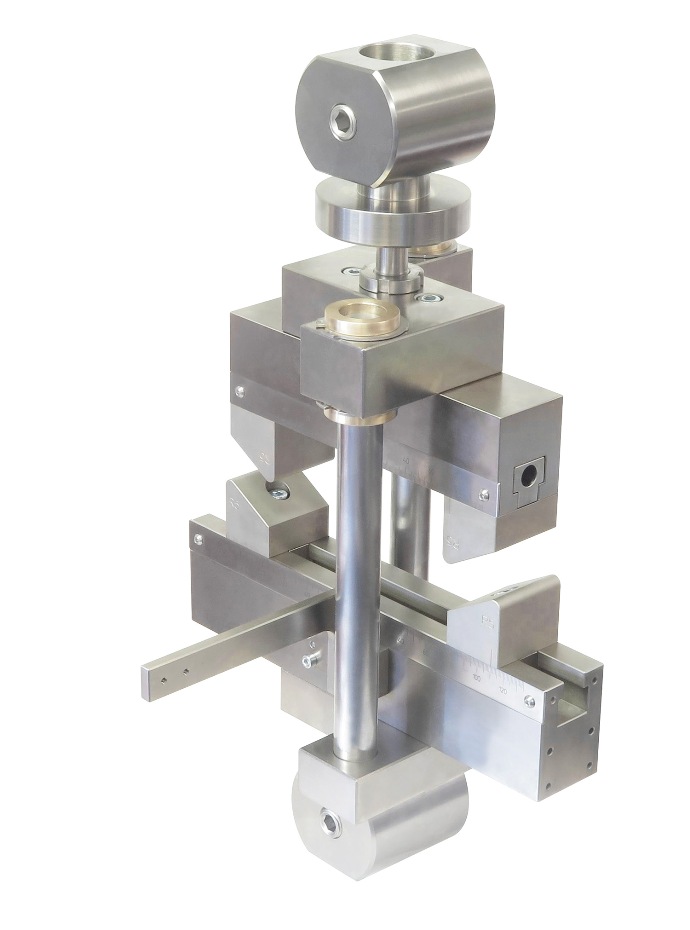

tn_THS1247 + TH103-300-220-4P-CR5-ith 13-  with guide to be fixed in a hydraulic wedge grip.jpg1

THS1247 + TH103-300-220-4P-CR5-ith13



4-point bending grip with special adapter for hydraulic grip MTS647.25

With adapter for extensometer

Steel, nickel coated

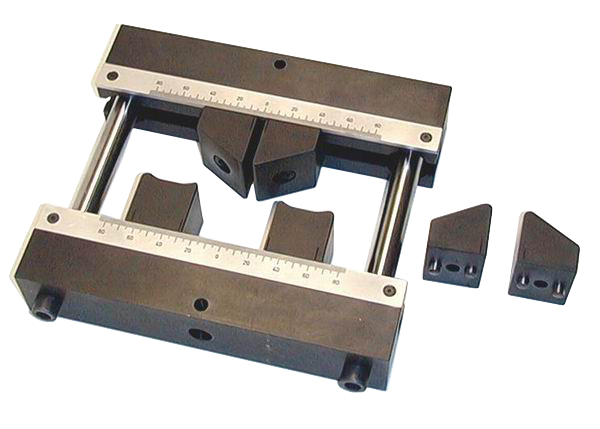

TH103-S7-3-gde s2082

TH103-S7-3-GDE



Special 4-point bending grip

With guide system and centric scale
Max. load 50 kN

Steel, nickel coated
