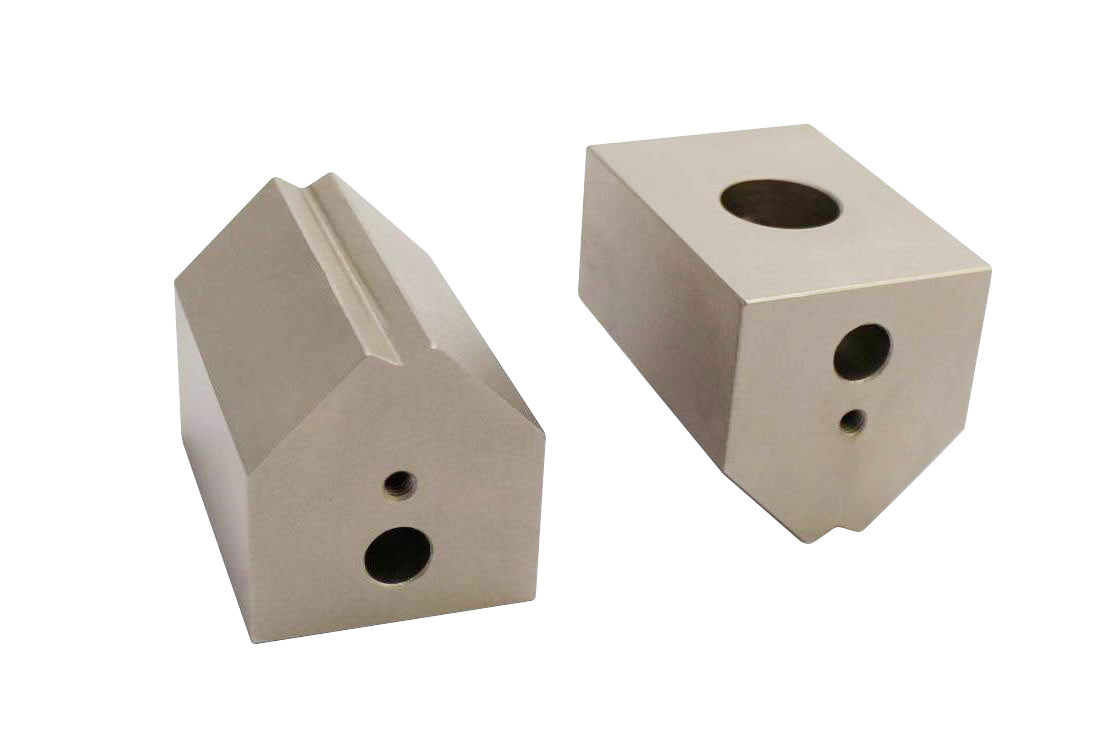

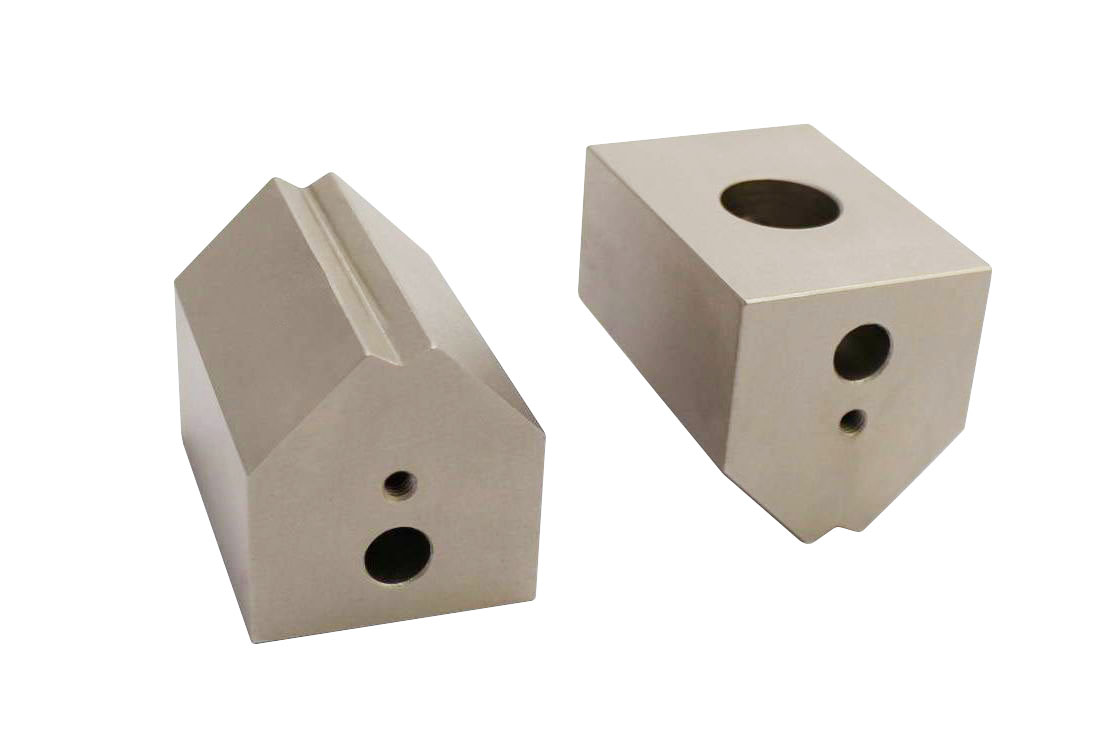

TH103-oFX10-Af159

Upper part for 3 p bending jig

For roller diameter 4-10mm

Adapter female 15.9/8mm

TH22-oX-Af5025

TH103-oFX10-Af5025

Upper part for 3 p bending jig

For roller diameter 4-10mm

Adapter female 50mm cross hole 25mm

TH103-oR0.3  upper fin with a small radius for a 180°folding device

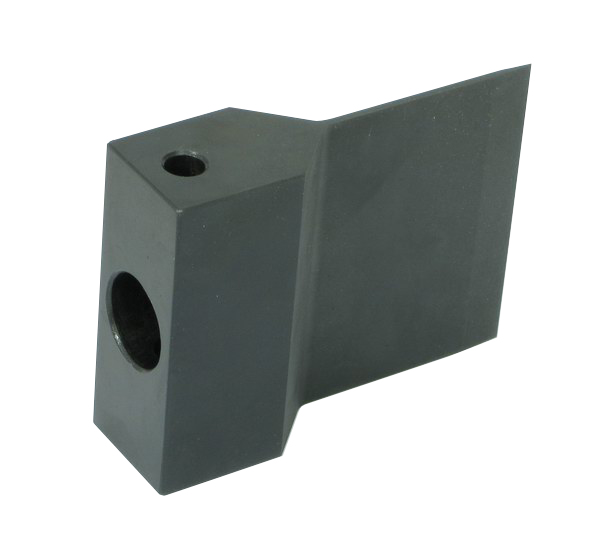

TH103-oFR0.3-W70-50H70-Af159


Upper fin with a small radius for a 180°folding device

TH103-OR1-Af20  2015-09-1.5

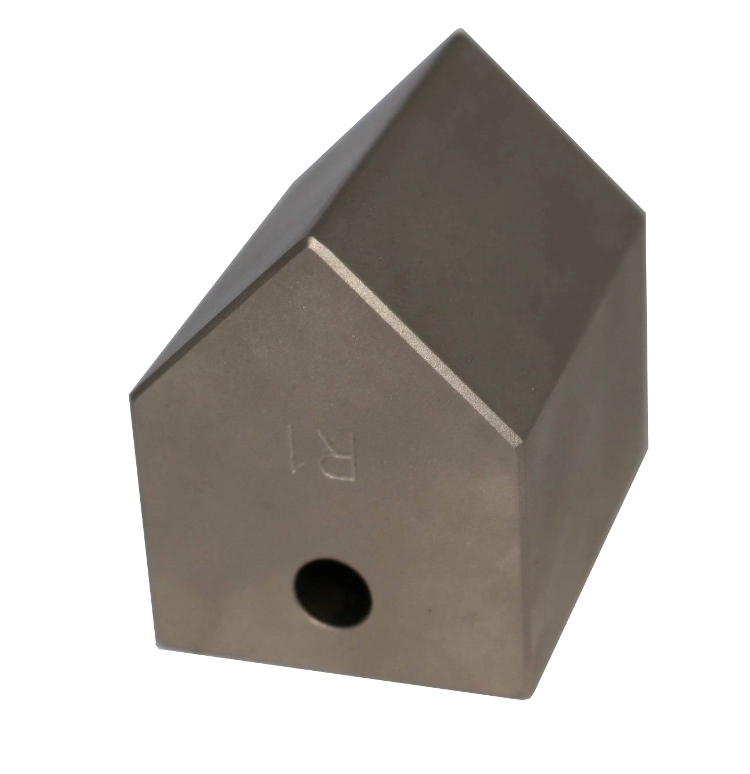

TH103-oFR1-W50-Af159

Upper anvil with radius R1

Steel, hardened, nickel-plated

TH103-oR2    2020-08-31

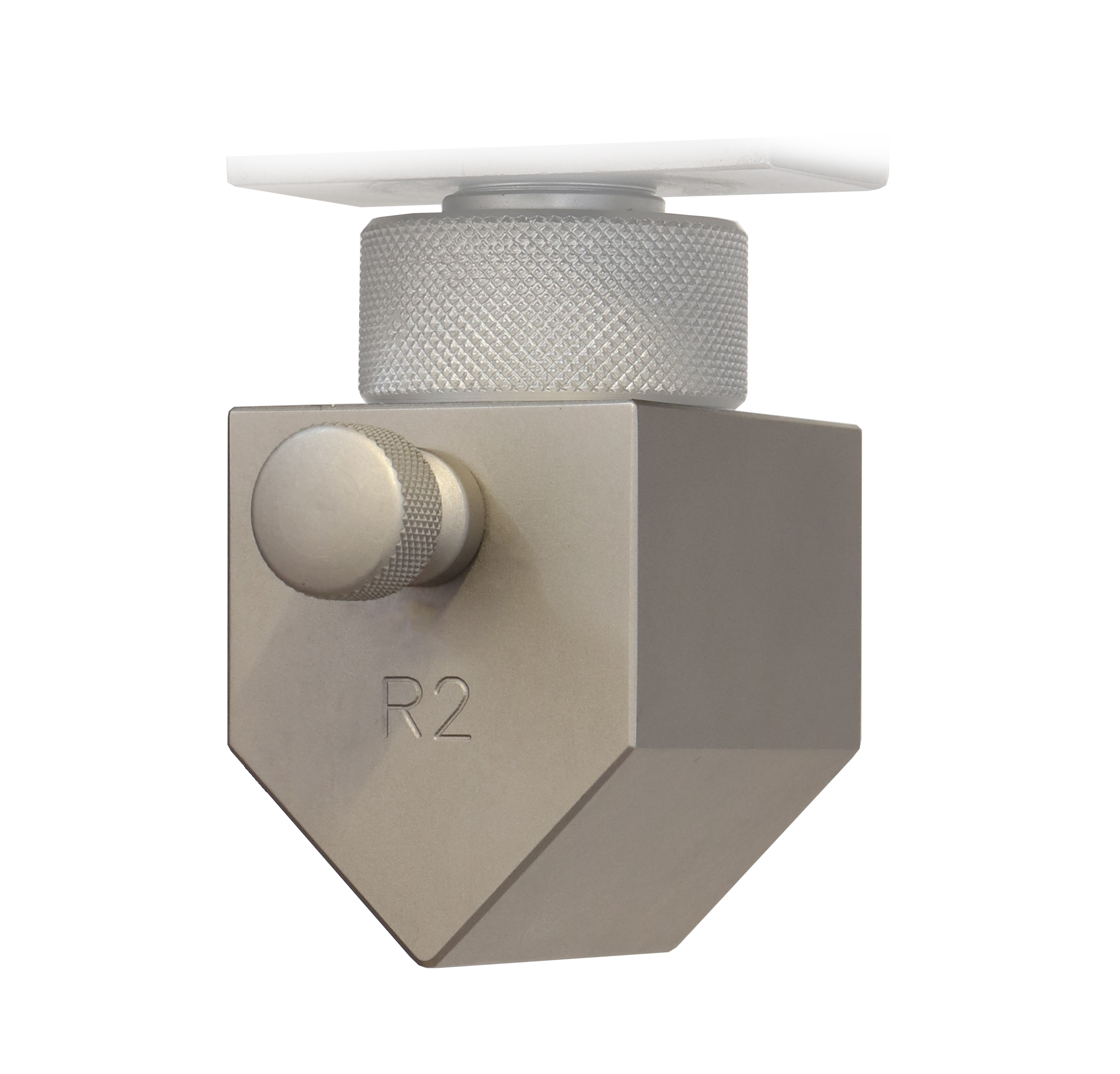

TH103-oFR2-W50-Af159

Upper anvil with radius R2

Steel, hardened, nickel-plated

tn_TH103-oR5     2020-08-31

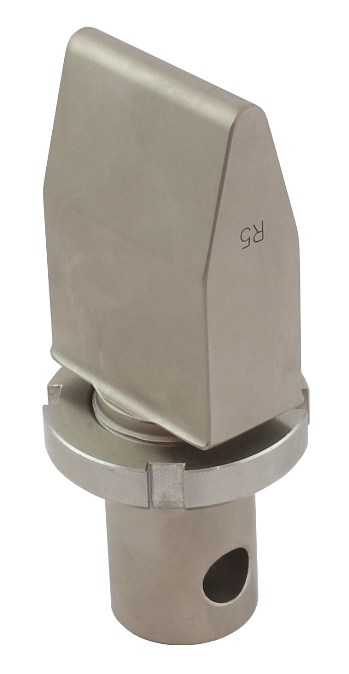

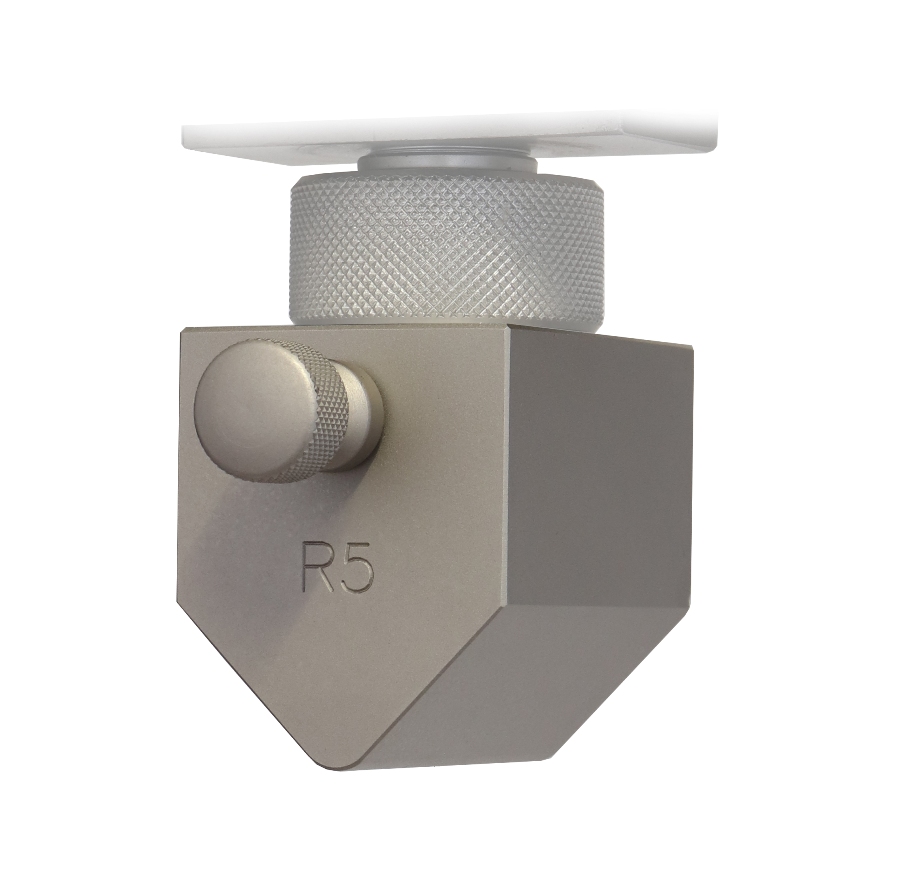

TH103-oFR5-W50-Af159

Upper anvil with radius R5

Steel, hardened, nickel-plated

TH103-oR10-Af20-NA  2015-09-0.8

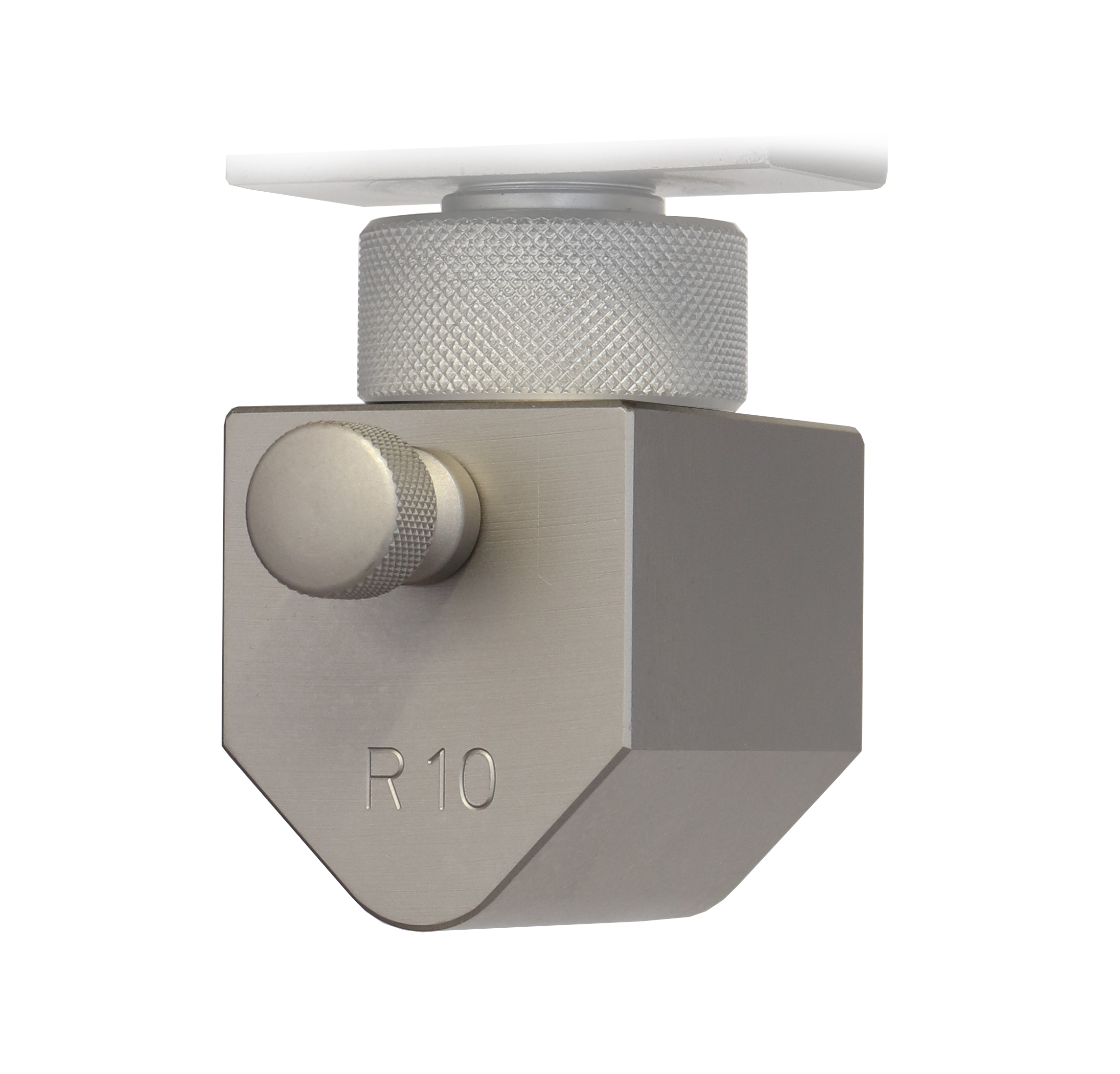

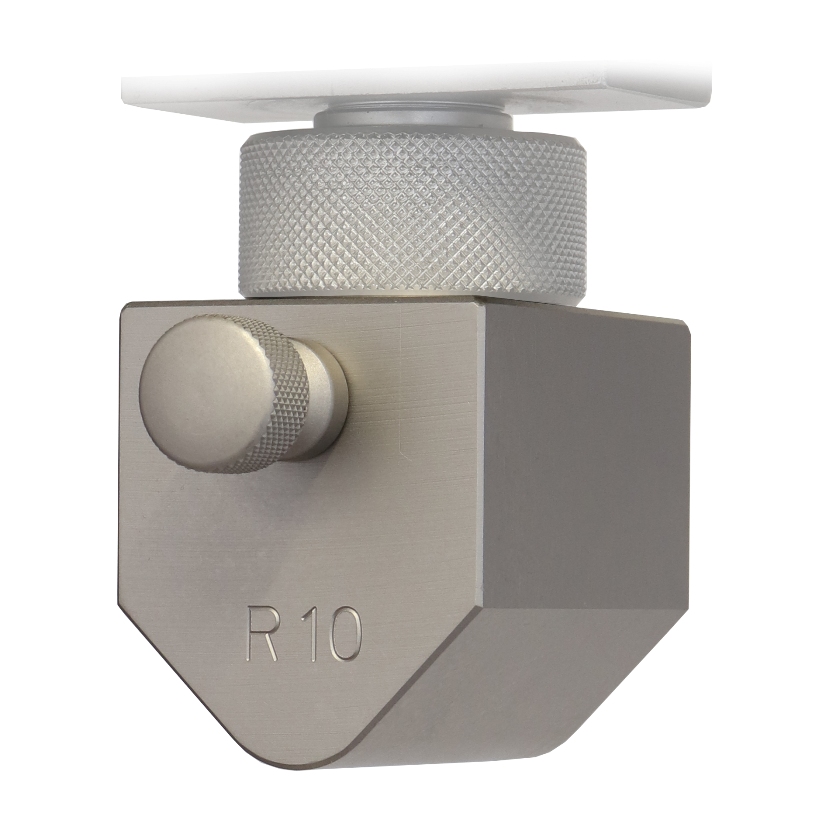

TH103-oFR10-W50-Af159

Upper anvil with radius R10

Steel, hardened, nickel-plated

TH103-oR15-Af30-H180 2020-05-11 ready 17.h2x

TH103-oFR15-W50-125H180-Af30

Upper part for TH103 bending grip

Radius R15mm, Height 180mm

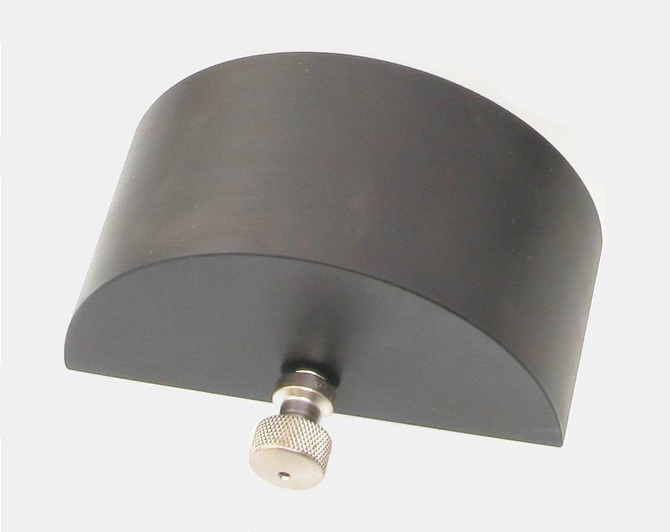

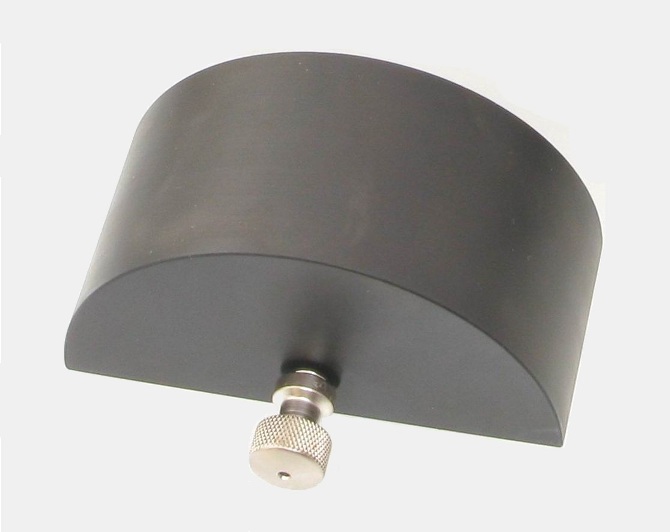

TH103-oFR50-W50-Af159

Upper part for TH103 bending grip

Radius R50mm

Description: Description: tn_TH103-OT2-L150-R4-.jpg

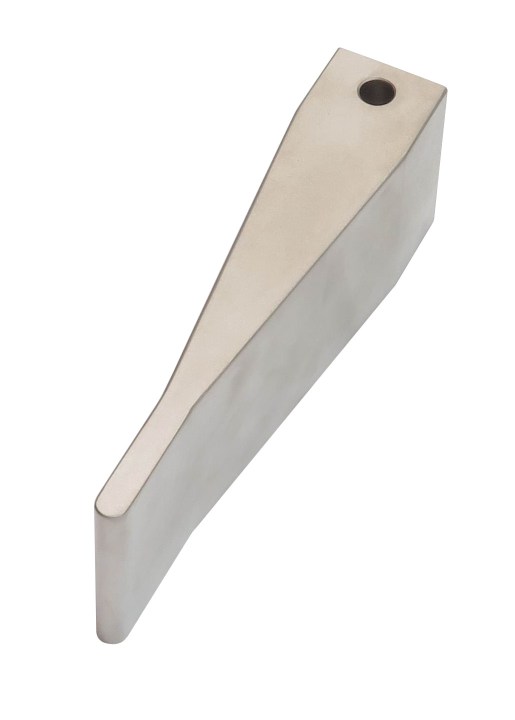

TH103-oFR4-W50-50H150-Af159



Special upper part for TH103

With radius R4mm, length 150mm

Description: Description: tn_TH103-OT2-L150-R6.25-.jpg

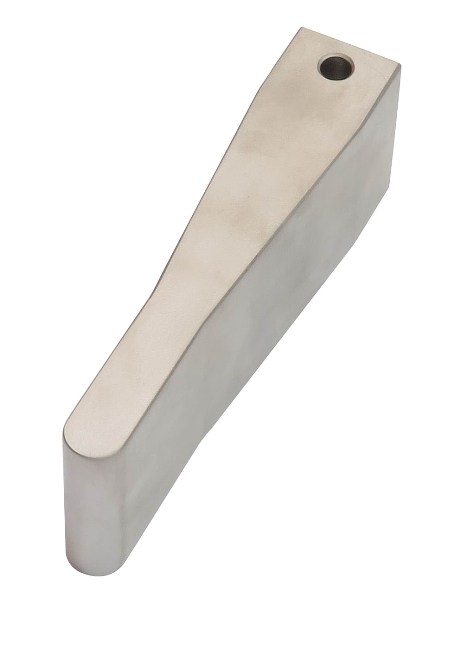

TH103-oFR6.25-W50-60H150-Af159

Special upper part for TH103-FV

Folding device

With radius R6.25mm, length 150mm

Description: Description: tn_TH103-OT2-L150-R12.5-.jpg

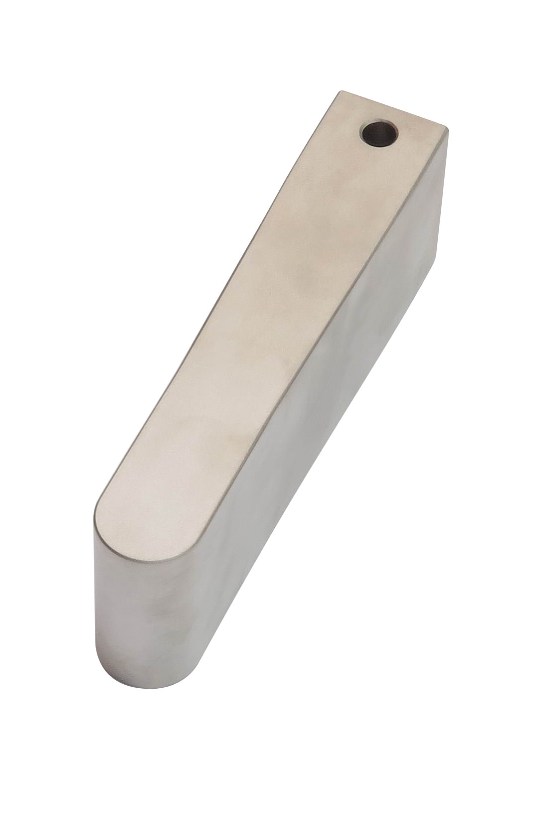

TH103-oFR12.5-W50-60H150-Af159

Special upper part for TH103

With radius R12.5mm, length 150mm

TH103-oDF b200+CR1 upper part of a 4p bending jig.

TH103-oDF200+CR1-Af15.9

Upper part of a 4p bending jig

TH103-oDF-Cr3 upper part of a 4P bending jig.

TH103-oDF200-CR3-Af30

Upper part of a 4P bending jig

TH103-odf-310-200-C5-AM20-22-Km8_LMS_upper part of a 4p bending .,jpg

TH103-oDF200-CR5-AM22

Upper part of a 4p bending

TH103-oDF-CWN8-WDF-DF  Oberteil upper part of a 4P jig

TH103-oDF200-CWN8-WDF-Af159

Upper part of a 4p jig
