G02 Bending fixtures

Back

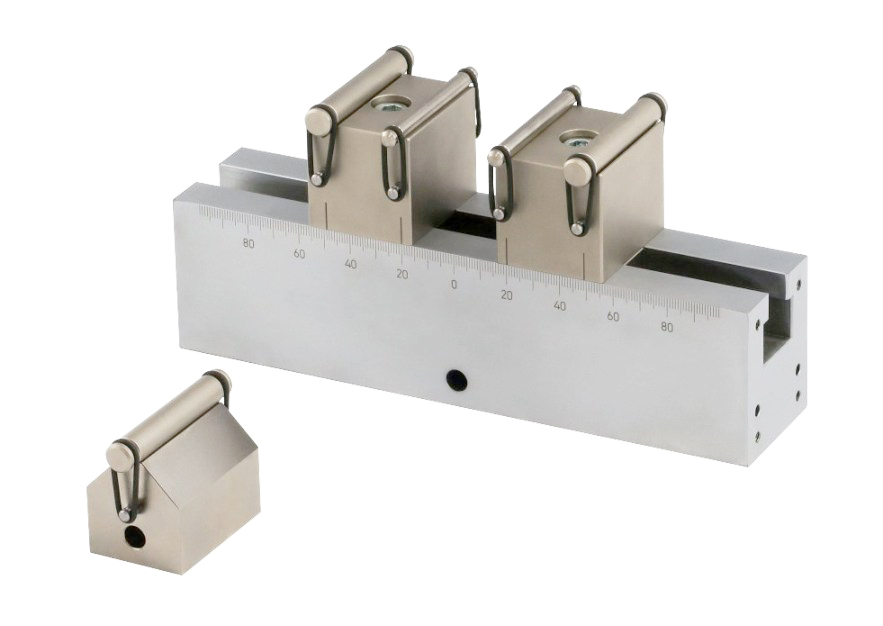

TH103-3P-B220-AX2-5+oFX5-Af159

3-point bend test fixture with interchangeable rollers
Lower bar 220 mm, lower anvils 2-5 mm, upper anvil 5 mm
Coupling Af159

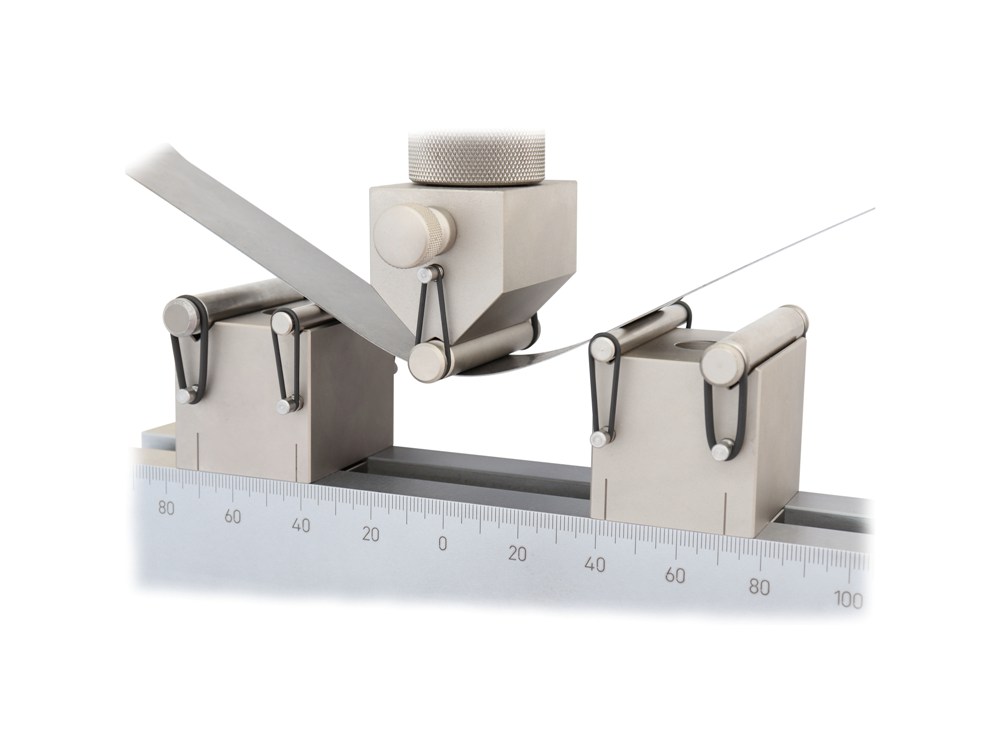

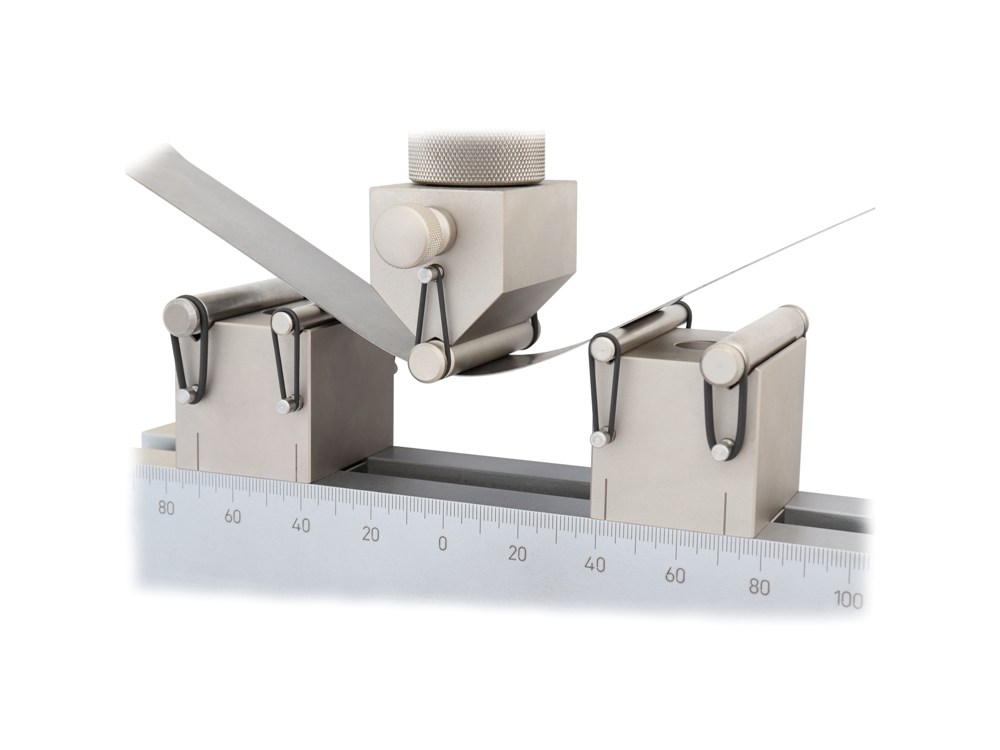

TH103-3P-B220-AX2-5+oFX5-Af159

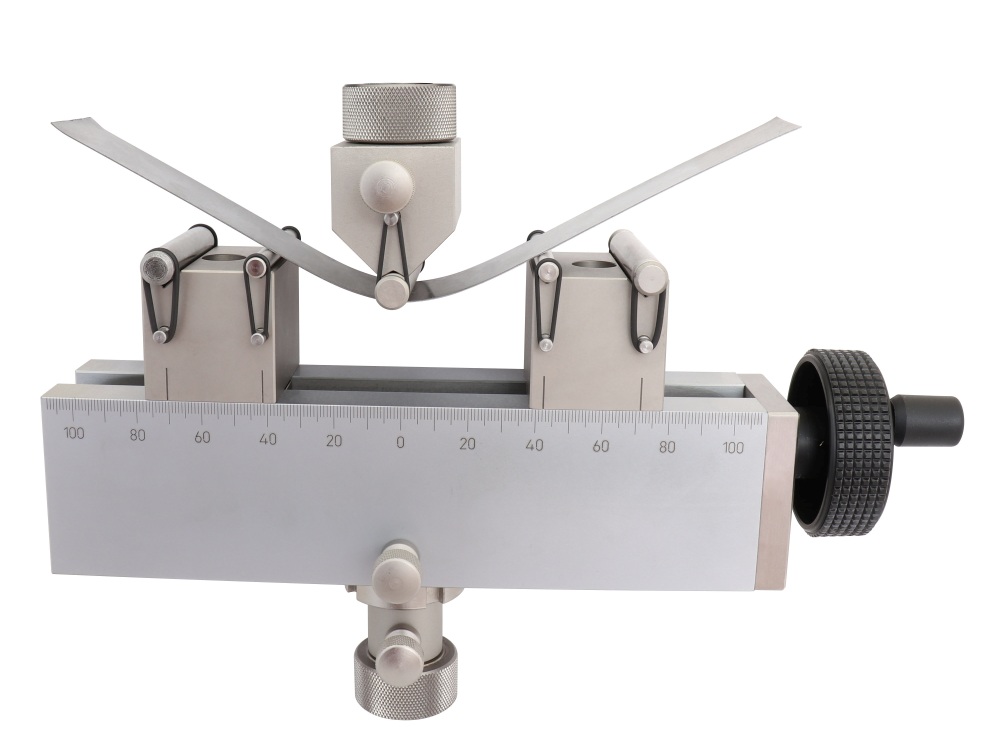

TH103-3P-B220+AX5-2+oFX5+cgr-Af159



3-point bend test fixture with interchangeable rollers and centric gear

Lower bar 220 mm, lower anvils 5-2 mm, upper anvil 5 mm
Coupling Af159

TH103-4P-B220+AX3+5+CX3-Af159 2022-01-19

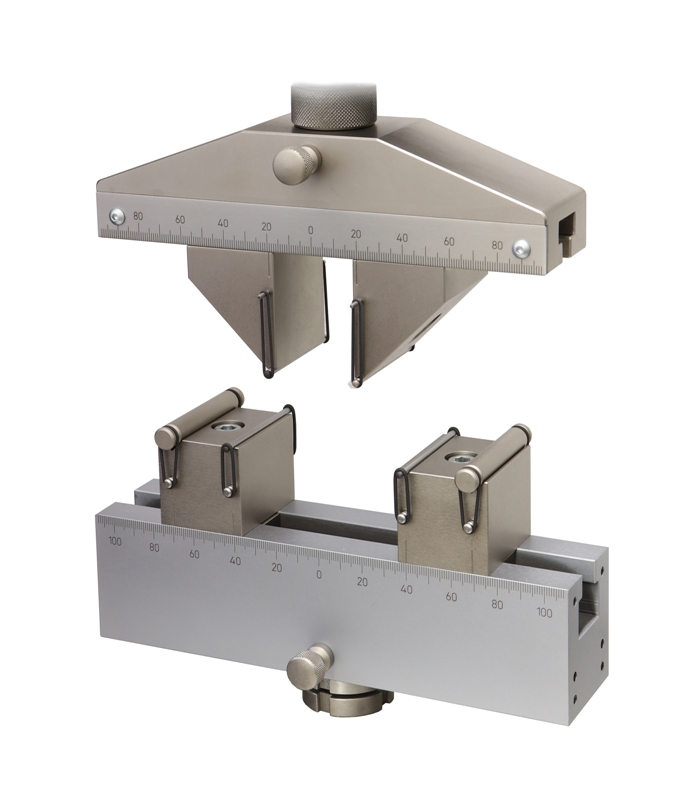

TH103-4P-B220+AX3-5+CX3-Af159

4-point bend test fixture

Lower bar 220 mm, lower anvils 3-5 mm, upper anvil 3 mm
Coupling Af159
