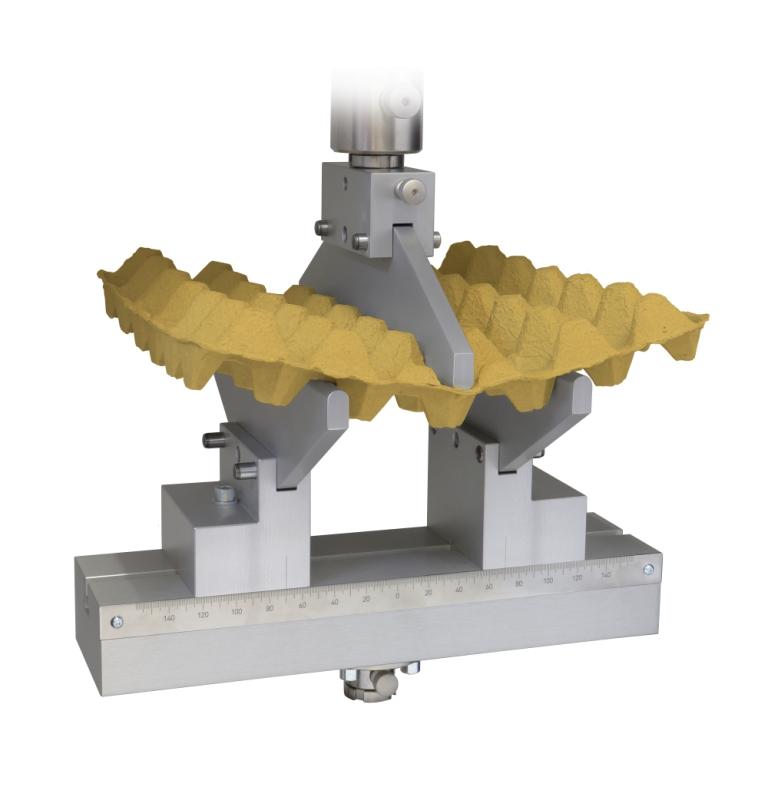

	TH22-CWR10x300-H160 3-point bend test fixture to test egg trays Biegeprüfvorrichtung zum Testen von Eierkartons more

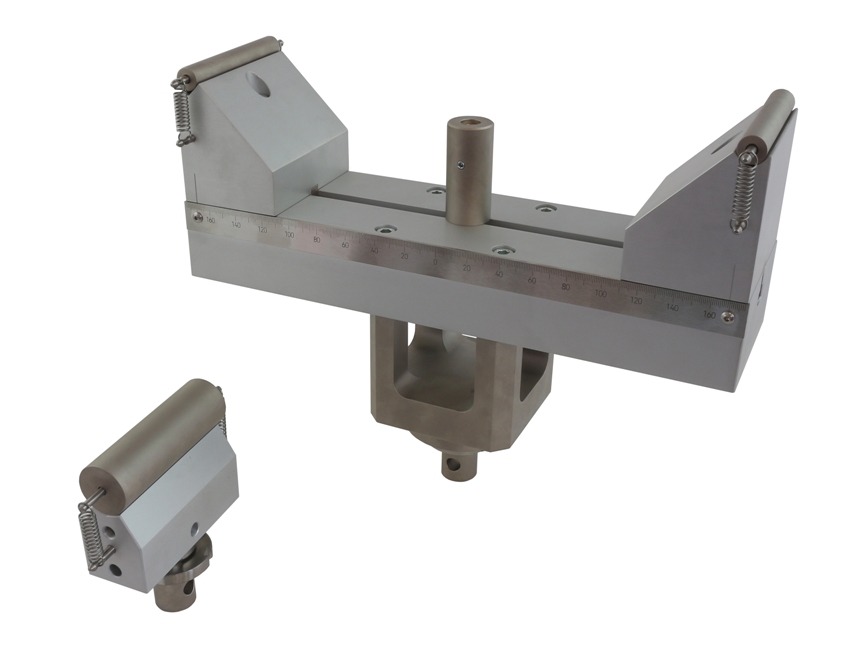

	TH22-3P-360-CX15-OX30 + ITH1 Special 3-point bend test fixture for testing wood-based panels according to EN310 Incl: 1x lower beam 360 mm long 2x supports for rollers, 15 mm diameter 2x rollers, 15 mm diameter, 100 mm wide 1x roller, 30 mm diameter, 100 mm wide Aluminum, anodized

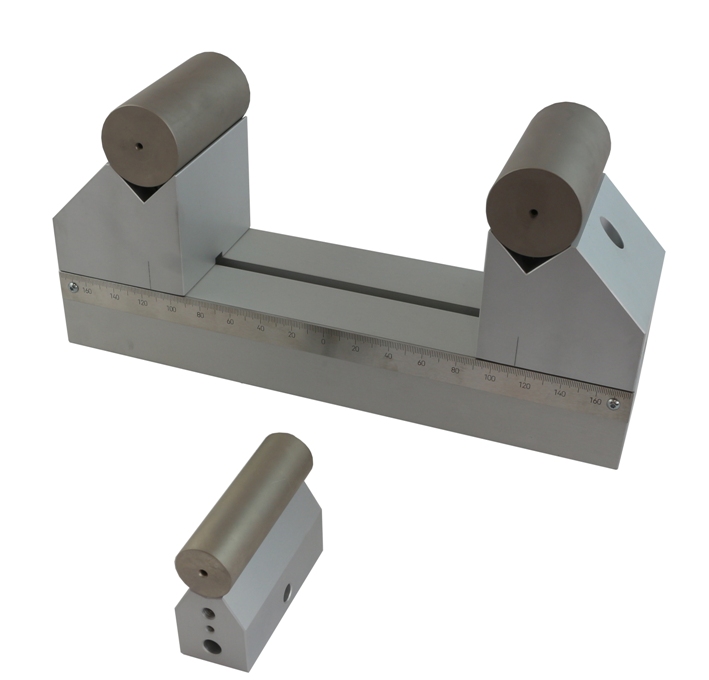

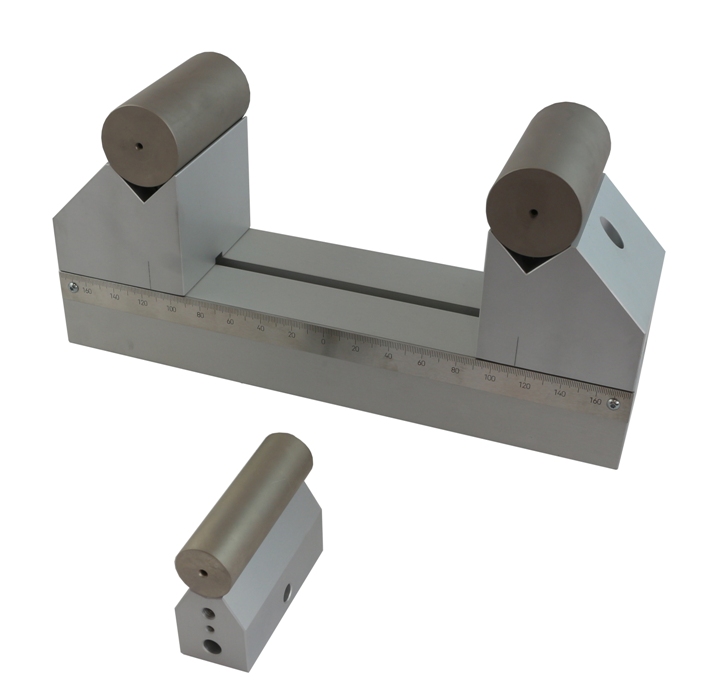

	TH22-3P-360-CXD50-OXD30 3-point bending grip Max. load 25 kN Incl: 1x lower beam 360 mm long 2x supports for rollers 50 mm diameter 1x roller 30x100 mm Aluminium, anodized

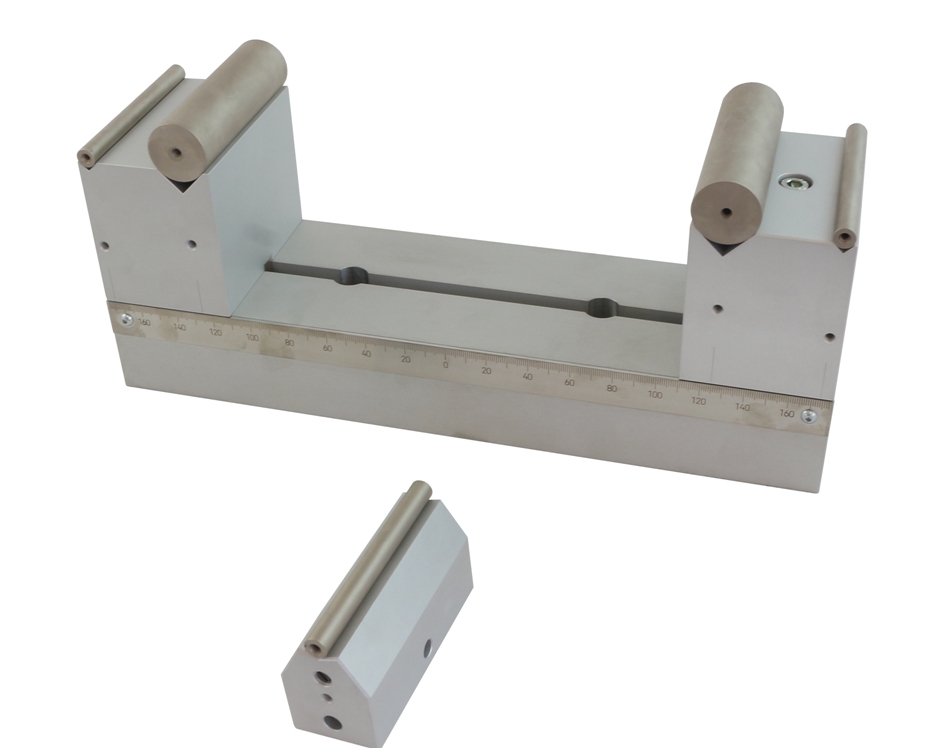

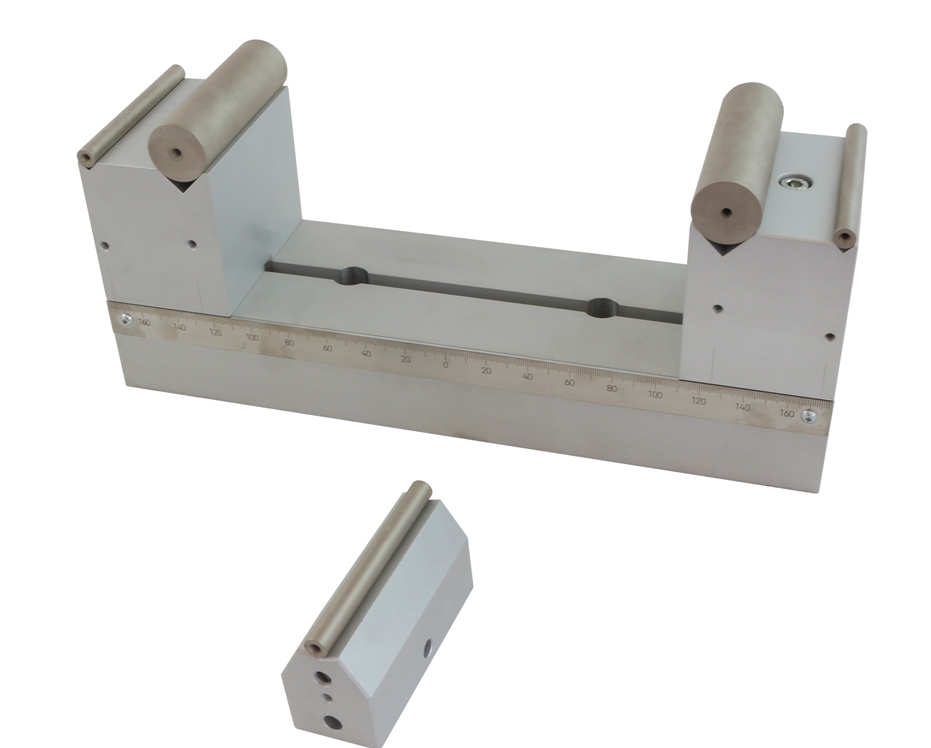

	TH22-3P-B360+AX+OX Special 3-point bend test fixture Incl. lower bar 360 mm Support with rollers 20,30 Ø , Upper anvil with interchangeable roller 10 Ø Aluminium

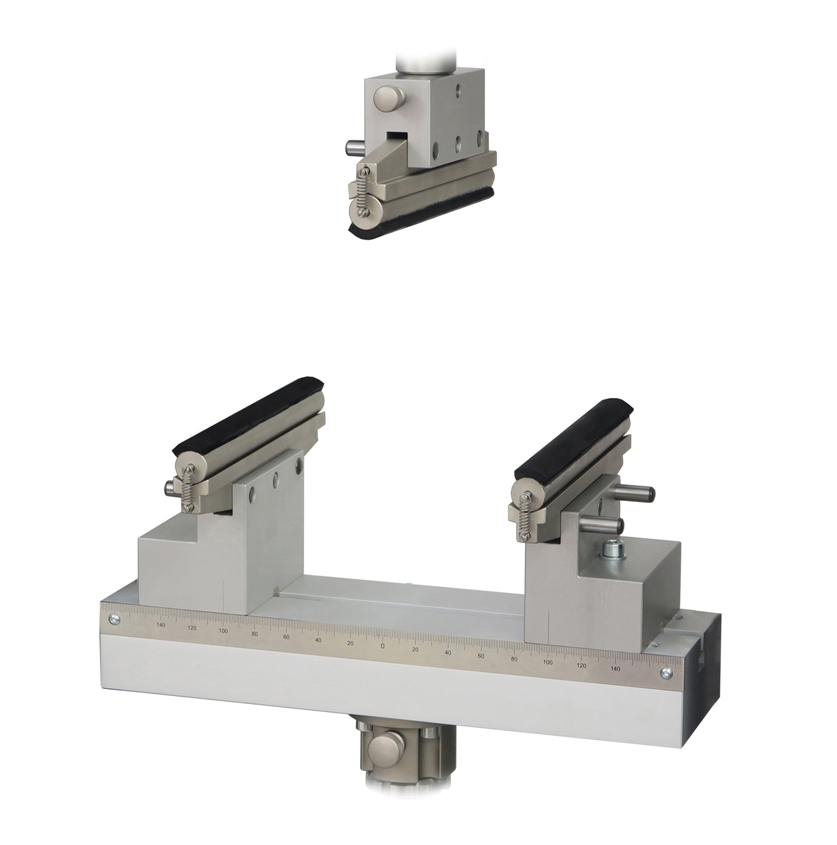

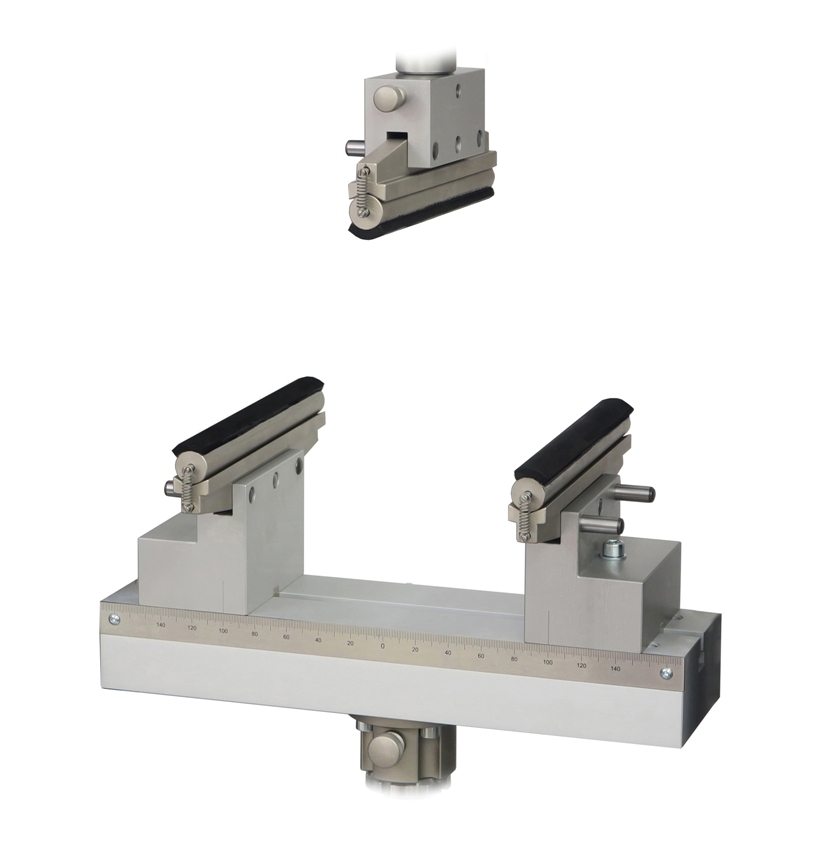

	TH22-3P-360-CWXD20x200-OWXD20x200-ISO10545-4 3-point bend test fixture for determining the modulus of rupture and breaking strength of ceramic tiles according to ISO10545-4 Lower beam 360 mm long Rollers: 20Ø x 200 mm, rubber-coated Max. load 50 kN Coupling Af318 Aluminium beam, steel inserts and anvils

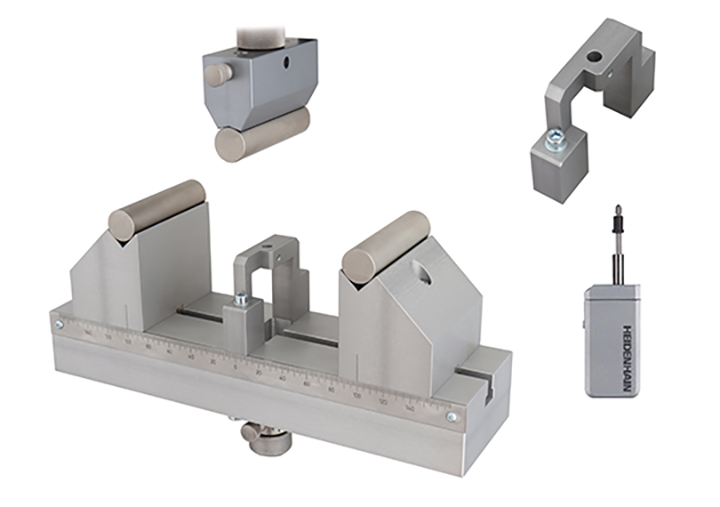

	TH22-3P-360-CX25 + TH22-iTH1-MT12-V90 Special bend test fixture with holder for a LVDT sensor MT12 Heidenheim Bending bar 360 mm, rollers 25 mm diameter

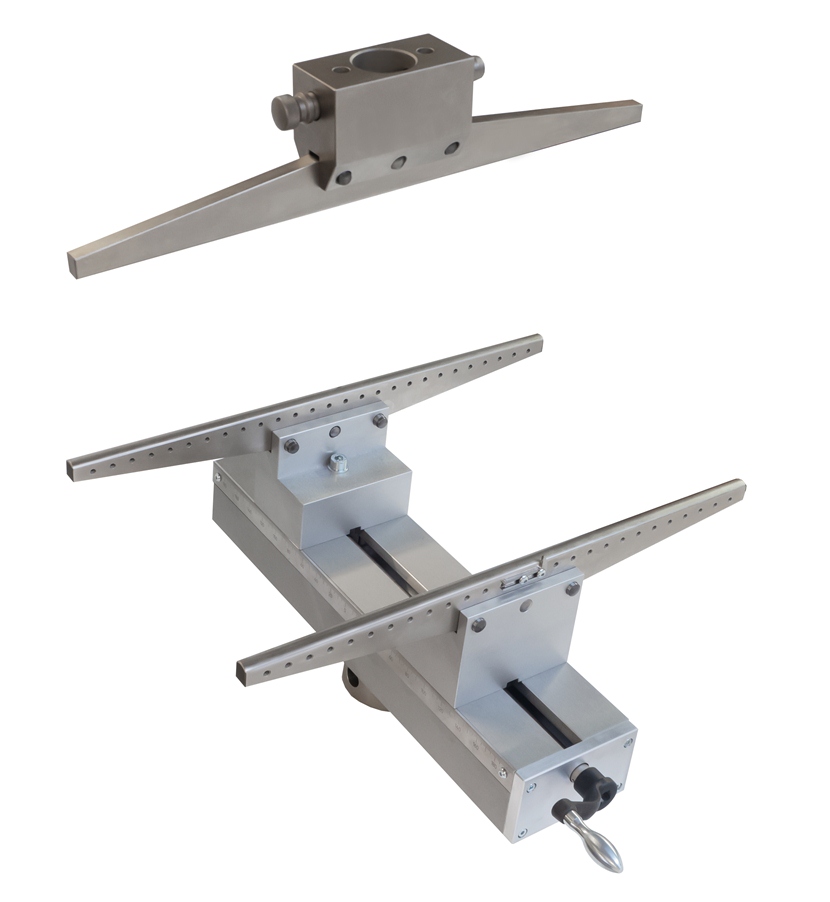

	TH22-3P-400-CWR10x250-Af3816 Special bend test fixture with articulating rollers 420x20 Ø mm, steel Lower beam 400 mm long, aluminium Max. load 50 kN Coupling Af3816

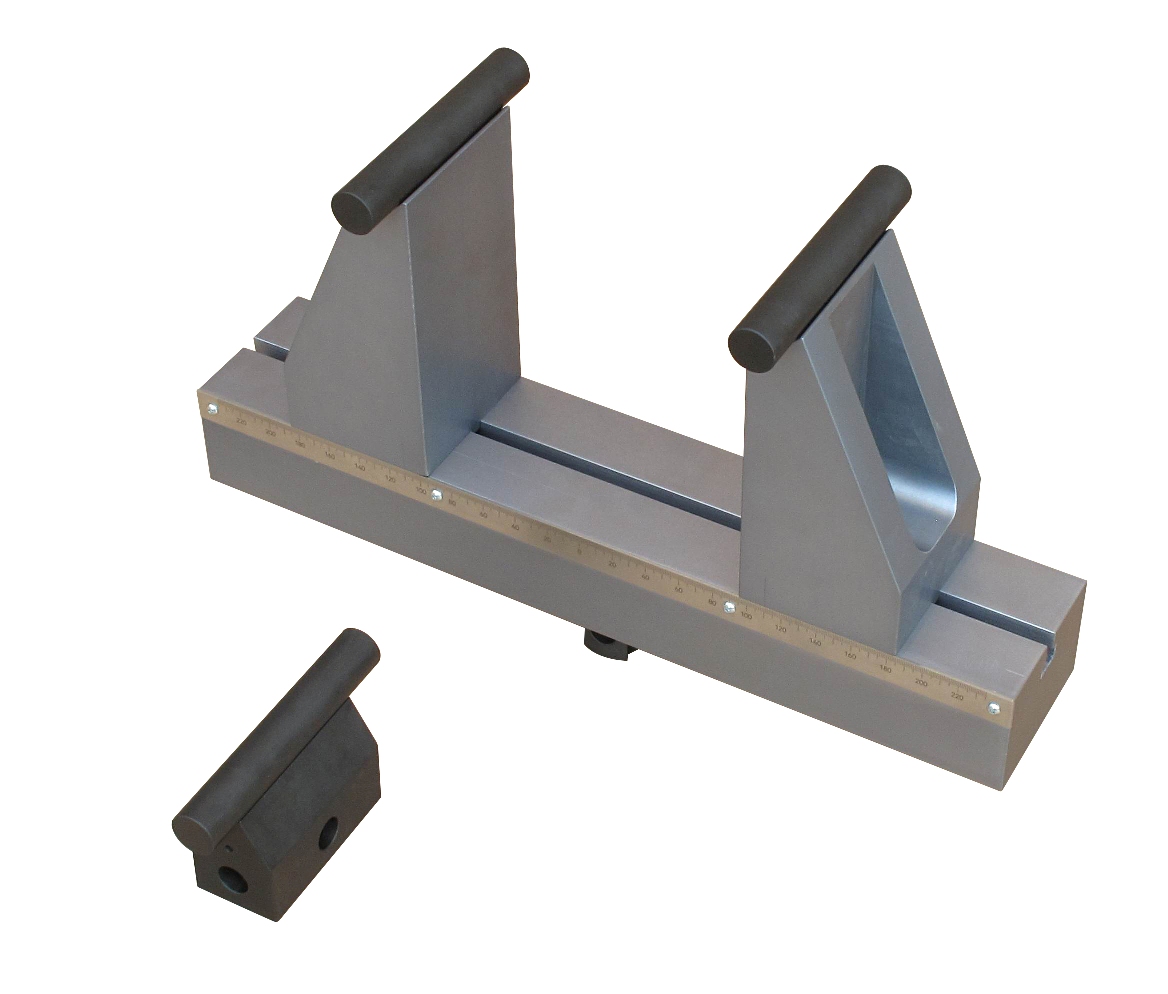

	TH22-3P-500-CX25x150-H200 3-point bending fixture  Max. load 50 kN Incl. special supports, 200 mm high Rollers Ø 25 mm, 150 mm long Aluminium

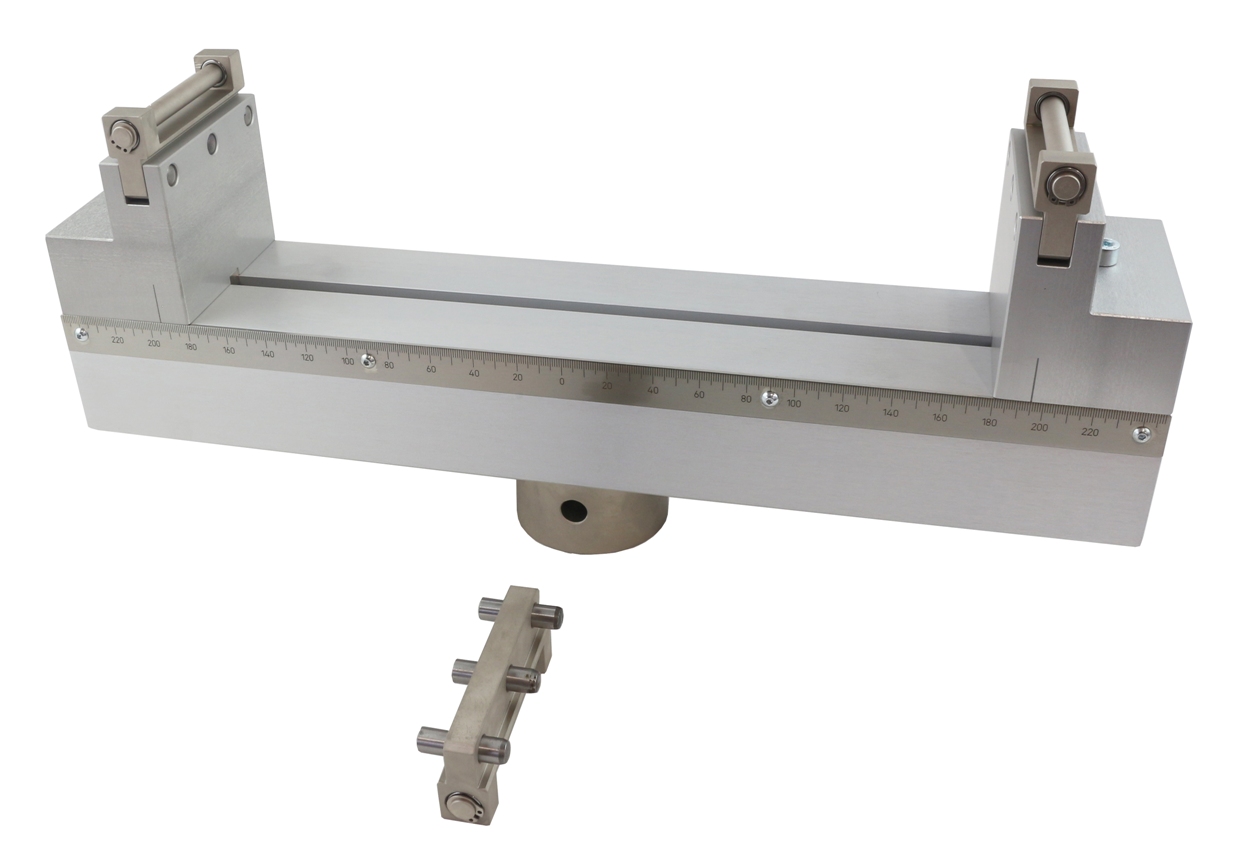

	TH22-3P-500-CWLD10-Af318 3-point bending fixture Max. load 10 kN Incl. 1x lower bar 500 mm 2x lower anvils with interchangeable rollers 10 mm Aluminium, anodized Coupling Af318

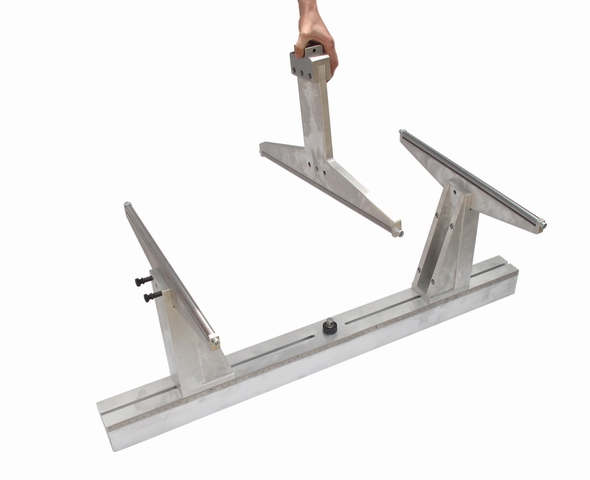

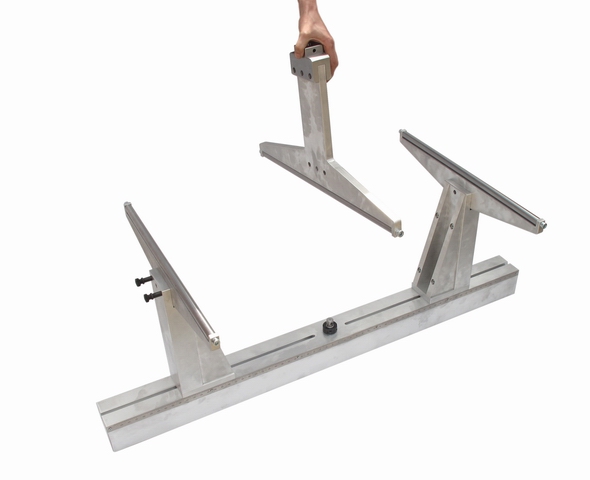

	TH22-3P-1300-A400-W20x600 3-point bending grip Max. load 100 kN Lower bar 1300 mm long Special supports, inserts rollers Ø 20x600 mm
	TH22-3P-1310 3-point bending fixture Max. load 50 kN, Aluminium Inclusive rollers Ø: 10, 20, 30 mm symmetric scale 1310 mm

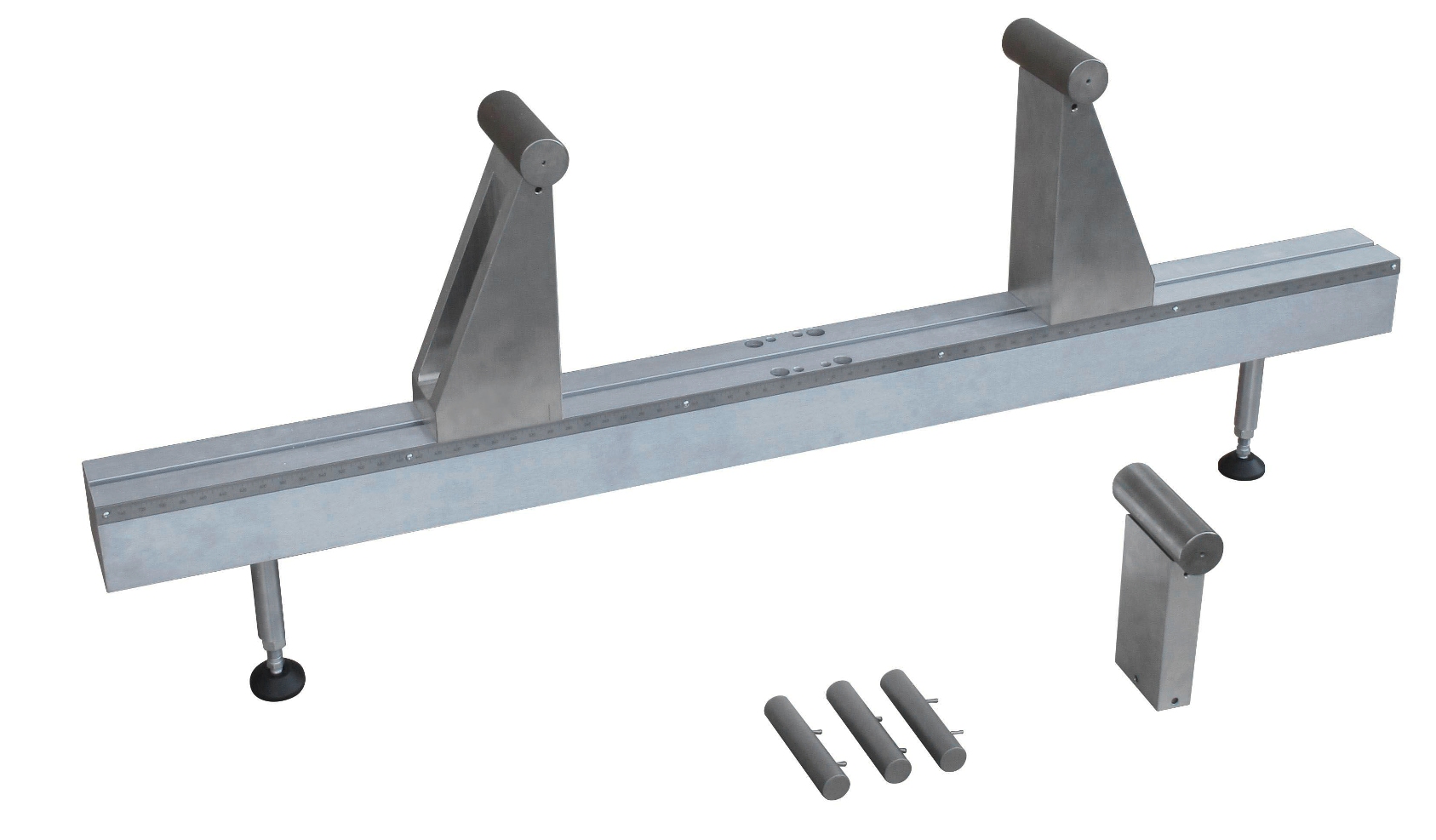

	TH22-3P-1530-CX50-H300 3-point bending grip Max. load 50 kN, Aluminium Incl. lower bar 1530 mm long, with special supports 300 mm high and rollers Ø 50 mm
