G02 Bending fixtures



Back



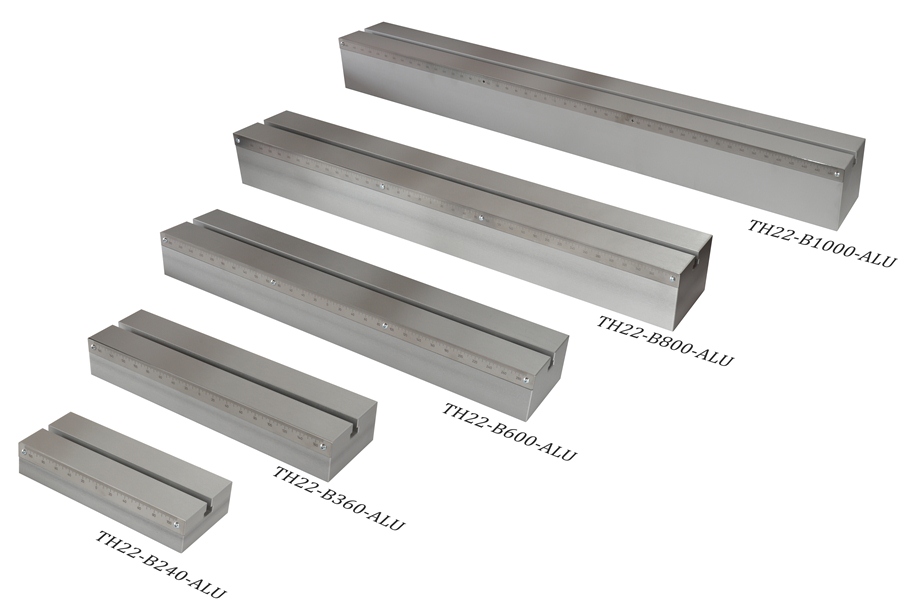

Accessories for TH22



Supports

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22St-CR2-Ni

TH22St-CR2-Ni



Support milled radius R2

Hardened steel, nickel-plated



Einfaches Auflager Radius R2

Gefräst, gehärtet, vernickelt

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-OR5--





TH22St-OCR5-Ni



Support for 4-point milled radius R5

Steel hardened, nickel-plated



Einfaches Auflager für 4-Punkt Radius R5

Gefräst, gehärtet, vernickelt

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-AX-

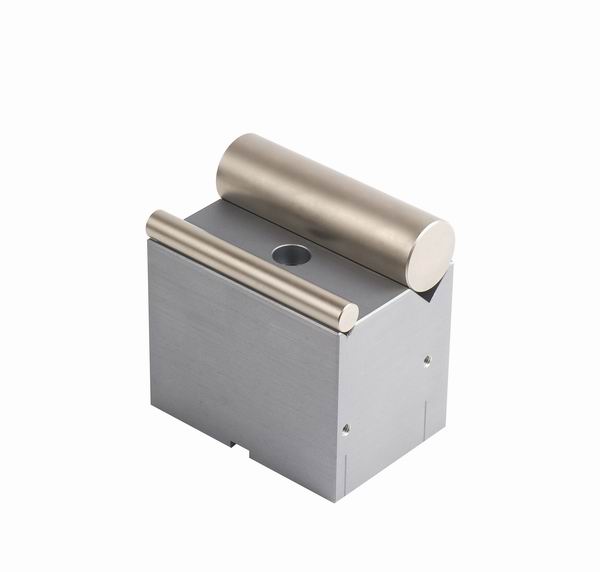

TH22-AX10,20,30



Support for exchangeable rollers

for lower bending bar



Rollers Ø 10, 20, 30 mm

Aluminum, standard



Auflager für tauschbare Rollen

für unteren Biegebalken

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-AX-

TH22-AX



Support, A-form

for lower bending bar, aluminum



Auflager, A-Form

für unteren Biegebalken, Aluminium

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-AX-ST

TH22St-AX



Support, A-form

Steel



Auflager A-Form

Stahl

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: tn_TH22-F 30X100_jpg

TH22-F30



30x100 mm, 1 set = 3 rollers

Ø 8, 9, 11, 12, 13 ... 50 mm



Roller for X-type supports

Hardened, nickel-plated



Finne für Auflager vom Typ X

Gehärtet, vernickelt

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-CX10-H150

TH22-CX10-H150



Ø 10 mm



Support C

Special height 150 mm



Auflager C

Sonderhöhe 150 mm

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-CX50 support 50x100mm

TH22-CX50



Ø 50 mm



Support with roller



Auflagerbock mit Rolle

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-CX30-H200

TH22-CX30-H200



Auflager

Sonderhöhe 200 mm

mit Walze 30 mm



Support

Height 200 mm

With roller 30 mm

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Wiederbelichtung von TH22-CWGT-movable-support

TH22-CW



Max 50 kN



Support, articulating



Auflager für Wippen

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: u5 006

TH22-OW+WFR5



Anvil carrier with articulation function

Coupling 15.9 mm with fin R5



Finnenträger mit Wippfunktion

Anschluss 15.9 mm mit Finne R5

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-OW

TH22-OW-Af159



Anvil carrier with articulation function

Coupling 15.9 mm



Finnenträger mit Wippfunktion

Anschluss 15.9 mm

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-WFR5

TH22-WFR5



Radius R5, 100 mm wide

Radii 2, 5,10,15, 20 mm



Radius R5, 100 mm breit

Radien 2, 5,10,15, 20 mm

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22St-CWX-2011-06-08

TH22St-CWX



Heavy movable support, steel

For exchangeable rollers



Schwerer Auflagerbock, kippbar, Stahl

Für tauschbare Rollen

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-CND30-St-.

TH22-CN30



Support with roller, loose stop



Auflager mit Rolle, Anschlag frei

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: tn_TH22-CN30x150  13-.jpg

TH22-CM30x150+DP



Upper anvils

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-OR5-Af159-Ni

TH22-OR5-Af159-Ni



Upper fin, radius R5

Coupling female15.9 mm, hardened, 58 HRC Nickel



Obere Finne, Radius R5

Anschluss 15.9 mm, gefräst, 58 HRC Nickel

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-O50-Af3618

TH22-0R25-Af36



Upper fin, hardened, Radius 25

Coupling female 36 mm, 58 HRC



Obere Finne, gehärtet, Radius R25

Anschluss weiblich 36 mm, gefräst, 58 HRC

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-OX159+F30

TH22-OX-Af159



Exchangeable carrier with coupling 15.9/8



Aluminum coupling sizes: 20/8

Steel coupling sizes: 30/12, 31.8/12.8, 32/16, 36/18, 40/16, 50, 60.



Finnenträger oben mit Adapter 15.9/8



http://www.grip.de/g02/TH22/TH22-OT/

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: tn_TH22-OX-Af318-ST--

TH22-Ox-Af318-2L-St

TH22-OX-Af3618-2L+D30

TH22-OX serie

TH22-WNJ30

Description: Description: Description: Description: Description: Description: tn_TH22-X30-Af318-V90d30-2L--1,8kg--25-09-2018---Anime

TH22-X30-Af318-V90d30-2L



Animation

Description: Description: Description: Description: Description: Description: tn_TH22-X30-Af318-V90d30-2L+D30  1,8kg  25-09-2018  02

TH22-X30-Af318-V90d30-2L+D30

Description: Description: Description: Description: Description: Description: tn_TH22-X30-Af318-V90d30-2L + TH22CX30-ER2345  1,8kg  25-09-2018  03

TH22-X30-Af318-V90d30-2L +
TH22-CX30-ER2345

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-OX-Af32

TH22-OX-Af32



Upper anvil with female coupling 31.8, 32, 36, 40, 50, 60 mm



Finnenträger oben mit Anschluss weiblich 31.8, 32, 36, 40, 50, 60 mm

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-DF+OX

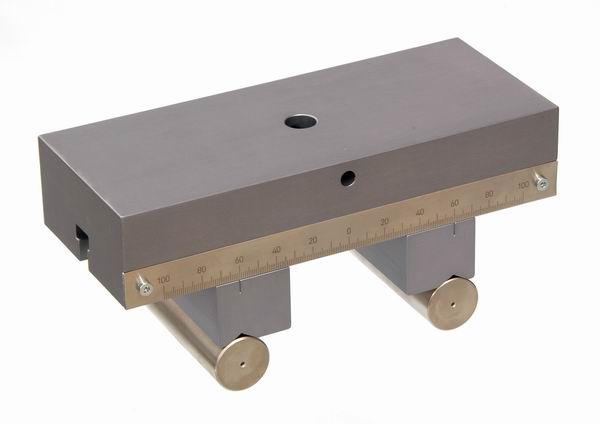

TH22-DF



Extra upper part to change 3-point bending fixture to 4-point



Oberteil, macht aus einer 3-Punkebiegevrrichtung eine 4-Punktbiegevorrichtung



http://www.grip.de/G02/TH22/TH22-DF



http://www.grip.de/G02/TH22/TH22-OT



http://www.grip.de/G02/TH22/TH22-Fi/

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-oAx Auflager oben

TH22-OAX



Upper carrier for exchangeable rollers for 4-point bending fixture



Oberer Träger für tauschbare Rollen für 4-Punkt Biegevorrichtung

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-OCXM-D30 free beam on hard platen 30x100 top

TH22-OM30



Double fin carrier with hard platen and roller

30x100 mm for glass testing



Doppelfinnenträger mit harter Platte und Walze 30x100 mm für Glassprüfung

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-OCW-.

TH22-OCW



Upper carrier for roller



Oberer Träger für Wippe





Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: u4 010

TH22-F10+FB



Anvil with fixing bolt

For upper parts with large adapters



Finne mit Fixierbolzen

Für Oberteile mit sehr großen Adaptern

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: u5 012

TH22-FRX



For especially small or large radii in X supports,

E.g. 0.5, 1, 2, 3, 4, 5, 6, 7 … 50 … 100 mm

Angles 90° und 120°



Sonderauflager, eckig (90° und 120°)

für extreme Radien z.B. 0.5, 1, 2, 3, 4, 5, 6, 7 … 50 … 100 mm

http://www.grip.de/g02/TH22/TH22-Fi/

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: u4 009

TH22-CX-V1



Insert for small diameters in V



Segmentreduktion für kleine Walzen

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: u4 016

TH22-TNS10



T-groove stone, 10 mm wide, 40 mm long

TH22 - aluminium version or TH36T



T-Nutenstein, 10 mm breit, 40 mm lang

TH22 Alu Version oder TH36T

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-AXD8

TH22-AX-D8

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH22-CXH150----THS651-30

TH22-CXH150-D10-D20





Faltvorrichtung see also  THS260

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: THS260.jpg
