G02 Bending fixtures



Back



tn_TH238+CR0.1V90-OR1-St-ISO9626 needle tubing bend test 1.6kg 01

TH238+CR0.1V90-OR1-St

3-Point bending fixture to test stainless steel needle tubings according to
DIN EN ISO9626

3-Punkt Biegevorrichtung zum Testen von Kanülenrohren aus nichtrostendem
Stahl zur Herstellung von Medizinprodukten gemäß DIN EN ISO9626



more

TH238-B200+OR3+R3

TH238-B200+OR5+R5

TH238-B200+OR10+R10

TH238-Auflageböcke--2019-08-16--Animation

TH238-CR5



Anvil with 1 milled radius 5 mm



Animation

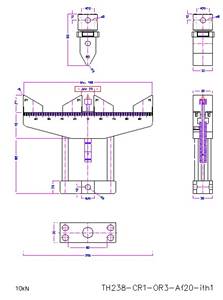

TH238-200+ith1-Af159+AR2R5 St  skala steht auf den kopf  scale is wrong

TH238-B200+ith1+AR2-AR5-Af159



Length 200 mm,

Adapter size Af15.9 mm
Anvil with 2 milled radii:

Radius  2 mm

Radius  5 mm

TH238-AR3

TH238-AR3.2-AR5



Anvil with 2 milled radii:

Radius 1: 3.2 mm

Radius 2: 5 mm



Animation

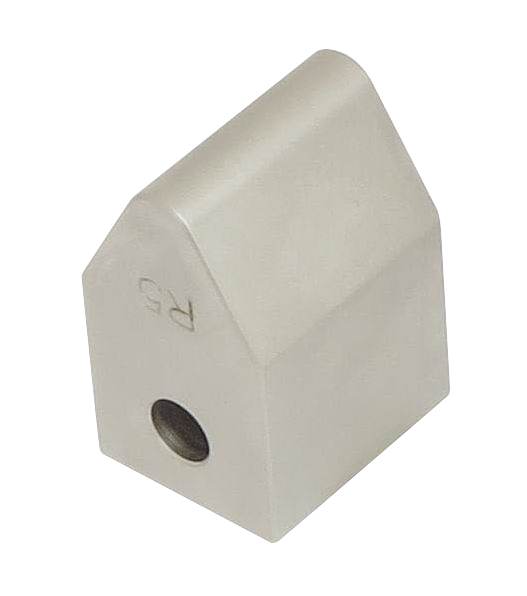

tn_TH238-oR5 Radius 5mm upper part steel hardened nickel coated Adapter Af15.9 (2)

TH238-oR5



Upper fin

steel hardened nickel coated

available Radii 0.5,1,1.5,2,3,3.175,5,10,15



TH238-B200-ST+AR1AR3.5+OR1

TH238-B200-ST+AR3.2AR5+OR3

TH238-B200-ST+AR3.2AR5+OR5

TH238-B200-4P+AR3

TH238-B200-4P+AR3.2AR5 + CR5

Description: Description: Description: Description: Description: tn_TH238-AR1.5+2.5 CR1

TH238-4P-AR-CR

4-point bending fixture

Upper supports available with Radius
0.5, R1, R1.5, R2, R2.5, R3, R3.2, R3.5, R4, R5, R10, R15

TH238-B430-CR1.5H130-oF3H80_TR

TH238-B430-CR1.5H130-F3H80

Lower bar for 3-Point bending fixture

Steel

Length 430 mm, width 30 mm

Adapter size Af15.9 mm
