G02 Bending fixtures



Back

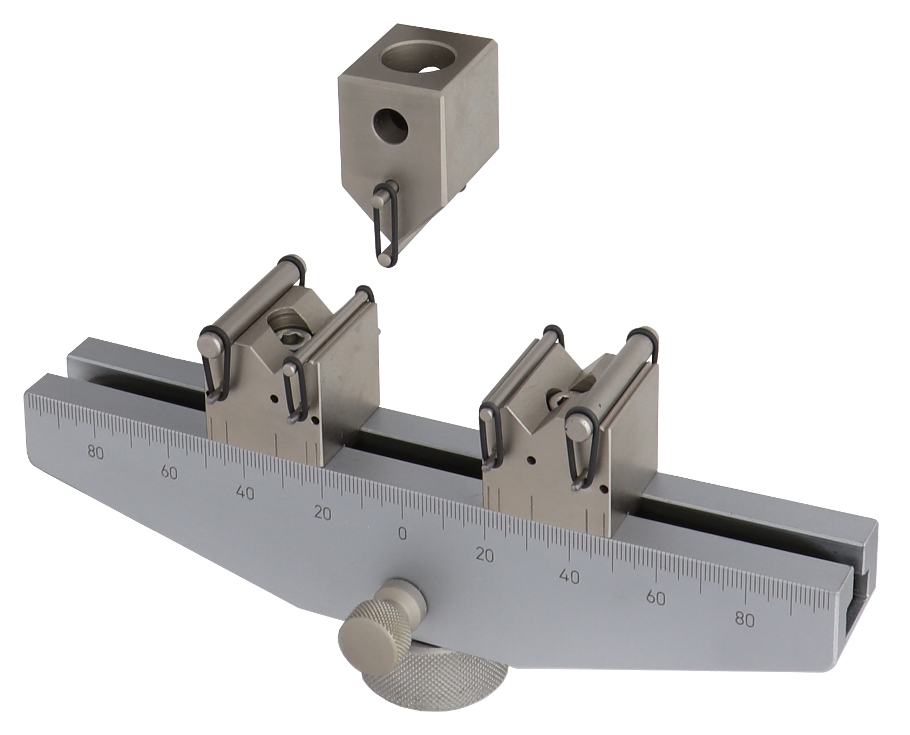

TH238-B200+AX3AX5+OX3-ST

3-point bending fixture with interchangeable rollers
Lower bar 200 mm
Lower anvils with rollers 3 and 5 mm
Upper anvil with roller 3 mm

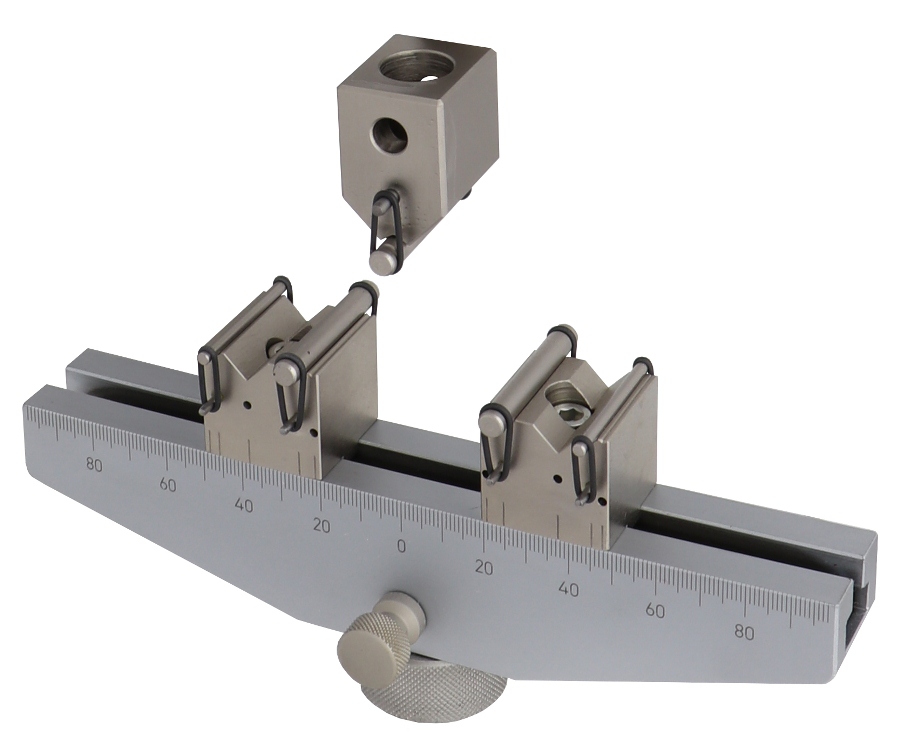

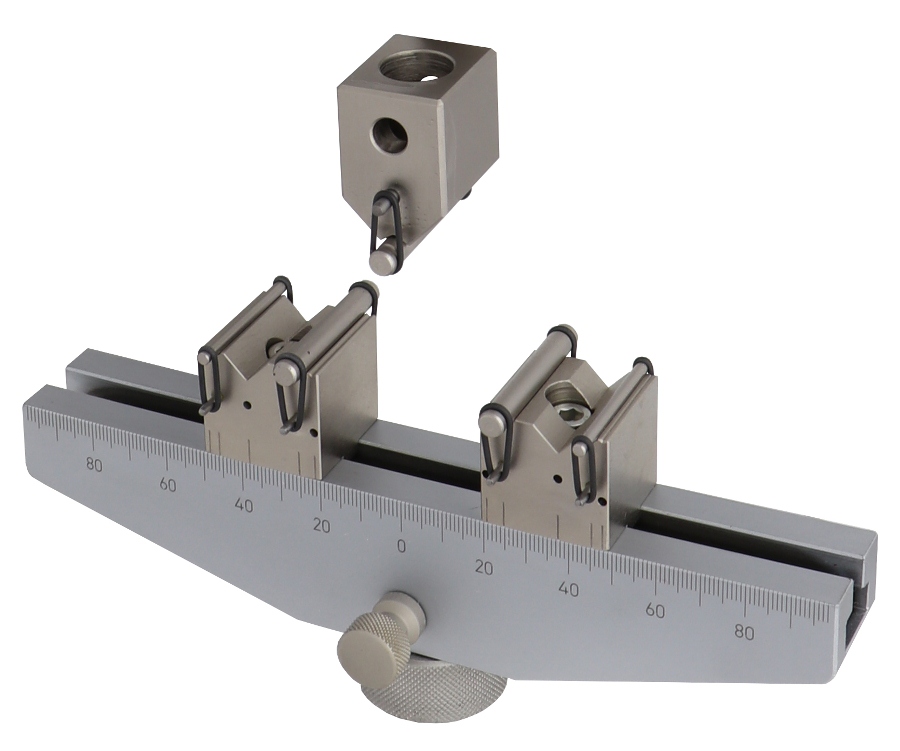

TH238-B200+AX3AX5+OX5-ST

3-point bending fixture with interchangeable rollers
Lower bar 200 mm
Lower anvils with rollers 3 and 5 mm
Upper anvil with roller 5 mm

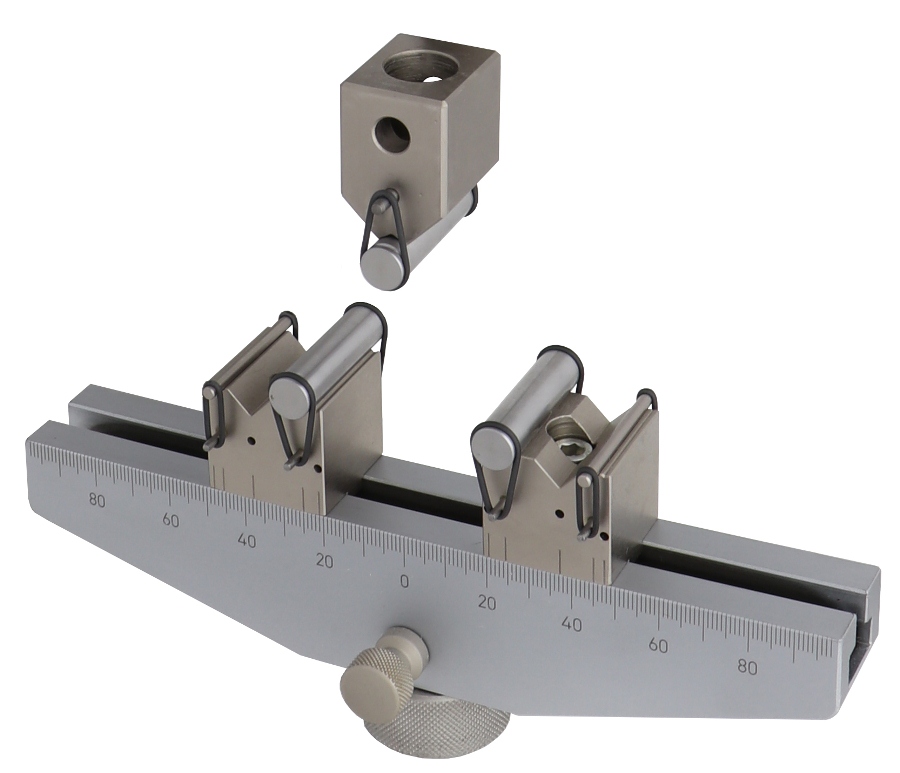

TH238-B200+AX3AX10+OX10-ST

3-point bending fixture with interchangeable rollers
Lower bar 200 mm
Lower anvils with rollers 3 and 10 mm
Upper anvil with roller 10 mm

TH238-B200-OX10+CX10  2019-08-15

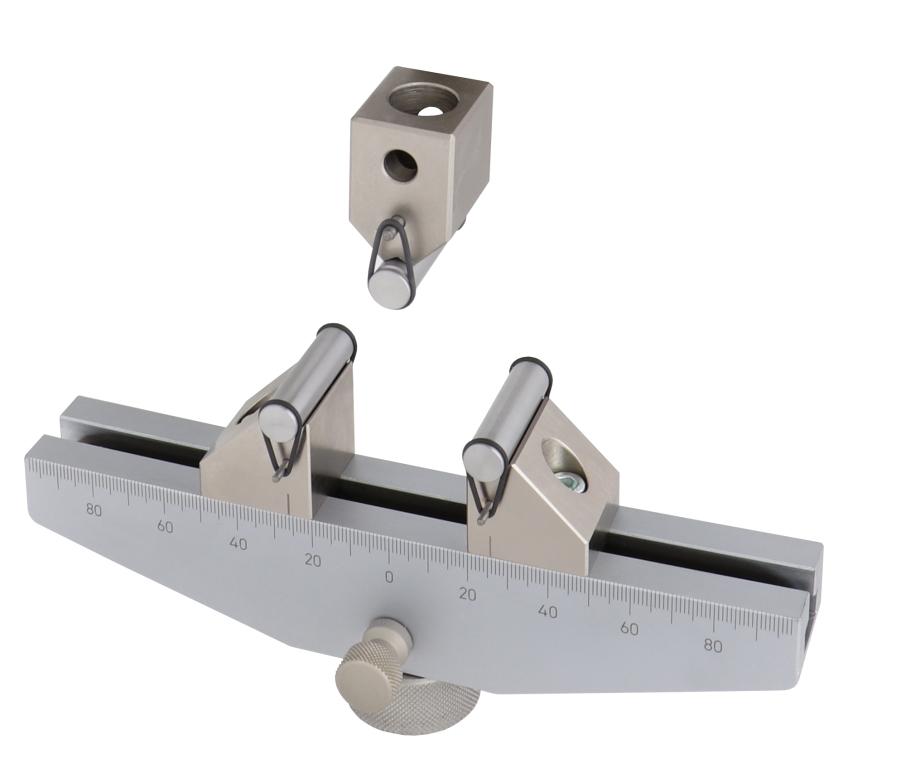

TH238-B200-OX10+CX10

3-point bending fixture with interchangeable rollers
Lower bar 200 mm
Lower anvils with rollers 10 mm
Upper anvil with lower 10 mm

TH238-B200-4P+CX+D10   2019-08-16

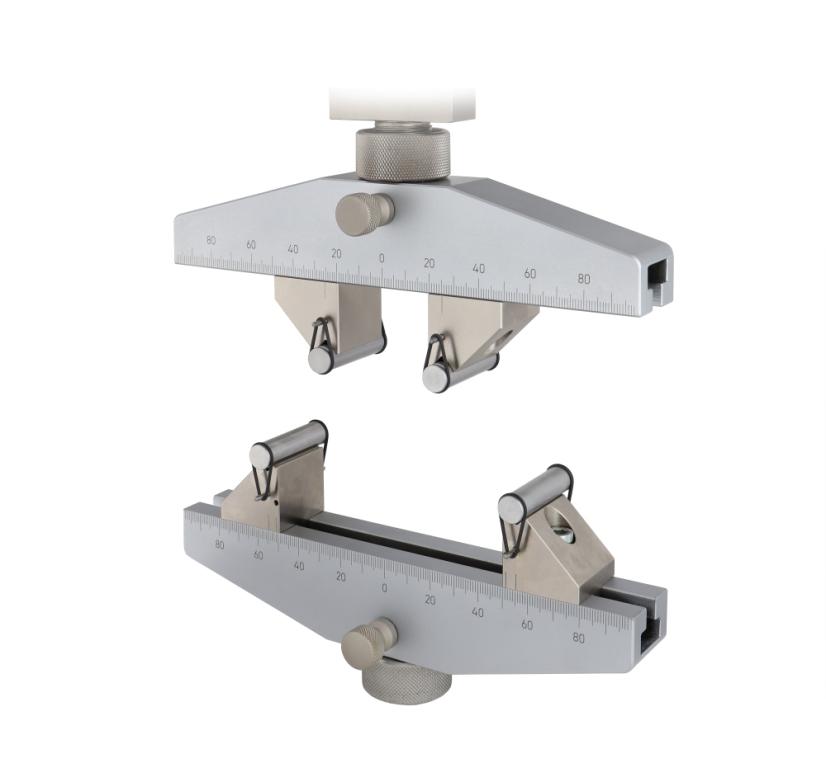

TH238-B200-4P+CX+D10



4-point bend test fixture with interchangeable rollers

Lower bar 200 mm, rollers 10 mm

TH238-B200+AX3AX10 + TH238-DP-B200+CX10  2019-08-15

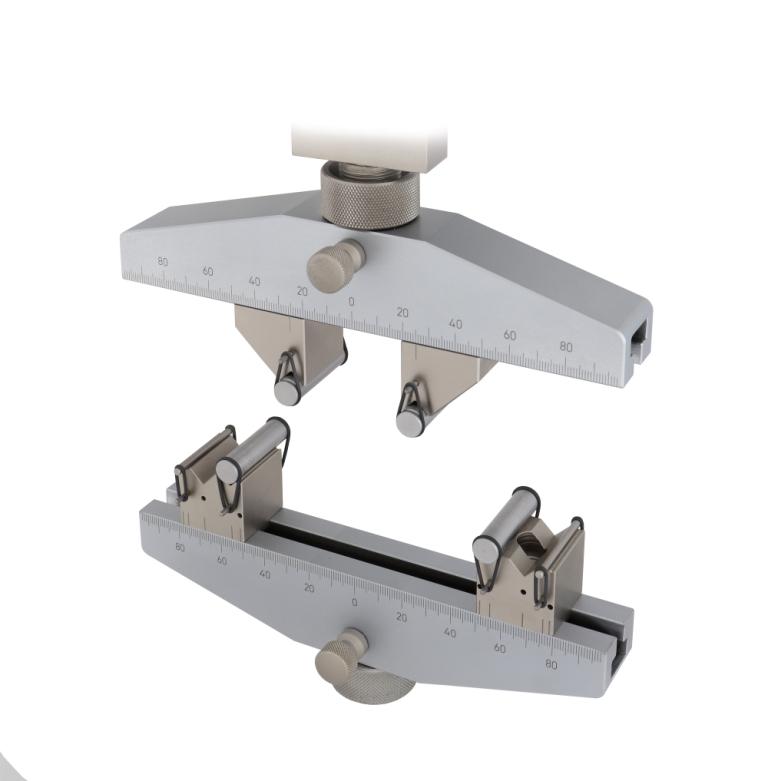

TH238-B200-AX3AX10+D10+D3

4-point bending fixture with interchangeable

rollers
Lower bar 200 mm
Lower anvils with rollers 3 and 10 mm

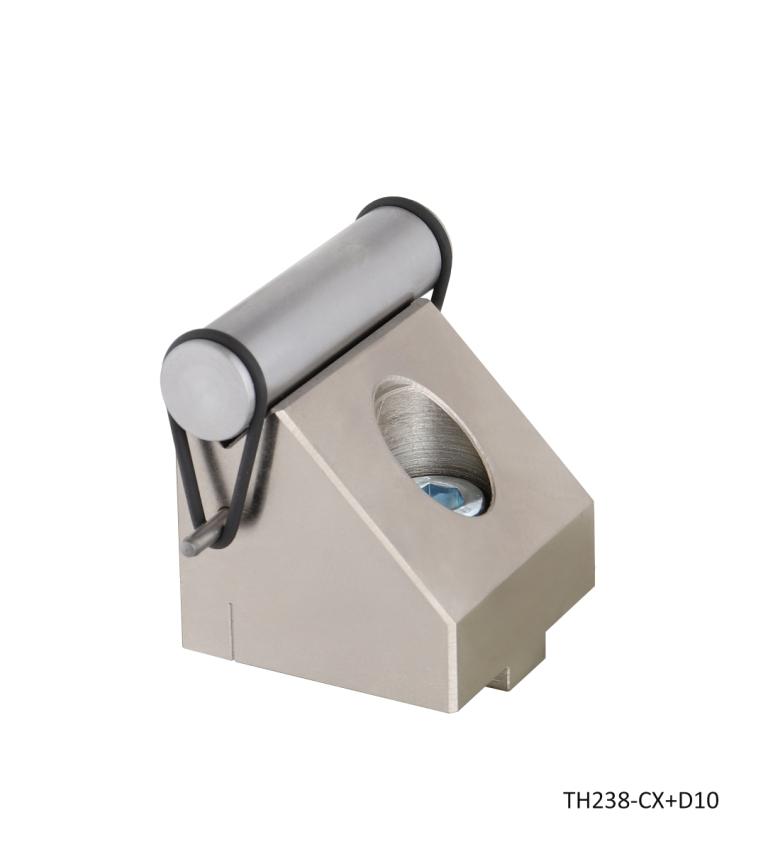

TH238-CX+D10  2019-08-16

TH238-CX+D10



Anvil with roller 10 mm diameter

TH238-AX+D3+D10  2019-08-16

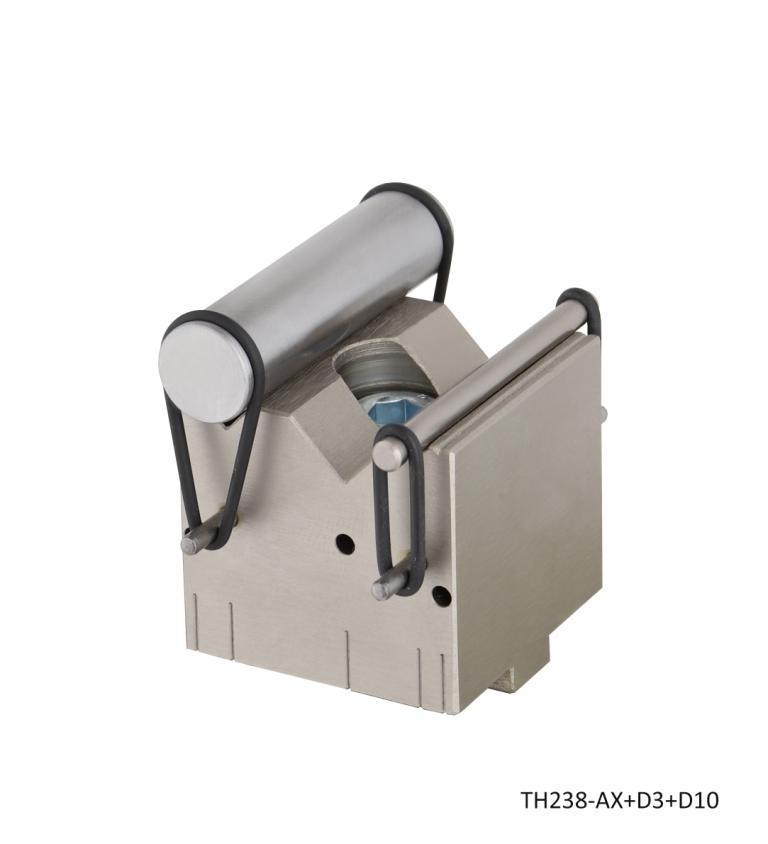

TH238-AX+D3+D10



Anvil with 2 rollers 3 and 10 mm diameter
