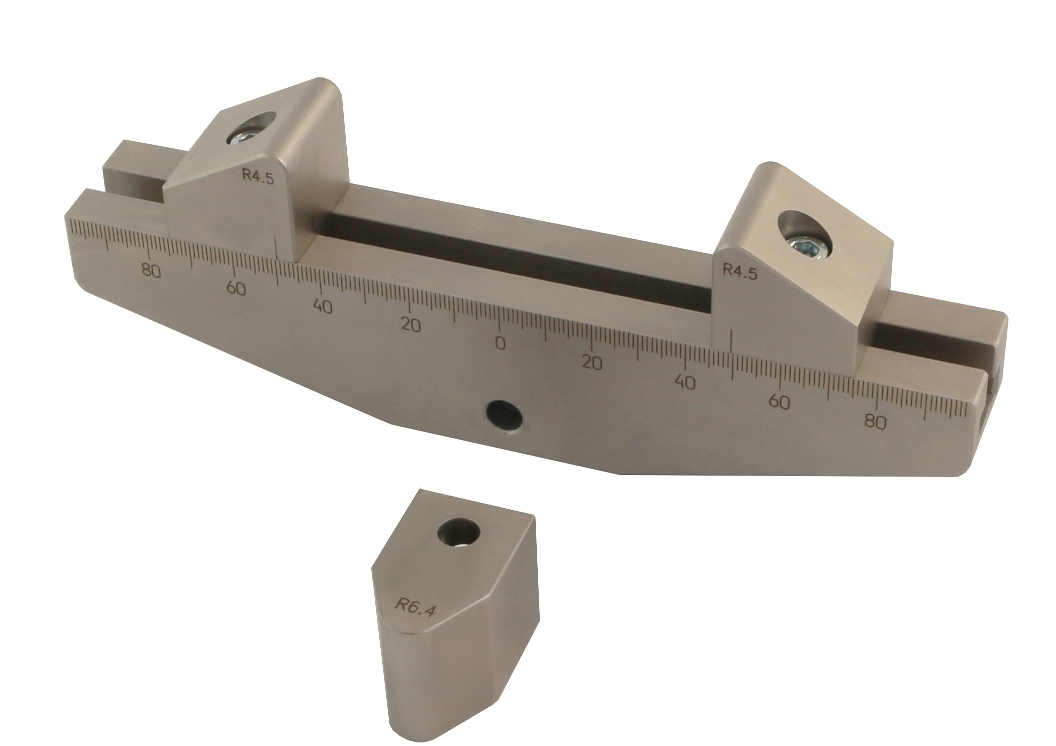

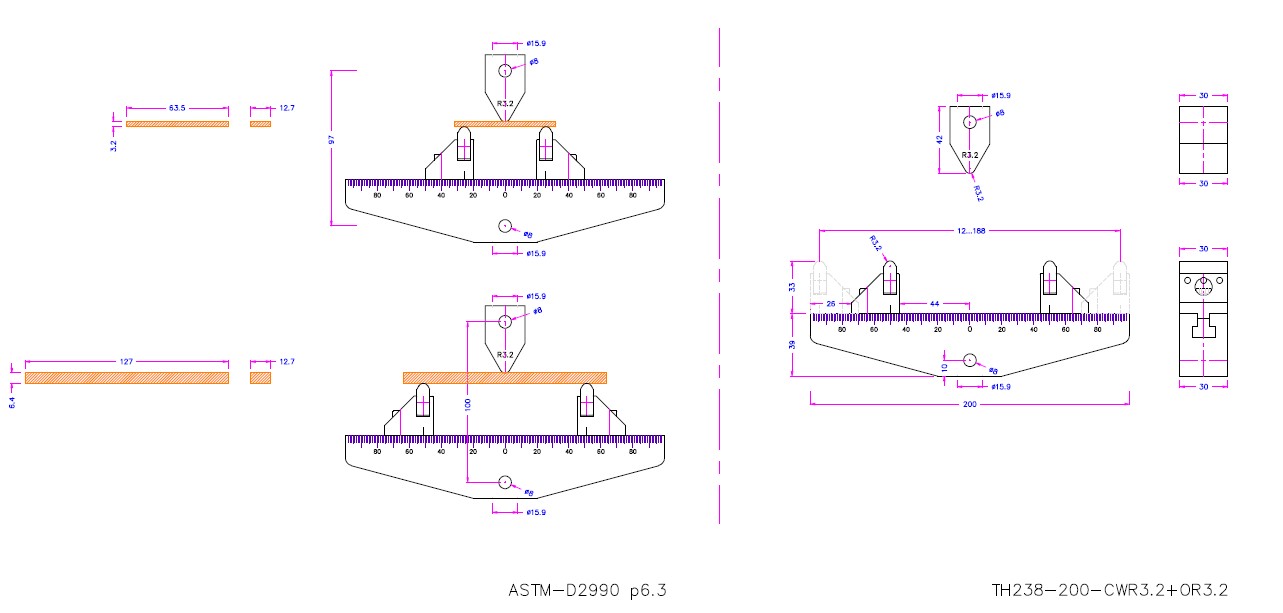

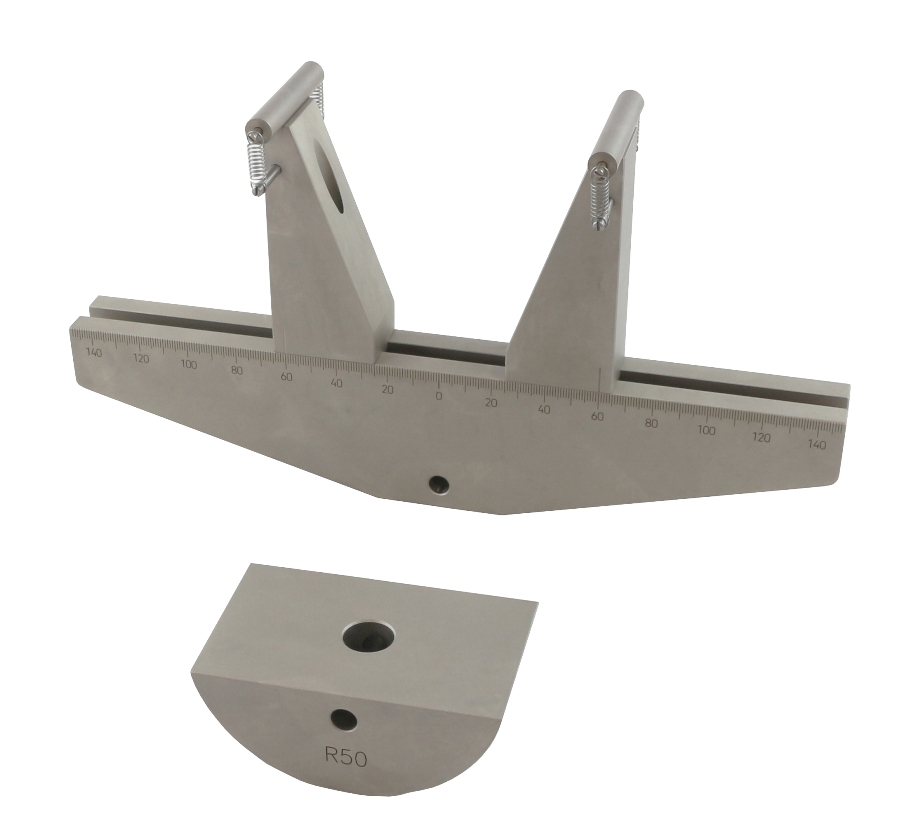

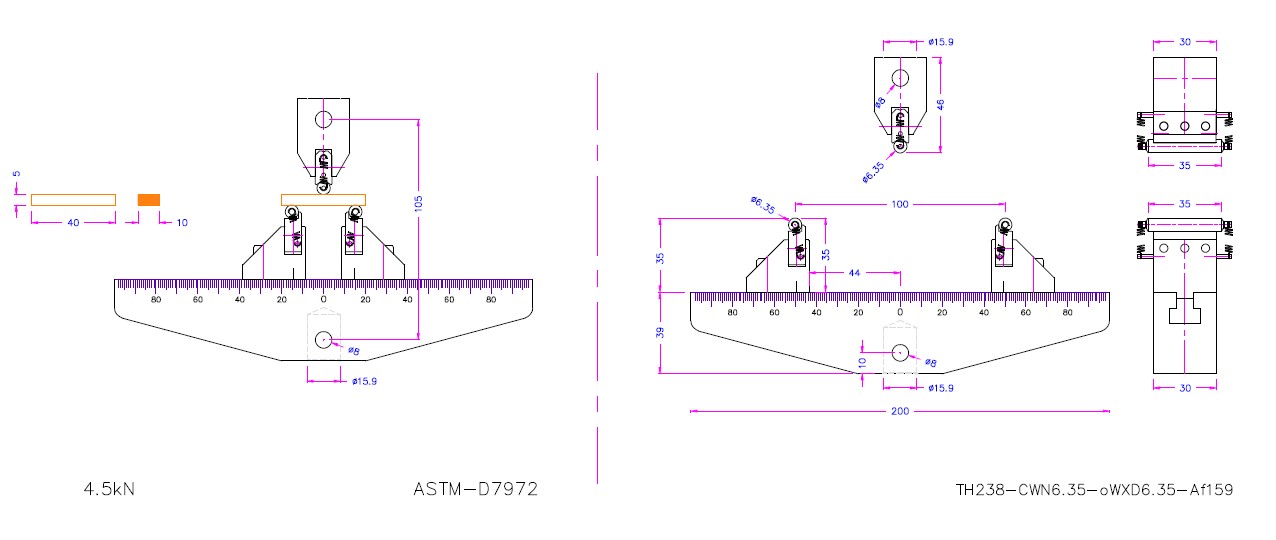

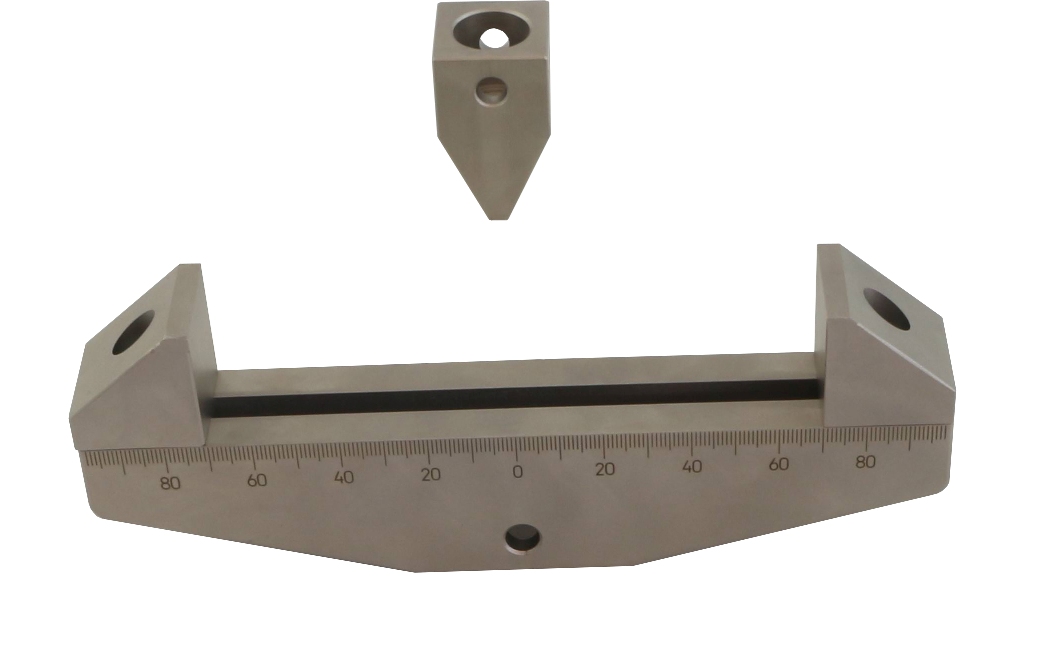

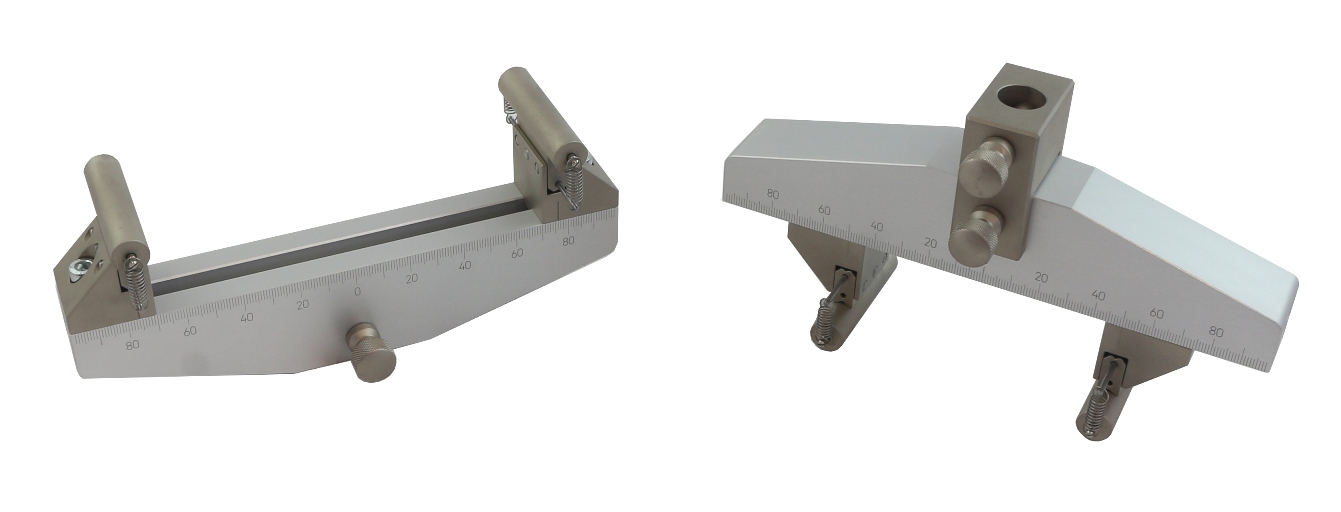

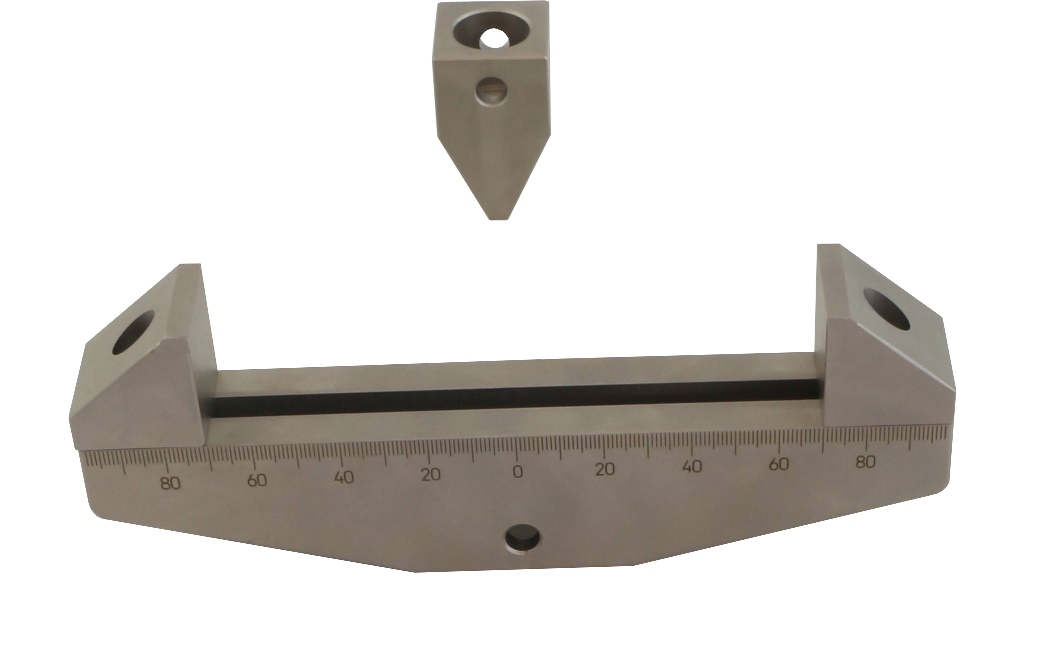

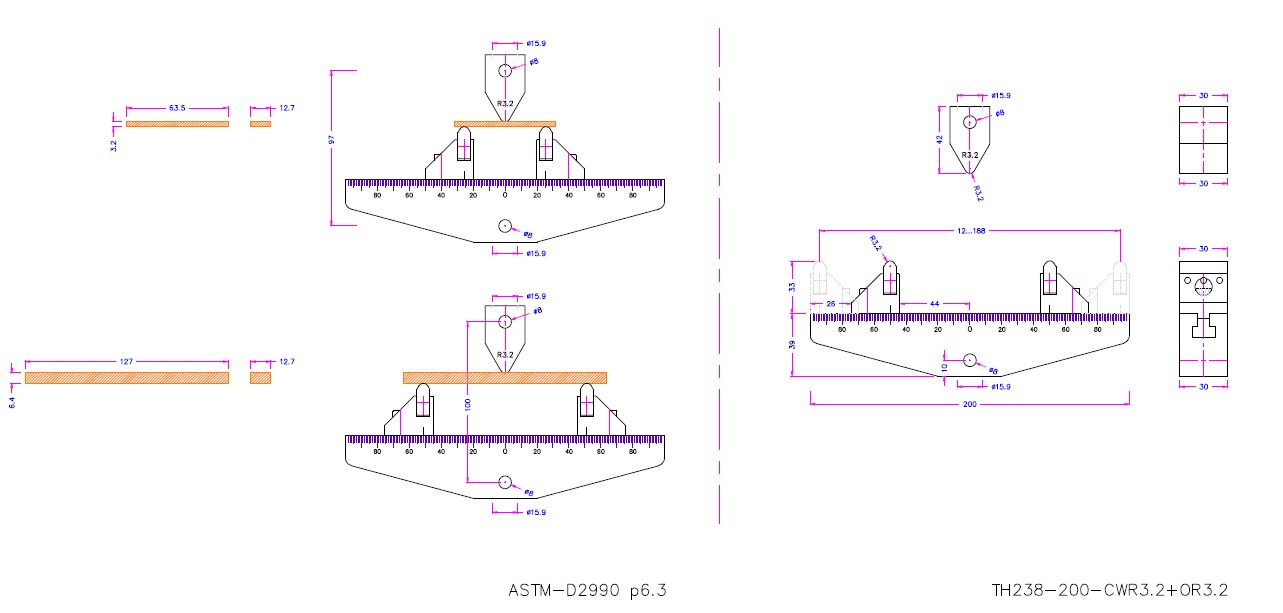

G02 Bending fixtures

TH238_Special

Back



THS648-RMV-D130xH100-Mkr
+ TH238-B100-CXD3.2-2x12-A4
DIN EN ISO20795-1

3-point bend test fixture to measure flexure strength of denture and orthodontic base polymers in a water bath according to DIN EN ISO20795-1 / -2



more

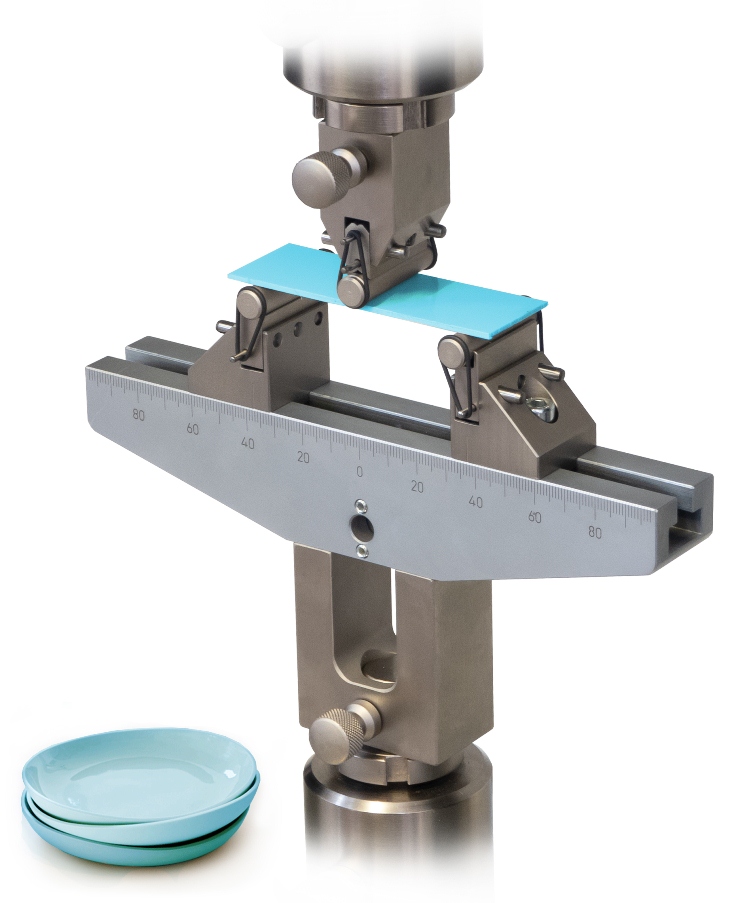

TH238-5P-B200-CWN-ith1-ASTM-C1161-DIN-EN843-1-1-ISO14704



Special 5-point bend test fixture to test fine ceramics according to ASTM-C1161, DIN EN843-1 and ISO14704



Sonder 5-Punkt Biegevorrichtung zum Testen von Hochleistungskeramik gemäß ASTM-C1161, DIN EN843-1 and ISO14704



more

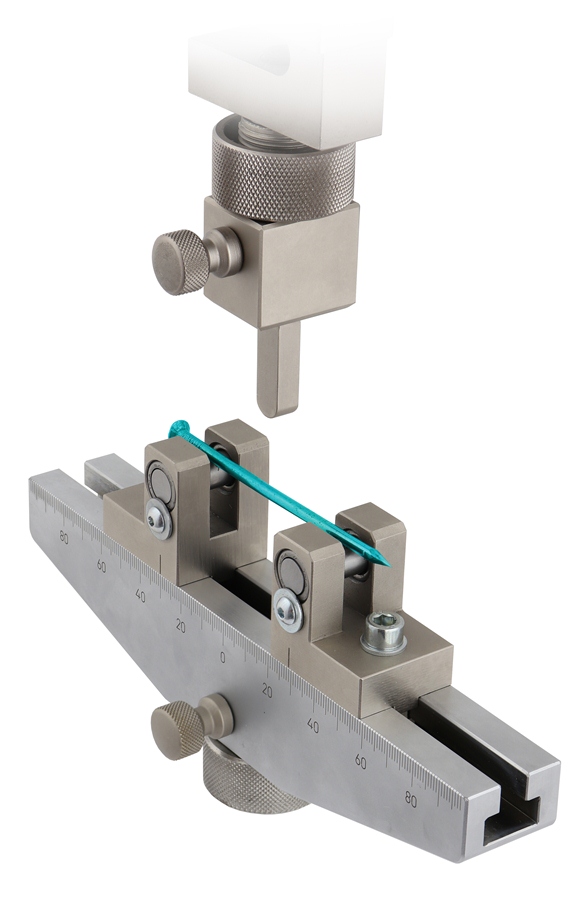

TH238-B200-cWLD9.5-ASTM-F1575



Bend test fixture to test nails according to ASTM-F1575.

Max. load 5 kN. Steel, nickel-plated.



more

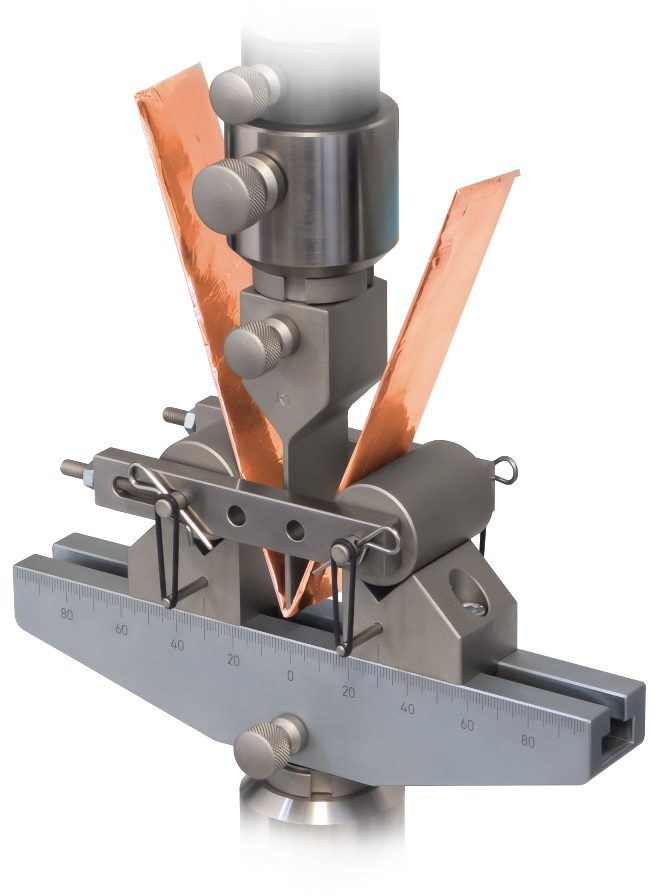

TH238-B200-FV-cXD30x40



Special bend test fixture for metallic Materials according to DIN EN ISO7438
Folding device 180° with 2 sidebars



Sonder Faltvorrichtung für Metal gemäß DIN EN ISO7438



more

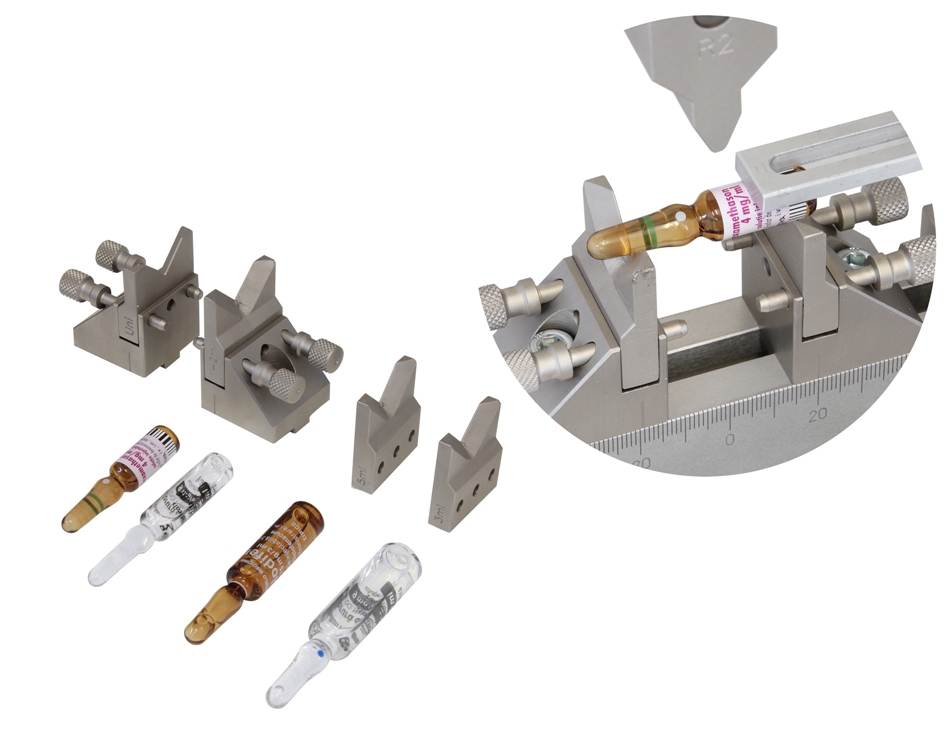

Description: tn_TH238-B200-OR2-CWX-ISO9187-1  Ampulen Medizin Midicine  09  A1  G02

TH238-B200-OR2-CWX-ISO9187-1

Bend test fixture to test medical ampoules for injectables according to DIN
EN ISO9187-1

Biegevorrichtung zum Testen von Ampullen für Injektionspräparate gemäß DIN
EN ISO9187-1

more

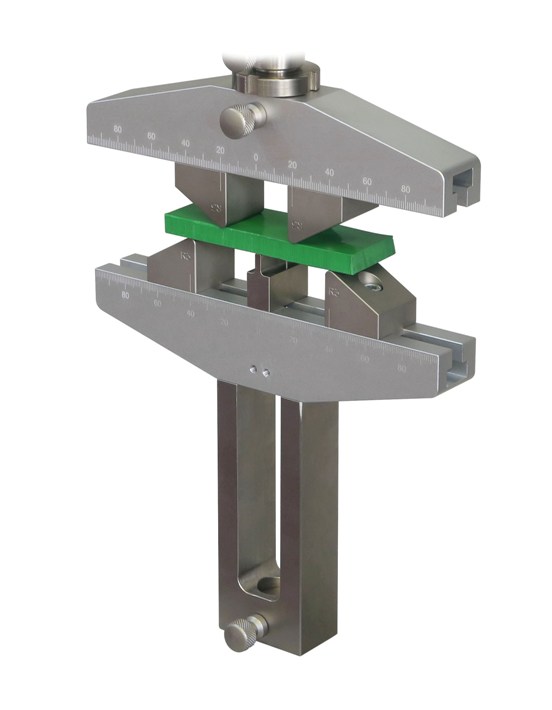

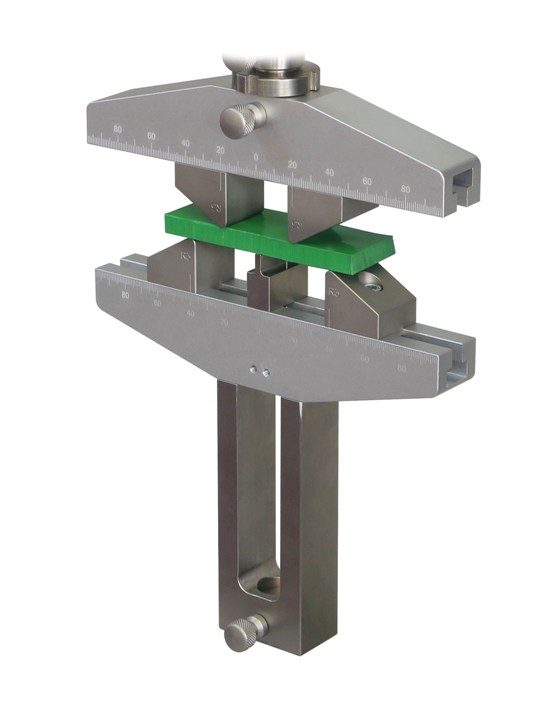

TH238-5P-CR3 ith1-Af20 ISO19927



Special 5-point bend test fixture

according to ISO19927

to test plastic composites by double-beam interlaminar shear method


more

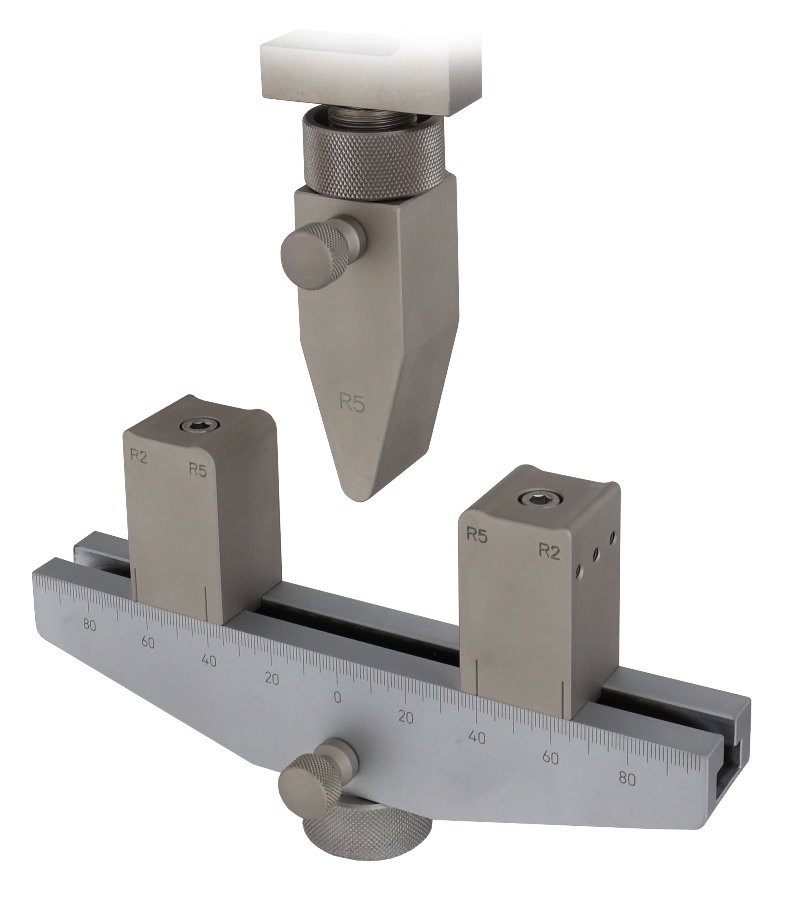

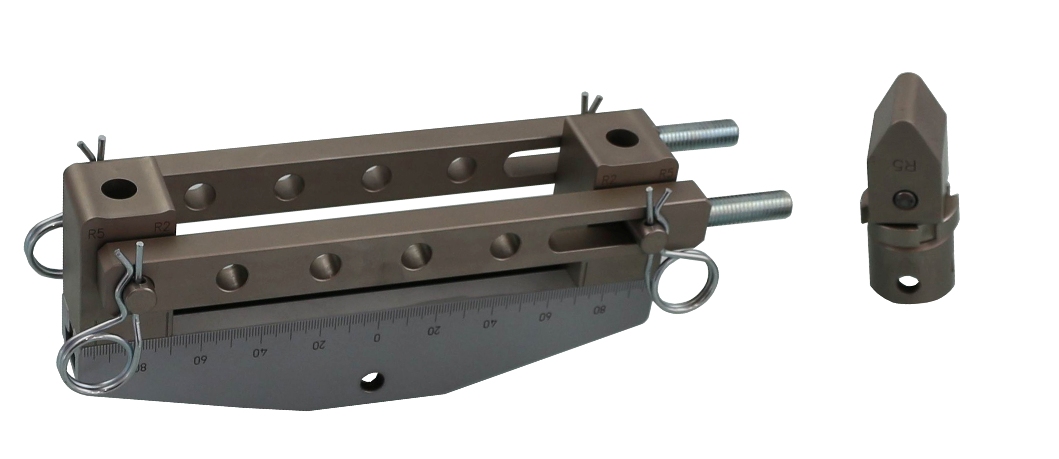

TH238-B200-AR2-5H50-oR5H80



Supports and fin with Height of 50 mm

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH238XW-4P-H80-S3--iz-OT-

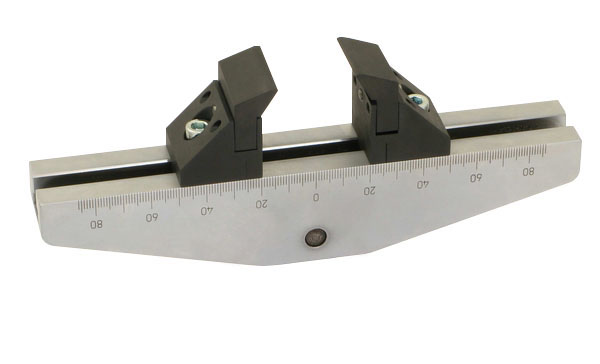

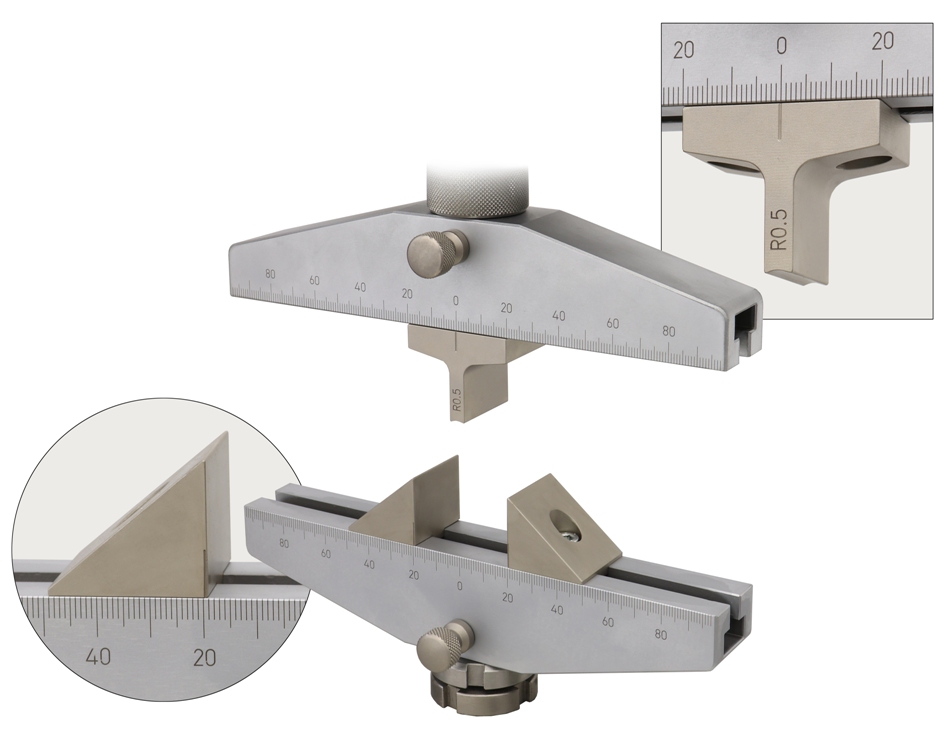

TH238-B200+cwGT+ER1V6



Bending jig for smll ceramic

Supports rotating

Support out of center to allow

Low distances  for small samples

Radius 1mm



Biegevorrichtung für kleine Keramikteile

Rotierende Auflager mit 6mm zur Mitte um geringe Abstände für kleine Proben zu erreichen

Radius 1mm

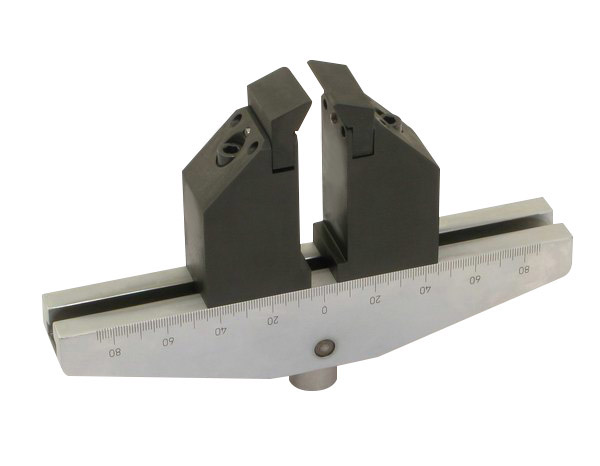

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH238XW-4P-H80-CWER1V6   erhöhte Böcke Auflager wippend Versatz 6mm zum Zentrum-

TH238-B200-cwGTH80+ER1V6



Higher support carrier for rotating

Inserts with radius R1, 6mm to center



Erhöhte Böcke für wippende Auflager

Einsätze mir Radius 1 mm mit Versatz

6mm zum Zentrum

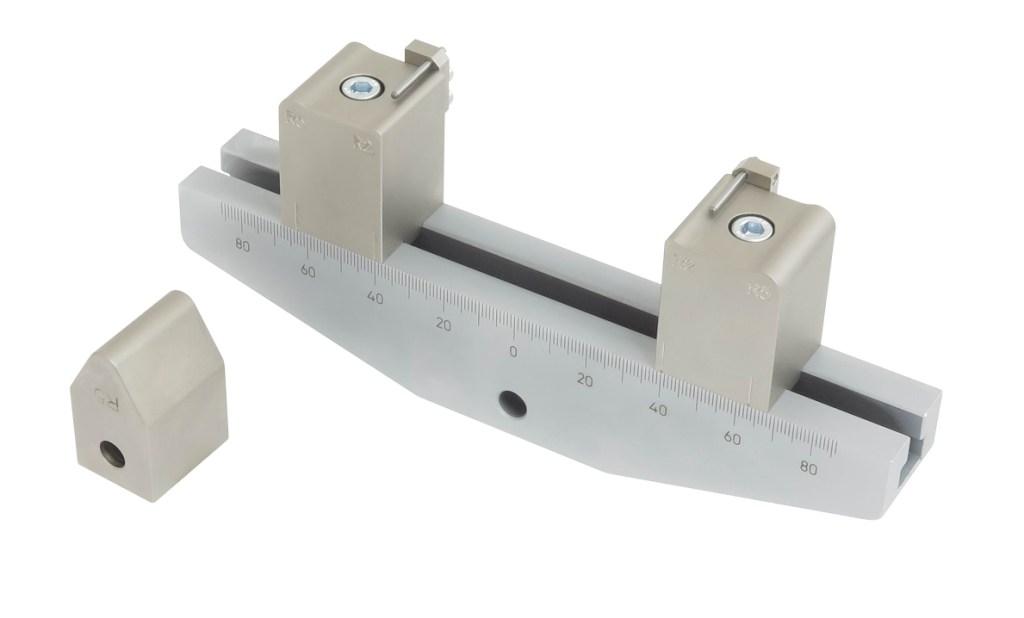

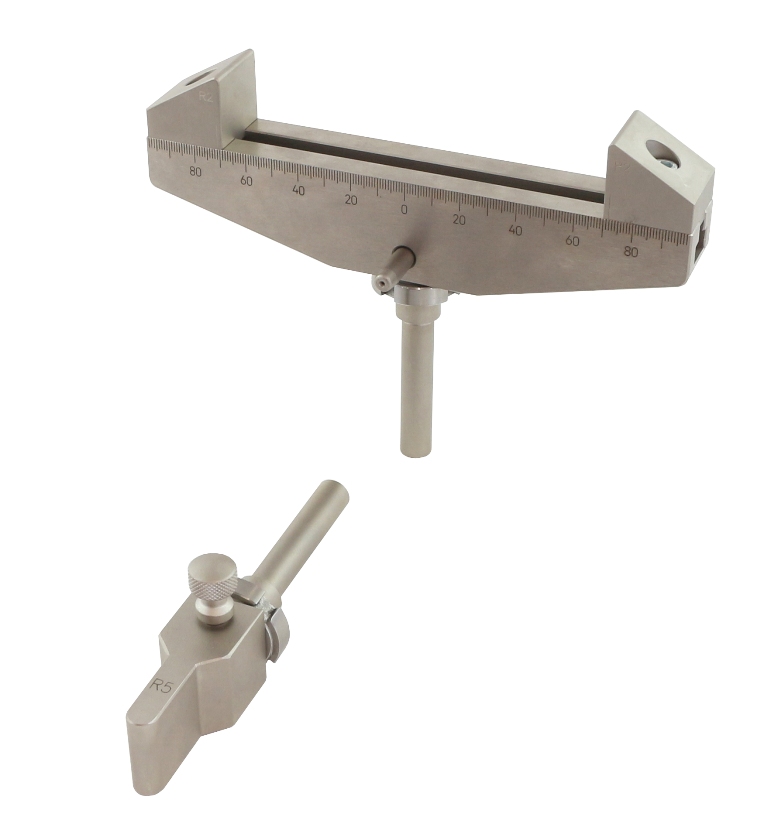

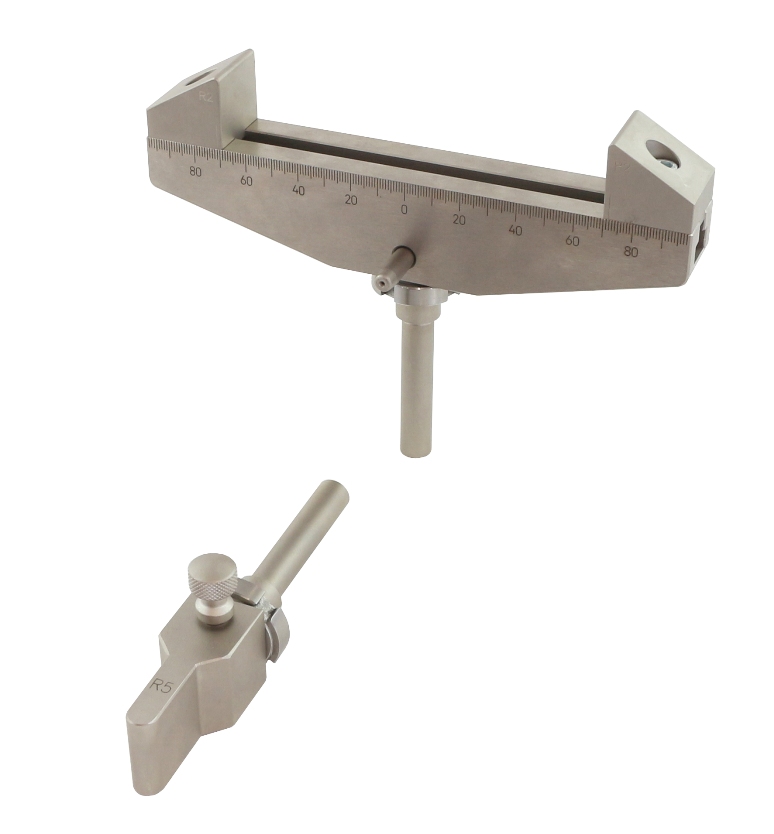

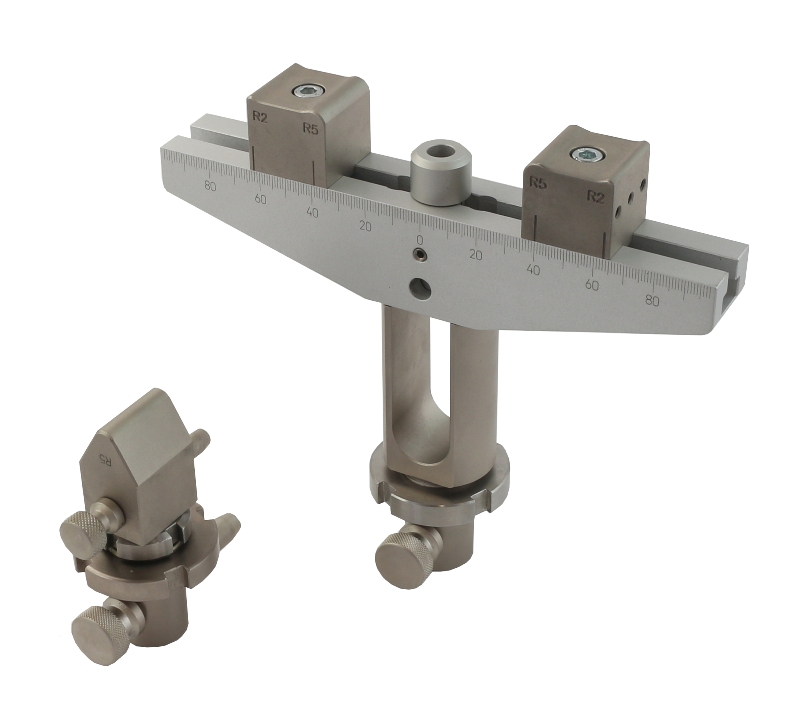

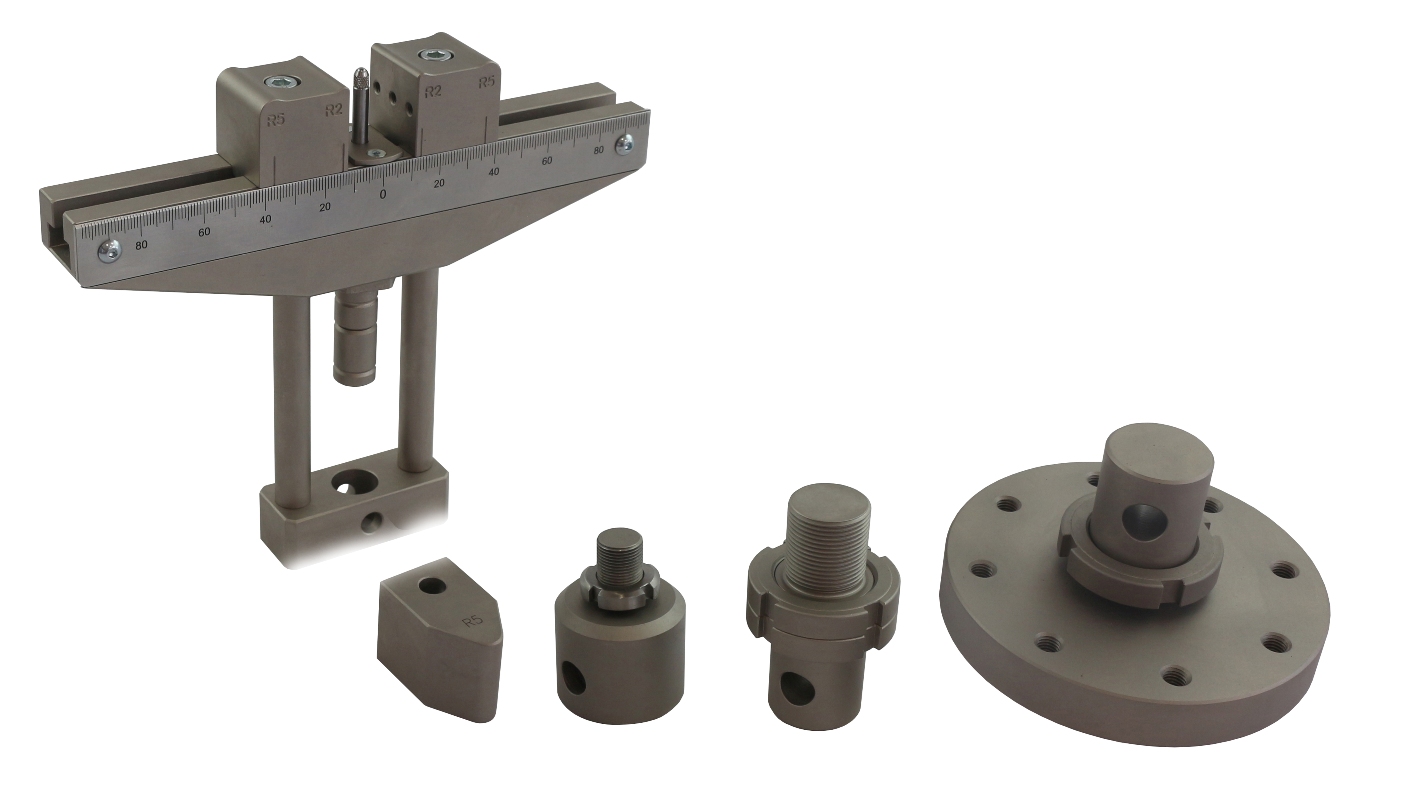

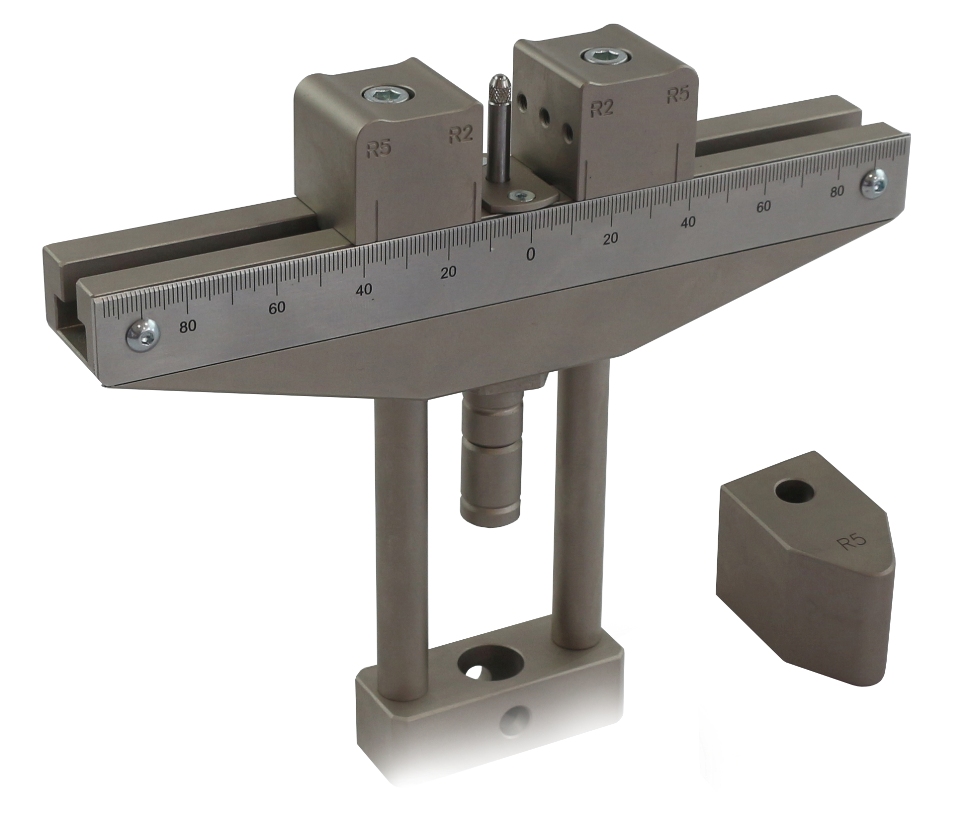

TH238-B200-AR2-5-H40-ctd + oR5

Bending jig 200 mm
Lower supports with Radii 2 and 5 mm
Special Height 40 mm
Centering device
Upper fin Radius 5 mm

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: tn_TH238-300-200-4P-CL..-wdf-

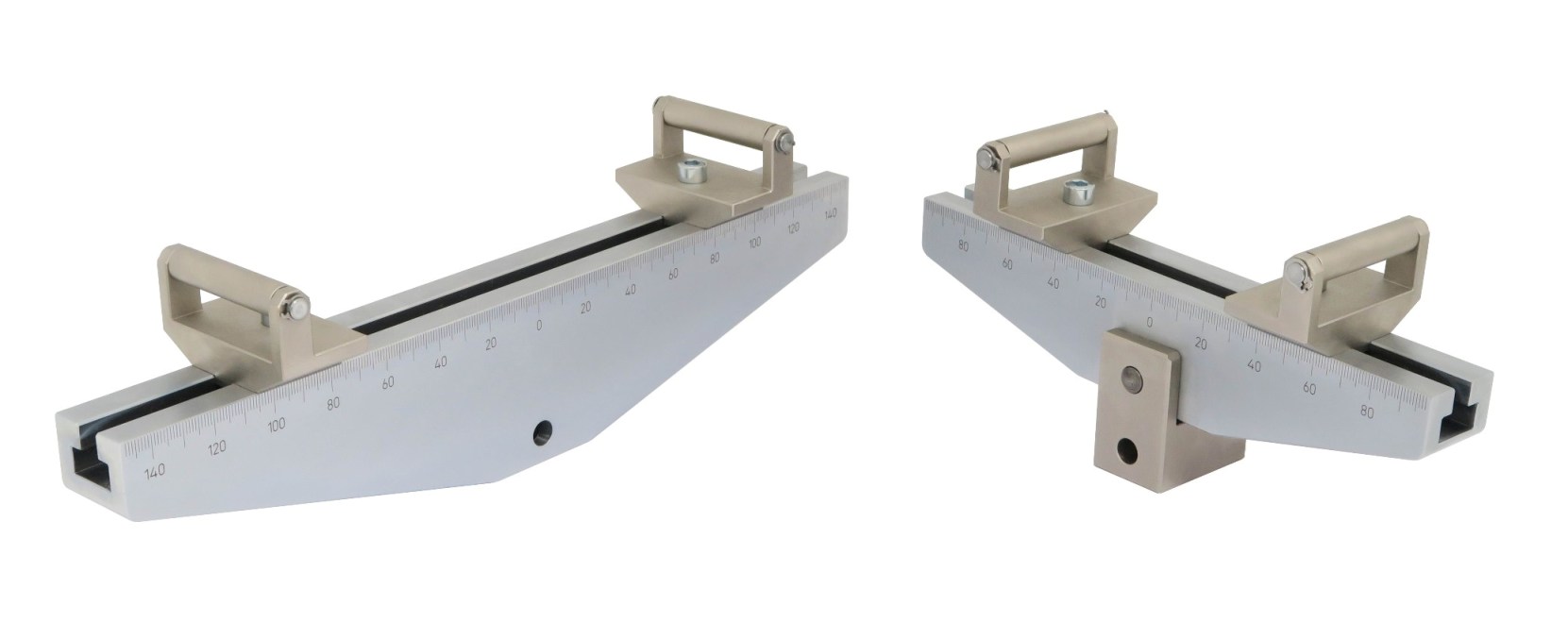

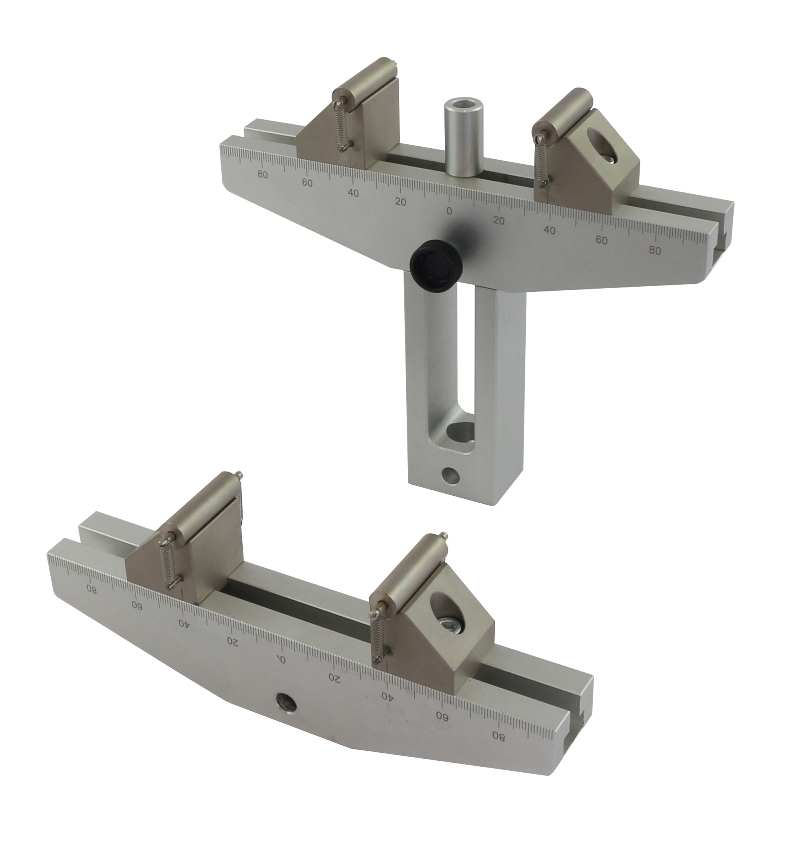

TH238-B300-B200-4P-cL10x30+WDF

4P bending jig with 300 and 200 mm bars
Support with roller diameter 10 mm
Width 30 mm
Upper bar moveable

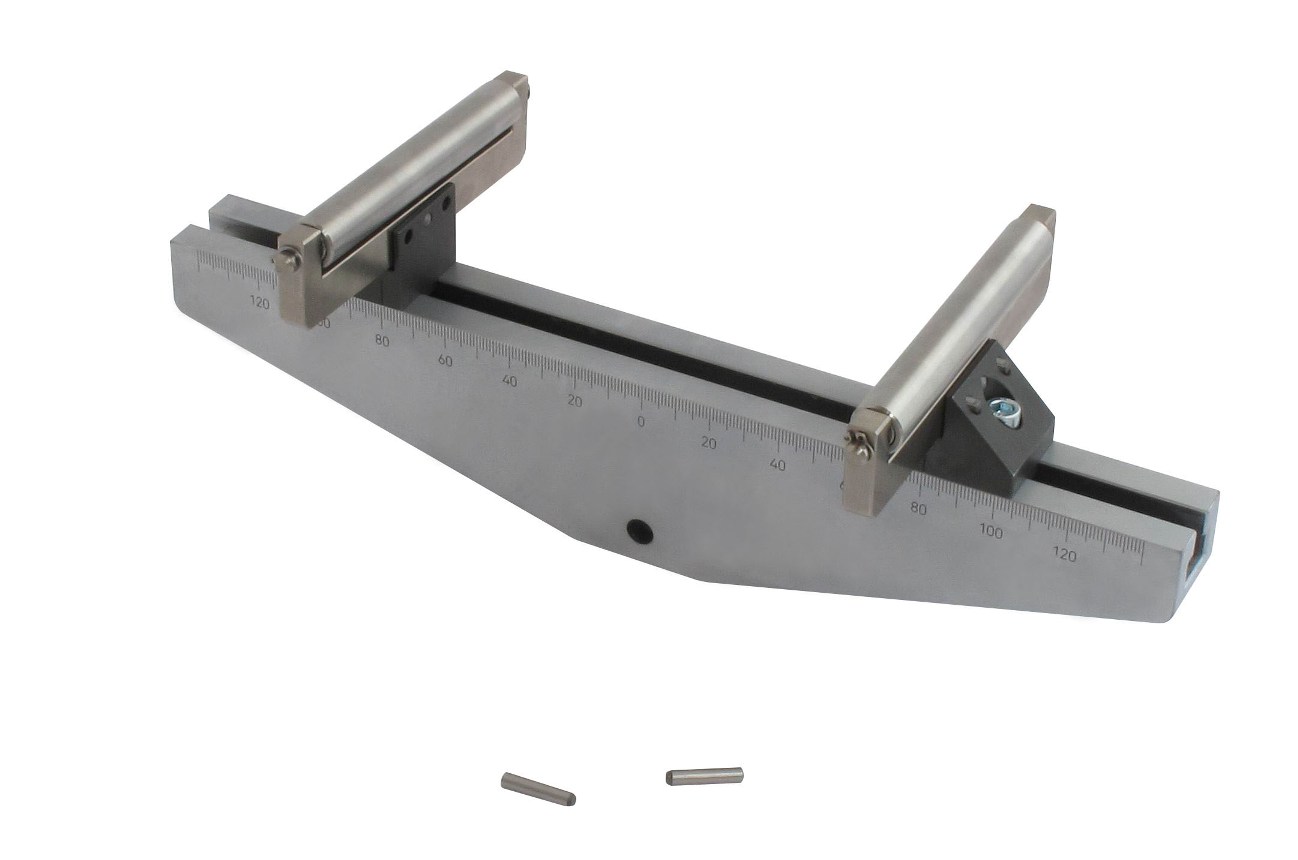

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: tn_TH238-300-CWLD14x100  Nadellager-

TH238-B300-cWLD14x100

2P bending bar 300 mm
With 2 supports, moveable,
2 Roller 14 mm diameter
Width 100 mm



Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: tn_TH238-300-CX10x50-H80-2-.jpg

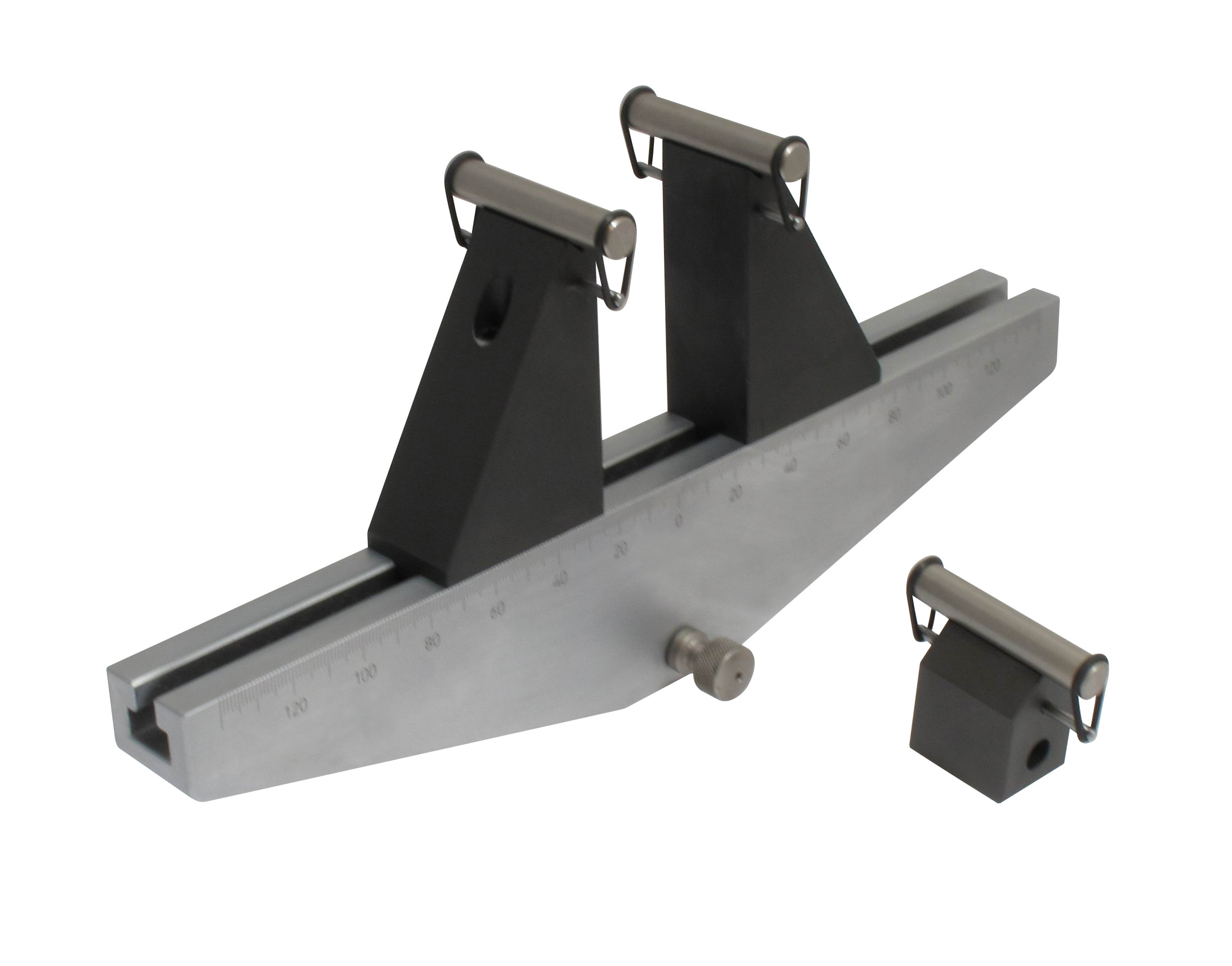

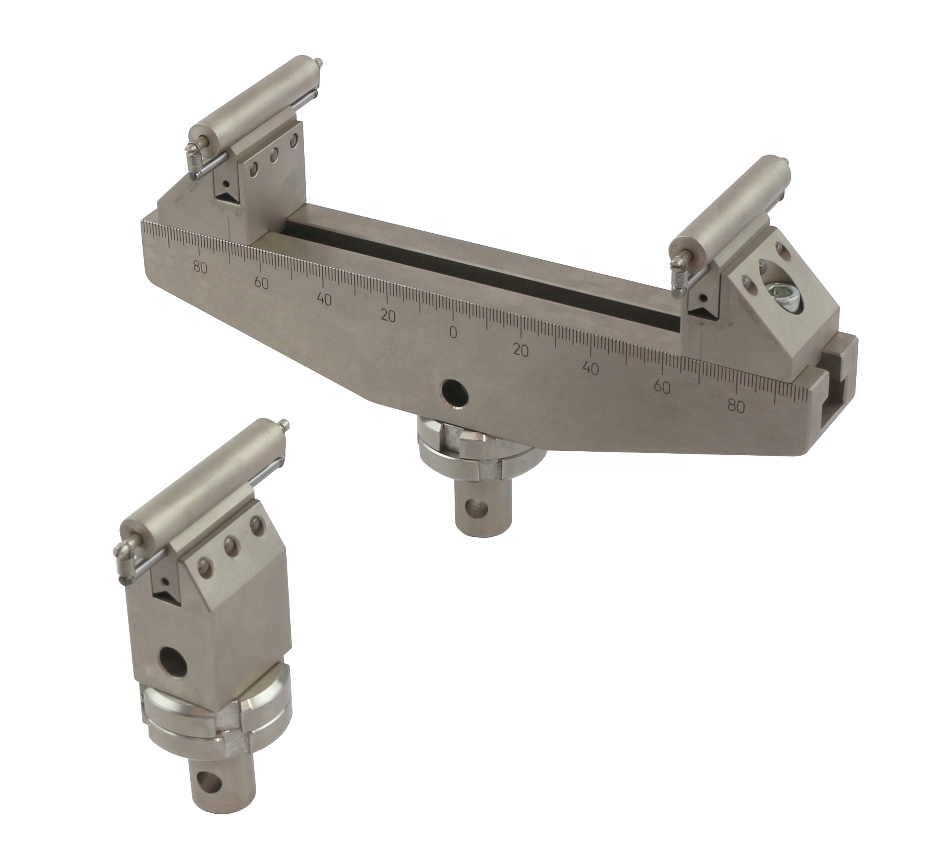

TH238-B300-CX10x50-H80



With supports extra high 80 mm

TH238-B300 +2PH
+TH240k-S20 + BP
+THS42-R5-70



2 point bending device

Holder for grip TH240

Pin Radius 5 mm

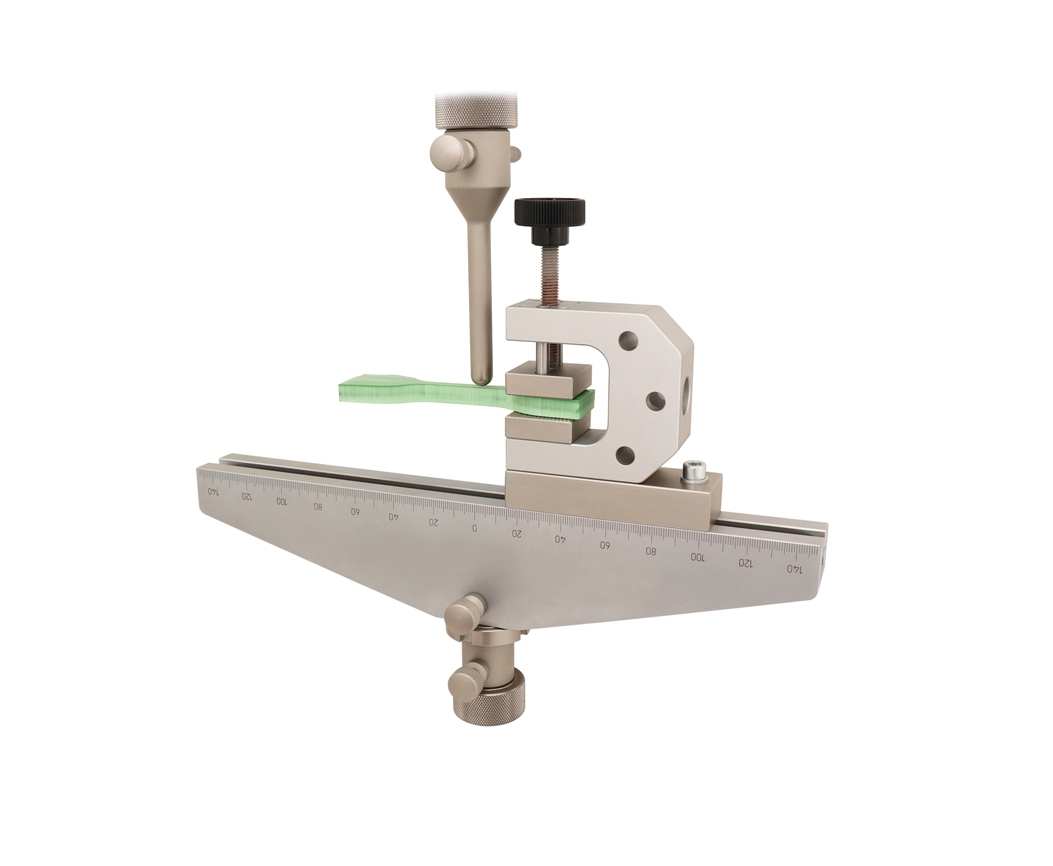

Cantilever beam shear stress setup to analyse the adhesive bond between 2 surfaces

2 Punkt Biegevorrrichtung

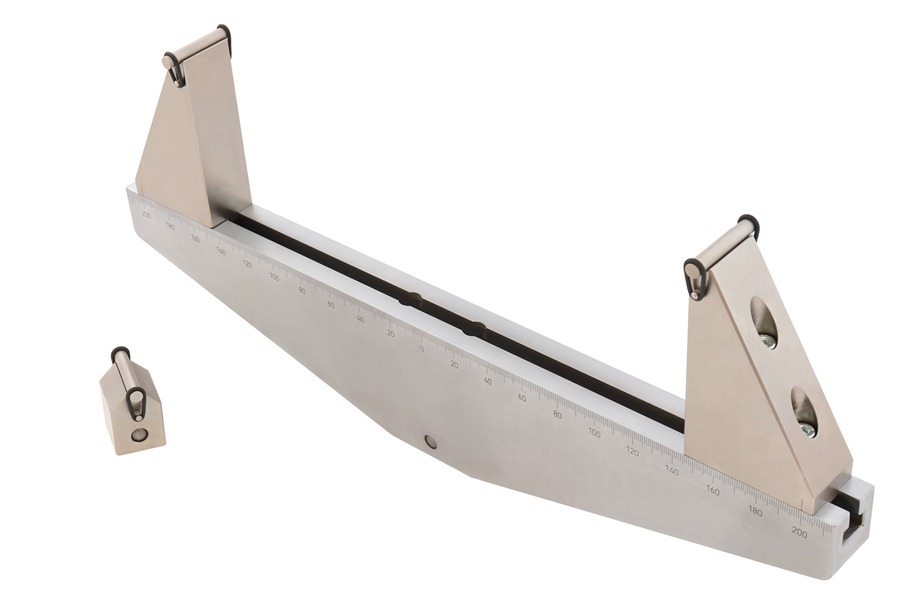

TH238-B430-CX6.35-H100OX6.35



Custom bend test fixture,
Max. load 2.5 kN

430 mm long bending bar,
Span distance 345 mm,

Lower anvils 96 mm Height
Roller diameter 6.35 mm

Coupling Af159, Weight 7,2 kg



tn_THS884-Af159+TH238+iTH2 gde T280 guided 3p bending jig Biegevorichtung mit Führung

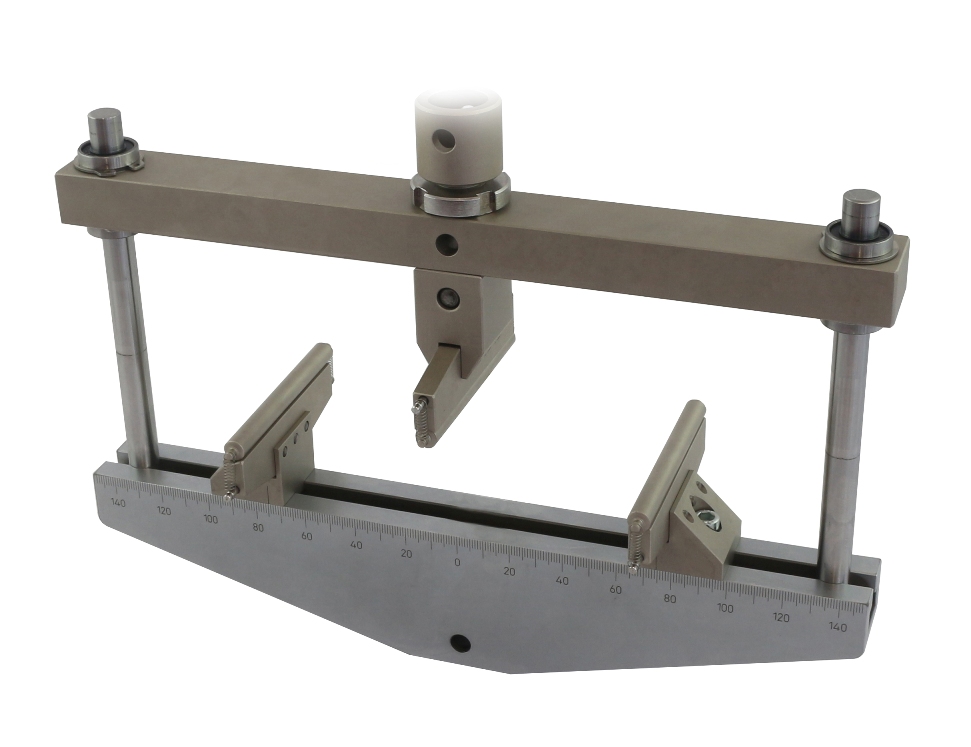

THS884-ith2-Af159

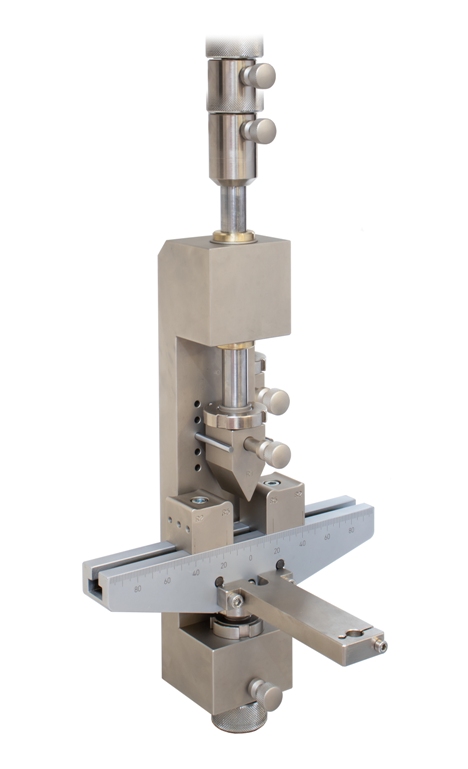

Guided 3p bending jig



Biegevorrichtung mit Führung


more

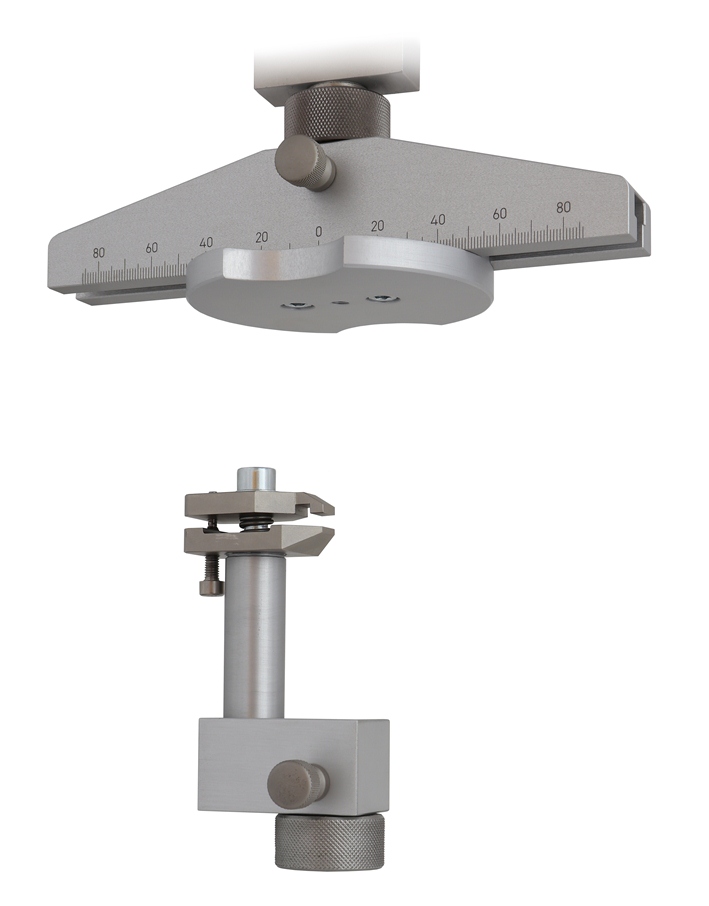

THS1509



Special fixture to pull out samples



tn_TH238St-AR1.25R1.6-OR0.75+Gde  5,1kg    2020-12-09  G02    01

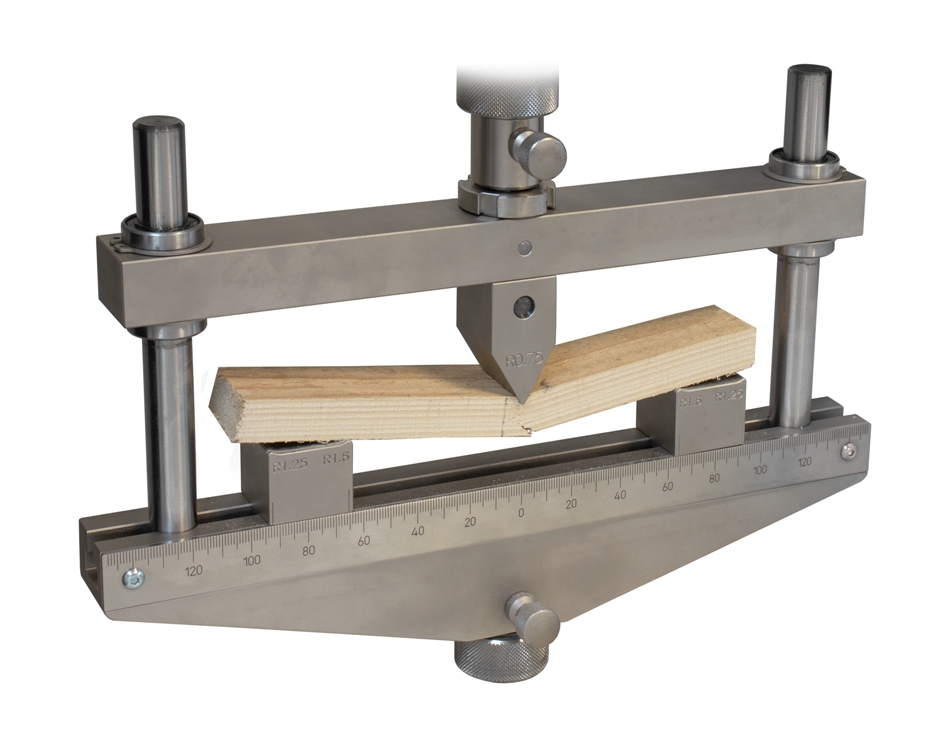

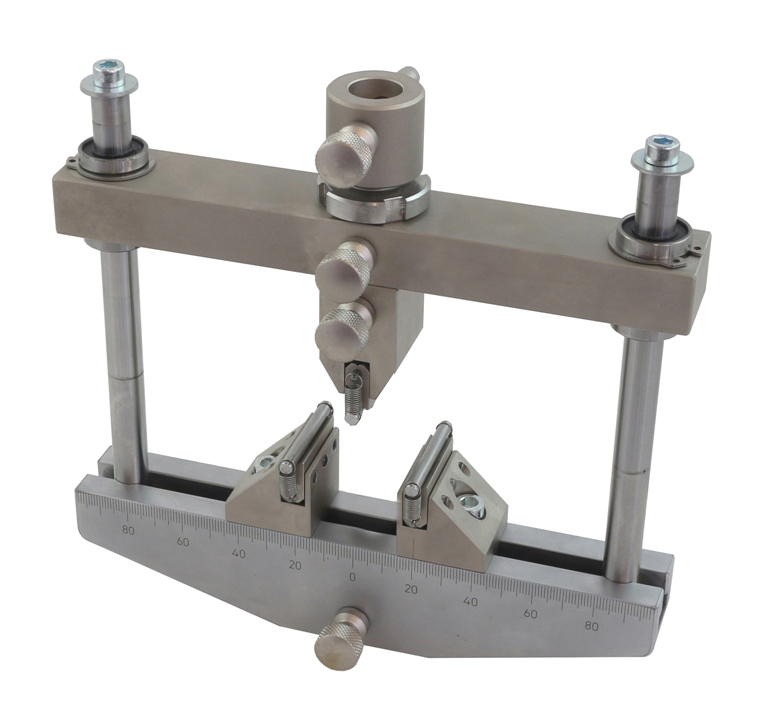

TH238St-AR1.25R1.6-OR0.75+Gde-Af159

3 point bend test fixture with guides

Upper nose with radius 0.75 mm, lower supports with radii 1.25 mm + 1.6 mm

Steel, nickel-plated

tn_TH238St-AR1.25R1.6-OR0.75+Gde  5,1kg    2020-12-09  G02    02

TH238St-AR1.25R1.6-OR0.75+Gde-Af159

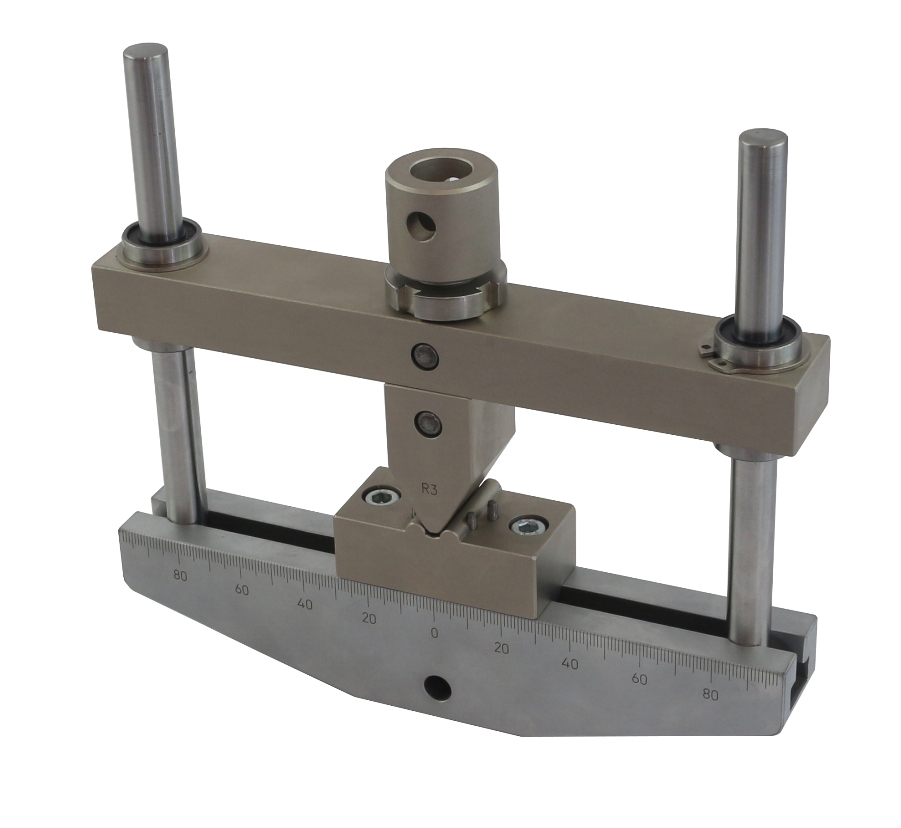

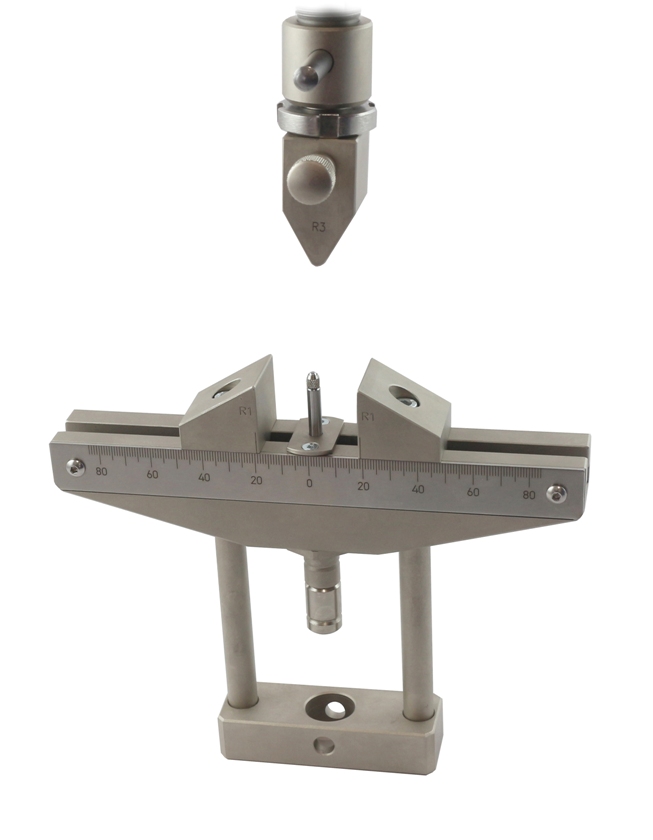

tn_TH238-AR3x3+OR3-GDE-Af20_15_8-St-EN2563-x 04.02.2021

TH238St-AR3x3-OR3+Gde

Upper nose with radius 3 mm, lower supports with radii 3 and 3 mm
Conform to EN2563
