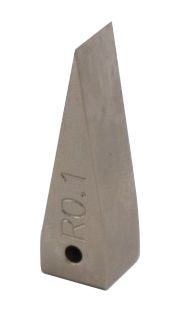

G02 Bending fixtures



Back

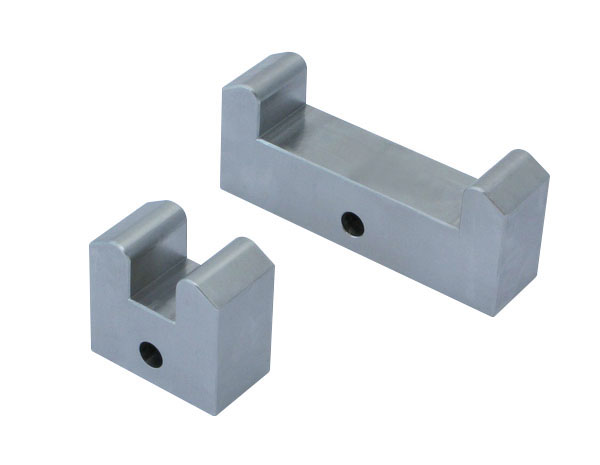

Description: Description: TH41-4P-25-80-R5..-

TH41-80-25-R5-Af15.9

Simple 4-point bend test fixture

Distance between bottom supports

25 mm and 80 mm

Radius 5 mm

Coupling Af159



Description: Description: Description: pdf_icon.gifTH41 Datasheet.pdf

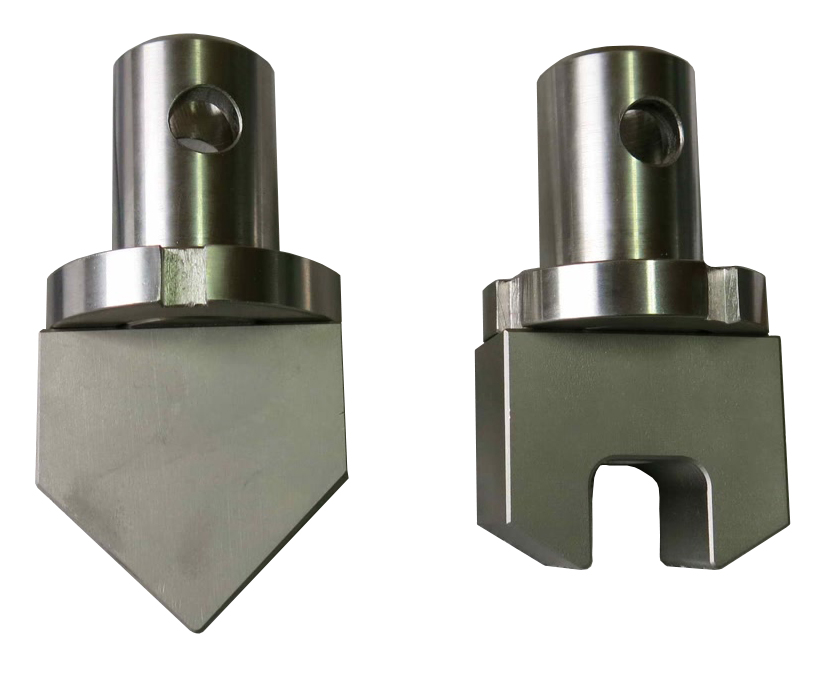

Description: Description: Description: tn_TH41-254-R158

TH41-25.4-R1.58-Af15.9

3-point bending fixture

Distance between bottom supports

25.4 mm

Radius 1.58 mm

Coupling Af159

Steel, hardened, nickel-coated

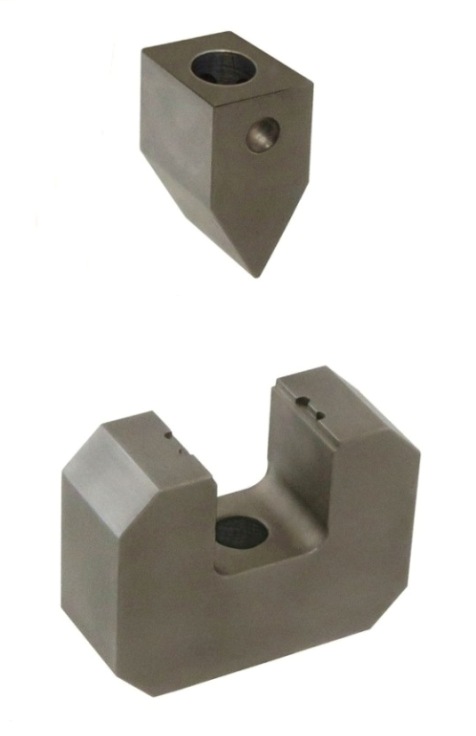

Description: Description: Description: tn_TH41-30-R1

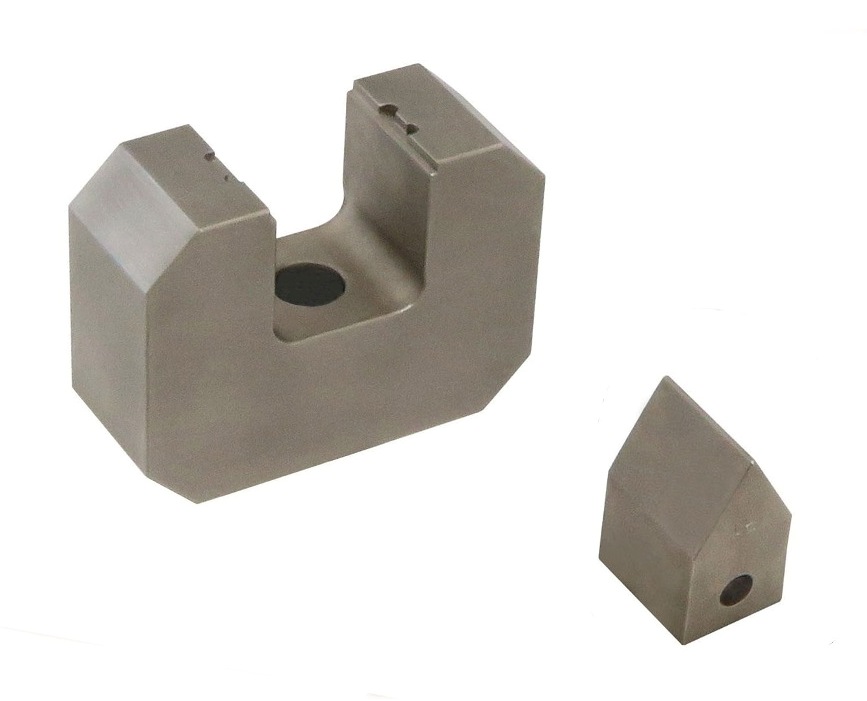

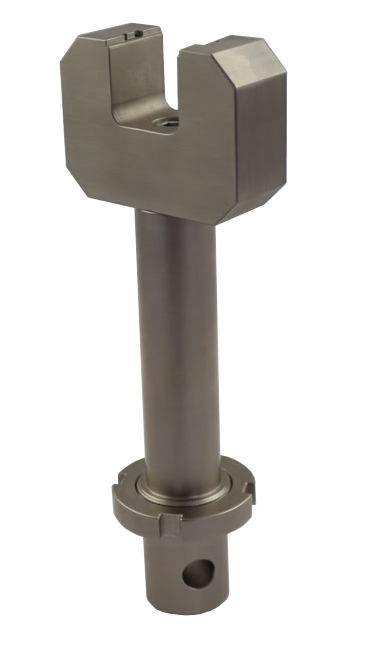

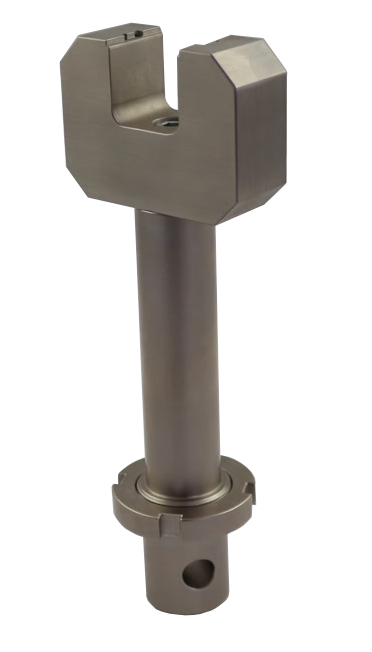

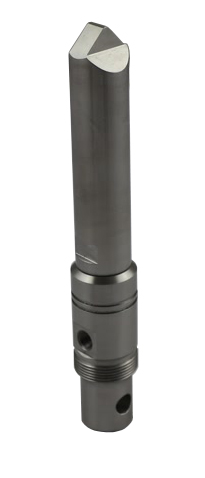

TH41-30-R1-Af15.9



3-point bending fixture

Distance between bottom supports 30 mm
Radius 1 mm

Coupling Af159

Description: Description: Description: tn_TH41-40-R4-OR1.5-AM317-

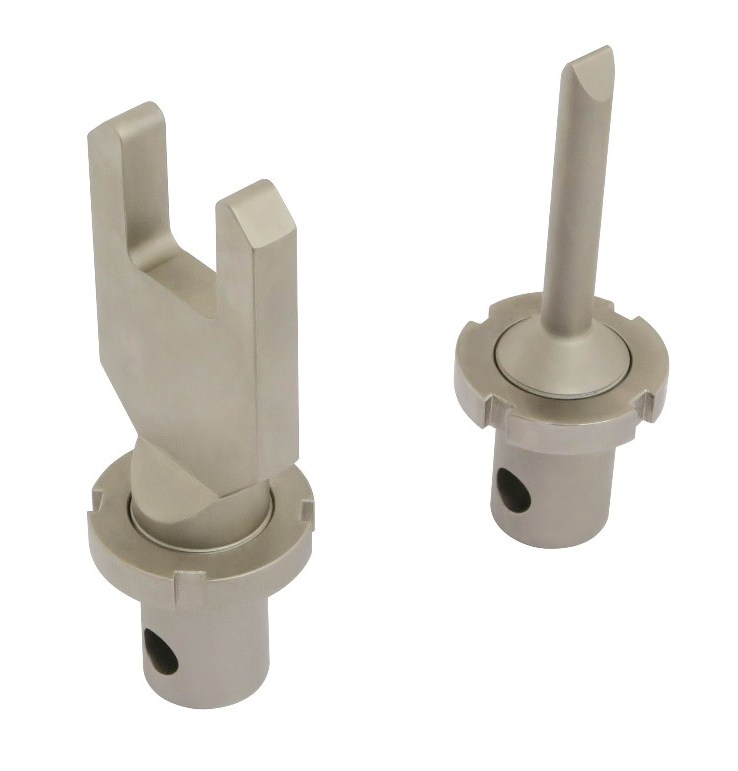

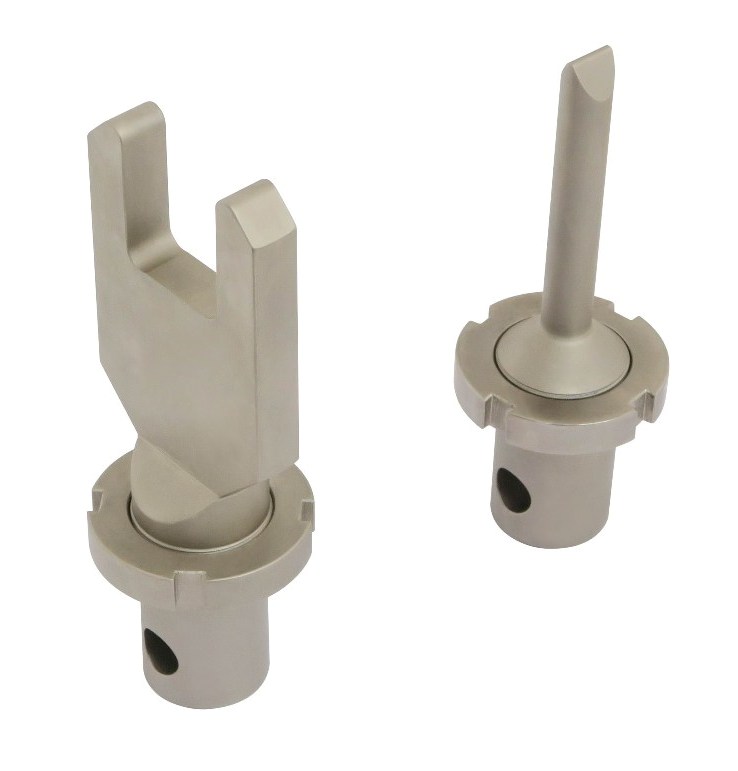

TH41-40-R1.5-R4-Am31.7

3-point bending fixture

Distance between bottom supports 30 mm
Radius 1,5 mm and 4 mm

Coupling Am317

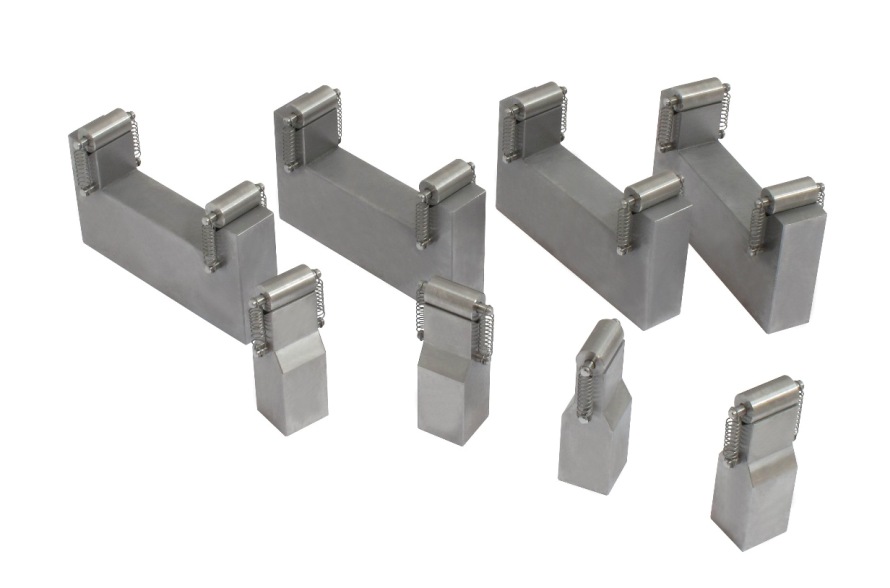

Description: Description: tn_TH41-82-D12-XS-W22-A4-

TH41-82-R6-R6-Af20

3-point bending fixtures

Distance between bottom supports 82 mm
Radius 6 mm

Coupling Af20

TH41-16-R0.5-T16x13x12



3-point bend test fixture for temperature chambers

Temperature range till 500°C

Upper and lower anvils with radii 0.5 mm, width 6 mm

Distance between bottom supports 4 mm
Coupling
16x13x12





TH41-16-R0.5-T16x13x12

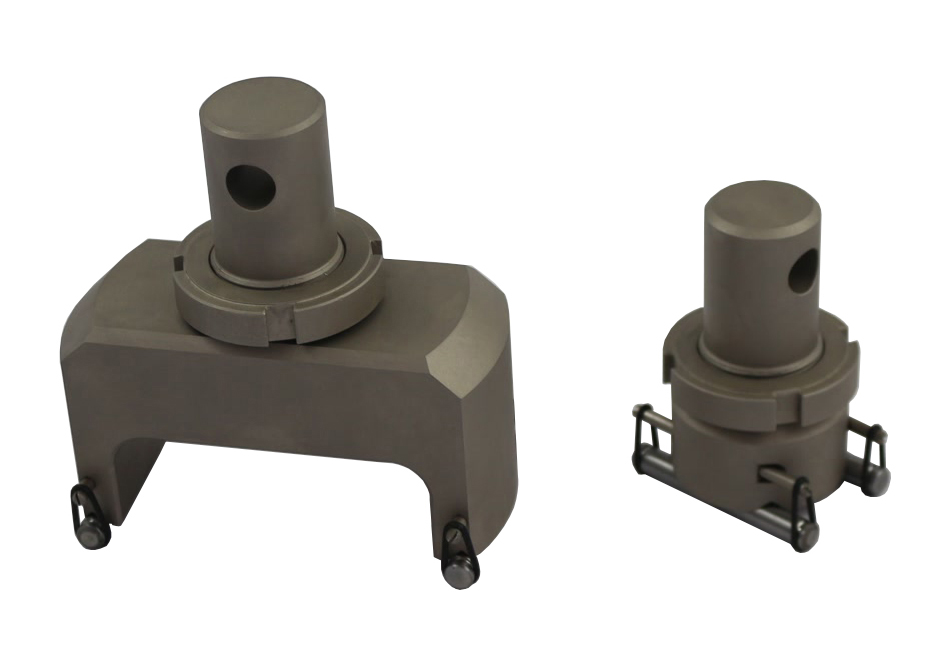

TH41-34-R8-R8-Am31.7



Customized 4-point bending fixture

Distance between lower supports:

102 mm, between upper supports: 34 mm

Incl. 4x rollers 8 mm Ø, 50 mm long

Coupling Am31.7/12.8mm (type D)

Steel, hardened, nickel-coated

TH41-34-R8-R8-Am31.7

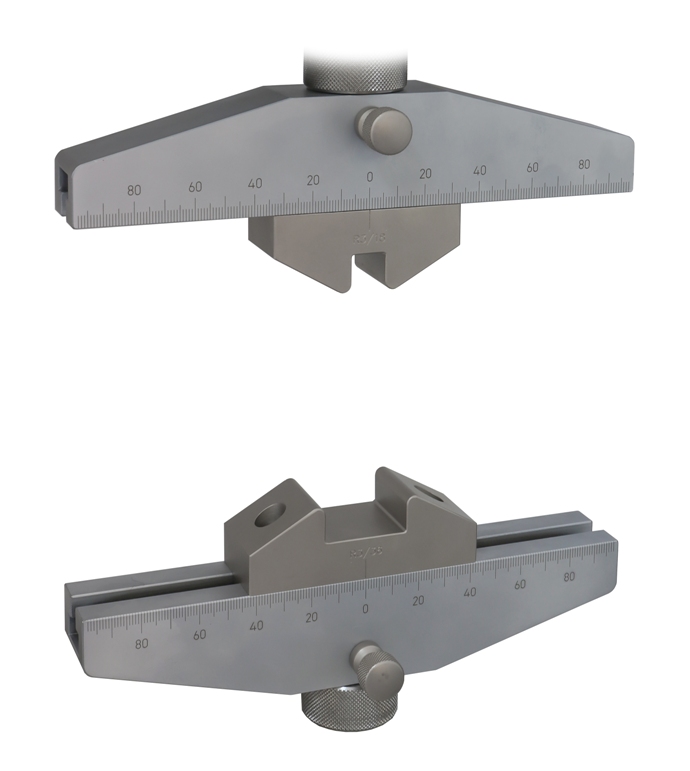

Description: tn_TH41-4p-CR3-A36-18-TH238  3kg  G02  2020-07-23


TH41-200-R3-Af15.9

Milled radii 3 mm,
Span 18 mm (top), 36 mm (bottom)

Steel, nickel-plated
Mounted on a TH238, 200 mm long bar

Coupling Af159

Angefräste Radien 3 mm,
Abstand 18 mm (oben), 36 mm (unten)
Stahl, vernickelt
