G02 Bending fixtures


Back



Description: tn_THS139-90-3P-3060-CX30x300+600-Am317 grosser Biegebalken-15.04.2020 mit Profil-2

THS139-90-3P-3060-CX30x300+600-Am317



5-point bending bench for large distance profiles incl. 1x lower bar 3060 mm long

2x lower carriers

1x 3-point nose carrier

3x supports moveable and fixable with roller 30x300 mm

3x supports moveable and fixable with roller 30x600 mm

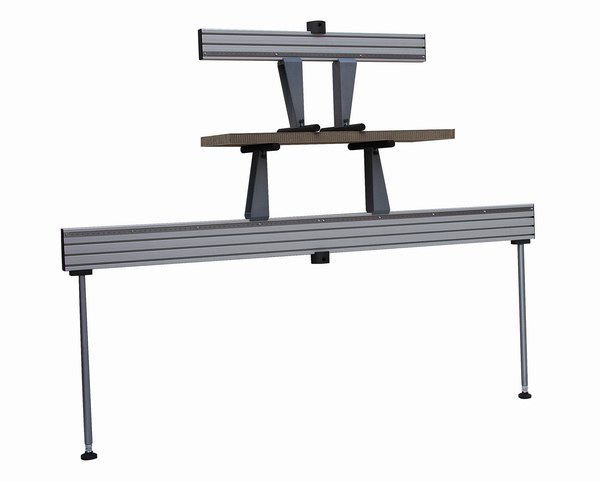

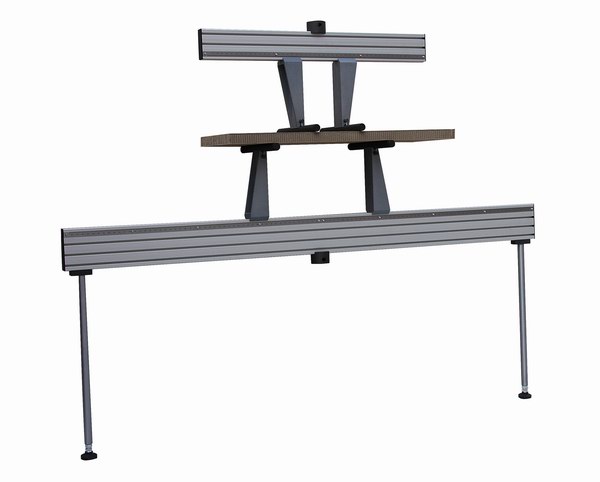

Description: tn_THS139-4p_jpg

THS139-4p

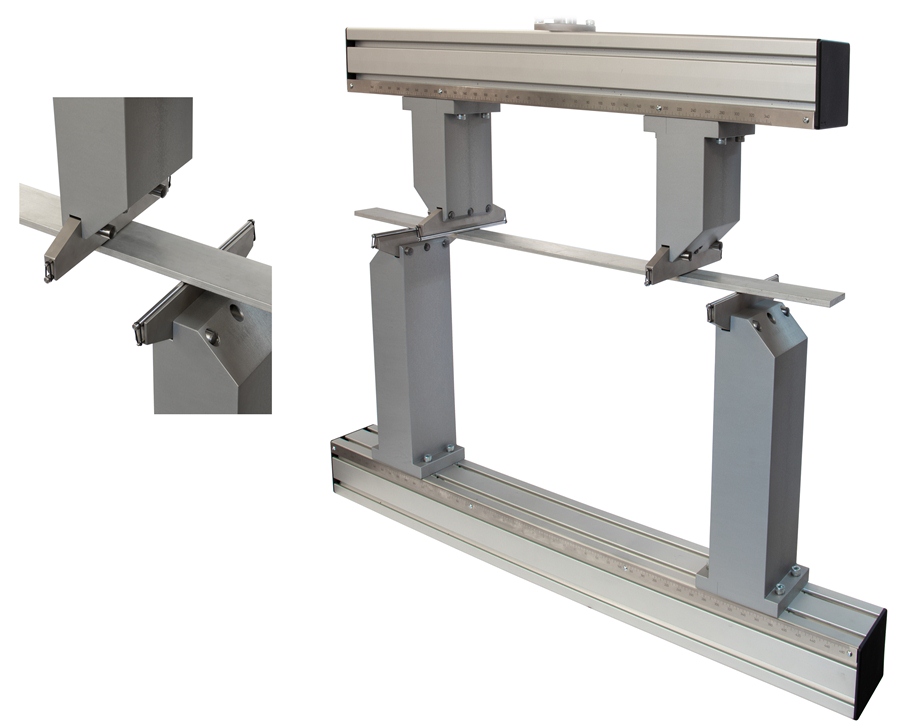

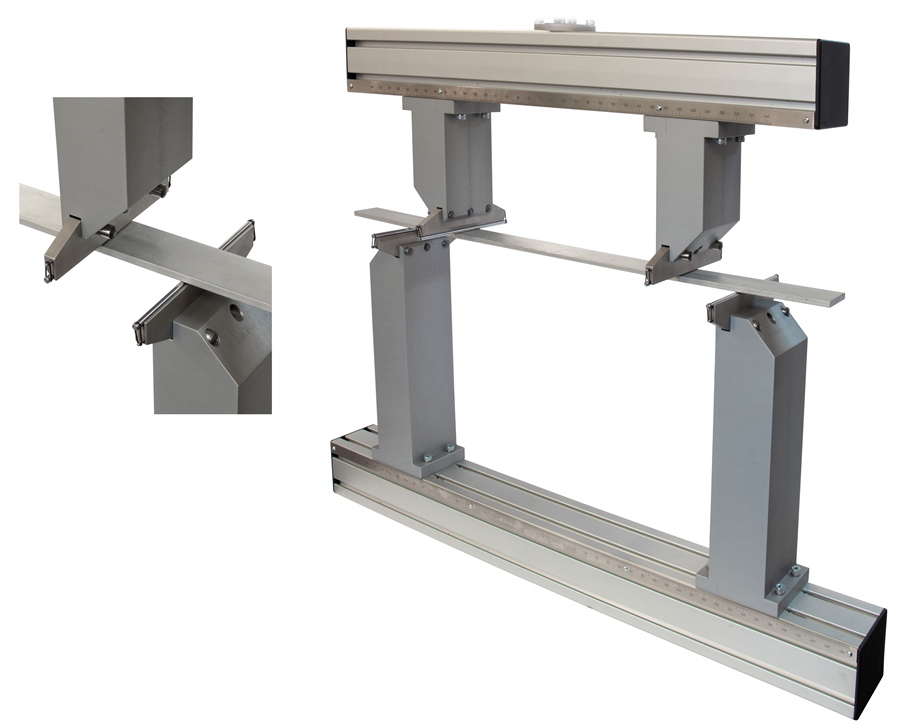

THS139-4P-1000-CWN6x190-H400



Special 4-point bend test fixture, 2 kN

Aluminium, anodized

Bending bar 1000 mm

Supports 400 mm high

with articulating rollers 6 mm Ø, 190 mm wide

Coupling Af20



Sonder 4-Punkt Biegevorrichtung, 2 kN

Aluminium, eloxiert

Biegebalken 1000 mm

Auflagerböcke 400 mm hoch

mit Wippen 6 mm Ø, 190 mm breit

Anschluss Af20
