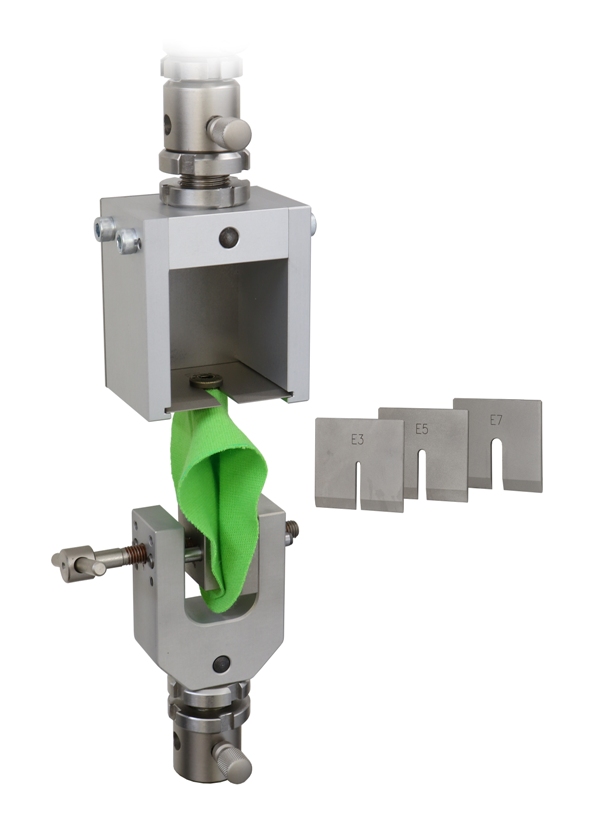

	THS1042-10-Exx(E3,E5, E7) + TH240k+BP25+BP50-Am16 Special button pull-off fixture according to DIN_CENTR-16792 more

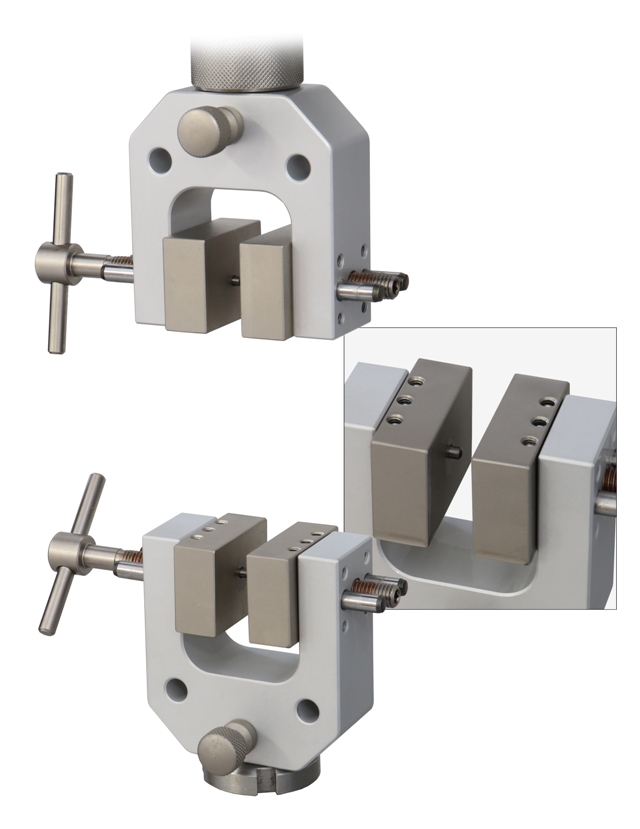

	TH240k-S20+B40-D3 Special jaws with dowel pin 3 mm Ø and countersink hole suitable for biaxial stress-and-strain tests on this samples such as soft biological tissues, flexible films, etc. Jaws 40x30x15 mm (L x W x T)

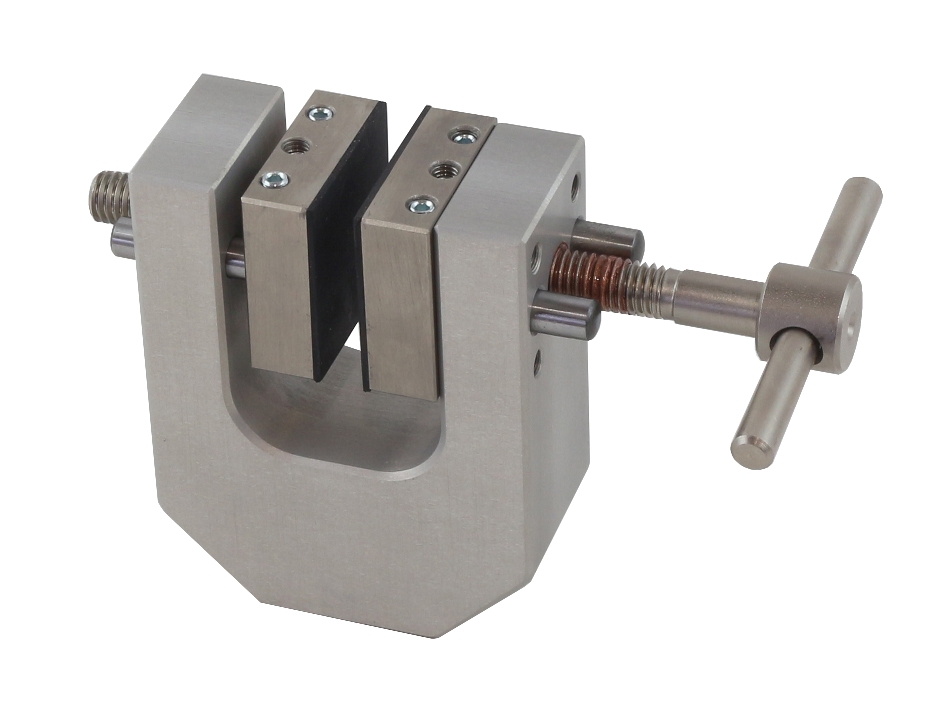

	TH240k+BG25x25 Special rubber jaws for TH240k Clamping force 5 kN at 4 Nm torque Clamping surface 25x25 mm Opening 0-12 mm

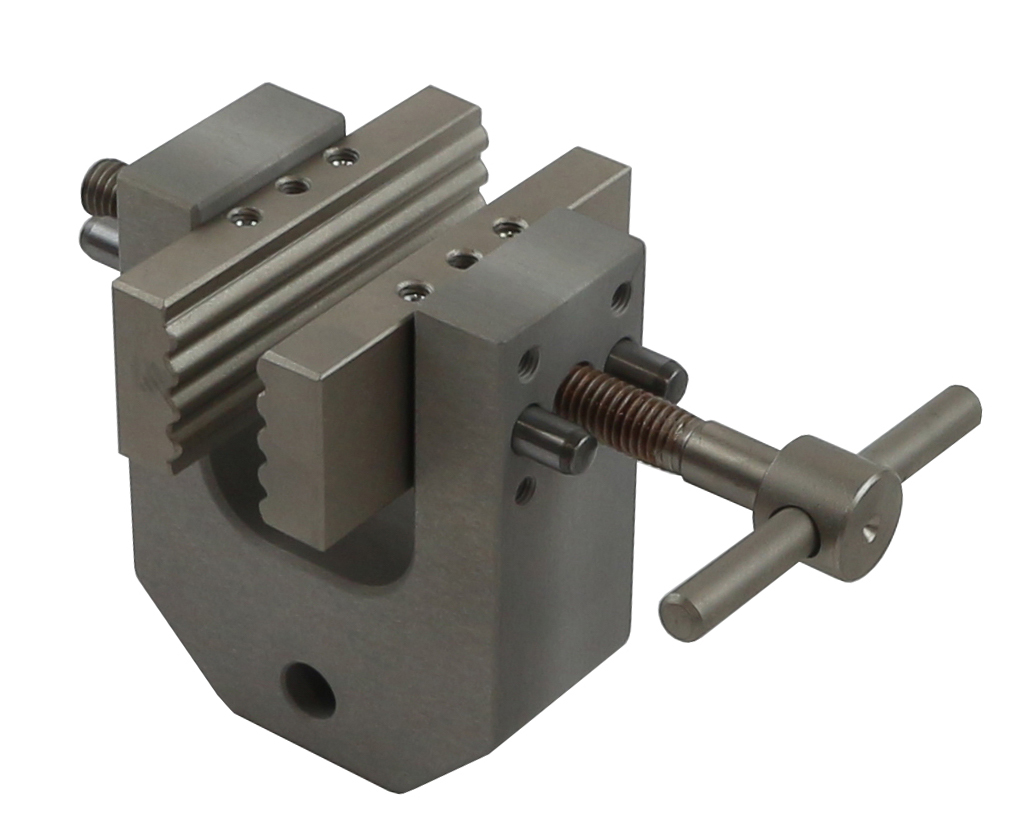

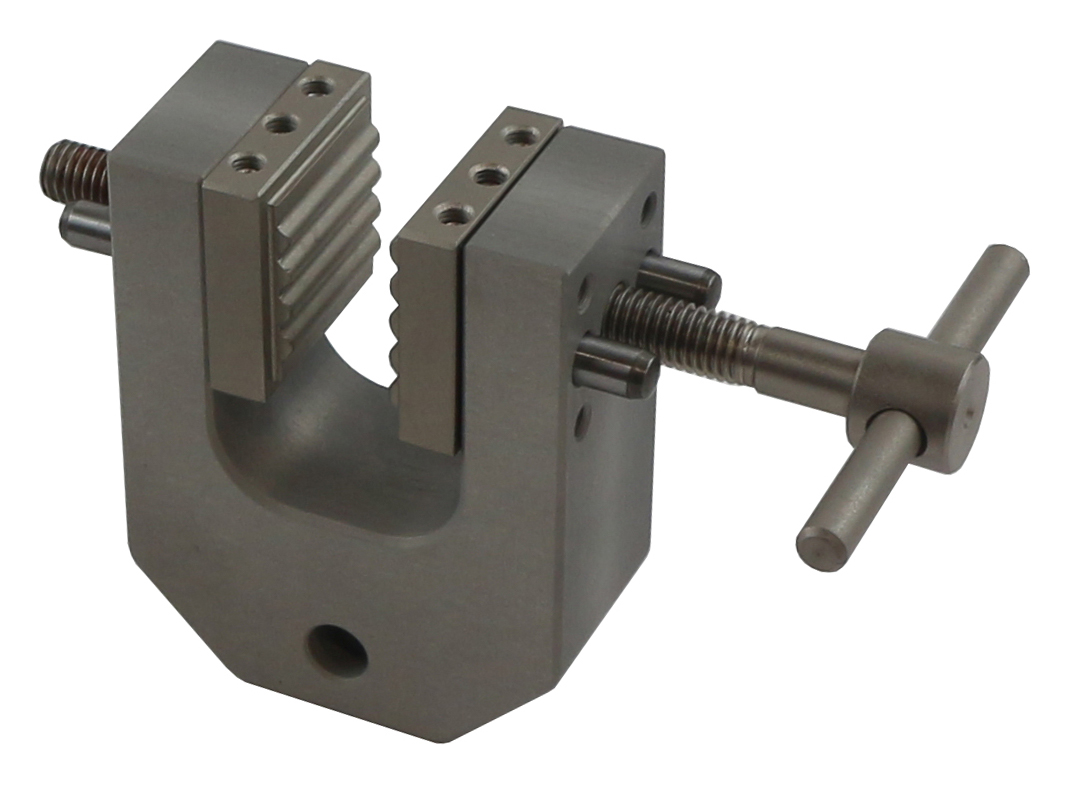

	TH240k+BW25x25 Special wave jaws for TH240k Clamping surface 25x25 mm Opening 0-12 mm
	TH240k+BW25x60 Special wave jaws for TH240k Clamping surface 25x60 mm Opening 0-12 mm
	TH240k+EBG66x30  With special rubber-coated insert jaws Clamping surface 66x30 mm
	TH240k-S+BW-A4-Af159-A4 Wave jaws, opening 0-6 mm Stainless steel Temperature range -70...+280°C High resistance to corrosion High temperature resistance Max. load: 1 kN Coupling Af159 Weight 0.4 kg per grip

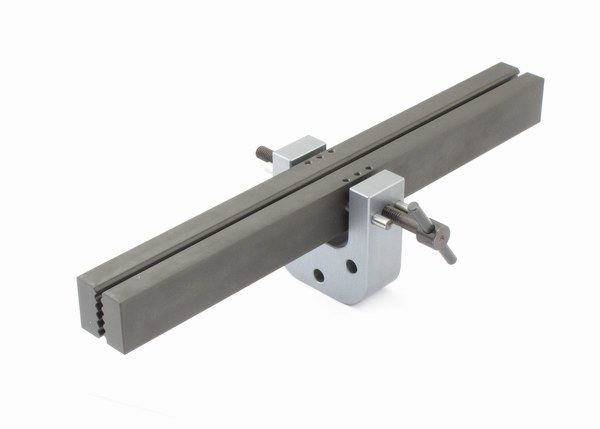

	TH240k-S20+BW330 Special wave jaws, 330 mm long

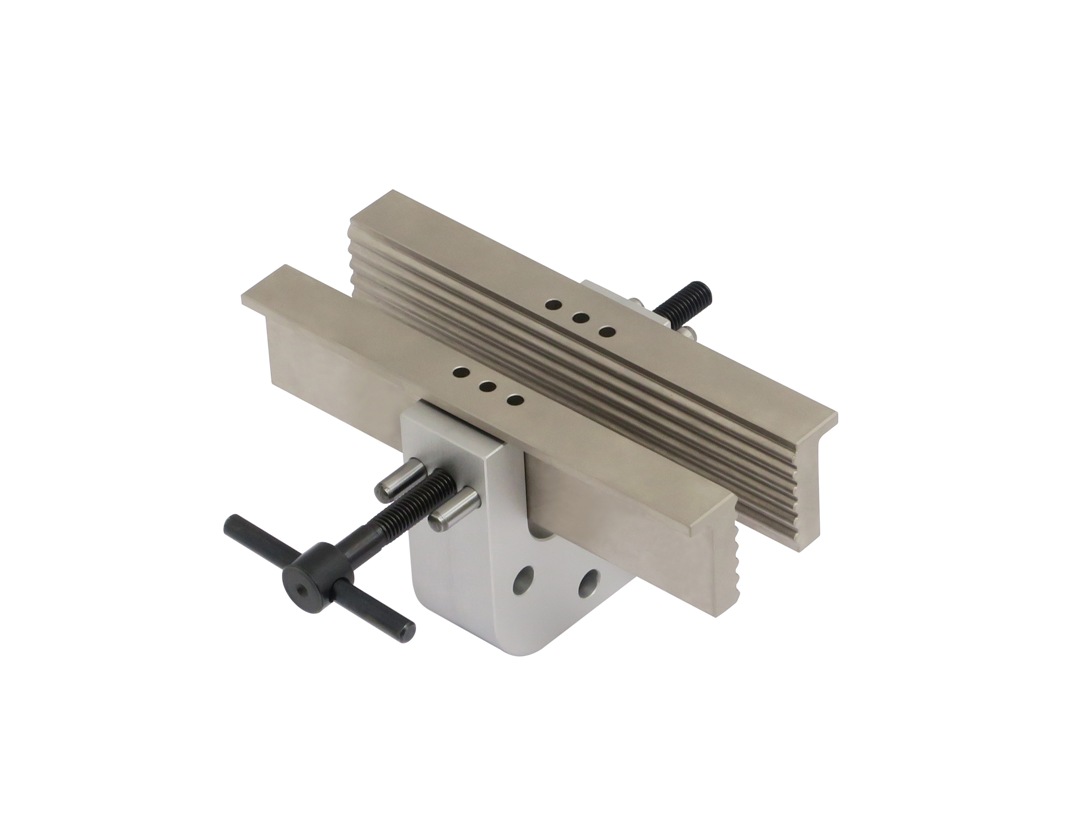

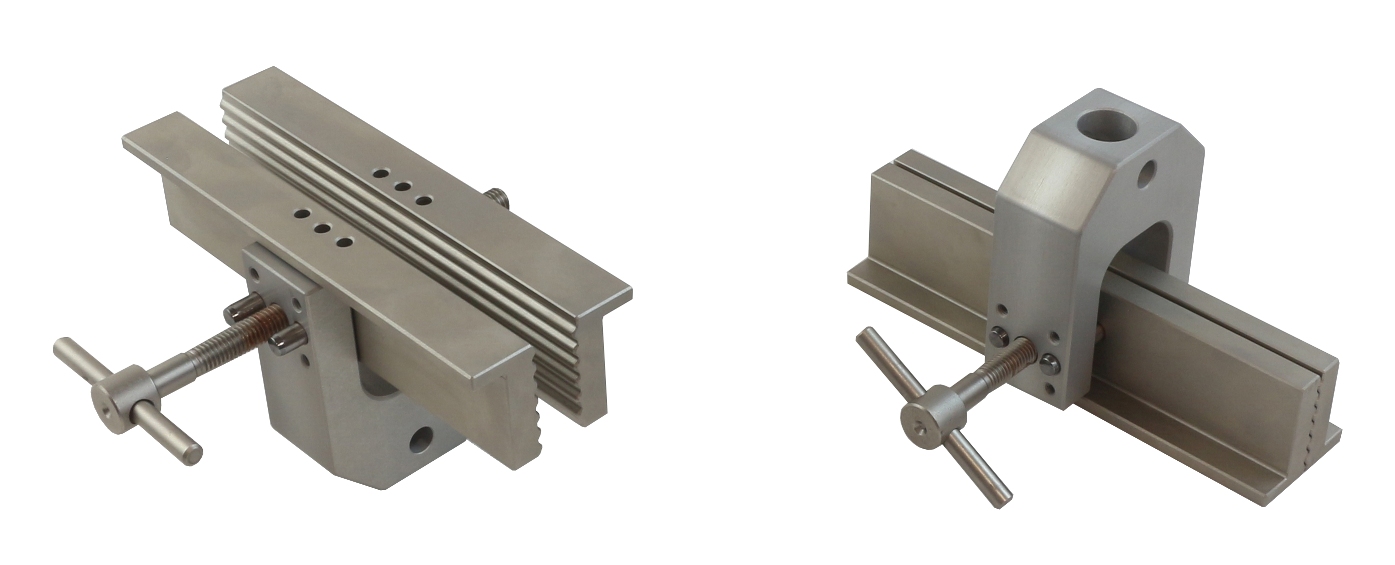

	TH240k-S20+BW150 Special wave L-shaped jaws, 40x150 mm
	TH240k-S20+2Ko+UP20+BP + TH229+BP-Af159 Special pneumatic vise grip for testing adhesion strength of rubber to metal more
	TH240k-S30+KO-BP200 U-shaped vise action grip with 1 pneumatic rod Ø 50 mm Opening width: till 30 mm With special L-shaped pyramid (serrated) jaws, 200 mm

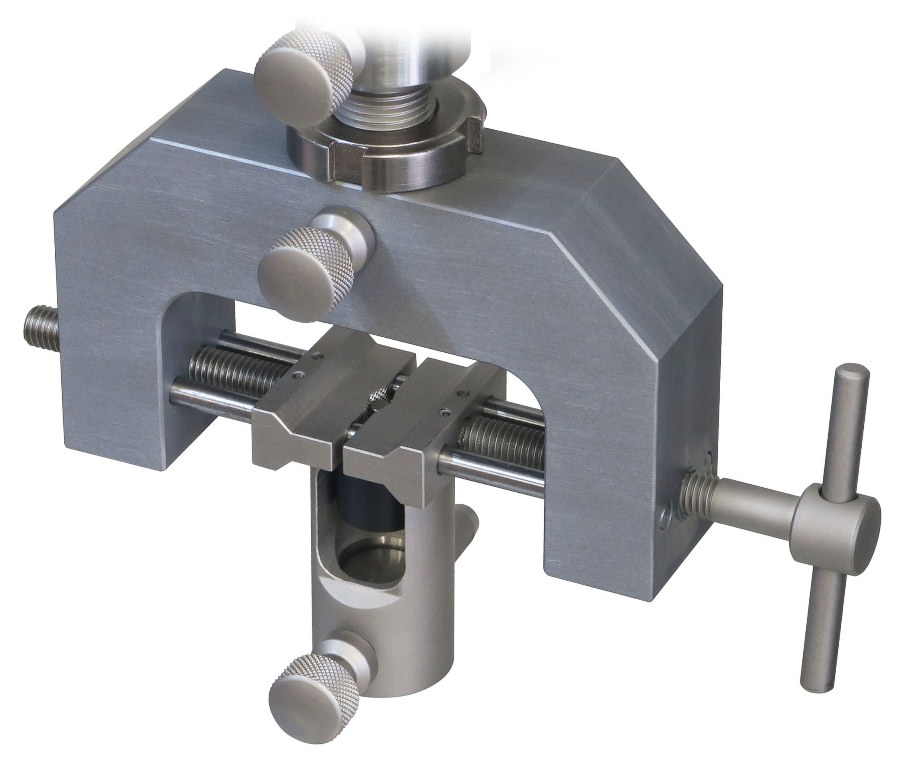

	Th240k-S50H69 + BVP8-H6 + TH89-159-6-16.8-L50 Special solution to test pull-out force of pins

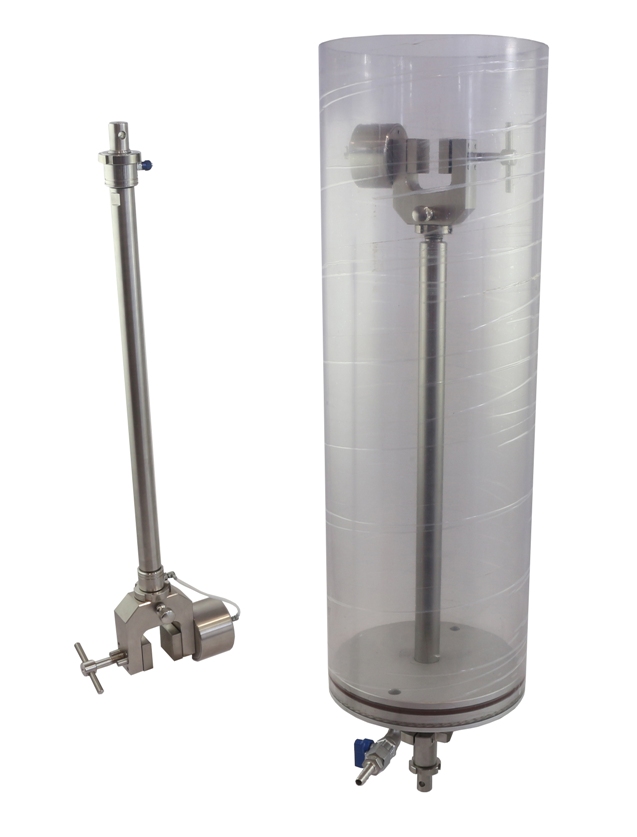

	THS648-D200xH580-RMV + TH240k-S20-A4-Af159 + THS521-Am158-Am1665-D21-L450 Special Makrolon water bath Inner height 580 mm, Ø 190 mm Incl. stainless steel pneumatic grips with pull rods Temperature range 0 … +280°C Max. load 1 kN Clamping surface 30x30 mm Coupling Af159
