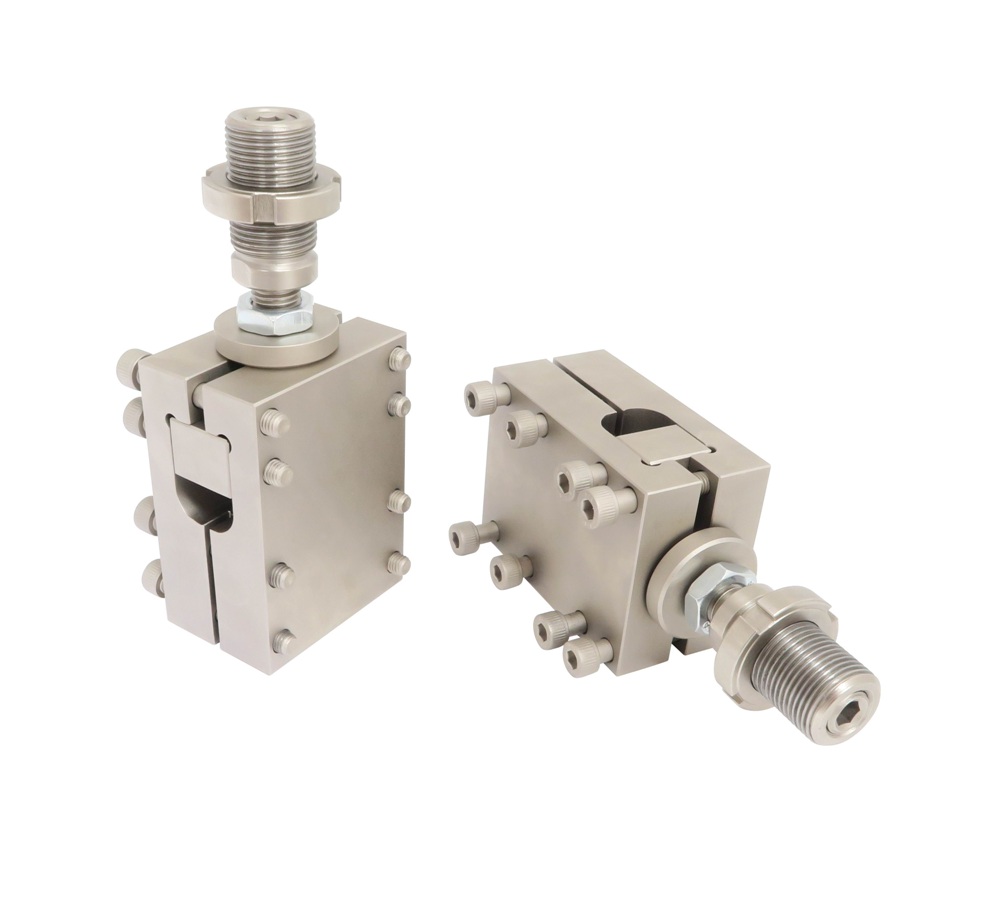

	THS28-50-BP50-S10-AM27x2 Special fatugue test fixture Incl. pyramid (serrated) jaws Clamping surface 50x50 mm Jaw opening 0-10 mm Coupling Am27x2

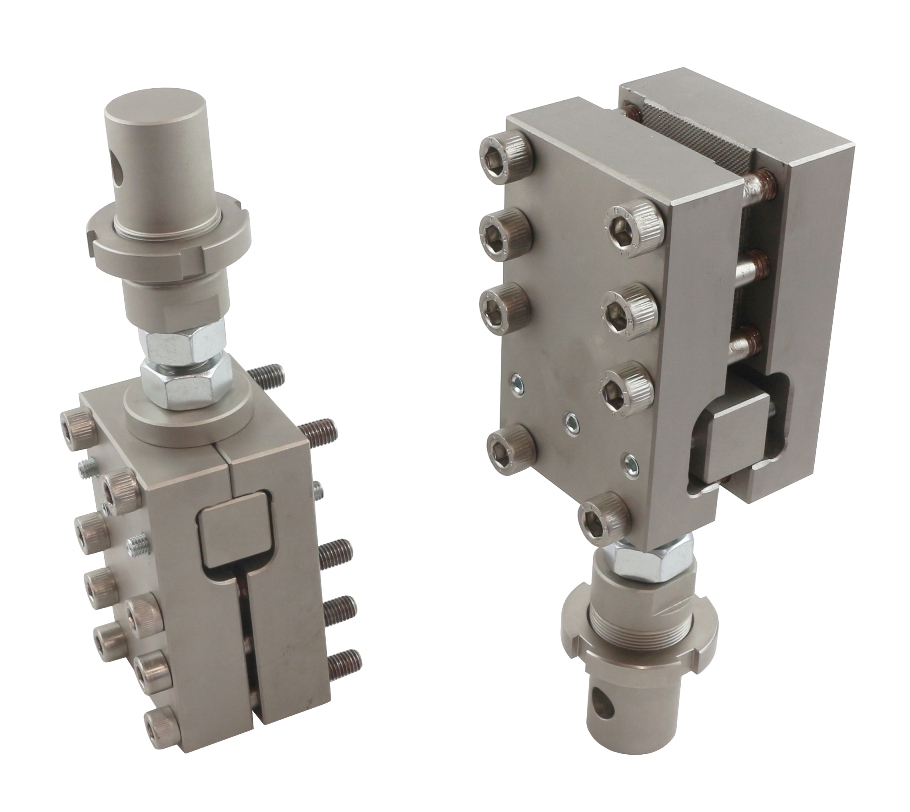

	THS28-BP50x75-S15 + THS438-3513-AM20 ISO527-4 Special fatigue test fixture for samples according to ISO527-4 Max. opening width 15 mm Pyramid (serrated) Clamping surface 50x75 mm Max. load 50 kN Steel, nickel-plated, hardened Coupling Am35

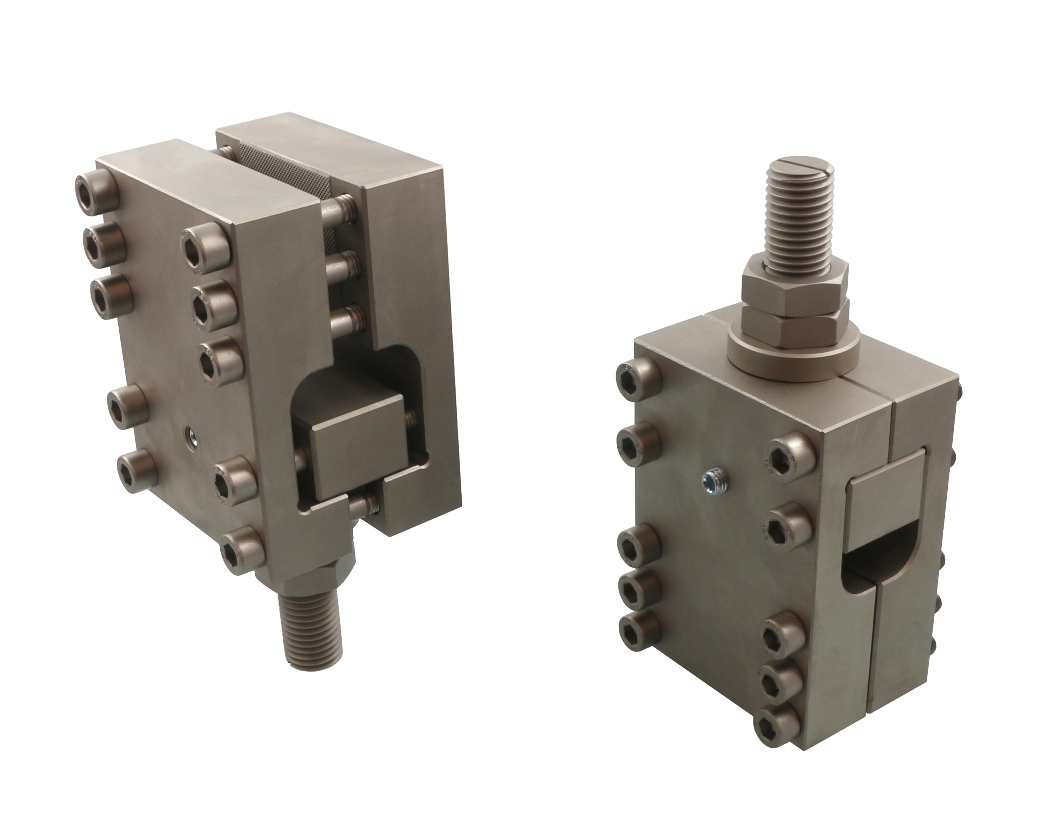

	THS28-60-BP60-S15-AM24 Grips for dynamic tests    high clamping force  lighter weight  BP for flat samples max 60x15 mm

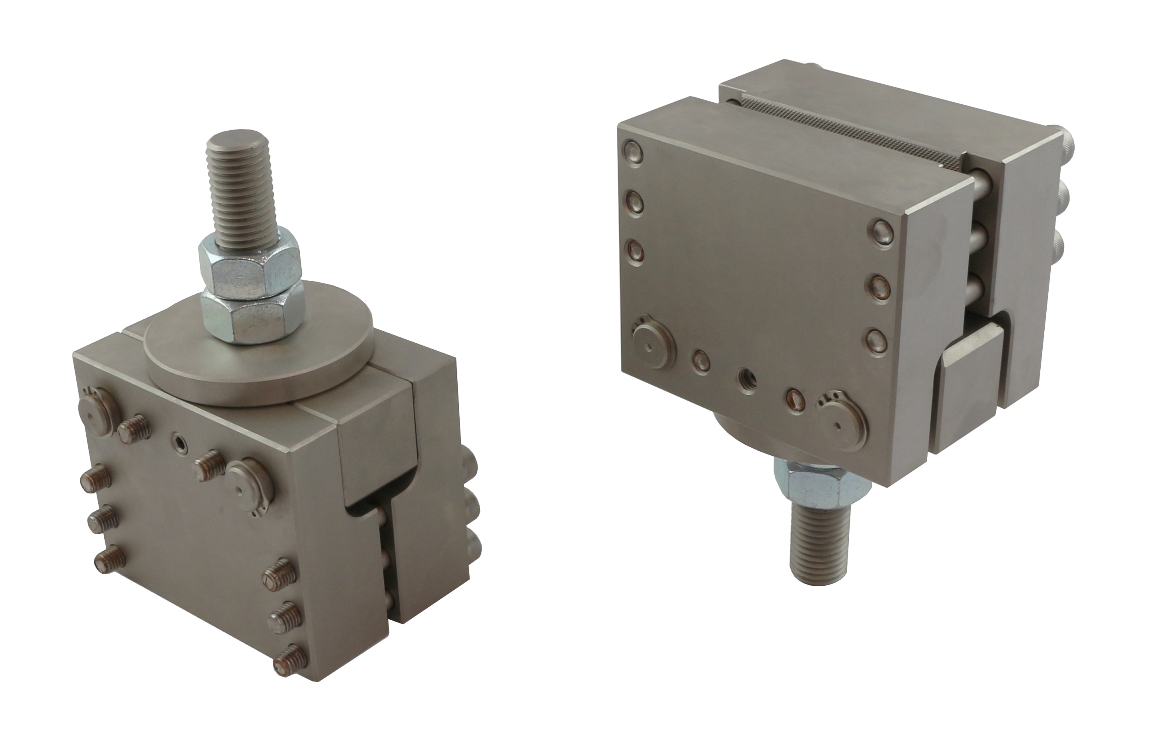

	THS28-60-BP100x60-S10-AmM24 Special fixture for fatigue tests Max. load 100 kN Clamping surface with integrated pyramid jaws 100x60 mm, opening 0-10mm Steel, hardened, nickel coated Temperature range 0°C - +70°C Coupling male thread M24
	THS28-60-BP100-S10-F100-AM30 Special fatigue test grips Temperature range: -40 … +250°C Max. load 100 kN Incl. pyramid (serrated) jaws Clamping surface height x width: 60x100 mm Jaw opening 0-10 mm, coupling M30

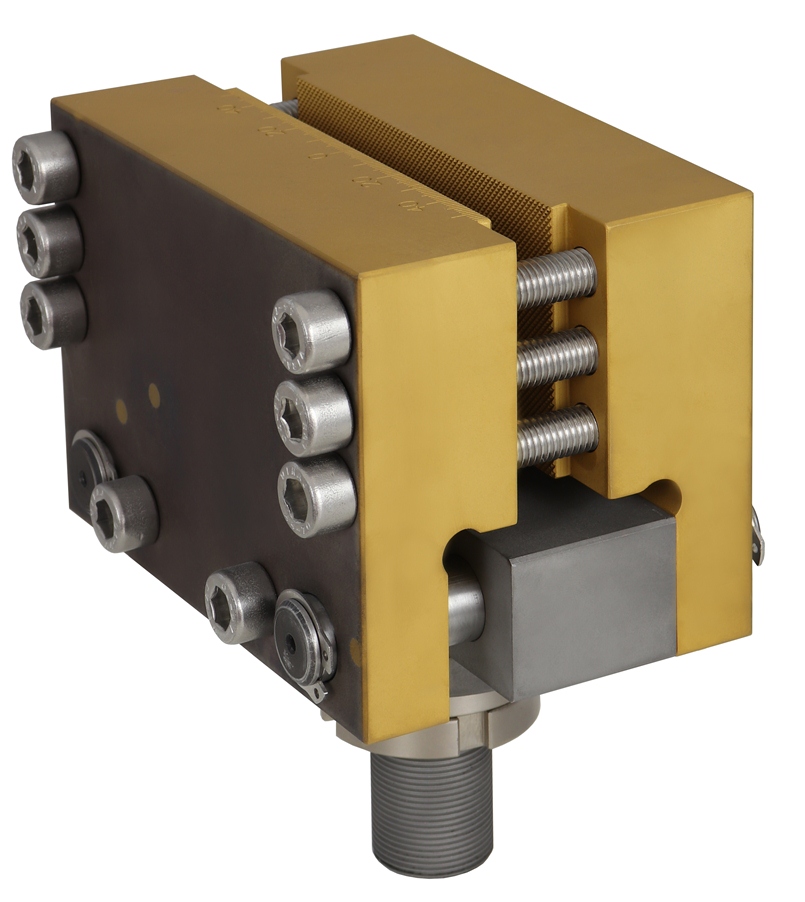

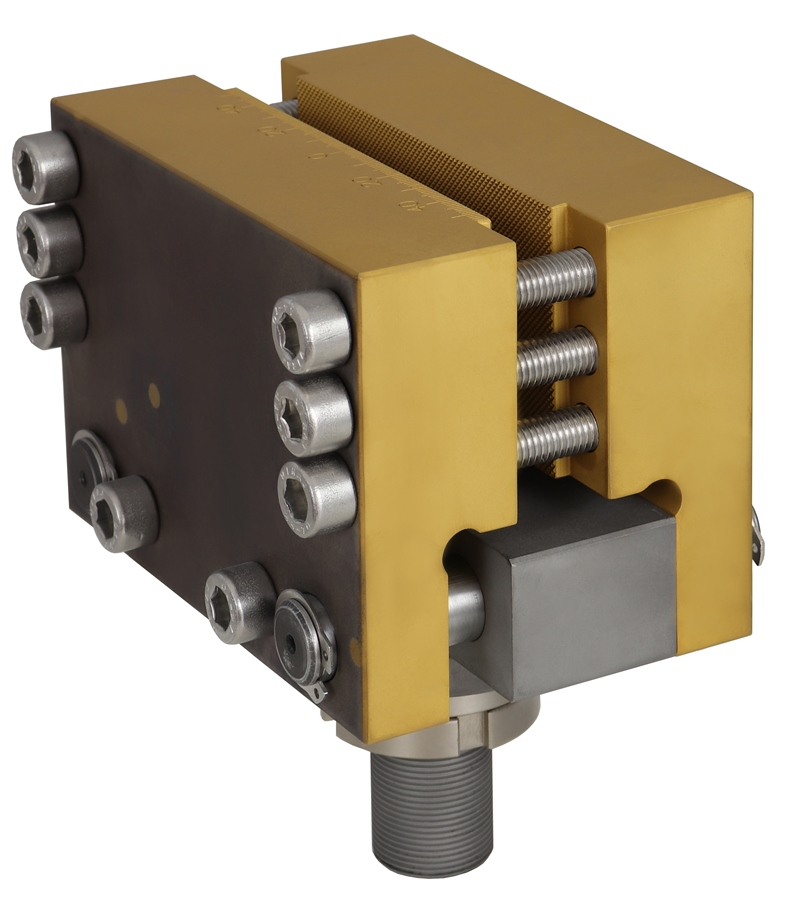

	THS28-60-BP110-S21-AM28x1.5 -T600°C Fatigue test grip Max. load 30 kN, fatigue test 5Hz Special steel, hardened, TiNi coating Max. temperature +600°C Incl. pyramid (serrated) jaws for flat samples Max. opening 21 mm Clamping surface height x width: 60x110 mm Coupling male thread 28x1.5 more

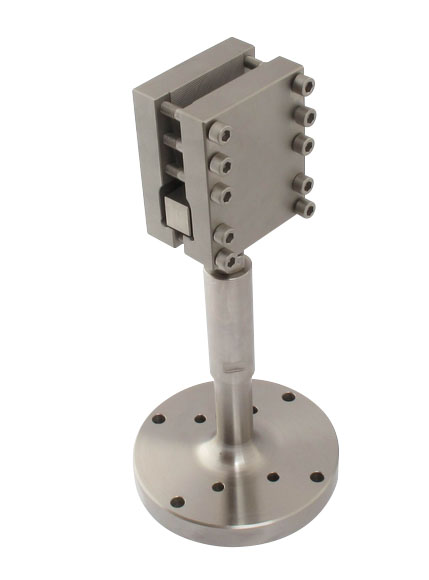

	THS28-70-BP100-S16-M20-FA96 Special fatigue test grip with pull rod test for temperature chamber usage Incl. pyramid (serrated) jaws for flat samples Opening 0-16 mm Clamping surface 100 x 50 mm Coupling M20

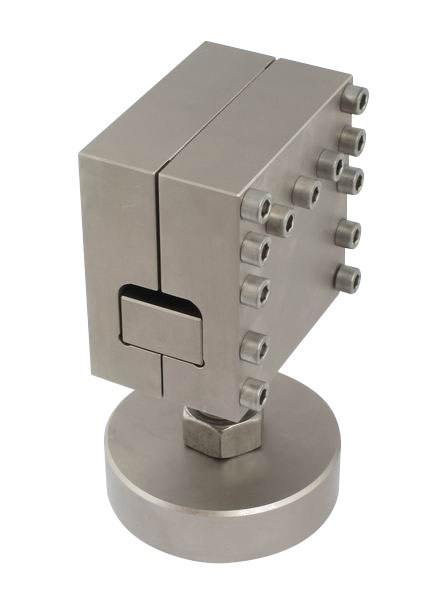

	THS28-70-BP106-S10-M30 Special grip for fatigue test Incl. pyramid (serrated) jaws for flat samples Opening 0-10 mm Clamping surface 70 x 106 mm

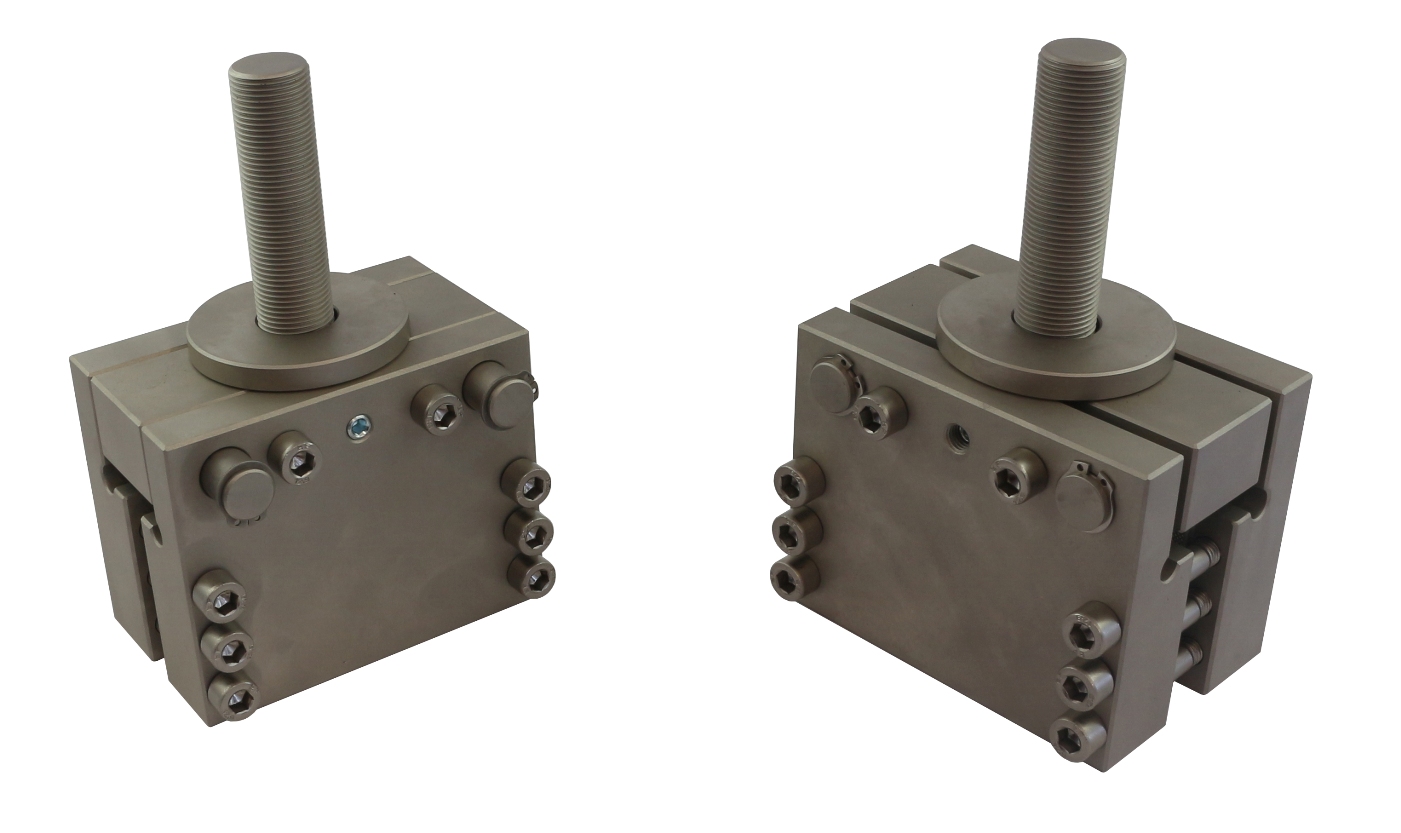

	THS28-BP110x70-S15-AmM27x2 Special fatigue test grip Max. load 100 kN Pyramid (serrated) jaws, Clamping surface 110x70 mm Opening 5-15 mm Temperature range -30 … +100°C Coupling AmM27x2

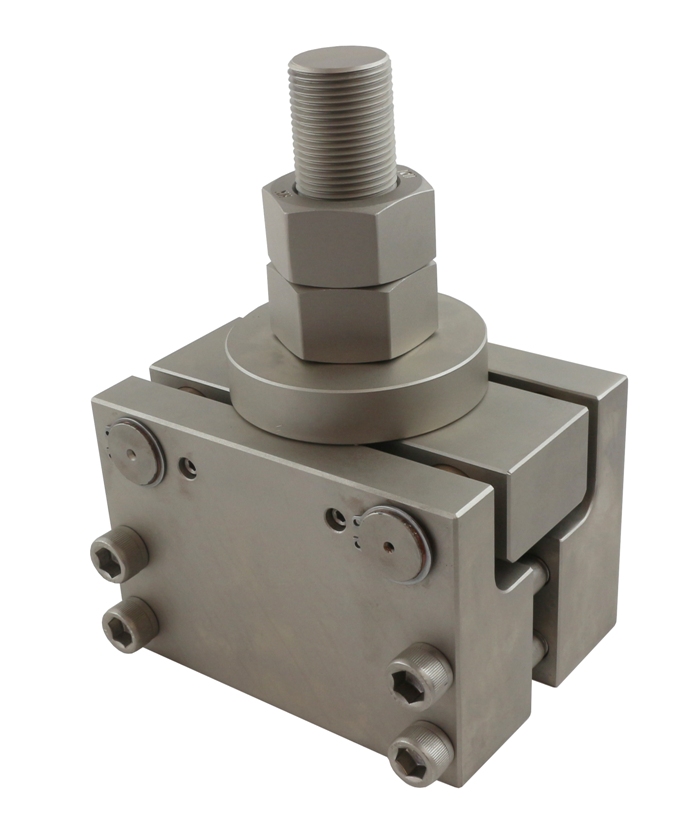

	THS28-BP150x80-S18-AmM42x3 Special fixture for fatigue tests Max. load 200 kN Pyramid (serrated) clamping surface 150x80 mm Opening 0-18 mm Steel, hardened, nickel coated Coupling male thread M42x3

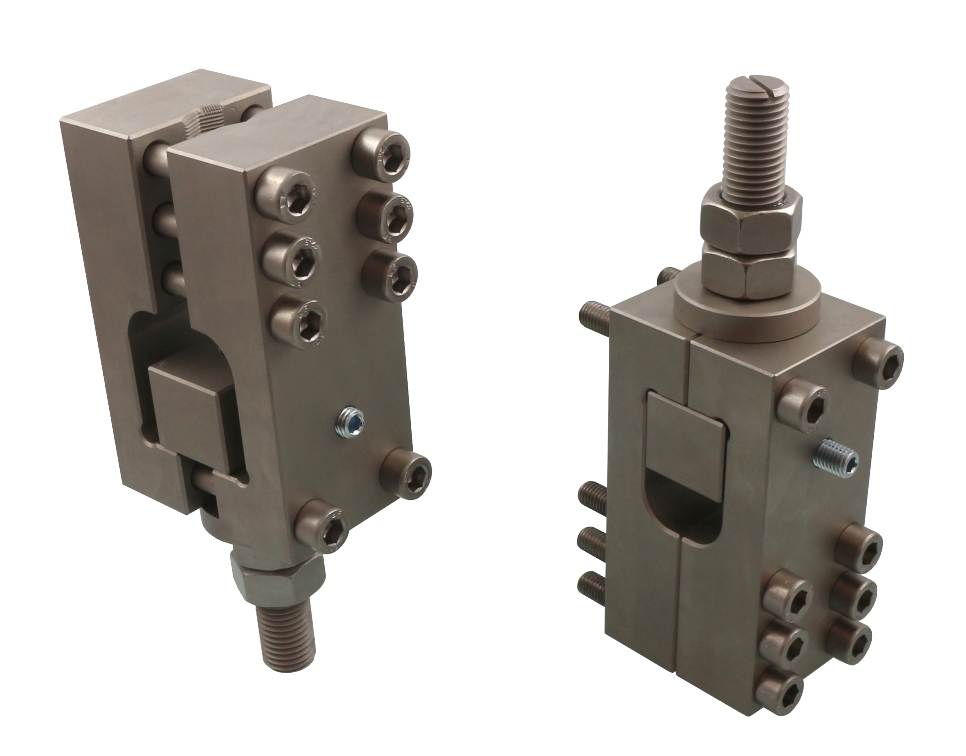

	THS28-60-BV20-S15-M20-F100 Grips for dynamic tests    high clamping force  lighter weight  BV  for round samples up to 20 mm diameter
	THS28-5-S8-Af159+EBDR2 Special version with insert for round samples Max. sample size 4 mm Ø Insert jaws Max. load 5 kN Coupling Af159

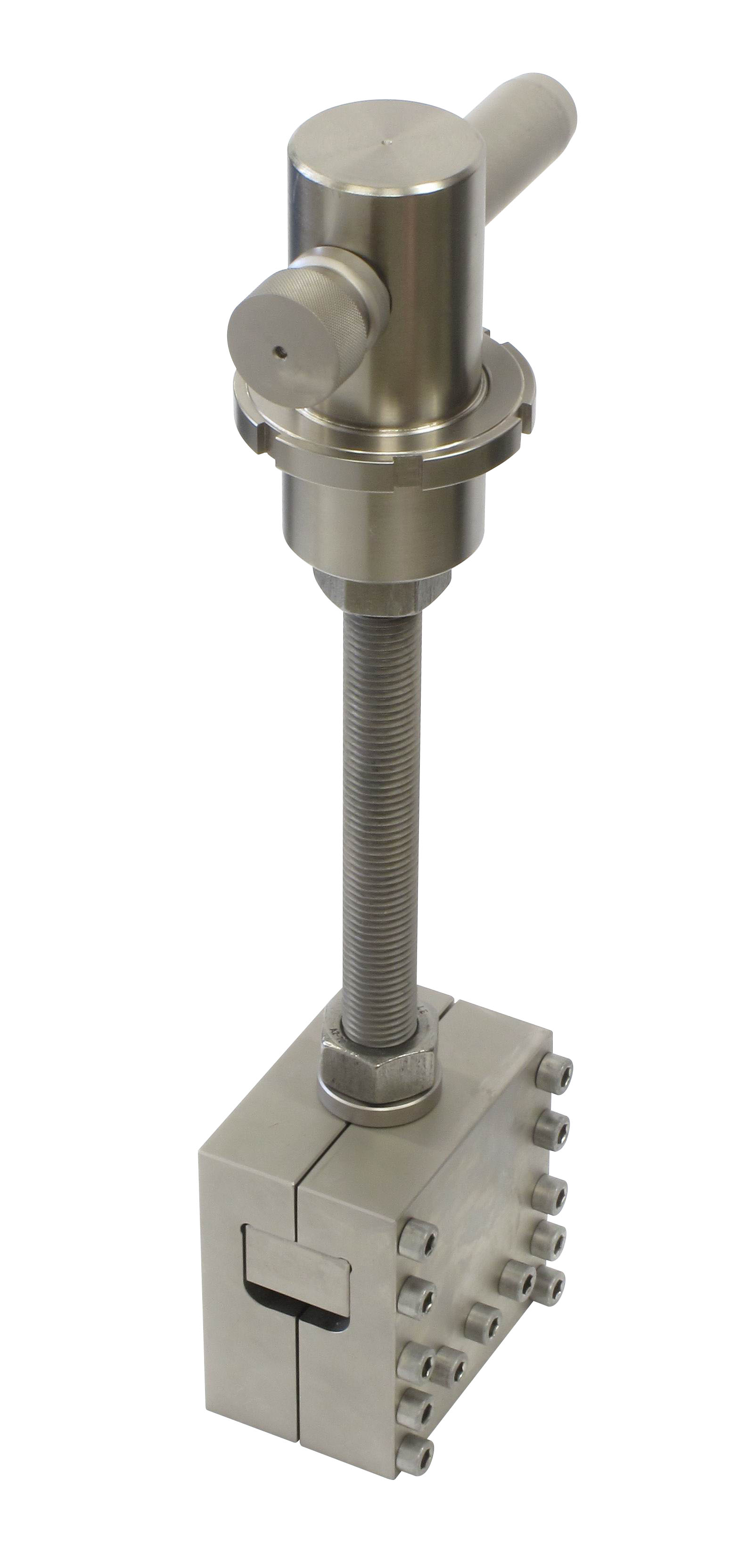

	THS28-S11 With pull rod for chamber usage
