G07 Ribbon Grips
Back
|
|
|
![TH222-60-80-Af40-7.5kg_2023-04-26](index_files/image001.jpg)
|

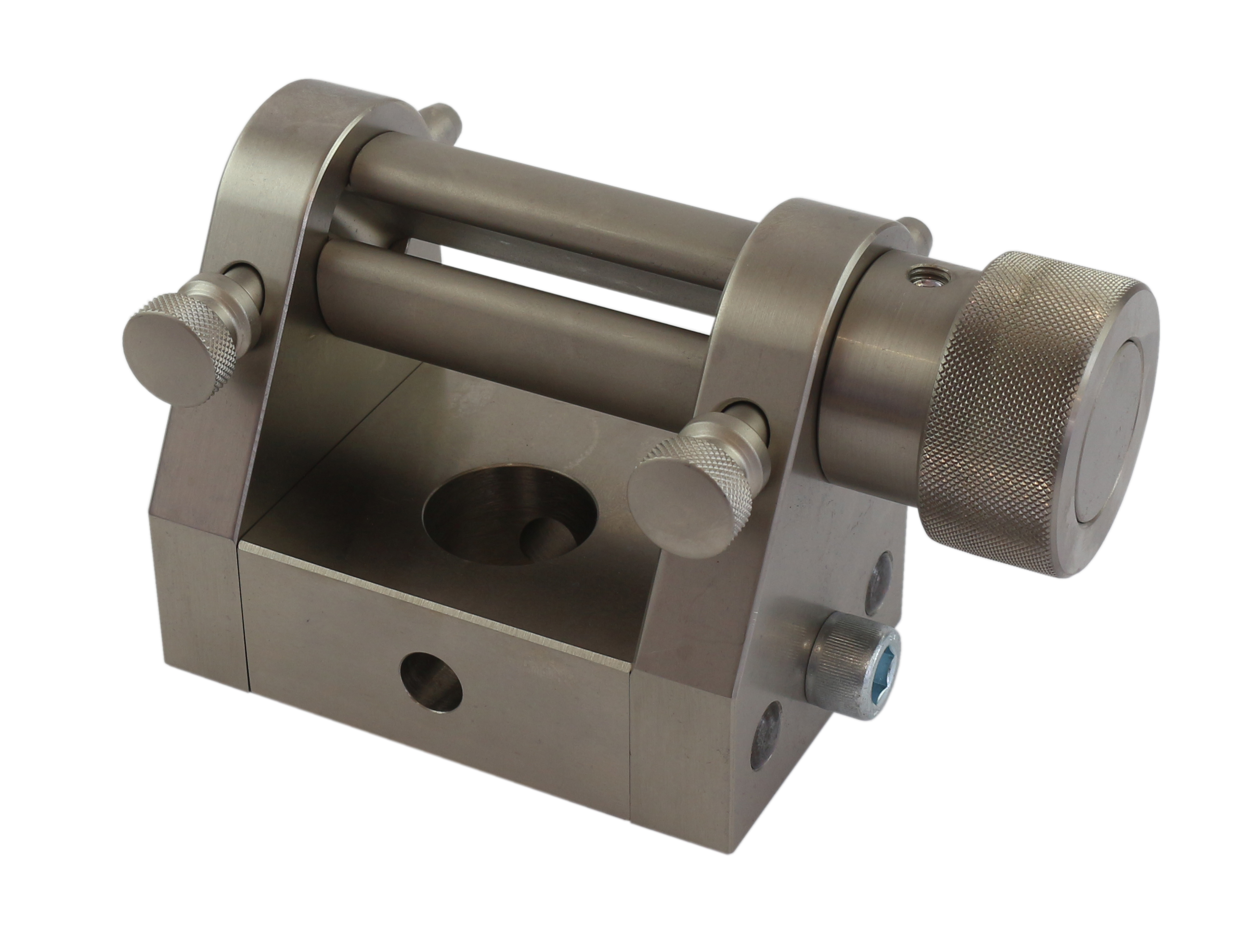

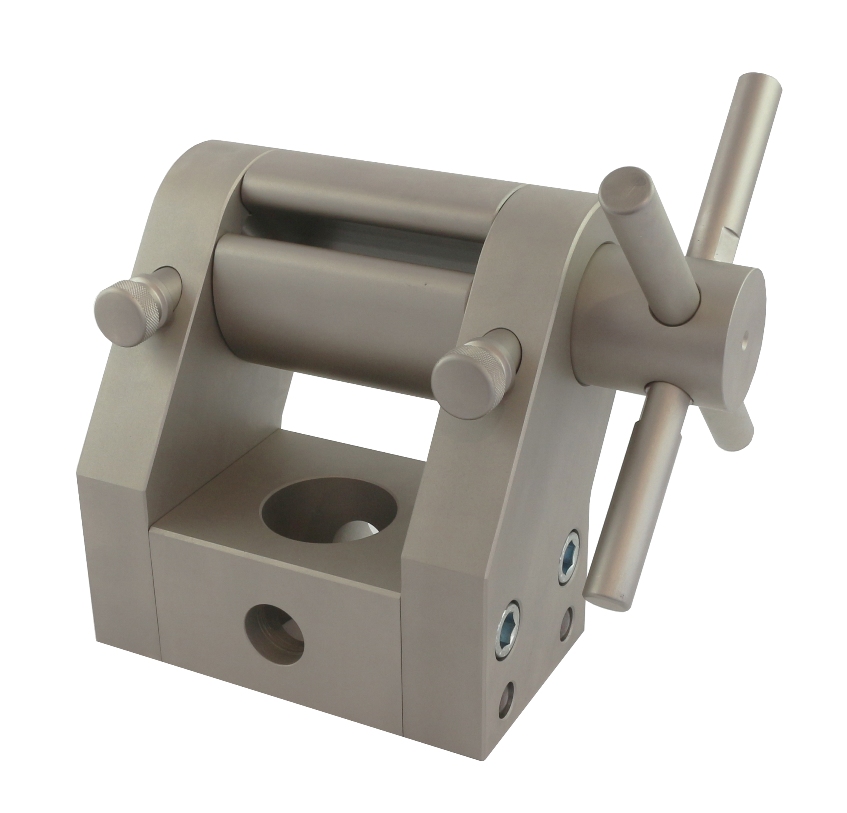

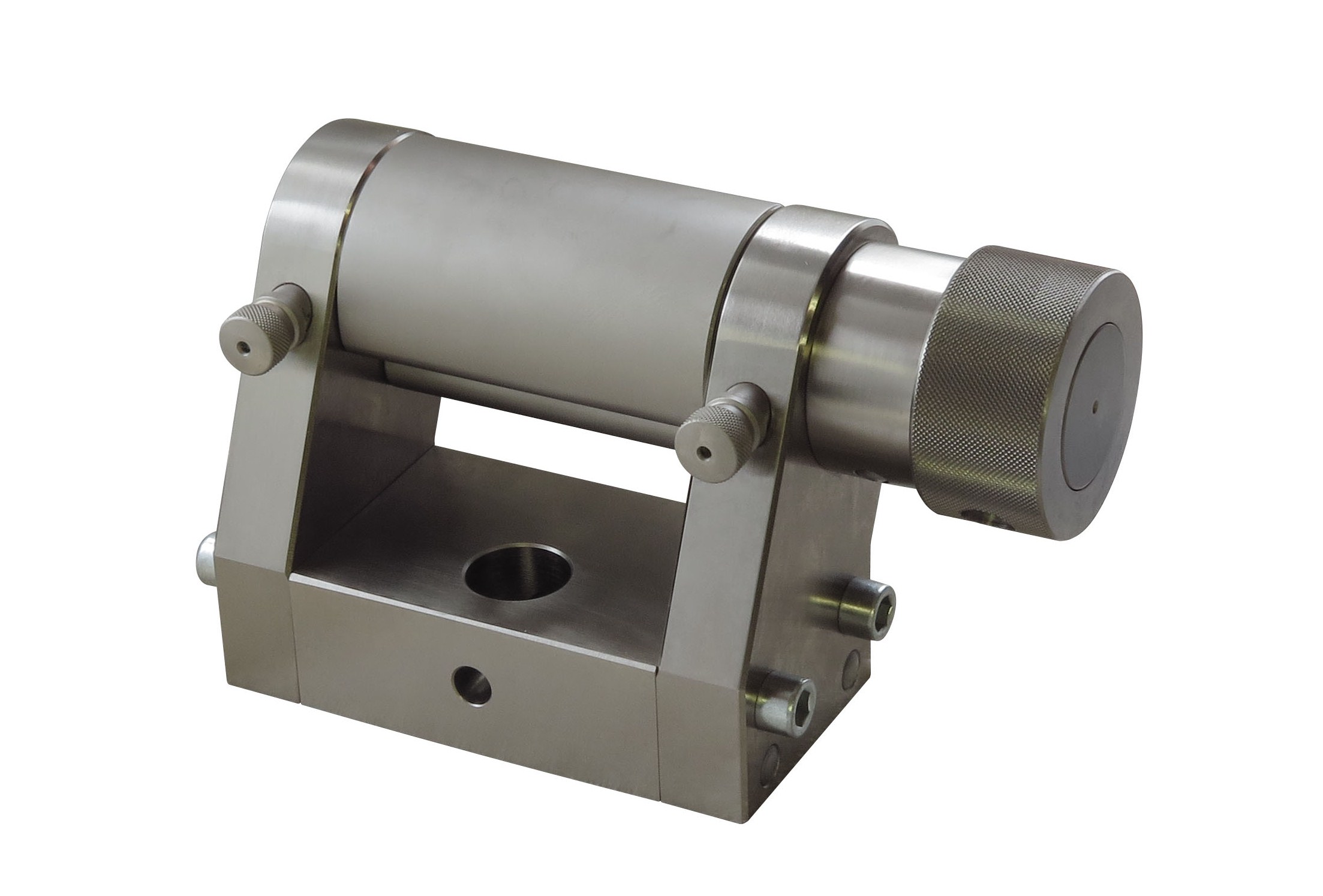

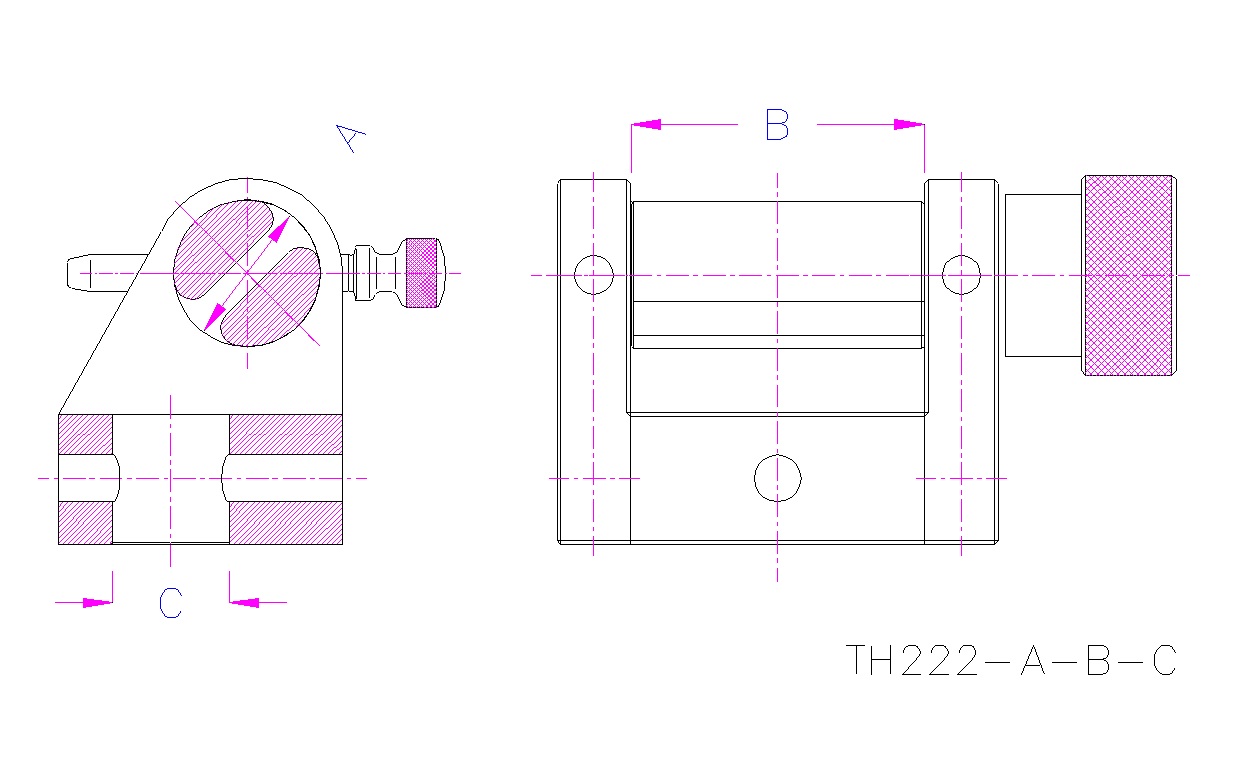

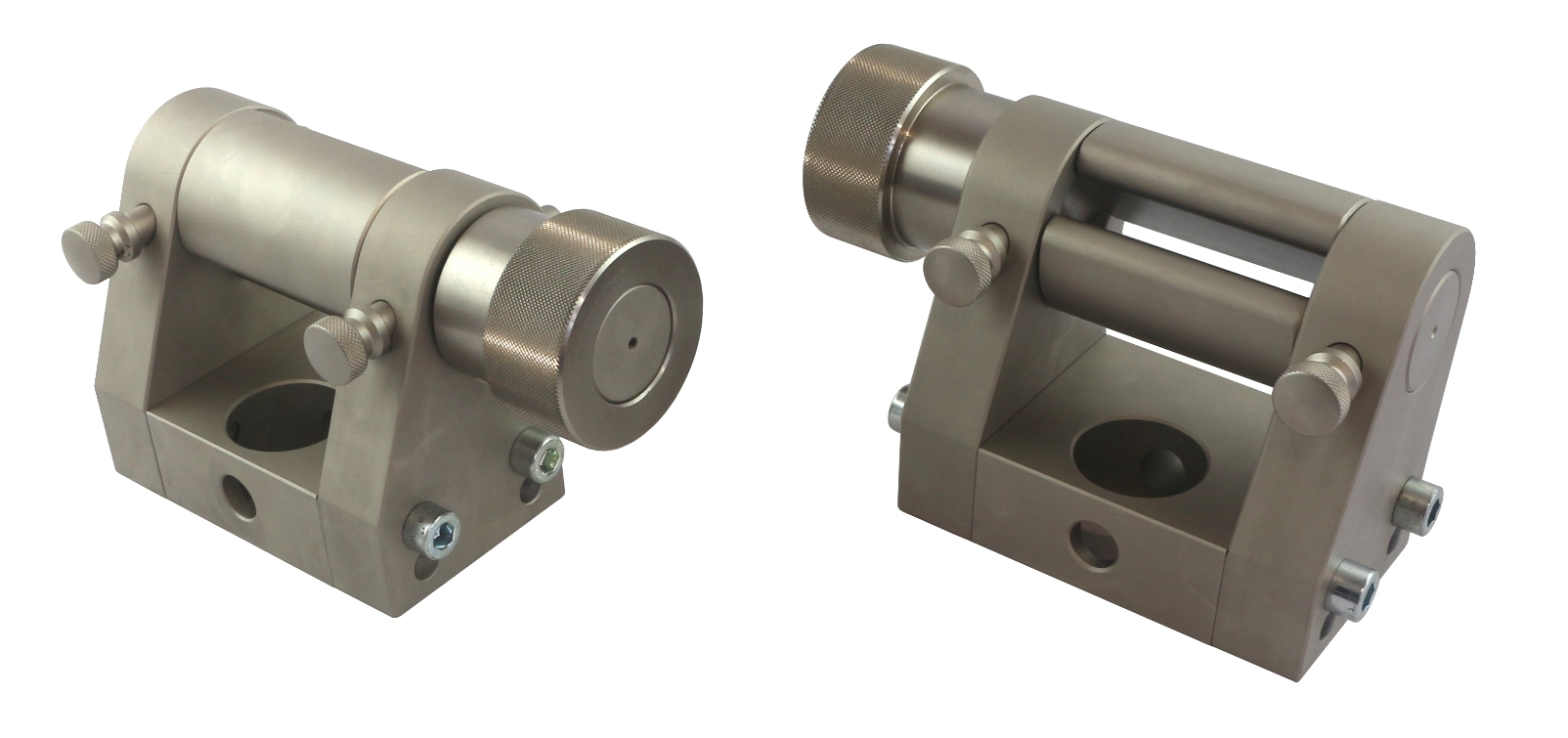

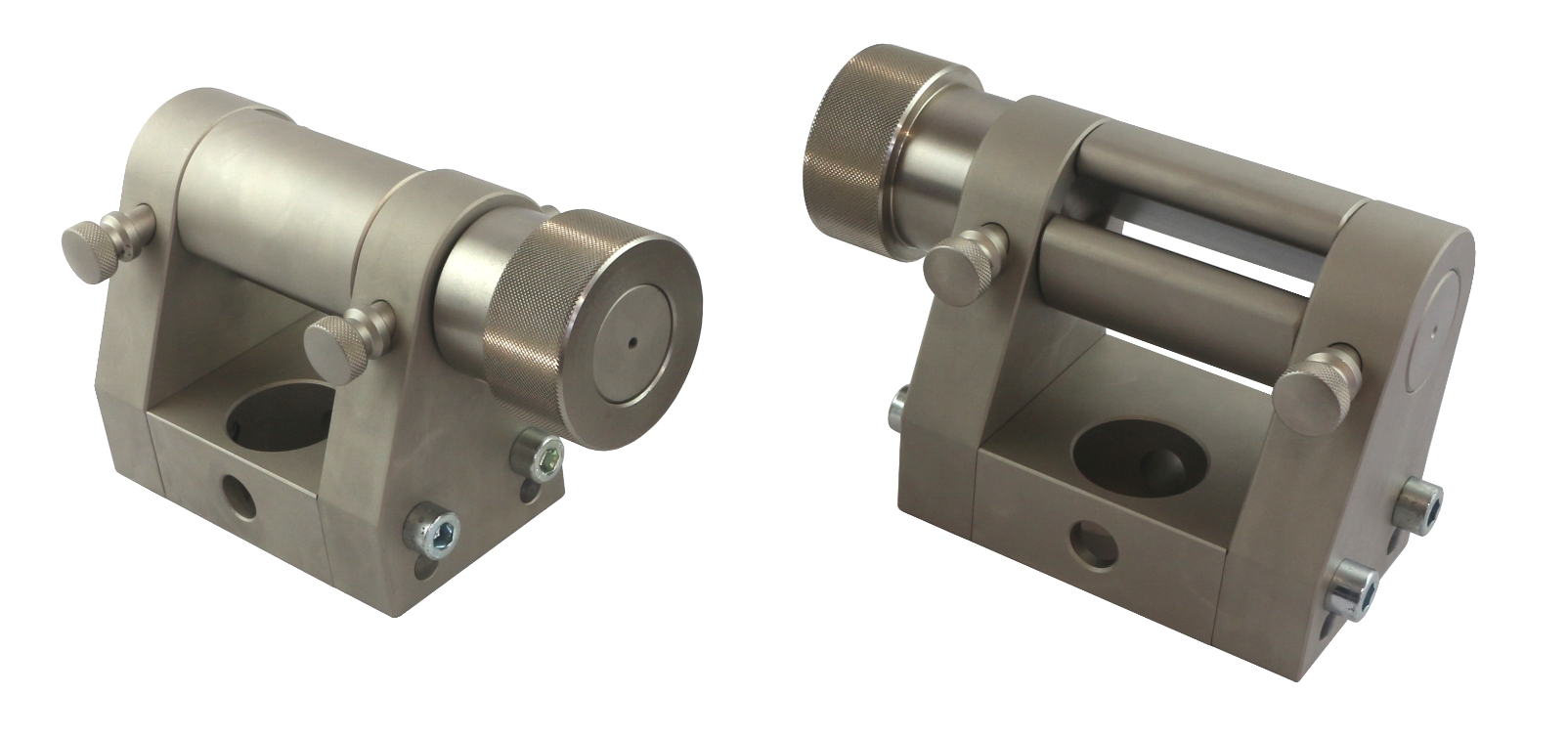

TH222-60-80
Ribbon grip
Max. load 100 kN
Diameter of the roll 60 mm
Width of the roll: 80 mm
Steel, nickel-plated
Coupling Af40
|
![](index_files/image015.jpg)
|

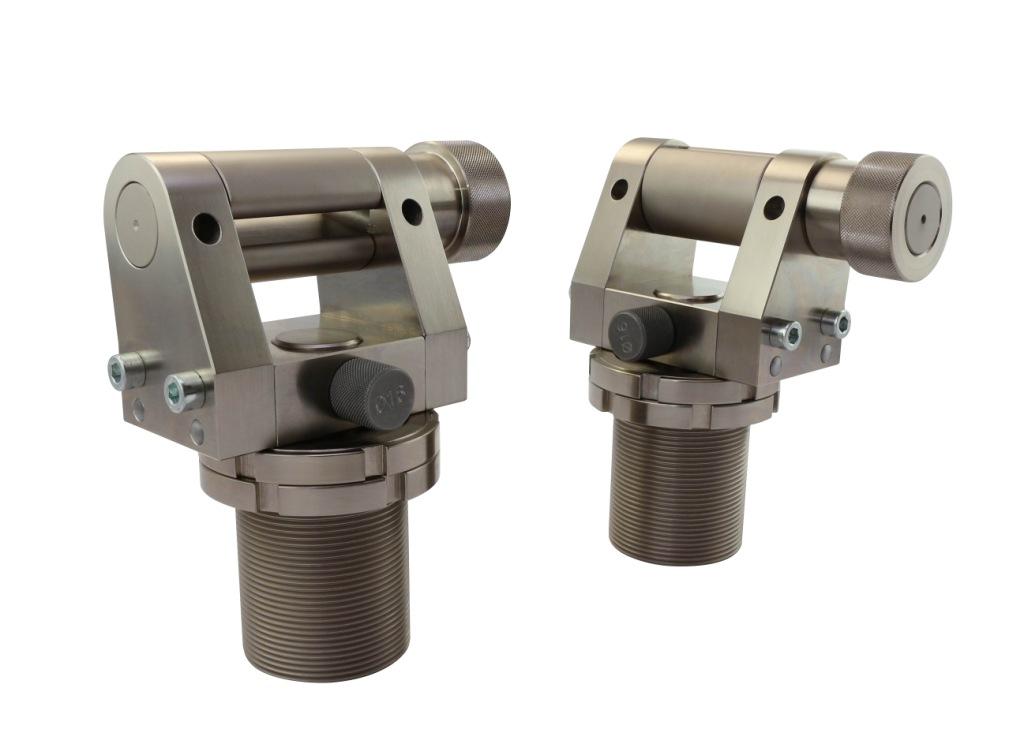

TH222-60-80-AmM80x3
|
![](index_files/image016.jpg)
|

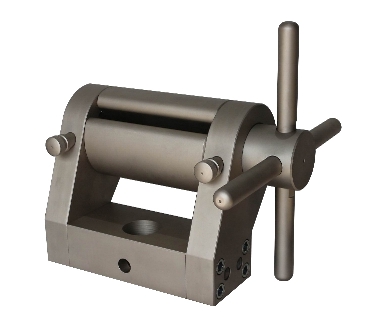

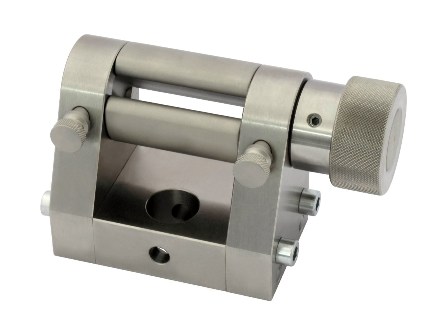

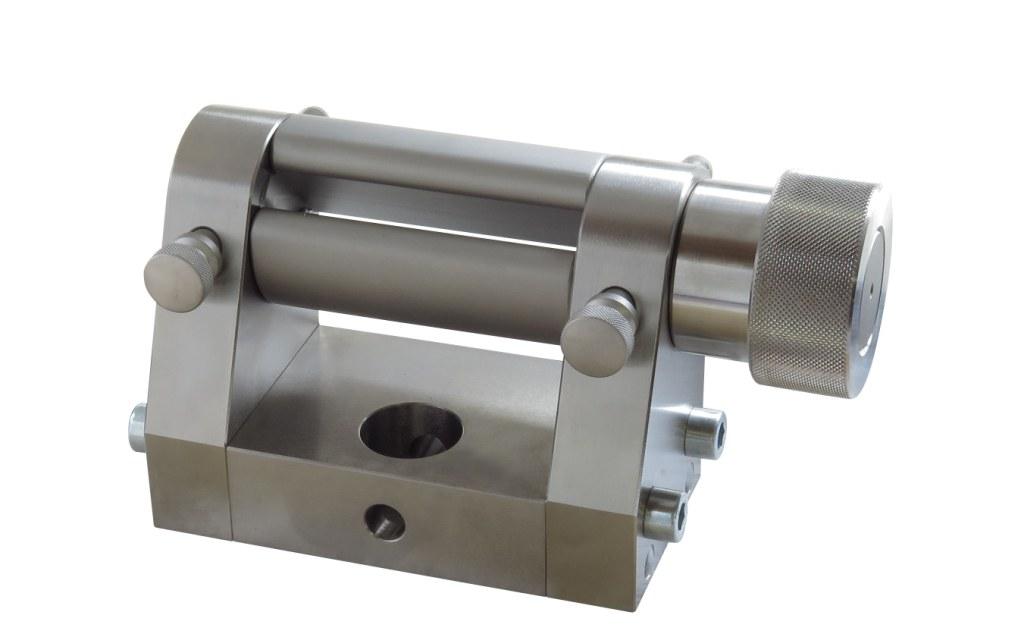

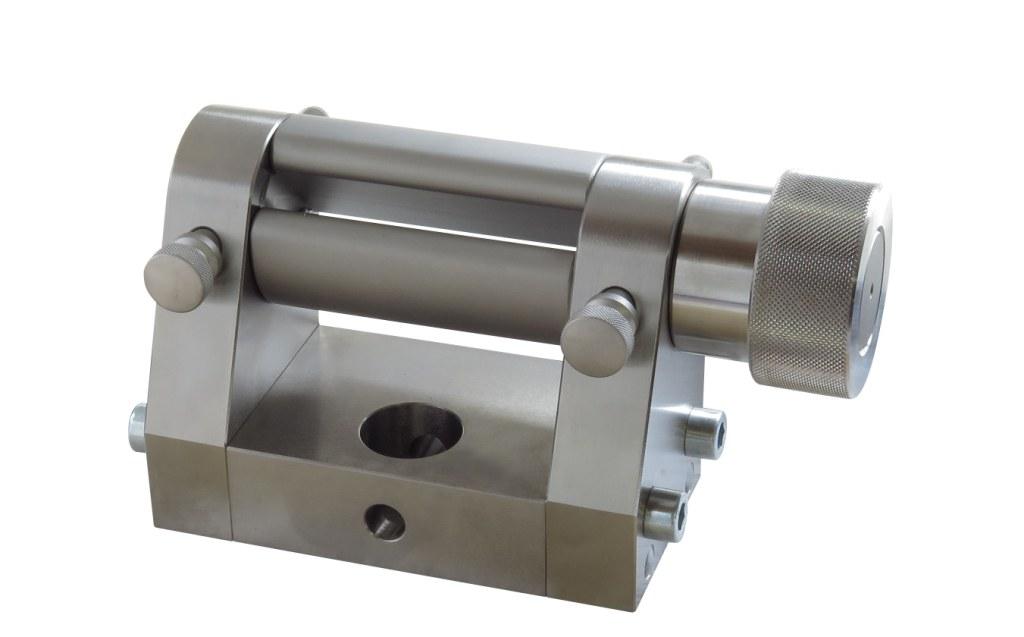

TH222-60-100
Ribbon grip
Diameter of the roller 60 mm
Width of the roller 100 mm
Steel,
nickel-plated
|
![Description: Description: Description: Description: Description: Description: Description: Description: Description: tn_TH222-60-120-](index_files/image017.jpg)
|

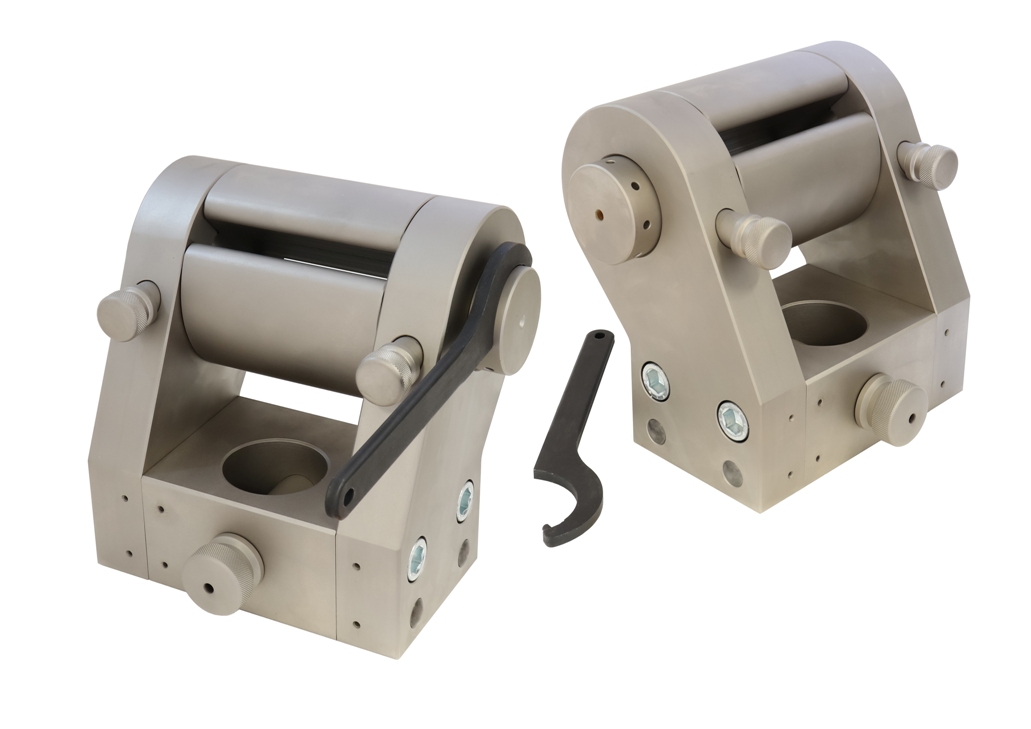

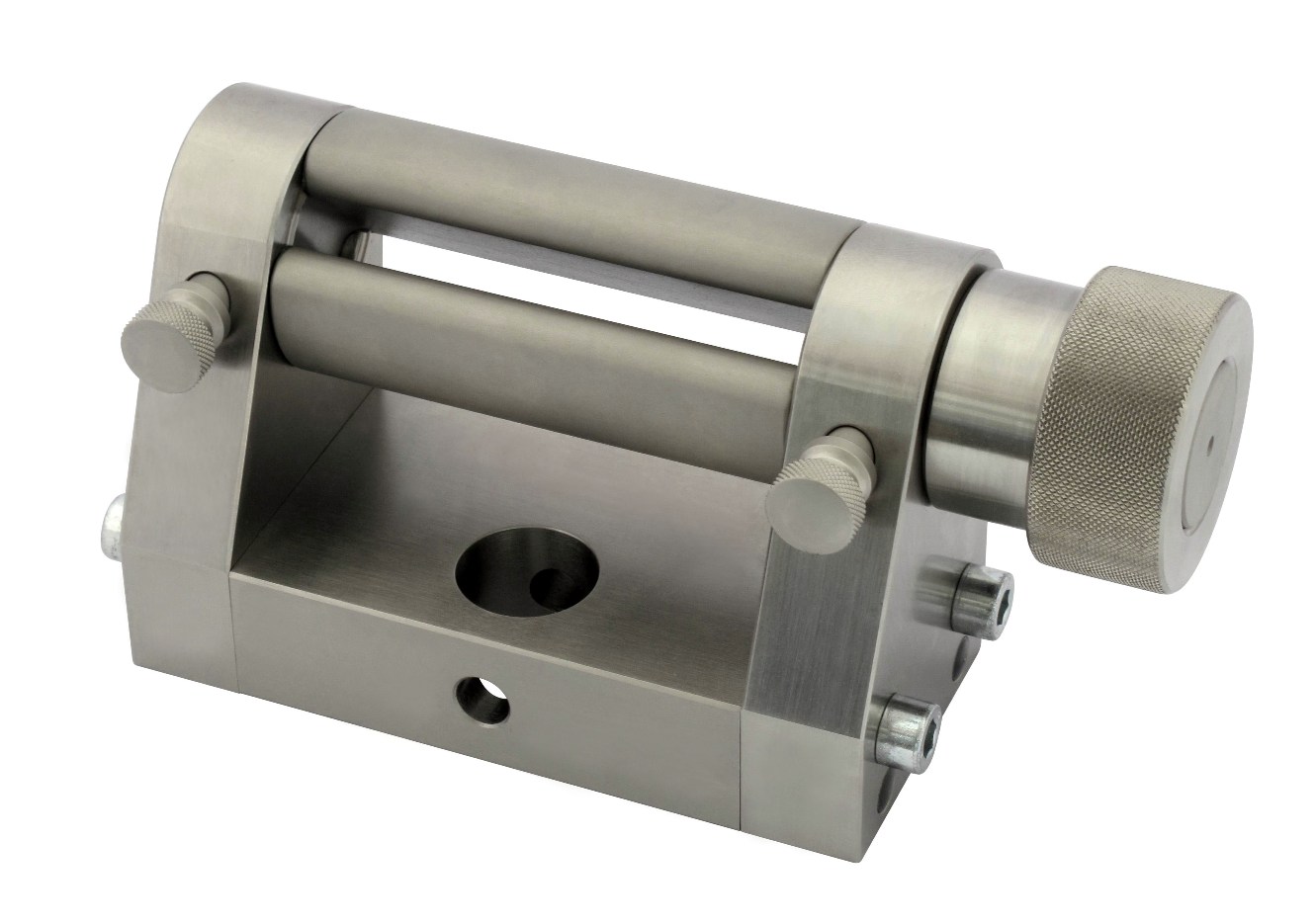

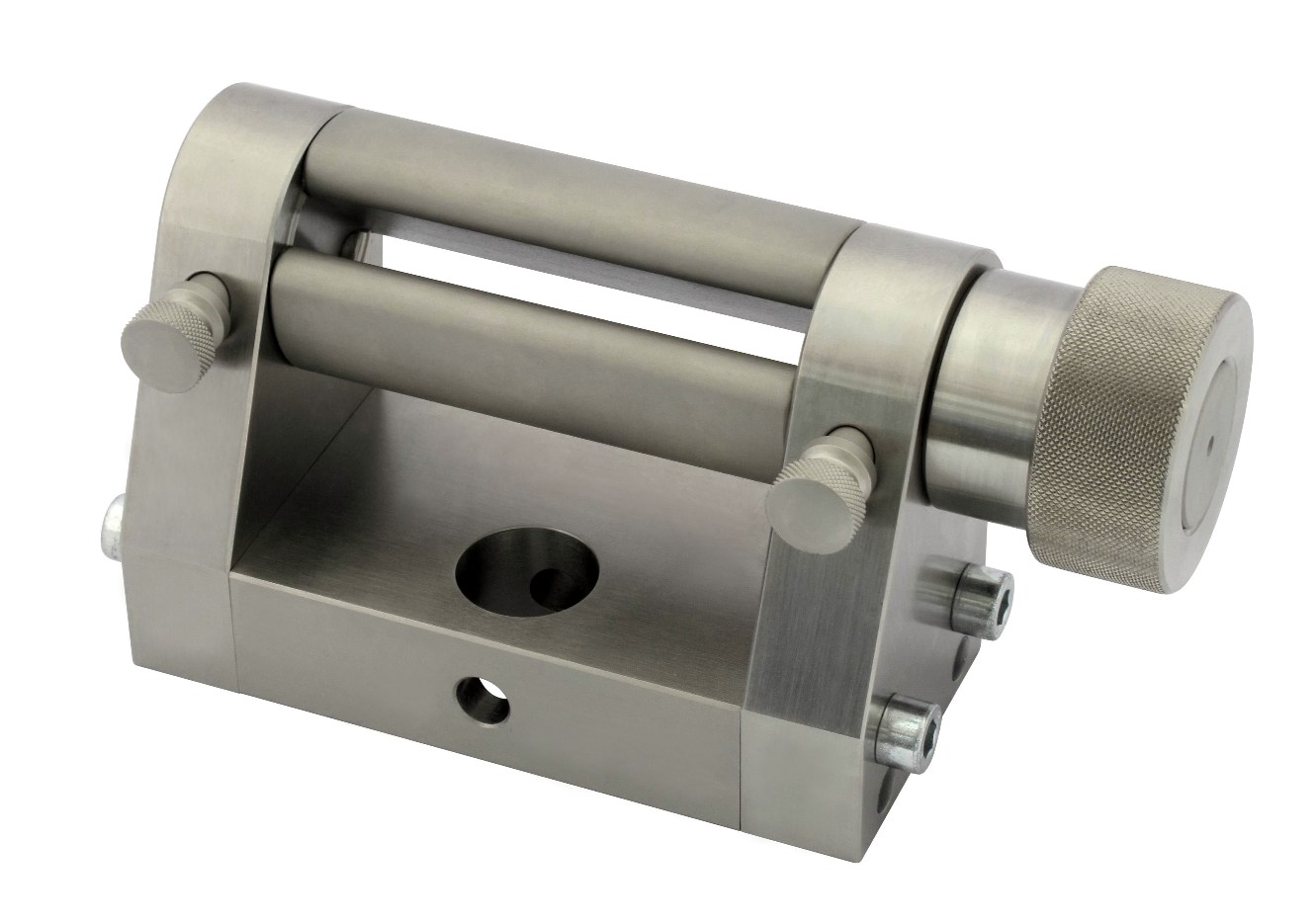

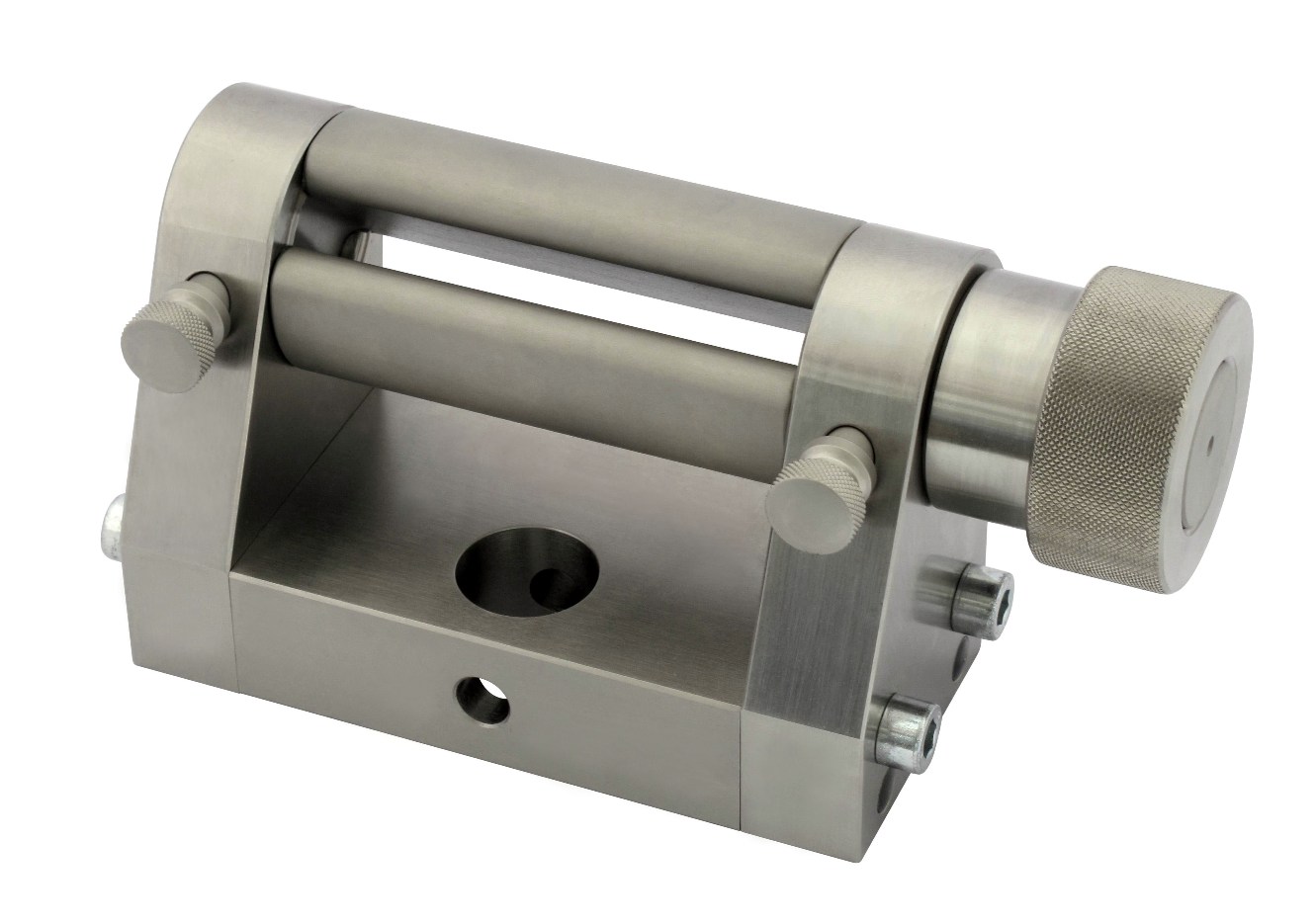

TH222-60-120
Ribbon grip
Max. load 100 kN
Diameter of the roll 60 mm
width of the roll 120 mm
Steel, nickel coated
|
![tn_TH222-60-120-Af40 Kevlar fabric test IMG_0004-](index_files/image018.jpg)
|

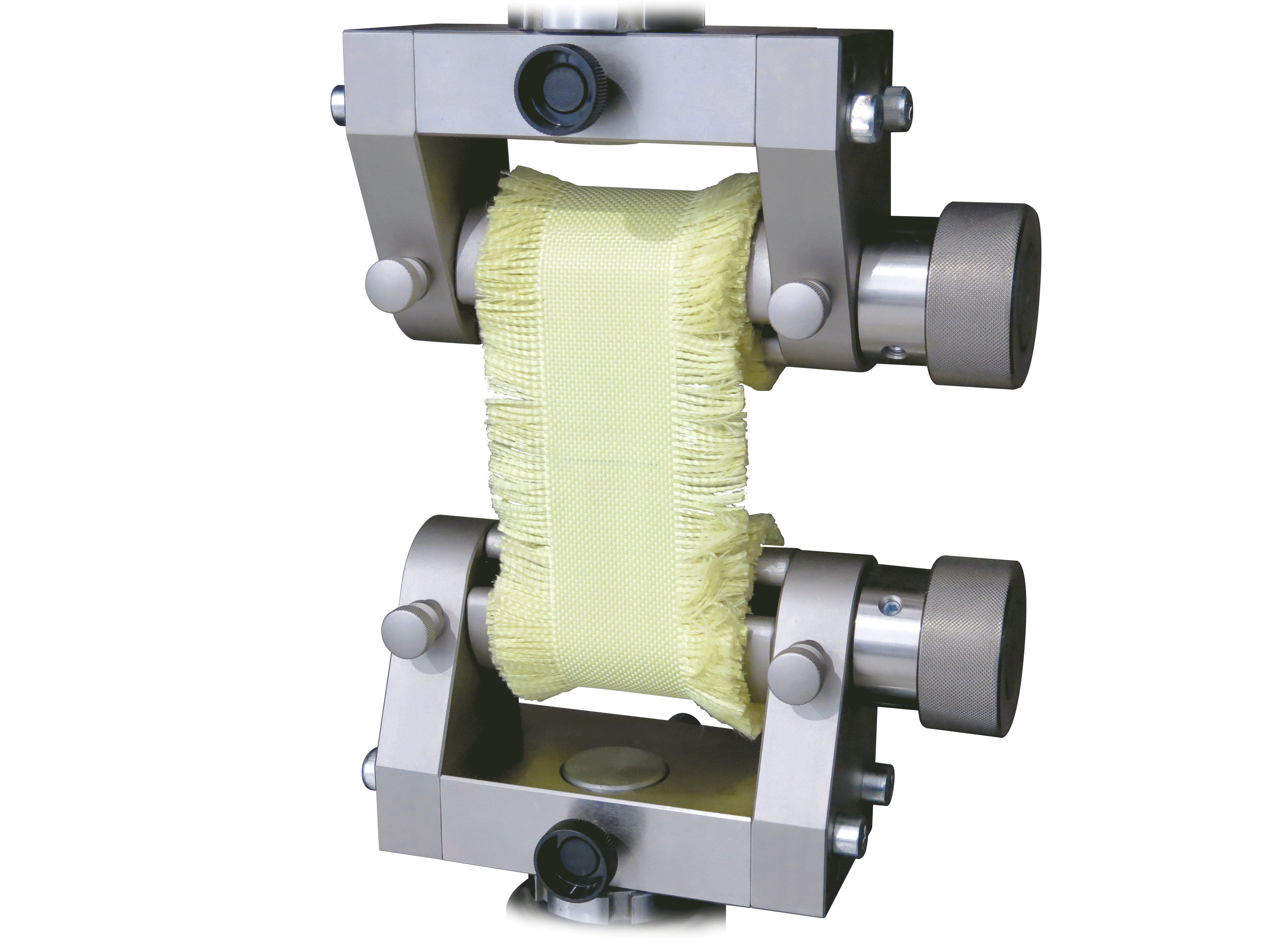

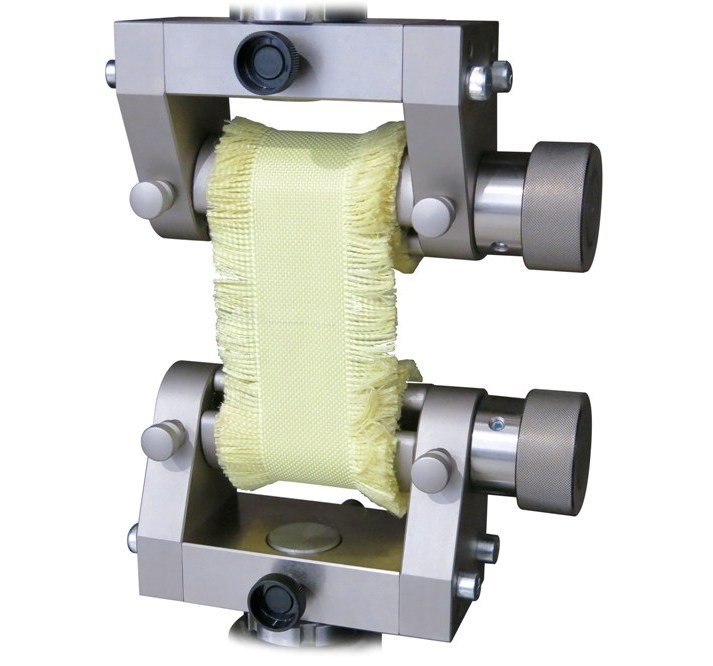

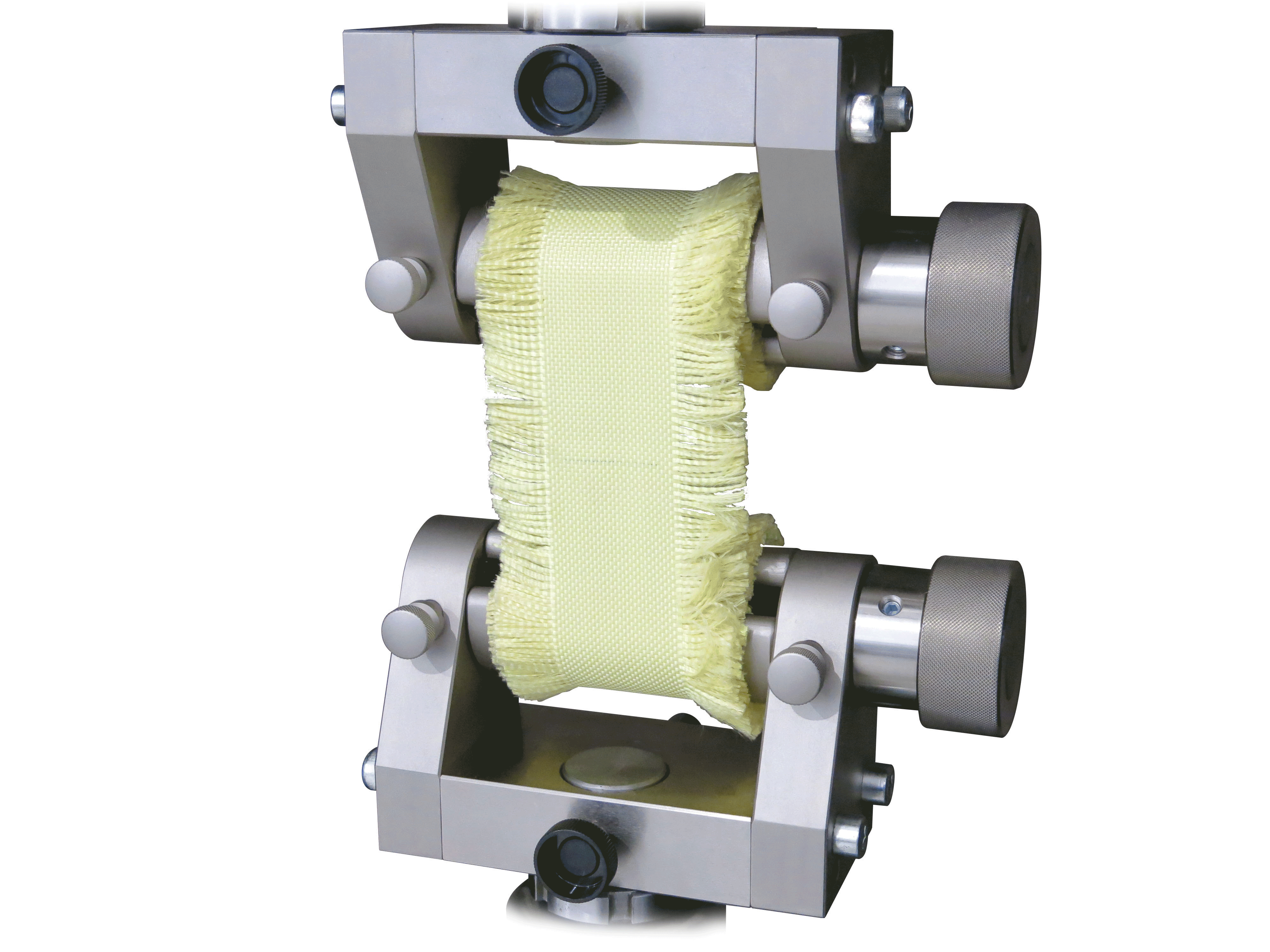

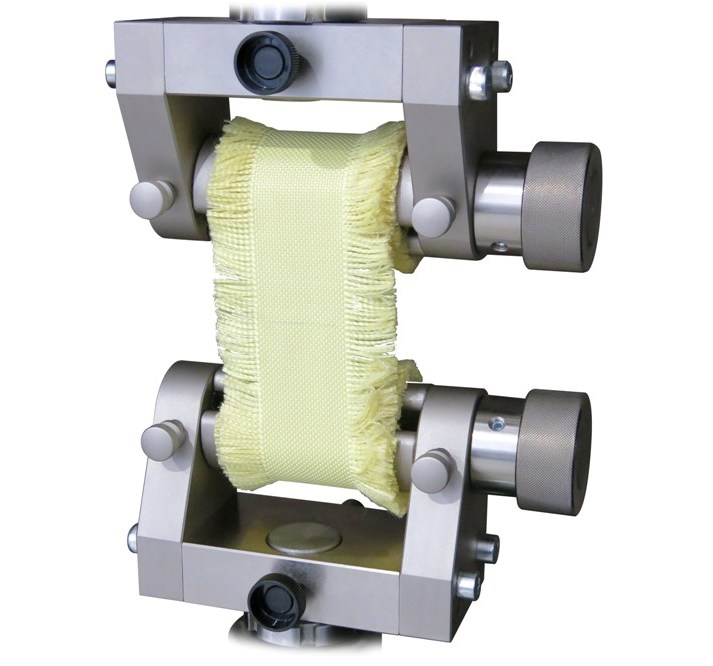

TH222-60-120-Af40
Kevlar fabric tensile test
Ribbon test fixture
Roller diameter 60 mm, length 120 mm
Steel, nickel-plated
Applicable for testing Kevlar fabrics -
lightweight, strong, heat-resistant synthetic material with excellent tensile
properties
that can be used as a component for composite materials or replace them in
some applications.
Animation
|
![tn_TH222-60-120-Af40 Kevlar fabric test IMG_0010-](index_files/image019.jpg)
|

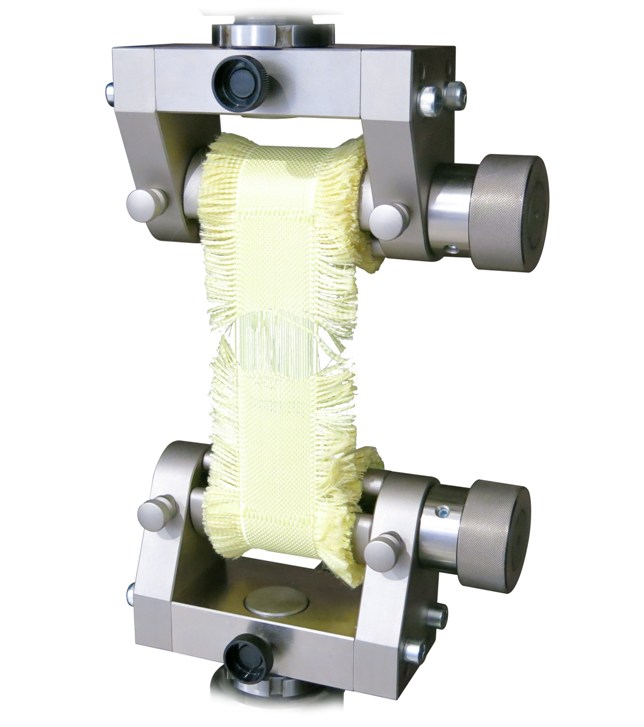

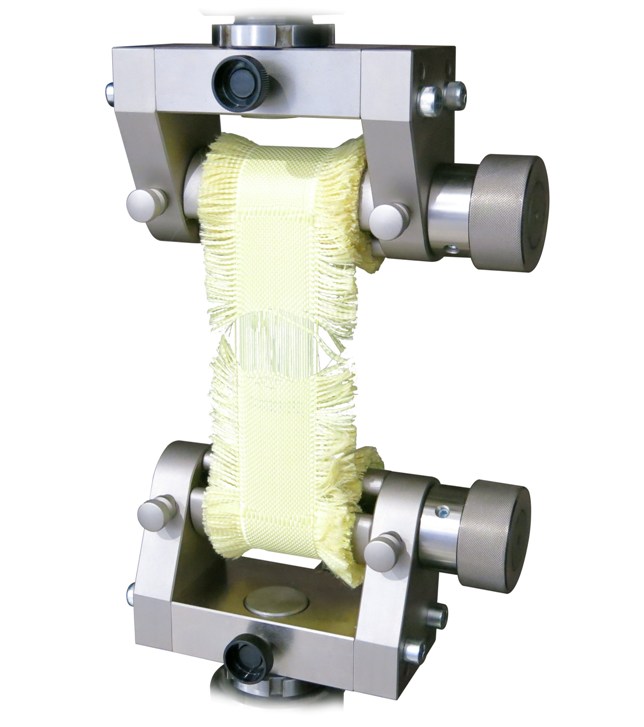

TH222-60-120-Af40
Kevlar fabric tensile test
|
![TH222-60-120-Af3618+HRC-9kg_ 2023-01-05](index_files/image020.jpg)
|

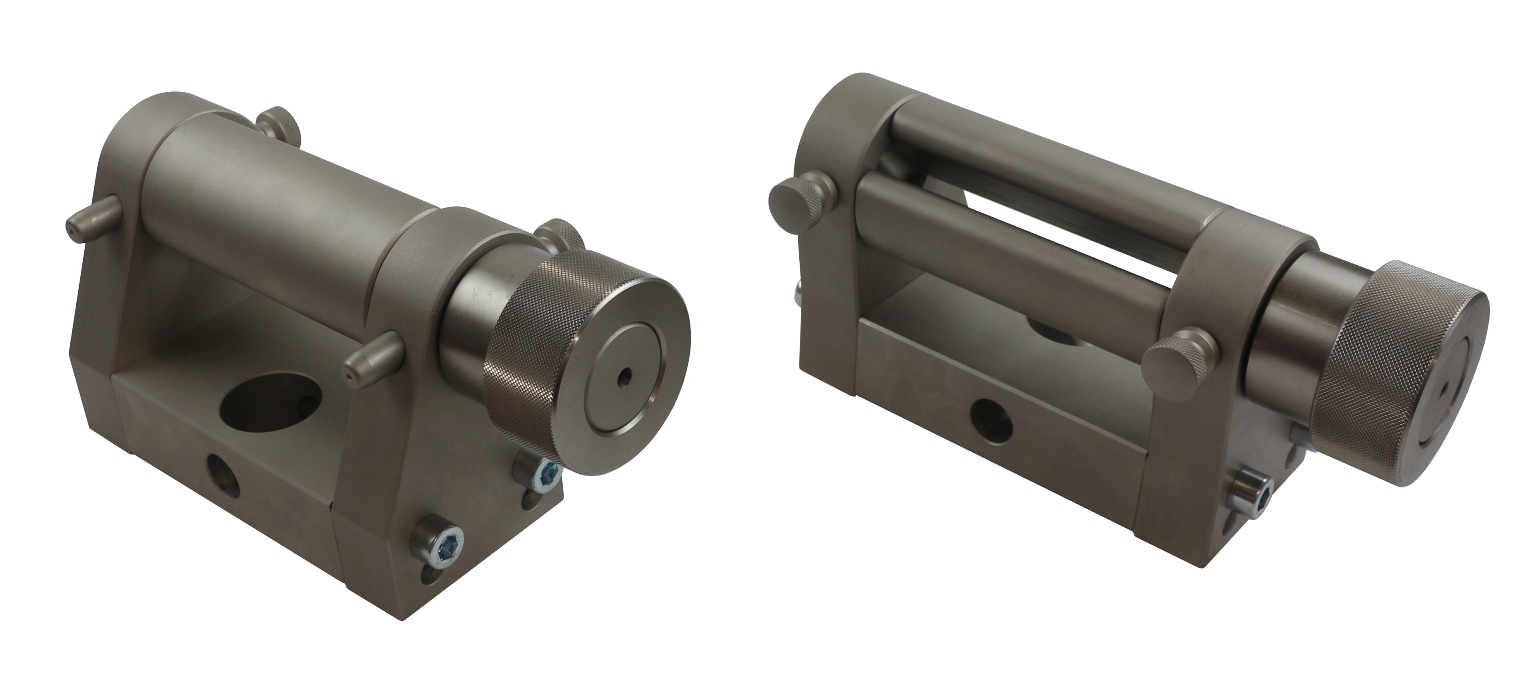

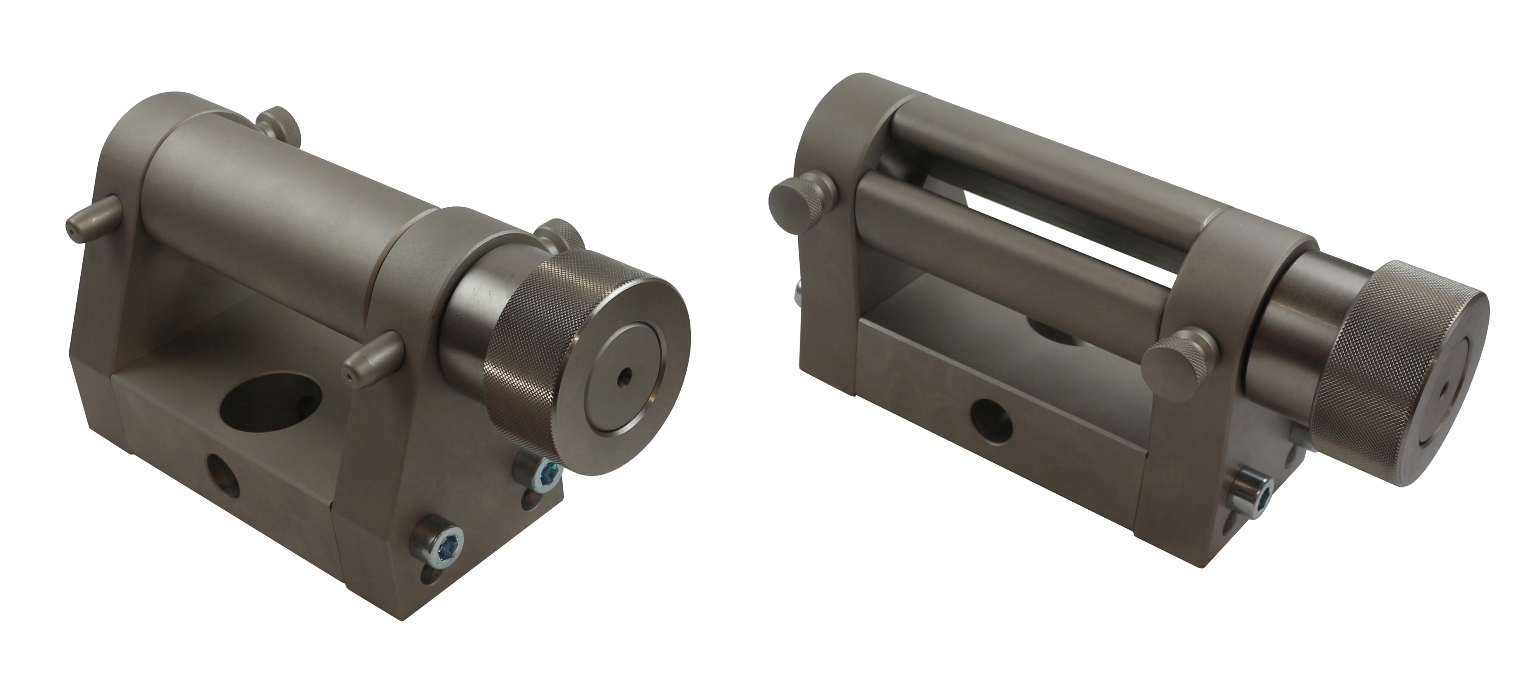

TH222-60-120-Af3618+HRC
Ribbon grip
Max. load 50 kN
Diameter of the roll 60 mm
Width of the roll: 120 mm
Special coupling Af36
|
![](index_files/image022.jpg)
|

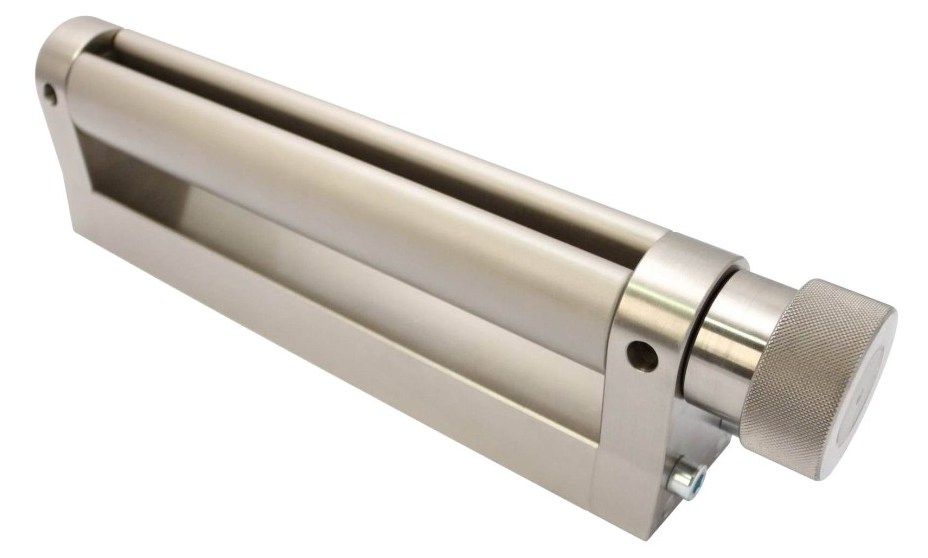

TH222-60-310-Af3/4-16
Special Ribbon grip, 20 kN
Diameter of the roll 60 mm
Width of the roll: 310 mm
Coupling Af3/4-16
|
