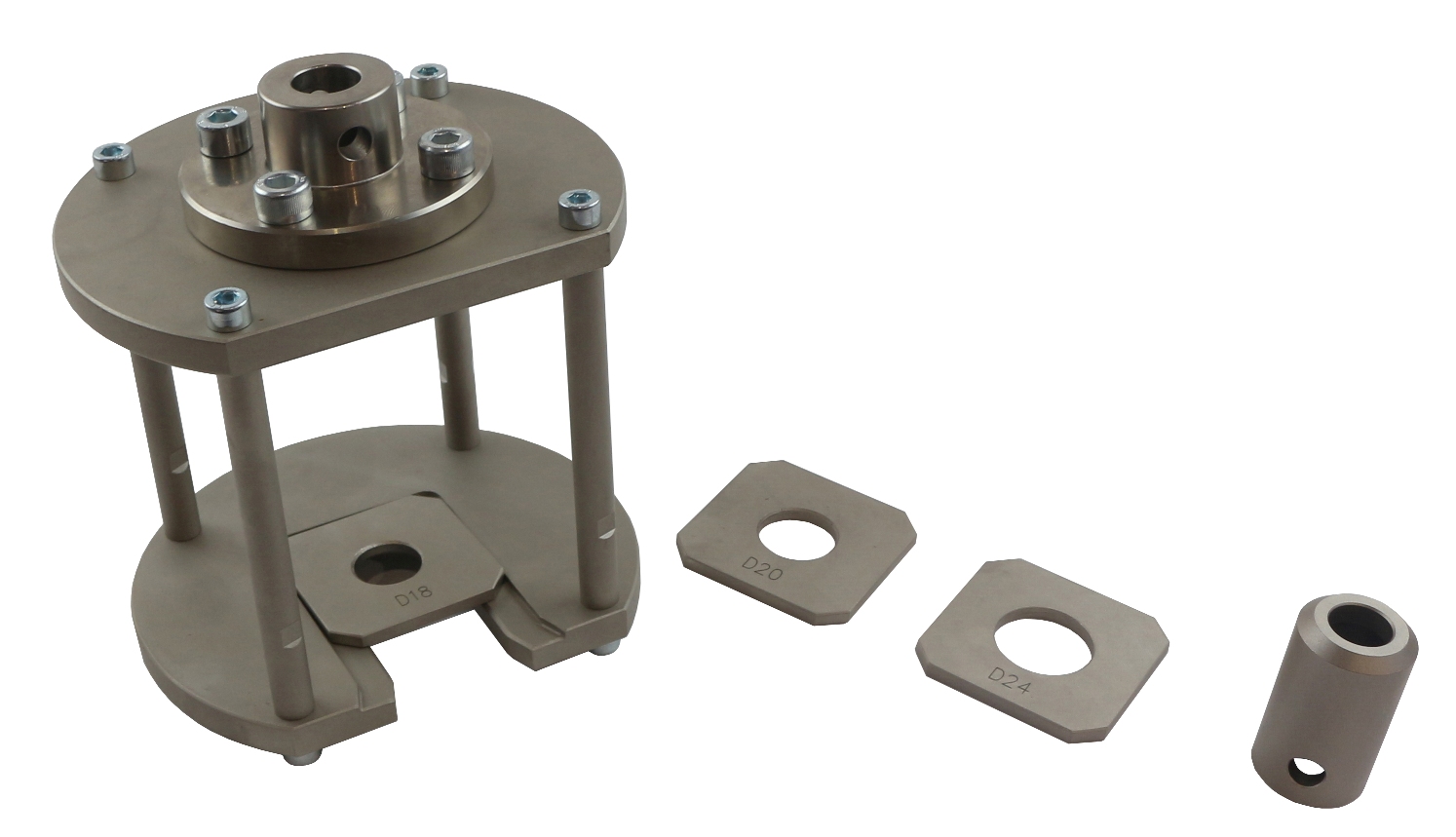

THS235-S32xT2x50-D136-Af159_withdrawal_resistance_test_2.9kg_01

THS235-S32xT2x50-D136-Af159



Withdrawal resistance test fixture, 136 mm

Incl. 3 inserts 50x50 mm with holes 18, 20, 24 mm

Steel, nickel-plated

Coupling Af159

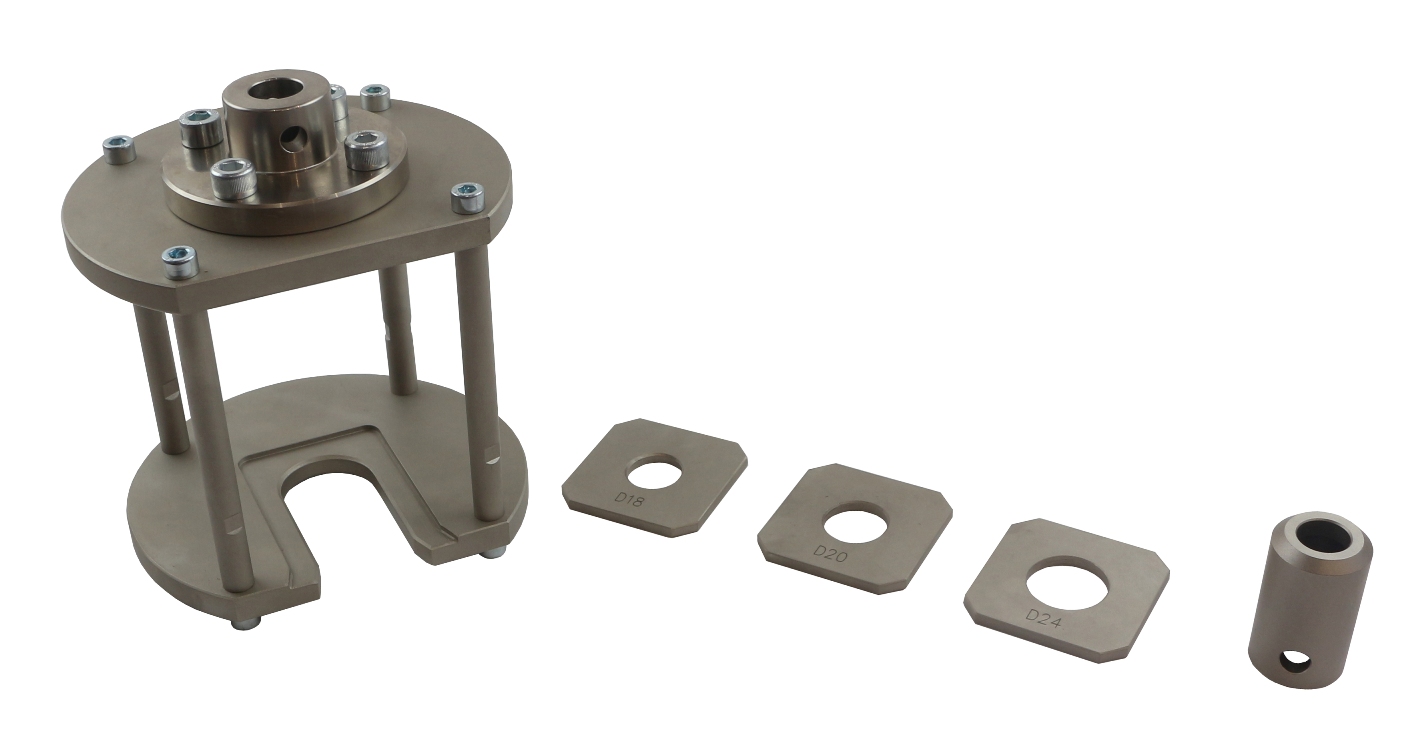

THS235-S32xT2x50-D136-Af159_withdrawal_resistance_test_2.9kg_02

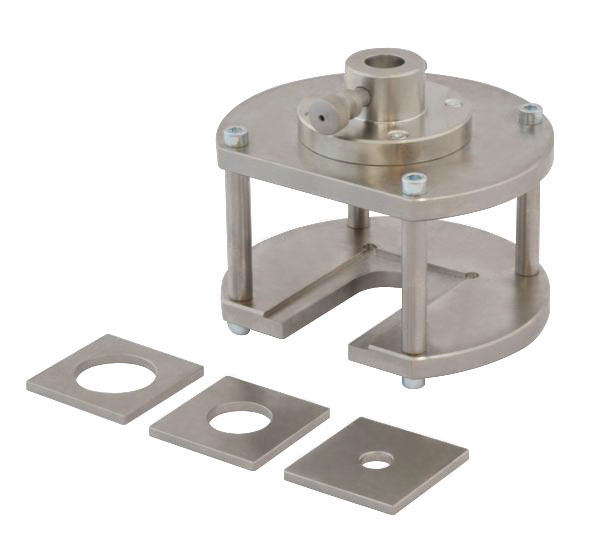

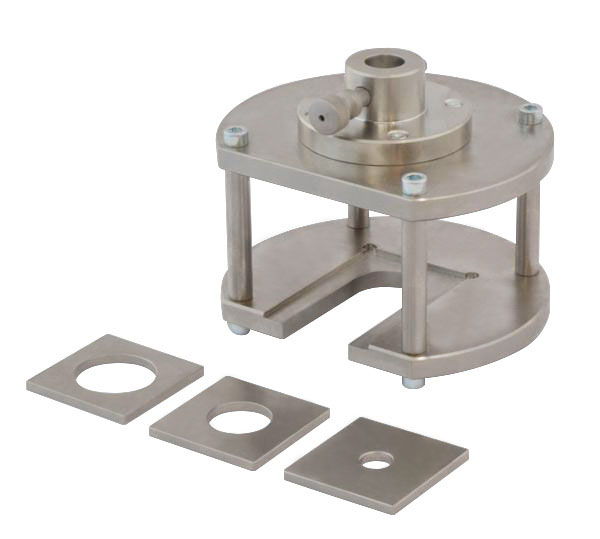

THS235-S32xT2x50-D136-Af159

Beschreibung: Beschreibung: Beschreibung: TH235-32-2-D136 + Eq50  Chuck grip

THS235-32-D136-H50-Af159 + THS235-D136-E32, -24, -12



Special pull-out strength fixture
(upper grip)

with a gap 32 mm and height 50 mm

incl. 3 inserts with openings 32 mm,
24 mm, 12 mm

Coupling Af159

Lower grip is required for the test

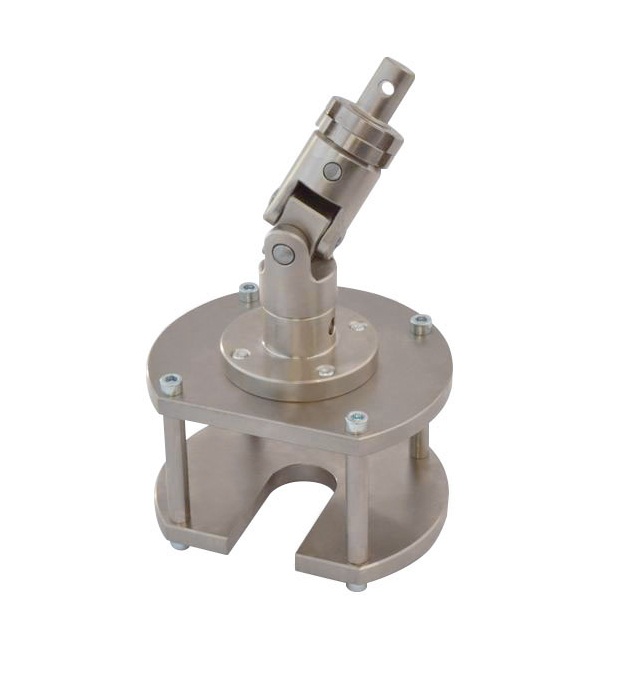

Beschreibung: Beschreibung: Beschreibung: tn_TH235-D136-32-1-shi-tk-

THS235-32-D136-H50 + THS327-Af159



Special pull-out strength fixture
(upper grip)

with universal joint adapter Af159



Lower grip is required for the test

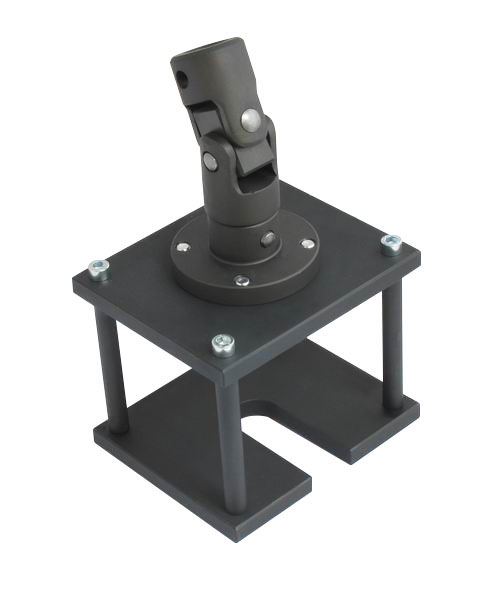

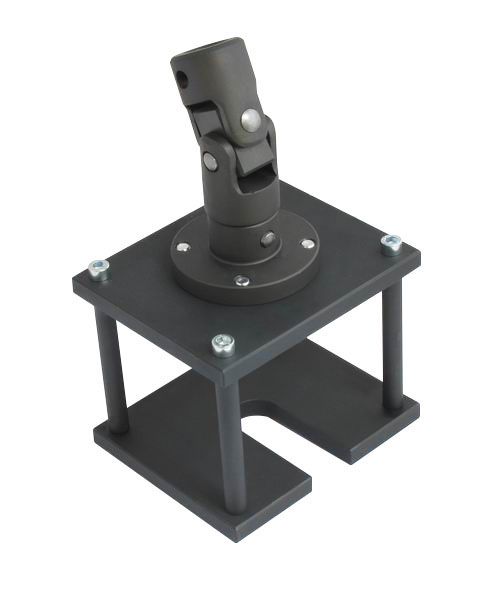

Beschreibung: Beschreibung: Beschreibung: tn_THS235-20-ot-G22.5 D32-Af159  chuck grip gabp 22.5mm diameter of hold 32mm-

THS235-22.5-100x120-H72-Af159 + THS327-Af159



Special pull-out strength fixture
(upper grip)

with a gap 22.5 mm and height 72 mm

with universal joint adapter Af159



Lower grip is required for the test

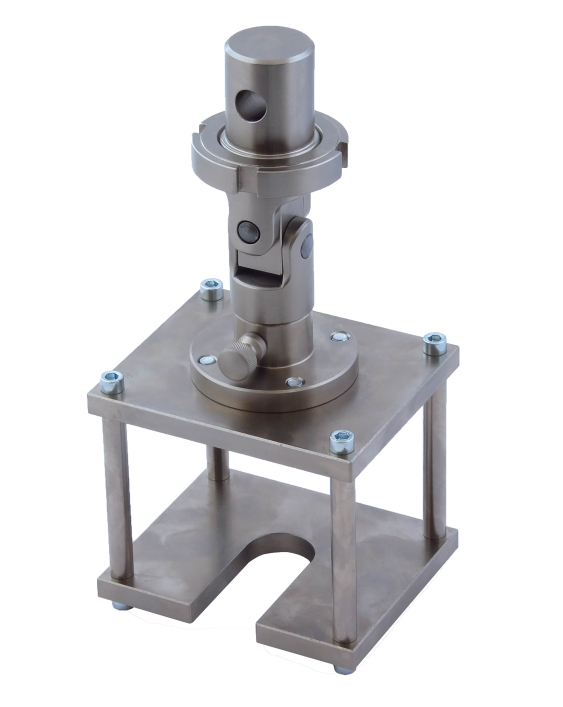

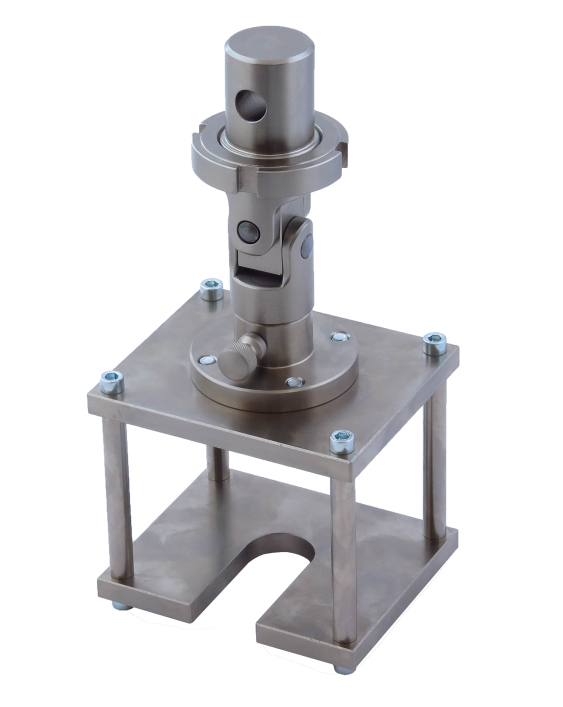

THS235-30-Am35    18.02.2021

THS235-30-100x120-H80+THS327-Am35



Special pull-out strength fixture
(upper grip)

with a gap 30 mm and height 80 mm

with universal joint adapter Am35



Lower grip is required for the test

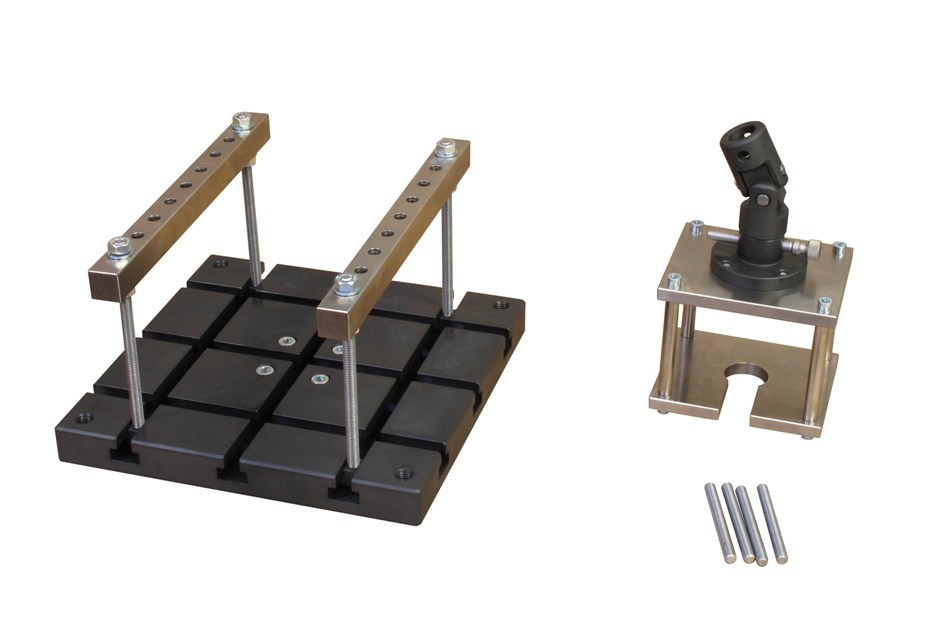

Beschreibung: Beschreibung: Beschreibung: Description: C:\Users\Anri\Desktop\TH235\tn_TH36t TH235 THS327  special chuck jig.jpg


THS235-30-80x100-H80 + THS327-Af159

+ TH36t-250x250+2HLD1



Special pull-out strength fixture
(upper grip)

with a gap 30 mm and height 80 mm

with universal joint adapter Af159


Lower fixture TH36t

T-slotted platen 250x250 mm

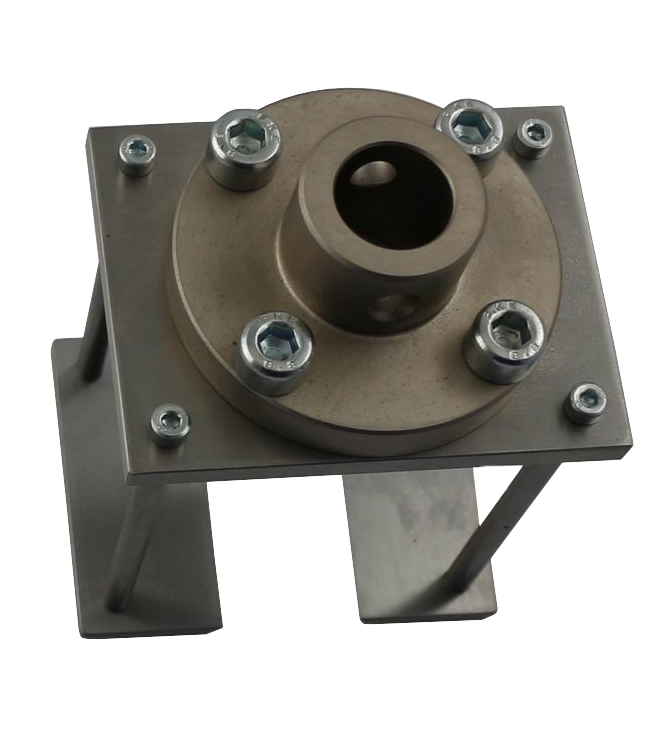

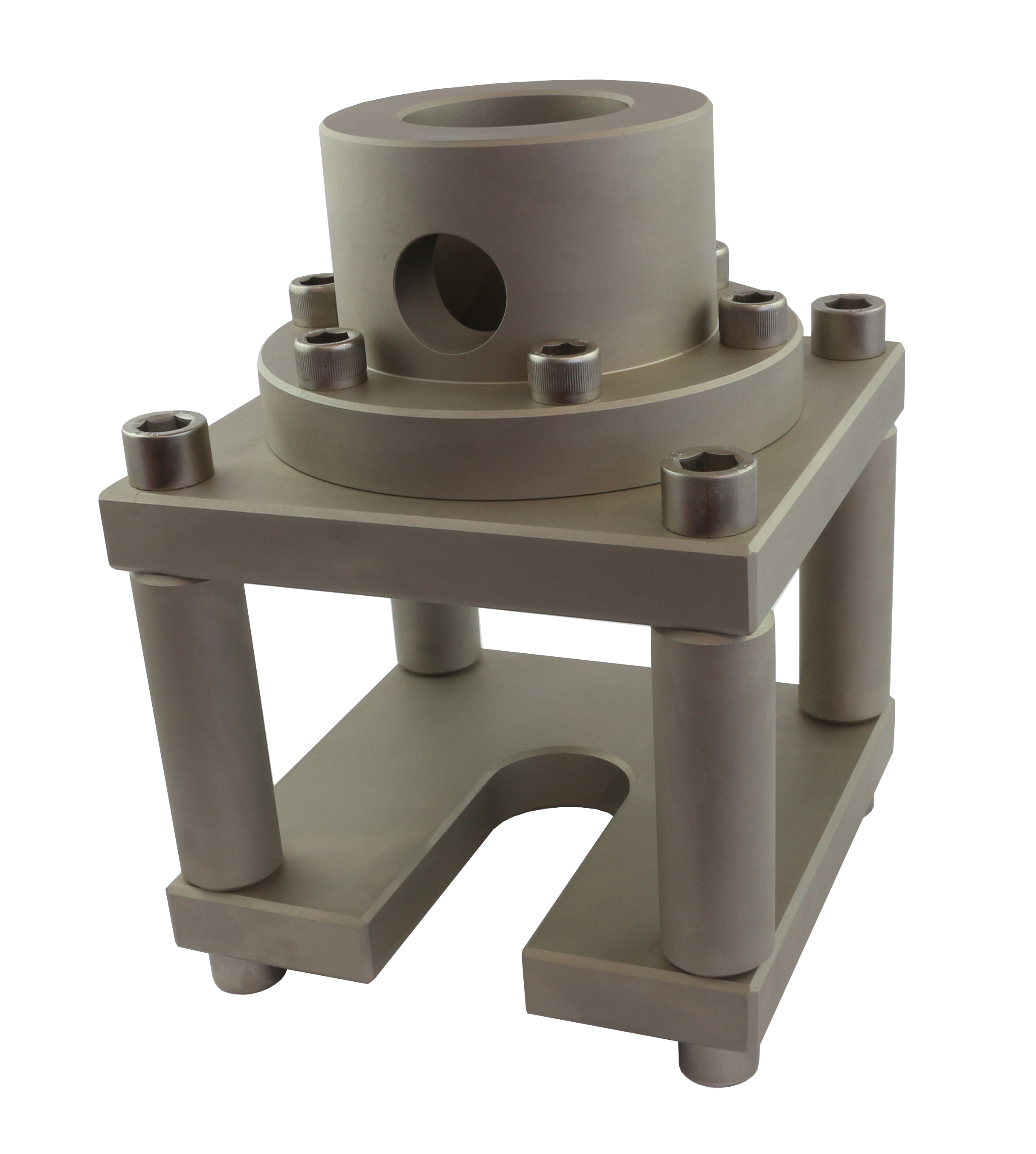

THS235-30-P70x90-Af20   Schlitzweite 30 Grundplatte 70x90

THS235-30-P70x90-H80-Af20



Special pull-out strength fixture
(upper grip)

with a gap 30 mm and height 80 mm

with universal joint adapter Af20



Lower grip is required for the test

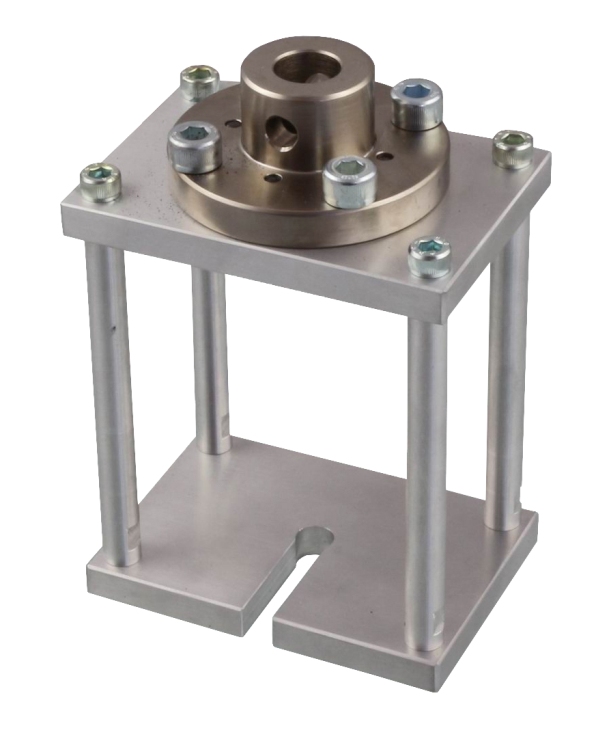

THS235-S8B10-P60x100-iH100-Af159  slot8 hole10 platen size 60x100

THS235-S8B10-P60x100-iH100-Af159



Special pull-out strength fixture
(upper grip)

with a gap 10 mm and height 100 mm

with universal joint adapter Af159



Lower grip is required for the test

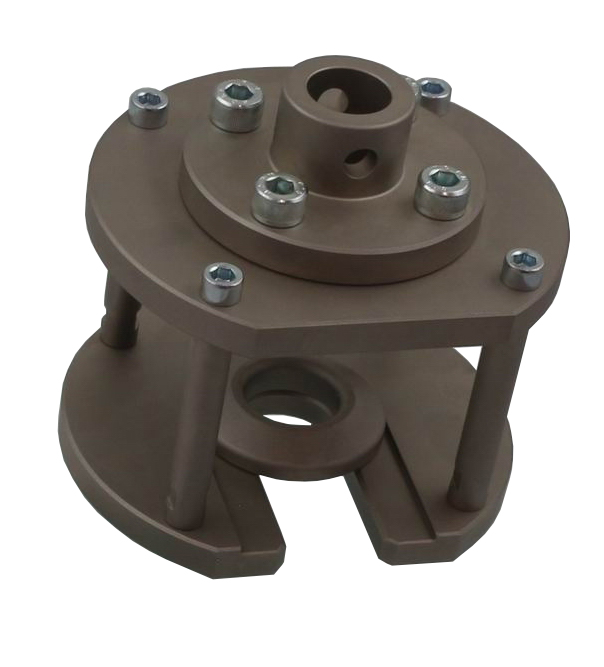

THS235-Sl25-D118-H58-Af20+E24-R3

THS235-sl25-d118-Af20 + E24-R3



Special pull-out strength test fixture

(upper grip), diameter 118 mm,

slot 25 mm, internal height 58 mm

Coupling Af20

Incl. insert with hole 24 mm diameter,
3 mm radius

Lower grip is required for the test

THS235-V17-q170-id76-Am25

THS235-iD76-Q170-H100-Am25-ASTM-D1037-Fig.13 + THS566-16-Am25



Special fixture to test withdrawal resistance of nails from wood panels

according to ASTM-D1037-Fig. 13 (13-15)
Includes:
lower holder (THS235)

quick-action chuck drill (THS566)

Max. load 1 kN

Coupling Am25

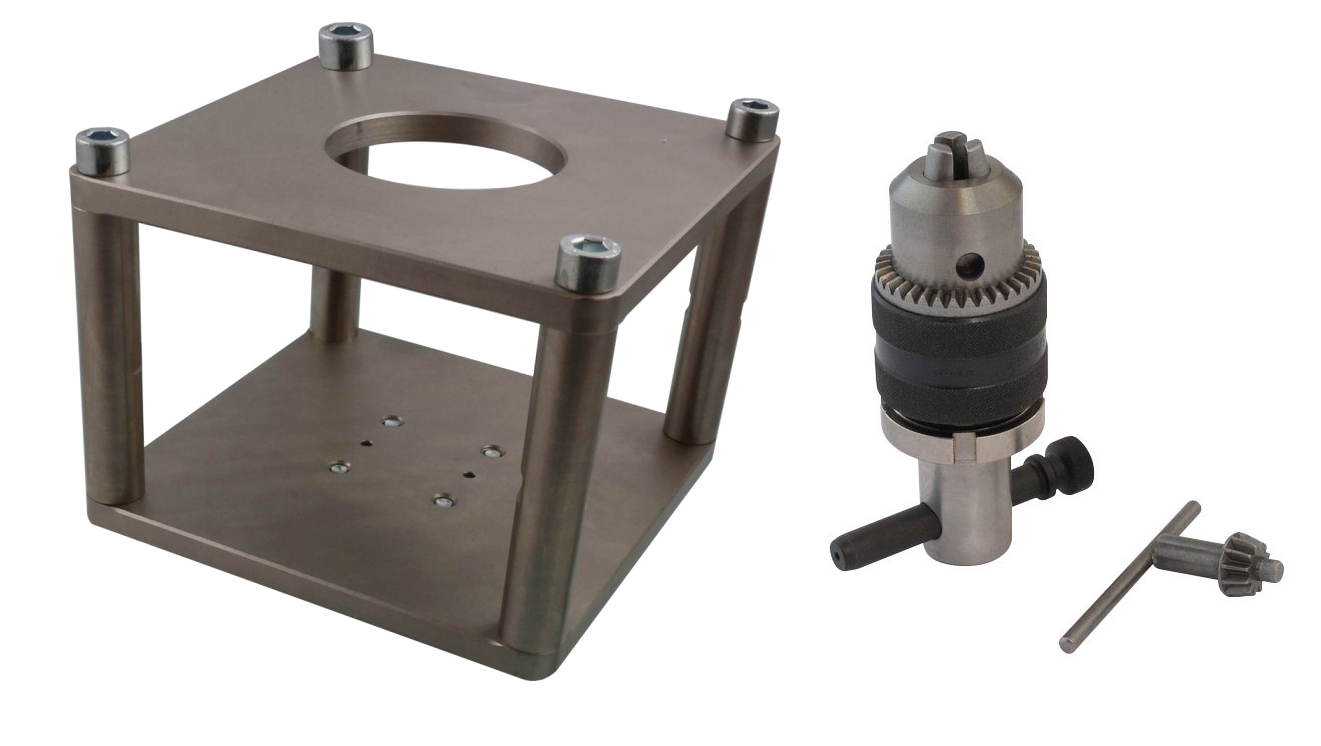

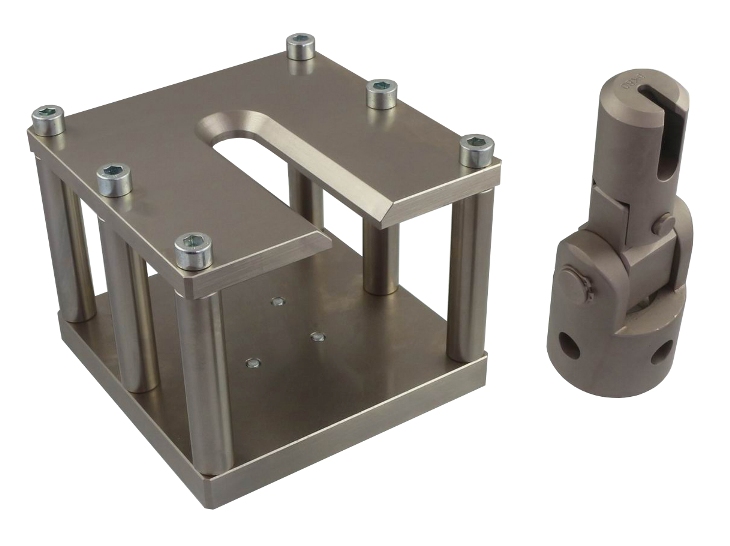

THS235-Sl25.4-Q170-H100-Af318-ASTM-D1037-Fig.13 (16) + THS325-6K80-W25-Af318 Screw Withdrawal Resistance - Wood



THS235-Sl25.4-Q170-H100-Af318-ASTM-D1037-Fig.13 + THS325-6K80-W25-Af318



Special fixture to test withdrawal resistance of #12 screws from wood panels

according to ASTM-D1037-Fig.13 (16)

Includes:

lower holder (THS235)

upper grip with universal joint (THS325)

Max. load 25 kN

Coupling Af318

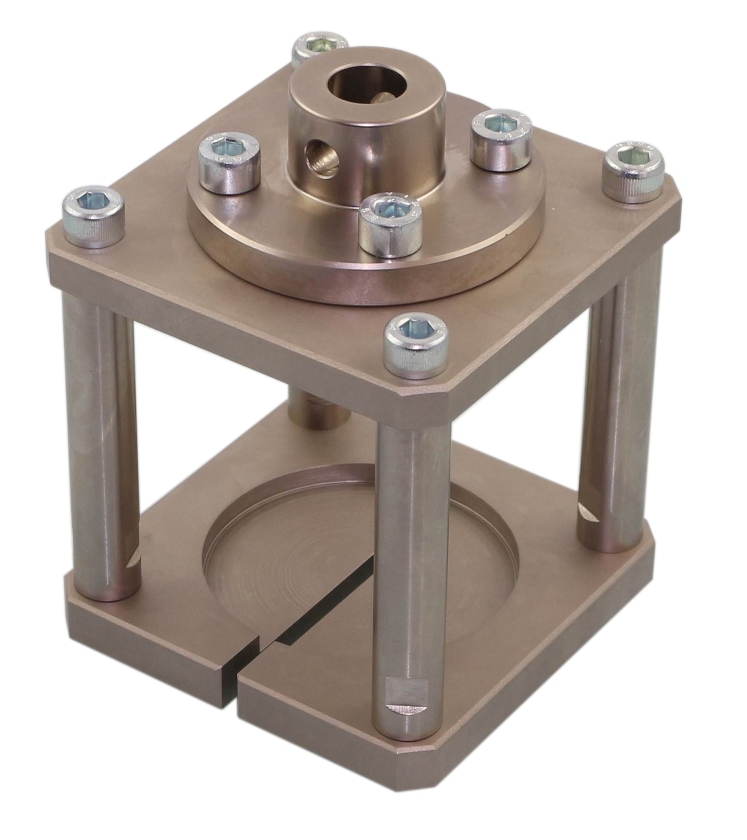

tn_THS235-Sl4-Q100

THS235-Sl4-Q100



Special pull-out strength test fixture

(upper grip), 100x100 mm,

Slot 4 mm wide

Coupling Af159



Lower grip is required for the test

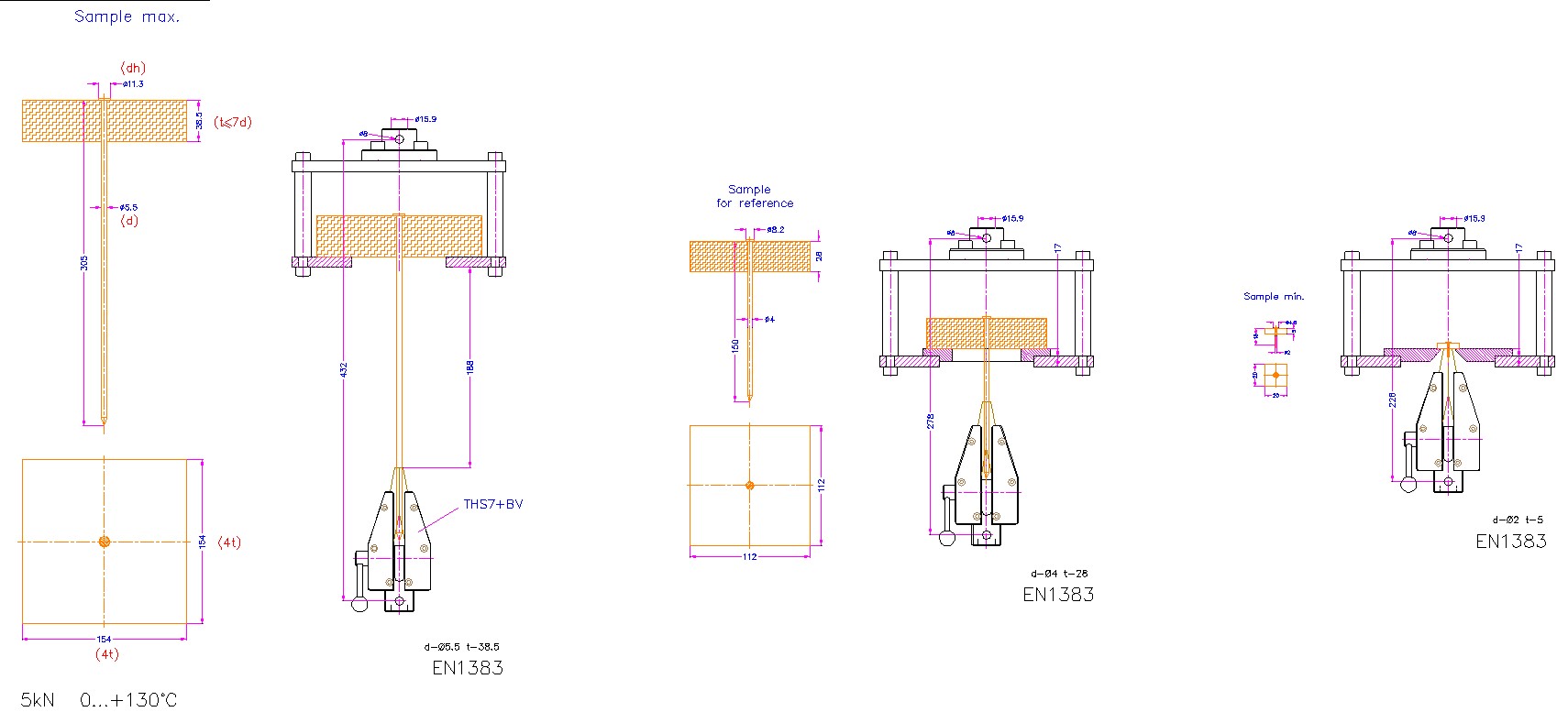

TH235-10-115-H200-Af159 EN1382 NAgelauszug pull off nail of wood

THS235-10-115-H200-Af159

Timber structures - Test methods -
Withdrawal capacity of timber fasteners

Nail extract test -  to find out pull off force of a nail from wood
according to EN1382
