G12 Pneumatic grips



Back

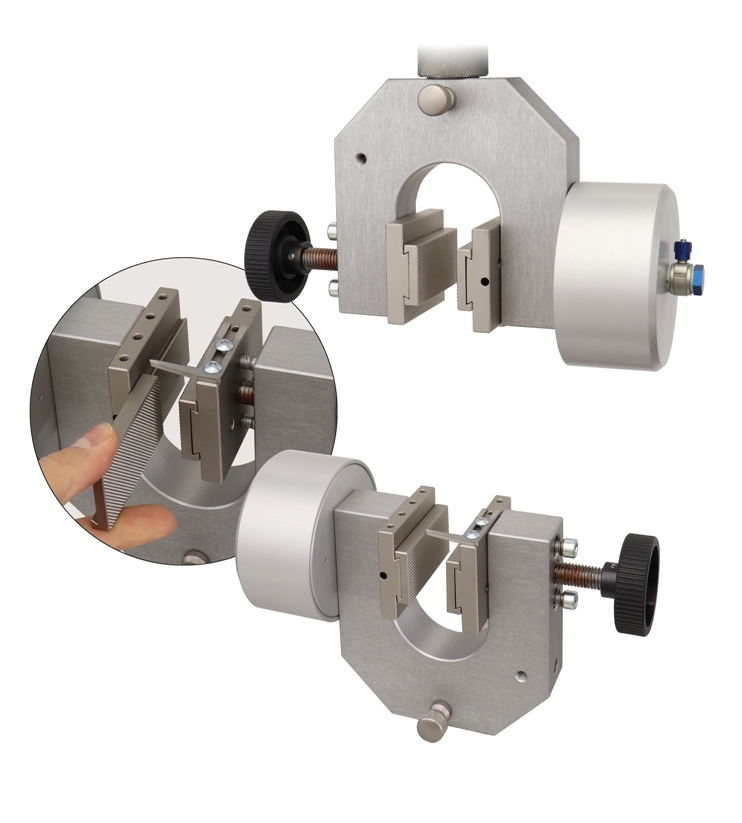

TH108+GT50x60+EBP30x60_3,7kg_2022-03-11_01

TH108+GT50x60+EBP30x60



Special carrier 50x60 mm for quick change jaws

Pyramid (serrated) jaws 30x60 mm

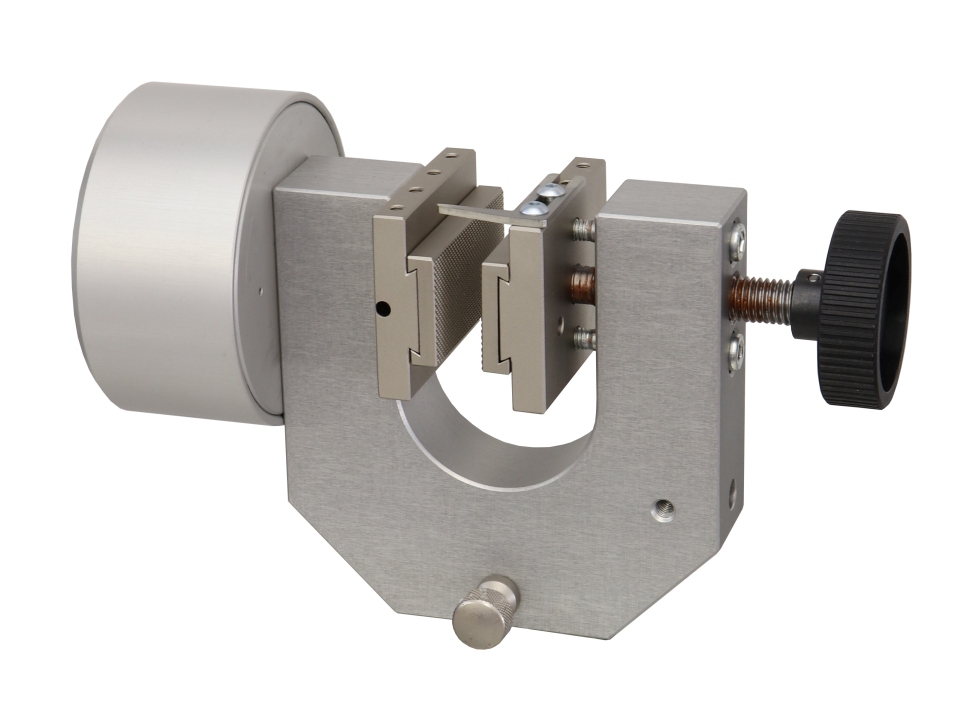

TH108+GT50x60+EBP30x60 _3,7kg _TH240g-EBP_jaws_2022-03-11

TH108+GT50x60+EBP30x60

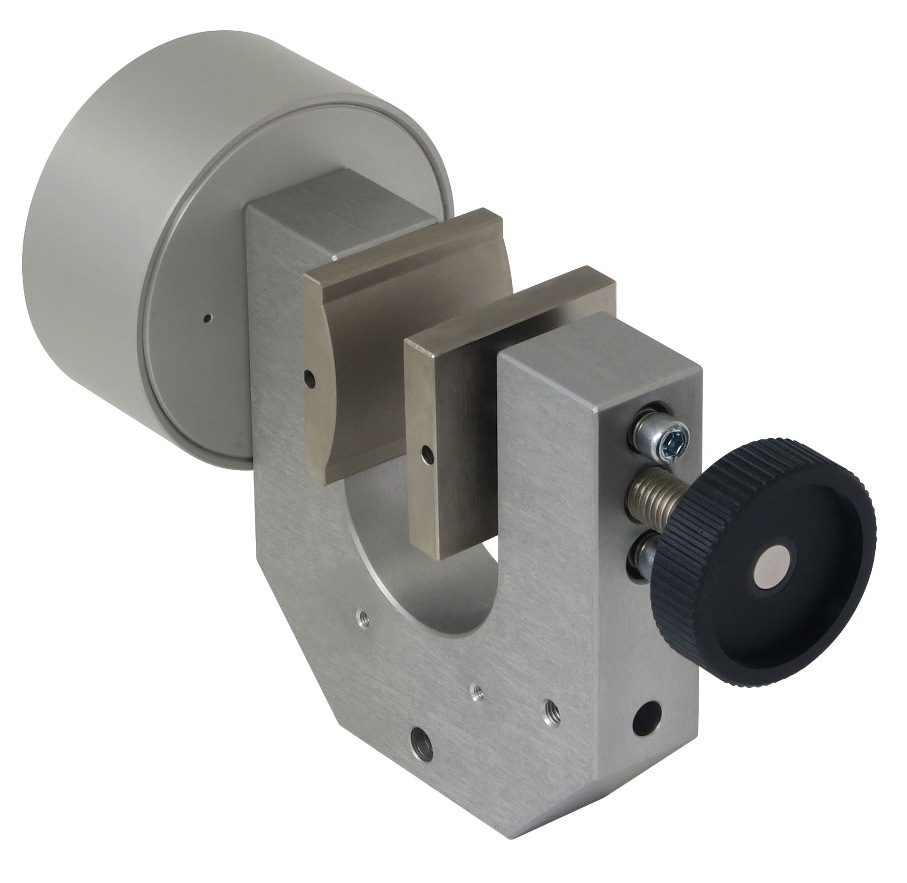

TH108+BLC-50x50-R48.41



Special line-contact jaws



TH108-BLC-50x50-R48.41



Special line-contact jaws



Description: TH108BP60x60.jpg

TH108-BP60x60



Pyramid jaws
Clamping surface 60 x 60 mm

Description: TH108BP0.8x45.jpg

TH108-BP0.8x45



Pyramid jaws with fine serration

(pyramids 0.8x45)

Description: TH108BG25x25.jpg

TH108-BG25x25



Rubber-coated clamping surface

Clamping surface 25 x 25 mm

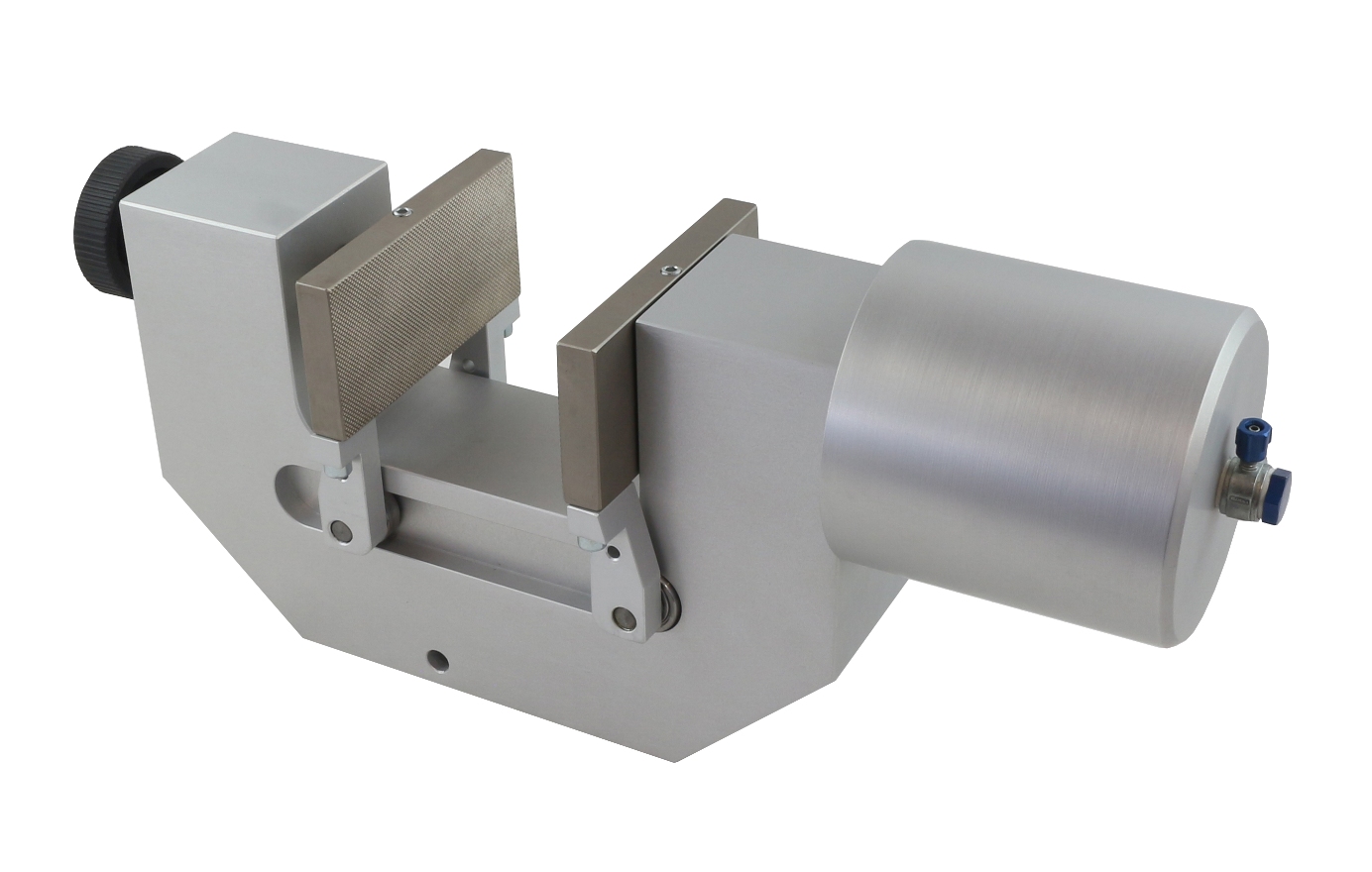

TH108-S90-Af159_6kg_2024-03-16

TH108-S90



Clamping surface 50x100 mm
Jaws opening 0-60 mm

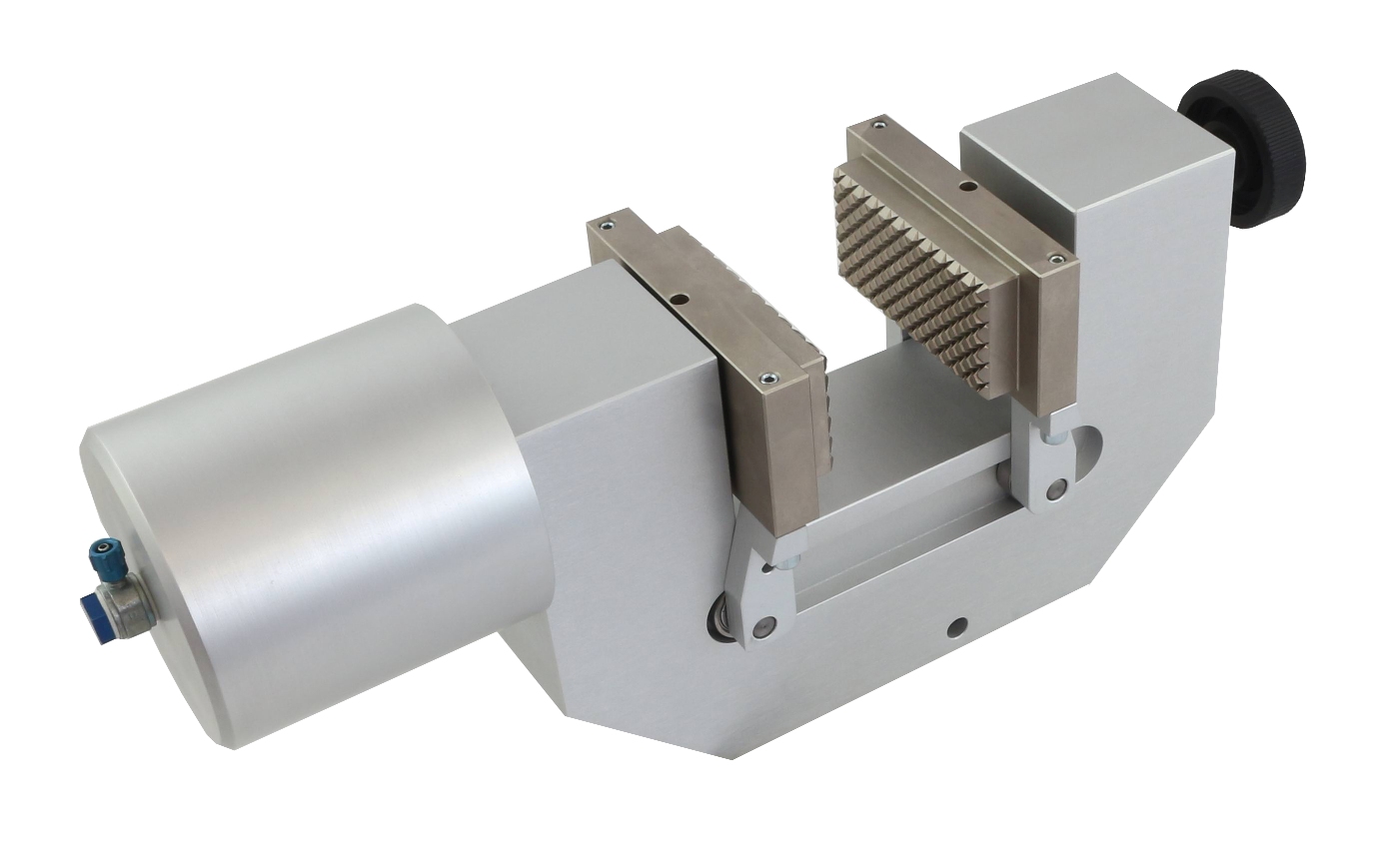

TH108-S90-Af159+BPS3x3-H2.5-6.7kN_2024-03-30

TH108-S90-Af159+BPS3x3-H2.5

Pneumatic grip with special pyramid jaws
Clamping force 3.5 kN / 7 bar
Clamping surface 40x80 mm (h x w)
Total jaw size 50x100 mm
Opening 64 mm
Coupling Af159
