G12 Pneumatic grips



Back

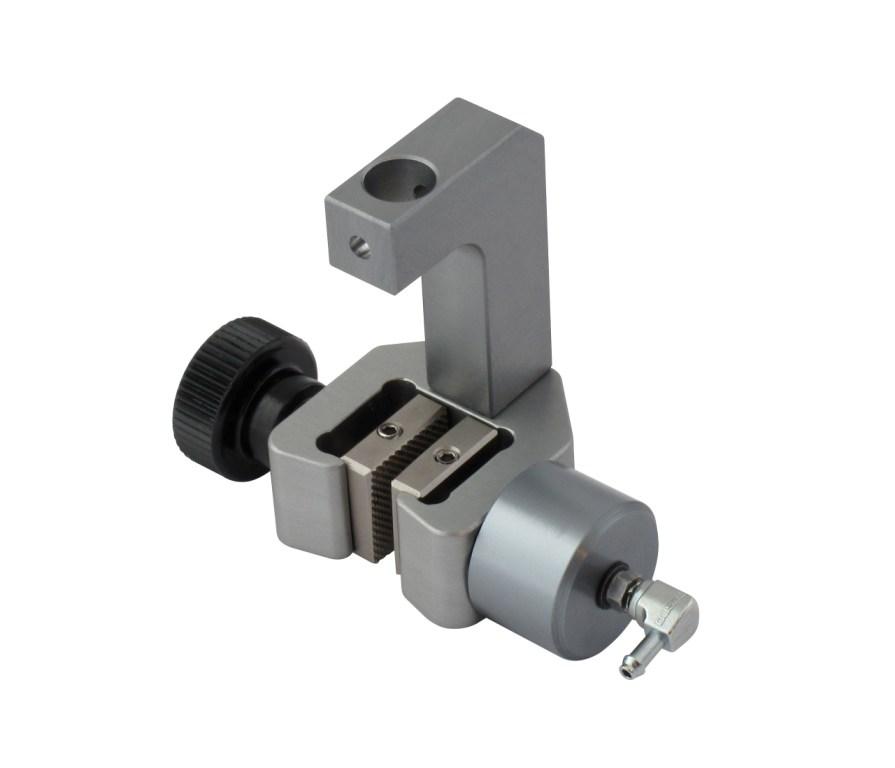

TH140k+Ko+BP

Small pneumatic grip with 1 rod
Max. clamping force 140 N at 7 bar

Max. tensile force: 70 N at COF 0.5
Jaw clamping surface: 15x15 mm


pdf_icon.gif TH140 Datasheet.pdf
pdf_icon.gif TH140 Datenblatt.pdf

Manual versions

Jaws

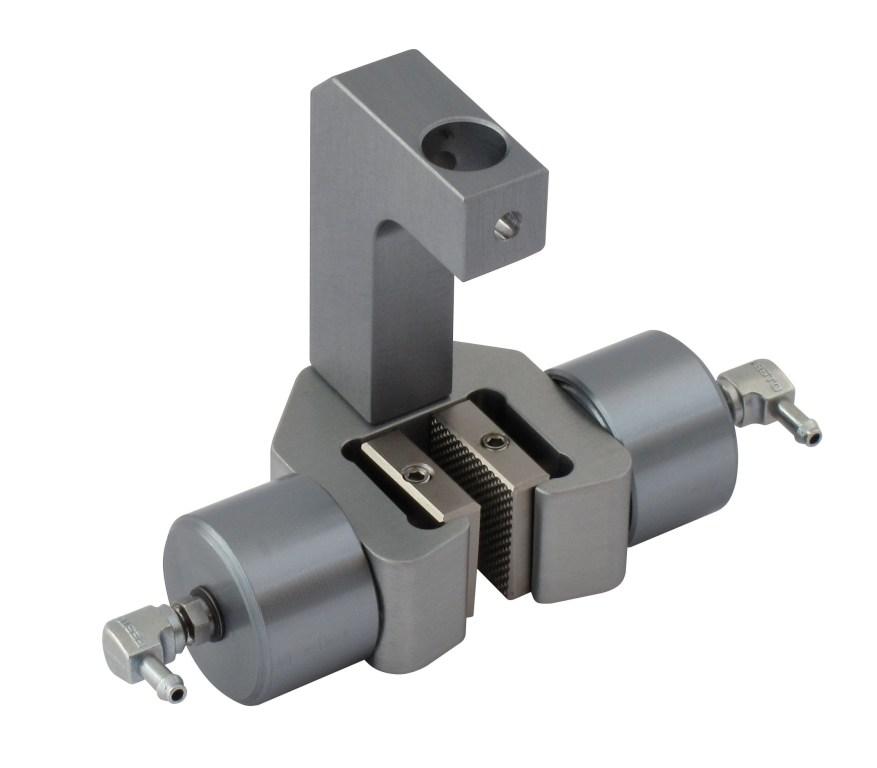

TH140k+2Ko+BP

Small pneumatic grip with 2 rods
Max. clamping force 140 N at 7 bar

Max. tensile force: 70 N at COF 0.5

Jaw clamping surface: 15x15 mm

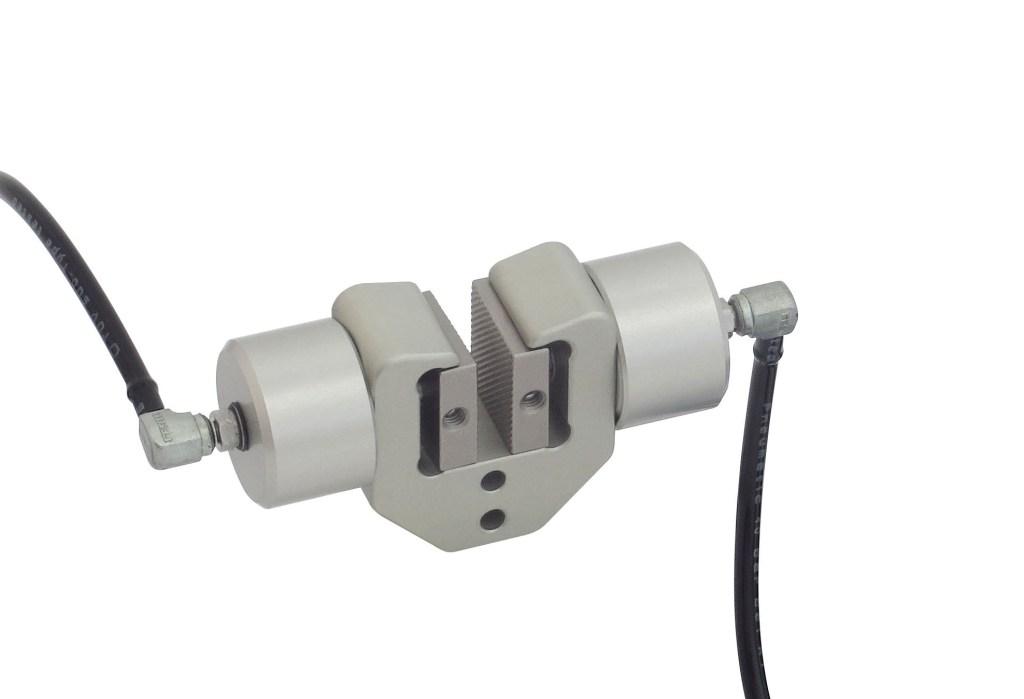

TH140s+2Ko-

TH140s+2Ko+BP



Small pneumatic grip with 2 rods

Max. clamping force 140 N at 7 bar

Max. tensile force: 70 N at COF 0.5

Jaw clamping surface: 15x15 mm

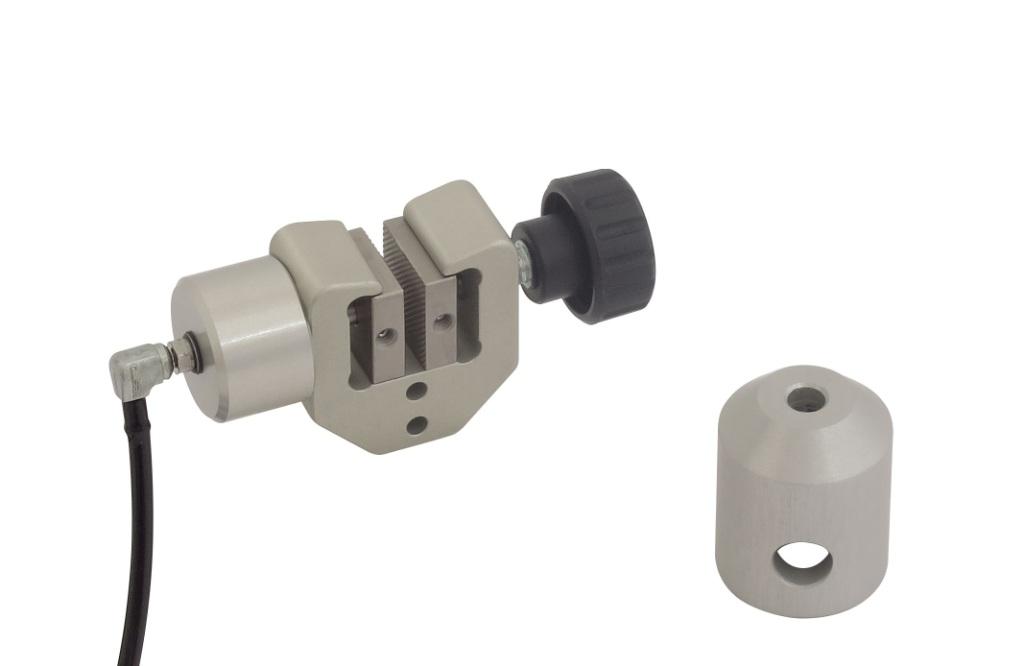

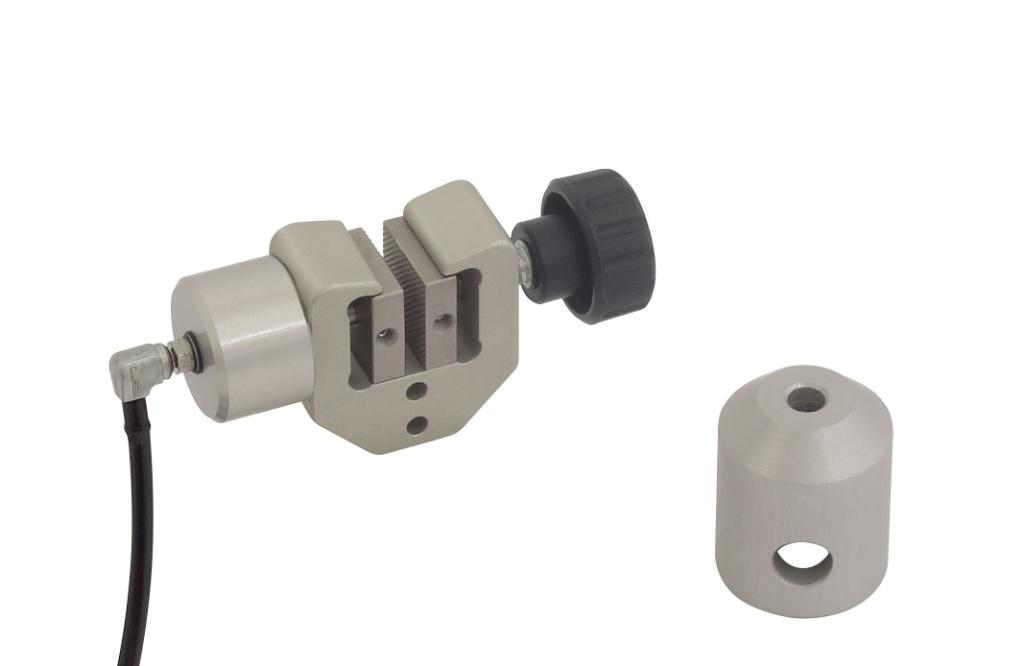

TH140s+Ko  THS637-Af159-

TH140s+Ko+BP + adapter THS637-Af159



Small pneumatic grip with 1 rod

Max. clamping force 140 N at 7 bar

Max. tensile force: 70 N at COF 0.5

Jaw clamping surface: 15x15 mm

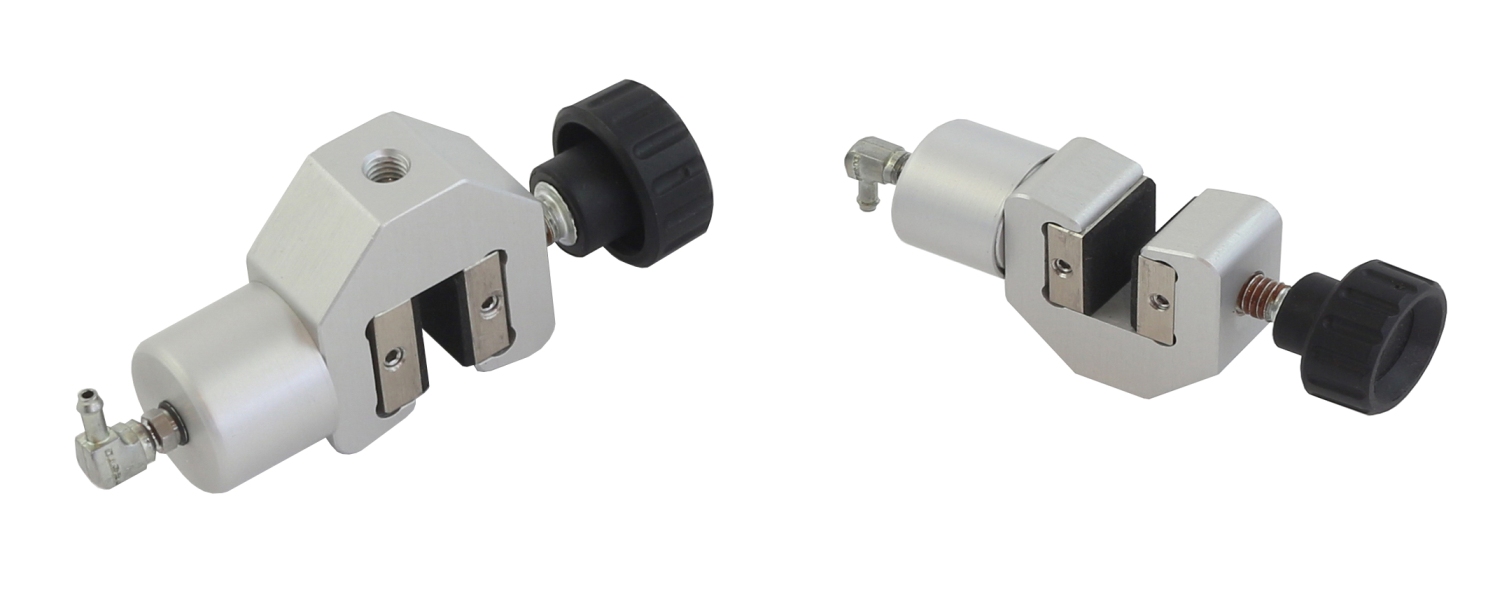

TH140Ko TH205--.jpg

TH140k+BG+Ko + TH205-4-Af159



With pneumatic micro hand switch rubber jaws
Coupling Af15.9/8
