G13 Hydraulic grips



Back

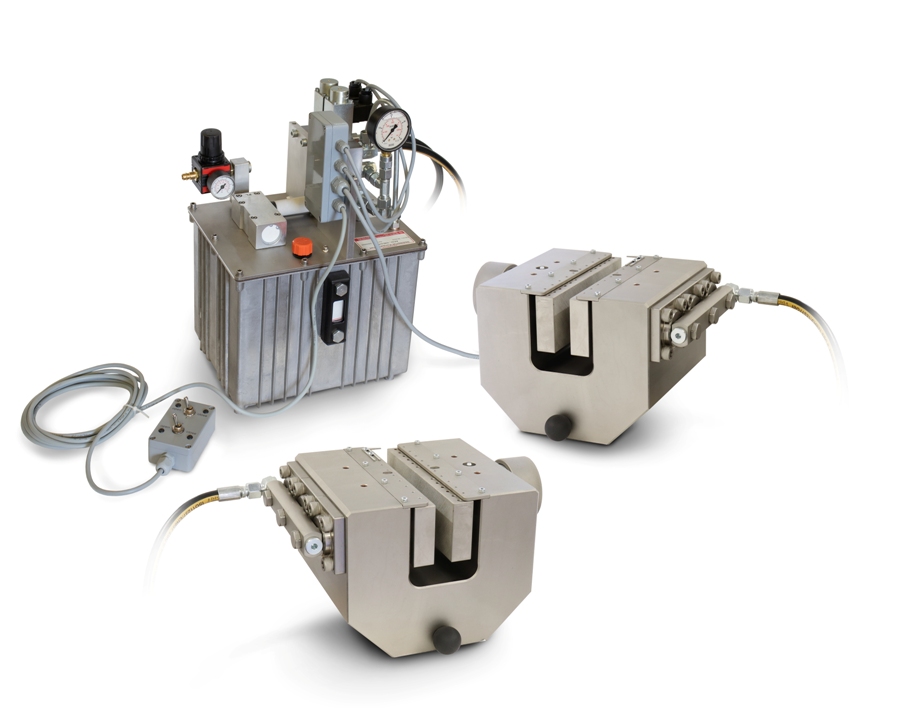

tn_TH135-180+BP  2021-08-12   User guide   02


TH135-180 + TH135-Pu2-2-400

Hydraulic grip
Clamping force 180 kN
/ 315 bar

Hydraulisches Spannzeug 180 kN Spannkraft / 315 bar

Description: Description: pdf_icon.gifTH135 Datasheet.pdf
Description: Description: pdf_icon.gifTH135 Datenblatt.pdf

Incl. hydraulic pump TH135-Pu2

Description: Description: pdf_icon.gifTH135-Pu Datasheet.pdf
Description: Description: pdf_icon.gifTH135-Pu Datenblatt.pdf

Jaws

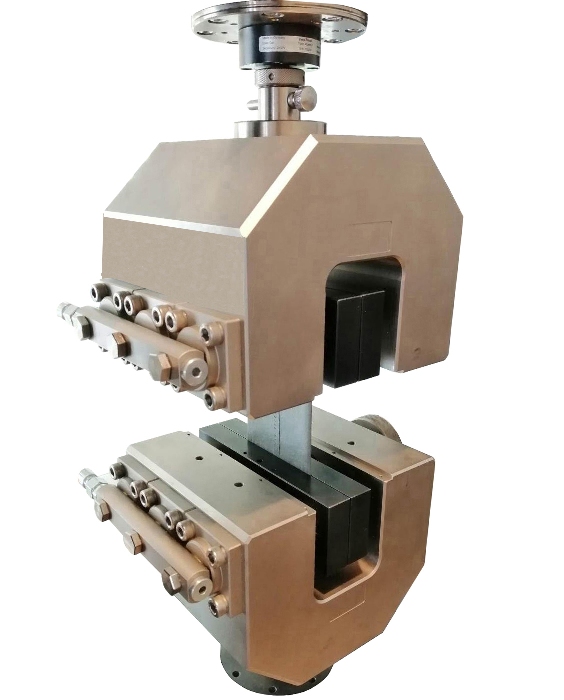

tn_TH135-180 + BP2100 in tensile tester vug

TH135-180 + BP210

Hydraulic grip with side cover plate
Jaw size 70x210 mm
Steel, nickel-plated
Temperature range: 0...+70C

See video

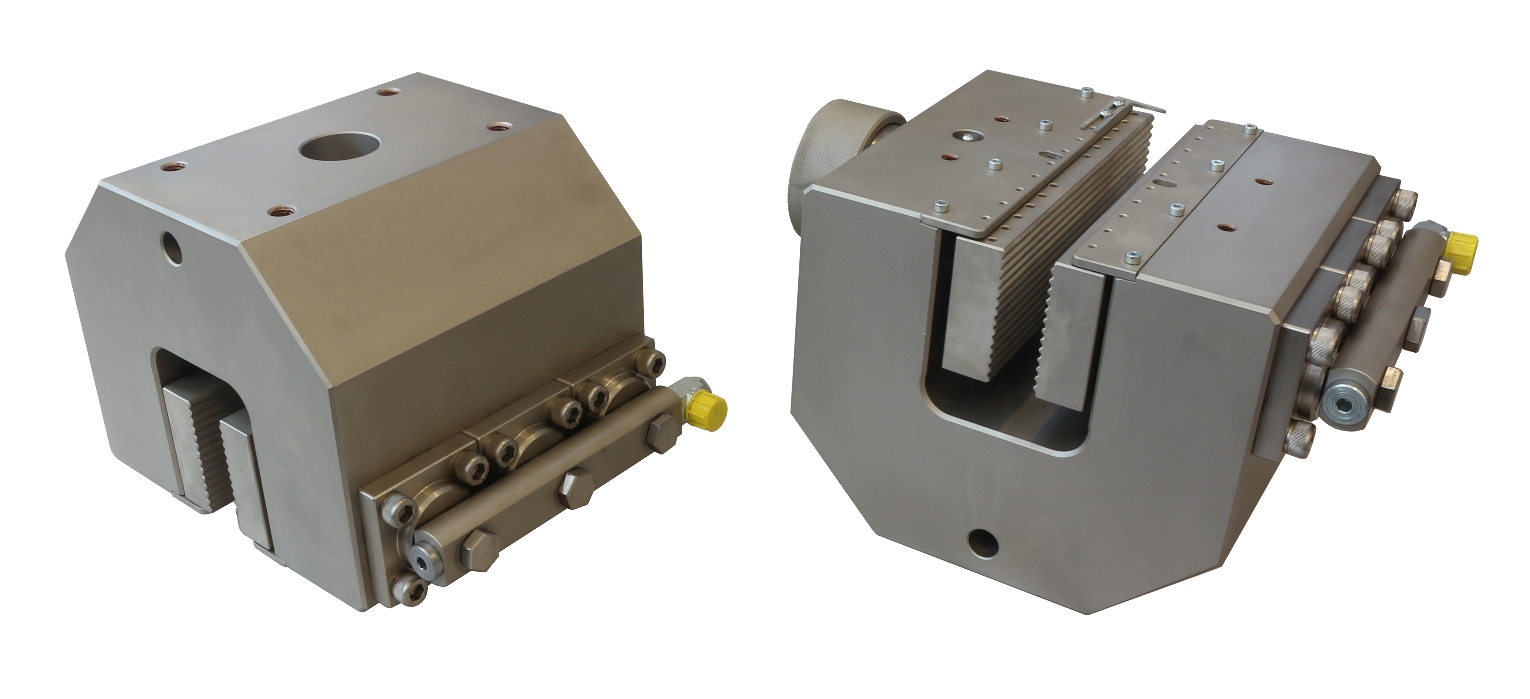

TH135-180-Af40_2023-05-22

TH135-180 + BW

Hydraulic grip with wave jaws for textiles

Clamping force: 180 kN / 315 bar
Jaw size 70x210 mm

Max stroke: 15 mm

Steel, nickel-plated

Temperature range: 0...+70C

Coupling Af40/16

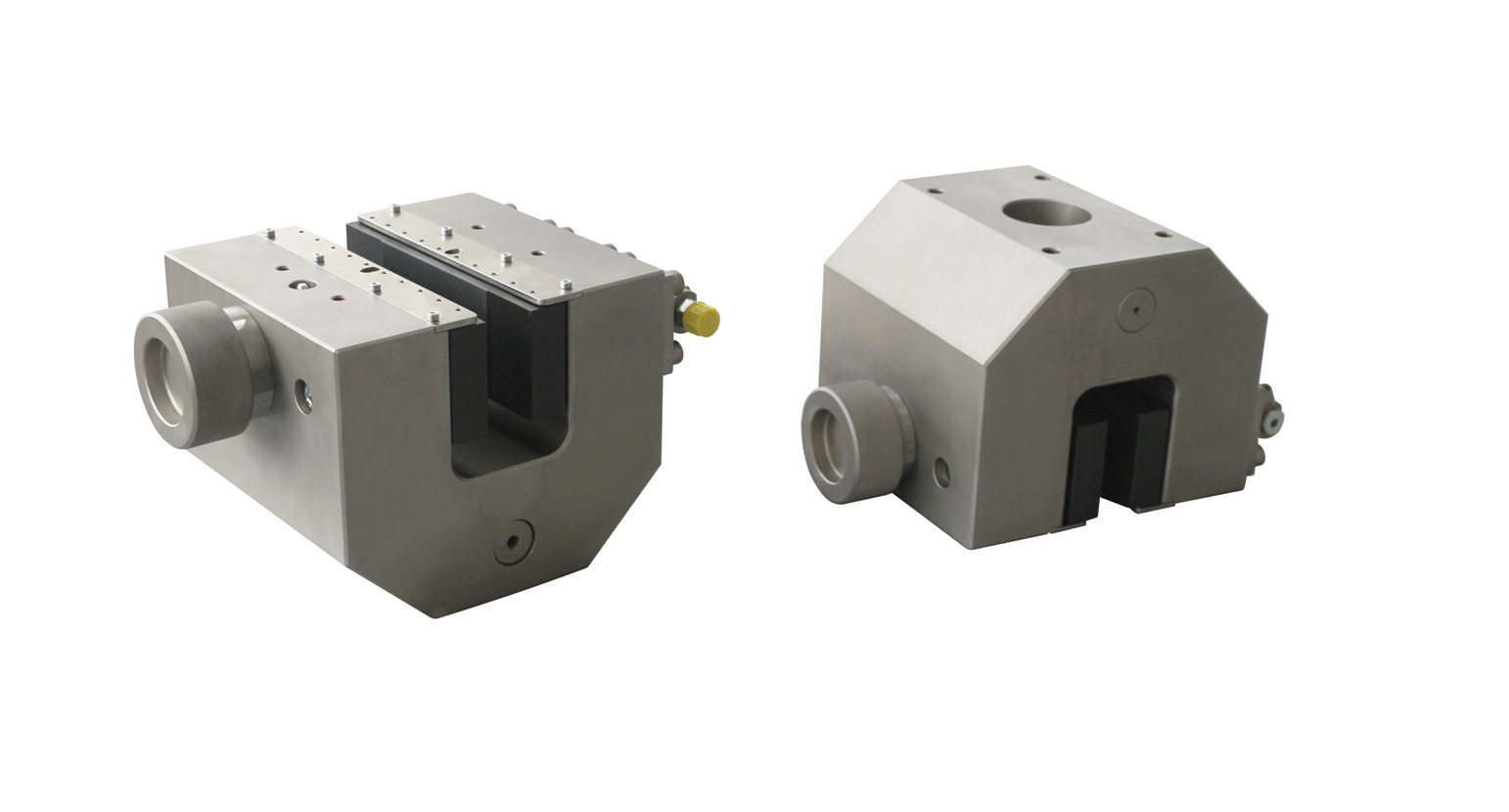

Description: Description: tn_TH135-180-Af6030_Af318-xf-2017-11-28-


TH135-180-Af6030

Coupling Af60/30-35 mm

Description: Description: tn_TH135-180-ADP 2500g incl.screws-

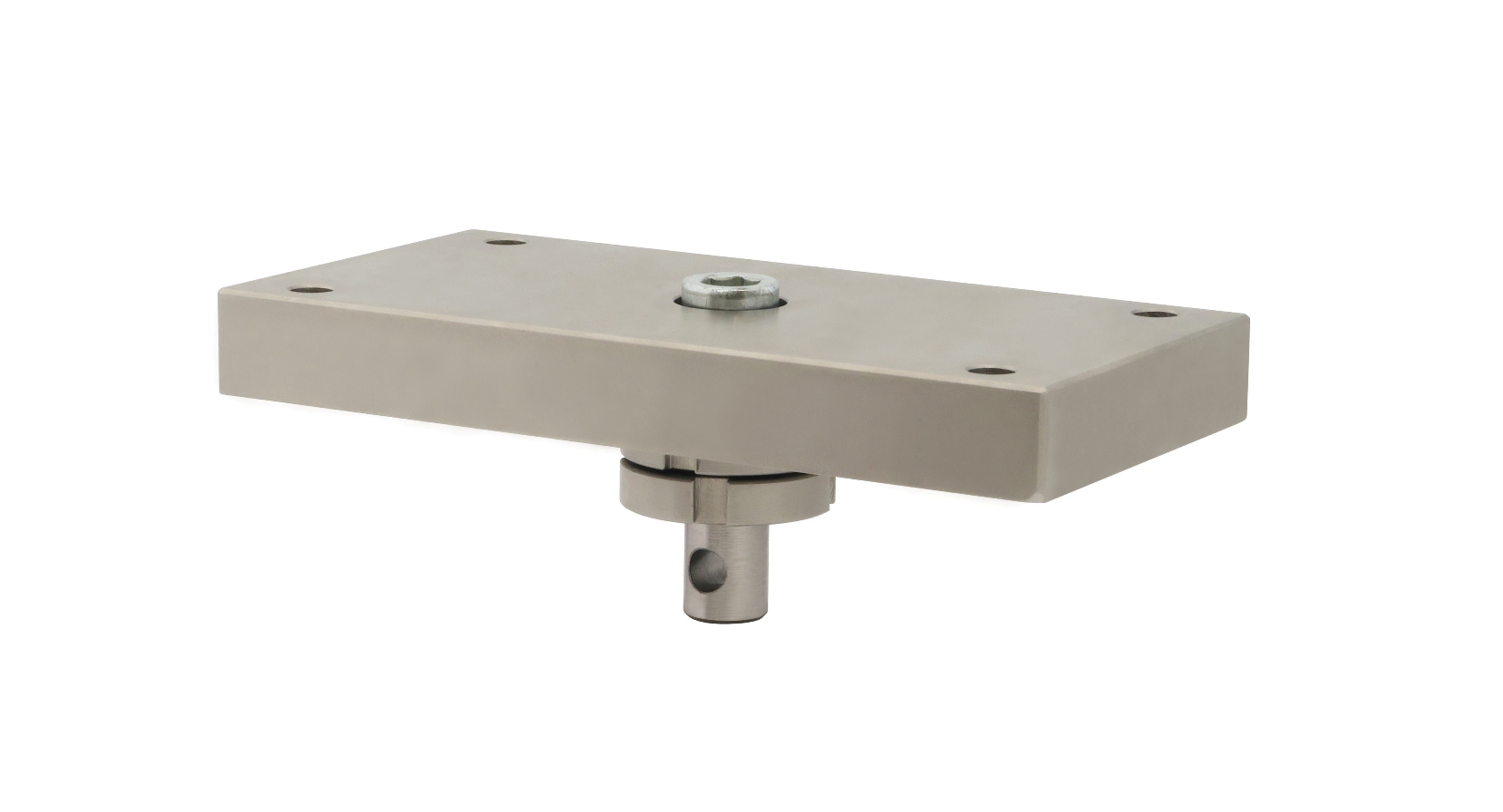

TH135-180-ADP



Adapter platen for TH135-180 to mount further fixtures without uninstalling

Coupling Am158

tn_THS1220-10b 2022-02-26

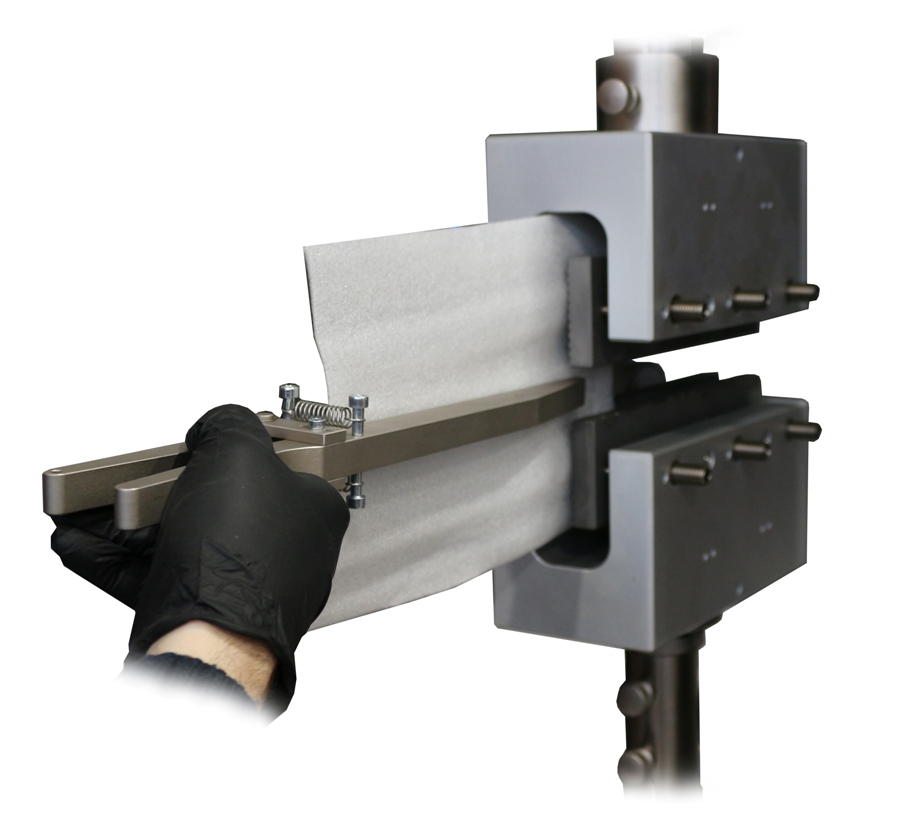

THS1220-10

Safety pliers for putting samples in grip

Description: Description: pdf_icon.gifTHS1220 Datasheet.pdf
Description: Description: pdf_icon.gifTHS1220 Datenblatt.pdf

more

Special versions

more
