G13 Hydraulic grips



Back



tn_THS872-100_



THS872-100

Hydraulic grip

Clamping force 170 kN at 350 bar

Max. jaw opening 0 – 30 mm



Hydraulischer Spannkopf

Spannkraft 200 kN bei 350 bar

Max. Öffnungsweite 0 – 30 mm

Description: Description: pdf_icon.gif THS872 Datasheet.pdf
Description: Description: pdf_icon.gif THS872 Datenblatt.pdf



tn_THS872-100-Af318

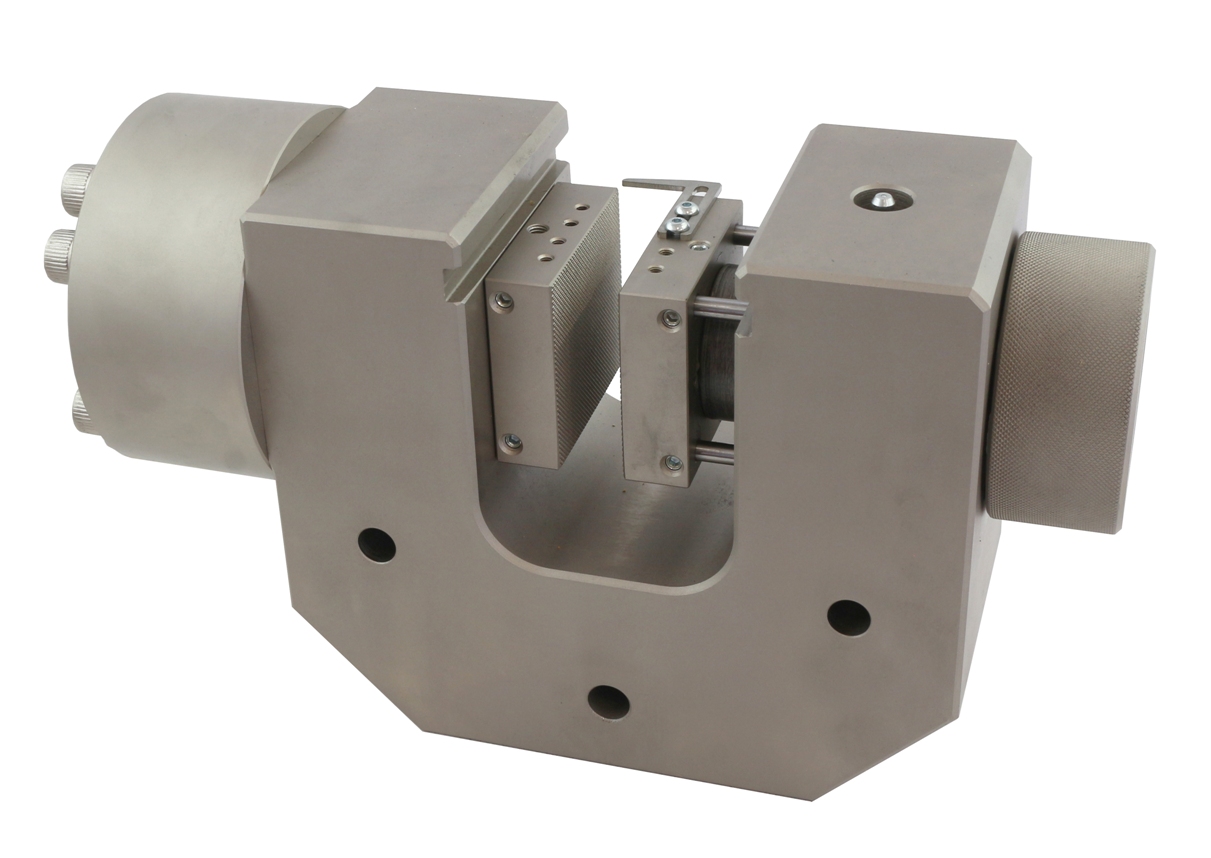

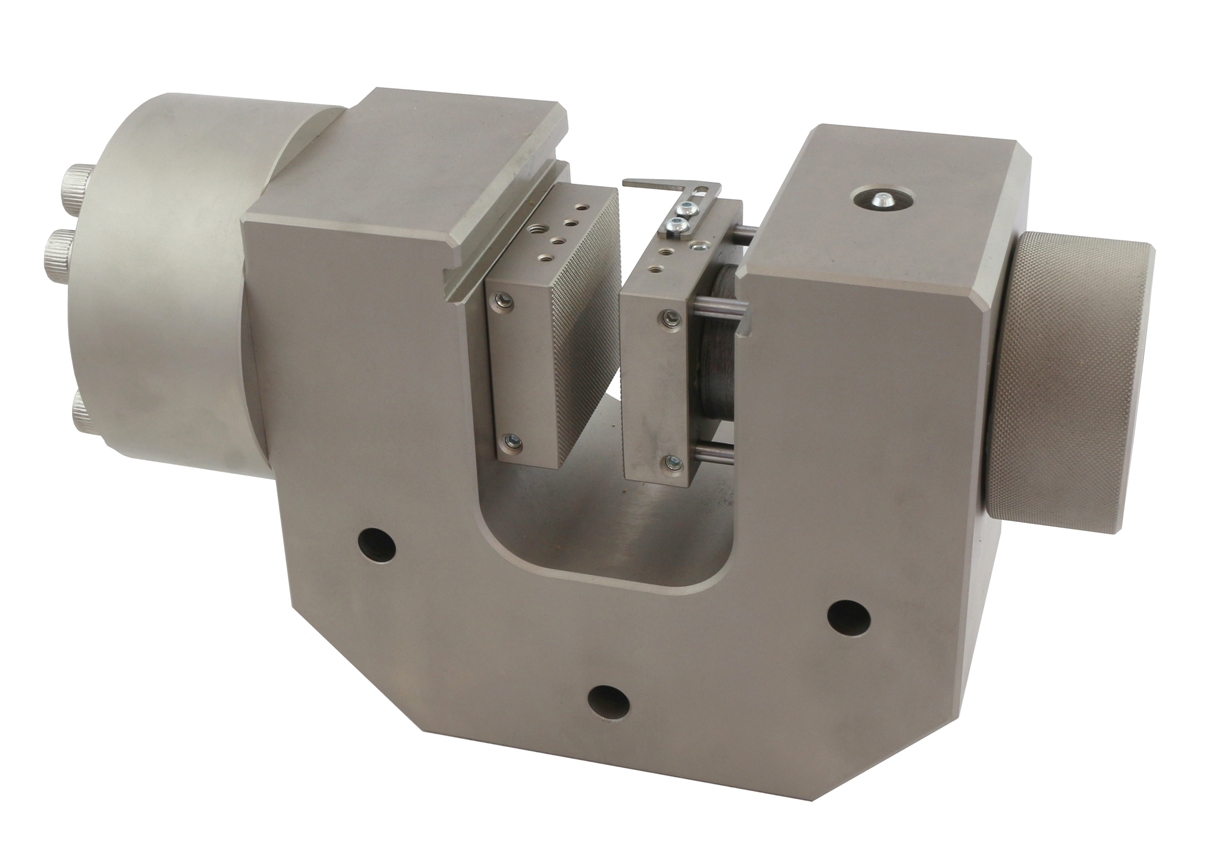

THS872-100

tn_THS872-100-2KO  29,3kg  15-03-2018  05-

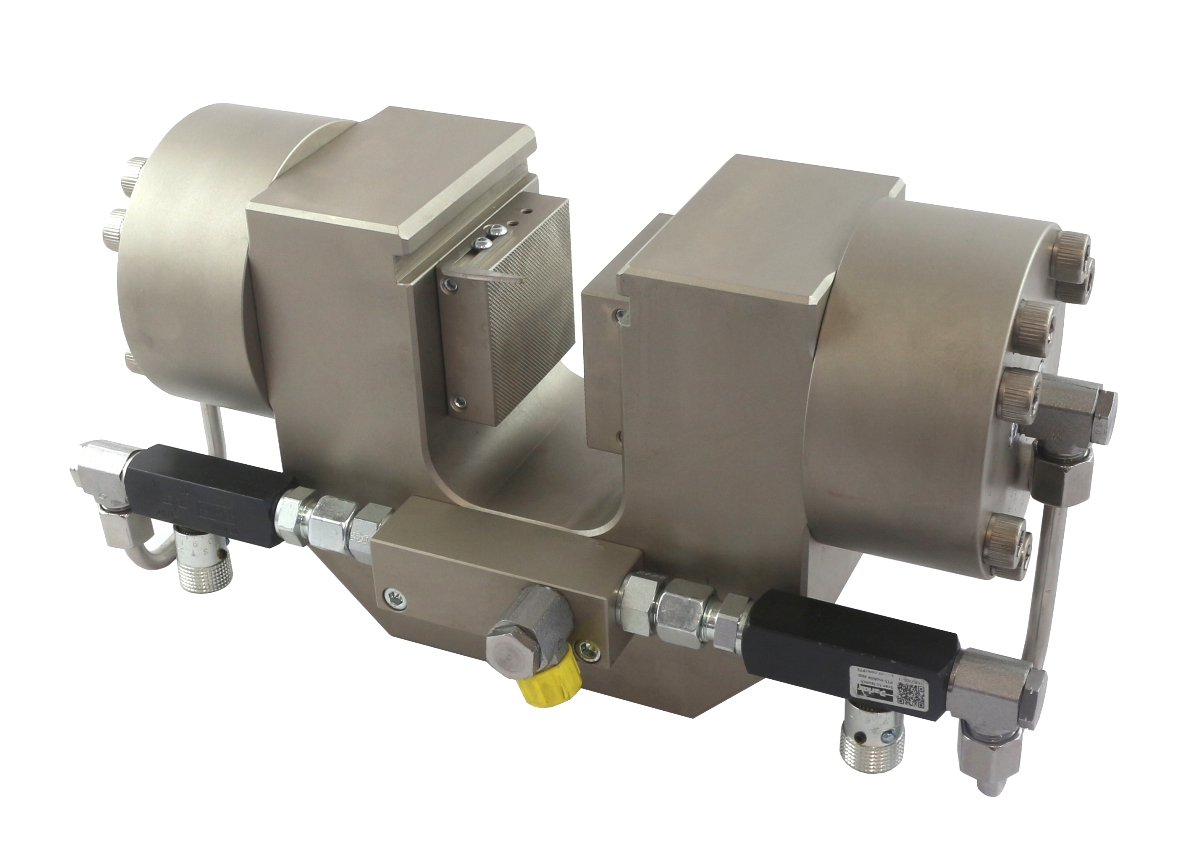

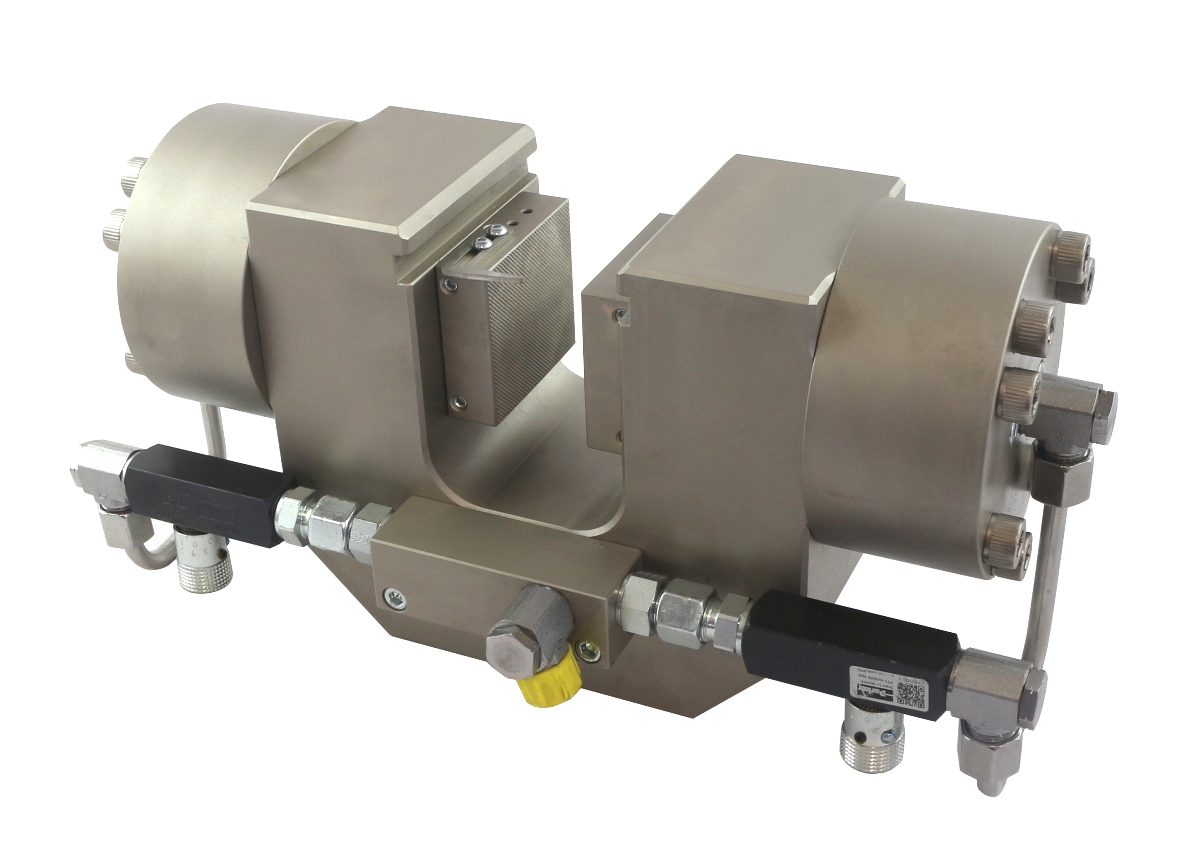

THS872-100+2Ko



Special version with 2 rods and

back throttle to adjust pressure

tn_THS872-100-2KO  29,3kg  15-03-2018  02-

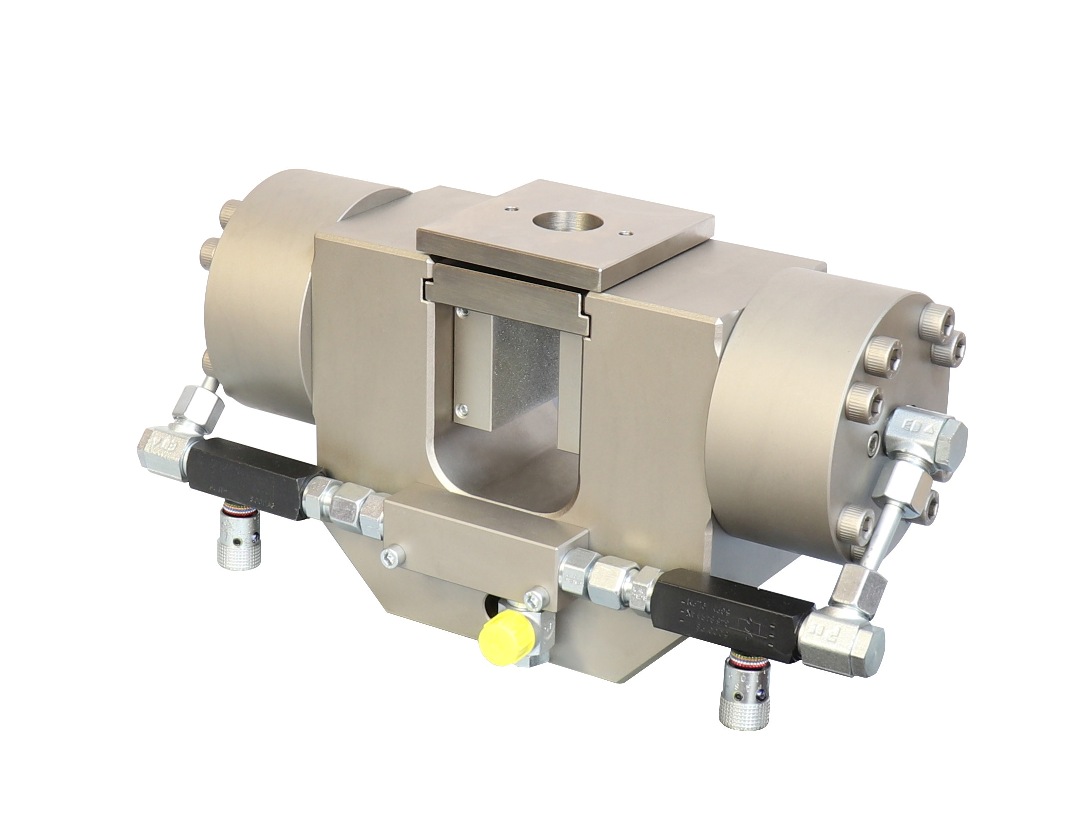

THS872-100-KA



Special adapter platen to connect further fixtures to THS872-100 without dismounting the grip

tn_THS872-100-2KO  29,3kg  15-03-2018  03-

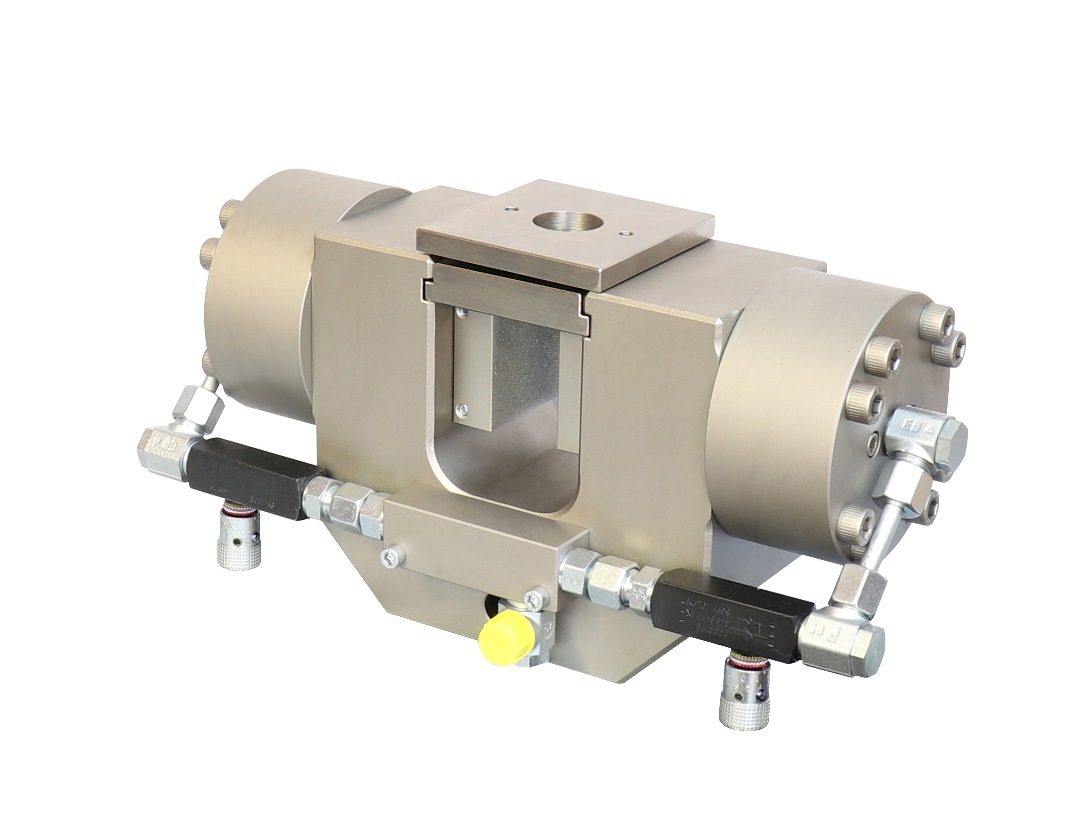

THS872-100-KA



Adapter platen with a male adapter

tn_THS872-100-ES+EG + THS626-40-50175 Adapter-Platte  1624g  15-03-2018  02-

THS872-100-KA



Adapter platen

+

adapter male 40/16 mm - thread –

male 50/17.5 mm

tn_THS872-BDV  560g  15-03-2018  02-

THS872-100-BDV



Customized diamond coated V-jaws

for round samples 6-20 mm Ø

THS872-100-2Ko-Af40_16 BP-R59 BP-R60 BP-R62-xc-2017-01-23_backen

THS872-100-BP-R59, -R60, -R62



Special jaws to test pipe segments

Radii 59, 60, and 62 mm
