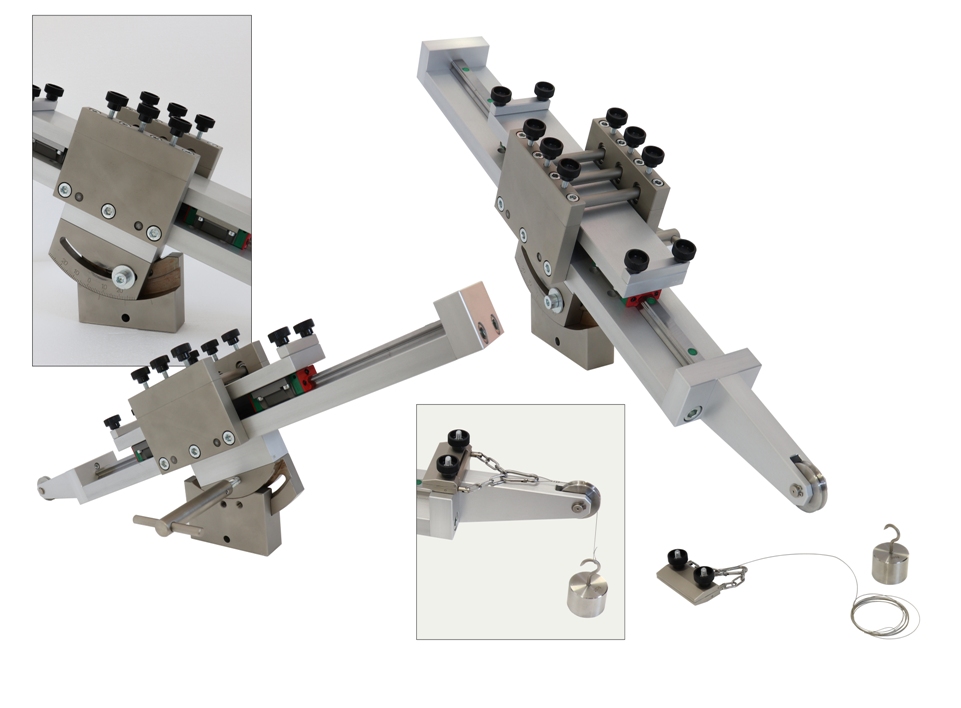

THS1964-Am16635_thermoplastic_tape_peel_test_8.8kg_04

THS1964-V21



Special peel test fixture for testing thermoplastic tape

Adjustable peel angle ±30°

Test plate working surface 60x230 mm

Max. load 5 kN

Steel + aluminium

Incl. small pincer grip for puling the sample and 200 g weight

Spezielle Abziehprüfvorrichtung zur Prüfung von thermoplastischem Band Einstellbarer
Abziehwinkel ±30°
Arbeitsfläche der Testplatte 60x230 mm Max. Last 5 kN
Stahl + Aluminium
Inklusive kleiner Zange zum Ziehen der Probe und 200 g Gewicht

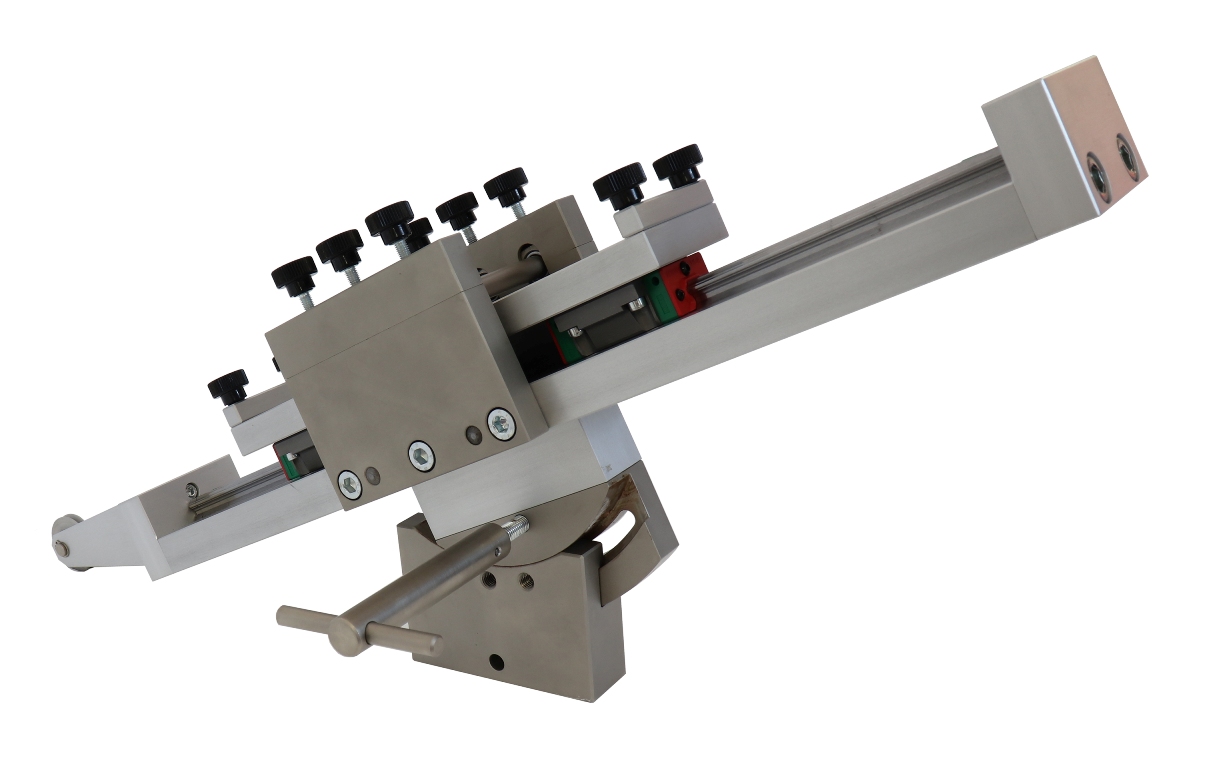

THS1964-Am16635_thermoplastic_tape_peel_test_8.8kg_02

THS1964-V21

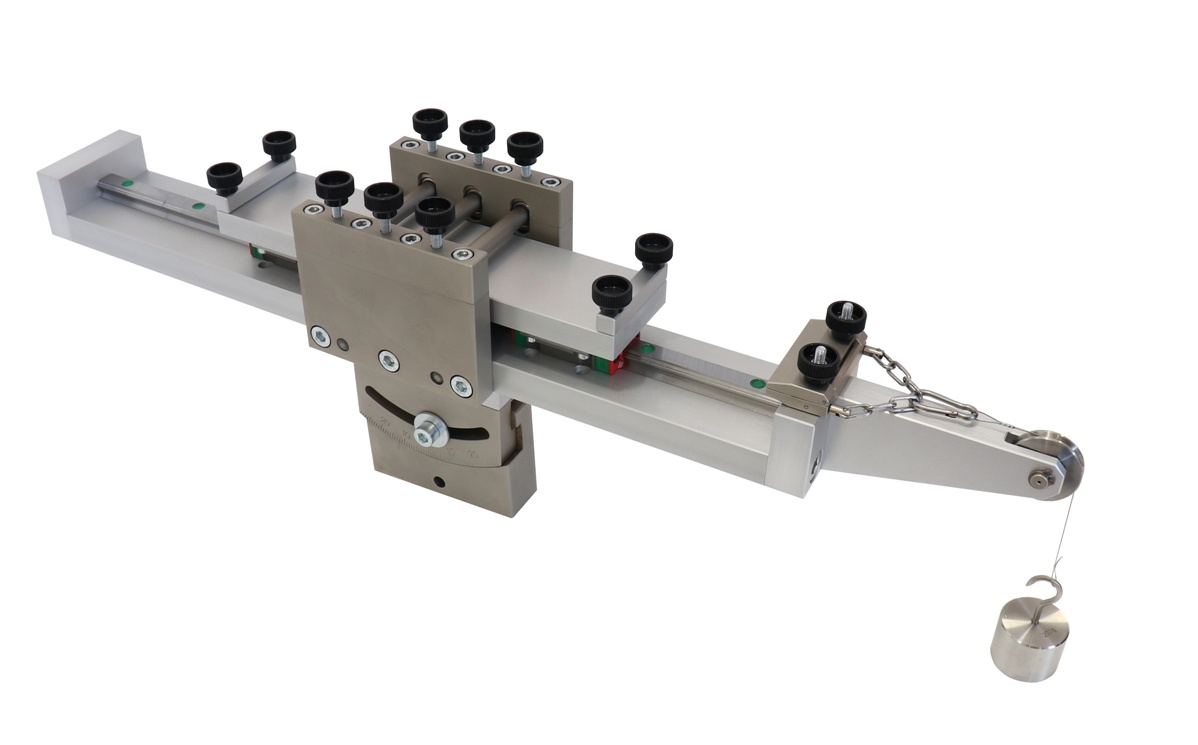

THS1964-Am16635_thermoplastic_tape_peel_test_8.8kg_01

THS1964-V21

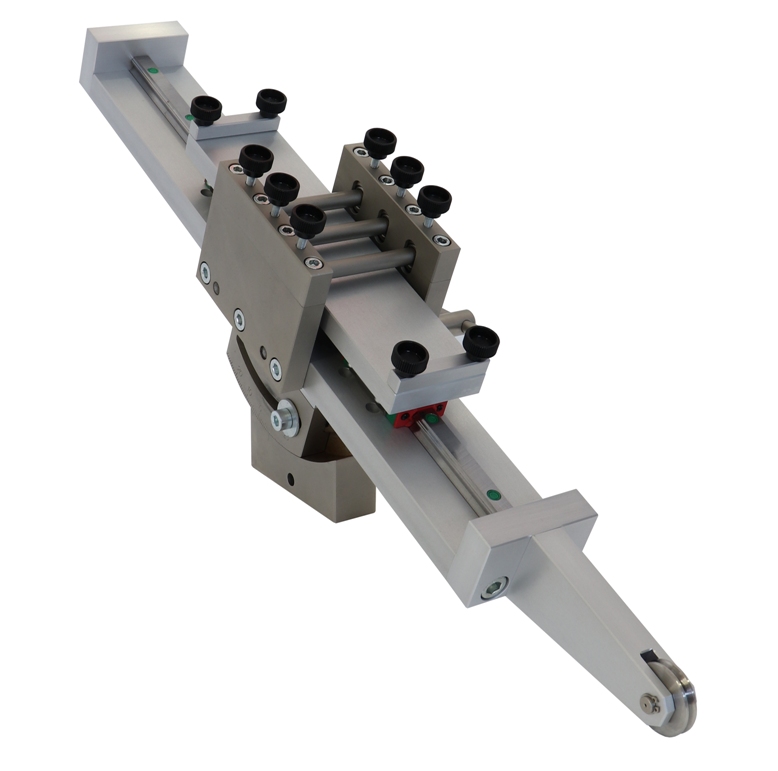

THS1964-Am16635_thermoplastic_tape_peel_test_8.8kg_03

THS1964-V21

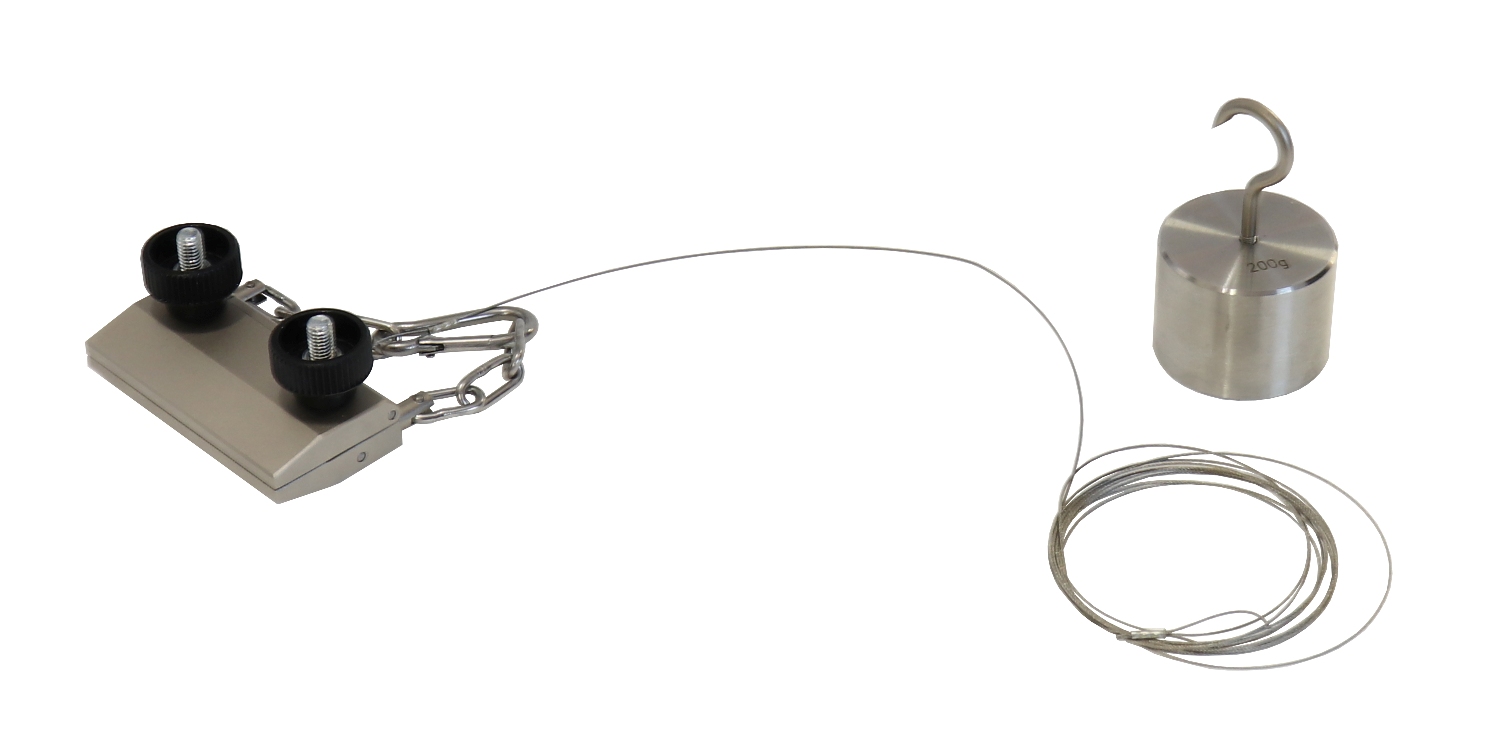

THS1964_2024-04-05_08

Small pincer grip for puling the sample and 200 g weight for THS1964-V21

Kleine Zange zum Ziehen der Probe und 200 g Gewicht für THS1964-V21
