G14 Peel Grips



Back



Description: Description: TH177-25-3SP-W50 2019-07-26 03

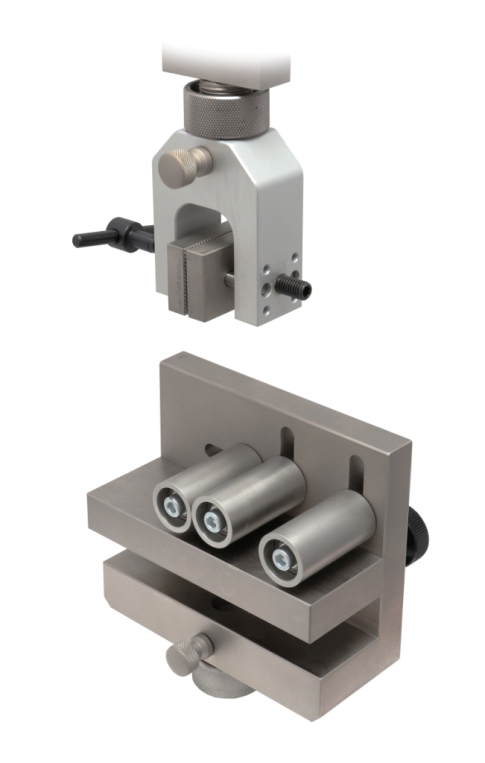

TH177-25-3SP-W50



Peel grip, roller diameter 25 mm

Max. specimen width 50 mm,
Adjustable height to insert specimen
0-22 mm

Abzugsvorrichtung,

Rollen-Durchmesser 25 mm,

Max. Prüflingsbreite 50 mm,
Einstellbare Höhe zum Einlegen des Prüflings 0-22 mm

Description: Description: TH177-25-3SP-W50 2019-07-26 02

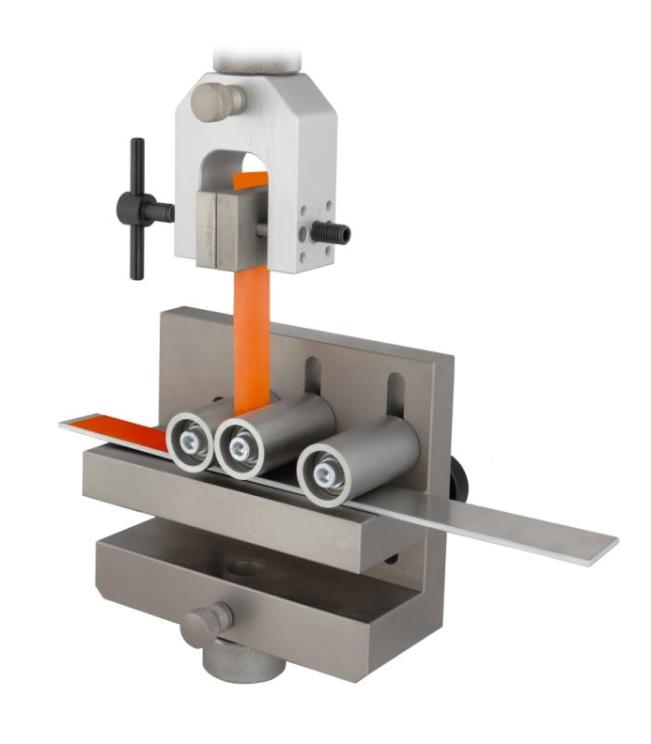

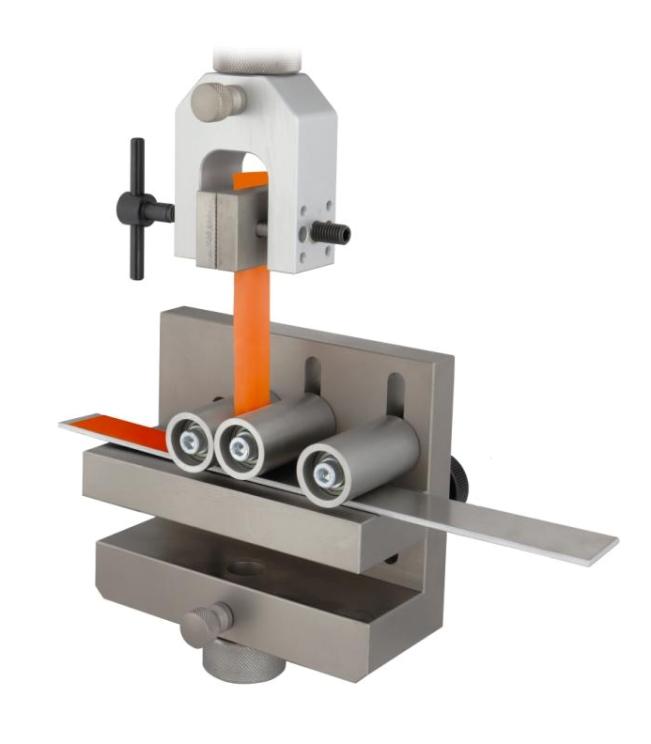

TH177-25-3SP-W50



Animation

tn_TH177-20 -25-6SP-W60-GS-Am317 Peel G14 3.8+4.3kg IMG_2462

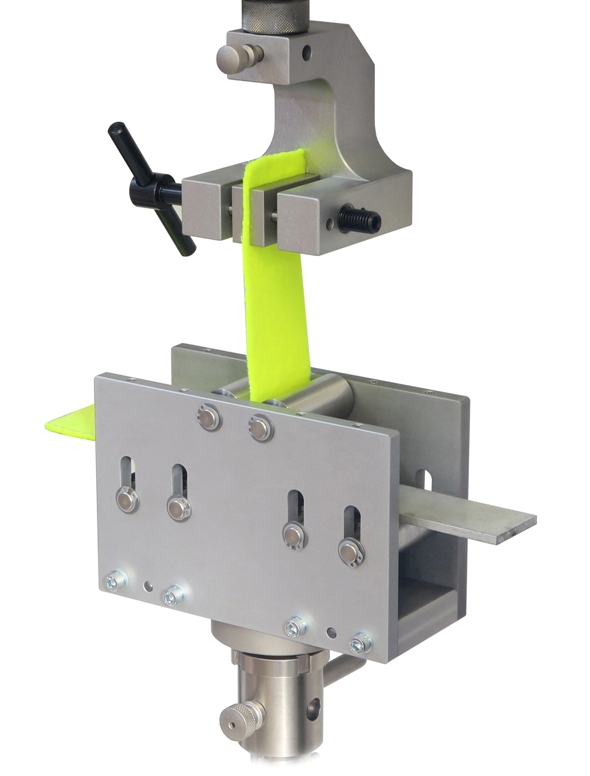

TH177-20-6SP-W60-GS-Am317

TH177-25-6SP-W60-GS-Am317



Special peel test fixtures with rollers 20 mm and 25 mm Ø and 60 mm width

tn_TH177-20 -25-6SP-W60-GS-Am317 Peel G14 3.8 4.3kg IMG_2460-


TH177-20-6SP-W60-GS-Am317

TH177-25-6SP-W60-GS-Am317

tn_TH177-20 -25-6SP-W60-GS-Am317 Peel G14 3.8 4.3kg IMG_2459-


TH177-20-6SP-W60-GS-Am317

TH177-25-6SP-W60-GS-Am317

tn_TH177-25-16SP-W200-GS 34,6kg 2021-01-19 02

TH177-25-16SP-W200-GS

Special peel test fixture, max. load 15 kN

For specimens max. 60 mm thick,
200 mm wide

Incl. 16 rollers, 25 mm diameter

Coupling Af159

Steel, nickel-plated
