G16 Standards



Back



Description: Description: Description: Description: Description: Description: tn_TH238+CR0.1V90-OR1-St-ISO9626 needle tubing bend test 1.6kg 02

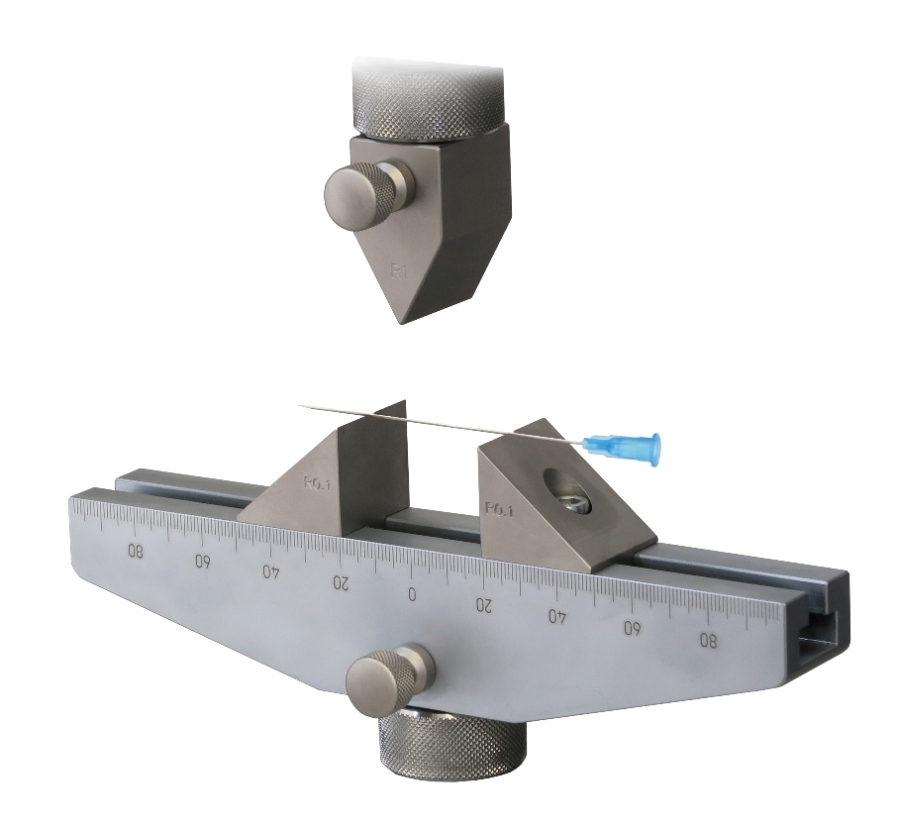

TH238+CR0.1V90-OR1-St

3-Point bending fixture to test stainless steel needle tubings according to
DIN EN ISO9626, DIN EN ISO7886-1-Fig.E1

3-Punkt Biegevorrichtung zum Testen von Kanülenrohren aus nichtrostendem
Stahl zur Herstellung von Medizinprodukten gemäß DIN EN ISO9626, , DIN EN ISO7886-1-Fig.E1

more

Description: Description: Description: Description: Description: Description: tn_THS306-V2-needl-holder-edited  spritze -

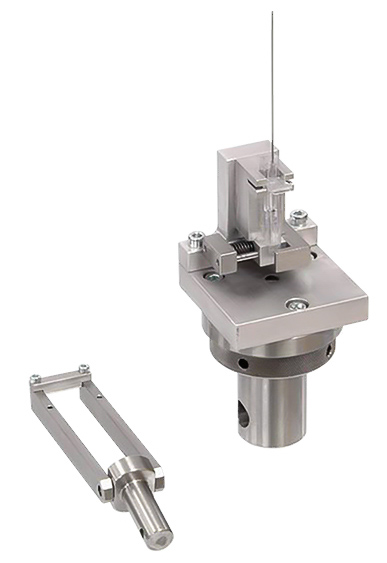

THS306-V2

Special fixture to test syringe needles, stainless steel, coupling Af159

Sondervorrichtung zum Testen von Spritzennadeln, Edelstahl, Anschluss Af159

more

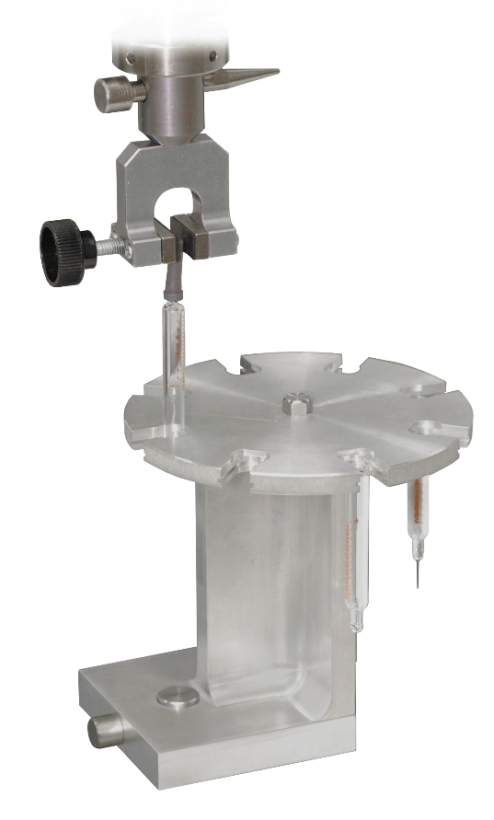

Description: Description: Description: Description: Description: Description: tn_THS162-310 lower part  TH227+BG upper part   Spritzenkappen 03

THS162-310 lower part



TH227+BG upper part

Description: Description: Description: Description: Description: Description: tn_THS727-80 Spritze Syringe-

THS727-80



Syringe holder incl. interchangeable inserts

to accomodate syringes of different sizes



more

Description: Description: Description: Description: Description: Description: tn_THS1035-20-E23-Af15,9-AL  350g  2019-03-29  01

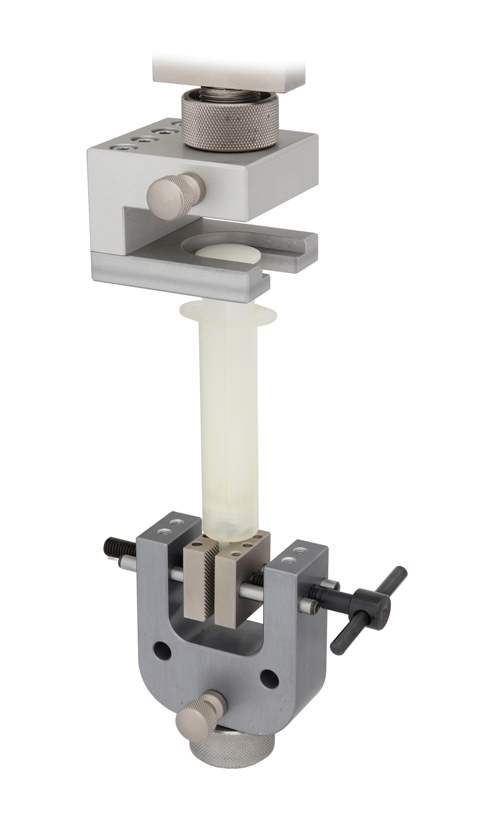

THS1035-20-E23



Syringe holder, aluminium

Max. sample diameter 22 mm



more

Description: Description: Description: Description: Description: Description: tn_THS1114-120-Af159%20+%20THS566-6.5-M6%20NEEDLE%20TESTING%20DIN%20EN%20ISO7864%202$A1 01

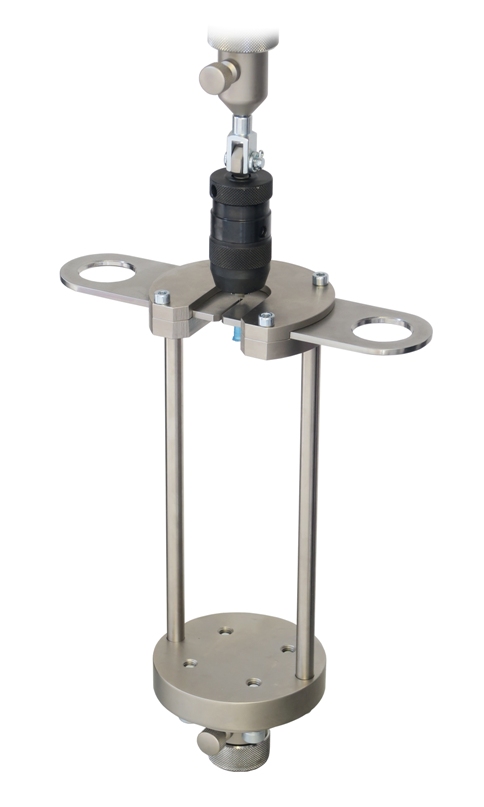

THS1114-120-Af159 + THS566-6.5-M6



Test fixture to measure the mechanical resistance between the metal part and the plastic part on the needle.

With a specimen.

Opening of the upper part to accommodate the specimen:0 - 6.5 mm Ø



Öffnung für die Nadel 0 - 6,5 mm Ø

Mit Muster.



more

tn_THS1256-V1+THS42-F13-L95-Af159,  ISO11608-3 TH23-25-Af159-ST  2020-07-22  A1  Spritze Syringe 04

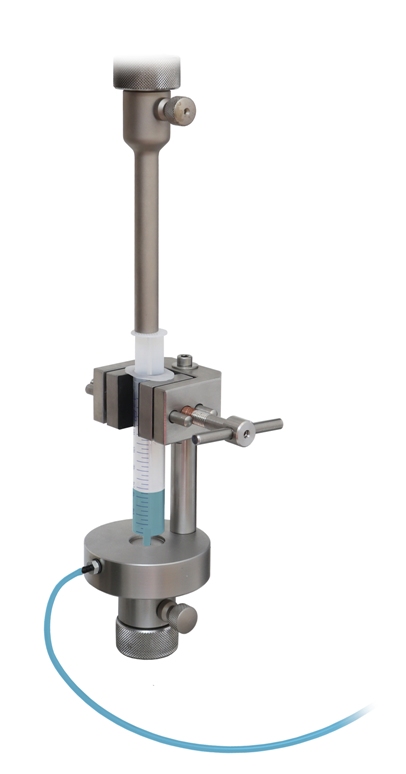

THS1256-V1-ISO11608-3



Syringe cartridge test fixture according to DIN EN ISO 11608-3



Vorrichtung zum Testen von Fertigbehältern der kanülenbasierten Injektionssysteme gemäß DIN EN ISO11608-3



more

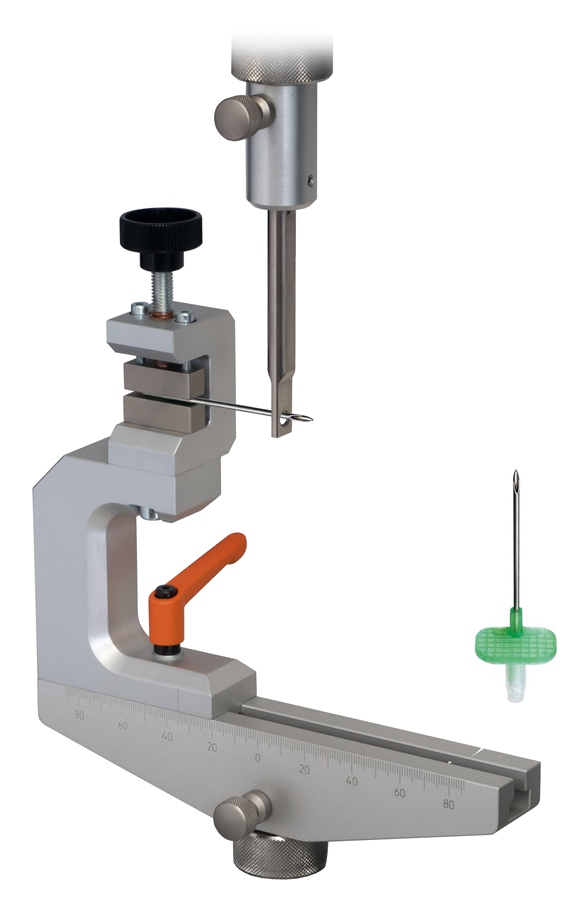

THS1588-ISO9626-Ann.C



Special bend test fixture to test stainless steel needle tubing according to DIN EN ISO9626-Ann.C, DIN EN ISO7886-1-Fig.E1



Sonder Biegevorrichtung zum Testen von Kanülenrohren aus nichtrostendem Stahl zur Herstellung von Medizinprodukten gemäß DIN EN ISO9626-Ann.C, DIN EN ISO7886-1-Fig.E1



more

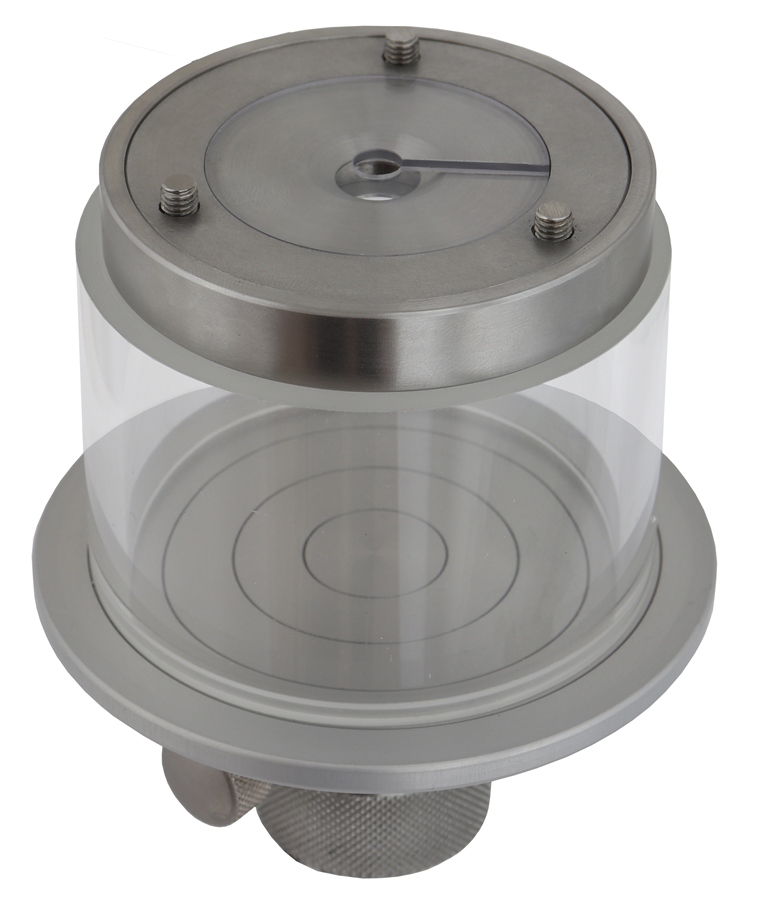

THS1406



Special fixture for coring testing of Huber needles according to ASTM-F3212



Vorrichtung zum Prüfen von Spezialpunktionskanülen nach ASTM-F3212



more
