Biomedical

Syringe Testing



Back



Fixture to test sterile hypodermic syringes

(single use syringes, for manual use )

according to DIN EN ISO7886-1-Fig.E1

for compression and tensile tests

to measure the load necessary to push fluid through the needle



Vorrichtung zum Testen von Spritzen

(Einmalspritzen zum manuellen Gebrauch)

gemäß DIN EN ISO7886-1-Fig.E1

zur  Prüfung  der Betätigungskraft einer Sprtize

um Flüssigkeiten durch eine Nadel zu spritzen

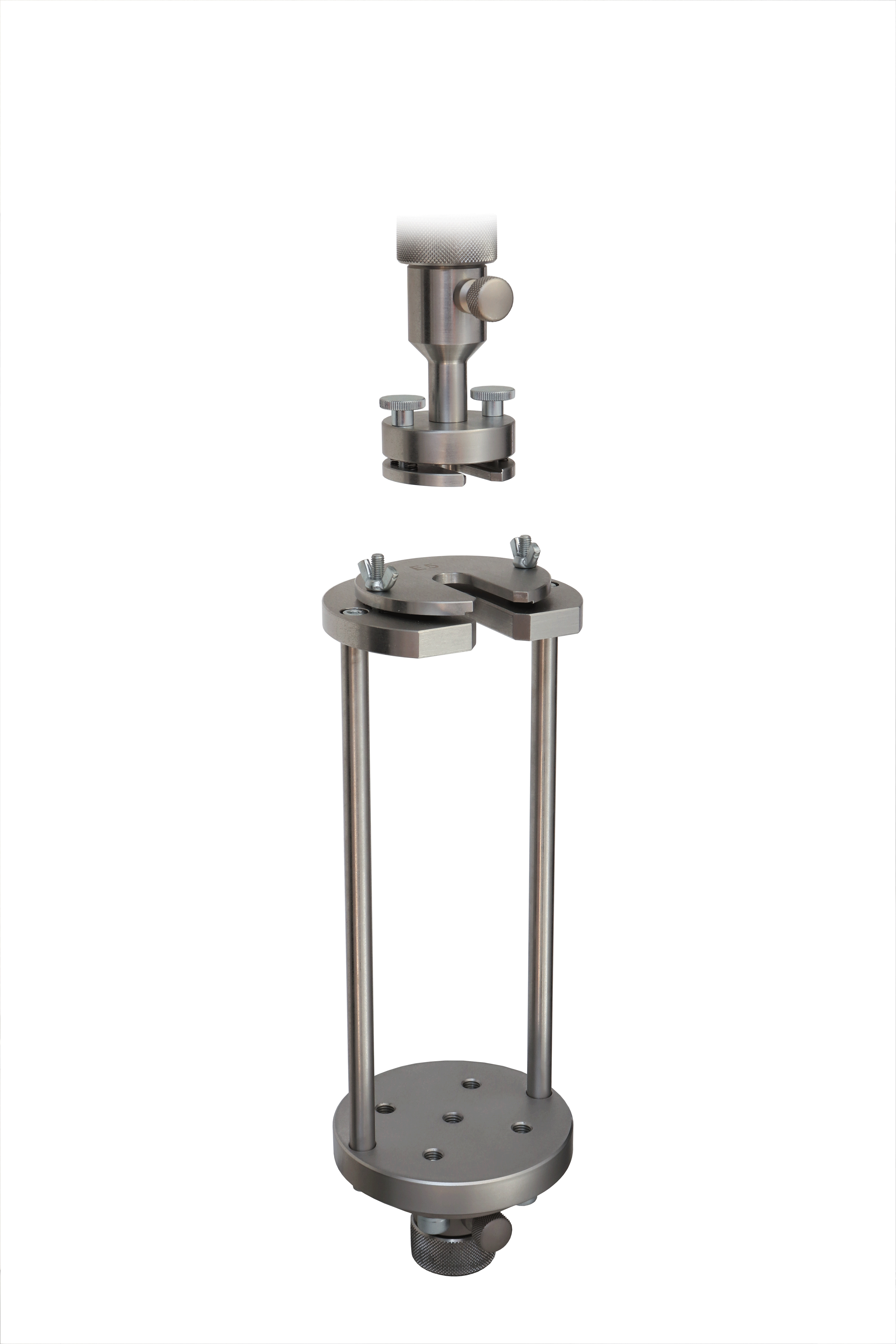

tn_THS727-80 +Einsätze E3,E10 ,E5  Syringe-holder

THS727-80



Holder incl. interchangeable inserts

to accomodate syringes of different sizes



Description: Description: Description: Description: Description: pdf_icon THS727-80 Datasheet.pdf
Description: Description: Description: Description: Description: pdf_icon
 THS727-80 Datenblatt.pdf

Animation

tn_THS727-80-Einsätze +probe  4kg  spritzenhalter - Syringe

THS727-80



Insert holder with inserts to test syringes according to ISO7886-1



Halter mit Einsätzen zum Testen von Spritzen gemäß ISO7886-1



tn_THS727-80+Einsätze-E3,E10,E5

THS727-80-Exx



Inserts for syringes 3, 5, 10 ml

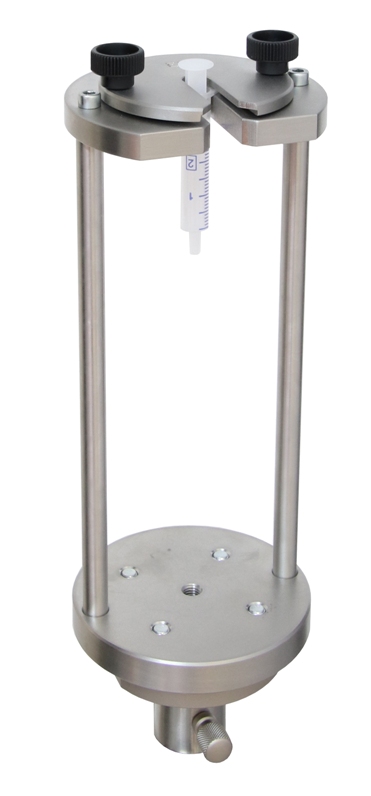

tn_THs727-80-E3+probe-4kg

THS727-80-E3

Holder with insert for testing 3 ml syringes

tn_THS727-80-E5+probe-4kg

THS727-80-E5

Holder with insert for testing 5 ml syringes

tn_THS727-80-E10+probe-4kg

THS727-80-E10

Holder with insert for testing 10 ml syringes

THS727-80-Af159+E3+E5



Holder with inserts for tensile test on 3 ml and 5 ml syringes

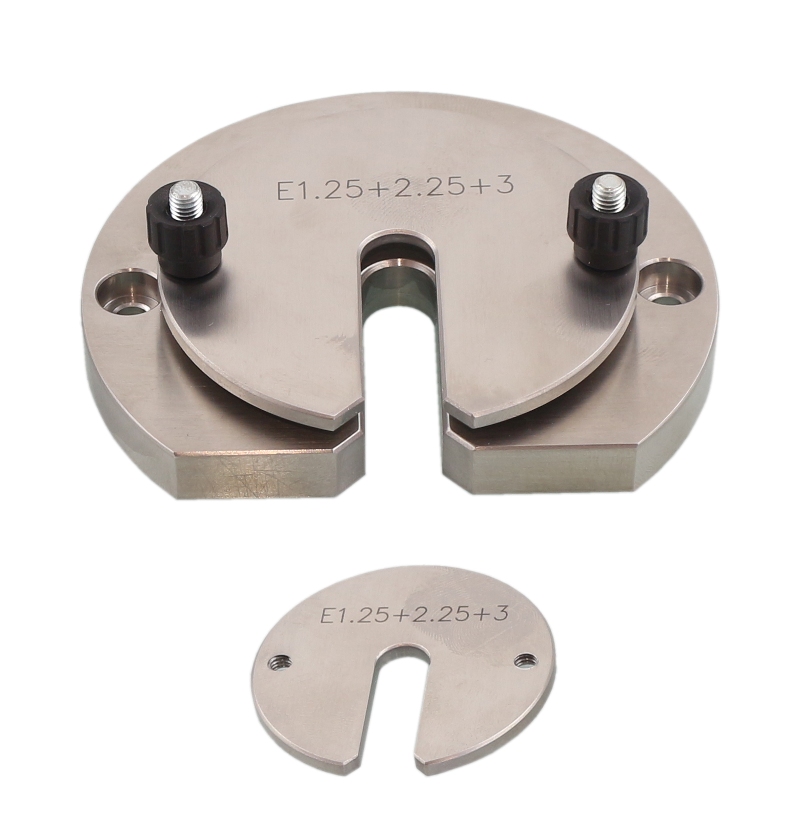

THS727-80-E1.25+2.25+3



Inserts for testing 1.25 ml, 2.25 ml and 3 ml syringes

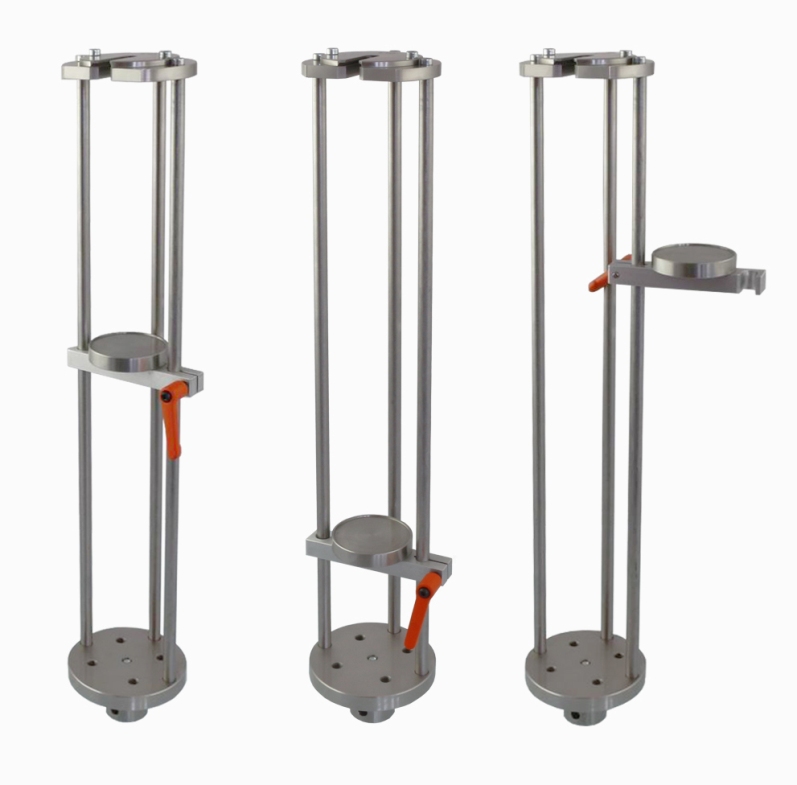

Description: tn_THS727-80-H500+E10+TH23-56-Af159-Al-x 2020-04-28  04

THS727-80-H500+E10+tbl

With cup table
Height adjustable

Mit einer Tassenablage
höhenverstellbar

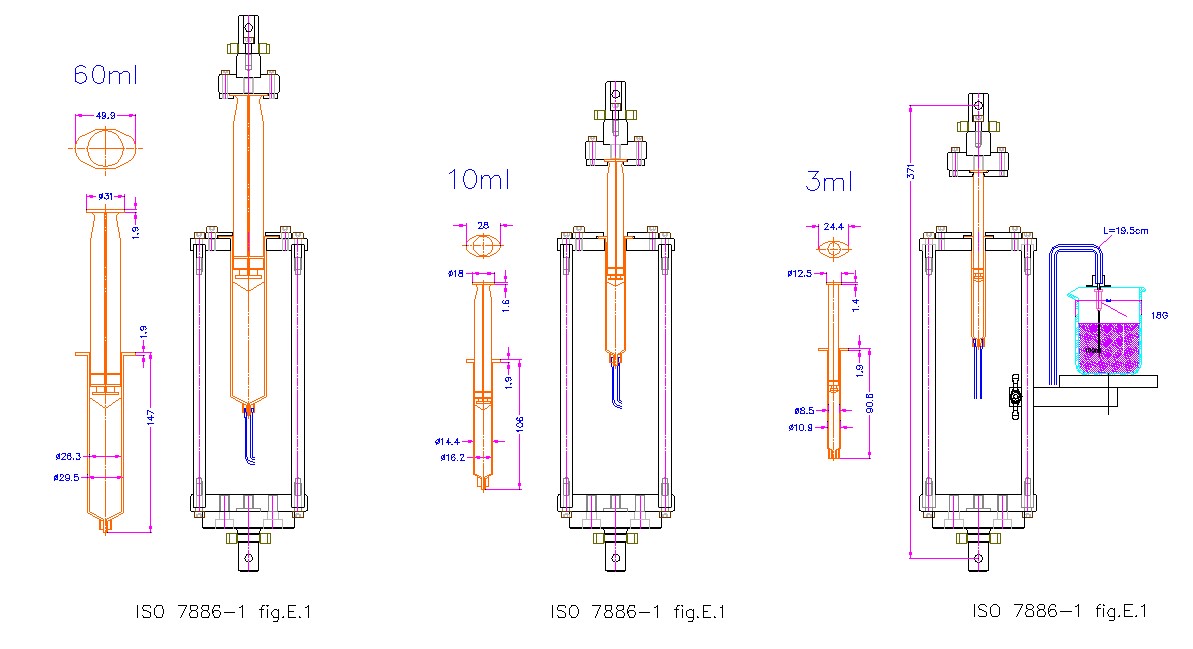

Description: THS727-80-Am16-tbl iso7886-1-Fig-E1 Syringe Spritze
