THS1051-V2 (similar to ASTM-D8067) stress-strain of fabrics, in-plane shear of sandwich panels 14.1kg

THS1051-V2-ASTM-D8067

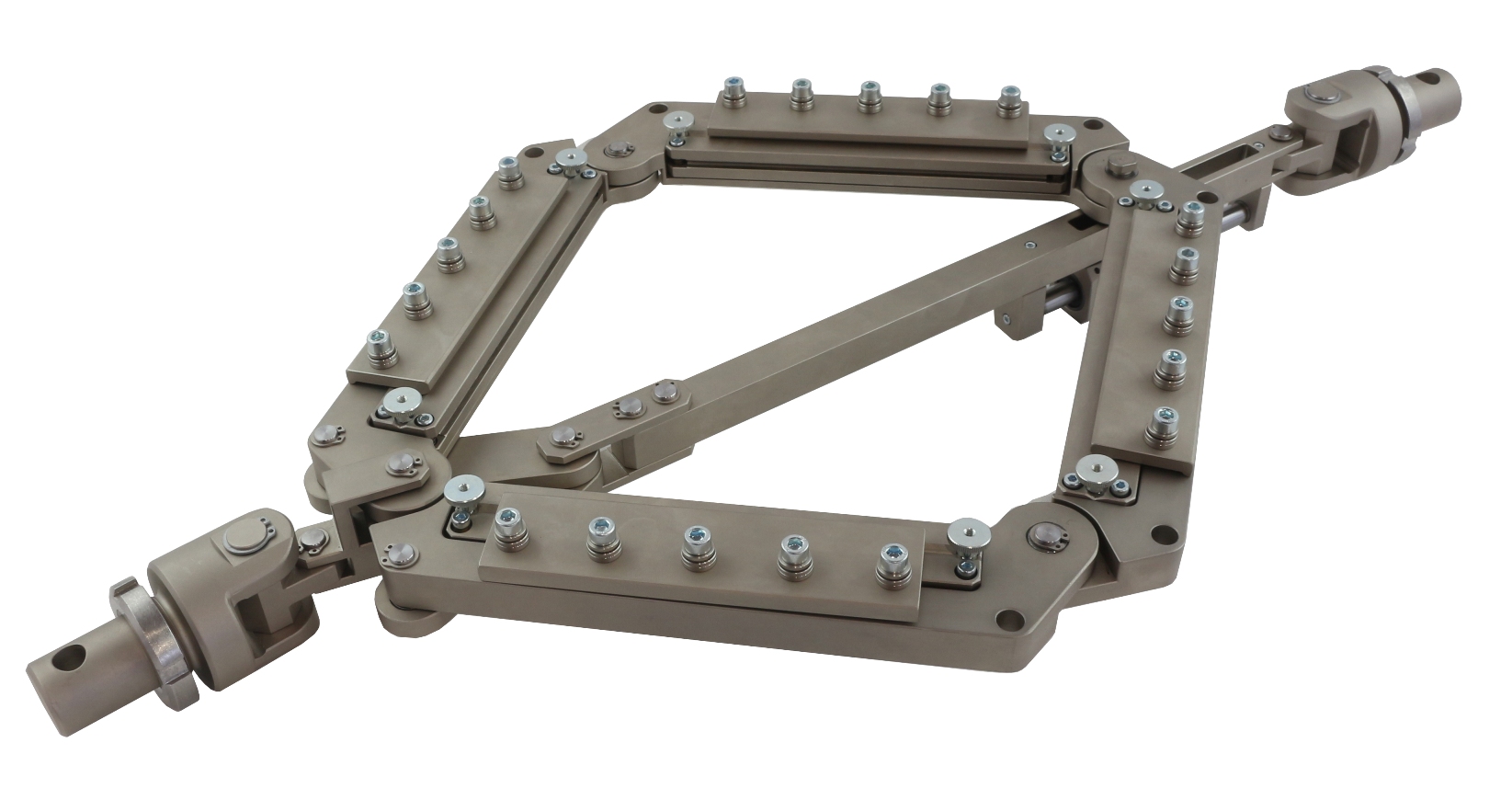

Picture frame shear test fixture

similar to ASTM-D8067 (in-plane shear test on sandwich panels)

The fixture can be used for stress-strain tests on silicone, rubber, elastic fabrics, etc.

Pull at angle 30°

Max. sample clamping width: 180 mm

Max. sample thickness: 1 mm

Distance between 2 parallel
sides:250 mm

Max. load: 500 N

Max. temperature: 280°C

Couplings - Am12 (upper), Am317 (lower)

Steel, nickel-plated

Jaws

THS1051-V2 (similar to ASTM-D8067 stress-strain of fabrics, in-plane shear of sandwich panels 14.1kg

THS1051-V2

THS1051-V2 similar to ASTM-D8067) stress-strain of fabrics, in-plane shear of sandwich panels 14.1kg

THS1051-V2

THS1051-V2 similar to ASTM-D8067 stress-strain of fabrics, in-plane shear of sandwich panels 14.1kg

THS1051-V2

THS1051-V2 similar to (ASTM-D8067 )stress-strain of fabrics, in-plane shear of sandwich panels 14.1kg

THS1051-V2

THS1051-V2-Am317+BW-ASTM-D8067



Coupling Am317

Wave jaws

Max. load 5 kN
