THS791-A-B-C Aufweitungsversuche an Rohren ISO8494

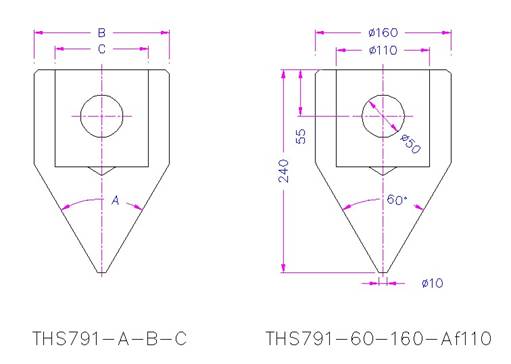

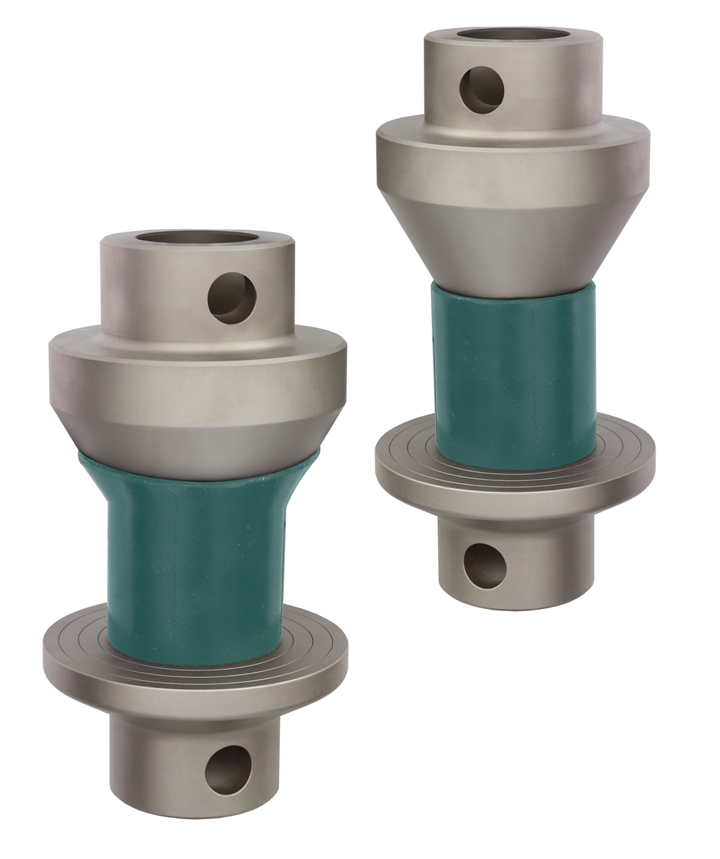

THS791-A-B-C

A= cone angle [°]

B= diameter  [mm]

C= Adapter Size [mm]

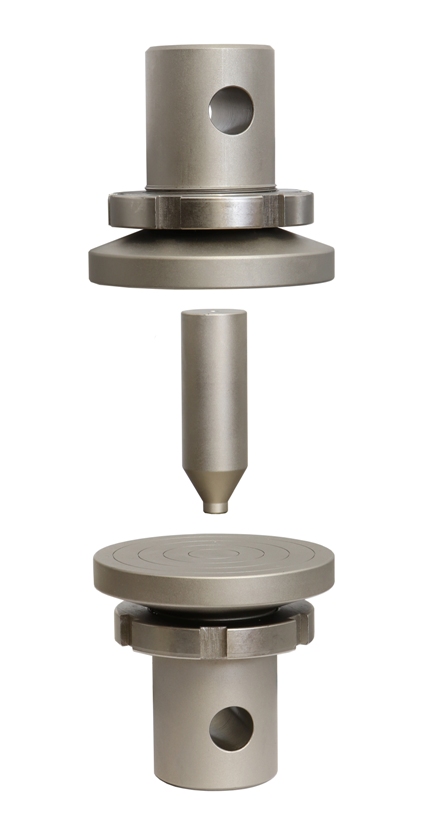

Grip for Drift Expanding Test ISO8493
on metallic tubes confirm to
Steel, hardened (58HRC)
nickel coated



Rohr-Aufweitversuch ISO8493
Vorrichtung für Aufweitungsversuch
an metallischen Rohren
Stahl gehärtet 58 HRC
chemisch vernickelt

tn_THS791-D9x60-Af50 19.05.2020

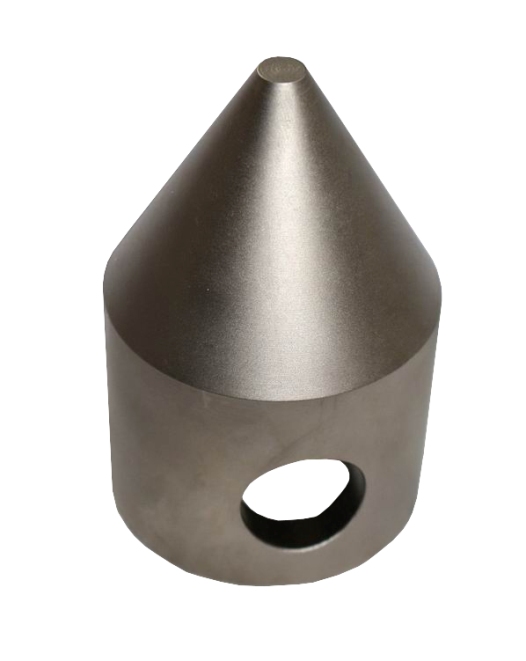

THS791-60°-80-Af50


Cone 60°
Max diameter 80mm
Coupling Af50

Konus 60°
Max diameter 80mm
Adapter Af50

tn_THS791-D11x30-Af50 19.05.2020

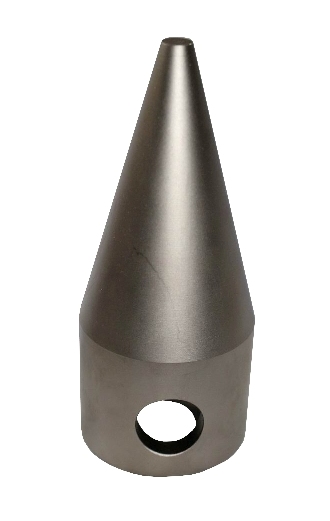

THS791-30°-80-Af50



Cone 30°

Max diamter

Coupling Af50

tn_THS791-D4x60-Af6025a-19.05.2020

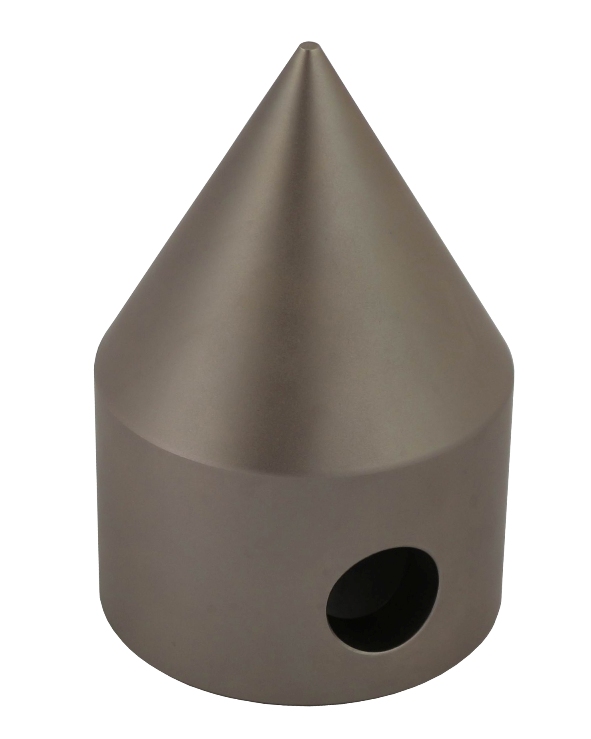

THS791-60°-88-Af6025

Cone 60°
Max Ø 88mm

Coupling Af60/25mm

tn_THS791-D66x30-Af6025a-19.05.2020

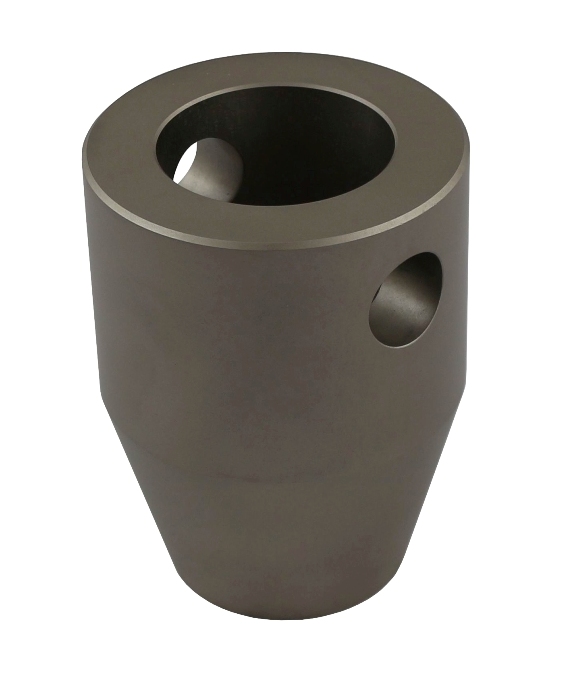

THS791-D66x30°-98-Af6025


Start diameter Ø66mm

Cone 30°

Max diameter 98 mm

Coupling Af60/25mm



tn_THS791-D98x30-Af6025-19.05.2020

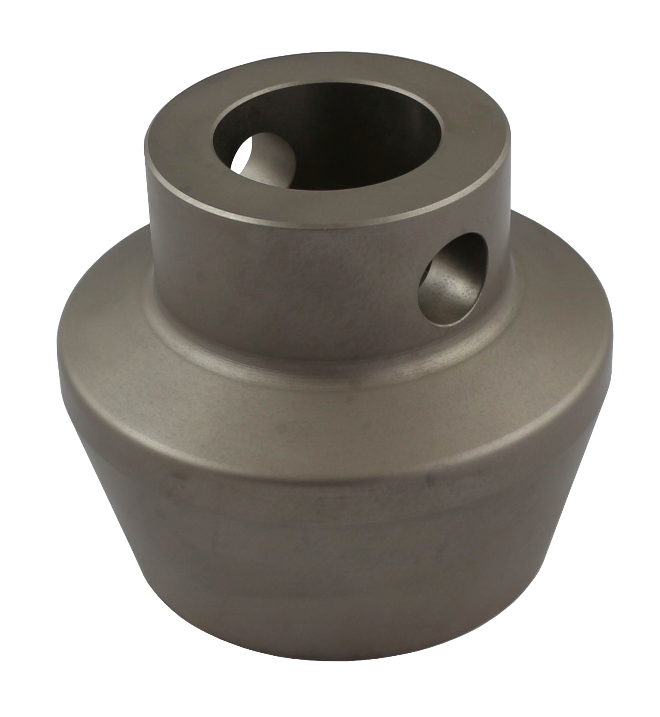

THS791-D98x30-130-Af6025

Start dia Ø98mm

Cone 60°

Max diameter 130mm
Coupling Af60/25mm



tn_THS791-50-D2x60-Am317 19.05.2020

THS791-60°-80-Af50


Cone 60°
Max diameter 80mm
Coupling Af50

Konus 60°
Max diameter 80mm
Adapter Af50
