G23 Puncture Fixtures

Back



Description: Description: Description: tn_THS162-1440-V2a DIN ISO2137 cone penetration petrolatum Konuspenetration

THS1010-10

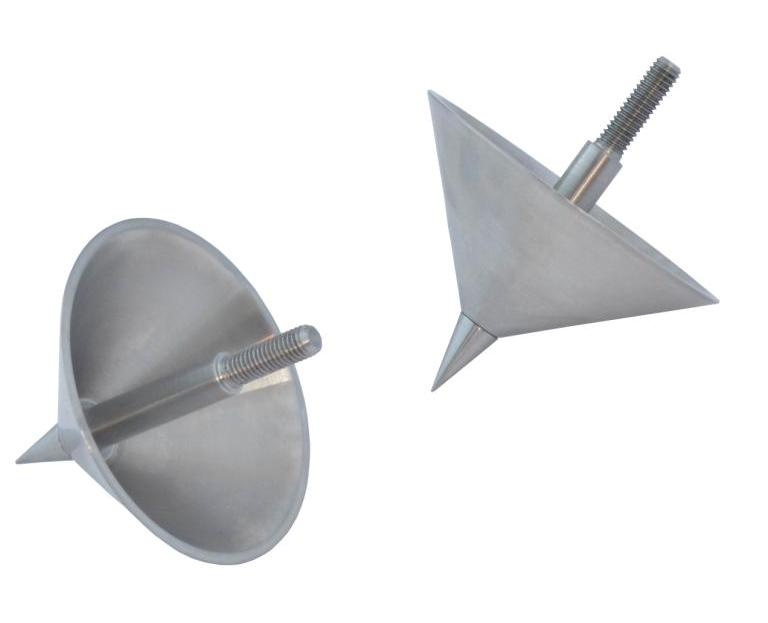

Cone penetration fixture to test lubricating greases and petrolatum according to  DIN ISO2137

Stainless steel



Spezielle Vorrichtung zur Bestimmung der Konuspenetration von Schmierfetten und Petrolatum gemäß  DIN ISO2137

Edelstahl



Description: Description: Description: tn_THS581-3,2-Af159+gde--ASTM-D1000-fig--Animation--3

THS581-3,2+gde-ASTM-D100

Peel test fixture to test puncture

resistance of pressure-sensitive

adhesive-coated tapes according to

ASTM-D100 Fig. 9



more



Description: Description: Description: tn_THS581-1K9-2,5 PSA-Norm Fig.5 Resistance to Perforation 915g  2018-12-17  03- -

THS581

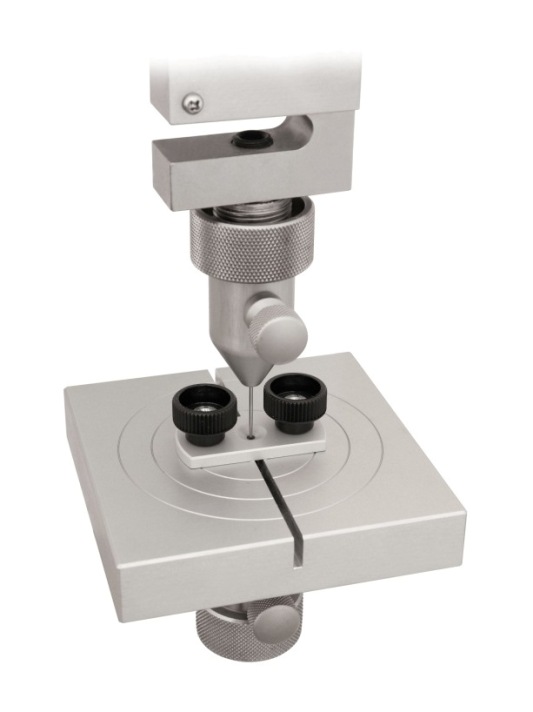

Resistance to perforation according to

PSA-GEN-RUB_ST-628-001


more


THS581-11.3-D9.5-Af159



Puncture test fixture to test burst strength after repeated puncture of tubular vascular prosthesis according to ISO7198-A.5.2.6.1 and A.5.2.7.1.

100 N, coupling Af159

Upper part probe 9.5mm Ø
Part with opening 11.3 mm,
with radius 0.2 mm and o-ring 1 mm Ø
Coupling Af159

tn_THS633-770-30 1,74 0,117kg glass test -70.

THS633-770-30+BG

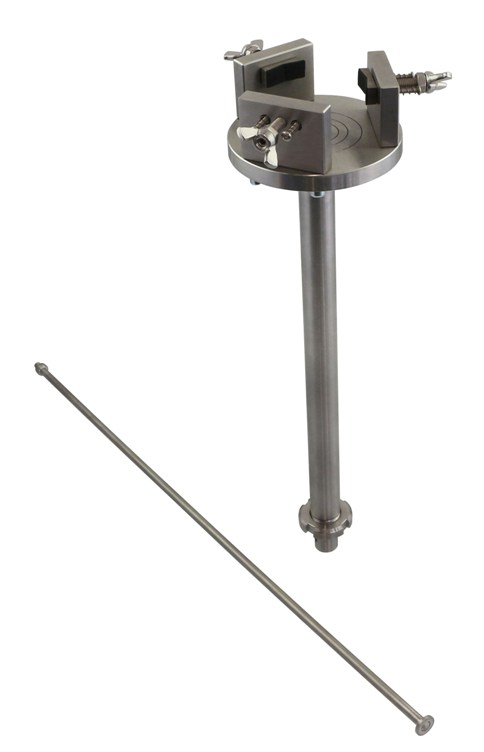

Special glass test puncture fixture
Punch - 12.7 mm diameter, 500 mm long, threaded coupling M6
Specimen holder - adjustable opening 25-50 mm diameter

with rubber-coated jaws, coupling Am16
Stainless steel

tn_THS633-770-30 1,74 0,117kg glass test -70... 280°C 310321-

THS633-770-30



Version with blank jaws

for temperature chamber usage
Temperature range -70...+280°C

Description: Description: Description: tn_THS653-2_JPG

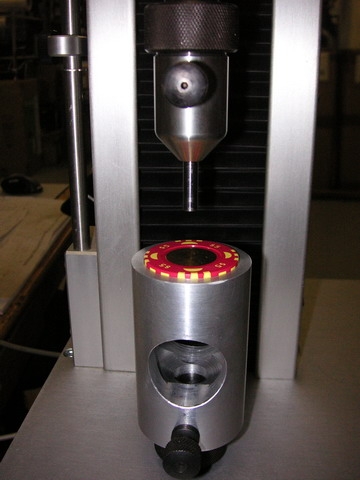

THS653

Description: Description: Description: tn_THS727-230-M6  2019-07-23  01 -

THS727-230-M6

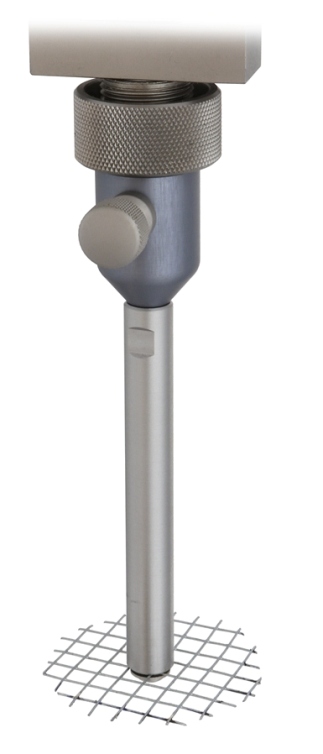

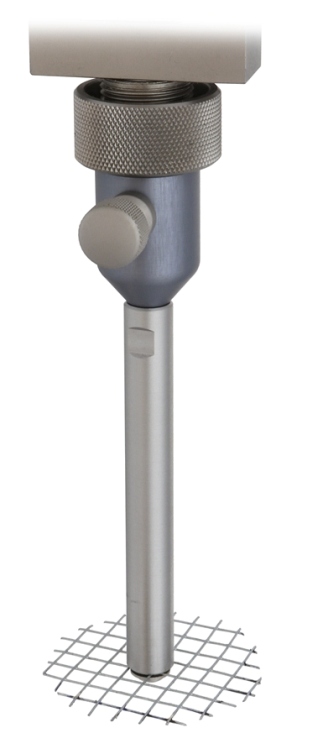

Special probe,

external dia 55 mm,

wire dia 1 mm,

distance between wires 6 mm,

coupling male thread M6.

Description: Description: Description: tn_THS885-10-EN12625-9+SH Tissue Ball burst Papier Berstfestigkeit 021 05.03.2020

THS855



Special compression test fixture to test ball burst strength of tissue paper according to DIN EN ISO12625-9

With a V2a stainless steel tray for water drops



Sonderdruckvorrichtung zum Testen von Nasspapier gemäß DIN EN ISO12625-9



more

THS894-19



Puncture fixture to test stiffness of fabric similar to ASTM-D4032



THS894-38.1-P25.4-Af159-ASTM-D4032_2.18kg_ 2022-07-09

THS894-38.1-P25.4-Af159

Puncture fixture to determine stiffness of fabric according to ASTM-D4032
Coupling Af159

THS1541-120-156-R114.4+R50

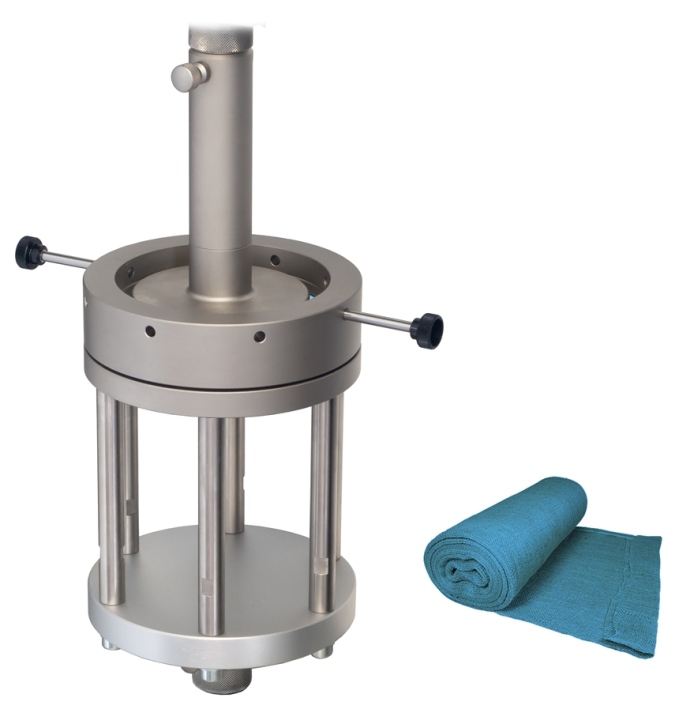

Special test fixture to test elasticity of textiles according to ISO20932-2 Fig2, 3



Sondervorrichtung zum Testen der Elastizität von Textilien gemäß ISO20932-2 Fig2, 3



more



Description: Description: Description: th_THS1180-Af159 ISO7864 ASTM-F2878 ASTM-F1342 needle penetration force test 2.8kg  01


THS1180

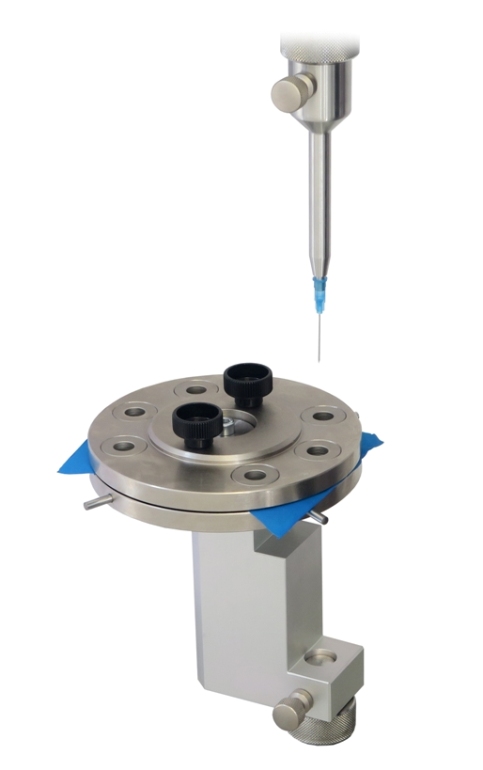

Needle puncture fixture to test protective clothing material according to Din EN ISO7864,ASTM-F1342 and ASTM-F2878


Nadeldurchstoßvorrichtung zum Testen von Schutzkleidungsmaterial gemäß DIN

EN ISO7864, ASTM-F1342 und ASTM- F2878


Biomedical fixtures


more

Description: Description: Description: tn_THS1381-D2x130 multi-piercing jig jam test 140g  2019-01-10  05-3 -

THS1381-D2x130

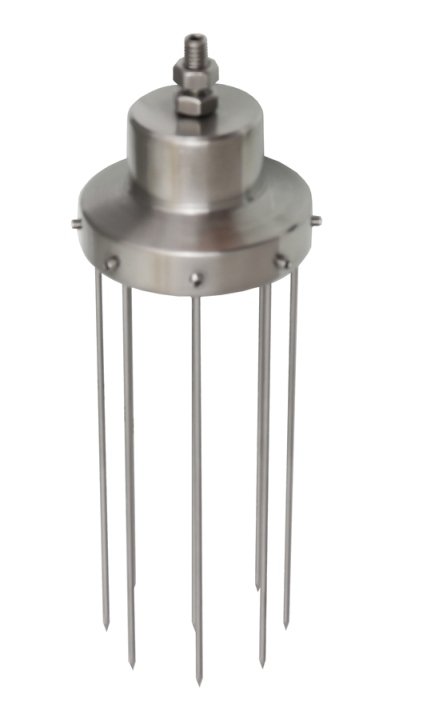

Multi-piercing jig to evaluate average firmness of food samples containing particles of various sizes, such as jam with pieces of fruit, peanut butter, dough, etc.

Needles: 2 mm diameter, 130 mm long

Description: Description: Description: tn_THS1406-ASTM-F3212  2019-12-02  03 -

THS1406

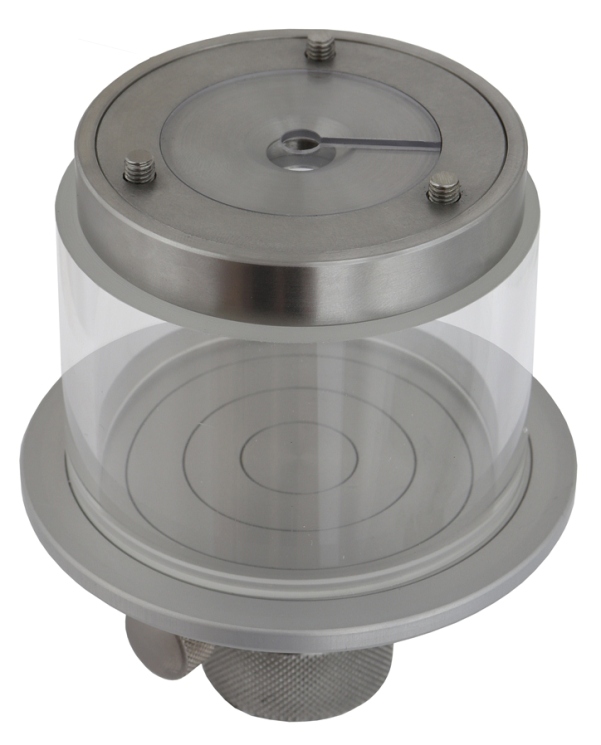

Special fixture for coring testing of Huber needles according to ASTM-F3212



Vorrichtung zum Prüfen von Spezialpunktionskanülen nach ASTM-F3212



more

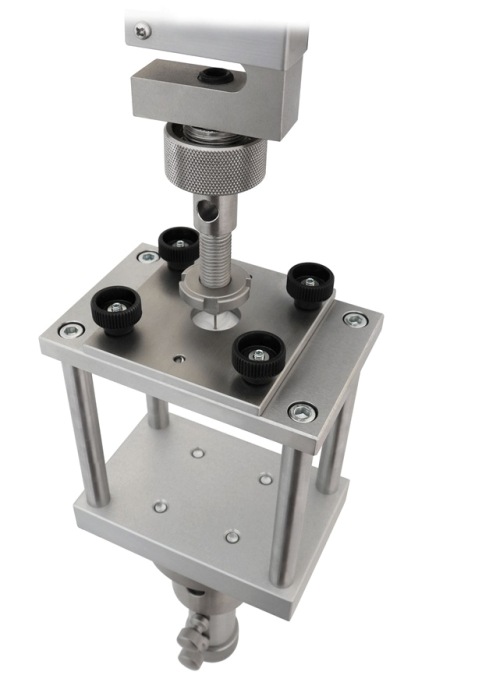

Description: Description: Description: tn_THS1441-10-am16-m12x1,  2,4kg  2018-10-15  05- -

THS1441-10



Special puncture fixture, 250 N

to test food packaging foils according to JIS Z1707

Stainless steel



more



Description: Description: Description: tn_THS1550-Af159-MIL-STD-3010A-xa 08.04.2020

THS1550-Af159-MIL-STD-3010A



Special puncture fixture to test military packaging materials according to MIL-STD-3010A Method 2065 Fig. 1

Steel + Aluminium



Sonder Durchstoßvorrichtung zum Testen von Verpackungsmaterial gemäß MIL-STD-3010A Testverfahren 2065 Bild 1

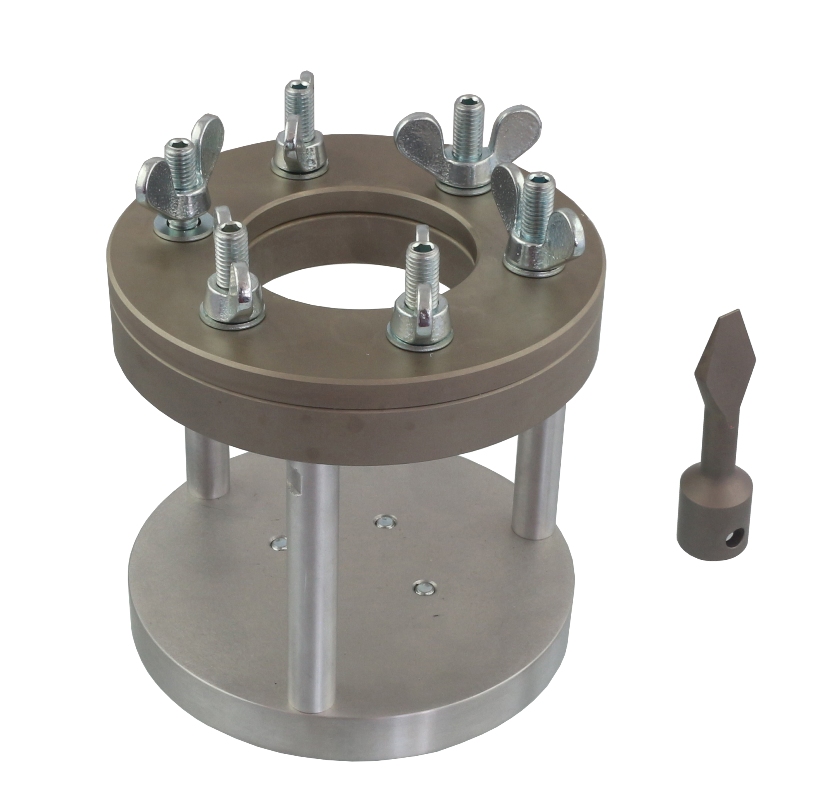

tn_THS1544-76.2R2-7.92R0.25-Af159-Mil-DTL-6396F-Fig.3 (fuel tanks) -TSO-C69c (emergency slides) puncture resistance

THS1544-76.2R2-7.92R0.25-Af159-
MIL-DTL-6396F-TSO-C69c


Puncture resistance test fixture
for fuel tanks according to
MIL-DTL-6396F-Fig.3 and

fabrics for emergency evacuation slides to TSO C69c Appendix 1
Steel + Aluminium

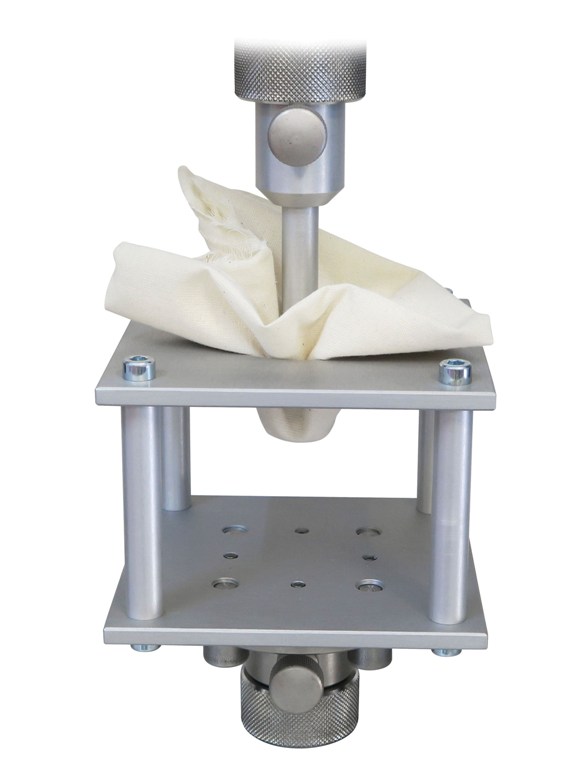

Description: Description: Description: tn_THS1598-35H60-FD15 similar to ASTM-D4032 0.82 kg 013-

THS1598-35H60-FD15

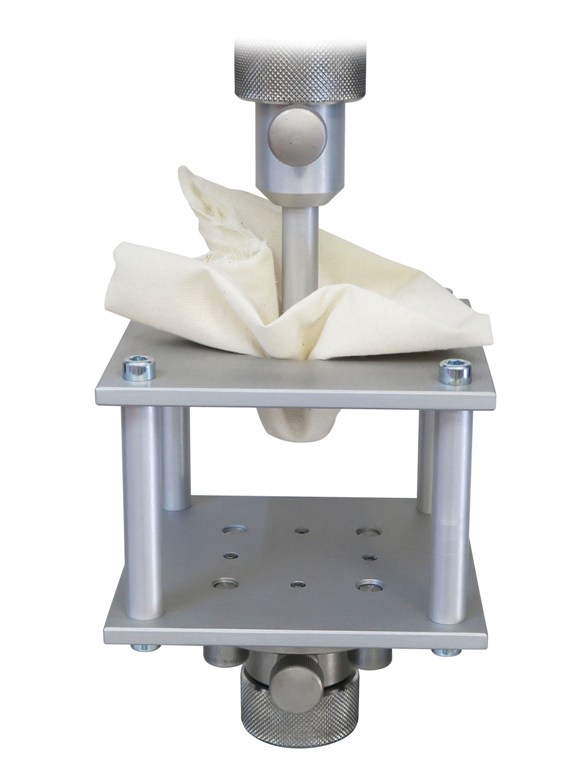

Puncture fixture to determine stiffness of fabric similar to ASTM-D4032



more

THS1679-102-P50-Af159

THS1679-102-P50-Af159

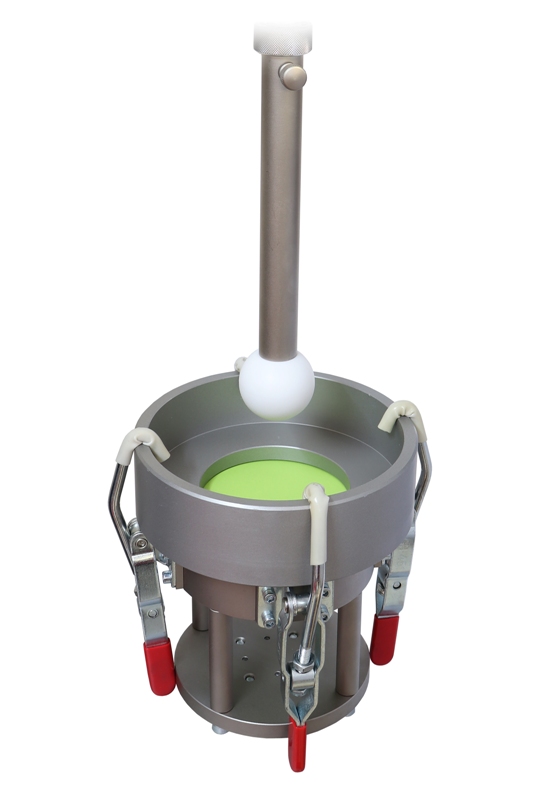

Special puncture fixture for testing ball burst for shade nets (HDPE Woven nets)

Probe with plastic ball with diameter  50 mm

Holder with hole 102 mm diameter



more

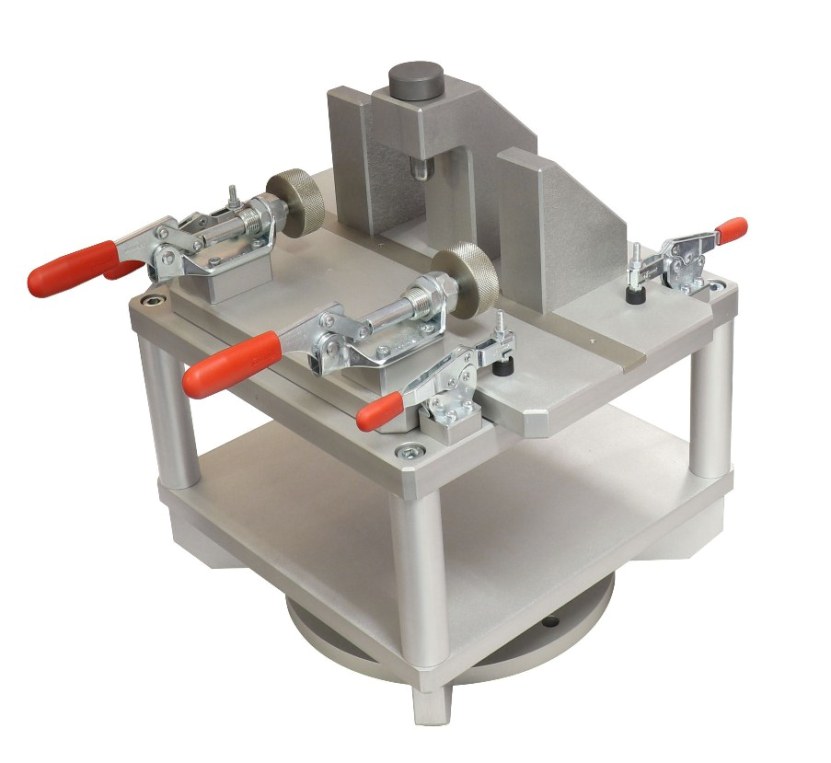

tn_THS1599-75-125-R8 compression-after-impact 23,5kg  15-10-2018  05-

THS1599-75-125-R8

Special puncture fixture to test CAIE samples
according to AITM1-0076
Steel + aluminium

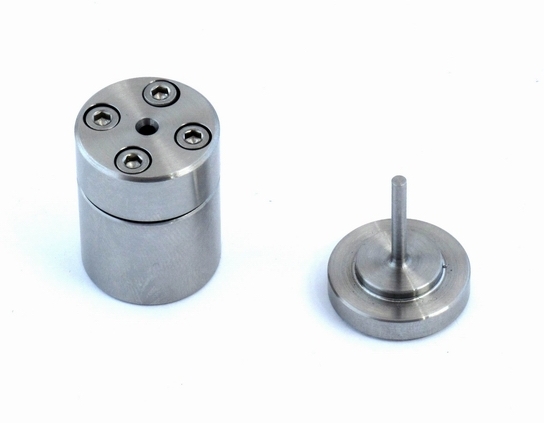

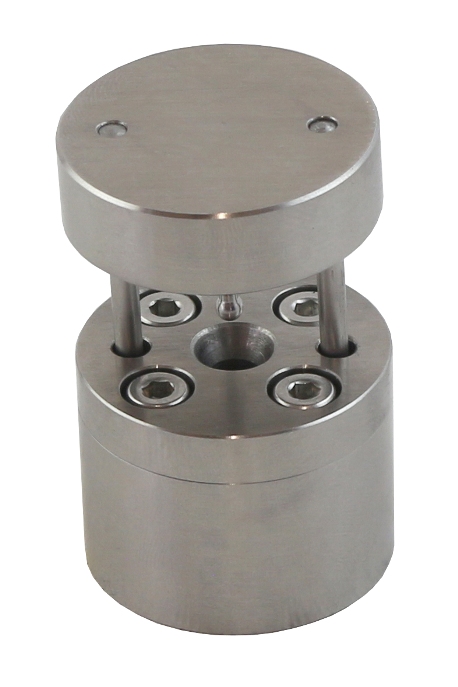

Description: Description: Description: tn_THS805-1_jpg


THS805-1



Puncture fixture to test ball punch deformation of metallic sheets
according to ASTM-E643 and ISO8490

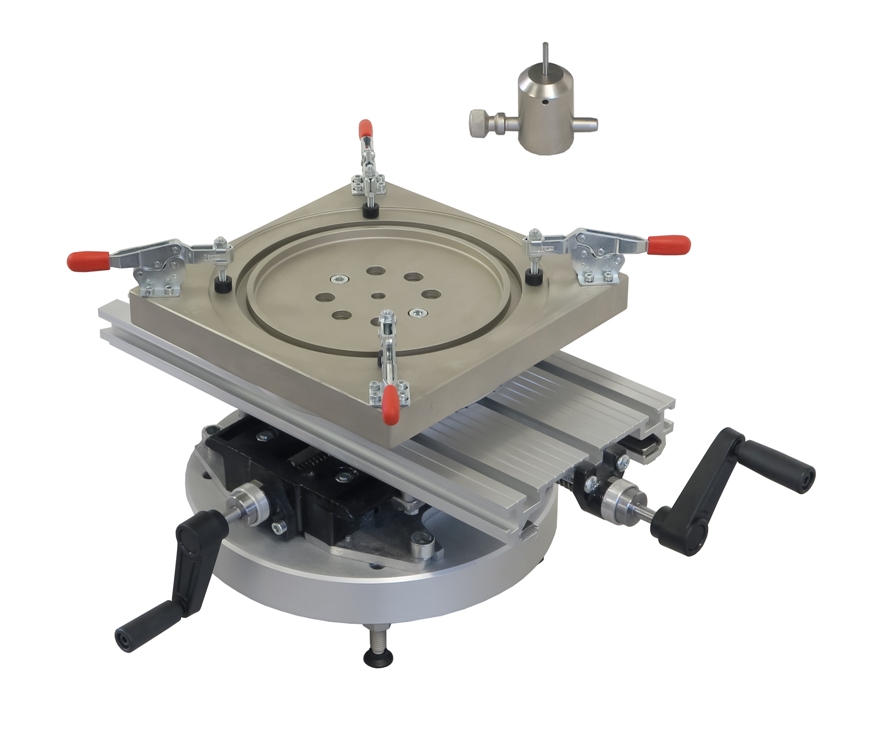

tn_THS1313-70-GT+ED4 15.4+11.05+0.22kg  02-06-2020  05

THS1313-70-GT+ED4



Special puncture fixture

The specimen carrier can be adjusted
in XY directions

Interchangeable insert rings of different Diameters to clamp a specimen



Sonder Durchstoßvorrichtung mit
XY-Tisch

Austauschbare Einsatzringe für Prüflinge mit verschiedenem Durchmesser



tn_THS1313-70-ED1,2,3 6.2+7.6+9.6kg  02-06-2020  04

THS1313-70-ED1,2,3



Interchangeable insert rings of different Diameters to clamp a specimen



Austauschbare Einsatzringe für Prüflinge mit verschiedenem Durchmesser
