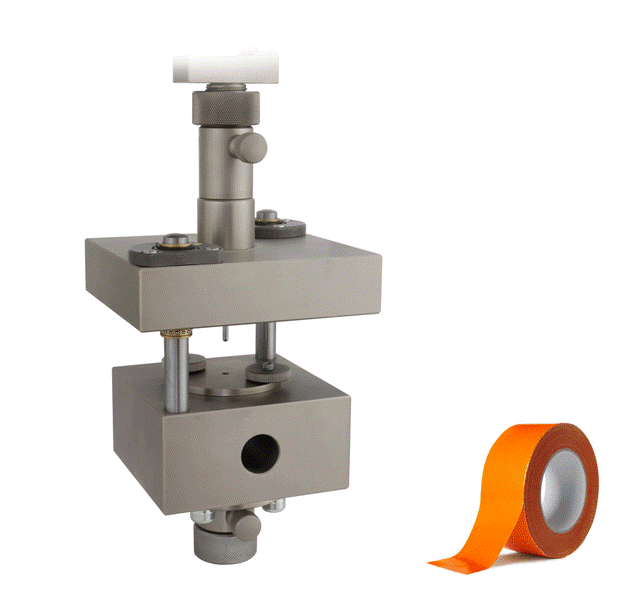

	THS581-3,2+gde-ASTM-D100 Peel test fixture to test puncture resistance of pressure-sensitive adhesive-coated tapes according to ASTM-D100 Fig. 9 more

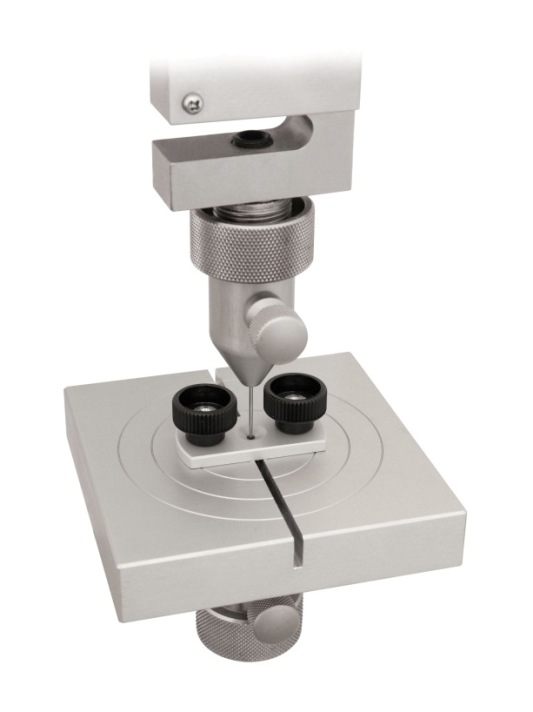

	THS581 Resistance to perforation according to PSA-GEN-RUB_ST-628-001 more

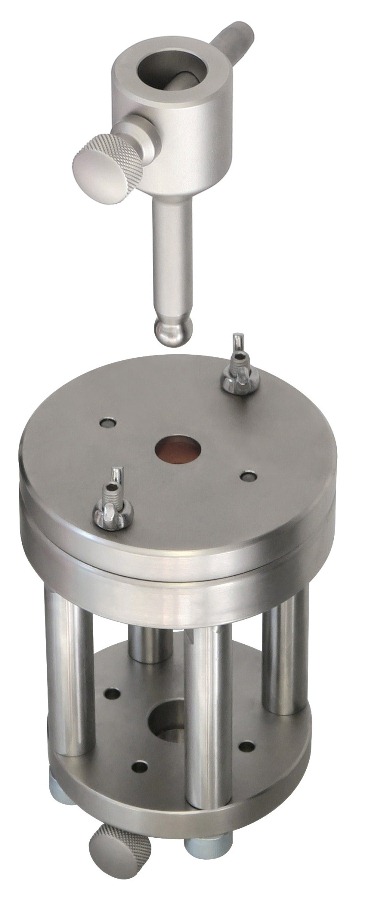

	THS581-11.3-D9.5-Af159 Puncture test fixture to test burst strength after repeated puncture of tubular vascular prosthesis, according to ISO7198-A.5.2.6.1 and A.5.2.7.1. Max. load 100 N Upper part probe 9.5 mm Ø Part with opening 11.3 mm with radius 0.2 mm and o-ring 1 mm Ø Coupling Af159

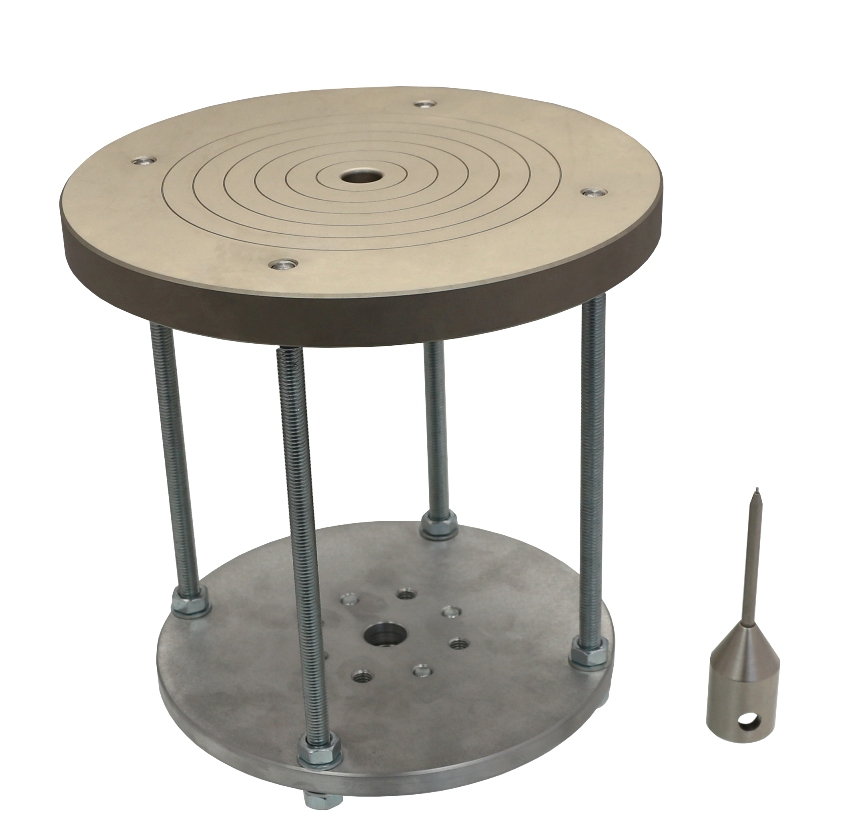

	THS581-12.7-1-Af159-ASTM-F2412-Fig.11 Special puncture resistance test fixture for footwear according to ASTM-F2412 Steel pin, 1 mm Ø tip Lower base: 196 mm Ø x 220 mm Hole in the base 12.7 mm Steel + aluminium Coupling Af159

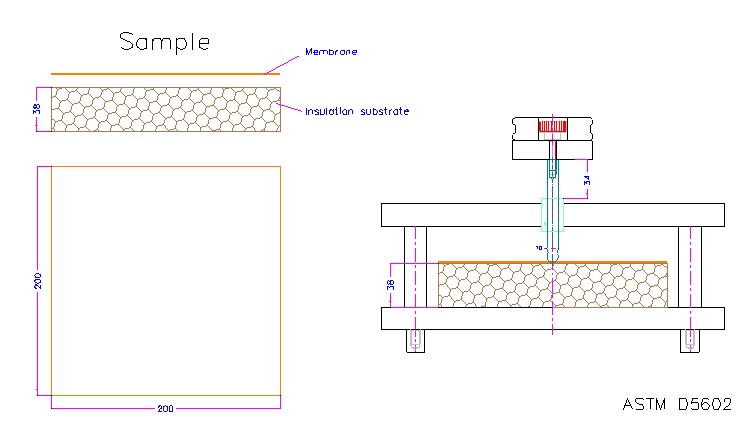

	THS581-D10+G ASTM-D5602 Special static puncture resistance of roofing membrane specimens according to ASTM-D5602 Rod diameter 10 mm
