THS265-CS



Back



Description: pdf_icon.gif THS265 Cutters according to ASTM, ISO, DIN, etc.pdf

THS265-CS12,7x63-ISo-6892-Typ  -2021-08-23  02

THS265-CSB12,7x63-ISO6892

Cutters for metal
According to
ISO6892ญญ-Type2

Description: tn_THS265-CSS12 7x63-ISO-6892-Type 2 steel cutter Feinschnittwerkzeug

THS265-CSB12,7x63-ISO6892



Cutter for steel
According to ISO6892-Type2

Sample size 205x35x1 mm ( 235 kN )

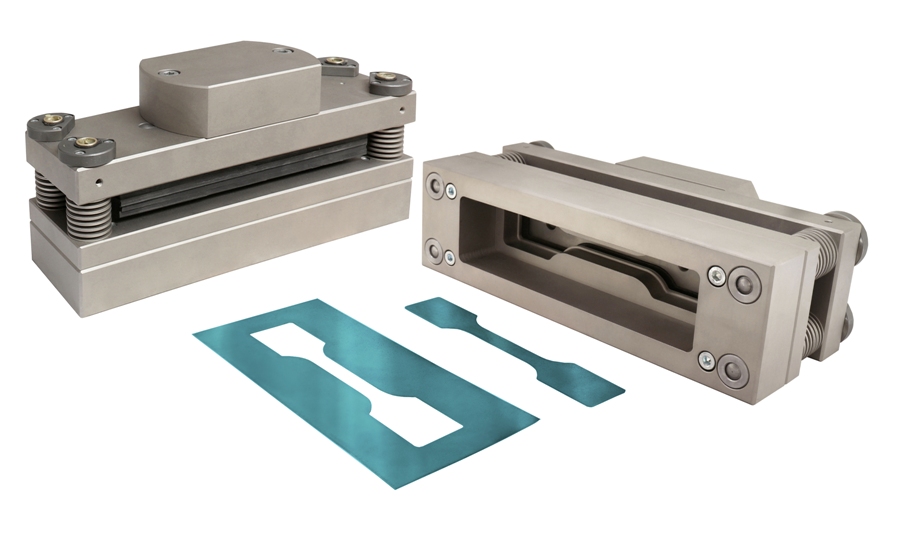

THS265-CSB12.5x75-20x165-01+02_DIN50125-H1_ 2024-05-20_02

THS265-CSB12.5x75-20x165

Cutter for metal according to DIN50125 Form H1

Bone-shaped 12.5x75 mm

Steel



THS265-CSB12.5x75-20x165-01+02_DIN50125-H1_ 2024-05-20

THS265-CSB12.5x75-20x165

THS265-CSB12.5x75-20x175_2024-03-07

THS265-CSB12.5x75-20x175

Cutter for aluminium or steel sheets
According to ISO6892-1 Type 1

For sample 0.6 to 2 mm thick
Bone-shaped 12.5x75 mm
Total size 20  x 175 mm



THS265-CSB12.5x75-20x175-01.1+02.1_2024-03-07

THS265-CSB12.5x75-20x175

THS265-CSB13x57-19x165_ASTM-D638-Type1_2024-01-12_02

THS265-CSB13x57-ASTM-D638

Cutter for aluminium or steel sheets
According to ASTM-D638-Type I
Bone-shaped 13x57 mm

THS265-CSB13x57-19x165_ASTM-638-T1_2024-01-12

THS265-CSB13x57-ASTM-D638

THS265-CSB20x130

Cutter for aluminium or steel sheets
Bone-shaped 20x130 mm

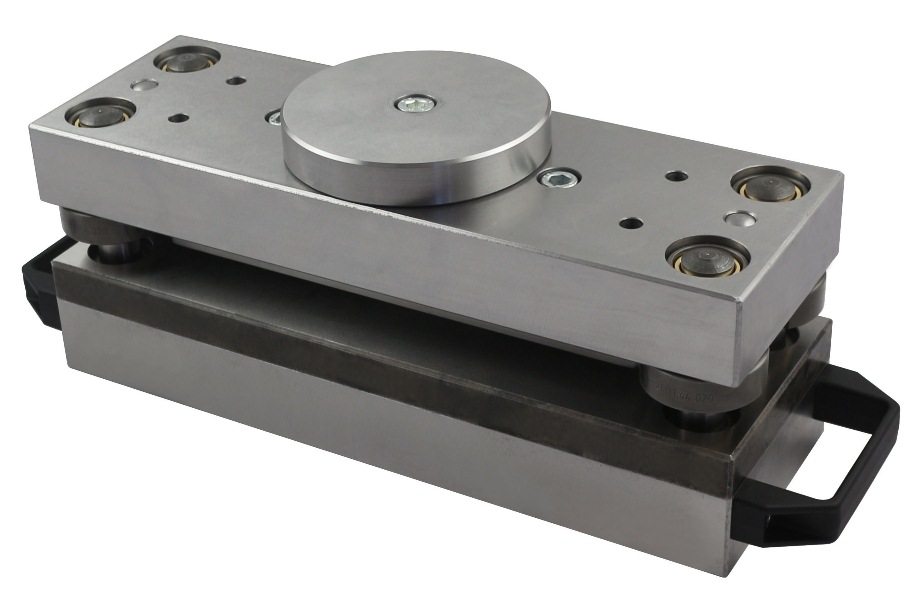

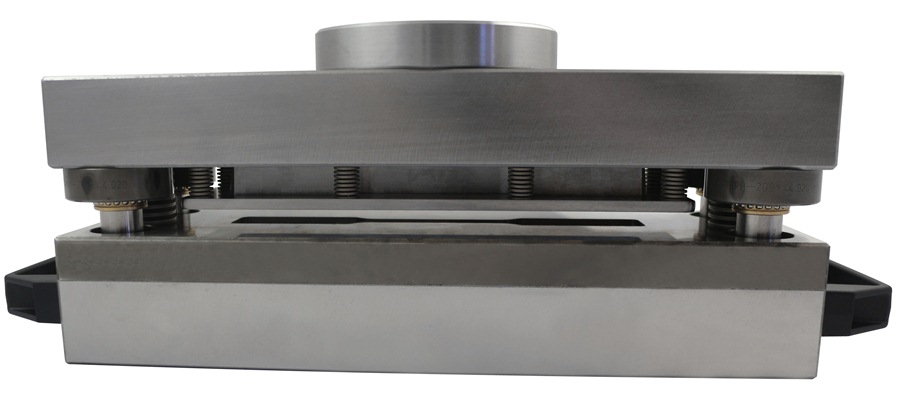

THS265-CS12.5x60



Cutter for steel samples with center dimensions 12.5 x 60 mm



THS265-CS12.5x60

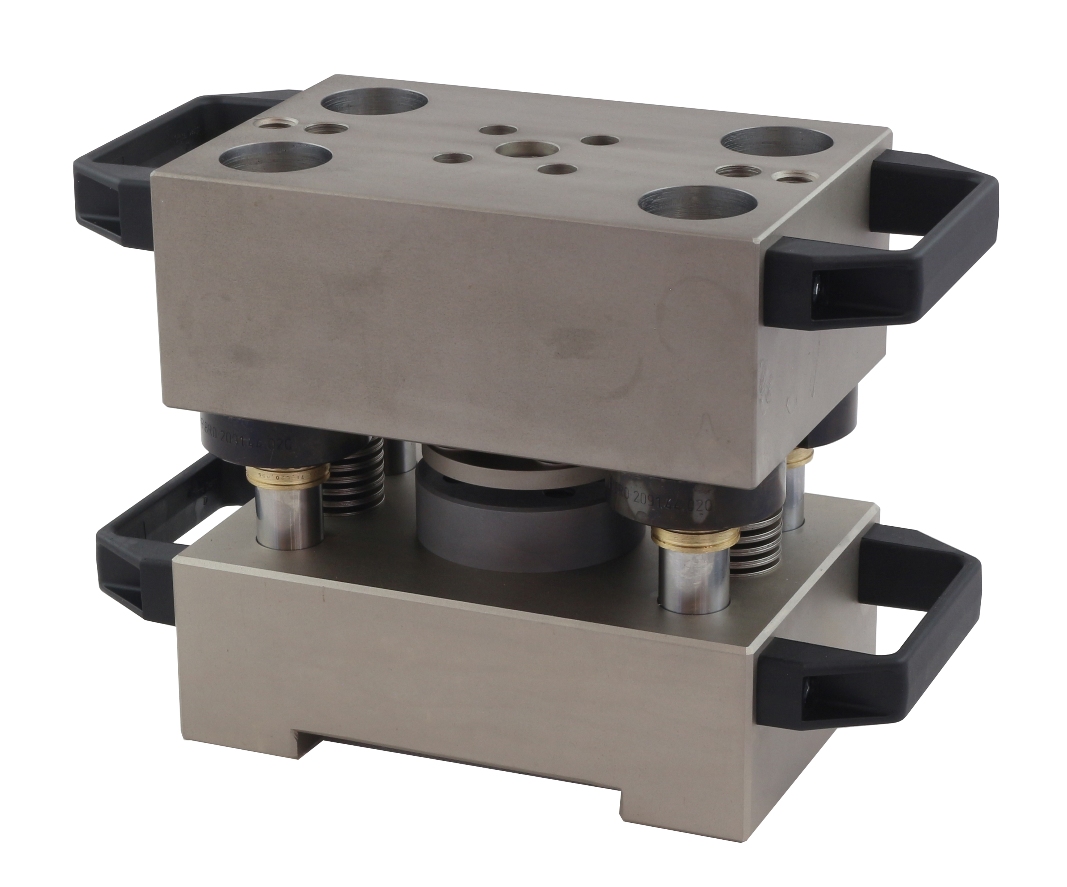

THS265-CSC25x1_2024-03-08

THS265-CSC25x1

Cutter for aluminium or steel sheets

For sample 0.6 to 2 mm thick

Round 1x sample 25 mm ุ

THS265-CSC25x1-03+04_2024-03-07

THS265-CSC25x1

THS265-CSC50x3_01

THS265-CSC50x3



Heavy cutter

For metal foil samples 0-2 mm thick

With 3 round cutting shapes 50 mm diameter each

THS265-CSC50x3-03+04_02

THS265-CSC50x3

Description: tn_THS265-CSS1127x63-iso6892-T2 Sample 2 235kN  1mm Blech  205x35mm-

THS265-CSB127x63-ISO6892



Sample size 205x35x1 mm

Max .load 235 kN



Description: tn_THS265-CSS1127x63-iso6892-T2 Sample 1 side view   205x35x1mm-

THS265-CSB127x63-ISO6892



Side view
