TH238

3-point bending fixture to test stainless steel needle tubings according to DIN EN ISO9626 3-Punkt

3-point bending fixture Incl. 1x lower bar 200 mm long, 2 lower supports with radius 3 mm and upper anvil with radius 3 mm

psilon-3540-025M-ST + TH238-ST Deflection Gages (Deflectometers) more

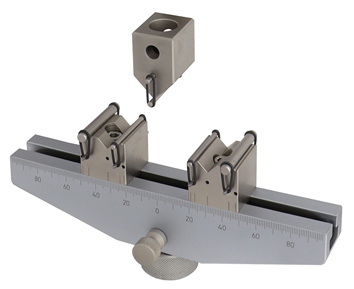

3-point bending fixture according to ASTM-D7905, ISO1209-1 Incl. 1x lower bar 200 mm long, 2 lower supports with radius 5 mm and upper anvil with radius 5 mm

3-point bending fixture Incl. 1x lower bar 200 mm long, 2 lower supports with radius 10 mm and upper anvil with radius 10 mm

Bending fixture, length 200 mm Anvil with 2 milled radii 2 and 5 mm Coupling Af159

3-point bending fixture Incl. 1x lower bar 200 mm long, 2 lower supports with radius 1 and 3.5 mm and upper anvil with radius 1 mm

3-point bending fixture Incl. 1x lower bar 200 mm long, 2 lower supports with radius 3.2 and 5 mm and upper anvil with radius 3 mm

3-point bending fixture Incl. 1x lower bar 200 mm long, 2 lower supports with radius 3.2 and 5 mm and upper anvil with radius 5 mm

+ CR5 4-point bending fixture Incl. 1x lower bar 200 mm long, 2 lower supports with radius 3.2 and 5 mm and upper supports with 1 milled radius 5 mm

4-point bending fixture Upper supports available with Radius 0.5, R1, R1.5, R2, R2.5, R3, R3.2, R3.5, R4, R5, R10, R15

Lower bar for 3-point bending fixture Steel Length 430 mm, width 30 mm Coupling Af159

3-Point bend test fixture to determine the modulus of elasticity of rigid and semi-rigid plastic specimens according to ASTM-D5934 Loading nose radius 3 mm, support radius 1 mm

Anvil with 2 milled radii: Radius 1: 3.2 mm Radius 2: 5 mm Animation

Upper fin Steel hardened nickel coated Available Radii 0.5,1,1.5,2,3,3.175,5,10,15
