TH238_Special

+ TH238-B100-CXD3.2-2x12-A4 DIN EN ISO20795-1 3-point bend test fixture to measure flexure strength of denture and orthodontic base polymers in a water bath according to DIN EN ISO20795-1 / -2

3-point and 4-point bend test fixture to test fine ceramics according to ASTM-C1161, DIN EN843-1 and ISO14704 3-Punkt und 4-Punkt

Bend test fixture to test nails according to ASTM-F1575

Special bend test fixture for

Bend test fixture to test medical ampoules for injectables according to DIN EN ISO9187-1

3-point and 4-point bend test fixture to test plastic composites by double-beam interlaminar shear method according to ISO19927

Supports and fin with height of 50 mm

3-point bending fixture Max. load 5 kN Incl. 1x lower beam 200 mm long, 2x special supports with flat support surface 5x30 mm 1x special 3-point nose with flat support surface 5x30 mm Steel, nickel-plated Coupling Af20

3-point bend test fixture with a special loading nose with Max. load 500 N 2x radius 0.5 mm Upper span length 5 mm Lower anvils with 0.5 mm radius

Bending jig for small ceramic Supports rotating Support out of center to allow Low distances for small samples Radius 1 mm

Higher support carrier for rotating Inserts with radius R1, 6 mm to center Erhöhte Böcke

+ oR5 Bending jig 200 mm Lower supports with Radii 2 and 5 mm Special Height 40 mm Centering device Upper fin Radius 5 mm

3-point bend test fixture with holder Lower bar 200 mm long Lower anvils with radii 2 and 5 mm upper anvil with radius 5 mm Coupling Am25

4-point bend test fixture Max. load 500 kN Upper and lower beam length 200 mm,

4 point bending jig with 300 and 200 mm bars Support with roller diameter 10 mm Width 30 mm Upper bar moveable

+ THS519-ctd-10x20 Special 4-point bending fixture with centering device Max. load 3 kN Incl. 1x lower bar 300mm long 1x upper bar 200mm long 2x upper carriers 2x lower carriers 4x anvils with radius 1.5mm, L-shape, min distance 3 mm, 100 mm wide Steel, nickel coated Coupling Af159

4-point bending fixture Incl. 1x lower bar 200 mm long 1x upper bar 200 mm long 4x carriers 4x anvils with radius 3 mm, L-shape, min distance 6 mm 130 mm wide Steel, nickel coated Coupling Af159

2 point bending bar 300 mm With 2 supports, moveable, 2 Roller 14 mm diameter Width 100 mm

With supports extra high 80 mm

Special bend test fixture to determine transverse deformation of cementitious adhesives for tiles according to EN12002, EN12004-2 and ISO13007-2 Max. load 5 kN Anvil:radius 50 mm Supports: 50 mm high, with rollers10 mm Ø x 60 mm long Coupling Af159

+2PH + TH240k-S20 + BP + THS42-R5-70 2 point bending device Holder for grip TH240 Pin Radius 5 mm Cantilever beam shear stress setup to analyse the adhesive bond between 2 surfaces 2 Punkt Biegevorrrichtung

Custom bend test fixture, Max. load 2.5 kN 430 mm long bending bar, Span distance 345 mm, Lower anvils 96 mm Height Roller diameter 6.35 mm Coupling Af159, Weight 7,2 kg

Special bend test fixture Lower beam 200 long Articulating rollers 10 mm Ø, 50 mm long Max. load 10 kN Coupling Am16 Steel, nickel-plated

Guided 3 point bending jig

Special bend test fixture with holder for extensometer epsilon 3542 Max. load 10 kN Lower anvils with raii 2 and 5 mm Upper anvil with radius 5 mm Coupling Af159 Steel, nickel-plated

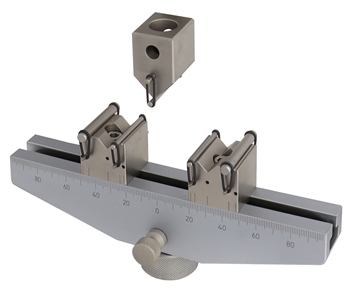

Special bend test fixture incl. holder for LVDT Upper anvil with radius 3 mm Lower anvil with radius 1 mm Max. load 10 kN Coupling Af20/8.3 Steel, nickel-plated

Special bend test fixture Max. load 10 kN Coupling Af159, connection: 12 mm Ø round pins Anvils 30 mm wide with milled radii (top: 5 mm, bottom: 2 mm) Beam: steel, nickel-plated, span 4-144 mm

Special 3-point bending grip Max. load 10 kN Incl. 1x lower bar, 200 mm long 2x lower anvils with radius 4.5 mm 1x Upper anvil with radius 6.4 mm Coupling Af159

Am317 Special bend test fixture bending beam 200 mm long Coupling Am317 Max. load 10 kN Anvils with milled radii 5 mm

Special fixture to pull out samples

+Gde-Af159 3 point bend test fixture with guides Upper nose with radius 0.75 mm, lower supports with radii 1.25 mm + 1.6 mm Steel, nickel-plated more

Upper nose with radius 3 mm, lower supports with radii 3 and 3 mm according to EN2563 more

Special 3-point bending fixture with guide Max. load 10 kN Lower beam 200 mm long Movable supports with roller diameter 4.5 mm Steel, nickel-plated

Special 3-point bending fixture with guide Steel, nickel-coated Max. load 2.5 kN Lower beam 300 mm long Articulating and fixable rollers 8 mm diameter, 80 mm long Coupling Af20

St Bend test fixture, max. load 10 kN With sidebars Lower anvils with radii 2 mm and 5 mm Upper 3-point anvil with radius 5 mm Height of anvils 50 mm Distance between lower anvils 140 mm Coupling Af20 Steel Temperature range -40 +180°C

ASTM-D2990 Flexure creep test fixture for testing plastics according to ASTM-D2990 Anvil radii 3.2 mm Coupling Af159

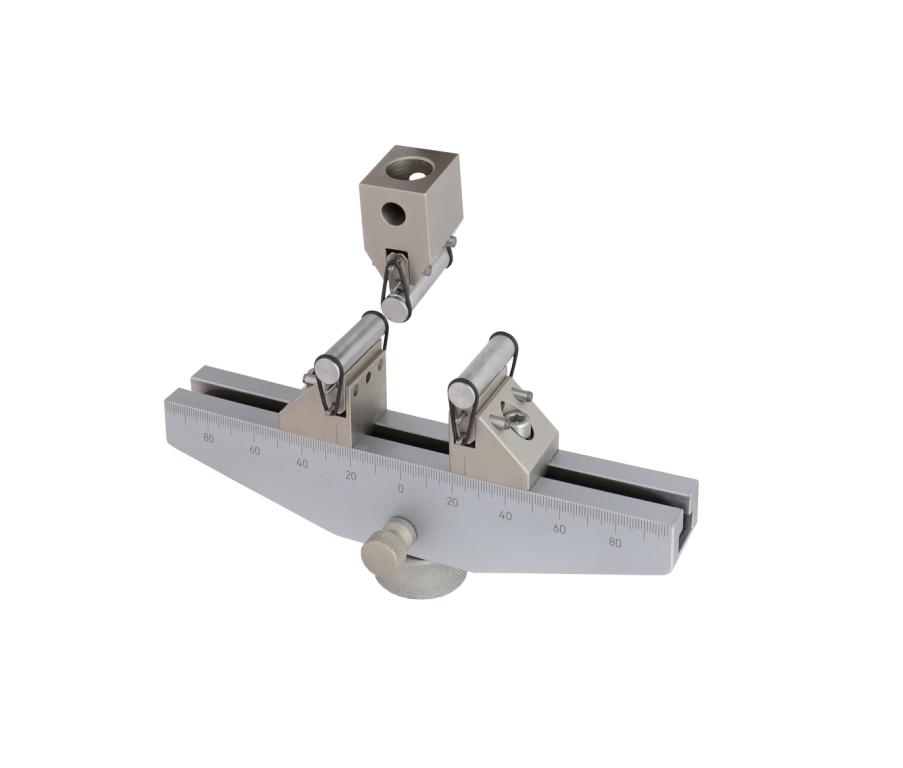

3-point steel bend test fixture determine flexural strength of manufactured carbon and graphite articles according to ASTM-D7972 Anvil Ø 6.35 mm Max. load 4.5 kN Coupling Af159
