G01 Compression platens

Back

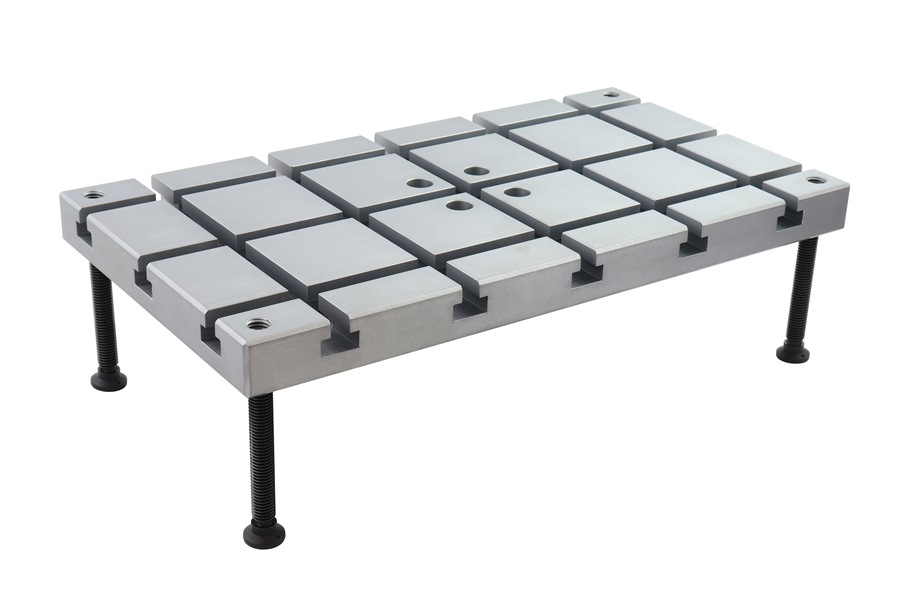

TH36T-220-400



T-slotted platen, 220X400mm, aluminium or steel


Description: Description: pdf_icon.gifTH36t Datasheet.pdf


Description: Description: pdf_icon.gifTH36t Datenblatt.pdf

Description: TH36T-250-St 12.4 kg 013-

TH36T-250-St



T-groove platen, 250x250 mm, steel

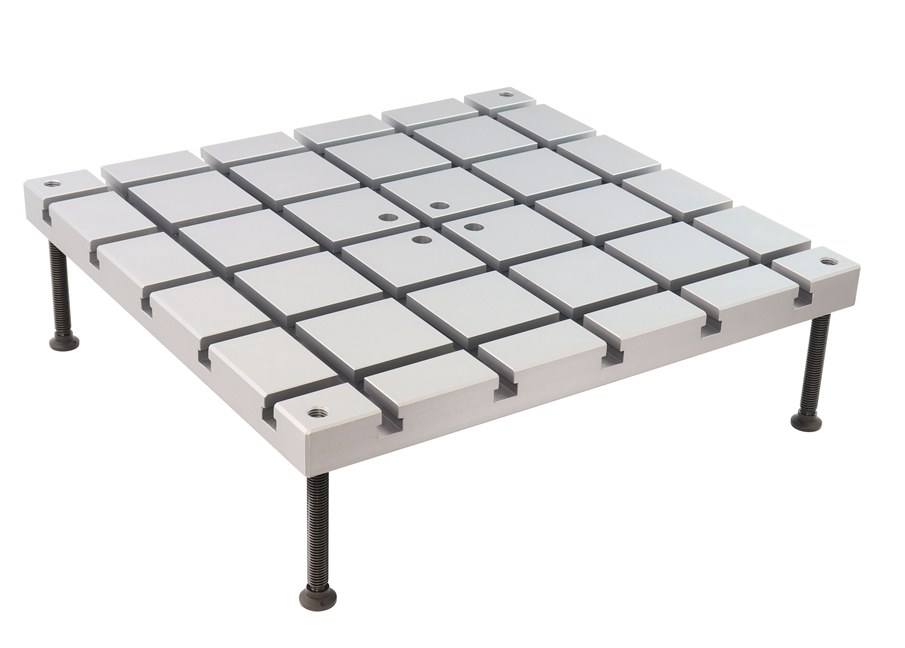

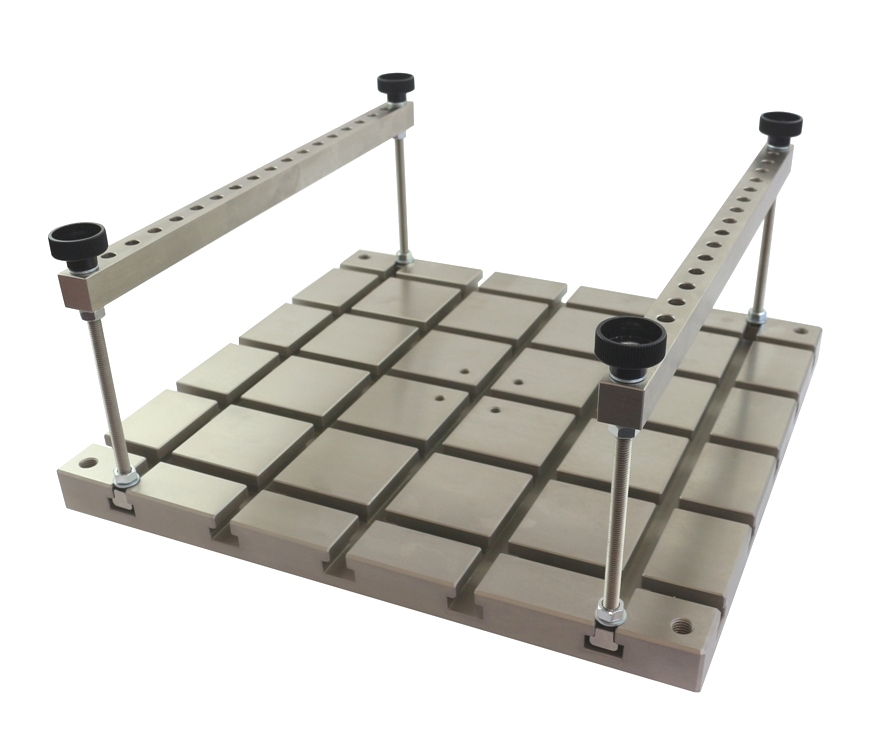

TH36T-380x400



T-slotted platen, 380X400mm, aluminium or steel

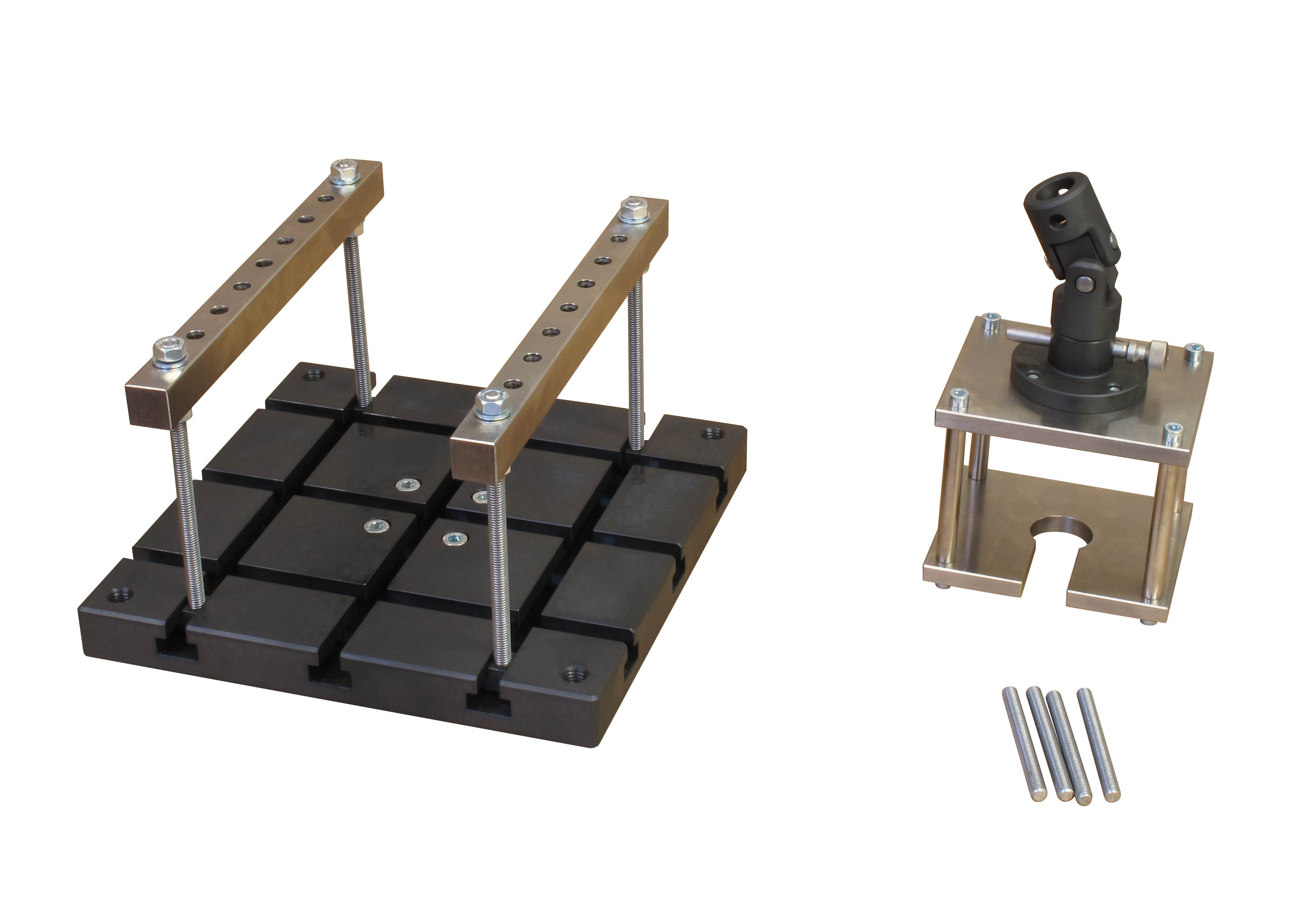

Description: Description: C:\Users\Anri\Desktop\TH36t\tn_TH36t TH235 THS327  special chuck jig.jpg

TH36T+TH235-20



S-slotted platen in combination with a chuck grip TH235-20 is used to clamp larger samples, adjustable height

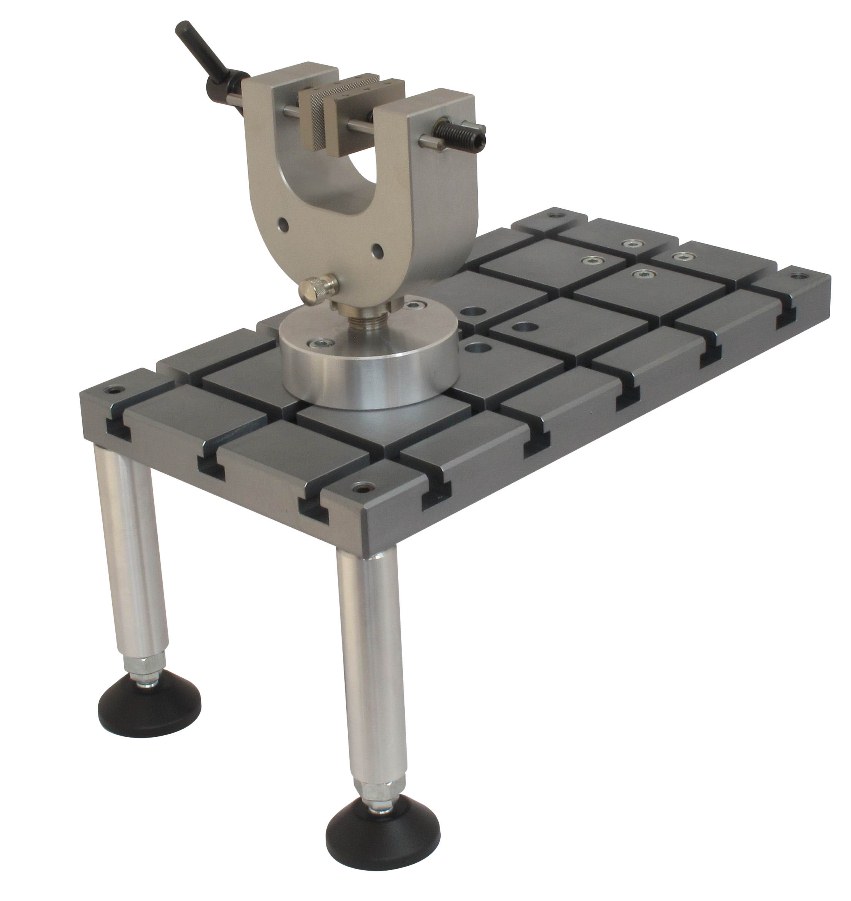

TH36t-220x400+AM15



TH36T can be used in a single-column tensile tester

and with a grip mounted on the platen



TH36T-250-ST+HL86x30 & TH154-S100-ST+S80-BL24a20



Custom made version with special holders to test car batteries in combination with a vise grip TH154-S100-ST with special jaws



Description: tn_TH36t-250-ALu-Af159-RTT-

TH36T-250-AL-Af159



Special version with a rotatable adapter, coupling Af159, platen dimensions 250X250mm

TH36T-50x400-S17



Special version with diagonal slots

TH36T-250-Al-Z3



Special version with cutouts for one-column tensile testers



Description: tn_TH36t-800x600-40xM8-Aluf.jpg

TH36t-800x600-40xM8



Special version, 800X600 mm

Description: Description: THS347St-300x260.jpg

THS347-St-300x260
