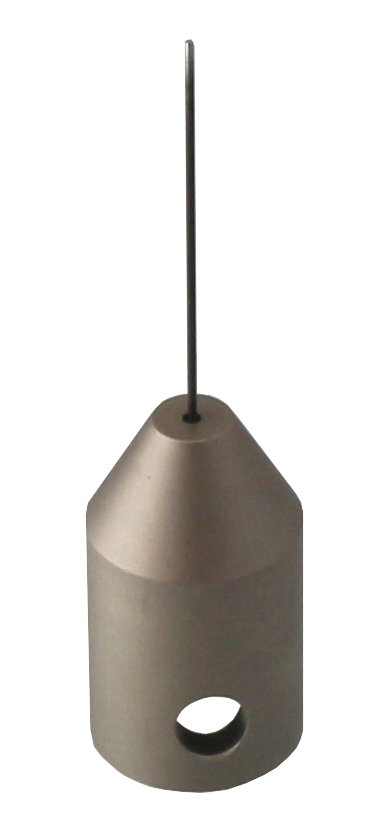

	THS42-R0.5-50-Af159-EN14477 Compression probe for puncture resistance of flexible packaging material according to EN14477 Max. load 50 N Radius 0.5 mm, pin length 50 mm Coupling Af159 THS42 Datasheet.pdf THS42 Datenblatt.pdf

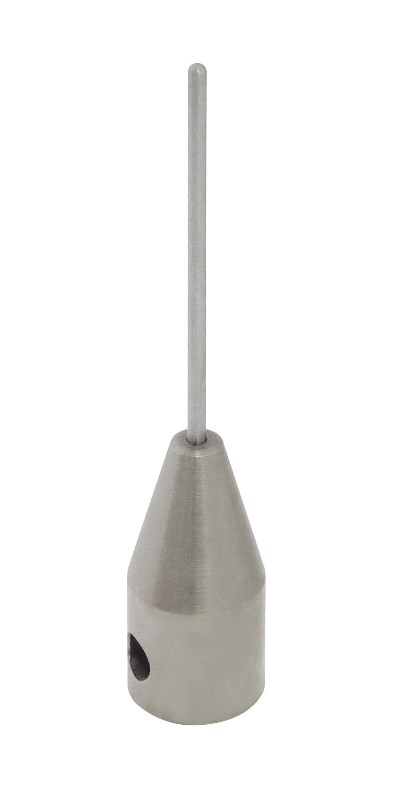

	THS42-R1.5-70-Af159 Compression probe with radius 1.5 mm Pin length 70 mm Coupling Af159 mm

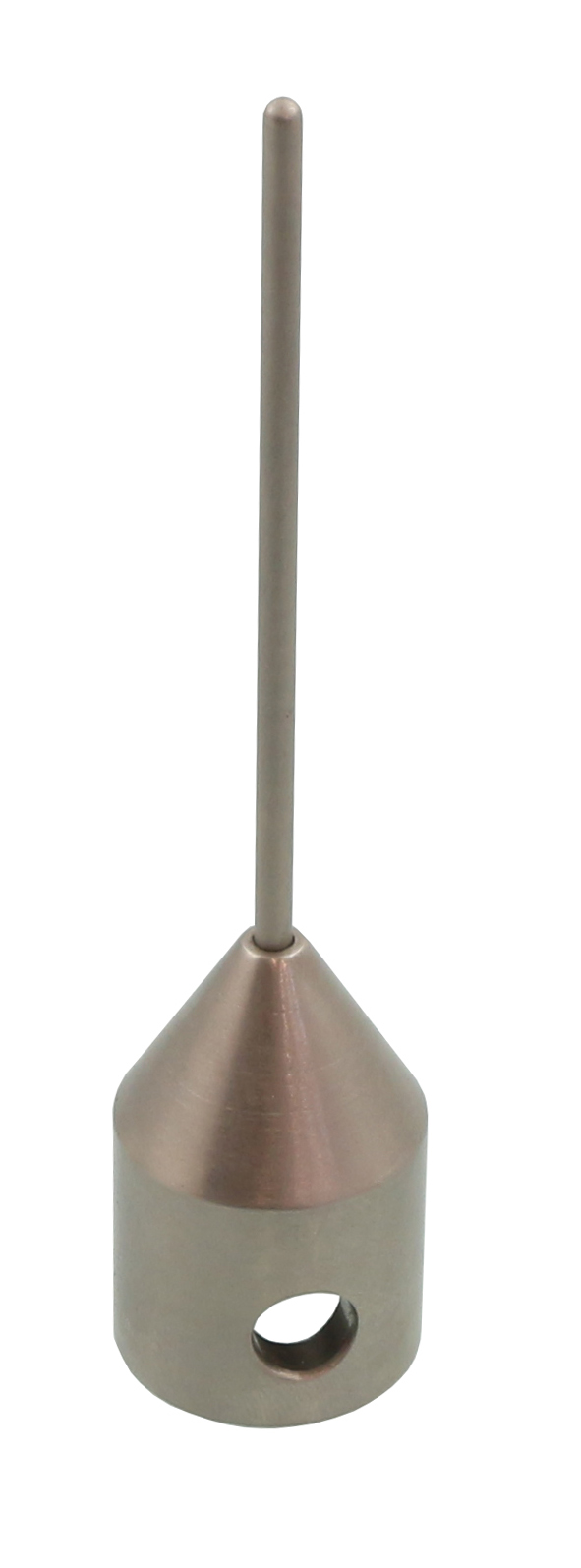

	THS42-R1.5-70-Af20 Compression probe with tip radius 1.5 mm, pin length 70 mm Steel, hardened, nickel-plated Coupling Af20

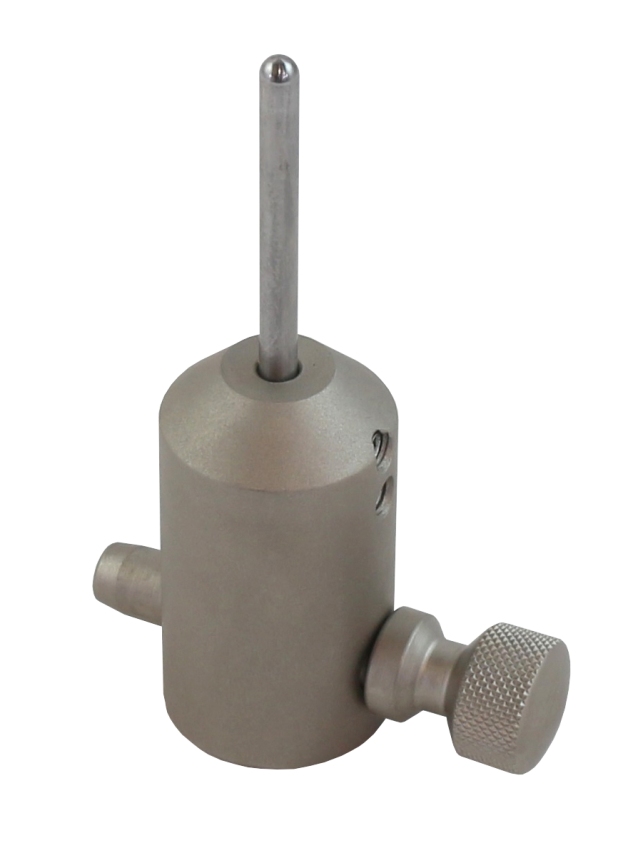

	THS42-R2-38-Af159 Compression probe with tip radius 2 mm, pin length 38 mm Steel, hardened, nickel-plated Coupling Af159

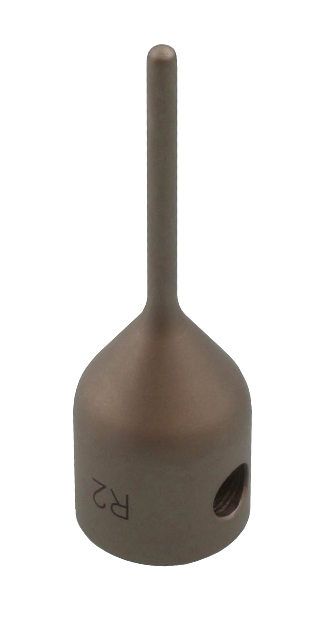

	THS42-R2-40-Af159 Compression probe with tip radius 2 mm Pin length 40 mm Coupling Af159 Steel, hardened, nickel-plated

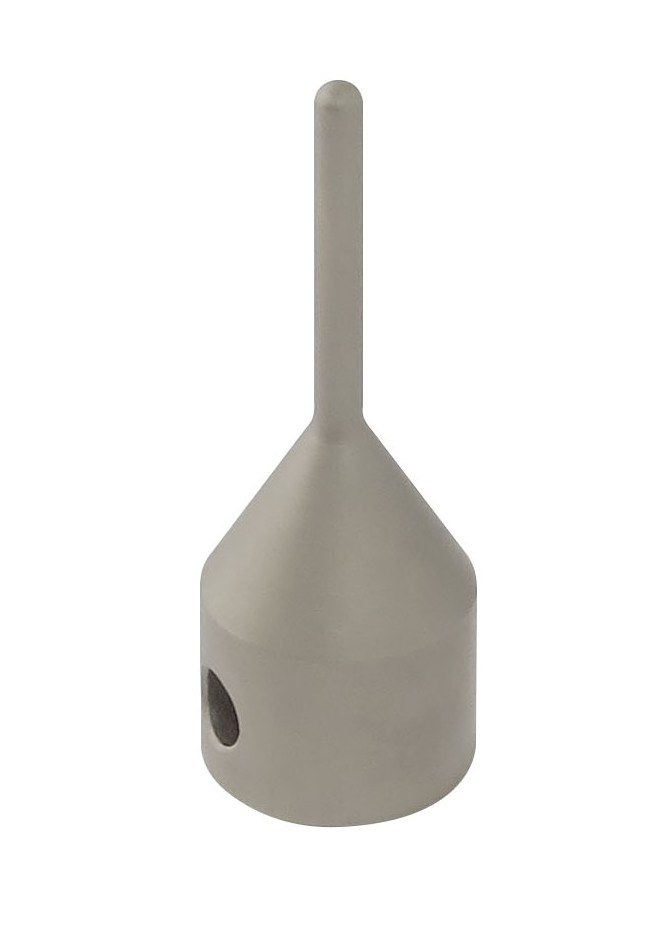

	THS42-R2.5-40-Af159 Compression probe with radius 2.5 mm Pin length 40 mm Coupling Af159, total length 80 mm

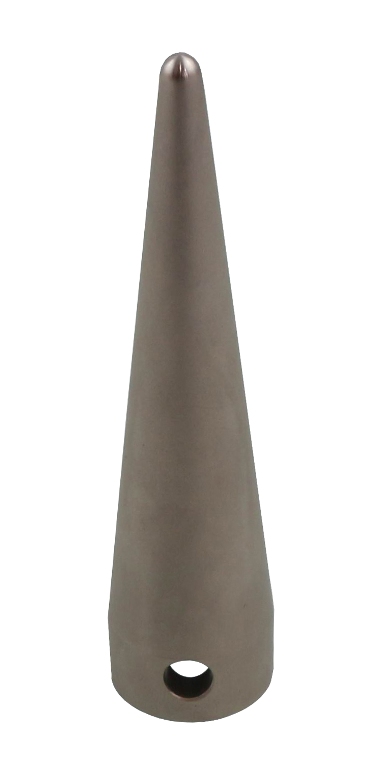

	THS42-R3.2-120-Af159 Compression probe with tip radius 3.2 mm, total length 120 mm Steel, hardened, nickel-plated Coupling Af159

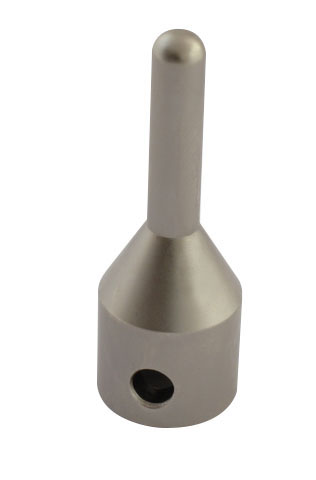

	THS42-R5-40-Af159 Compression probe with radius 5 mm Pin length 40 mm Coupling Af159, total length 80 mm
	THS42-R5-40-ASTM-C1499 + THS747-15-35-R2.5 Special fixture to test monotonic equibiaxial flexural strength of advanced ceramics at ambient temperature According to ASTM-C1499

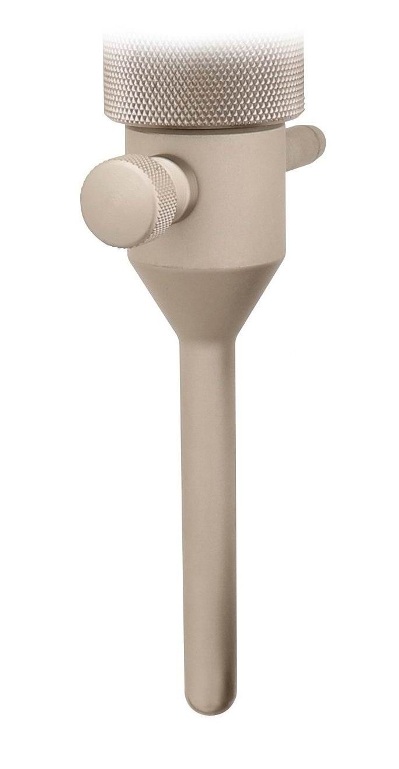

	THS42-R5-70-Af159 Compression probe with radius 5 mm Pin length 70 mm Coupling Af159

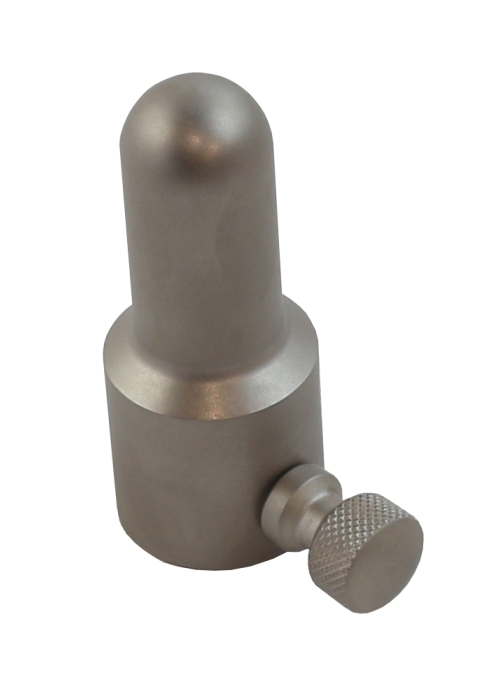

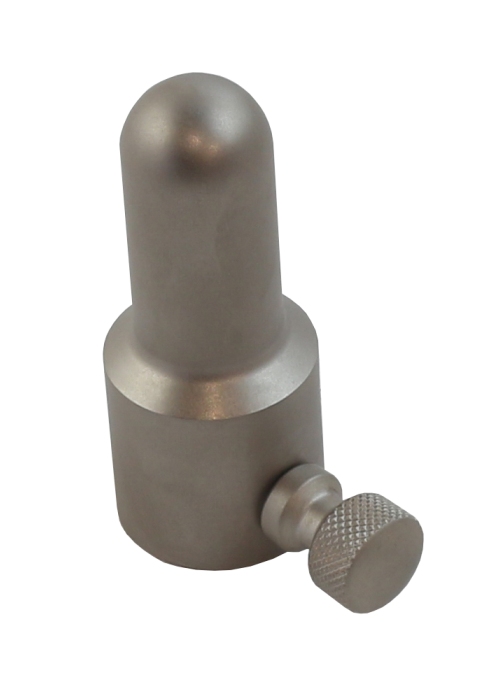

	THS42-R10-40-Af20-St Compression probe with radius 10 mm Pin length 40 mm Coupling Af20 Steel, nickel-plated, hardened

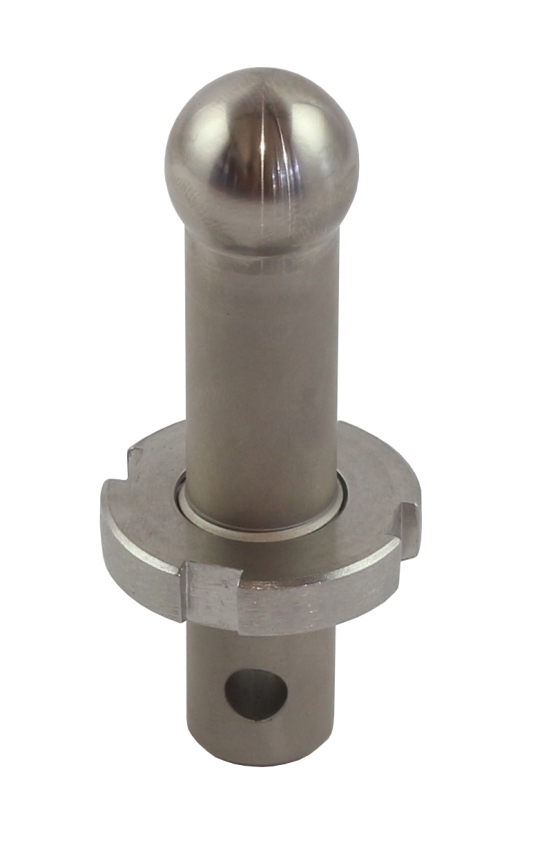

	THS42-R10-50-Am16 Compression probe with radius 10 mm Pin length 50 mm Steel, nickel-plated, hardened Coupling Am16

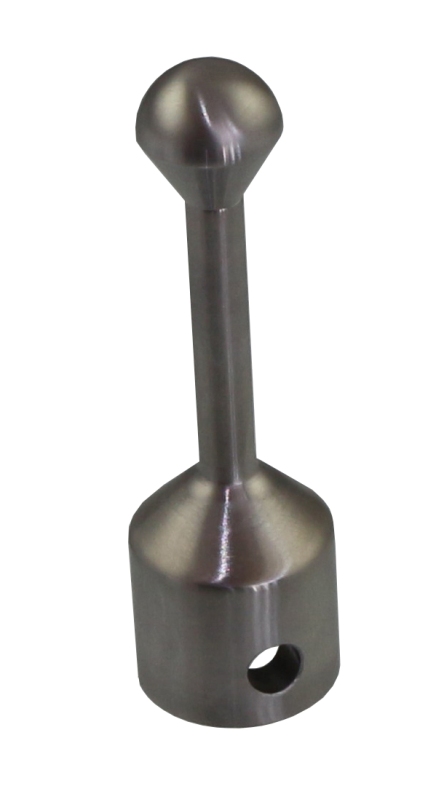

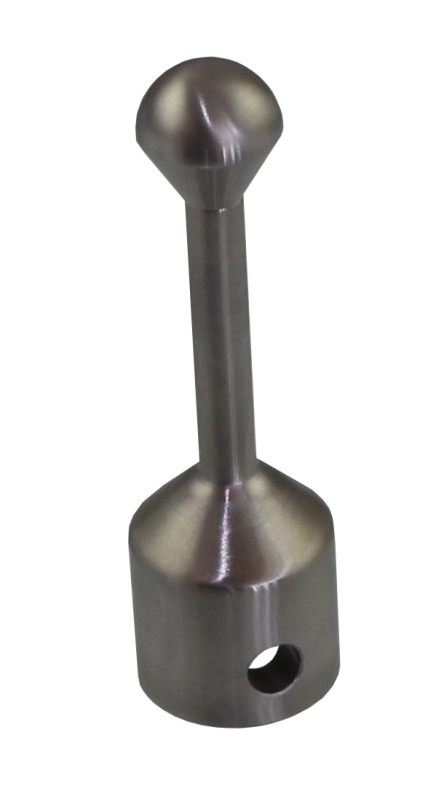

	THS42-R10-65-Af159 Compression probe for tack testing of adhesives with radius 10 mm Interchangeable ball diameter 20 mm Probe length 65 mm Stainless steel Coupling Af159

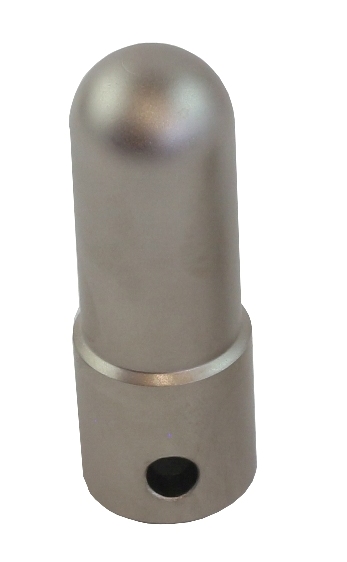

	THS42-R12.5-50-Af159 Compression probe with radius 12.5 mm Pin length 50 mm Coupling Af159

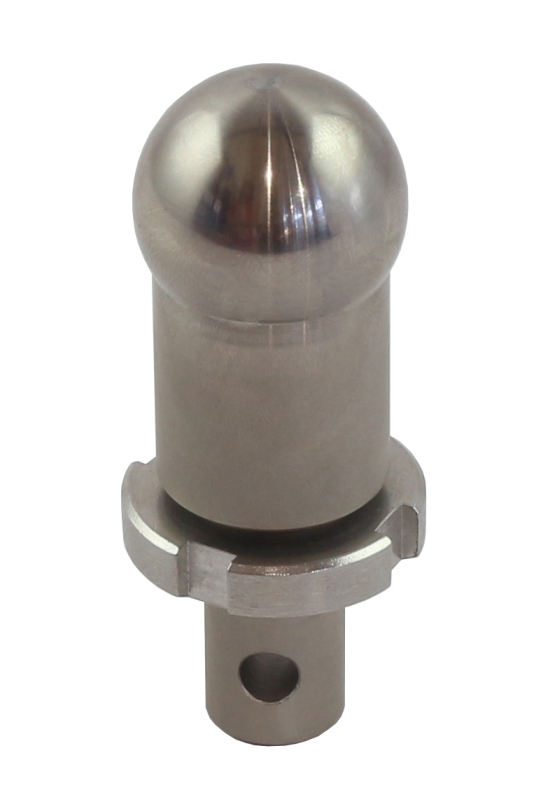

	THS42-R15-50-Am16 Compression probe with radius 15 mm Pin length 50 mm Steel, nickel-plated, hardened Coupling Am16

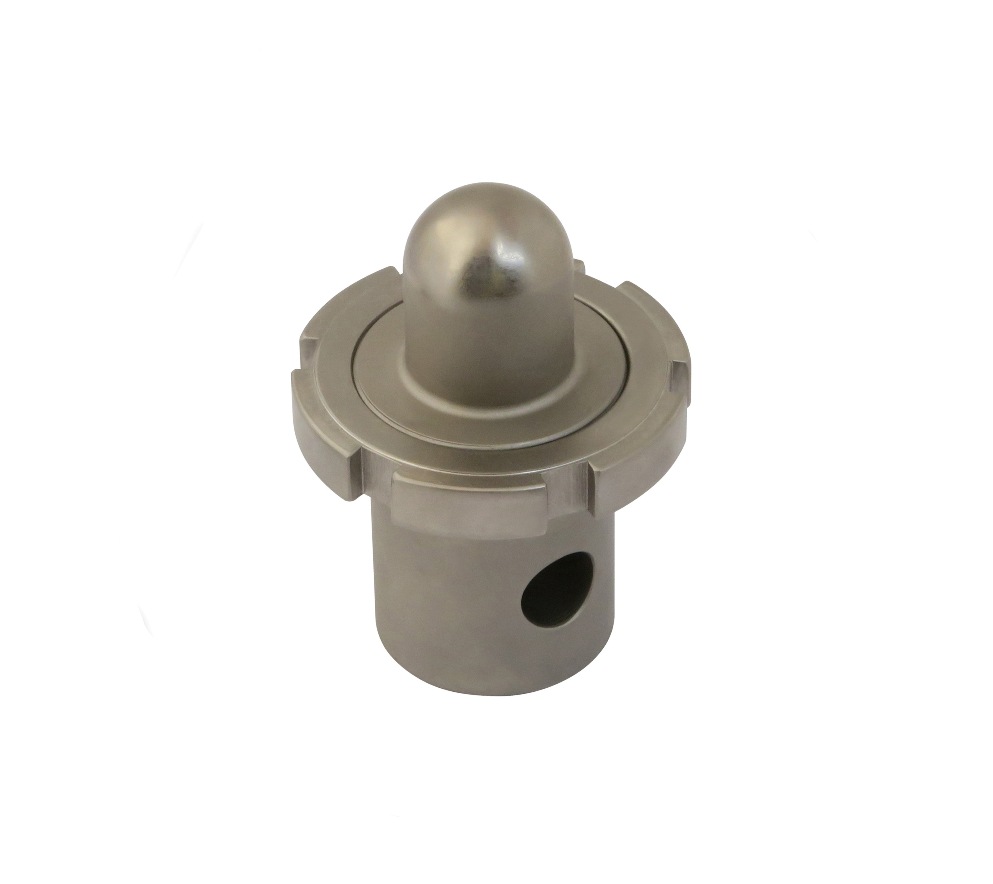

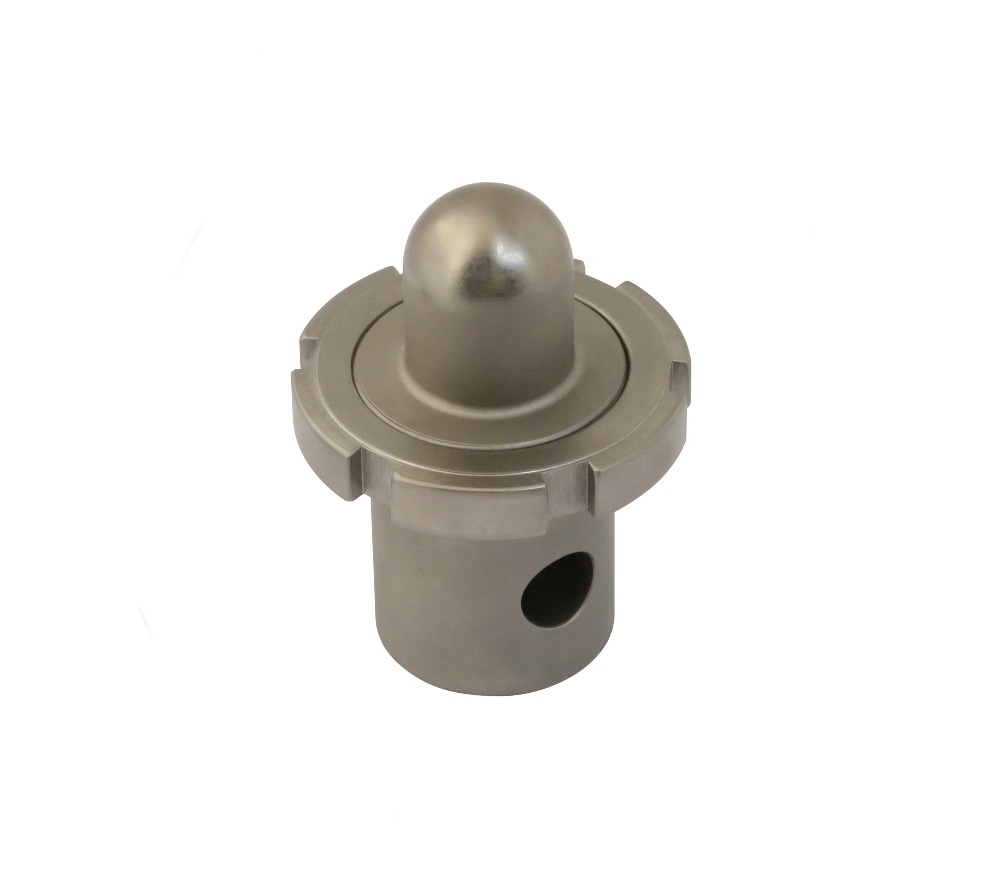

	THS42-R16.5-Am5025 Compression probe with radius 16.5 mm Coupling Am50

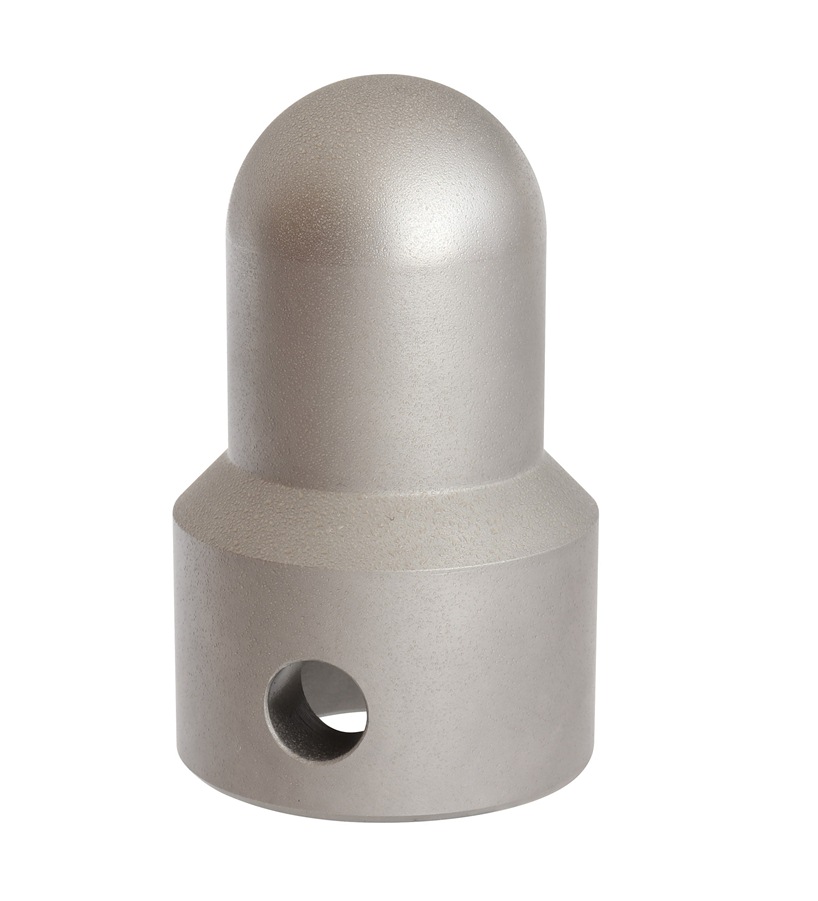

	THS42-R25-Af3816            Special compression probe with radius 25 mm Coupling Af38
	THS42-R37.5-Af20-DIN53579-TypeXI Indentor for testing flexible cellular materials according to DIN53579-TypeXI Radius 37.5 mm Coupling Af20 Steel, nickel-plated, hardened Max. load 10 kN For bottom compression platen see TH36L-400-L6x20

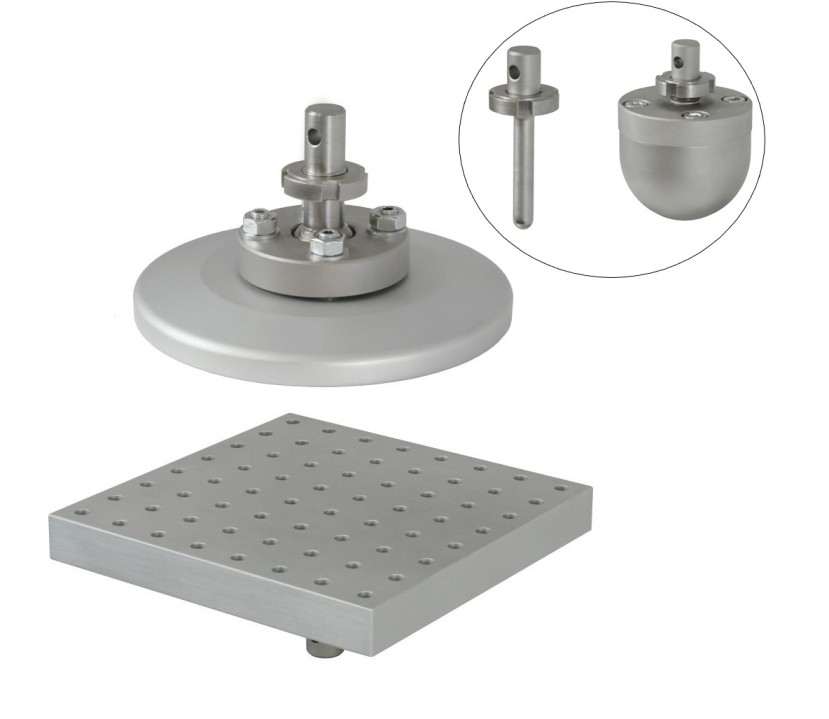

	THS42-R5 + THS42-R37.5 + THS223b + TH36L-160-L6x20-AL Special platen for testing flexible cellular materials according to DIN53579 Max. load 10 kN more

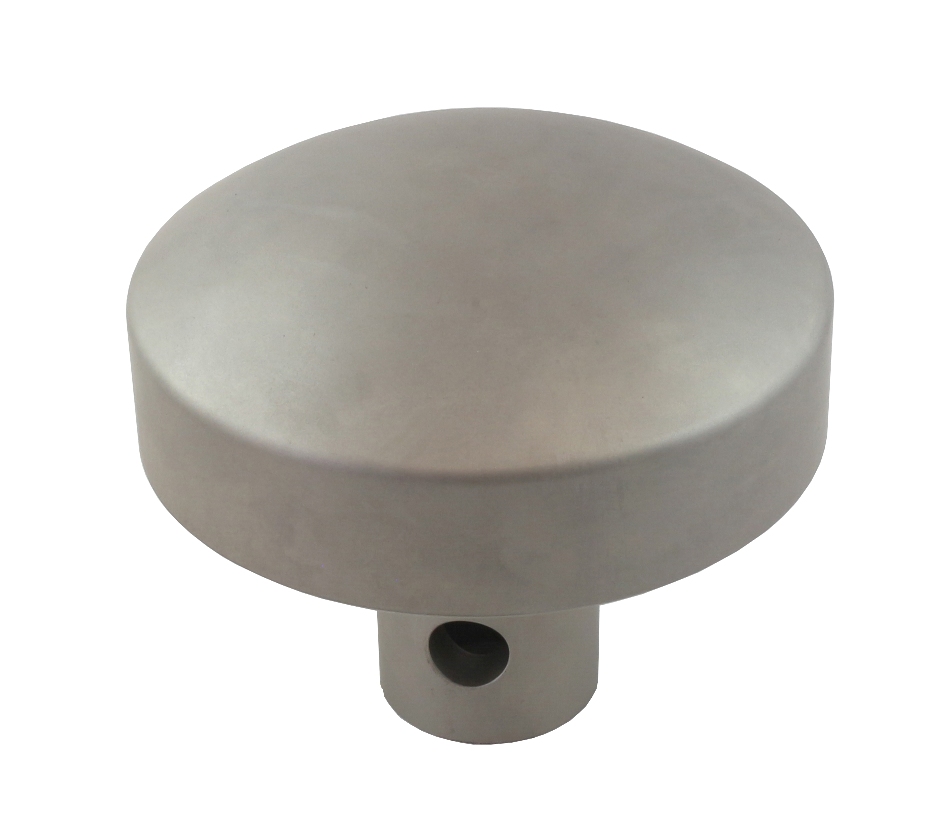

	THS42-R120-60-Am50175 Special compression probe Radius 120 mm, probe height 60 mm Max. load 100 kN Coupling Am50/175
