G08 Wedge grips

Back to G08 - Wedge grips

Back to G12 - Pneumatic grips

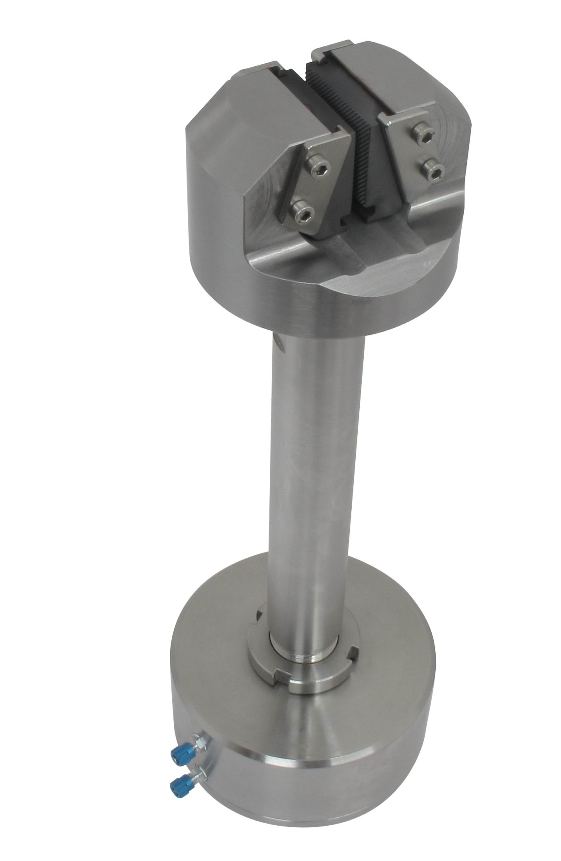

THS321-10+BP



Pneumatic wedge grip 10 kN



450

Description: pdf_icon.gifTHS321 Datasheet.pdf



Description: pdf_icon.gifTHS321 Datenblatt.pdf

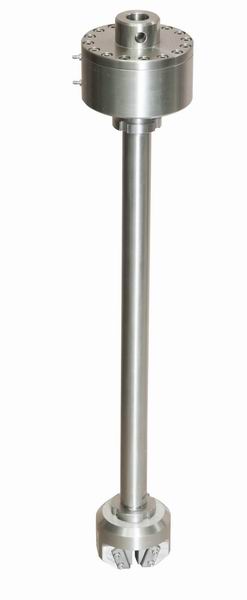

THS321-10



10 kN



350C

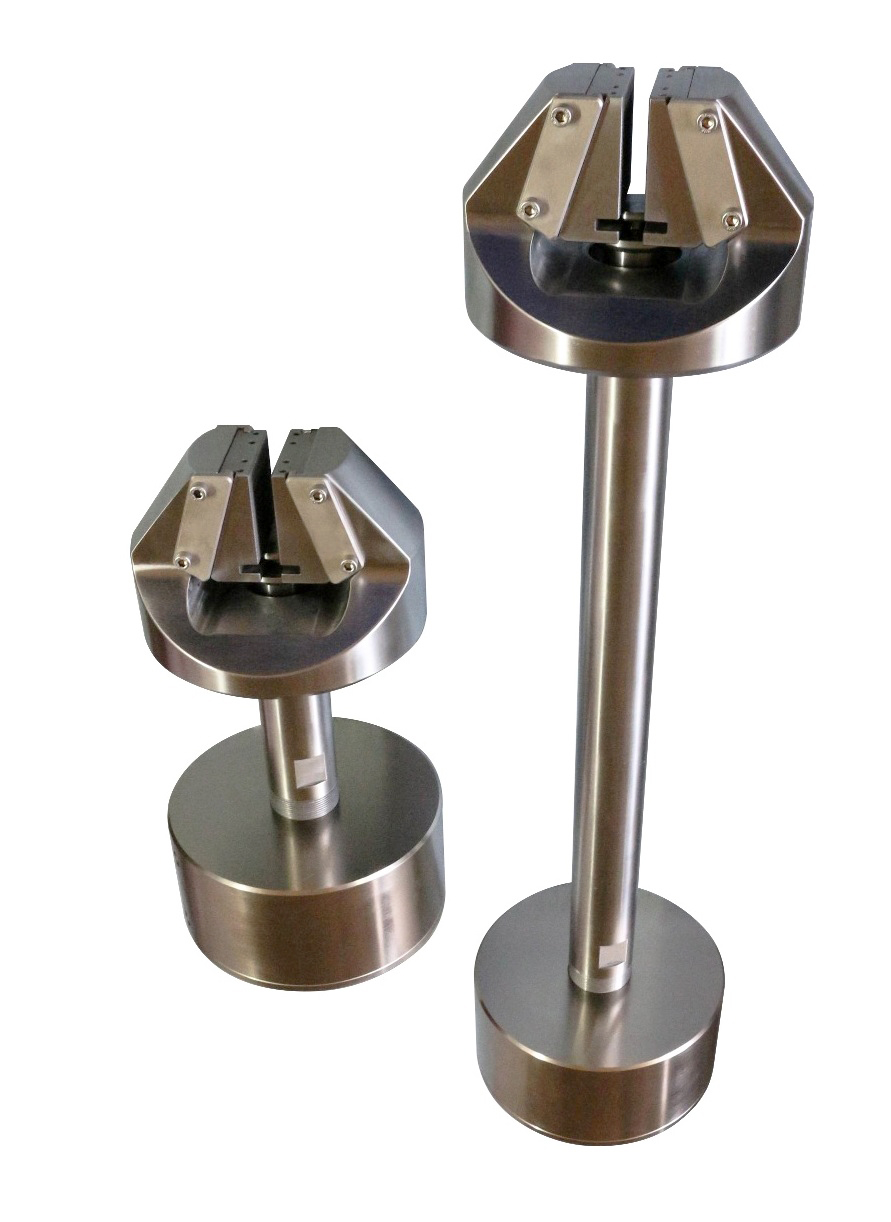

THS321-20



pneumatic wedge grip for temperature chambers 350C



20 kN


THS321-50



Pneumatic wedge grip for temperature chambers 350C



50 kN

THS321-V2a



50 kN


THS321-50



50 kN



350C

tn_THS321-50-T400-Af318

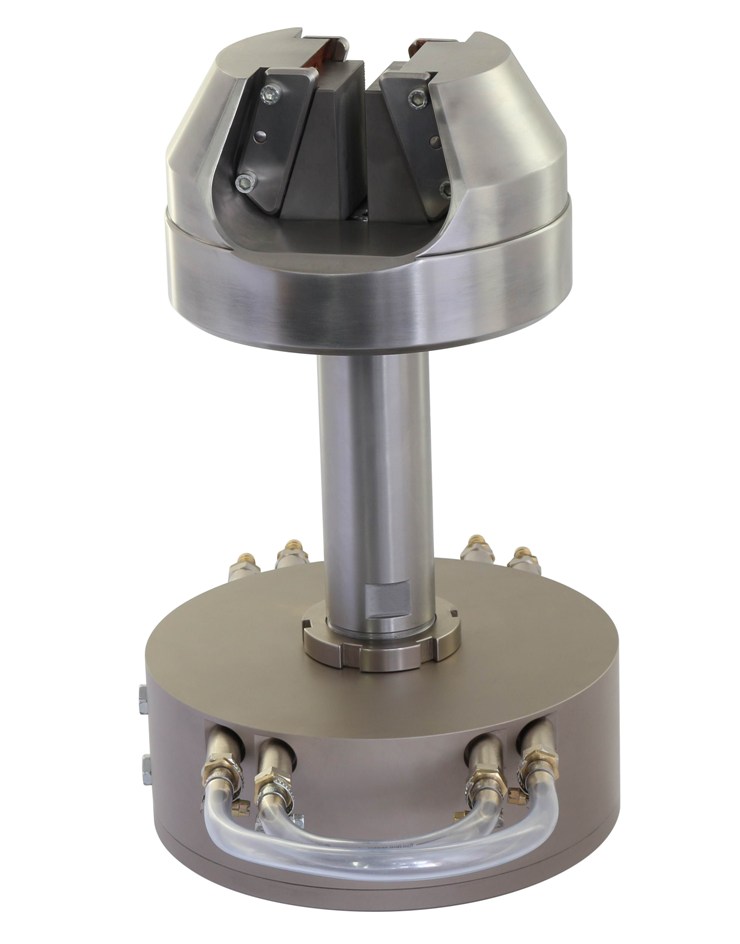

THS321-50



Pneumatic wedge grip
for chambers -70C 400C
50 kN in tension
External pneumatic rod outside of chamber
pre-clamping  force 21 kN with 7 bar
( Max pressure 16 bar with TH216  pre clamping force  48 kN  )
clamping load increases during test and can reach 150 kN (with 50 kN tension and 16 bar )


high strengths special stainless steel

external parts Nickel coated


rod length to be defined
Water cooling

tn_THS321-50-01-xh-  THS321-50-Af318-T400-181-392-

tn_THS321-50-T400-Af318-

Description: THS321-100-HY-.jpg

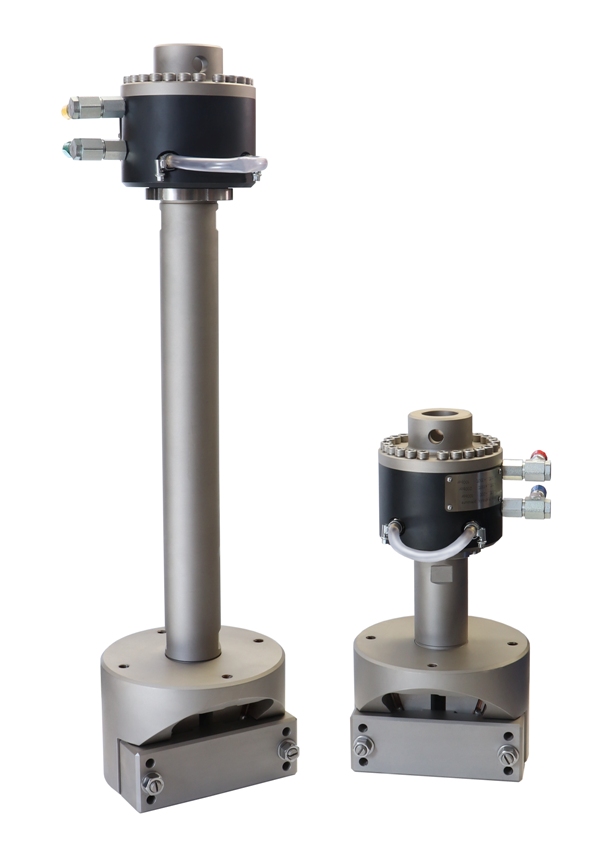

THS321-100-HY



Hydraulic wedge grip 100 kN



For temperature chambers -70C .. 350C

With separate control piston

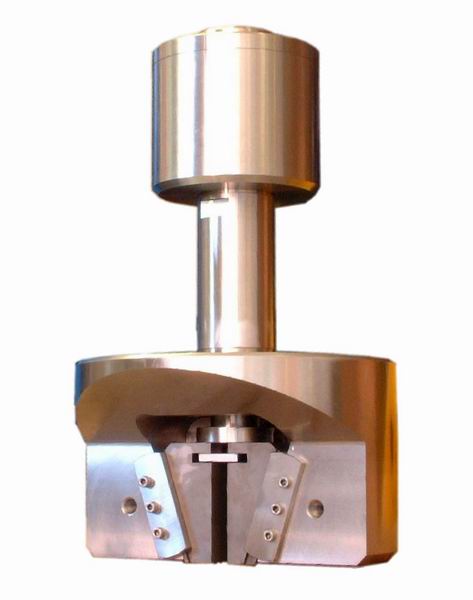

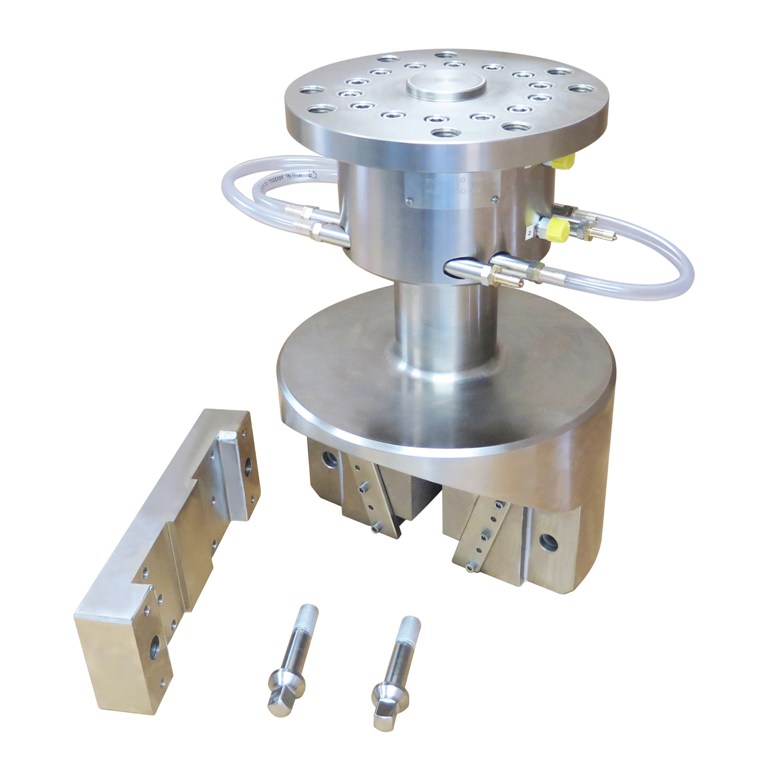

Description: THS321-250-5.jpg

THS321-250-5



250 kN
