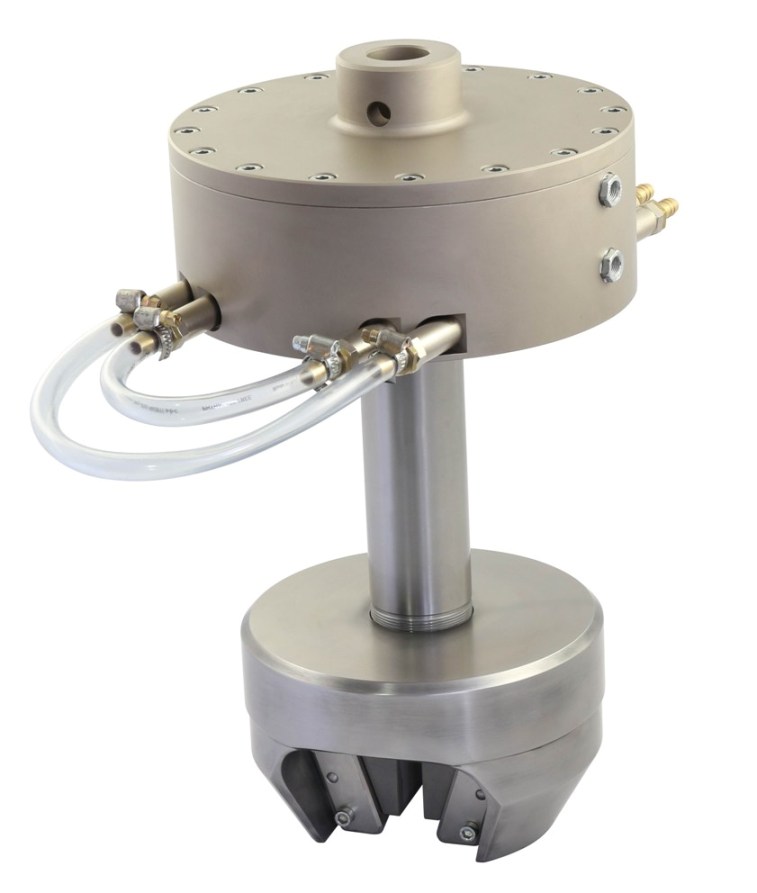

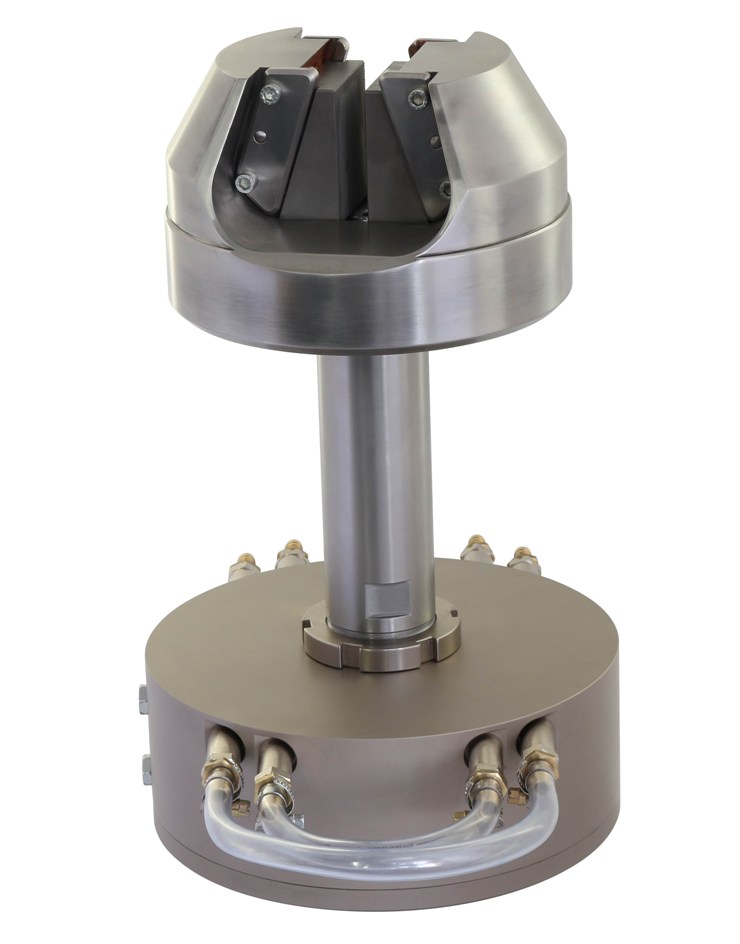

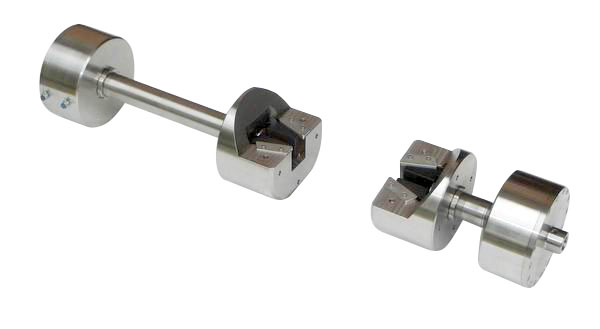

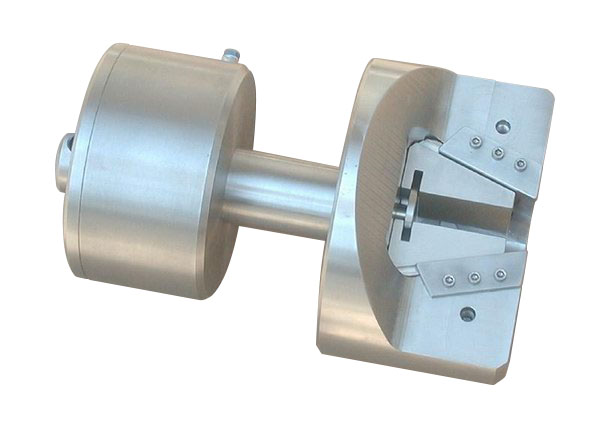

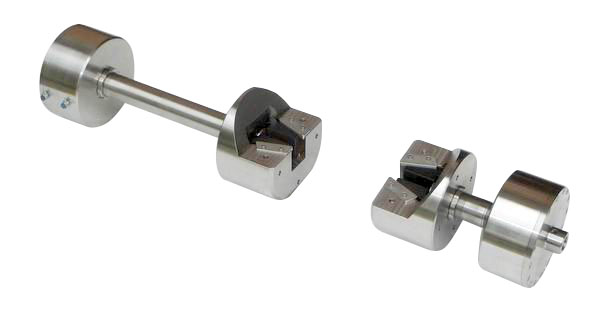

	THS321-50 Pneumatic wedge grip for temperature chambers 350°C Max. load 50 kN
	THS321-50-Pn Max. load 50 kN
	THS321-50 Max. load 50 kN
	THS321-50 Pneumatic wedge grip for chambers -70°C … 400°C 50 kN in tension External pneumatic rod outside of chamber Pre-clamping  force 21 kN with 7 bar (Max pressure 16 bar with TH216  pre clamping force  48 kN) Clamping load increases during test and can reach 150 kN (with 50 kN tension and 16 bar ) High strengths special stainless steel  external parts Nickel coated Rod length to be defined Water cooling
	THS321-50
